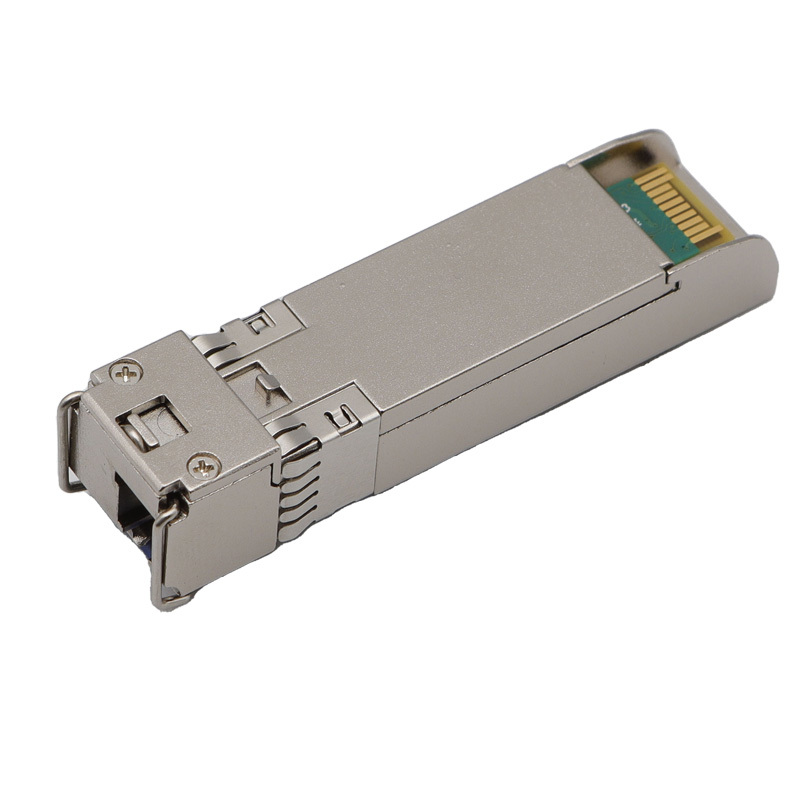

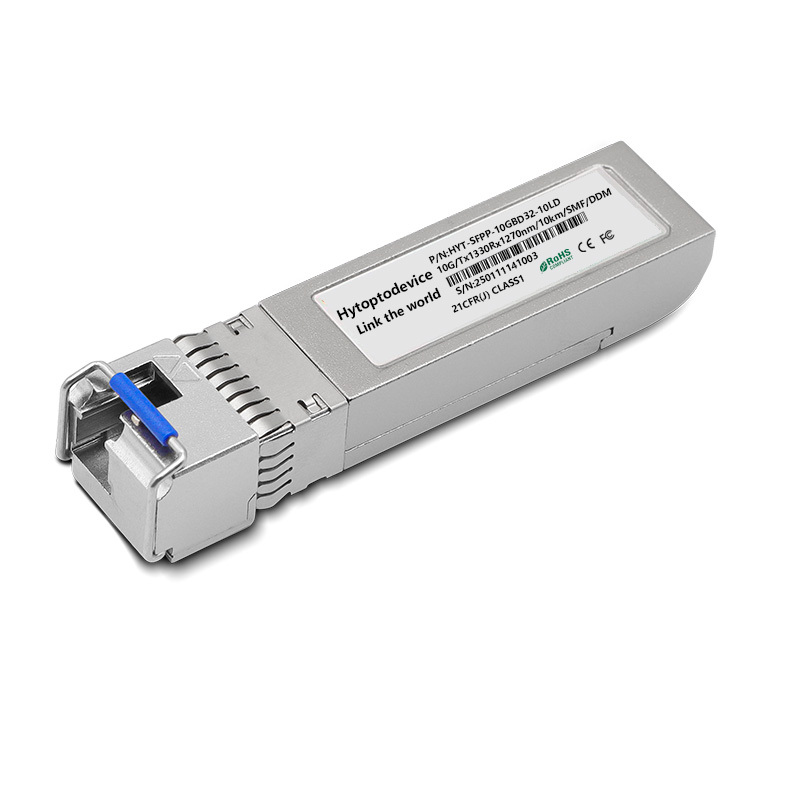

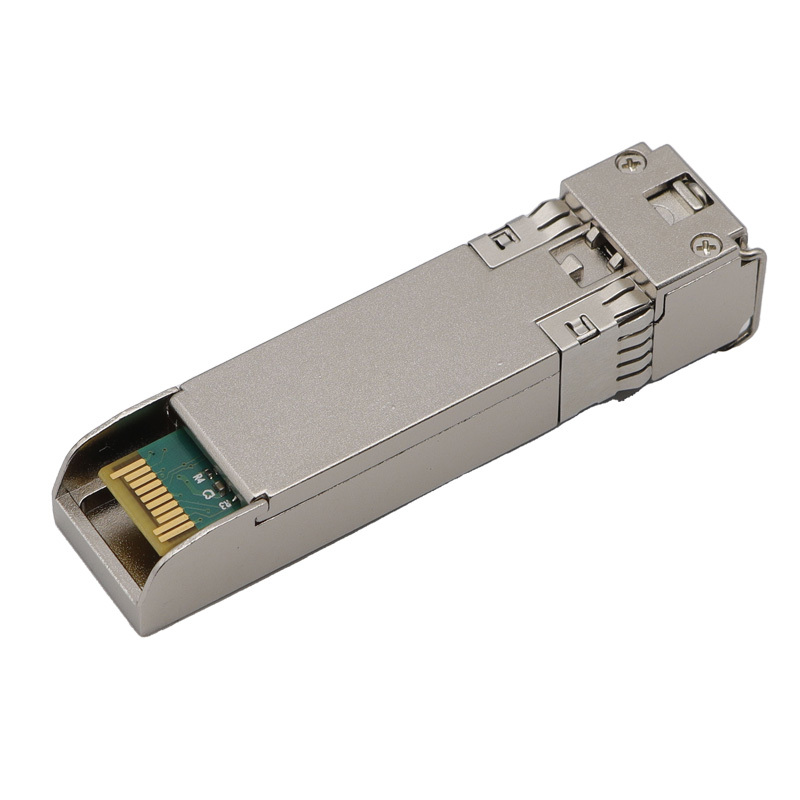

HYTOPTODEVICE Huawei SFP-10G-BXD1 Compatible 10GBASE-BX10-D SFP+ BiDi 1330nm-TX/1270nm-RX 10km DDM LC SMF Optical Transceiver Module

Compatibility and Supported Devices

The HYTOPTODEVICE SFP-10G-BXD1 is specifically engineered for "Plug-and-Play" performance with a vast range of Huawei VRP-based hardware:

• Huawei CloudEngine Series (Data Center): CE12800, CE8800, CE6800 (e.g., CE6850, CE6810), and CE5800 series.

• Huawei Quidway / S-Series (Campus Switching): S6700 (S6720-EI/HI), S5700 (S5720/S5730), S7700, and S9700 core switches.

• Huawei NetEngine (NE) Routers: NE40E, NE20E-S, and NE05E/08E series service routers.

• Huawei OptiX Access (Fixed Network): MA5800, MA5600T OLT platforms for 10G uplink aggregation.

• Universal Compatibility: This module also maintains high interoperability with ZTE, FiberHome, and TP-Link enterprise-grade switches.

• Data Center Fiber Optimization: Ideal for high-density Top-of-Rack (ToR) or Leaf-Spine architectures where reducing cable bulk is critical. Use 10G BiDi to handle 10Gbps traffic over a single fiber strand.

• Carrier-Grade Metro Networks: Efficiently establish 10km metropolitan links between branch offices or central offices (CO) using existing single-mode fiber infrastructure.

• Mobile Backhaul & 5G Base Stations: Provides reliable, low-latency 10GBASE-BX10-D connectivity for Huawei-based mobile backhaul and LTE/5G base station aggregation.

• WISP & FTTH Uplinks: A cost-effective solution for Internet Service Providers to upgrade 1G links to 10G Ethernet without the massive capital expense of laying new fiber lines.

Key Product Parameters

Connectivity Solutions(Applications)：


FAQ for Huawei SFP-10G-BXD1 Compatible SFP+BIDI Transceiver

Q1: What are the exact TX/RX wavelengths for the Huawei SFP-10G-BXD1? A: The SFP-10G-BXD1 (Downstream) module transmits at 1330nm and receives at 1270nm. For a functional link, it must be paired with the SFP-10G-BXU1 (1270nm-TX/1330nm-RX) at the other end.

Q2: Will the Huawei switch report this as a "Non-Certified" or "Generic" module? A: No. HYTOPTODEVICE modules are pre-coded with Huawei-specific digital signatures. Your CloudEngine or S-Series switch will recognize it as an original SFP-10G-BXD1, ensuring no "unsupported transceiver" alarms appear in the logs.

Q3: Can I monitor the optical power in the Huawei VRP CLI? A: Absolutely. Our modules support full Digital Optical Monitoring (DOM). Simply run the command display transceiver diagnosis interface [Port-ID] to view real-time TX/RX power, temperature, and voltage.

Q4: Is the HYTOPTODEVICE version compatible with industrial temperatures? A: This specific model is a Commercial Grade (0°C to 70°C) transceiver. If you require deployment in unconditioned outdoor cabinets, please ask for our Industrial Grade (-I) version.

Q5: Why choose the BXD1/BXU1 pair over standard duplex fiber modules? A: The main advantage is fiber conservation. By using BiDi technology, you can double your link capacity using your current single-core fiber plant, reducing total infrastructure costs by up to 50%.

Quality Assurance：Your Trusted Optical Transceiver Source

HYTOPTODEVICE is a vertically integrated manufacturer of high-performance optical transceivers. By controlling core materials at the source, we ensure every SFP module meets the highest standards of reliability and customization.

• Vertical Integration: In-house core material production ensures a stable, self-sufficient supply chain for all optical modules.

• Total Traceability: End-to-end oversight from raw components to final transceiver assembly guarantees 100% controllability.

• Bespoke Solutions: Expert-led R&D provides customized SFP transceiver designs tailored to your specific technical needs.

• 24-Hour Response: Our technical team guarantees a primary response to any inquiry or quality concern within 24 hours.

Carrier-Grade Quality. Factory-Direct Control. Rapid Response.

Quality Certification & Compliance：

At HYTOPTODEVICE, our quality commitment is backed by industry-standard validations. From fiber optical transceiver manufacturing to final inspection, our processes ensure global compliance and reliability.

We adhere to rigorous standards for our SFP modules and network solutions:

• ISO 9001: Certified quality management and production consistency.

• CE & FCC: Fully compliant for seamless Global Market Access.

• RoHS: Committed to environmental responsibility and hazardous material control.

• Proven Reliability: Rigorous testing to reduce compliance risk and ensure safety.

Certified Quality. Global Standards. Guaranteed Performance.

Rigorous Industrial Product Testing：



100% 3rd Party Compatible：

Partial Test Demonstration：
