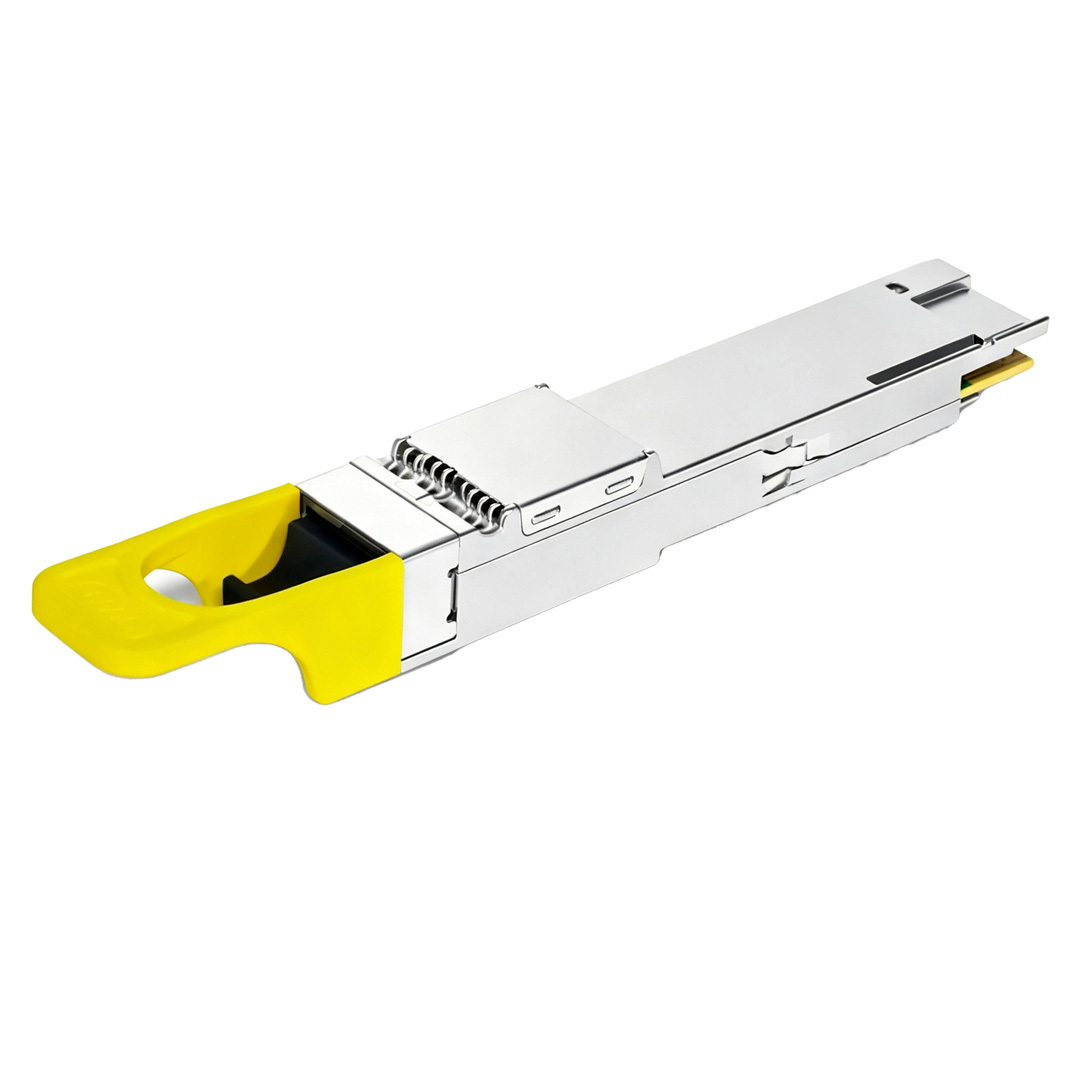

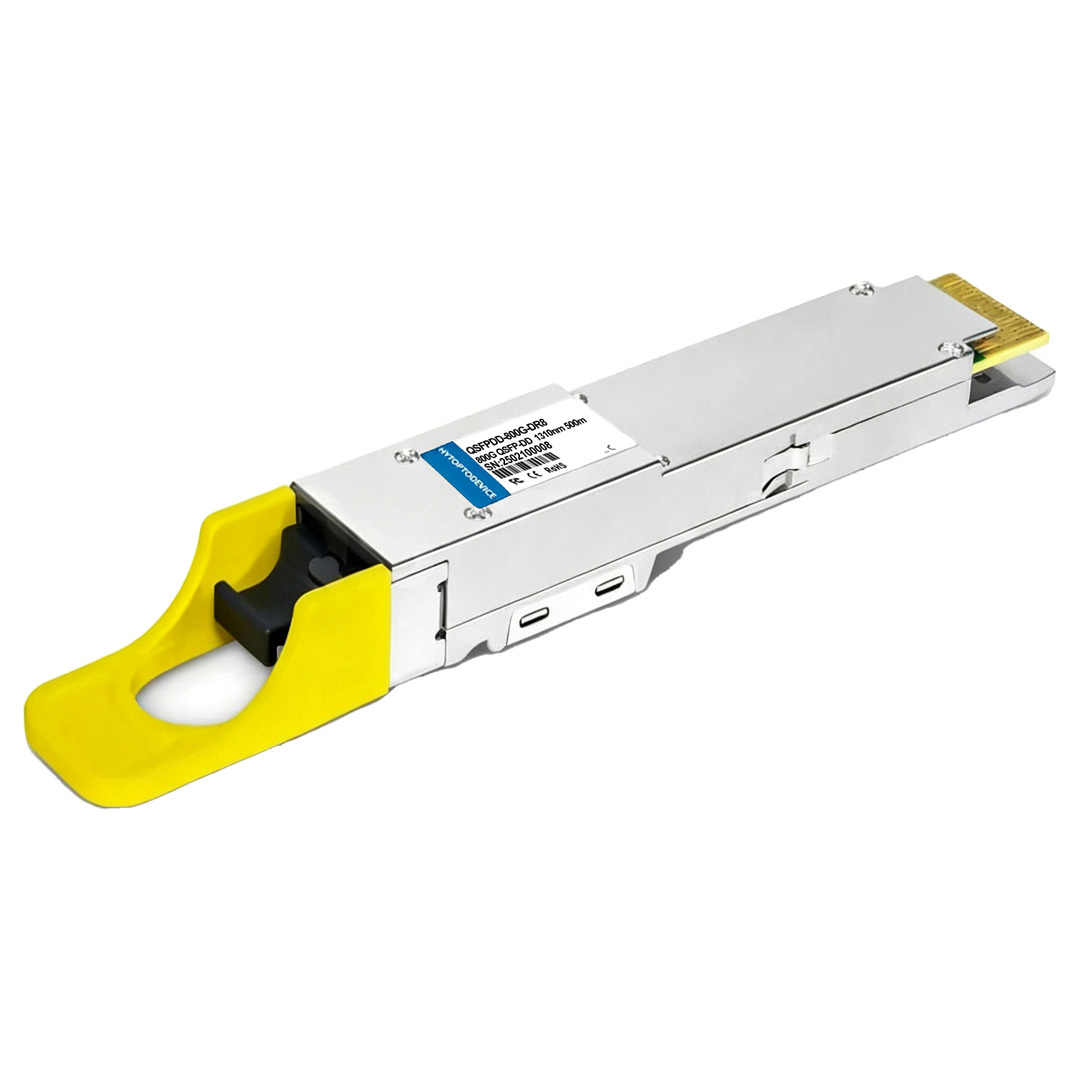

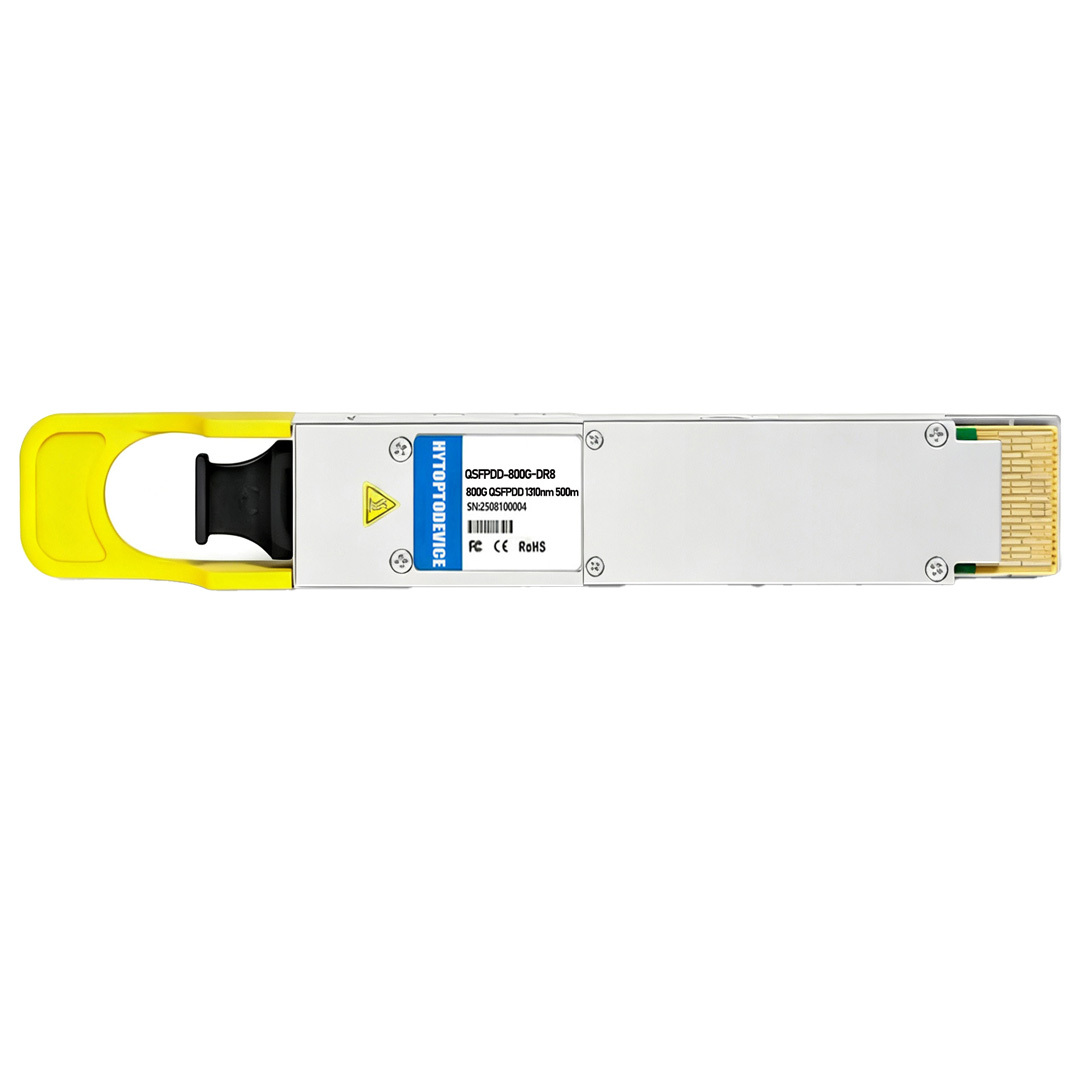

HYTOPTODEVICE 800G Transceiver | Arista Compatible 800BASE-DR8 QSFP-DD Optical Transceiver Module (SMF, 1310nm, 500m, MPO-16 APC, DOM)
      The HYTOPTODEVICE QDD-800G-DR8 is a high-performance Arista compatible 800G optical transceiver, engineered for next-generation 800G Ethernet, Data Center Interconnect (DCI), and InfiniBand Interconnects.it transmit traffic up to 500m over OS2 single-mode fibre (SMF) using a wavelength of 1310nm via MTP/MPO-16 APC connectors. Fully compliant with IEEE P802.3ck, IEEE 802.3cu, QSFP-DD MSA standards.supporting real-time DDM.
      The 800G QSFP-DD transceiver supports 2x 400G DR4 and 8x 100G DR breakout applications.It can split into two separate 400Gbps connections, each running over 4 lanes of parallel single-mode fiber (DR4) or split into eight individual 100Gbps connections. Featured with low latency, low power, and reliability, perfect for 800G Ethernet, Data Center, high-performance computing networks, enterprise core and distribution layers, and service provider applications.

Full Compatibility List and Supported Devices of Arista 800G Optical Transceiver

This module is 100% pre-programmed and thoroughly tested to match Arista EOS® parameters, providing seamless plug-and-play interoperability with Arista 800G platforms, including:

• Arista 7800R3 Series Modular Switches:

  • 7800R3K-36DM-LC (High-density 800G line cards)

• Arista 7060X5 Series Fixed Configuration Switches:

  • 7060DX5-32E (32-port 800G QSFP-DD)

• Arista 7280R3 Series Routers:

  • Compatible line cards and fixed sub-systems utilizing OSFP/QSFP-DD 800G slots.

Primary Application Scenarios of 800G Optical Module

• AI/ML Infrastructure & Ultra-Large Compute Clusters: Provides high-bandwidth, low-latency interconnections for distributed GPU/TPU environments running large-scale AI model training and inference.

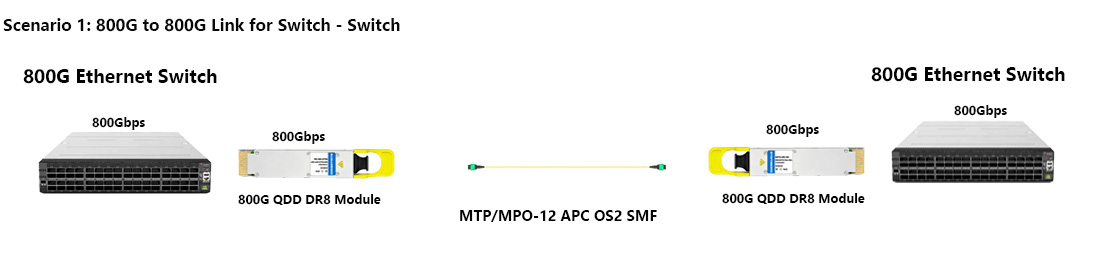

• Next-Generation Cloud Data Centers: Deployed in high-density spine-leaf switching architectures to eliminate throughput bottlenecks at the aggregation core.

• Flexible High-Density Breakout Networking: Supports high-flexibility configurations to interface seamlessly with existing multi-generational networks:

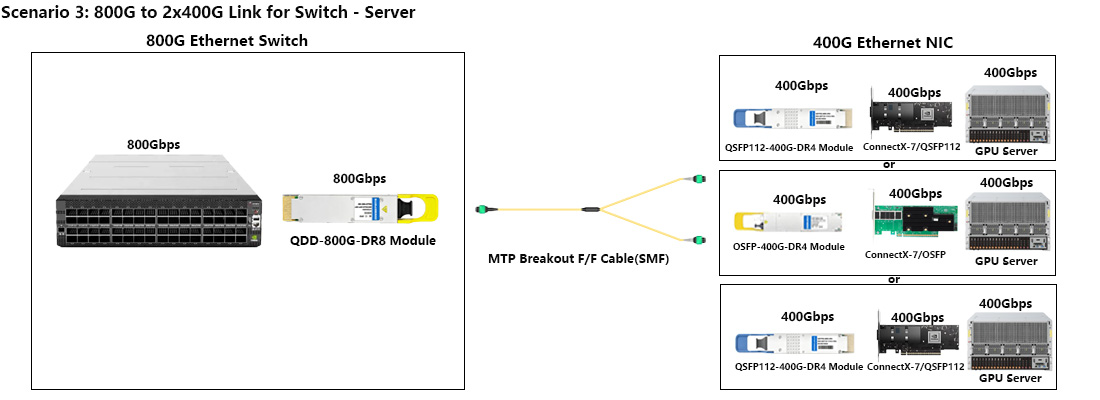

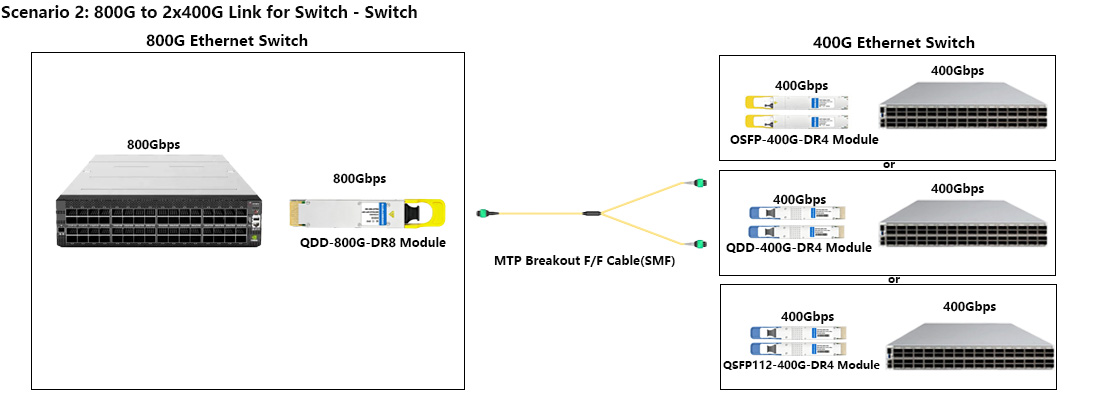

  • 2x 400G DR4 breakout to 400G networking layers.

  • 8x 100G DR breakout to individual 100G server NICs or leaf switches.

• Enterprise High-Performance Computing (HPC): Delivers the required data pipeline performance for financial modeling, scientific data simulation, and ultra-dense storage area networks (SANs).

Key Product Parameters of 800G DR8 Transceiver

Q1:  800G DR8 VS 800G FR4, What is the primary difference ? A1: The primary differences are fiber type layout and distance. DR8 uses parallel optics (8 lanes of 100G running over 8 pairs of single-mode fiber) and reaches up to 500 meters. It is ideal for short-reach high-density environments and allows 8x100G or 2x400G breakouts. FR4 uses coarse wavelength division multiplexing (CWDM) over a single duplex LC fiber pair to reach up to 2km, but it does not natively breakout into 8 individual 100G lines.

Q2: Can the Arista QDD-800G-DR8 operate in breakout mode? A: Yes. This 800G DR8 module natively supports breakout applications. Using appropriate MPO breakout F/F cables, it can be configured in Arista EOS to split into 2x 400G (DR4) or 8x 100G (DR) channels.

Q3: What type of fiber cable and connector are required for this transceiver? A3: The  Arista-compatible 800G DR8 module requires an MPO-16 (APC) connector operating over Single-Mode Fiber (SMF/OS2). Ensure you use an APC (Angled Physical Contact) connector to prevent back-reflection and protect the optical components.

Q4: Is this module hot-swappable, and does it support DOM? A4: Yes, it is fully hot-pluggable, meaning it can be installed or removed without powering down the switch. It also features built-in Digital Optical Monitoring (DOM/DDM), allowing network administrators to monitor real-time metrics like TX/RX optical power, temperature, and voltage via the Arista CLI.
