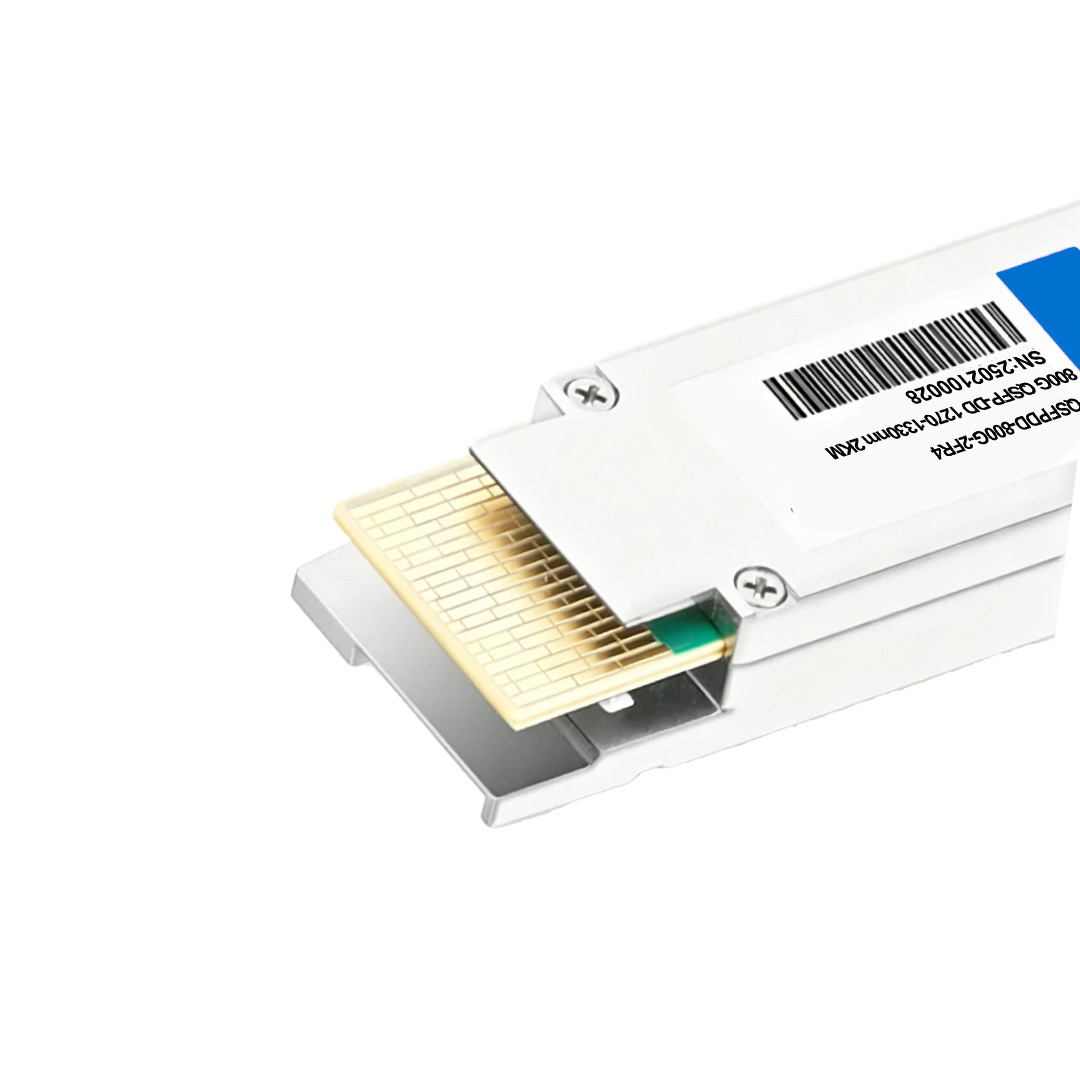

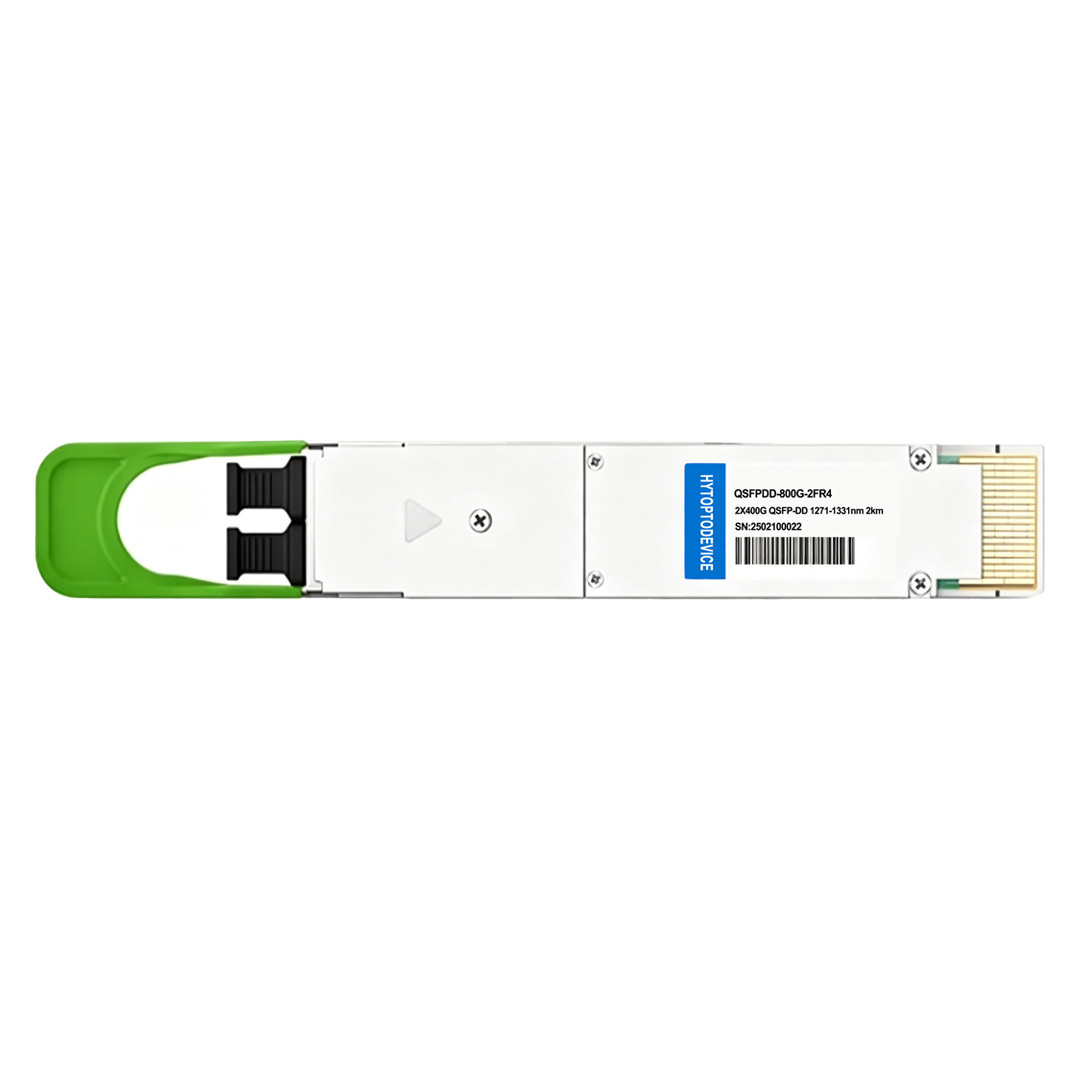

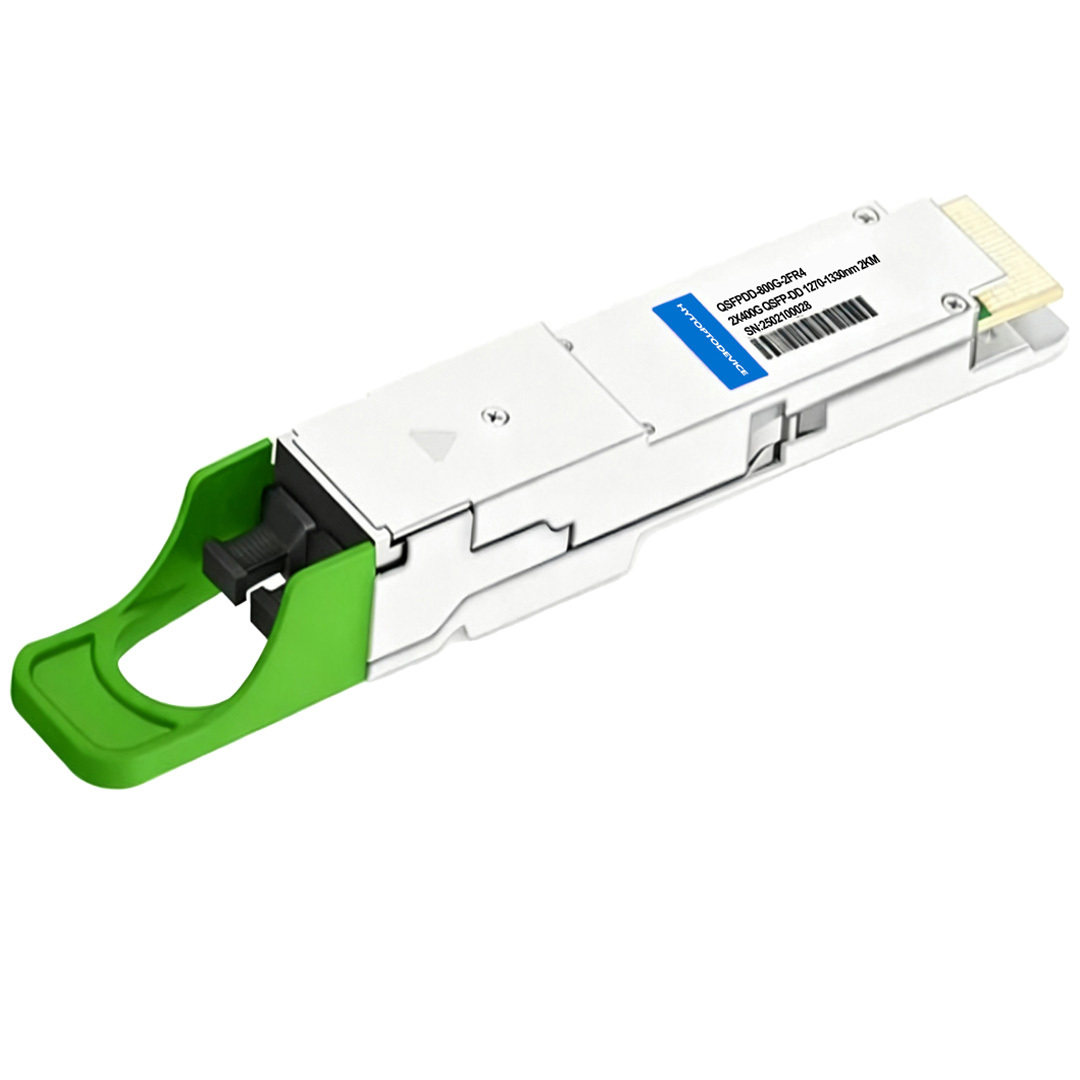

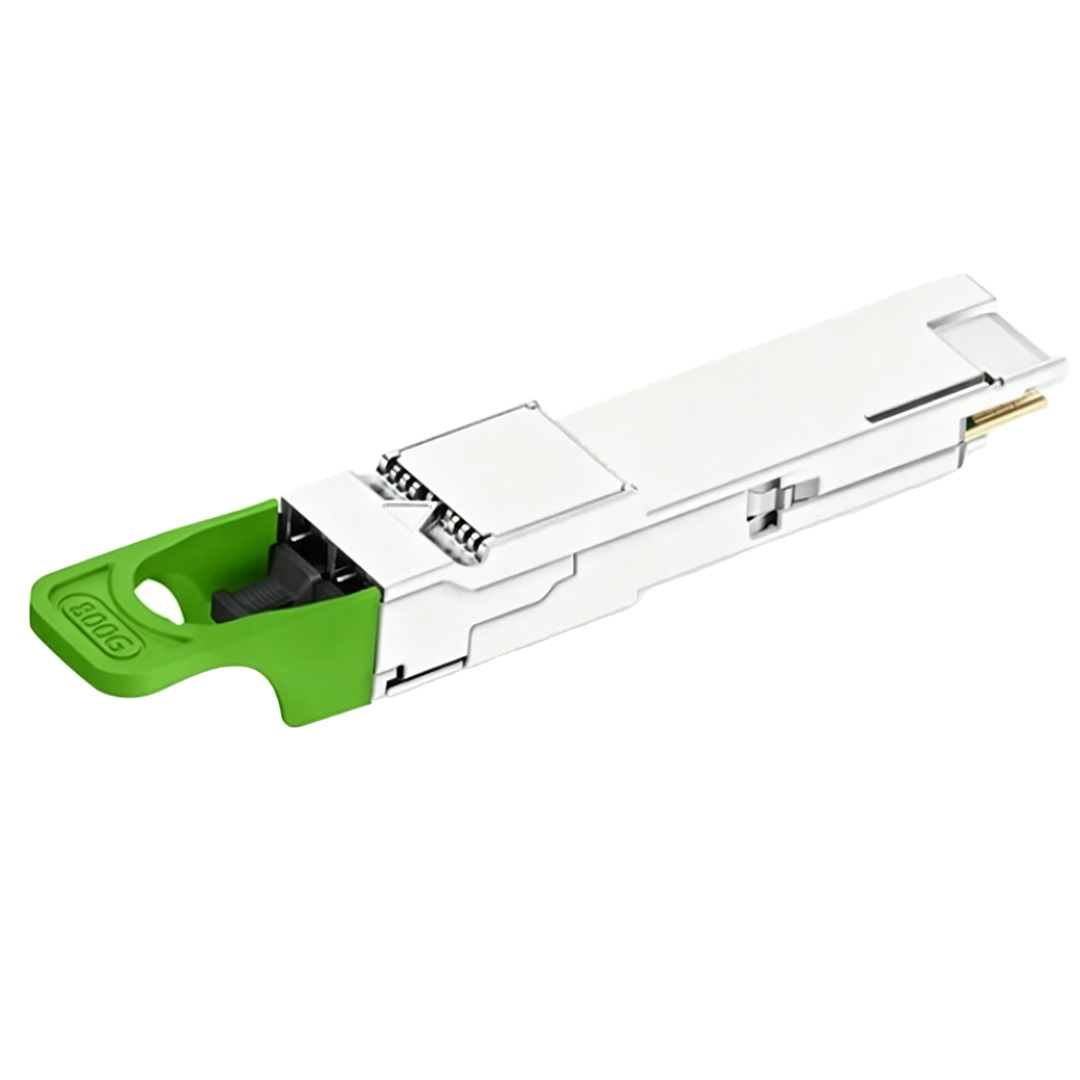

HYTOPTODEVICE 800G QSFP-DD Transceiver | Arista Compatible 2x400GBASE-FR4 Optical Transceiver Module(SMF, 1310nm, 2km, Dual Duplex LC, DOM)

      The QDD-800G-2FR4 is a high-performance Arista compatible 800G optical transceiver, engineered for next-generation 800G Ethernet, Data Center Interconnect (DCI), and InfiniBand Interconnects. It is a Dual-Port 2x400G FR4 module,QSFP-DD form factor.Each of the two 400G ports utilizes Coarse Wavelength Division Multiplexing (CWDM) technology to multiplex 4 lanes of 100G PAM4 optical signals over a single duplex LC fiber pair (wavelengths: 1271nm, 1291nm, 1311nm, and 1331nm). scaling the reach up to 2km. Fully compliant with the QSFP-DD MSA, 100G Lambda MSA, and IEEE 802.3ck standards. It features a specialized Dual Duplex LC connector interface with single-mode fiber(SMF).Real-time DOM supported.

Full Compatibility List and Supported Devices of  Arista 800G Transceiver

This 800G module is 100% pre-programmed and rigorously tested to ensure complete compatibility with Arista EOS®, delivering seamless plug-and-play interoperability with Arista 800G hardware platforms, including:

• Arista 7800R3 Series Modular Switches:

  • 7800R3K-36DM-LC (High-density 800G line cards)

• Arista 7060X5 Series Fixed Configuration Switches:

  • 7060DX5-32E (32-port 800G QSFP-DD)

• Arista 7280R3 Series Routing Platforms:

  • Fixed sub-systems and modular line cards supporting QSFP-DD800 optical interfaces.

Primary Application Scenarios of 800G OSFP Optical Transceiver

• Medium-Reach Data Center Interconnect (DCI): Bridges building-to-building or row-to-row connections spanning up to 2km within modern cloud provider campuses, where short-reach (500m) DR4 architectures fall short.

• High-Density 400G Switch Aggregation: Enables enterprise and cloud operators to maximize chassis density by grouping two independent 400G upstream switches into a single 800G slot on a core switch using standard, low-cost duplex LC fiber paths.

• Fiber Plant Optimization: Dramatically reduces the required infrastructure footprint. By utilizing CWDM to transmit 400G over a single fiber pair (1 Tx / 1 Rx), it saves massive fiber plant resources compared to parallel-optic multi-fiber setups.

• Hyperscale Spine-Leaf Core Networks: Optimized for high-throughput aggregation layers running Arista EOS within modern large-scale enterprise networks and multi-tenant data centers (MTDCs).

Key Product Parameters of 800G 2FR4 Transceivers

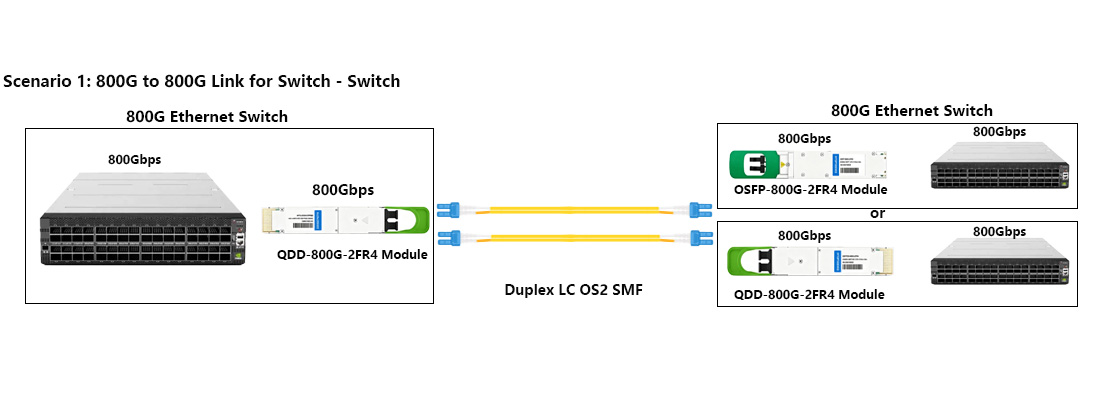

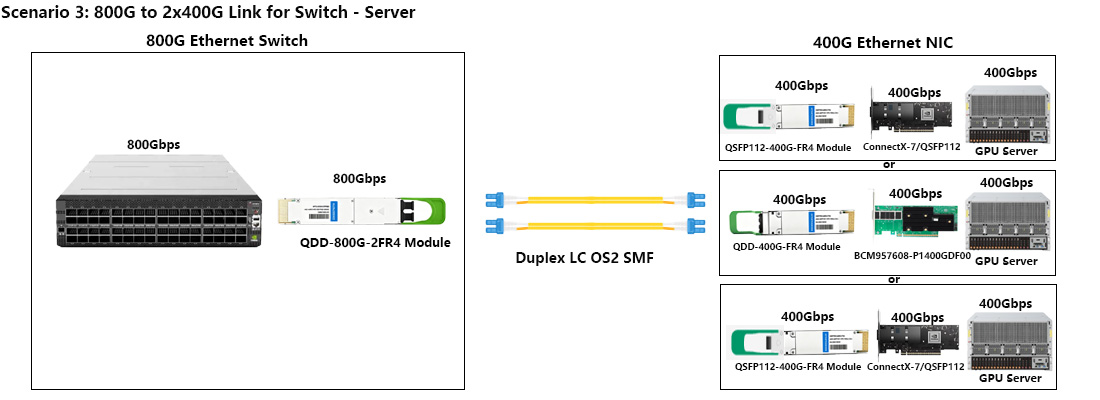

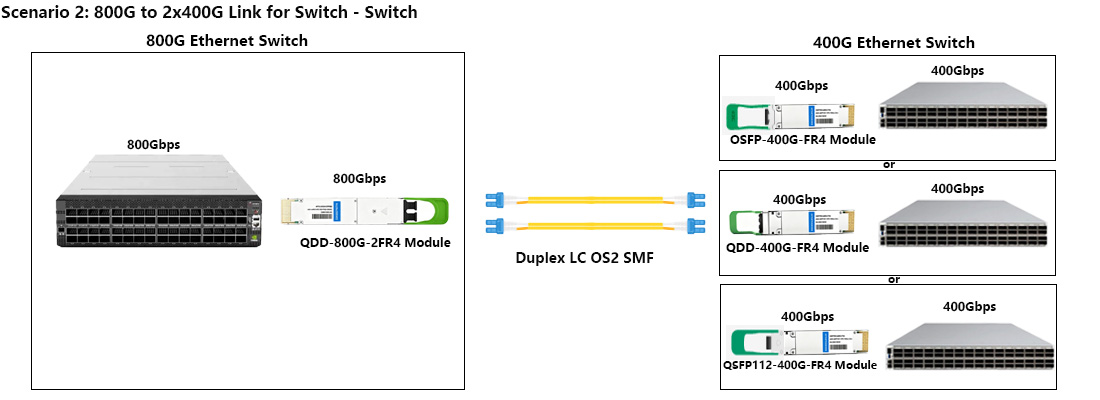

Connectivity Solutions for 800G Optical Transceiver

Q1: What is the exact data rate and interface layout of the Arista QDD-800G-2FR4?A1:It is an 800Gbps module in an QSFP -DD form factor employing a dual-port (2x400G) architecture. It provides two completely independent 400Gbps FR4 logical interfaces on a single physical module.

Q2: What type of fiber connector and cabling for this 800G transceiver?A2: It features a specialized Dual Duplex LC connector interface. It uses standard single-mode fiber (SMF) duplex LC-to-LC patch cords, eliminating the need for expensive MPO breakout cables.

Q3: What is the maximum reach and optical wavelength specs for QDD-800G-2FR4?A3: It reach up to 2km over single-mode fiber(SMF) via dual duplex LC connector.It has 2x400G port, Each 400G port utilizes 4 CWDM technology(wavelengths: 1271nm, 1291nm, 1311nm, and 1331nm).

Q4: Which modulation technology does the QDD-800G-2FR4 use?A4: The two-port optical transceiver  implements high-speed 100G PAM4 (Pulse Amplitude Modulation 4-level) technology across 8 electrical and 8 optical channels (2x4x100G).

Q5: Does this Arista compatible 800G transceiver support Digital Optical Monitoring (DOM)?

A5: Yes. It supports real-time DOM monitor. Network administrators can independently monitor telemetry data—such as Tx/Rx optical power, bias current, temperature, and voltage.
