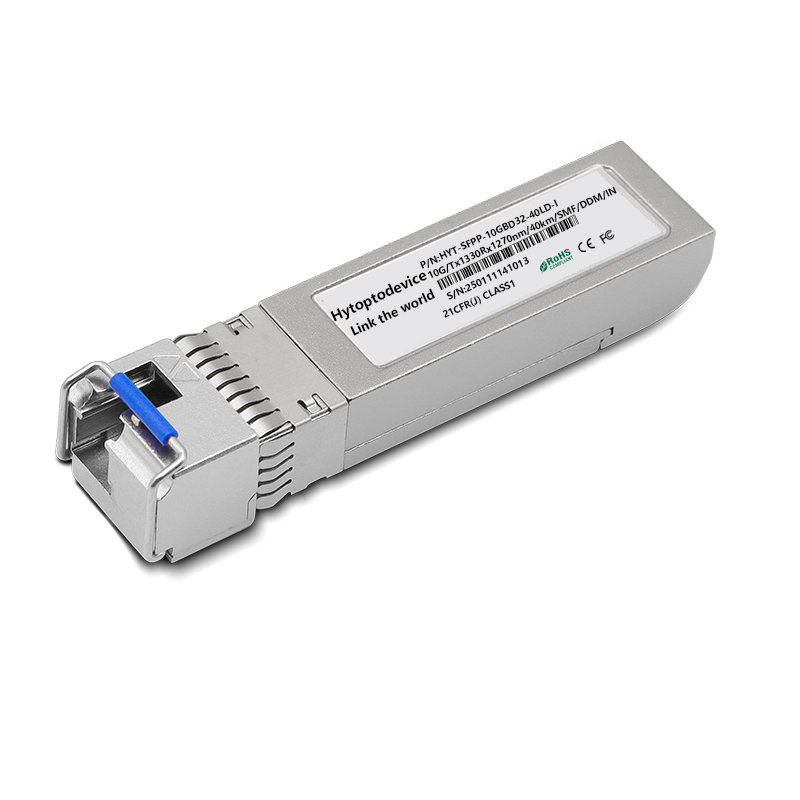

HYTOPTODEVICE Huawei OSX040B11 Compatible 10GBASE-BX40-D SFP+ BiDi 1330nm-TX/1270nm-RX 40km DDM LC SMF Optical Transceiver Module

Compatibility and Supported Devices

The HYTOPTODEVICE Huawei OSX040B11 BiDi Transceiver is rigorously tested to ensure 100% compatibility with Huawei networking platforms:

• Huawei CloudEngine Series: CE12800, CE8800, CE6800, and CE5800 data center switches.

• Huawei Quidway S-Series: S6730, S6720, S5730, and S5720 enterprise switches.

• Huawei NetEngine (NE) Routers: NE40E, NE20E, and NE08E series service routers.

• Huawei OptiX Access: MA5800 and MA5600T series OLT platforms for 10G backhaul.

• Metropolitan Aggregation: Linking regional branch offices to a central hub over a 40km span using a single fiber core.

• Long-Distance DCI: Establishing low-latency 10G BiDi optics for site-to-site replication between separate data center facilities.

• Mobile Backhaul: Providing reliable 10G connectivity from remote cell sites to the provider edge in 4G/5G deployments.

• Fiber-Constrained Urban Links: Maximizing leased dark fiber utility in urban environments where additional fiber is cost-prohibitive.

Key Product Parameters

Connectivity Solutions(Applications)：


FAQ for Huawei OSX040B11 Compatible SFP+BiDi Transceivers

Q1: What is the required matching module for the Huawei OSX040B11 transceiver? A: The OSX040B11 (Downstream) BiDi Transceiver must be paired with the OSX040N01 (Upstream). The OSX040B11 transmits at 1330nm/receives at 1270nm, while its partner transmits at 1270nm/receives at 1330nm.

Q2: Will a Huawei Switch Report a Third-Party Optical Module as “Non-Huawei”? A:No. HYTOPTODEVICE optical modules are pre‑programmed with Huawei‑specific coding. When installed in a CloudEngine or S‑Series switch, they are recognized as native Huawei components. This means no “unsupported transceiver” alarms will appear, ensuring seamless integration and uninterrupted network performance.

Q3: Does the OSX040B11 Bidi Module support real-time monitoring? A: Yes.HYTOPTODEVICE Optical Modules support DDM. Use the Huawei CLI command display transceiver diagnosis interface [Port-ID] to view real-time TX/RX power, temperature, and voltage.

Q4: Is an attenuator necessary for short-distance testing? A: Yes. Since this is a 40km long reach optical module, the laser is high-power, up to -1.0~+5.0dBm.For links shorter than 5km, It was recommend using a 7dB optical attenuator to prevent damage or saturation of the optical receiver.

Q5: How does this OSX040B11 module perform in a high-density CE6800 switch? A: Our transceiver module features low power consumption (less than 1W) and excellent thermal design, ensuring stable performance even in a fully loaded high-density switch chassis.

Q6: Can I use this OSX040B11 for 10G Ethernet and OTN applications? A: Yes,This OSX040B11 module is primarily optimized for 10G Ethernet (10.3125 Gbps). For OTU2/OTU2e applications, HYTOPTODEVICE OSX040B11 supports Multi-rate (typically 8.5G to 11.3G) and can be used in OTN.

Q7: Will using this module affect my Huawei hardware warranty? A: No. Using MSA-compliant third-party modules does not void the hardware warranty of your Huawei switch or router.

Q8: What kind of testing does HYTOPTODEVICE perform on these 40km modules? A: We conduct 100% testing on actual Huawei hardware, including Bit Error Rate (BER) tests and optical power budget verification, to ensure a 40km reach with zero packet loss.

Q9: Is the OSX040B11 transceiver hot-swappable? A: Absolutely. As a hot-swappable SFP+ transceiver, HYTOPTODEVICE OSX040B11 supports plug-and-play operation. You can perform maintenance or upgrades on the fly, ensuring your network remains online with minimal downtime.

Q10: What is the warranty policy for HYTOPTODEVICE Huawei compatibles? A: We offer a 3-year replacement warranty and lifetime technical support, providing peace of mind for your long-haul network investments.

Quality Assurance：Your Trusted Optical Transceiver Source

HYTOPTODEVICE is a vertically integrated manufacturer of high-performance optical transceivers. By controlling core materials at the source, we ensure every SFP module meets the highest standards of reliability and customization.

• Vertical Integration: In-house core material production ensures a stable, self-sufficient supply chain for all optical modules.

• Total Traceability: End-to-end oversight from raw components to final transceiver assembly guarantees 100% controllability.

• Bespoke Solutions: Expert-led R&D provides customized SFP transceiver designs tailored to your specific technical needs.

• 24-Hour Response: Our technical team guarantees a primary response to any inquiry or quality concern within 24 hours.

Carrier-Grade Quality. Factory-Direct Control. Rapid Response.

Quality Certification & Compliance：

At HYTOPTODEVICE, our quality commitment is backed by industry-standard validations. From fiber optical transceiver manufacturing to final inspection, our processes ensure global compliance and reliability.

We adhere to rigorous standards for our SFP modules and network solutions:

• ISO 9001: Certified quality management and production consistency.

• CE & FCC: Fully compliant for seamless Global Market Access.

• RoHS: Committed to environmental responsibility and hazardous material control.

• Proven Reliability: Rigorous testing to reduce compliance risk and ensure safety.

Certified Quality. Global Standards. Guaranteed Performance.

Rigorous Industrial Product Testing：



100% 3rd Party Compatible：

Partial Test Demonstration：
