Arista OSFP-800G-2FR4 Compatible 800G OSFP 2xFR4 Optical Transceiver Module | HYTOPTODEVICE

Product Detail：

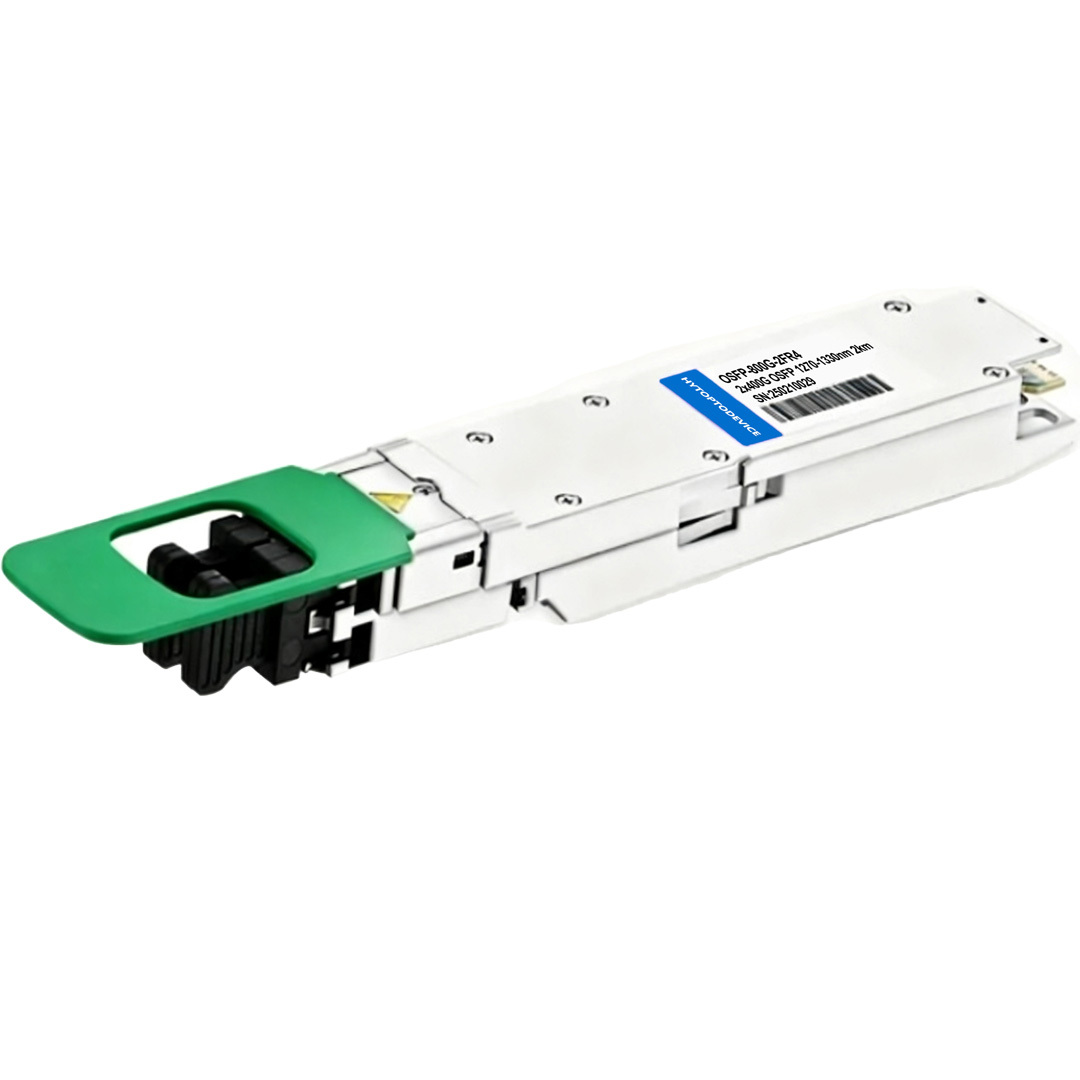

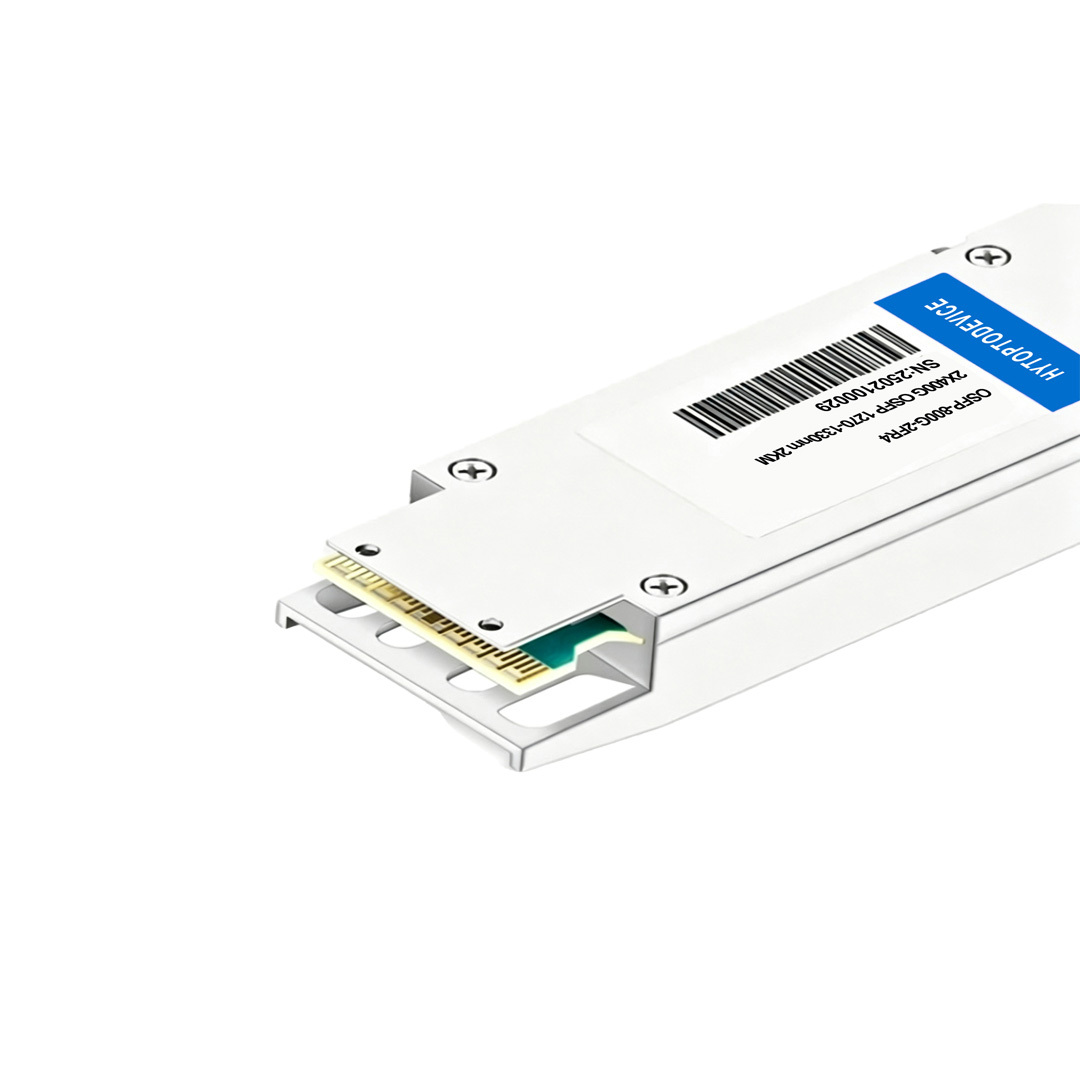

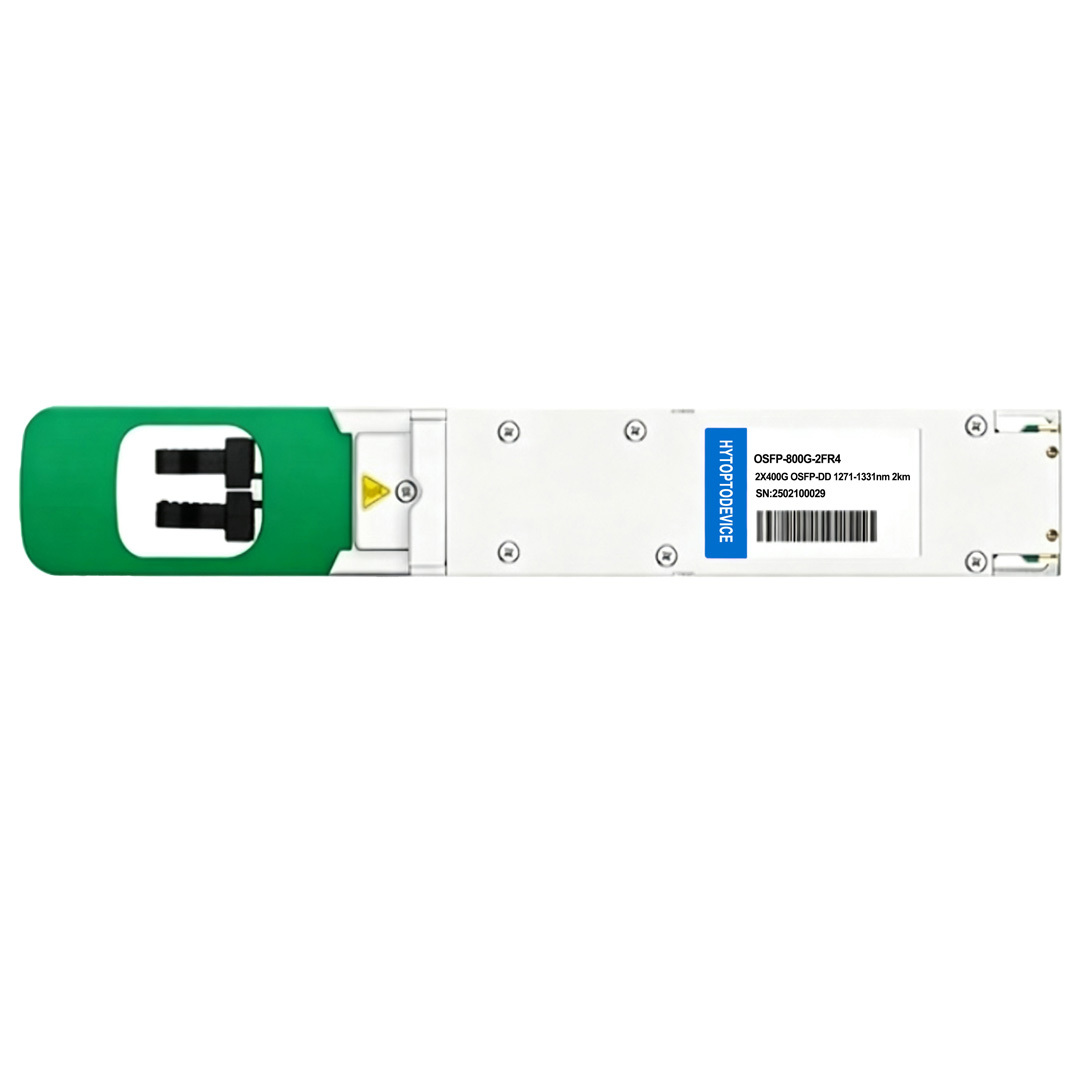

HYTOPTODEVICE 800G OSFP Transceiver | 800GBASE 2 x FR4 Compatible Module (SMF, 1310nm, 2km, Dual Duplex LC, DOM, IHS/ Finned Top)

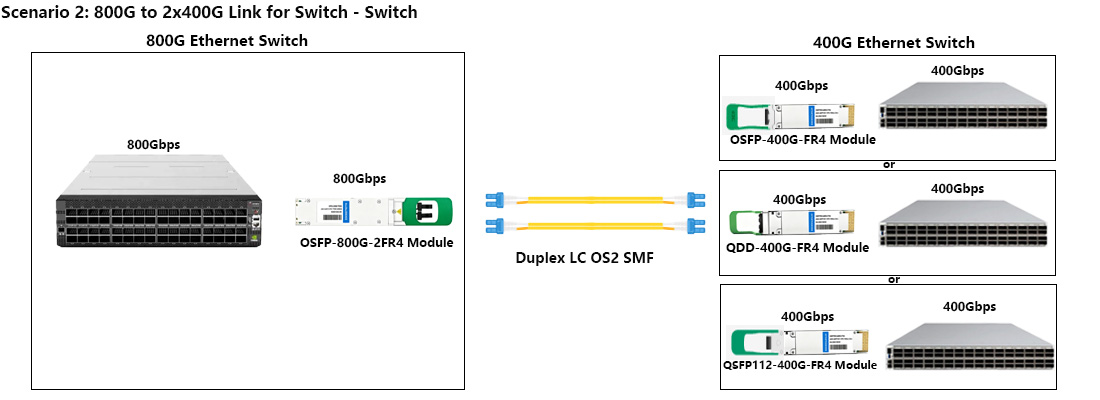

      The OSFP-800G-2FR4 is a high-performance Arista compatible 800G optical transceiver, engineered for next-generation 800G Ethernet, Data Center Interconnect (DCI), and InfiniBand Interconnects. It is a twin-port 2x400G OSFP module with a 2xFR4 architecture, allowing for high-density 800G links or 2x400G breakouts over Single-Mode Fiber (SMF) via dual Duplex LC connectors. Fully compliant with OSFP MSA and IEEE 802.3ck protocols, it is powered by top-tier core chipsets and CWDM 1310nm laser technology to deliver 800Gbps (8x100G PAM4) aggregate throughput up to 2km.

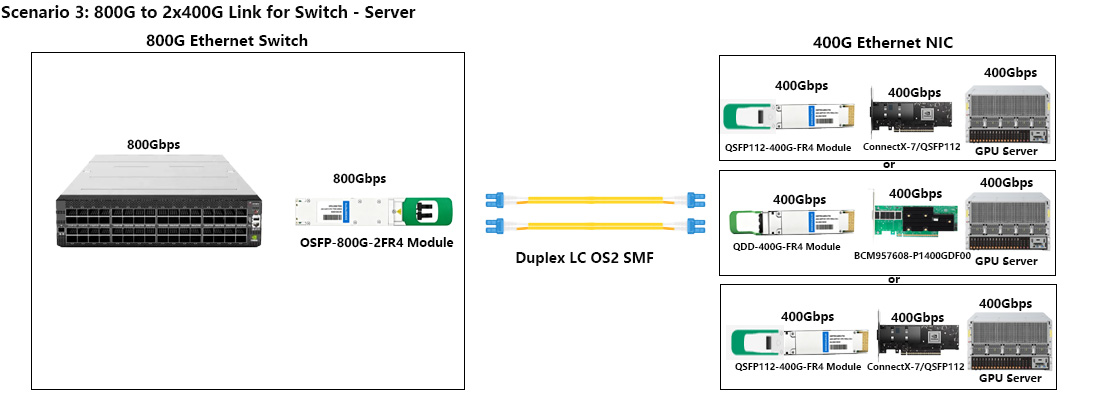

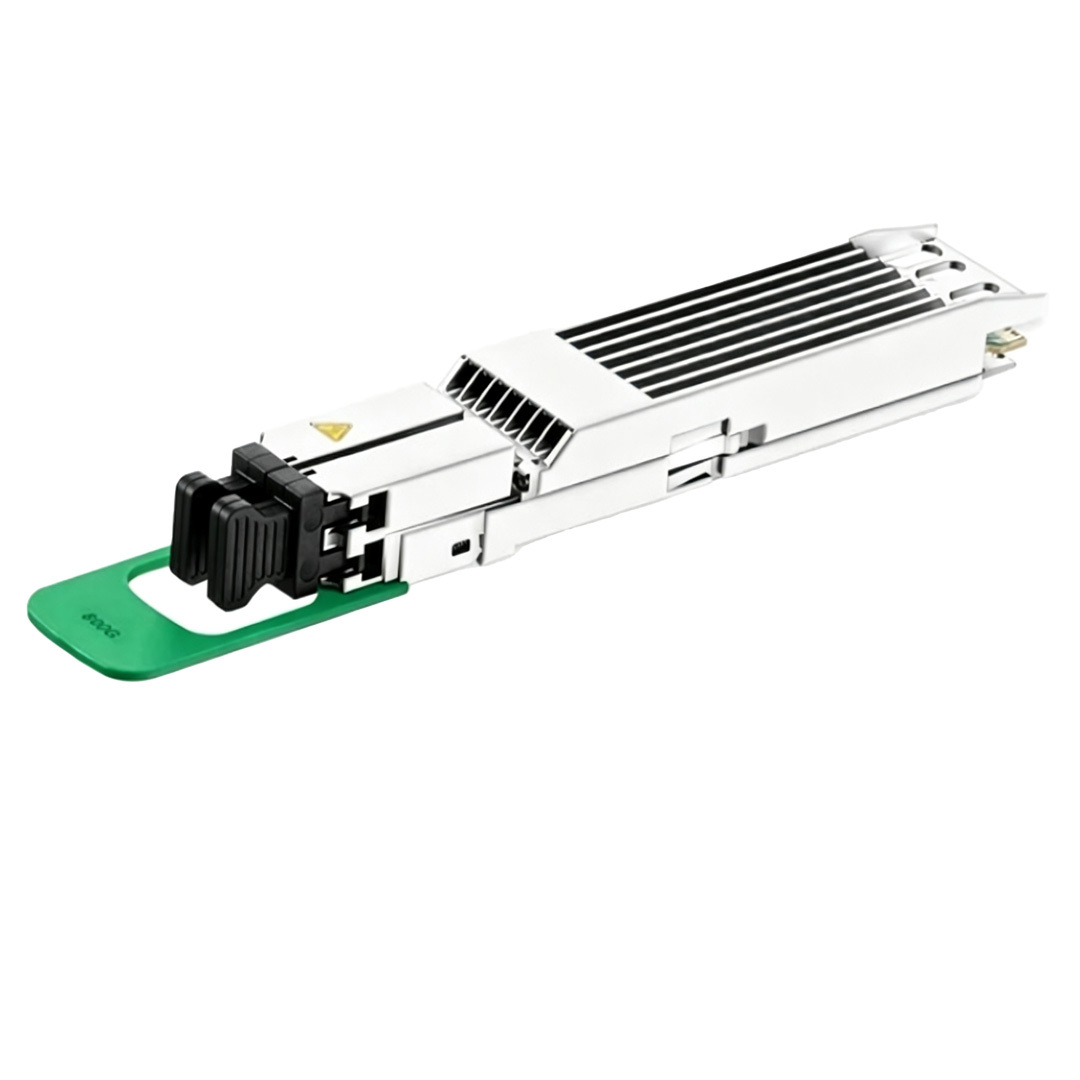

     Designed for air-cooled Ethernet switches, this twin-port OSFP IHS ( Finned Top) transceiver offers low latency, low power, and high reliability. It seamlessly supports spine-leaf uplinks, ToR switch downlinks to network adapters, and direct connections to BlueField-3 DPUs. It is the ideal interconnect solution for AI, HPC, and cloud data centers.

Full Compatibility List and Supported Devices of Compatible 800G Transceiver

This twin-port OSFP module is 100% compatible with Arista’s 800G switches and routers running Arista EOS® (Extensible Operating System). Verified hardware includes:

• Arista 7060X5 Series High-Performance Switches:

  • DCS-7060DX5-32S (32x 800G OSFP ports)

• Arista 7800R3 Series Core Routing Platforms:

  • High-density 800G line cards (e.g., DCS-7800R3-36DM-LC / DCS-7800R3K-36DM-LC using OSFP native cages)

• Arista 7300X5 Series Modular Data Center Switches:

  • Next-generation high-density 800G modular line card additions.



Primary Application Scenarios of 800G OSFP Optical Transceiver

The Arista OSFP-800G-2FR4 is built to sustain massive scale-out networking topologies, making it ideal for the following scenarios:

• AI/ML Clusters & InfiniBand/Ethernet Fabrics: Interconnects high-density GPU compute structures (such as NVIDIA/Arista ultra-dense nodes) requiring minimal latency and maximum line-rate bandwidth.

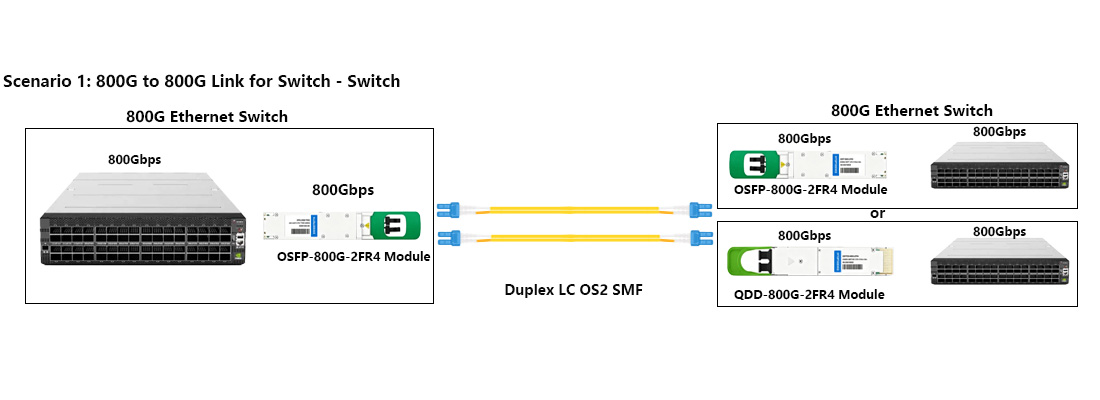

• High-Density Spine-Leaf Interconnects: Doubles the uplink capacity from leaf/ToR switches to core spine switches by combining two separate 400G lanes into one physical 800G port.

• Campus & Data Center Core Transport: Provides cost-effective, high-bandwidth 800G pipelines across distinct server rooms or colocation data halls separated by up to 2km.

• Metropolitan Edge & Cloud Aggregation: Maximizes frame-slot efficiency for tier-1 service providers handling heavily virtualized, multi-tenant cloud traffic and high-capacity content distribution.

Key Product Parameters of 800G 2FR4 Transceivers

Q1: What is the exact data rate and interface layout of the Cisco OSFP-2X400G-FR4?A1:It is an 800Gbps transceiver in an OSFP form factor employing a dual-port (2x400G) architecture. It provides two completely independent 400Gbps FR4 logical interfaces on a single physical module.

Q2: What type of fiber connector and cabling does this 800G module use?A2:The dual Dupliex LC connector are required. It uses standard single-mode fiber (SMF) duplex LC-to-LC patch cords, eliminating the need for expensive MPO breakout cables.

Q3: What is the maximum reach and optical wavelength specs for OSFP-800G-2FR4?A3: It transmit traffic up to 2km over single-mode fiber(SMF) via dual duplex LC.It has 2x400G port, Each 400G port utilizes 4 CWDM wavelengths: 1271nm, 1291nm, 1311nm, and 1331nm.

Q4: Which modulation technology does the OSFP-2X400G-FR4 use?A4: The transceiver implements high-speed 100G PAM4 (Pulse Amplitude Modulation 4-level) technology across 8 electrical and 8 optical channels (2x4x100G).

Q5: Does this Cisco compatible module support Digital Optical Monitoring (DOM)?

A5: Yes. It supports real-time DOM monitor. Network administrators can independently monitor telemetry data—such as Tx/Rx optical power, bias current, temperature, and voltage.

Why Network Engineers Choose HYTOPTODEVICE

HYTOPTODEVICE has supplied over 5000,000 optical transceiver modules to data centers, ISPs, and enterprise networks across 100+ countries since 2011. Every module undergoes a 72-hour burn-in test and full DDM/DOM validation before shipment.

• 100% MSA-compliant modules with Cisco, Huawei,Dell,Juniper, and Arista compatibility
• ISO 9001:2015 certified manufacturing facility in Shenzhen
• Average lead time of 3–5 business days with DHL/FedEx express options
• Dedicated pre-sales engineering support for custom configurations
• Actual hardware,actual switches,actual results.we publish compatibility test video,eliminate compatibility anxiety. you can watch before you buy.
• We can provide inspection and shipping videos to make you feel as if you are right here with the product.

"We replaced 200 Cisco-branded SFPs with HYTOPTODEVICE equivalents across our spine layer — zero compatibility issues, 40% cost reduction."— Network Architect, Tier-2 ISP, Germany

Quality Certification & Compliance：

 At HYTOPTODEVICE, our quality commitment is backed by industry-standard validations. From fiber optical transceiver manufacturing to final inspection, our processes ensure global compliance and reliability.

We adhere to rigorous standards for our SFP modules and network solutions:

• ISO 9001: Certified quality management and production consistency.

• CE & FCC: Fully compliant for seamless Global Market Access.

• RoHS: Committed to environmental responsibility and hazardous material control.

• Proven Reliability: Rigorous testing to reduce compliance risk and ensure safety.

Certified Quality. Global Standards. Guaranteed Performance.

Rigorous Industrial Product Testing：



100% 3rd Party Compatible：

Partial Test Demonstration：

Others:
