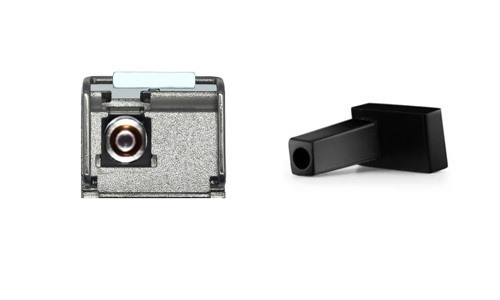

• Extreme Compatible 10GB-BX20-U BiDi 10G SFP+ Transceiver front view simplex LC single fiber optic module
  • Extreme 10GB-BX20-U Compatible BiDi 10G SFP+ Transceiver | 10GBASE-BX-U 20KM Tx1270Rx1330 Bulk & Wholesale | HYTOPTODEVICE

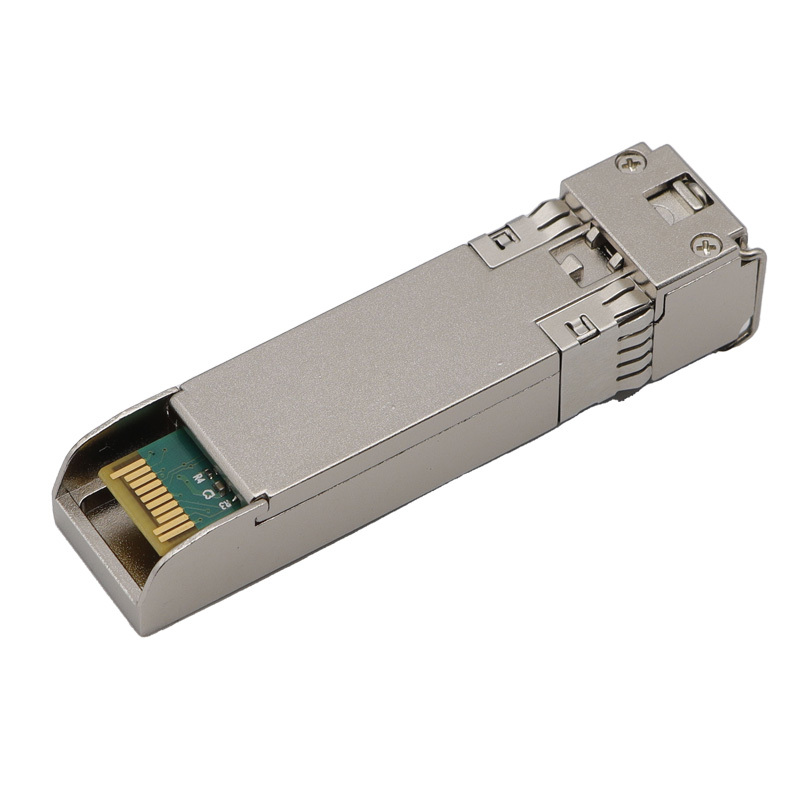

  • DOM supported BiDi 10G SFP+ Transceiver 10GB-BX20-U metal housing pin detail
  •  Wholesale bulk pack BiDi 10G SFP+ Transceiver 10GB-BX20-U OEM customized label module
  • HYTOPTODEVICE supply Pair of BiDi 10G SFP+ Transceiver 10GB-BX20-U U/D set for single strand 10G Ethernet connection
  • Extreme Compatible 10GB-BX20-U BiDi 10G SFP+ Transceiver front view simplex LC single fiber optic module
  • Extreme 10GB-BX20-U Compatible BiDi 10G SFP+ Transceiver | 10GBASE-BX-U 20KM Tx1270Rx1330 Bulk & Wholesale | HYTOPTODEVICE
  • DOM supported BiDi 10G SFP+ Transceiver 10GB-BX20-U metal housing pin detail
  •  Wholesale bulk pack BiDi 10G SFP+ Transceiver 10GB-BX20-U OEM customized label module
  • HYTOPTODEVICE supply Pair of BiDi 10G SFP+ Transceiver 10GB-BX20-U U/D set for single strand 10G Ethernet connection

Extreme 10GB-BX20-U Compatible BiDi 10G SFP+ Transceiver | 10GBASE-BX-U 20KM Tx1270Rx1330 Bulk & Wholesale | HYTOPTODEVICE

Factory supply SFP+ 10G BiDi Module , Tx1270/Rx1330 20km OS2 simplex LC, commercial 0–70°C live DDM, fully tested on Extreme switches with videos, bulk wholesale & custom EEPROM coding, cut over 70% costs vs Extreme OEM, cross-brand plug-and-play.
NO. Brand  Compatible P/N Transceiver Type
1 Cisco SFP-10G-BXU-I SFP-10G32-BX20
2 Arista  SFP-10G-LXRBD-U SFP-10G23-BX10
3 Huawei SFP-10G-BX20U SFP-10G32-BX10
4 Dell GP-SFP-10GBX-U-20 SFP-10G23-BX40
5 Brocade 10G-SFPP-BXU-20K  SFP-10G32-BX40
6 Extreme 10GB-BX20-U SFP-10G23-BX60
7 Ciena XCVR-S20U27 SFP-10G45-BX80
8 D-Link  DEM-436XT-BXU  SFP-10G45-BX100
Description


Extreme Compatible 10GB-BX20-U BiDi 10G SFP+ Transceiver 10GBASE-BX20-U (SMF, 1270nm-TX/1330nm-RX, 20km, Simplex LC, Live DDM)

Product Overview

 The Extreme compatible 10GB-BX20-U BiDi 10G SFP+ Transceiver is equipped with a simplex LC port and delivers stable 20km signal transmission over G.652 single-mode fiber. Using WDM technology, this BiDi 10G SFP+ Transceiver enables bidirectional 10G Ethernet data flow via only one single fiber strand, lowering overall cabling expenses and maximizing utilization of existing fiber infrastructure. Compliant with SFP+ MSA, IEEE 802.3ae and SFF-8431 protocols and standards, the budget-friendly BiDi 10G SFP+ Transceiver drop-in replacement for Extreme OEM optics provides seamless plug-and-play compatibility with Extreme equipments and other network hardwares. Supporting DDM digital diagnostic monitoring, it is ideal for enterprise wiring closets, service provider transport applications,etc.

Key Technical Specifications

Extreme Compatible  10GB-BX20-U Vendor Name HYTOPTODEVICE
Form Factor SFP+ Max Data Rate 10.7Gbps
Wavelength TX1270nm/RX1330nm Max  Distance 20km
Connector Simplex LC Transmitter Type 1270nm DFB
Cable Type SMF Receiver Type PIN
TX Power -3.0~+2.0dBm Receiver Sensitivity < -14.4dBm
Max. Power Consumption ≤1W DOM/DDM Monitoring  Fully Supported
Protocols SFP+ MSA, SFF-8472, IEEE 802.3ae, RoHS Operation Temperature 0 to 70°C (32 to 158°F)

For detailed technical specifications, please refer to the Datasheet



Usage Guidelines & Operational Best Practices

• BiDi Pairing Rule: SFP‑10G‑BXU (Tx1270/Rx1330) must pair with SFP‑10G‑BXD (Tx1330/Rx1270) at remote end. Two BXU modules will NOT form a valid link.
• Cabling Requirement: Use OS2 single‑mode simplex‑LC UPC cables only. Multimode fiber / APC connectors reduce reach and cause link issues; keep connectors clean.
• Port Notice: Install only into standard SFP+ ports. Do not force into 1G‑SFP slots. Disable transceiver‑block policy if needed on host devices.
• Environment: Run within 0‑70 °C. Avoid high‑heat, dusty, poorly ventilated rack positions.
• Hot‑swap: Supports hot‑swap; disconnect fiber before plugging / unplugging to protect optical ports.
• DDM Monitoring: Enable DDM/DOM; monitor optical power and temperature for early fault warning.
• Pre‑test Recommendation: Test sample units with real hardware before large‑scale bulk deployment.
• Laser Safety: Avoid direct eye exposure to powered optical ports; infrared laser can harm eyes.

For detailed operation instructions, please refer to the User Guide.


Full Compatibility List & Supported Network Hardware

1.Extreme Exclusive Compatible Hardware & Validated Switch Series

Our alarm-free plug-and-play BiDi 10G SFP+ Transceiver is pre-flashed with standard Extreme EEPROM identification codes, eliminating unrecognized transceiver warning logs after full physical real-Extreme-switch insertion validation for all listed equipment:

  • Extreme Summit X440-G2 / X450-G2 / X460-G2

  • Extreme VSP 7400 / VSP 8400 Series Datacenter Switches

  • Extreme X670 / X770 High-Density Campus Switches

  • Extreme SLX Series Enterprise Routers

    All equipment recognizes our BiDi 10G SFP+ transceiver natively, no third-party module unlock command required.

2. Cross‑Brand Interoperability

Built on MSA open standards, this 10G BiDi SFP+ works with Cisco, Arista, Juniper, H3C, Huawei, Brocade, Dell hardware. Well‑suited for mixed‑vendor metro and DCI expansion projects for enterprise, carrier clients, wholesalers and integrators.

Primary Application Scenarios

  • Campus Network Single Fiber Upgrade: Deploy BiDi 10G SFP+ transceiver 10GB-BX20-U to reuse existing single fiber strands between building switches without new cabling construction
  • Remote Office 10G Ethernet Backhaul: 20km reach BiDi 10G SFP+ transceiver for branch-office Extreme switch interconnection
  • Metro Fiber Access Network: Cost-efficient BiDi 10G SFP+ transceiver bulk supply for ISP FTTH & enterprise metro links
  • Small Datacenter Inter-Switch Links: High-density simplex LC BiDi 10G SFP+ transceiver to save fiber port resources
  • System Integrator Turnkey Network Projects: OEM labeled 10GB-BX20-U BiDi 10G SFP+ transceiver for wholesale project delivery to importers

Connectivity Solutions(Applications)


  1.10G Switch-to-Switch Interconnection Diagram:

Single fiber 10G link topology using 10GB-BX20-U & 10GB-BX20-D BiDi 10G SFP+ transceiver pair between two Extreme switches

2.10G Switch-to-NIC Server Uplink Diagram:

 Campus multi-building fiber network layout with mass deployment of BiDi 10G SFP+ transceiver 10GB-BX20-U modules

3.10G Standardized Structured Cabling Rack Layout Diagram:

Extreme switch port plug-in test setup for DOM monitoring of BiDi 10G SFP+ transceiver 10GB-BX20-U


The Core Features

1.Optimize Infrastructure via Single-Fiber WDM
Maximize your existing assets. By utilizing separate TX/RX wavelengths on one single-mode fiber, this 10G BiDi transceiver optimizes your fiber infrastructure, cutting physical fiber requirements and installation labor costs by 50%.

10G-SFP-plus-BiDi-TX1270-RX1330-10km

2.Scalable Bandwidth Expansion
Scale your network effortlessly. Upgrading to our BiDi technology allows you to instantly double your data throughput over your existing fiber plant, providing a cost-effective roadmap for future bandwidth expansion.

increase-bandwidth-capacity-10G-SFP-optical-transceiver

3.High-Density, Low-Carbon 10G SFP+
Scale up without overloading your racks. Delivering full 10Gbps performance at a ultra-low power consumption of just 1W, this high-density transceiver helps modern enterprise networks and data centers achieve green energy targets.

energy-saving-10G-SFP-plus-1W-low-power

4.Verified Cross-Brand Compatibility
Avoid vendor lock-in with confidence. Our transceivers are programmed and tested in real mainstream brand switches to ensure 100% interoperability. We are proud of our authentic results! Specific Compatibility Video available upon request.

compatible-SFP-transceiver-multi-brand-switch-testing

5.End-to-End Quality Assurance
Built for mission-critical paths. Every 10G BiDi 10km module undergoes exhaustive factory testing—including BER (Bit Error Rate) tests and distance simulation—before leaving our Test Center. Built for maximum uptime, delivered with zero surprises.
optical-transceiver-strict-quality-control-factory-test



FAQ

Q1: Is this Extreme compatible 10GB-BX20-U BiDi 10G SFP+ transceiver fully plug-and-play on original Extreme switches?
A: Yes, our BiDi 10G SFP+ transceiver passes full layer compatibility testing on all Extreme hardware supporting the 10GB-BX20-U part number, no extra configuration or firmware patch needed. The switch identifies the BiDi 10G SFP+ transceiver as standard 10GBASE-BX optic with complete DOM readout.

Q2: Do I need to buy matching modules when using this 10GB-BX20-U BiDi 10G SFP+ transceiver for single fiber links?
A:Yes, This 10GB-BX20-U BiDi 10G SFP+ transceiver transmits at 1270nm and receives 1330nm signals, so it must pair with 10GB-BX20-D BiDi 10G SFP+ transceiver (1330nm TX / 1270nm RX) to achieve full-duplex single strand communication. HYTOPTODEVICE provide discounted pair pricing for wholesale BiDi 10G SFP+ transceiver orders.

Q3: Can I purchase bulk BiDi 10G SFP+ transceiver 10GB-BX20-U with custom OEM labels for my import distribution business?
A: Yes. We support full OEM customization for bulk BiDi 10G SFP+ transceiver orders of 200pcs and above, including private brand printing, customized part number stickers and neutral export packaging for global network importers and distributors sourcing the Extreme 10GB-BX20-U replacement module.

Q4: Does this commercial grade BiDi 10G SFP+ transceiver 10GB-BX20-U support real-time DOM optical diagnostics?
A: Yes, All our 10GB-BX20-U compatible BiDi 10G SFP+ transceiver integrate complete DDM/DOM monitoring per SFF-8472 standard, allowing network admins to view real-time optical power, temperature and voltage data directly from Extreme switch CLI or web management portal.

Q5: What fiber cable type works best with this 20km BiDi 10G SFP+ transceiver 10GB-BX20-U simplex LC module?
A: For stable full 20km transmission distance, use OS2 single-mode simplex LC/UPC fiber patch cords. OS1 SMF fiber will limit effective reach to roughly 15km for this BiDi 10G SFP+ transceiver model. Multimode fiber cannot be used with the 10GB-BX20-U BiDi 10G SFP+ transceiver.

Q6: What warranty coverage do you offer for wholesale BiDi 10G SFP+ transceiver 10GB-BX20-U orders?
A: Every Extreme compatible BiDi 10G SFP+ transceiver 10GB-BX20-U carries a 5-year factory warranty, covered under Magnuson-Moss Warranty Act – third-party compatible optics do not void your Extreme network equipment hardware warranty. We provide free pre-shipment compatibility testing for large BiDi 10G SFP+ transceiver bulk shipments.

Q7: Can this BiDi 10G SFP+ transceiver replace original Extreme 10GB-BX20-U for long-term campus network expansion projects?
A: Yes,This cost-effective BiDi 10G SFP+ transceiver from HYTOPTODEVICE matches all electrical, optical and signaling specs of OEM Extreme 10GB-BX20-U optics, making it the ideal long-term replacement for large campus network expansion projects that require hundreds of single fiber BiDi 10G SFP+ transceiver modules.

Packaging & Custom OEM Solutions

Each module is individually sealed in ESD-safe anti-static packaging and ready for immediate shipment. For high-volume distributors, wholesalers, and system integrators, we offer flexible OEM programs—including custom logos, private labeling, and branded packaging—to help you build and protect your own brand.
HYTOPTODEVICE 10Gbase-bx bidi transceiver  custom packaging


Why Network Engineers Choose HYTOPTODEVICE

HYTOPTODEVICE has supplied over 5000,000 optical transceiver modules to data centers, ISPs, and enterprise networks across 100+ countries since 2011. Every module undergoes a 72-hour burn-in test and full DDM/DOM validation before shipment.

  • Up to 70% cost savings vs OEM, transparent pricing & flexible bulk rates, supported quality returns
  • 100% real-device compatible with Cisco, Huawei,Dell,Juniper, and Arista
  • ISO 9001:2015 Shenzhen factory, full lineup: 1.25G/10G/25G/40G/100G/200G/400G/800G/1.6T transceivers
  • Ample stock, fast global DHL/FedEx shipping in 3–5 working days
  • Free pre-sales engineering support for custom EEPROM  & private label firmware
  • Real switch test videos available for pre-purchase review; inspection & shipping videos provided per order

“Phenomenal performance. We deployed 200 HYTOPTODEVICE SFP modules to replace Cisco OEMs in our backbone network. Result? Zero compatibility issues and a 60% reduction in costs. Highly recommended for mission-critical networks."— Senior Network Engineer, Regional Telecom, Australia


Quality Certification & Compliance

 At HYTOPTODEVICE, our quality commitment is backed by industry-standard validations. From fiber optical transceiver manufacturing to final visual inspection, from IQC、IPQC、FQC to OQC, our processes ensure global compliance and reliability.

We adhere to rigorous standards for our SFP modules and network solutions:

  • ISO 9001: Certified quality management and production consistency.

  • CE & FCC: Fully compliant for seamless Global Market Access.

  • RoHS: Committed to environmental responsibility and hazardous material control.

  • Proven Reliability: Rigorous testing to reduce compliance risk and ensure safety.

Certified Quality. Global Standards. Guaranteed Performance.




Rigorous Industrial Product Testing

   hytoptodevice check device and equiptment for optical transceiver module

100% 3rd Party Compatible
testing device for hytoptodevice 10g sfp+ bidi optical module
Partial Test Demonstration
hytoptodevice compatible optical transceiver module for ethernet,data center
