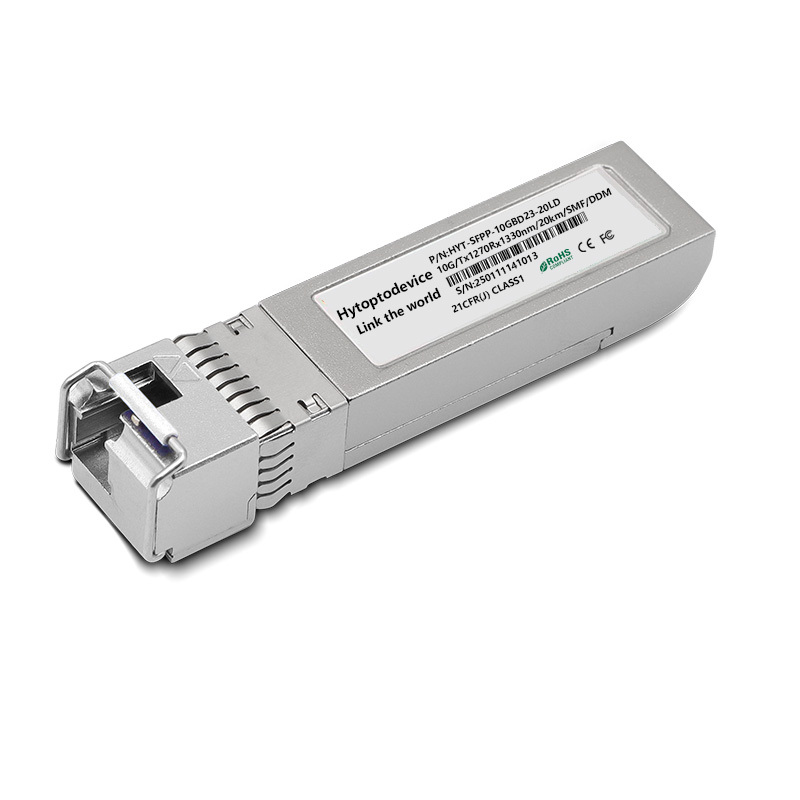

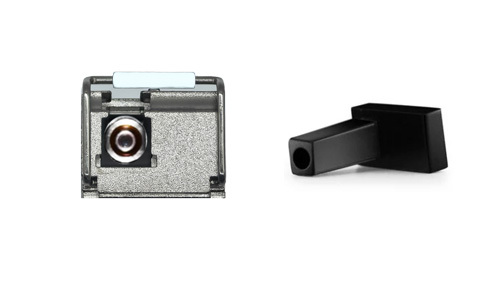

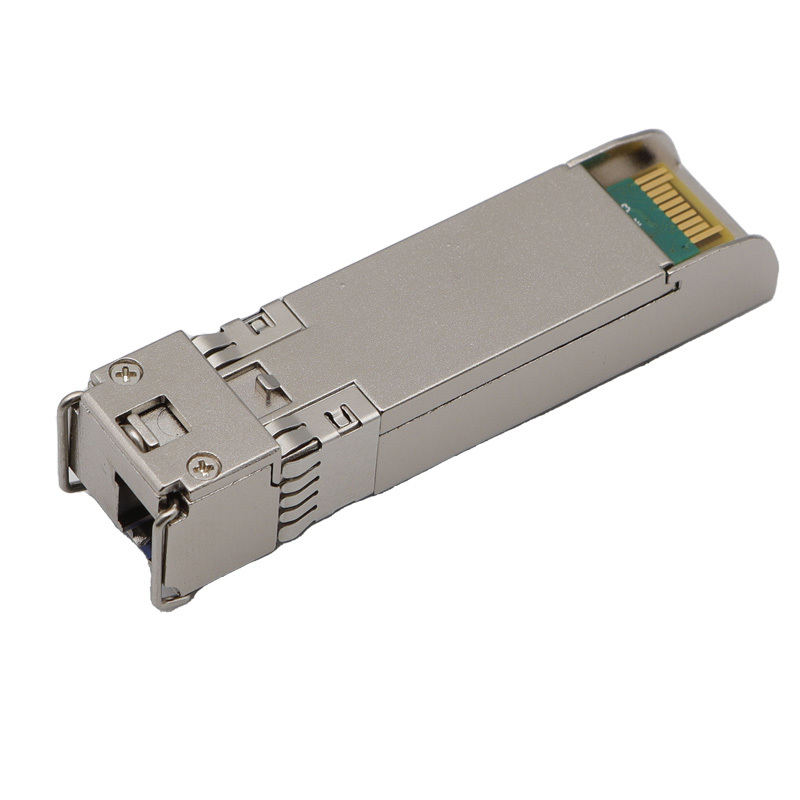

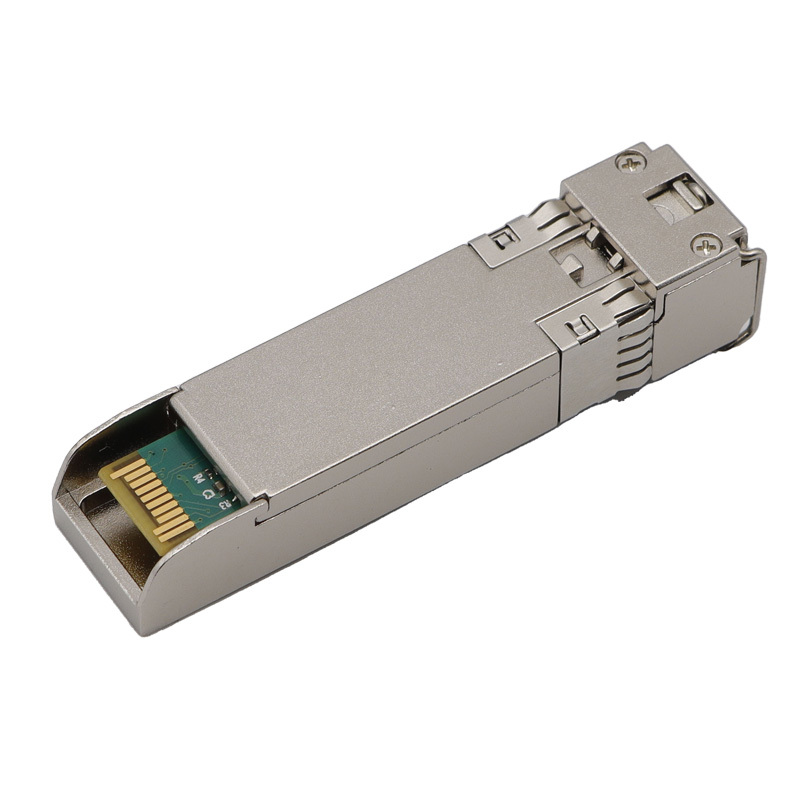

Brocade Compatible 10G-SFPP-BXU-20K SFP+ 10G BiDi Transceiver Module 10GBASE-BX20-U (SMF, 1270nm-TX/1330nm-RX, 20km, Simplex LC, Live DDM)
Product Overview
The Brocade compatible 10G-SFPP-BXU-20K SFP+ 10G BIDI module is equipped with a simplex LC port and delivers stable 20km signal transmission over G.652 single-mode fiber. Using WDM technology, this SFP+ 10G BiDi module enables bidirectional 10G Ethernet data flow via only one single fiber strand, lowering overall cabling expenses and maximizing utilization of existing fiber infrastructure. Compliant with SFP+ MSA, IEEE 802.3ae and SFF-8431 protocols and standards, the budget-friendly SFP+ 10G BiDi module drop-in replacement for Brocade OEM optics provides seamless plug-and-play compatibility with Brocade equipments and other network hardwares. Supporting DDM digital diagnostic monitoring, it is ideal for enterprise wiring closets, service provider transport applications,etc.
Key Technical Specifications
| Brocade Compatible |
10G-SFPP-BXU-20K |
Vendor Name |
HYTOPTODEVICE |
| Form Factor |
SFP+ |
Max Data Rate |
10.7Gbps |
| Wavelength |
TX1270nm/RX1330nm |
Max Distance |
20km |
| Connector |
Simplex LC |
Transmitter Type |
1270nm DFB |
| Cable Type |
SMF |
Receiver Type |
PIN |
| TX Power |
-3.0~+2.0dBm |
Receiver Sensitivity |
< -14.4dBm |
| Max. Power Consumption |
≤1W |
Receiver Overload |
0.5dBm |
| Protocols |
10G Ethernet, MSA Compliant |
Operation Temperature |
0 to 70°C (32 to 158°F) |
For detailed technical specifications, please refer to the Datasheet
Usage Guidelines & Operational Best Practices
•
BiDi Pairing Rule: SFP‑10G‑BXU (Tx1270/Rx1330) must pair with
SFP‑10G‑BXD (Tx1330/Rx1270) at remote end. Two BXU modules will NOT form a valid link.
•
Cabling Requirement: Use OS2 single‑mode simplex‑LC UPC cables only. Multimode fiber / APC connectors reduce reach and cause link issues; keep connectors clean.
•
Port Notice: Install only into standard SFP+ ports. Do not force into 1G‑SFP slots. Disable transceiver‑block policy if needed on host devices.
•
Environment: Run within 0‑70 °C. Avoid high‑heat, dusty, poorly ventilated rack positions.
•
Hot‑swap: Supports hot‑swap; disconnect fiber before plugging / unplugging to protect optical ports.
•
DDM Monitoring: Enable DDM/DOM; monitor optical power and temperature for early fault warning.
•
Pre‑test Recommendation: Test sample units with real hardware before large‑scale bulk deployment.
•
Laser Safety: Avoid direct eye exposure to powered optical ports; infrared laser can harm eyes.
For detailed operation instructions, please refer to the User Guide.
Full Compatibility List & Supported Network Hardware
1.Brocade Exclusive Compatible Hardware & Validated Switch Series
Our alarm-free plug-and-play sfp+ 10g bidi module is pre-flashed with standard Brocade EEPROM identification codes, eliminating unrecognized transceiver warning logs after full physical real-Brocade-switch insertion validation for all listed equipment:
-
Ruckus ICX Series Switches: ICX 6610, ICX 7150, ICX 7250, ICX 7450, ICX 7650, and ICX 7750 Series (high-performance 10G uplink and stacking ports).
-
Brocade VDX Data Center Switches: VDX 6740, VDX 6940, and VDX 8770 Series fabric slots.
-
Brocade FastIron Series Switches: FastIron SX, FastIron CX, and FCX Series.
-
Brocade NetIron Routers: NetIron CES 2000 and NetIron CER 2000 Series
At HYTOPTODEVICE, 150+ brand devides are utilized for compatibility test. Authentic real-Brocade-device test videos of this SFP+ 10G BiDi module are offered free for project bidding and internal quality audits.
2. Cross‑Brand Interoperability
Built on MSA open standards, this 10G BiDi SFP+ works with Cisco, Arista, Juniper, H3C, Huawei, Brocade, Dell hardware. Well‑suited for mixed‑vendor metro and DCI expansion projects for enterprise, carrier clients, wholesalers and integrators.
Primary Application Scenarios
- sfp+ 10g bidi module for multi-story campus single-fiber backbone trunk, halving fiber deployment costs for long-distance point-to-point enterprise network upgrades with simplex single-strand OS2 optical cable.
- sfp+ 10g bidi module for top-of-rack aggregation switch to server NIC uplink connections, building steady high-speed 10G single-fiber data links between core rack aggregation switches and local server network interface cards.
- sfp+ 10g bidi module for standardized indoor rack structured cabling schemes, matching universal cable management frameworks for indoor server rooms and multi-floor building backbone wiring infrastructure.
- Mass factory stock supply commercial indoor rated sfp+ 10g bidi module for corporate office network expansion projects, maintaining stable signal performance inside temperature-controlled indoor server cabinets within standard 0–70°C working range.
- Cost-efficient sfp+ 10g bidi module replacement for Brocade OEM optics for ISP FTTB access network construction, cutting large-volume procurement expenses compared with high-priced original Brocade factory optical modules.
Connectivity Solutions(Applications)
1.10G Switch-to-Switch Interconnection Diagram:

2.10G Switch-to-NIC Server Uplink Diagram:

3.10G Standardized Structured Cabling Rack Layout Diagram:

The Core Features
1.Optimize Infrastructure via Single-Fiber WDM
Maximize your existing assets. By utilizing separate TX/RX wavelengths on one single-mode fiber, this 10G BiDi transceiver optimizes your fiber infrastructure, cutting physical fiber requirements and installation labor costs by 50%.

2.Scalable Bandwidth Expansion
Scale your network effortlessly. Upgrading to our BiDi technology allows you to instantly double your data throughput over your existing fiber plant, providing a cost-effective roadmap for future bandwidth expansion.

3.High-Density, Low-Carbon 10G SFP+
Scale up without overloading your racks. Delivering full 10Gbps performance at a ultra-low power consumption of just 1W, this high-density transceiver helps modern enterprise networks and data centers achieve green energy targets.

4.Verified Cross-Brand Compatibility
Avoid vendor lock-in with confidence. Our transceivers are programmed and tested in real mainstream brand switches to ensure 100% interoperability. We are proud of our authentic results! Specific Compatibility Video available upon request.

5.End-to-End Quality Assurance
Built for mission-critical paths. Every 10G BiDi 10km module undergoes exhaustive factory testing—including BER (Bit Error Rate) tests and distance simulation—before leaving our Test Center. Built for maximum uptime, delivered with zero surprises.

FAQ
Q1: Why does Brocade switch pop up unsupported transceiver alerts when using third-party sfp+ 10g bidi module?
A:HYTOPTODEVICE sfp+ 10g bidi module is pre-coded with authentic Brocade EEPROM data to fix unsupported transceiver alerts on Brocade FastIron/ICX switches. Any non-qualified prompts are harmless reminders. You can clear error-disabled port status via standard Brocade CLI commands for normal full-speed module operation.
Q2: What are the wavelength pairing differences between upstream and downstream Brocade compatible sfp+ 10g bidi module?
A:The upstream 10G-SFPP-BXU-20K sfp+ 10g bidi module transmits at 1270nm and receives at 1330nm. The matching downstream 10G-SFPP-BXD-20K module transmits at 1330nm and receives at 1270nm. The two wavelength-different sfp+ 10g bidi module must be used in pairs to establish valid single-fiber 10G links.
Q3: Can two identical upstream sfp+ 10g bidi module realize point-to-point fiber communication?
A:No.Two identical upstream sfp+ 10g bidi module cannot form network connections. Both modules transmit at 1270nm and wait for 1330nm signals, resulting in no signal reception and persistent port downtime. Paired upstream and downstream sfp+ 10g bidi module is required.
Q4: Does Brocade compatible sfp+ 10g bidi module require duplex LC fiber patch cords for operation?
A:No. This Brocade compatible sfp+ 10g bidi module uses a simplex LC port and single-fiber BiDi technology. It supports full-duplex 10G transmission over one single fiber strand and does not require duplex LC patch cords, saving fiber resources for networking deployment.
Q5: What is the standard working temperature range for commercial-grade sfp+ 10g bidi module for data centers?
A:HYTOPTODEVICE commercial-grade sfp+ 10g bidi module supports a standard 0°C to 70°C operating temperature range. It runs stably in climate-controlled data centers and enterprise server rooms for long-term 10G network operation.
Q6: Is 20km single-mode sfp+ 10g bidi module compatible with multi-mode fiber network architecture?
A: No. The 20km sfp+ 10g bidi module is strictly calibrated for OS1/OS2 single-mode fiber only. It is incompatible with multi-mode fiber (MMF) and will fail to establish any network link on MMF infrastructure.
Q7: Is an optical attenuator required for short-distance 2km links when using 20km sfp+ 10g bidi module?
A:No optical attenuator is needed for 2km short links with this 20km sfp+ 10g bidi module. Its factory-calibrated 3dBm max transmit power avoids receiver overload, ensuring stable short-distance single-fiber transmission.
Q8: Can Brocade-adapted sfp+ 10g bidi module support real-time DOM optical data monitoring?
A:Yes, all HYTOPTODEVICE sfp+ 10g bidi module support full DOM monitoring. You can check real-time optical power, temperature and voltage data via Brocade and Ruckus FastIron CLI commands for real-time module operation monitoring.
Q9: Can fixed-rate sfp+ 10g bidi module automatically downgrade to 1G legacy network speed?
A:No, this fixed-rate sfp+ 10g bidi module only supports native 10GBASE Ethernet. It does not support speed auto-negotiation and cannot downgrade to 1G or 100M legacy network speeds.
Q10: Is third-party verified sfp+ 10g bidi module comparable to original Brocade optical modules in stability?
A:HYTOPTODEVICE sfp+ 10g bidi module adopts premium OEM-grade components. Every unit is serialized and fully tested on real Brocade switches, delivering 99.9% uptime and equivalent stability to original Brocade optical modules.
Q11: Does mainstream compatible sfp+ 10g bidi module meet international safety and environmental protection certification standards?
A:Yes, this sfp+ 10g bidi module fully complies with SFP+ MSA, CE, FCC, RoHS and IEC 60825-1 laser safety standards, meeting global green and safety certification requirements for commercial networking.
Q12: Can high-speed sfp+ 10g bidi module be plugged into traditional 1G SFP hardware slots?
No, this high-speed sfp+ 10g bidi module features dedicated 10G SFP+ ASIC architecture. It is electrically incompatible with traditional 1G-only SFP slots and cannot work on 1G network ports.
Q13: Can this sfp+ 10g bidi module work normally on third-party network devices besides Brocade?
A:Yes, our multi-vendor compatible sfp+ 10g bidi module supports mainstream brands including Cisco, Huawei, Juniper, Arista, HPE and Dell. We also provide custom EEPROM coding to match any third-party device for plug-and-play use.
Q14: Do you provide customized coding and technical support for bulk-ordered sfp+ 10g bidi module?
A:Yes. We offer professional custom EEPROM coding and one-on-one remote technical guidance. Long-term partners can get free coding equipment and full technical authorization to independently rewrite and encode sfp+ 10g bidi module on demand.
