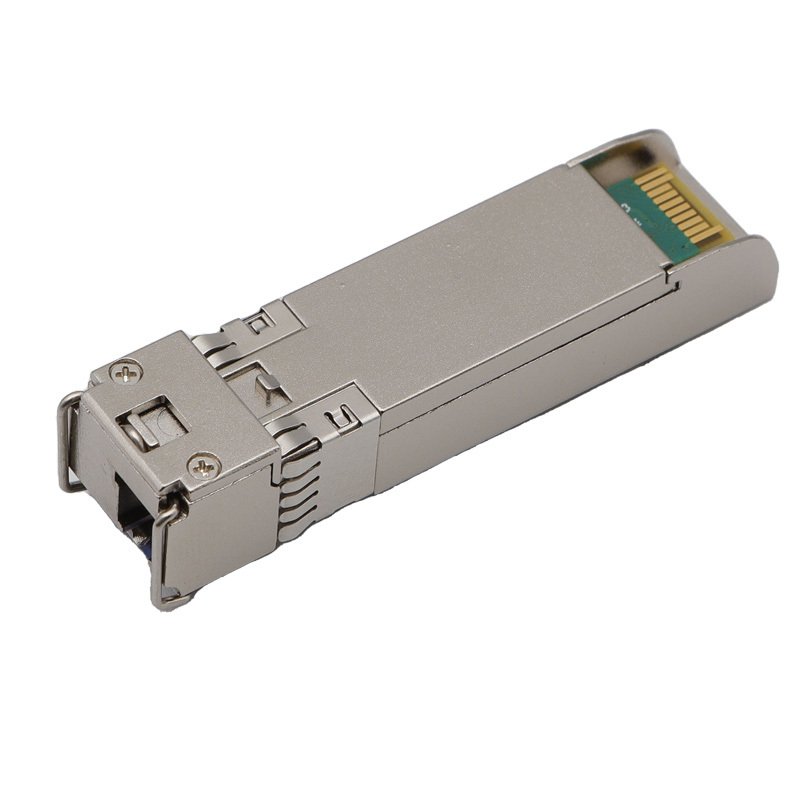

• 10GBASE-BX20-U single-strand SFP+ 10G BiDi Transceiver side profile studio white background product photograph

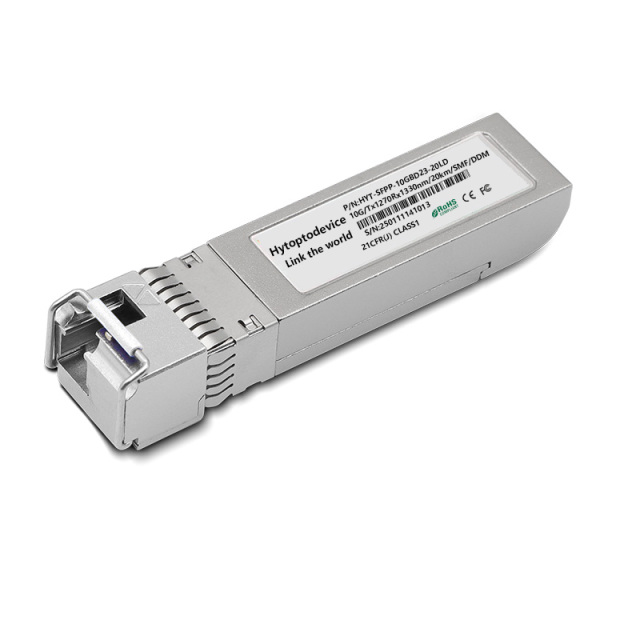

  • HYTOPTODEVICE commercial indoor rated SFP+ 10G BiDi Transceiver matching Dell GP-SFP-10GBX-U-20 Tx1270/Rx1330 20km front simplex LC port clean
  • Live DDM diagnostic supported 0–70°C SFP+ 10G BiDi Transceiver specification label close-up white background
  • Large bulk stock stack of SFP+ 10G BiDi Transceiver factory wholesale supply display white background
  • 10GBASE-BX20-U single-strand SFP+ 10G BiDi Transceiver side profile studio white background product photograph
  • HYTOPTODEVICE commercial indoor rated SFP+ 10G BiDi Transceiver matching Dell GP-SFP-10GBX-U-20 Tx1270/Rx1330 20km front simplex LC port clean
  • Live DDM diagnostic supported 0–70°C SFP+ 10G BiDi Transceiver specification label close-up white background
  • Large bulk stock stack of SFP+ 10G BiDi Transceiver factory wholesale supply display white background

Dell GP-SFP-10GBX-U-20 Compatible SFP+ 10G BiDi Transceiver Module |10GBASE-BX-U 20KM Tx1270Rx1330 Bulk Wholesale | HYTOPTODEVICE

Factory supply SFP+ 10G BiDi Transceiver GP-SFP-10GBX-U-20, Tx1270/Rx1330 20km OS2 simplex LC, commercial 0–70°C live DDM, fully tested on Dell switches with videos, bulk wholesale & custom EEPROM coding, cut over 70% costs vs Dell OEM, cross-brand plug-and-play.
NO. Brand  Compatible P/N Transceiver Type
1 Cisco SFP-10G-BXU-I SFP-10G32-BX20
2 Arista  SFP-10G-LXRBD-U SFP-10G23-BX10
3 Huawei SFP-10G-BX20U SFP-10G32-BX10
4 Dell GP-SFP-10GBX-U-20 SFP-10G23-BX40
5 Brocade 10G-SFPP-BXU-20K  SFP-10G32-BX40
6 Extreme 10GB-BX20-U SFP-10G23-BX60
7 Ciena XCVR-S20U27 SFP-10G45-BX80
8 D-Link  DEM-436XT-BXU  SFP-10G45-BX100
Description


Dell Compatible GP-SFP-10GBX-U-20 SFP+ 10G BiDi Transceiver Module 10GBASE-BX20-U (SMF, 1270nm-TX/1330nm-RX, 20km, Simplex LC, Live DDM)

Product Overview


 The Dell-matching GP-SFP-10GBX-U-20 optical transceiver is equipped with a simplex LC port and delivers stable 20km signal transmission over G.652 single-mode fiber. Using WDM technology, this SFP+ 10G BiDi Transceiver enables bidirectional 10G Ethernet data flow via only one single fiber strand, lowering overall cabling expenses and maximizing utilization of existing fiber infrastructure. Compliant with SFP+ MSA, IEEE 802.3ae and SFF-8431 global industry standards, the budget-friendly SFP+ 10G BiDi Transceiver drop-in replacement for Dell OEM optics provides seamless plug-and-play compatibility with Dell OS10 platforms alongside other network hardwares. Supporting DDM digital diagnostic monitoring, it is ideal for enterprise wiring closets, service provider transport applications,etc.

Key Technical Specifications

Dell Compatible GP-SFP-10GBX-U-20 Vendor Name HYTOPTODEVICE
Form Factor SFP+ Max Data Rate 10.7Gbps
Wavelength TX1270nm/RX1330nm Max  Distance 20km
Connector Simplex LC Transmitter Type 1270nm DFB
Cable Type SMF Receiver Type PIN
TX Power -3.0~+2.0dBm Receiver Sensitivity < -14.4dBm
Max. Power Consumption ≤1W Receiver Overload 0.5dBm
Protocols 10G Ethernet, MSA Compliant Operation Temperature 0 to 70°C (32 to 158°F)

For detailed technical specifications, please refer to the Datasheet



Usage Guidelines & Operational Best Practices

• BiDi Pairing Rule: SFP‑10G‑BXU (Tx1270/Rx1330) must pair with SFP‑10G‑BXD (Tx1330/Rx1270) at remote end. Two BXU modules will NOT form a valid link.
• Cabling Requirement: Use OS2 single‑mode simplex‑LC UPC cables only. Multimode fiber / APC connectors reduce reach and cause link issues; keep connectors clean.
• Port Notice: Install only into standard SFP+ ports. Do not force into 1G‑SFP slots. Disable transceiver‑block policy if needed on host devices.
• Environment: Run within 0‑70 °C. Avoid high‑heat, dusty, poorly ventilated rack positions.
• Hot‑swap: Supports hot‑swap; disconnect fiber before plugging / unplugging to protect optical ports.
• DDM Monitoring: Enable DDM/DOM; monitor optical power and temperature for early fault warning.
• Pre‑test Recommendation: Test sample units with real hardware before large‑scale bulk deployment.
• Laser Safety: Avoid direct eye exposure to powered optical ports; infrared laser can harm eyes.

For detailed operation instructions, please refer to the User Guide.


Full Compatibility List & Supported Network Hardware

1.Dell Exclusive Compatible Hardware & Validated Switch Series

Our zero-warning plug-and-play SFP+ 10G BiDi Transceiver is preloaded with authentic Dell standard EEPROM identification coding, eliminating unrecognized module warning alerts after full physical real-Dell-switch insertion validation across all listed hardware:
  • Dell Networking S-Series Switches: S3048-ON, S4048-ON, S4128F-ON, S4148F-ON, S5232F-ON, and S5248F-ON (high-performance leaf/spine slots).

  • Dell Networking N-Series Switches: N3000 Series (N3024F, N3048EP-ON) and N4000 Series (N4032, N4064F) layer 3 distribution switches.

  • Dell PowerConnect Series Switches: PowerConnect 8100 and 8132 Series.

  • Dell Force10 Series Switches: Force10 S55, S60, and MXL blade switch architectures.

At HYTOPTODEVICE, 150+ brand switches and routers are using for compatibility test. Authentic real-Dell-device test videos of this SFP+ 10G BiDi Transceiver are offered free for project bidding and internal quality audits.

2.Cross-Vendor Compatibility

Built on MSA open standards, this 10G BiDi SFP+ works with Cisco, Arista, Juniper, H3C, Huawei, Brocade, Dell hardware. Well‑suited for mixed‑vendor metro and DCI expansion projects for enterprise, carrier clients, wholesalers and integrators.

Primary Application Scenarios

  1. SFP+ 10G BiDi Transceiver for multi-floor enterprise single-fiber trunk infrastructure, halving physical fiber deployment costs for long-distance point-to-point enterprise network upgrades using simplex single-strand OS2 optical cable.
  2. SFP+ 10G BiDi Transceiver for top-of-rack aggregation switch to server NIC uplink links, creating consistent high-speed 10G single-fiber data connections between core rack aggregation switches and local server network interface cards.
  3. SFP+ 10G BiDi Transceiver for standardized indoor rack structured cabling frameworks, aligning with industry-standard cable management norms for indoor server rooms and multi-story building backbone wiring infrastructure.
  4. Large volume factory supply commercial indoor rated SFP+ 10G BiDi Transceiver for corporate office network expansion projects, maintaining steady signal performance inside climate-controlled indoor server cabinets within standard 0–70°C operating thresholds.
  5. Budget-friendly SFP+ 10G BiDi Transceiver drop-in replacement for Dell OEM optics for ISP FTTB access network construction, reducing large-volume procurement overhead compared to premium Dell factory OEM optical modules.
Connectivity Solutions(Applications)

  1.10G Switch-to-Switch Interconnection Diagram:

DELL 10G BiDi SFP+ module 10G core switch to core switch single-fiber trunk layout diagram compatible  huawei compatible  10GBASE-BX20-U

2.10G Switch-to-NIC Server Uplink Diagram:

single strand SFP+ 10G BiDi Transceiver standardized enterprise rack structured wiring layout OS2 simplex LC 20km single-mode fiber

3.10G Standardized Structured Cabling Rack Layout Diagram:

 10G SFP+ BiDi Transceiver standardized enterprise rack structured wiring layout OS2 simplex LC 20km single-mode fiber


The Core Features

1.Slash Cabling Costs with Single-Fiber BiDi
Stop paying for extra optical fibers. Our 10G BiDi SFP+ transceivers send and receive data over one single strand of fiber, helping you slash cabling infrastructure costs while fully utilizing your current deployment.

10G-BiDi-SFP-10km-single-fiber-utilization

2.Instantly Double Your Bandwidth
Run out of fiber lines? No problem. By separating transmit and receive wavelengths on a single strand, this module instantly doubles your network capacity without requiring you to pull any new cables.

double-network-capacity-with-BiDi-SFP-plus

3.1W Low-Power 10G Link
Power consumption matters in high-density data centers. Featuring a highly efficient design, this 10G SFP+ module operates at under 1W, minimizing heat generation and lowering your overall operational and cooling costs.

low-power-consumption-10G-SFP-data-center

4.Seamless Cross-Brand Interoperability
Eliminate compatibility headaches. We test every single module in actual, real-world mainstream switches to guarantee flawless cross-brand interoperability. Want proof?  Specific Compatibility Video available upon request.

SFP-plus-cross-brand-interoperability-switch-test

5.Rigorously Tested for Zero-Downtime Reliability
We don’t compromise on network uptime. Through comprehensive testing—including temperature, signal integrity, and optical power analysis—before leaving our Test Center. we ensure your 10G BiDi 20km links remain rock-solid and packet-loss-free.

comprehensive-quality-testing-10G-BiDi-transceiver



FAQ

Q1: What is the wavelength pairing for the Dell GP-SFP-10GBX-U-20?
A: The GP-SFP-10GBX-U-20 (Upstream) transmits at 1270nm and receives at 1330nm. It must be paired with the GP-SFP-10GBX-D-20 (Downstream) module, which transmits at 1330nm and receives at 1270nm.

Q2: Will Dell OS10 recognize this as a native module?
A: Yes. HYTOPTODEVICE modules are pre-programmed with Dell-specific EEPROM data. Your switch will recognize it as a native GP-SFP-10GBX-D-20, ensuring no "unsupported transceiver" warnings and full Dell Networking SFP+ compatibility.

Q3: Does this 20km module support real-time monitoring (DOM)?
A: Absolutely. It supports full Digital Optical Monitoring (DOM). You can use the Dell CLI command show interfaces transceiver to monitor real-time temperature, voltage, and TX/RX power levels—critical for maintaining long-distance 20km links.

Q4: Can I use this 20km BiDi module for a short-distance link (e.g., 2km)?
A: Yes. While optimized for 20km, the high dynamic range of HYTOPTODEVICE optics ensures that the receiver will not be saturated on shorter spans. However, monitoring the RX power via DOM is recommended during installation.

Q5: Is this module hot-swappable in a Dell S-Series switch?
A: Yes. The module is hot-pluggable, allowing you to insert or remove the transceiver while the switch is powered on without disrupting existing network traffic.

Q6: Can custom coded SFP+ 10G BiDi Transceiver Tx1270/Rx1330 run stably on Cisco, Huawei, Juniper and other third-party brand network switches?
A: This HYTOPTODEVICE SFP+ 10G BiDi Transceiver is pre-programmed with exclusive Dell identification codes. To eliminate persistent unrecognized module alarm logs on other-brand hardware, select our EEPROM pre-customized BiDi transceivers matched to your target switch brand.

Q7: What peak power draw will high-density rack deployed 20km SFP+ 10G BiDi Transceiver produce during 24/7 continuous operation?
A: HYTOPTODEVICE optimized internal power circuits for this SFP+ 10G BiDi Transceiver, limiting maximum power consumption below 1.5W to reduce thermal buildup inside densely packed Dell server cabinets.

Q8: Is single-mode simplex SFP+ 10G BiDi Transceiver Tx1270/Rx1330 designed to support SDH and SONET telecom core backbone transmission systems?
A: HYTOPTODEVICE SFP+ 10G BiDi Transceiver is calibrated exclusively for IEEE 802.3ae 10G Ethernet and fiber channel networking, with no signal tuning for SDH/SONET telecom transmission infrastructure.

Q9: Which fiber connector end-face polishing type works with the simplex LC port of 20km Dell compatible SFP+ 10G BiDi Transceiver?
A: HYTOPTODEVICE SFP+ 10G BiDi Transceiver uses standard blue LC/UPC simplex interfaces. Green angled LC/APC patch cords are prohibited, as they trigger severe optical signal attenuation and permanent link disconnection.

Q10: Why does Dell OS10 switch port display link light for wavelength-paired SFP+ 10G BiDi Transceiver yet fail to receive any data packets?
A: If HYTOPTODEVICE SFP+ 10G BiDi Transceiver shows active link light without inbound traffic, root causes include misconfigured MTU values, STP port blocking status or mismatched VLAN tagging rules on the Dell OS10 interface.


Packaging & Custom OEM Solutions

Each module ships individually sealed in ESD-safe packaging, protected from static from our warehouse to your shelf—and ready to ship on receipt of order. Volume buyers and system integrators also unlock our full OEM program: custom logos, private labeling, and branded packaging, all designed to help you build and protect your own brand.
HYTOPTODEVICE 10Gbase-bx bidi transceiver  custom packaging


Why Network Engineers Choose HYTOPTODEVICE

HYTOPTODEVICE has supplied over 5000,000 optical transceiver modules to data centers, ISPs, and enterprise networks across 100+ countries since 2011. Every module undergoes a 72-hour burn-in test and full DDM/DOM validation before shipment.

  • Up to 70% cost savings vs OEM, transparent pricing & flexible bulk rates, supported quality returns
  • 100% real-device compatible with Cisco, Huawei,Dell,Juniper, and Arista
  • ISO 9001:2015 Shenzhen factory, full lineup: 1.25G/10G/25G/40G/100G/200G/400G/800G/1.6T transceivers
  • Ample stock, fast global DHL/FedEx shipping in 3–5 working days
  • Free pre-sales engineering support for custom EEPROM  & private label firmware
  • Real switch test videos available for pre-purchase review; inspection & shipping videos provided per order

“Phenomenal performance. We deployed 200 HYTOPTODEVICE SFP modules to replace Cisco OEMs in our backbone network. Result? Zero compatibility issues and a 60% reduction in costs. Highly recommended for mission-critical networks."— Senior Network Engineer, Regional Telecom, Australia


Quality Certification & Compliance


 At HYTOPTODEVICE, our quality commitment is backed by industry-standard validations. From fiber optical transceiver manufacturing to final visual inspection, from IQC、IPQC、FQC to OQC, our processes ensure global compliance and reliability.

We adhere to rigorous standards for our SFP modules and network solutions:

  • ISO 9001: Certified quality management and production consistency.

  • CE & FCC: Fully compliant for seamless Global Market Access.

  • RoHS: Committed to environmental responsibility and hazardous material control.

  • Proven Reliability: Rigorous testing to reduce compliance risk and ensure safety.

Certified Quality. Global Standards. Guaranteed Performance.




Rigorous Industrial Product Testing

   hytoptodevice check device and equiptment for optical transceiver module

100% 3rd Party Compatible
hytoptodevice optical module testing device
Partial Test Demonstration
hytoptodevice compatible optical transceiver module for ethernet,data center
