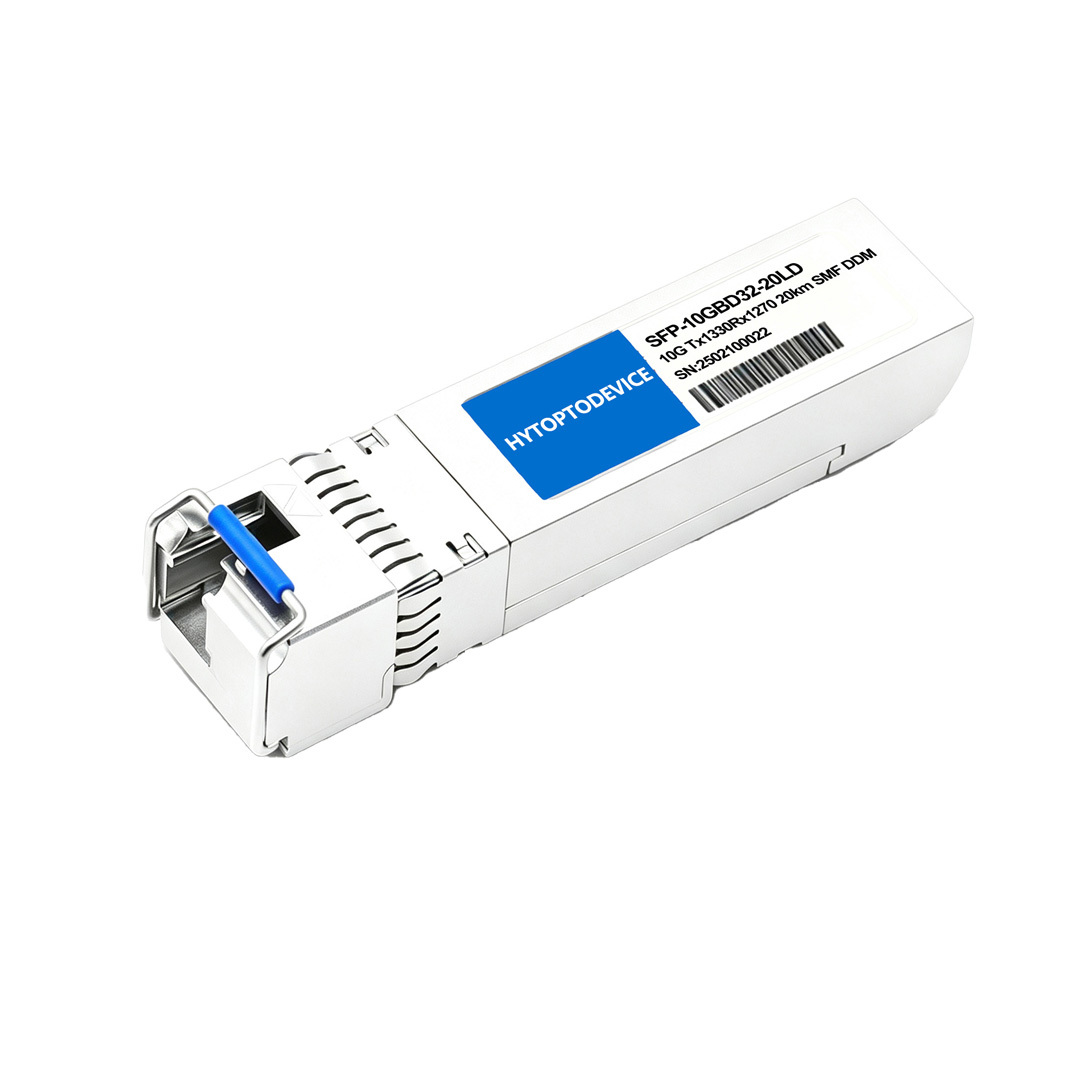

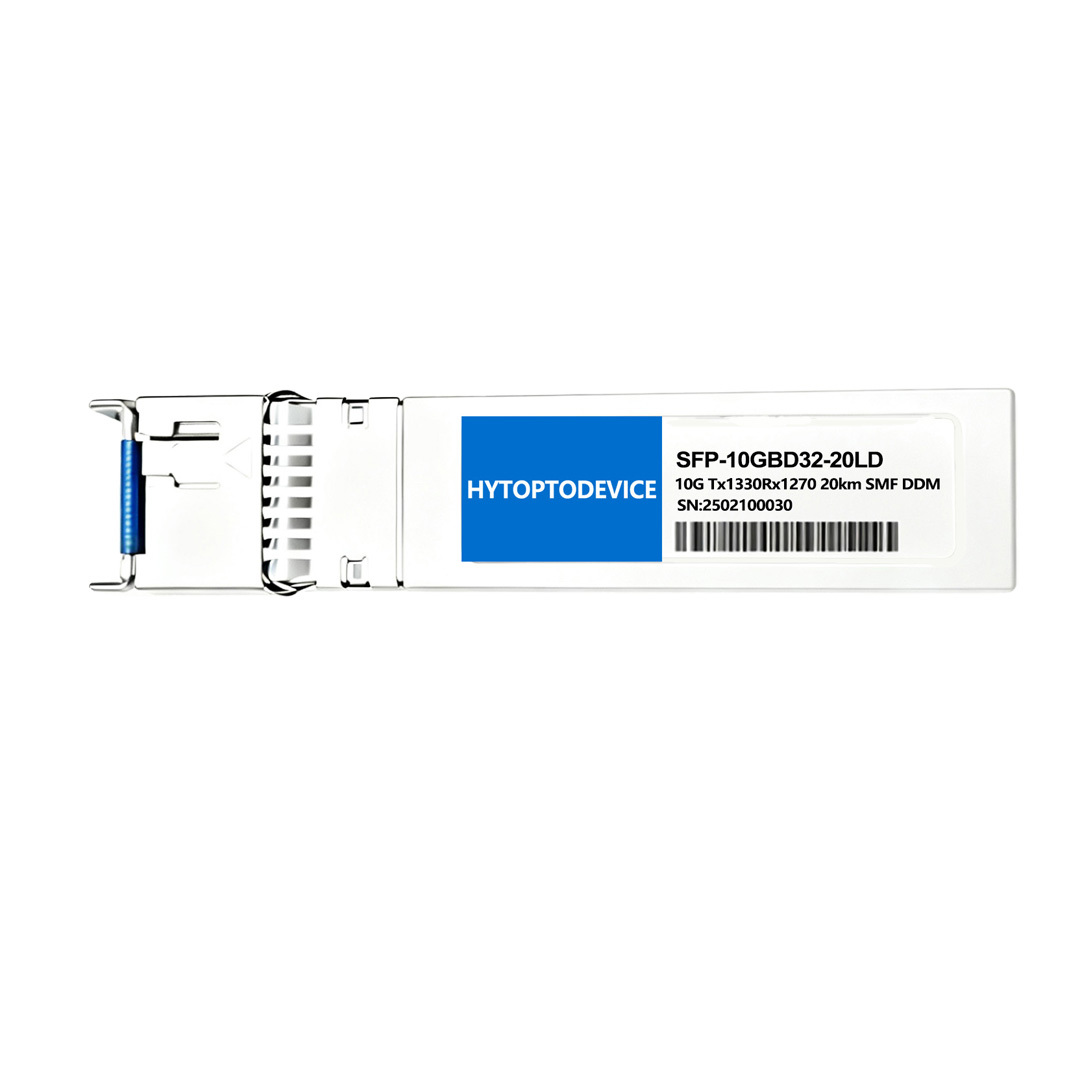

Extreme Compatible 10GB-BX20-D BiDi 10G SFP+ Transceiver 10GBASE-BX20-D (SMF, 1330nm-TX/1270nm-RX, 20km, Simplex LC, DDM)
Product Overview
The Extreme compatible 10GB-BX20-D BiDi 10G SFP+ Transceiver is equipped with a simplex LC port and delivers stable 20km signal transmission over G.652 single-mode fiber. Utilizing WDM technology, this Extreme 10GB-BX20-D compatible transceiver enables bidirectional 10G Ethernet data flow via only one single fiber strand, lowering overall cabling expenses and maximizing utilization of existing fiber infrastructure. Compliant with SFP+ MSA, IEEE 802.3ae and SFF-8431 protocols and standards, the MSA compliant BiDi 10G SFP+ Transceiver provides seamless plug-and-play compatibility with Extreme equipments and other network hardwares. Supporting DDM/DOM digital diagnostic monitoring, it is ideal for enterprise wiring closets, service provider transport applications,etc.
Key Technical Specifications
Below are the specifications for our Extreme 10GB-BX20-D compatible BiDi 10G SFP+ Transceiver (1330nm-TX/1270nm-RX, 20km, SMF, LC, DDM). Every unit undergoes strict optical and electrical testing. Official test documentation is available upon request.
| Extreme Compatible |
10GB-BX20-D |
Vendor Name |
HYTOPTODEVICE |
| Form Factor |
SFP+ |
Max Data Rate |
10.7Gbps |
| Wavelength |
TX1330nm/RX1270nm |
Max Distance |
20km |
| Connector |
Simplex LC |
Transmitter Type |
1330nm DFB |
| Cable Type |
SMF |
Receiver Type |
PIN |
| TX Power |
-3.0~+2.0dBm |
Receiver Sensitivity |
< -14.4dBm |
| Max. Power Consumption |
≤1W |
DOM/DDM Monitoring |
Fully Supported |
| Protocols |
SFP+ MSA, SFF-8472, IEEE 802.3ae, RoHS |
Operation Temperature |
0 to 70°C (32 to 158°F) |
Order & Pairing Notes for 10GB-BX20-D BiDi 10G SFP+ Transceiver

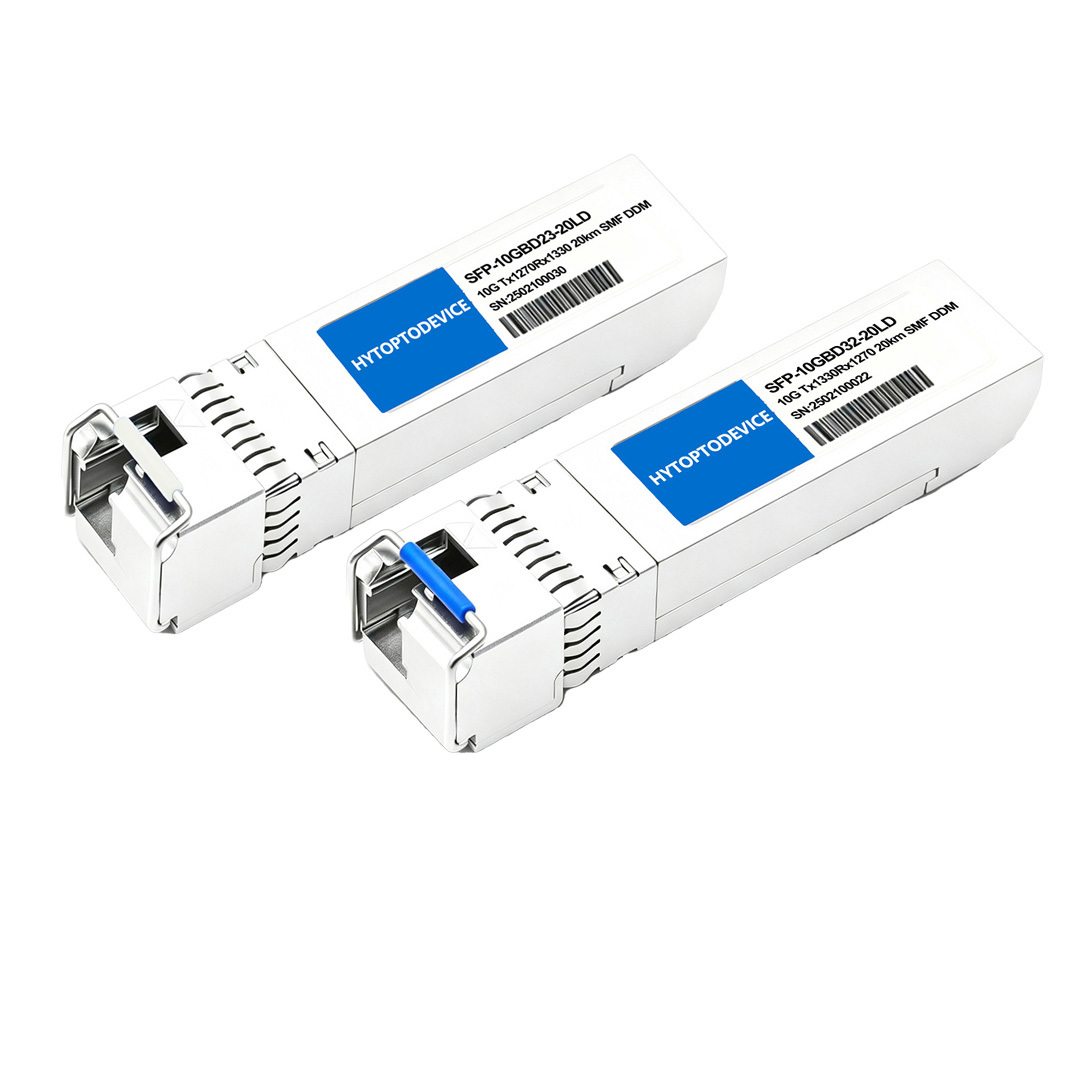

This 10GB-BX20-D BiDi 10G SFP+ Transceiver must be paired with matching 10GB-BX20-U BiDi 10G SFP+ Transceiver (1270nm-TX / 1330nm-RX) to establish interference-free full-duplex single-fiber communication. We offer exclusive discounted bundle pricing for U/D paired sets of the BiDi 10G SFP+ Transceiver for wholesale enterprise and ISP clients who place large volume order, and supply standalone single units for incremental network expansion projects. Extended distance variants (10km / 40km / 60km) of the BiDi 10G SFP+ Transceiver can be customized upon OEM bulk order request, send quote request to get customized solution for your project.
Full Compatibility List & Supported Network Hardware
1.Extreme Exclusive Compatible Hardware & Validated Switch Series
Our alarm-free plug-and-play BiDi 10G SFP+ Transceiver is pre-flashed with standard Extreme EEPROM identification codes, eliminating unrecognized transceiver warning logs after full physical real-Extreme-switch insertion validation for all listed equipment:
-
Extreme Summit X440-G2 / X450-G2 / X460-G2
-
Extreme VSP 7400 / VSP 8400 Series Datacenter Switches
-
Extreme X670 / X770 High-Density Campus Switches
-
Extreme SLX Series Enterprise Routers
All equipment recognizes our BiDi 10G SFP+ transceiver natively, no third-party module unlock command required.
2.Cross-Brand Network Devices Compatible With This BiDi 10G SFP+ Transceiver
Beyond Extreme hardware, our wholesale BiDi 10G SFP+ Transceiver is compatible with mainstream brand devices, it include:
Cisco Catalyst 9000/3850, Mikrotik CCR Series, Huawei S5735/S6735, H3C S5130, Arista 7050, Dell PowerSwitch, Juniper EX/QFX, Fortinet FortiSwitch, Brocade ICX, Allied Telesis, Ubiquiti UniFi Switch.
Primary Application Scenarios
This BiDi 10G SFP+ Transceiver must be deployed as a matched pair together with its complementary reverse-wavelength BiDi counterpart, installed separately at the two opposite ends of single-strand fiber patch cords to build valid bidirectional 10G data links. Optimized for fiber-reserved network upgrades and limited cable tray layouts, this BiDi 10G SFP+ Transceiver boosts single-fiber bandwidth efficiency and streamlines enterprise network expansion workflows. Below are its primary application scenarios:
- Multi-Building Enterprise Campus Fiber Upgrade: Mass deployment of 10GB-BX20-D BiDi 10G SFP+ Transceiver to reuse existing single fiber strands and eliminate expensive new cabling construction, ideal for system integrators’ bulk order projects
- SMB Small Datacenter Inter-Switch Uplinks: High-density simplex LC BiDi 10G SFP+ Transceiver to conserve limited fiber port resources on aggregation racks, welcome bulk inquiry from datacenter operators
- Remote Office Branch Network Interconnection: 20km reach 10GB-BX20-D BiDi 10G SFP+ Transceiver connecting remote branches to central Extreme core switch rooms, competitive bulk pricing for multi-branch enterprise RFQ submission
- Small ISP Metro Fiber Access Backhaul: Cost-effective bulk supply of BiDi 10G SFP+ Transceiver for business client single-fiber 10G uplink links, long-term supply contract available for ISP distributors
- Enterprise System Integrator Turnkey Network Projects: OEM-branded 10GB-BX20-D BiDi 10G SFP+ Transceiver bulk delivery for global SMB network importer projects, private logo service included for mass purchase clients
Connectivity Solutions(Applications)
Our single fiber BiDi 10G SFP+ Transceiver supports three widely adopted enterprise network installation architectures:
1.10G Switch-to-Switch Interconnection Diagram:
Deploy paired matching BiDi 10G SFP+ module units between two enterprise core aggregation switches to build long-distance single-fiber backbone trunk connections.
2.10G Switch-to-NIC Server Uplink Diagram:
Adopt sfp+ 10g bidi transceiver hardware to link central rack aggregation switches and onsite server NIC hardware for reliable single-fiber 10G uplink data transmission.
3.10G Standardized Structured Cabling Rack Layout Diagram:
Rack-mounted BiDi 10G SFP+ Transceiver matched with cable management hardware for neat, compliant multi-story building structured wiring deployments.
FAQ for Extreme Compatible BiDi 10G SFP+ Transceiver
Q1: Is this Extreme compatible 10GB-BX20-D BiDi 10G SFP+ transceiver fully plug-and-play on original Extreme switches?
A: Yes, our BiDi 10G SFP+ transceiver passes full layer compatibility testing on all Extreme hardware supporting the 10GB-BX20-D part number, no extra configuration or firmware patch needed. The switch identifies the BiDi 10G SFP+ transceiver as standard 10GBASE-BX optic with complete DOM readout.
Q2: Do I need to buy matching modules when using this 10GB-BX20-D BiDi 10G SFP+ transceiver for single fiber links?
A:Yes, This 10GB-BX20-D BiDi 10G SFP+ transceiver transmits at 1330nm and receives 1270nm signals, so it must pair with 10GB-BX20-U BiDi 10G SFP+ transceiver (1270nm TX / 1330nm RX) to achieve full-duplex single strand communication. HYTOPTODEVICE provide discounted pair pricing for wholesale BiDi 10G SFP+ transceiver orders.
Q3: Can I purchase bulk BiDi 10G SFP+ transceiver 10GB-BX20-D with custom OEM labels for my import distribution business?
A: Yes. We support full OEM customization for bulk BiDi 10G SFP+ transceiver orders of 200pcs and above, including private brand printing, customized part number stickers and neutral export packaging for global network importers and distributors sourcing the Extreme 10GB-BX20-D replacement module.
Q4: Does this commercial grade BiDi 10G SFP+ transceiver 10GB-BX20-D support real-time DOM optical diagnostics?
A: Yes, All our 10GB-BX20-D compatible BiDi 10G SFP+ transceiver integrate complete DDM/DOM monitoring per SFF-8472 standard, allowing network admins to view real-time optical power, temperature and voltage data directly from Extreme switch CLI or web management portal.
Q5: What fiber cable type works best with this 20km BiDi 10G SFP+ transceiver 10GB-BX20-D simplex LC module?
A: For stable full 20km transmission distance, use OS2 single-mode simplex LC/UPC fiber patch cords. OS1 SMF fiber will limit effective reach to roughly 15km for this BiDi 10G SFP+ transceiver model. Multimode fiber cannot be used with the 10GB-BX20-D BiDi 10G SFP+ transceiver.
Q6: What warranty coverage do you offer for wholesale BiDi 10G SFP+ transceiver 10GB-BX20-D orders?
A: Every Extreme compatible BiDi 10G SFP+ transceiver 10GB-BX20-D carries a 5-year factory warranty, covered under Magnuson-Moss Warranty Act – third-party compatible optics do not void your Extreme network equipment hardware warranty. We provide free pre-shipment compatibility testing for large BiDi 10G SFP+ transceiver bulk shipments.
Q7: Can this BiDi 10G SFP+ transceiver replace original Extreme 10GB-BX20-D for long-term campus network expansion projects?
A: Yes,This cost-effective BiDi 10G SFP+ transceiver from HYTOPTODEVICE matches all electrical, optical and signaling specs of OEM Extreme 10GB-BX20-D optics, making it the ideal long-term replacement for large campus network expansion projects that require hundreds of single fiber BiDi 10G SFP+ transceiver modules.
Why Network Engineers Choose HYTOPTODEVICE
HYTOPTODEVICE has supplied over 5000,000 optical transceiver modules to data centers, ISPs, and enterprise networks across 100+ countries since 2011. Every module undergoes a 72-hour burn-in test and full DDM/DOM validation before shipment.
- Up to 70% cost savings vs OEM, transparent pricing & flexible bulk rates, supported quality returns
- 100% real-device compatible with Cisco, Huawei,Dell,Juniper, and Arista
- ISO 9001:2015 Shenzhen factory, full lineup: 1.25G/10G/25G/40G/100G/200G/400G/800G/1.6T transceivers
- Ample stock, fast global DHL/FedEx shipping in 3–5 working days
- Free pre-sales engineering support for custom EEPROM & private label firmware
- Real switch test videos available for pre-purchase review; inspection & shipping videos provided per order
“Phenomenal performance. We deployed 200 HYTOPTODEVICE SFP modules to replace Cisco OEMs in our backbone network. Result? Zero compatibility issues and a 60% reduction in costs. Highly recommended for mission-critical networks."— Senior Network Engineer, Regional Telecom, Australia
Quality Certification & Compliance
At HYTOPTODEVICE, our quality commitment is backed by industry-standard validations. From fiber optical transceiver manufacturing to final visual inspection, from IQC、IPQC、FQC to OQC, our processes ensure global compliance and reliability.
We adhere to rigorous standards for our SFP modules and network solutions:
-
ISO 9001: Certified quality management and production consistency.
-
CE & FCC: Fully compliant for seamless Global Market Access.
-
RoHS: Committed to environmental responsibility and hazardous material control.
-
Proven Reliability: Rigorous testing to reduce compliance risk and ensure safety.
Certified Quality. Global Standards. Guaranteed Performance.
Rigorous Industrial Product Testing
100% 3rd Party Compatible
Partial Test Demonstration
