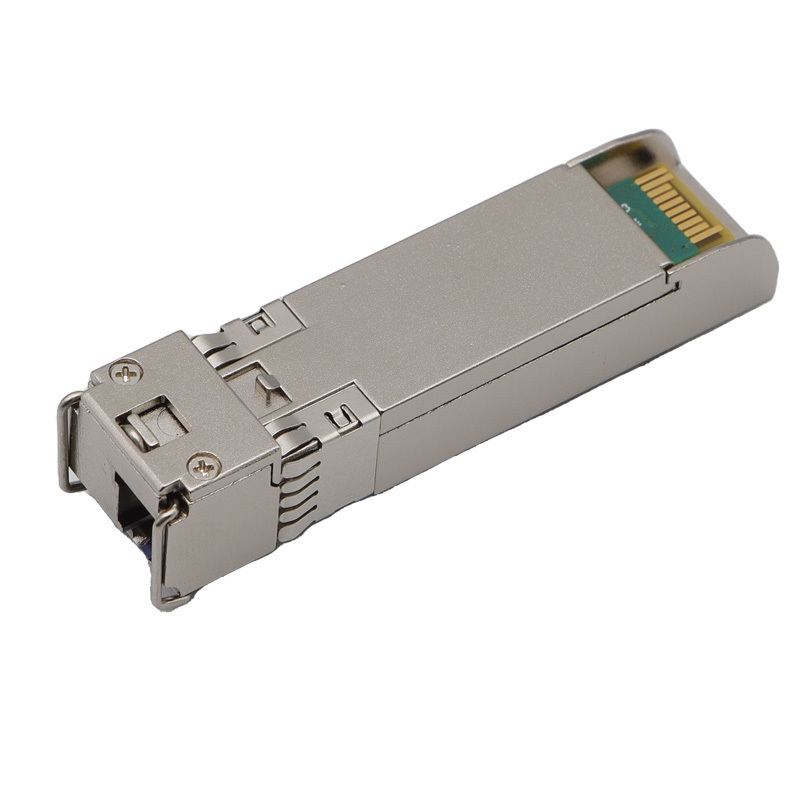

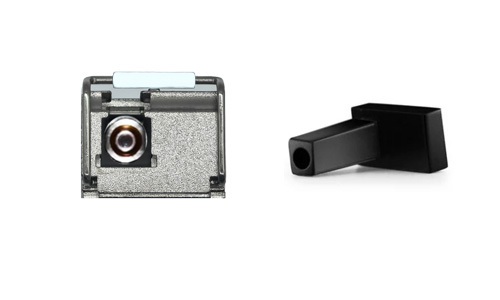

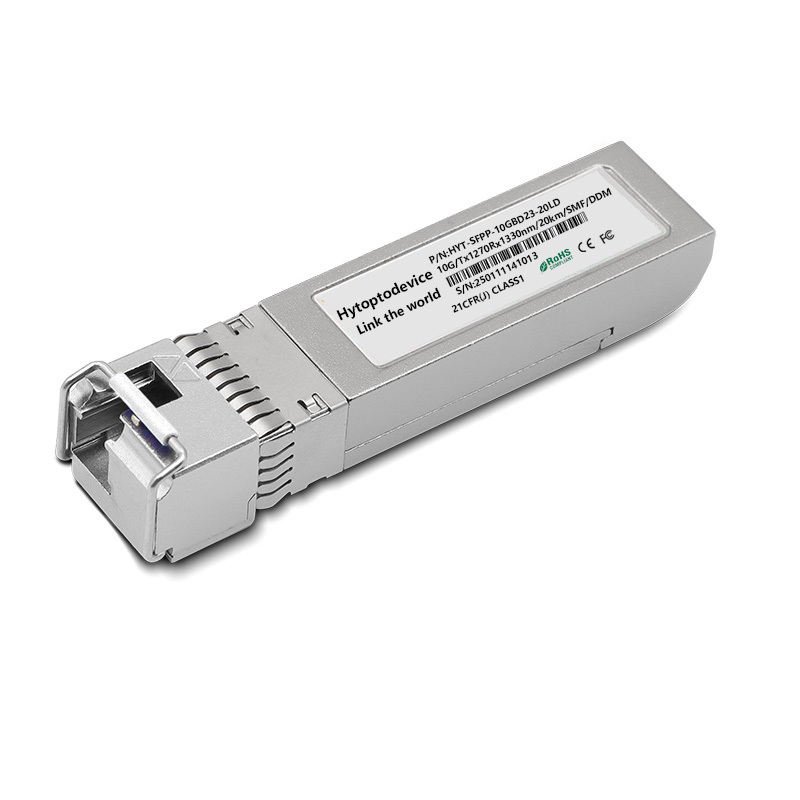

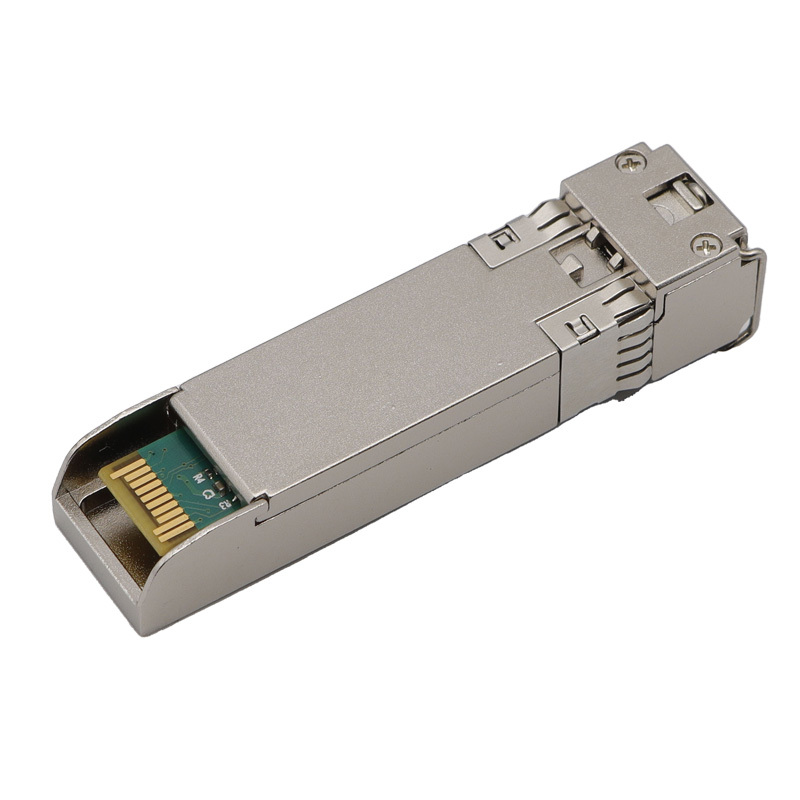

Ciena Compatible XCVR-S20U27 10G Bidirectional SFP+ Module 10GBASE-BX20-U (SMF, 1270nm-TX/1330nm-RX, 20km, Simplex LC,DDM)
Product Overview
The Ciena compatible XCVR-S20U27 10g bidirectional single mode optical module is equipped with a simplex LC port and delivers stable 20km signal transmission over G.652 single-mode fiber. Using WDM technology, this 10g bidirectional SFP+ module enables bidirectional 10G Ethernet data flow via only one single fiber strand, lowering overall cabling expenses and maximizing utilization of existing fiber infrastructure. Compliant with SFP+ MSA, IEEE 802.3ae and SFF-8431 protocols and standards, the budget-friendly 10g bidirectional sfp+ module drop-in replacement for Ciena OEM optics provides seamless plug-and-play compatibility with Ciena equipments and other network hardwares. Supporting DDM digital diagnostic monitoring, it is ideal for enterprise wiring closets, service provider transport applications,etc.
Key Technical Specifications
| Ciena Compatible |
XCVR-S20U27 |
Vendor Name |
HYTOPTODEVICE |
| Form Factor |
SFP+ |
Max Data Rate |
10.7Gbps |
| Wavelength |
TX1270nm/RX1330nm |
Max Distance |
20km |
| Connector |
Simplex LC |
Transmitter Type |
1270nm DFB |
| Cable Type |
SMF |
Receiver Type |
PIN |
| TX Power |
-3.0~+2.0dBm |
Receiver Sensitivity |
< -14.4dBm |
| Max. Power Consumption |
≤1W |
DOM/DDM Monitoring |
Fully Supported |
| Protocols |
SFP+ MSA, SFF-8472, IEEE 802.3ae, RoHS |
Operation Temperature |
0 to 70°C (32 to 158°F) |
For detailed technical specifications, please refer to the Datasheet
Usage Guidelines & Operational Best Practices
•
BiDi Pairing Rule: SFP‑10G‑BXU (Tx1270/Rx1330) must pair with
SFP‑10G‑BXD (Tx1330/Rx1270) at remote end. Two BXU modules will NOT form a valid link.
•
Cabling Requirement: Use OS2 single‑mode simplex‑LC UPC cables only. Multimode fiber / APC connectors reduce reach and cause link issues; keep connectors clean.
•
Port Notice: Install only into standard SFP+ ports. Do not force into 1G‑SFP slots. Disable transceiver‑block policy if needed on host devices.
•
Environment: Run within 0‑70 °C. Avoid high‑heat, dusty, poorly ventilated rack positions.
•
Hot‑swap: Supports hot‑swap; disconnect fiber before plugging / unplugging to protect optical ports.
•
DDM Monitoring: Enable DDM/DOM; monitor optical power and temperature for early fault warning.
•
Pre‑test Recommendation: Test sample units with real hardware before large‑scale bulk deployment.
•
Laser Safety: Avoid direct eye exposure to powered optical ports; infrared laser can harm eyes.
For detailed operation instructions, please refer to the User Guide.
Full Compatibility List & Supported Network Hardware
1.Ciena Exclusive Compatible Hardware & Validated Switch Series
Our alarm-free plug-and-play 10g bidirectional sfp+ module is pre-flashed with standard Ciena EEPROM identification codes, eliminating unrecognized transceiver warning logs after full physical real-Ciena-switch insertion validation for all listed equipment:
• Ciena 3000 Series (Service Delivery): 3903, 3926, 3928, and 3930 platforms.
• Ciena 5000 Series (Service Aggregation): 5142, 5160, 5164, and 5170 switches.
• Ciena 8100 Series (Coherent/Aggregation): 8110 and 8112 Coherent Aggregation Routers.
• Ciena Waveserver Series: Targeted for management or client-side ports requiring 10G BiDi.
2. Cross‑Brand Interoperability
Built on MSA open standards, this 10G BiDi SFP+ works with Cisco, Arista, Juniper, H3C, Huawei, Brocade, Dell hardware. Well‑suited for mixed‑vendor metro and DCI expansion projects for enterprise, carrier clients, wholesalers and integrators.
Primary Application Scenarios
- Metro Carrier Fiber Access Network: Mass deployment of XCVR-S20U27 10G Bidirectional SFP+ Module to reuse existing single fiber strands for ISP residential & business broadband backhaul
- Enterprise Campus Inter-Building 10G Links: Cost-saving 10G Bidirectional SFP+ Module eliminates new fiber laying between office buildings
- Remote Office Carrier Backhaul: 20km reach XCVR-S20U27 10G Bidirectional SFP+ Module for branch site connection to central Ciena router hubs
- Small & Medium Datacenter Inter-Switch Links: High-density simplex LC 10G Bidirectional SFP+ Module reduces fiber port resource consumption
- Telecom System Integrator Turnkey Projects: OEM-branded XCVR-S20U27 10G Bidirectional SFP+ Module bulk supply for global network importer project deliveries
Connectivity Solutions(Applications)
1.10G Switch-to-Switch Interconnection Diagram:

2.10G Switch-to-NIC Server Uplink Diagram:

3.10G Standardized Structured Cabling Rack Layout Diagram:

The Core Features
1.Optimize Infrastructure via Single-Fiber WDM
Maximize your existing assets. By utilizing separate TX/RX wavelengths on one single-mode fiber, this 10G BiDi transceiver optimizes your fiber infrastructure, cutting physical fiber requirements and installation labor costs by 50%.

2.Scalable Bandwidth Expansion
Scale your network effortlessly. Upgrading to our BiDi technology allows you to instantly double your data throughput over your existing fiber plant, providing a cost-effective roadmap for future bandwidth expansion.

3.High-Density, Low-Carbon 10G SFP+
Scale up without overloading your racks. Delivering full 10Gbps performance at a ultra-low power consumption of just 1W, this high-density transceiver helps modern enterprise networks and data centers achieve green energy targets.

4.Verified Cross-Brand Compatibility
Avoid vendor lock-in with confidence. Our transceivers are programmed and tested in real mainstream brand switches to ensure 100% interoperability. We are proud of our authentic results! Specific Compatibility Video available upon request.

5.End-to-End Quality Assurance
Built for mission-critical paths. Every 10G BiDi 10km module undergoes exhaustive factory testing—including BER (Bit Error Rate) tests and distance simulation—before leaving our Test Center. Built for maximum uptime, delivered with zero surprises.

FAQ
Q1: Is this XCVR-S20U27 compatible 10G Bidirectional SFP+ Module fully plug-and-play on original Ciena carrier routers?
A: Yes, our 10G Bidirectional SFP+ Module completes full end-to-end compatibility validation on all Ciena service routers supporting XCVR-S20U27, no custom CLI commands or firmware updates required. Ciena hardware automatically recognizes the 10G Bidirectional SFP+ Module as standard 10GBASE-BR20 optic with full DOM readout functionality.
Q2: Why does this XCVR-S20U27 10G Bidirectional SFP+ Module require a matching D-series counterpart for single fiber links?
A: This XCVR-S20U27 10G Bidirectional SFP+ Module transmits light at 1270nm and receives 1330nm signals; it must pair with XCVR-S20U33 10G Bidirectional SFP+ Module (reverse wavelength scheme 1330nm-TX/1270nm-RX) to achieve interference-free full-duplex single-strand fiber transmission. We provide exclusive pair discounts for bulk orders of the 10G Bidirectional SFP+ Module.
Q3: Can I order large quantities of the XCVR-S20U27 10G Bidirectional SFP+ Module with custom OEM branding for my import distribution business?
A: Yes, HYTOPTODEVICE support complete OEM customization for bulk orders over 200pcs of the 10G Bidirectional SFP+ Module, including custom part number stickers, private brand printing and neutral export cartons for telecom importers and distributors sourcing a Ciena XCVR-S20U27 alternative 10G Bidirectional SFP+ Module.
Q4: Does this commercial grade XCVR-S20U27 10G Bidirectional SFP+ Module support real-time DDM DOM optical diagnostics for carrier network monitoring?
A: Yes, All batches of our XCVR-S20U27 matching 10G Bidirectional SFP+ Module integrate full SFF-8472 compliant DOM/DDM monitoring, allowing telecom network engineers to pull live optical power, temperature and voltage metrics directly from Ciena router management interfaces.
Q5: What fiber cable type delivers full rated 20km transmission for this XCVR-S20U27 10G Bidirectional SFP+ Module simplex LC transceiver?
A: To unlock the full 20km performance of the 10G Bidirectional SFP+ Module XCVR-S20U27, use OS2 G.652D single-mode simplex LC/UPC fiber patch cords. OS1 SMF fiber limits effective transmission distance to approximately 15km; multimode fiber cannot operate with this 10G Bidirectional SFP+ Module model.
Q6: What warranty protection applies to bulk wholesale orders of the XCVR-S20U27 10G Bidirectional SFP+ Module for carrier networks?
A: Every Ciena compatible 10G Bidirectional SFP+ Module XCVR-S20U27 from HYTOPTODEVICE carries a 5-year factory warranty protected under the Magnuson-Moss Warranty Act; third-party compatible optics will not void your original Ciena routing equipment hardware warranty. We offer complimentary pre-shipment compatibility testing for large volume 10G Bidirectional SFP+ Module shipments.
Q7: Is this cost-effective XCVR-S20U27 10G Bidirectional SFP+ Module suitable for large-scale metro fiber network expansion projects?
A: Yes,This 10G Bidirectional SFP+ Module matches all electrical, optical and signaling specifications of OEM Ciena XCVR-S20U27 transceivers, making it the optimal budget-friendly replacement for mass metro fiber network expansion requiring thousands of single-fiber 10G Bidirectional SFP+ Module units. HYTOPTODEVICE do well.
Packaging & Custom OEM Solutions
Each module is individually sealed in ESD-safe anti-static packaging and ready for immediate shipment. For high-volume distributors, wholesalers, and system integrators, we offer flexible OEM programs—including custom logos, private labeling, and branded packaging—to help you build and protect your own brand.

Why Network Engineers Choose HYTOPTODEVICE
HYTOPTODEVICE has supplied over 5000,000 optical transceiver modules to data centers, ISPs, and enterprise networks across 100+ countries since 2011. Every module undergoes a 72-hour burn-in test and full DDM/DOM validation before shipment.
- Up to 70% cost savings vs OEM, transparent pricing & flexible bulk rates, supported quality returns
- 100% real-device compatible with Cisco, Huawei,Dell,Juniper, and Arista
- ISO 9001:2015 Shenzhen factory, full lineup: 1.25G/10G/25G/40G/100G/200G/400G/800G/1.6T transceivers
- Ample stock, fast global DHL/FedEx shipping in 3–5 working days
- Free pre-sales engineering support for custom EEPROM & private label firmware
- Real switch test videos available for pre-purchase review; inspection & shipping videos provided per order
“Phenomenal performance. We deployed 200 HYTOPTODEVICE SFP modules to replace Cisco OEMs in our backbone network. Result? Zero compatibility issues and a 60% reduction in costs. Highly recommended for mission-critical networks."— Senior Network Engineer, Regional Telecom, Australia
