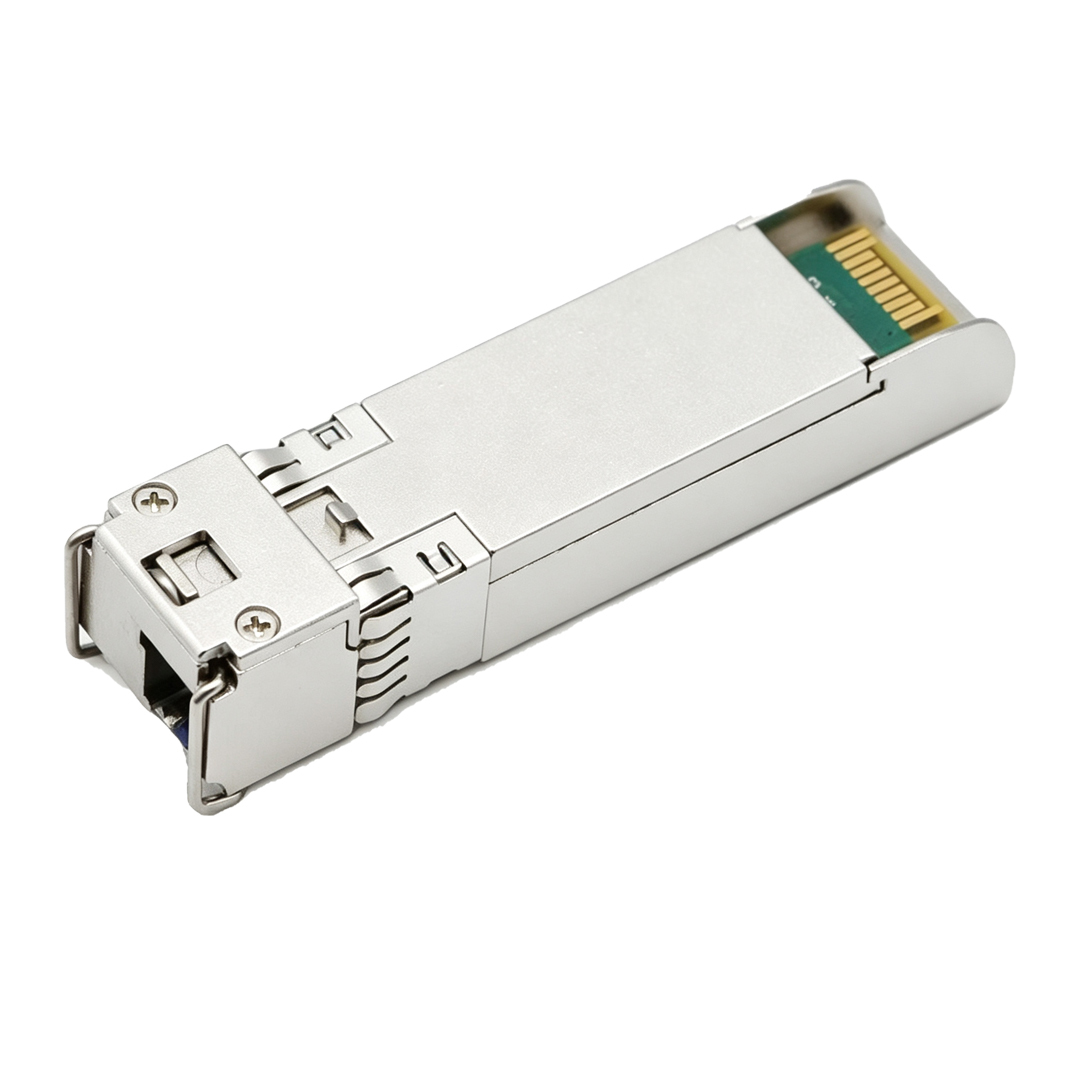

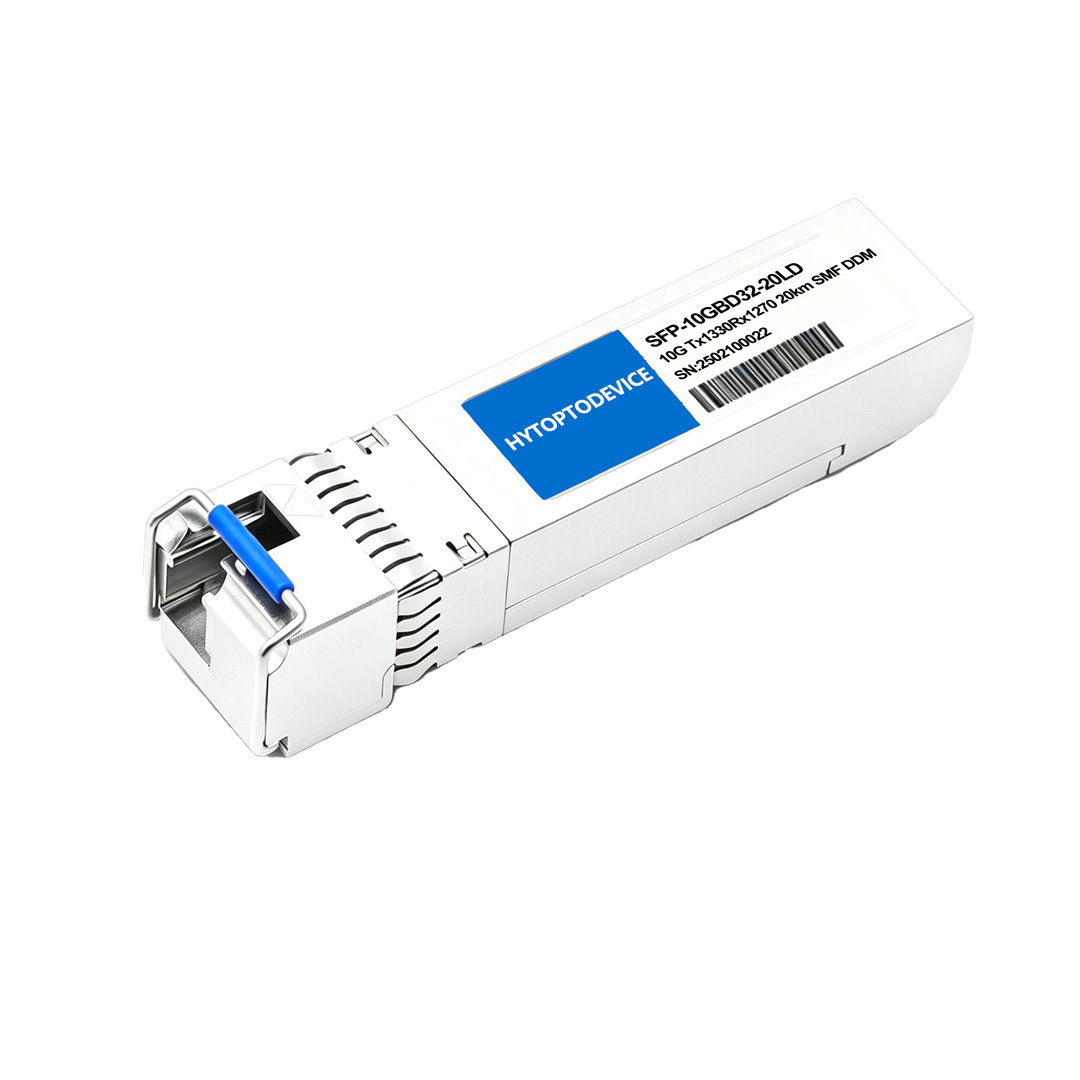

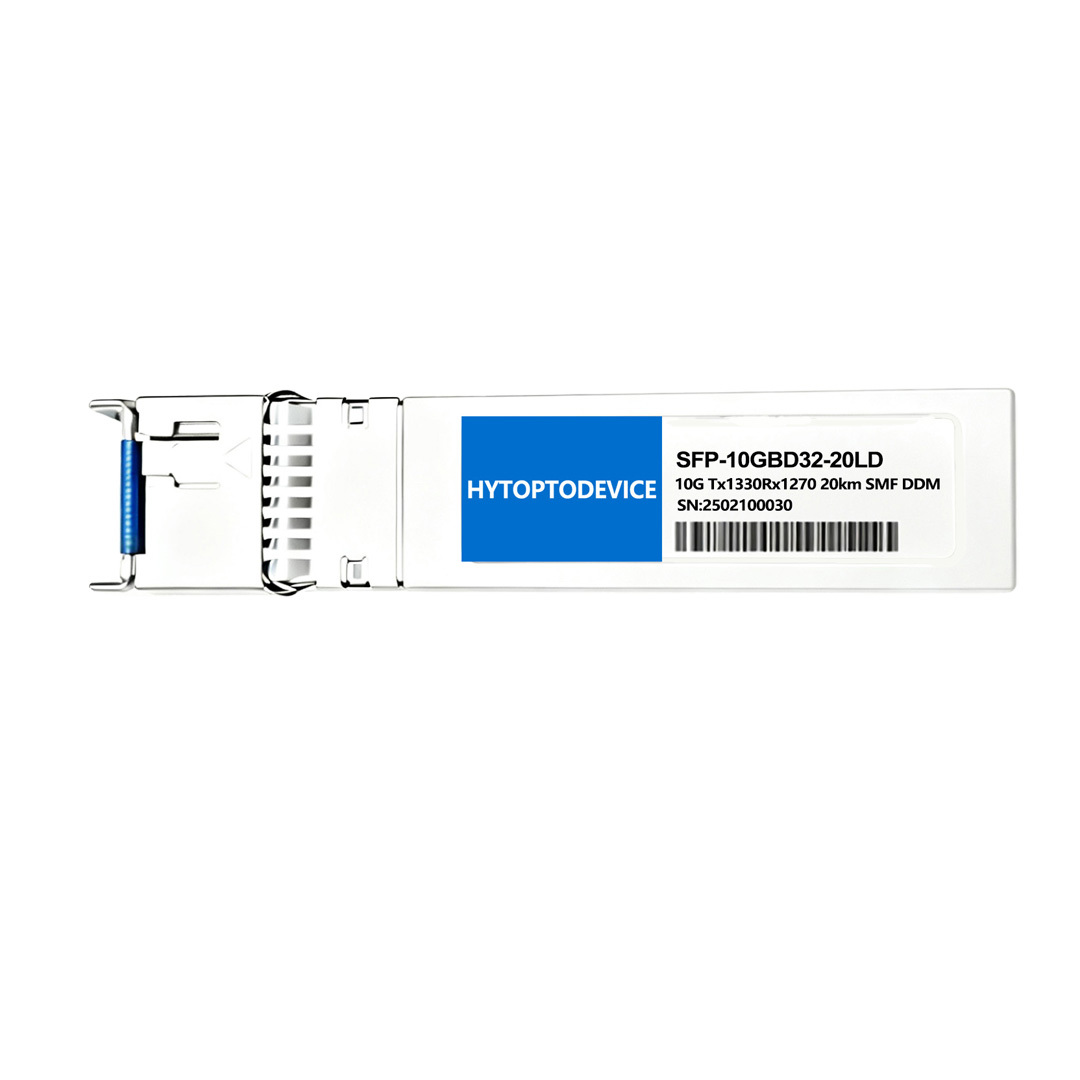

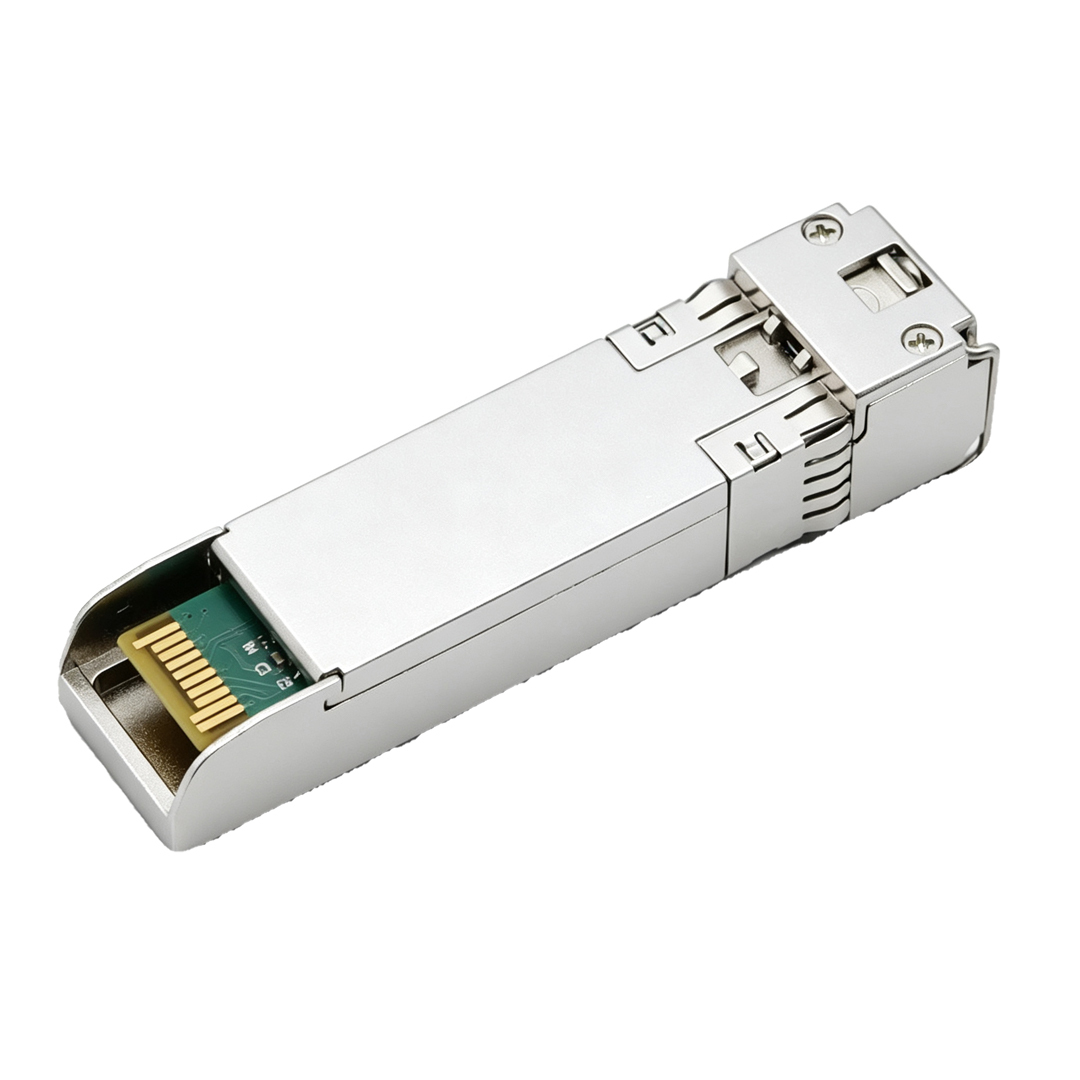

Brocade Compatible 10G-SFPP-BXD-20K SFP+ 10G BiDi Transceiver Module 10GBASE-BX20-D (SMF, 1330nm-TX/1270nm-RX, 20km, Simplex LC, DDM)
Product Overview
The Brocade compatible 10G-SFPP-BXD-20K SFP+ 10G BIDI module is equipped with a simplex LC port and delivers stable 20km signal transmission over G.652 single-mode fiber. Utilizing WDM technology, this SFP+ 10G BiDi module enables bidirectional 10G Ethernet data flow via only one single fiber strand, lowering overall cabling expenses and maximizing utilization of existing fiber infrastructure. Compliant with SFP+ MSA, IEEE 802.3ae and SFF-8431 protocols, the budget-friendly SFP+ 10G BiDi module drop-in replacement for Brocade OEM optics provides seamless plug-and-play compatibility with Brocade equipments and other network hardwares. Supporting DDM digital diagnostic monitoring, it is ideal for multi-building enterprise campuses, remote branch backhaul, data center inter-switch uplinks and small metro ISP fiber access deployments.,etc.
Key Technical Specifications
Below are the specifications for our Brocade 10G-SFPP-BXD-20K compatible SFP+ 10G BiDi module (1330nm-TX/1270nm-RX, 20km, SMF, LC, DDM). Every unit undergoes strict optical and electrical testing. Official test documentation is available upon request.
| Brocade Compatible |
10G-SFPP-BXD-20K |
Vendor Name |
HYTOPTODEVICE |
| Form Factor |
SFP+ |
Max Data Rate |
10.7Gbps |
| Wavelength |
TX1330nm/RX1270nm |
Max Distance |
20km |
| Connector |
Simplex LC |
Transmitter Type |
1330nm DFB |
| Cable Type |
SMF |
Receiver Type |
PIN |
| TX Power |
-3.0~+2.0dBm |
Receiver Sensitivity |
< -14.4dBm |
| Max. Power Consumption |
≤1W |
DDM/DOM |
Support |
| Protocols |
10G Ethernet, MSA Compliant |
Operation Temperature |
0 to 70°C (32 to 158°F) |
Order & Pairing Notes for 10G-SFPP-BXD-20K SFP+ 10G BiDi Module

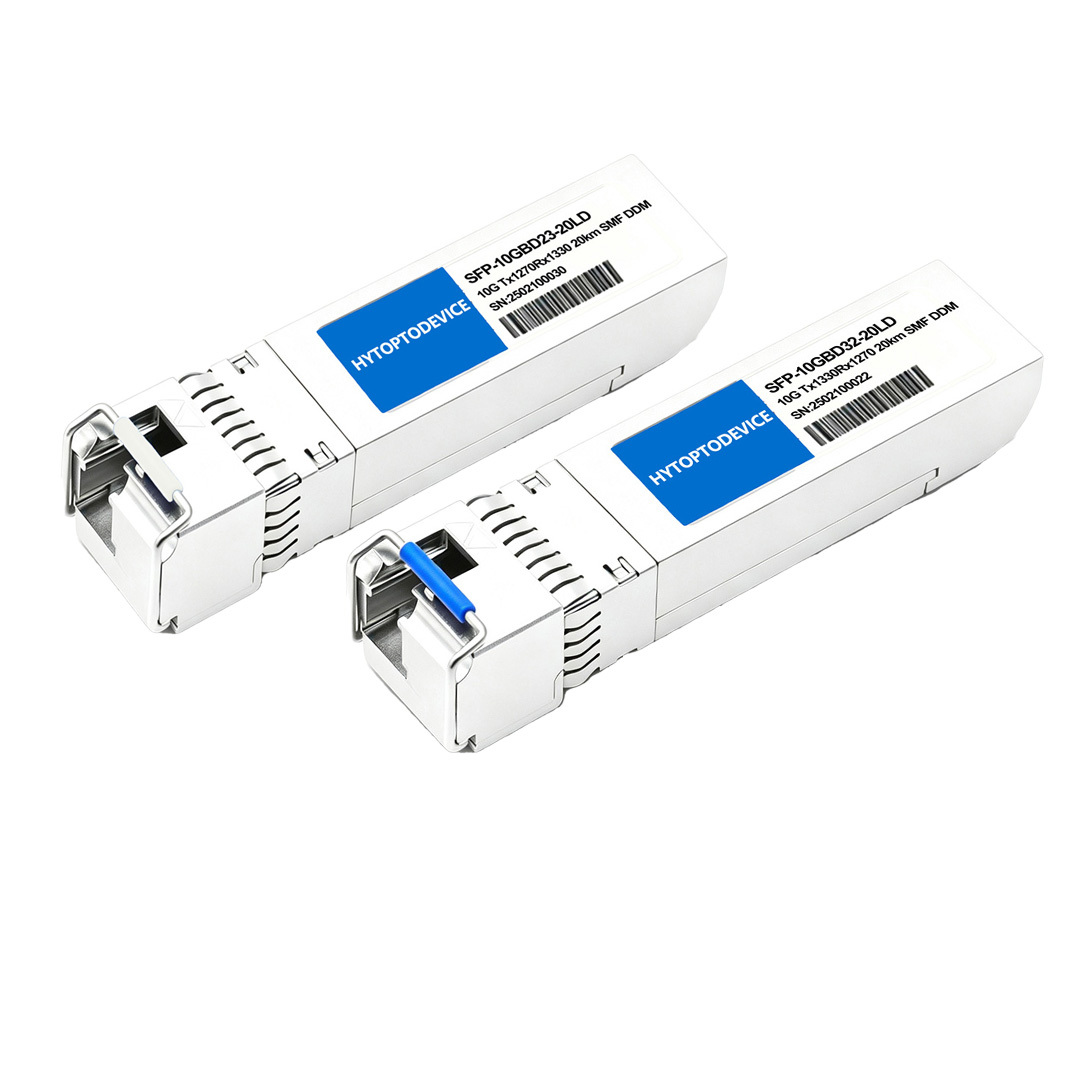

This 10G-SFPP-BXD-20K SFP+ 10G BiDi Module must be paired with matching 10G-SFPP-BXU-20K SFP+ 10G BiDi Module (1270nm-TX / 1330nm-RX) to establish interference-free full-duplex single-fiber communication. We offer exclusive discounted bundle pricing for U/D paired sets of the SFP+ 10G BiDi Module for wholesale enterprise and ISP clients who place large volume order, and supply standalone single units for incremental network expansion projects. Extended distance variants (10km / 40km / 60km) of the SFP+ 10G BiDi Module can be customized upon OEM bulk order request, send quote request to obtain tailored project solutions.
Full Compatibility List & Supported Network Hardware
1.Brocade ICX & Fabric OS Hardware Supported by 10G-SFPP-BXD-20K SFP+ 10G BiDi Module
Our alarm-free plug-and-play sfp+ 10g bidi module is pre-flashed with standard Brocade EEPROM identification codes, eliminating unrecognized transceiver warning logs after full physical real-Brocade-switch insertion validation for all listed equipment:
-
Ruckus ICX Series Switches: ICX 6610, ICX 7150, ICX 7250, ICX 7450, ICX 7650, and ICX 7750 Series (high-performance 10G uplink and stacking ports).
-
Brocade VDX Data Center Switches: VDX 6740, VDX 6940, and VDX 8770 Series fabric slots.
-
Brocade FastIron Series Switches: FastIron SX, FastIron CX, and FCX Series.
-
Brocade NetIron Routers: NetIron CES 2000 and NetIron CER 2000 Series
At HYTOPTODEVICE, 150+ brand devides are utilized for compatibility test. Authentic real-Brocade-device test videos of this SFP+ 10G BiDi module are offered free for project bidding and internal quality audits.
2.Cross-Brand Network Devices Compatible With This SFP+ 10G BiDi Module
This SFP+ 10G BiDi Module delivers stable cross-brand performance on Cisco Catalyst & Nexus Switches, Arista 7000 Series, H3C S5130/S6520, Huawei S5735/S6735, Mikrotik CCR Carrier Routers, Juniper EX/QFX/MX, Dell PowerSwitch, Fortinet FortiSwitch, Ubiquiti Enterprise Switches.
We provide professional remote technical support to assist customers with equipment deployment, port debugging and compatibility troubleshooting throughout the whole project cycle. For multi-brand compatibility customization, transceiver coding, re-coding and data modification demands, we supply dedicated coding hardware and matched proprietary software to fulfill all personalized configuration requirements for bulk order and turnkey project mass lots.
Primary Application Scenarios
This sfp+ 10g bidi module must be deployed as a matched pair together with its complementary reverse-wavelength BiDi counterpart, installed separately at the two opposite ends of single-strand fiber patch cords to build valid bidirectional 10G data links. Optimized for saving cost and deployment upgarde, our sfp+ 10g bidi modules are widely applied in the below scenarios:
- Multi-Building Enterprise Campus Fiber Upgrade: Mass deployment of 10G-SFPP-BXD-20K SFP+ 10G BiDi Module to reuse existing single fiber strands and avoid high new cabling costs, perfect for system integrators’ bulk order projects
- SMB Small Datacenter Inter-Switch Uplinks: High-density simplex LC SFP+ 10G BiDi Module to conserve limited fiber port resources on aggregation racks, welcome bulk inquiry from colocation datacenter operators
- Remote Office Branch Network Interconnection: 20km reach 10G-SFPP-BXD-20K SFP+ 10G BiDi Module connecting remote branches to central Brocade core switch rooms, competitive bulk pricing for multi-branch enterprise RFQ submission
- Metro ISP Fiber Access Backhaul: Cost-effective bulk supply of SFP+ 10G BiDi Module for business client single-fiber 10G uplink links, long-term supply contract available for ISP regional distributors
- Enterprise System Integrator Turnkey Network Projects: OEM-branded 10G-SFPP-BXD-20K SFP+ 10G BiDi Module bulk delivery for global enterprise network importer projects, private logo service included for mass purchase clients
Connectivity Solutions(Applications)
Our single strand OS2 SMF transceiver supports three widely adopted enterprise network installation architectures:
1.10G Switch-to-Switch Interconnection Diagram:
Deploy paired matching MSA compliant SFP+ 10G BiDi Module units between two enterprise core aggregation switches to build long-distance single-fiber backbone trunk connections.
2.10G Switch-to-NIC Server Uplink Diagram:
Adopt sfp+ 10g bidi module hardware to link central rack aggregation switches and onsite server NIC hardware for reliable single-fiber 10G uplink data transmission.
3.10G Standardized Structured Cabling Rack Layout Diagram:
Rack-mounted Brocade ICX switch SFP+ replacement matched with cable management hardware for neat, compliant multi-story building structured wiring deployments.
FAQ for Brocade Compatible SFP+ 10G BiDi Module
Q1: Why does Brocade switch pop up unsupported transceiver alerts when using third-party sfp+ 10g bidi module?
A:HYTOPTODEVICE sfp+ 10g bidi module is pre-coded with authentic Brocade EEPROM data to fix unsupported transceiver alerts on Brocade FastIron/ICX switches. Any non-qualified prompts are harmless reminders. You can clear error-disabled port status via standard Brocade CLI commands for normal full-speed module operation.
Q2: What are the wavelength pairing differences between upstream and downstream Brocade compatible sfp+ 10g bidi module?
A:The upstream 10G-SFPP-BXD-20K sfp+ 10g bidi module transmits at 1330nm and receives at 1270nm. The matching upstream 10G-SFPP-BXU-20K module transmits at 1270nm and receives at 1330nm. The two wavelength-different sfp+ 10g bidi module must be used in pairs to establish valid single-fiber 10G links.
Q3: Can two identical upstream sfp+ 10g bidi module realize point-to-point fiber communication?
A:No.Two identical upstream sfp+ 10g bidi module cannot form network connections. Both modules transmit at 1330nm and wait for 1270nm signals, resulting in no signal reception and persistent port downtime. Paired upstream and downstream sfp+ 10g bidi module is required.
Q4: Does Brocade compatible sfp+ 10g bidi module require duplex LC fiber patch cords for operation?
A:No. This Brocade compatible sfp+ 10g bidi module uses a simplex LC port and single-fiber BiDi technology. It supports full-duplex 10G transmission over one single fiber strand and does not require duplex LC patch cords, saving fiber resources for networking deployment.
Q5: What is the standard working temperature range for commercial-grade sfp+ 10g bidi module for data centers?
A:HYTOPTODEVICE commercial-grade sfp+ 10g bidi module supports a standard 0°C to 70°C operating temperature range. It runs stably in climate-controlled data centers and enterprise server rooms for long-term 10G network operation.
Q6: Is 20km single-mode sfp+ 10g bidi module compatible with multi-mode fiber network architecture?
A: No. The 20km sfp+ 10g bidi module is strictly calibrated for OS1/OS2 single-mode fiber only. It is incompatible with multi-mode fiber (MMF) and will fail to establish any network link on MMF infrastructure.
Q7: Is an optical attenuator required for short-distance 2km links when using 20km sfp+ 10g bidi module?
A：No optical attenuator is needed for 2km short links with this 20km sfp+ 10g bidi module. Its factory-calibrated 3dBm max transmit power avoids receiver overload, ensuring stable short-distance single-fiber transmission.
Q8: Can Brocade-adapted sfp+ 10g bidi module support real-time DOM optical data monitoring?
A:Yes, all HYTOPTODEVICE sfp+ 10g bidi module support full DOM monitoring. You can check real-time optical power, temperature and voltage data via Brocade and Ruckus FastIron CLI commands for real-time module operation monitoring.
Q9: Can fixed-rate sfp+ 10g bidi module automatically downgrade to 1G legacy network speed?
A:No, this fixed-rate sfp+ 10g bidi module only supports native 10GBASE Ethernet. It does not support speed auto-negotiation and cannot downgrade to 1G or 100M legacy network speeds.
Q10: Is third-party verified sfp+ 10g bidi module comparable to original Brocade optical modules in stability?
A:HYTOPTODEVICE sfp+ 10g bidi module adopts premium OEM-grade components. Every unit is serialized and fully tested on real Brocade switches, delivering 99.9% uptime and equivalent stability to original Brocade optical modules.
Q11: Does mainstream compatible sfp+ 10g bidi module meet international safety and environmental protection certification standards?
A:Yes, this sfp+ 10g bidi module fully complies with SFP+ MSA, CE, FCC, RoHS and IEC 60825-1 laser safety standards, meeting global green and safety certification requirements for commercial networking.
Q12: What warranty coverage do you provide for wholesale bulk orders of the 10G-SFPP-BXD-20K SFP+ 10G BiDi Module for enterprise and ISP networks? Do authorized distributors qualify for extended warranty on stock supply?
A: Every Brocade compatible SFP+ 10G BiDi Module 10G-SFPP-BXD-20K carries a 5-year factory warranty protected under the Magnuson-Moss Warranty Act; third-party compatible optics will not void your original Brocade switching equipment hardware warranty. We provide complimentary pre-shipment compatibility testing for large-volume SFP+ 10G BiDi Module shipments, authorized distributors with stable stock supply qualify for extended warranty policy, send bulk inquiry to confirm terms.
Q13: Can this sfp+ 10g bidi module work normally on third-party network devices besides Brocade?
A:Yes, our multi-vendor compatible sfp+ 10g bidi module supports mainstream brands including Cisco, Huawei, Juniper, Arista, HPE and Dell. We also provide custom EEPROM coding to match any third-party device for plug-and-play use.
Q14: Do you provide customized coding and technical support for bulk-ordered sfp+ 10g bidi module?
A:Yes. We offer professional custom EEPROM coding and one-on-one remote technical guidance. Long-term partners can get free coding equipment and full technical authorization to independently rewrite and encode sfp+ 10g bidi module on demand.
