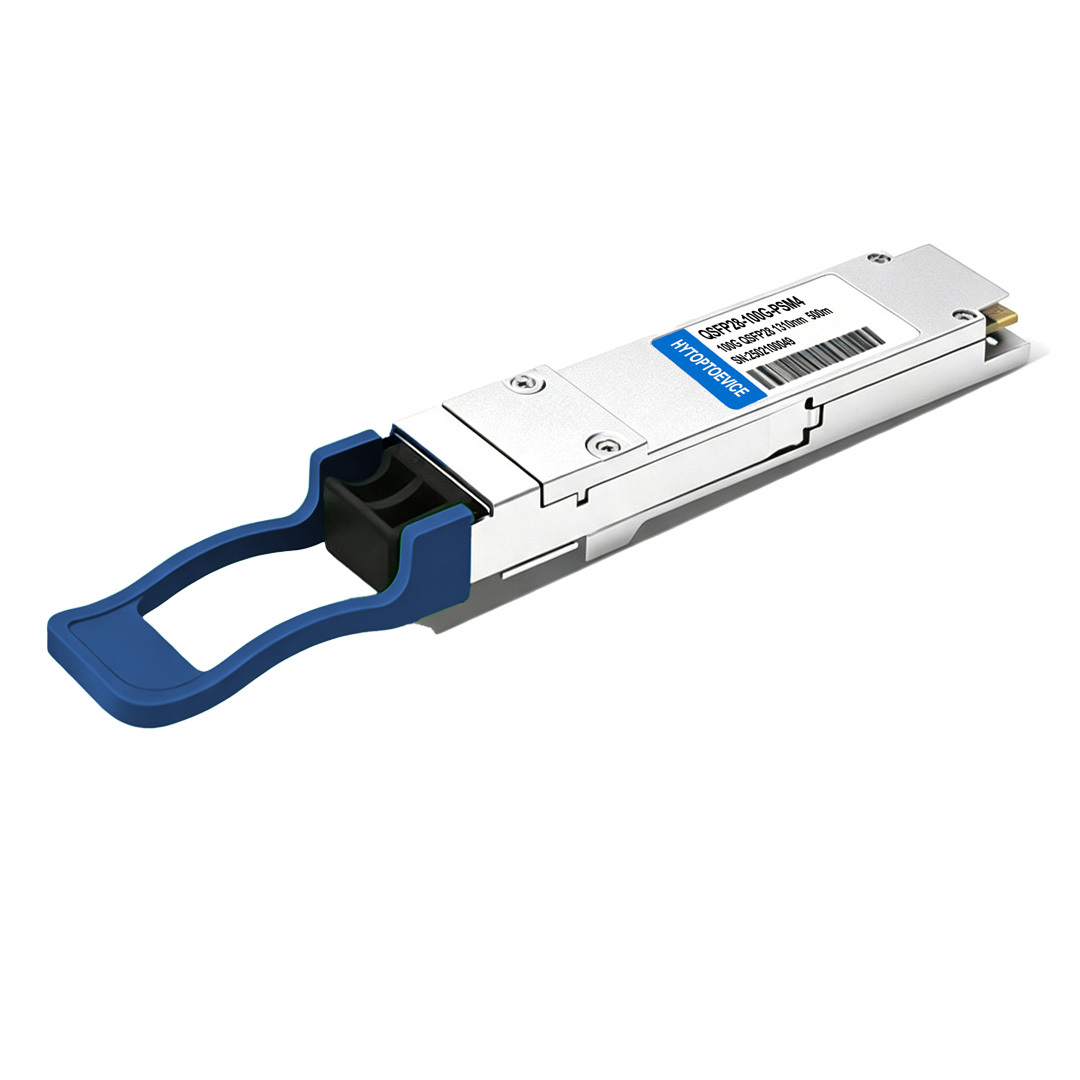

Huawei QSFP28-100G-PSM4 Compatible 100G QSFP28 Transceiver | PSM4 1310nm 500m MPO SMF Bulk & Wholesale | HYTOPTODEVICE

Source HYTOPTODEVICE Huawei QSFP28-100G-PSM4 compatible 100G QSFP28 transceiver. 100GBASE-PSM4, 1310nm, 500m single mode fiber, MPO connector. Trusted optical module manufacturer, bulk & wholesale and custom EEPROM programming for distributors, system integrators and data center buyers.
NO. Brand  Compatible P/N Transceiver Type
1 Cisco  QSFP-100G-PSM4-S  QSFP28-100G-SR4
2 Arista Networks QSFP-100G-PSM4 QSFP28-100G-IR4
3 Dell  Q28-100G-PSM4-IR QSFP28-100G-LR4
4 Huawei  QSFP28-100G-PSM4 QSFP28-100G-ER4L
5 HPE  JH420A QSFP28-100G-ZR4
6 Juniper  JNP-QSFP-100G-PSM4 QSFP28-100G-DR
7 EdgeCore  ET7402-PIR4 QSFP28-100G-FR
Description

Huawei QSFP28-100G-PSM4  Compatible 100G QSFP28 Transceiver | PSM4 1310nm 500m Module MPO-12/APC SMF | HYTOPTODEVICE


Product Overview

HYTOPTODEVICE 100G QSFP28 PSM4 transceiver serves as drop-in replacement for Huawei QSFP28-100G-PSM4. Built following QSFP28 MSA and 100GBASE-PSM4 standards, this module delivers 100Gbps (4×25G NRZ) transmission up to 500m over OS2 single-mode fiber at 1310nm wavelength with MPO connector. It is ideal for leaf-spine fabric, rack trunk, server uplink and 100G to 4×25G breakout deployment inside data centers.
Pre-programmed with Huawei-specific EEPROM data, it supports plug-and-play deployment and avoids unrecognized transceiver alarms on Huawei CloudEngine platforms. As a trusted optical module manufacturer and supplier, HYTOPTODEVICE provides factory bulk stock, sample trial orders and OEM customization for wholesalers, distributors and system integrators building leaf-spine data center networks.

Key Technical Specifications

Huawei Compatible QSFP28-100G-PSM4  Vendor Name HYTOPTODEVICE
Form Factor QSFP28 Max Data Rate 103.125Gbps (4x 25.78Gbps)
Wavelength 1310nm
Max Distance 500m@OS2
Connector MTP/MPO-12 APC Transmitter Type 4xDFB
Cable Type SMF Receiver Type PIN
FEC Support Yes TX Power -6.0~+2dBm
Power Consumption <3.5W Receiver Sensitivity < -10.2dBm
Protocols QSFP28 MSA, SFF-8636, IEEE 802.3‑2012,CAUI-4 Operation Temperature 0 to 70°C (32 to 158°F)

For detailed technical specifications, please refer to the Datasheet


Usage Guidelines & Best Practices

• Fiber Matching Rule: Only MPO-12 APC 8° angled OS2 single-mode ribbon fiber can be used; OM3/OM4 multimode fiber or UPC polished MPO cables will trigger link failure and hardware damage.
• Lane Polarity Control: Confirm MPO fiber lane sequence and polarity match before powering on ports; misaligned lanes lead to severe receive power imbalance and continuous packet loss.
• Distance Restriction: Stable performance is only guaranteed within the standard 500m MSA rated range; extended fiber routes bring excess lane skew and optical attenuation.
• Hot-Plug Support: Modules support live insertion and removal; regularly clean MPO APC end faces to eliminate dust-induced signal distortion.
• Operating Environment: Limit deployment to indoor 0°C–70°C data center environments; avoid fully sealed cabinets with poor ventilation causing persistent overheating.

For detailed operation instructions, please refer to the User Guide.


Full Compatibility List & Supported Network Hardware

1. Supported Hardware & Firmware
This bulk Huawei 100G PSM4 QSFP28 matches original mechanical and optical parameters perfectly.
Custom Huawei VRP EEPROM coding removes all third-party module warning pop-ups.
Every transceiver passes real switch testing to avoid lane imbalance and random link flapping.
Validated Huawei CloudEngine Platforms:
• CloudEngine 12800 / 12800E core fabric switches
• CloudEngine 9800 / 880 leaf-spine data center switches
• CloudEngine 7160 low-latency storage switches
• Huawei rack servers with QSFP28 100G parallel NIC

2. Multi-Brand Cross Compatibility

Built on universal QSFP28 MSA open industry standards.
This Huawei replacement PSM4 optic interoperates with Cisco, Huawei, Dell, H3C, Arista  and Mellanox switches.
It fits multi-vendor hybrid cloud fabric and cross-pod colocation interconnection projects.

3. Free Value-Added Services

We offer free Huawei-specific EEPROM reprogramming for all bulk QSFP28 orders.
Custom private label printing and one-step data center deployment support are available.
Every 100G PSM4 transceiver finishes calibration, thermal cycle and 72-hour aging test.
Volume wholesale buyers enjoy tiered discounts to cut overall data center CAPEX cost.

Primary Application Scenarios

• 500m intra-fabric rack-to-rack interconnections inside Huawei leaf-spine architectures
• High-density aggregation trunk links for enterprise cloud and multi-tenant colocation data centers
• Low-latency 100G uplinks connecting ToR switches to AI, HPC and virtualization server clusters
• Inter-pod parallel optical transmission using MPO single-mode ribbon fiber
• Network upgrade projects from legacy 40G parallel optics to 100G PSM4
• Standard 100G to 4×25G breakout network deployment for segmented server bandwidth expansion
• Multi-brand hybrid fabric short-distance interconnection built on MPO cabling infrastructure

Connectivity Solutions(Applications)

1.Leaf-Spine Architecture


HYTOPTODEVICE 100G PSM4 QSFP28 for Cisco leaf-spine architecture interconnection

2. 100G to 100G for Switch-Switch Interconnection

HYTOPTODEVICE 100G PSM4 optic for switch-to-switch rack trunk links

3.100G to 100G for Switch-NIC Connection

HYTOPTODEVICE 100G PSM4 uplink module for switch-to-server NIC connections

4.100G to 4x25G Breakout Connectivity

HYTOPTODEVICE 100G PSM4 QSFP28 supporting 100G to 4x25G breakout transmission


The Core Feature

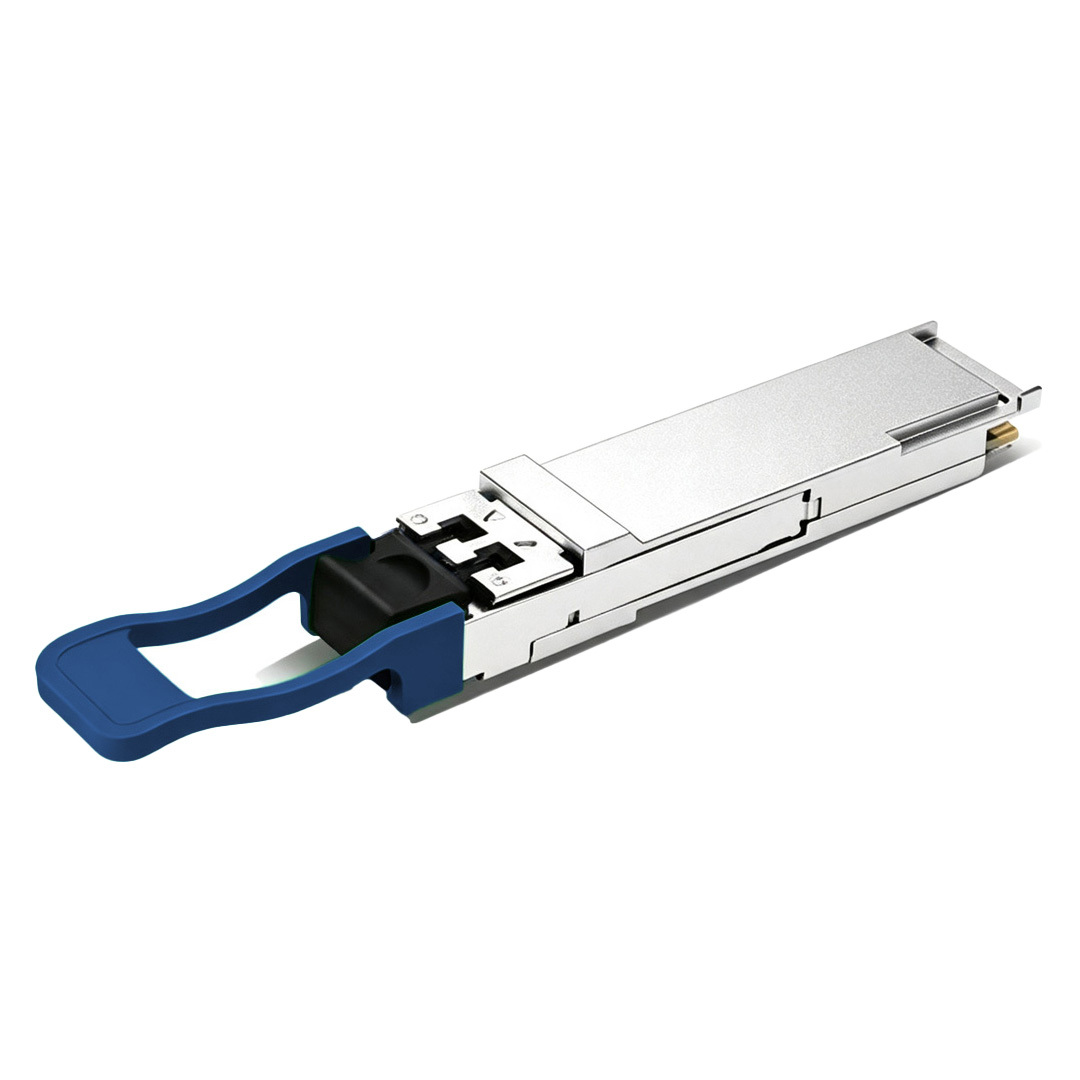

1.Low Power and High-Density 100G Connectivity for Data Center

Max power ≤3.5W cuts thermal load on fully populated line cards. Compact QSFP28 form factor fits high-density racks, lowering data center PUE and supporting long-term 24/7 operation.



2.
Verified Host Interoperability

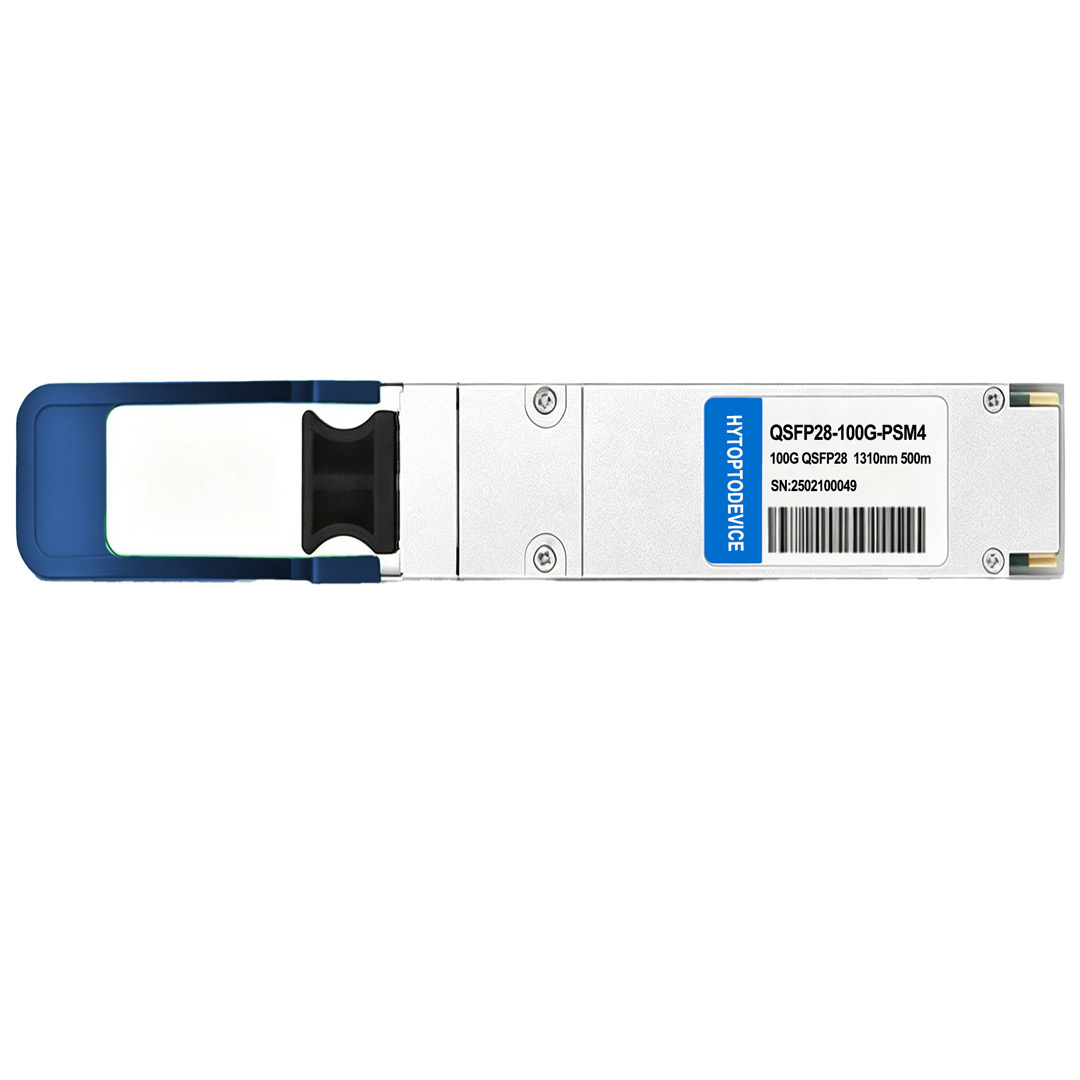

Custom EEPROM programming enables plug-and-play operation and avoids transceiver alarms across multiple network vendor platforms.Specific Compatibility Video available upon request.

HYTOPTODEVICE Cisco QSFP-100G-PSM4-S compatible PSM4 module multi-generation Nexus switch verified

3.Comprehensive Factory Testing & Reliable Performance

Each unit undergoes optical calibration, wide temperature cycling and burn-in testing. Integrated DDM enables remote real-time monitoring for proactive fault troubleshooting.Curious how? Tour the Test Center.

 HYTOPTODEVICE 100G PSM4 QSFP28 full optical calibration & 72h aging test consistent stability



FAQ

Q1: Can HYTOPTODEVICE Huawei QSFP28-100G-PSM4 parallel optic support remote real-time optical parameter reading on CloudEngine switches?
A: Yes. HYTOPTODEVICE Huawei QSFP28-100G-PSM4 fully meets MSA standards with built-in DDM/DOM function, enabling real-time monitoring of transmit power, receive power, operating temperature, laser bias current and supply voltage.

Q2: Will the HYTOPTODEVICE zero-alarm Huawei 100G PSM4 QSFP28 automatically reduce bandwidth when connected to low-speed network ports?
A: No. HYTOPTODEVICE Huawei QSFP28-100G-PSM4 only operates at fixed 100Gbps or 4x25G breakout mode, and there is no automatic speed downshift to 40G or 10G.

Q3: What kind of fiber connector cable should be matched with HYTOPTODEVICE compatible Huawei QSFP28-100G-PSM4 500m single-mode module?
A: HYTOPTODEVICE Huawei QSFP28-100G-PSM4 must be used with female MPO/MTP APC single-mode ribbon cable to guarantee stable 500m signal transmission.

Q4: Which MPO polarity cable is suitable for direct transceiver-to-transceiver links built with HYTOPTODEVICE Huawei 100G PSM4 optics?
A: Standard Type-B Key-Up to Key-Up crossover MPO-12 APC cable is required for point-to-point direct connections using HYTOPTODEVICE Huawei QSFP28-100G-PSM4.

Q5: Why is regular cleaning of MPO end faces essential for stable leaf-spine data center links deployed with HYTOPTODEVICE Huawei 100G PSM4?
A: Extremely critical. Each MPO connector contains multiple fiber cores; tiny dust particles will block an entire 25G lane and generate severe return loss on HYTOPTODEVICE Huawei QSFP28-100G-PSM4.

Q6: What breakout patch cord matches HYTOPTODEVICE Huawei QSFP28-100G-PSM4 to expand 4-channel 25G server uplinks?
A: MPO-APC female to 4x Duplex LC single-mode breakout patch cable works perfectly with HYTOPTODEVICE Huawei QSFP28-100G-PSM4 to realize 100G split transmission.

Q7: What are the core optical distinctions between HYTOPTODEVICE Huawei 100G PSM4 and 100G SR4 QSFP28 transceivers?
A: HYTOPTODEVICE Huawei PSM4 uses 1310nm OS2 single-mode fiber with a 500m transmission limit, while SR4 adopts 850nm OM3/OM4 multimode fiber only up to 100m; the two cannot be optically interconnected.

Q8: How does the power consumption of low-power HYTOPTODEVICE Huawei QSFP28-100G-PSM4 compare with CWDM4 and LR4 optical modules?
A: HYTOPTODEVICE Huawei QSFP28-100G-PSM4 has typical power consumption ≤2.5W and maximum 3.5W, which runs cooler and saves more power than CWDM4 and LR4 multiplexed transceivers.

Q9: What operating temperature ranges are offered for bulk wholesale HYTOPTODEVICE Huawei QSFP28-100G-PSM4 parallel transceivers?
A: Standard HYTOPTODEVICE commercial version supports 0°C to 70°C for indoor data centers, and customized industrial grade (-40°C ~ 85°C) is available for harsh special deployment environments.

Q10: What MPO polarity cable do I need for direct Huawei transceiver-to-transceiver PSM4 links?
A: A standard Type-B (Key-Up to Key-Up) crossover MPO-12 APC cable is required for direct connection.

Q11: How important is regular MPO end-face cleaning for consistent  Huawei leaf-spine PSM4 links?
A: Extremely critical. An MPO connector has 8 or 12 exposed fiber ends; a single particle of dust can block an entire 25G lane or cause high optical return loss.

Q12: What fundamental optical difference exists between 100G PSM4 and 100G SR4 transceivers?
A: SR4 uses Multimode Fiber (OM3/OM4, 850nm) up to 100m. PSM4 uses Single-Mode Fiber (OS2, 1310nm) up to 500m.


Q13: What temperature operating ranges are offered for HYTOPTODEVICE Huawei PSM4 modules?
A: Standard Commercial Temperature range is 0°C to 70°C (32°F to 158°F). Industrial grade (-40°C to 85°C) is available for special applications.


Q14: Why choose HYTOPTODEVICE PSM4 over LR4 for under-500m Huawei rack interconnections?
A: This PSM4 module features simplified internal architecture, lower unit pricing and ultra-low power draw, making it the most economical high-density solution for QFX leaf-spine intra-fabric links.

Q15: In which network projects will CWDM4 duplex optics beat mass MPO PSM4 on total deployment cost?
A: CWDM4 delivers lower overall expenses for cross-building long-distance links or small fiber-count projects; expensive MPO ribbon cables erase PSM4 module cost advantages.


Packaging & Custom OEM Solutions



  • ESD Protection & Fast Shipping: Every module is sealed in an ESD-safe bag and ready for same-day dispatch from stock.

  • Custom OEM & Branding: We provide logo printing, private labeling, and custom packaging to help distributors and integrators build their brand—no factory investment required.

HYTOPTODEVICE 10Gbase-bx bidi transceiver  custom packaging


Why Network Engineers Choose HYTOPTODEVICE


HYTOPTODEVICE has supplied over 5000,000 optical transceiver modules to data centers, ISPs, and enterprise networks across 100+ countries since 2011. Every module undergoes a 72-hour burn-in test and full DDM/DOM validation before shipment.

  • Up to 70% cost savings vs OEM, transparent pricing & flexible bulk rates, supported quality returns
  • 100% real-device compatible with Cisco, Huawei,Dell,Juniper, and Arista
  • ISO 9001:2015 Shenzhen factory, full lineup: 1.25G/10G/25G/40G/100G/200G/400G/800G/1.6T transceivers
  • Ample stock, fast global DHL/FedEx shipping in 3–5 working days
  • Free pre-sales engineering support for custom EEPROM  & private label firmware
  • Real switch test videos available for pre-purchase review; inspection & shipping videos provided per order


“Phenomenal performance. We deployed 200 HYTOPTODEVICE SFP modules to replace Cisco OEMs in our backbone network. Result? Zero compatibility issues and a 60% reduction in costs. Highly recommended for mission-critical networks."— Senior Network Engineer, Regional Telecom, Australia


Quality Certification & Compliance

 At HYTOPTODEVICE, our quality commitment is backed by industry-standard validations. From fiber optical transceiver manufacturing to final visual inspection, from IQC、IPQC、FQC to OQC, our processes ensure global compliance and reliability.

We adhere to rigorous standards for our SFP modules and network solutions:

  • ISO 9001: Certified quality management and production consistency.

  • CE & FCC: Fully compliant for seamless Global Market Access.

  • RoHS: Committed to environmental responsibility and hazardous material control.

  • Proven Reliability: Rigorous testing to reduce compliance risk and ensure safety.

Certified Quality. Global Standards. Guaranteed Performance.




Rigorous Industrial Product Testing

   hytoptodevice check device and equiptment for optical transceiver module

100% 3rd Party Compatible
hytoptodevice 100g qsfp28 sr4 replacement
Partial Test Demonstration
hytoptodevice compatible optical transceiver module for ethernet,data center
