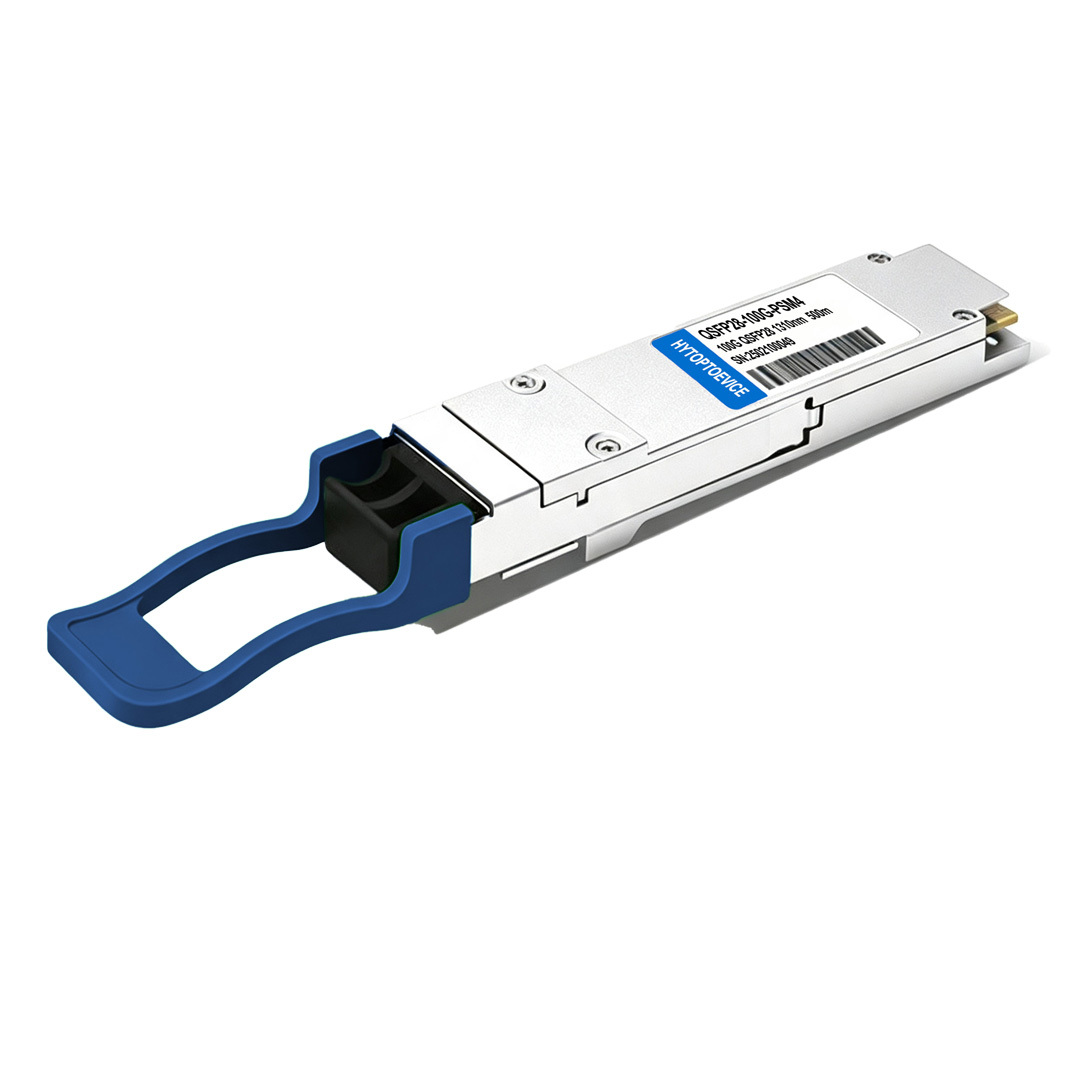

• HYTOPTODEVICE Dell Q28-100G-PSM4-IR  compatible 100G QSFP28 PSM4 parallel single-mode transceiver 1310nm 500m MPO OS2 SMF

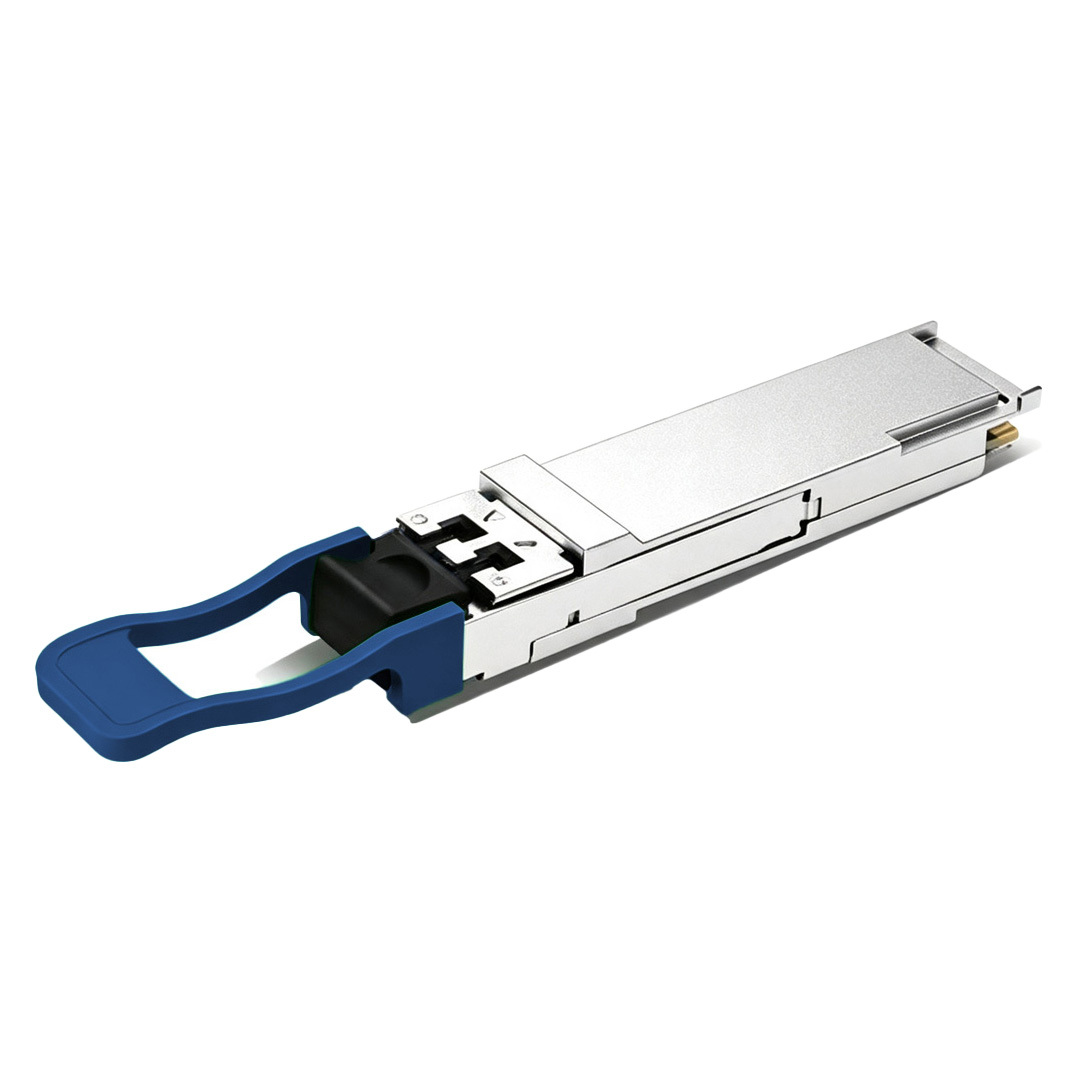

  • HYTOPTODEVICE low power high density 100G PSM4 QSFP28 module for high-capacity data center rack deployment

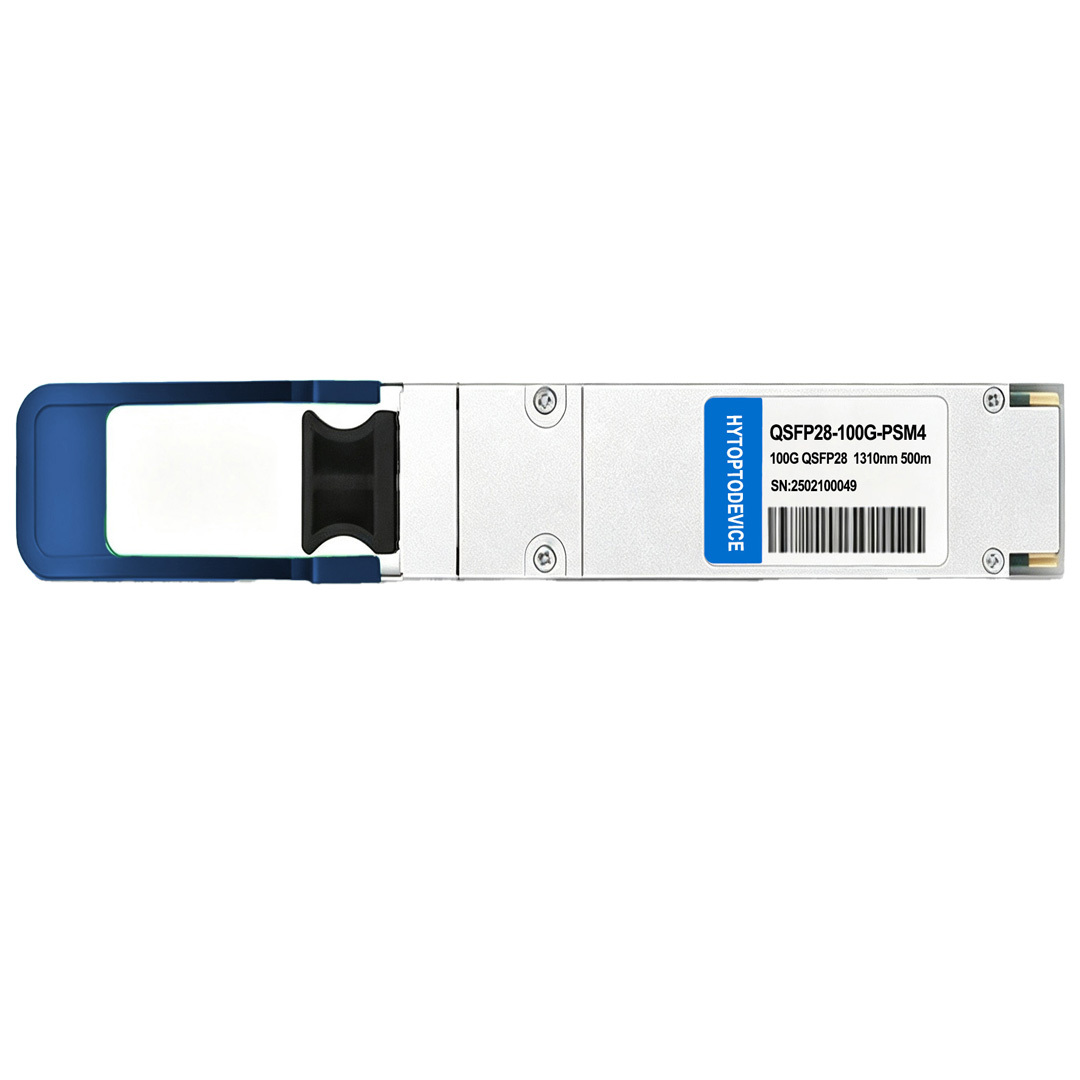

  • HYTOPTODEVICE plug-and-play Dell compatible 100G PSM4 QSFP28 zero authentication alerts
  • Dell Q28-100G-PSM4-IR Compatible 100G QSFP28 Transceiver | PSM4 1310nm 500m MPO SMF Bulk Wholesale | HYTOPTODEVICE
  • HYTOPTODEVICE Dell Q28-100G-PSM4-IR  compatible 100G QSFP28 PSM4 parallel single-mode transceiver 1310nm 500m MPO OS2 SMF
  • HYTOPTODEVICE low power high density 100G PSM4 QSFP28 module for high-capacity data center rack deployment
  • HYTOPTODEVICE plug-and-play Dell compatible 100G PSM4 QSFP28 zero authentication alerts
  • Dell Q28-100G-PSM4-IR Compatible 100G QSFP28 Transceiver | PSM4 1310nm 500m MPO SMF Bulk Wholesale | HYTOPTODEVICE

Dell Q28-100G-PSM4-IR Compatible 100G QSFP28 Transceiver | PSM4 1310nm 500m MPO SMF Bulk Wholesale | HYTOPTODEVICE

HYTOPTODEVICE Dell Q28-100G-PSM4-IR replacement 100G PSM4 QSFP28 parallel single mode module, 4×25G 1310nm lanes, 500m MPO OS2 fiber. Pre-flashed Dell OS10 EEPROM zero alarm, DDM & RS-FEC supported, fit leaf-spine, rack trunk, switch-NIC and 100G-to-4×25G breakout links.Bulk wholesale, private label and custom EEPROM coding available for global importers, distributors and integrators.
NO. Brand  Compatible P/N Transceiver Type
1 Cisco  QSFP-100G-PSM4-S  QSFP28-100G-SR4
2 Arista Networks QSFP-100G-PSM4 QSFP28-100G-IR4
3 Dell  Q28-100G-PSM4-IR QSFP28-100G-LR4
4 Huawei  QSFP28-100G-PSM4 QSFP28-100G-ER4L
5 HPE  JH420A QSFP28-100G-ZR4
6 Juniper  JNP-QSFP-100G-PSM4 QSFP28-100G-DR
7 EdgeCore  ET7402-PIR4 QSFP28-100G-FR
Description

Dell Q28-100G-PSM4-IR Compatible 100G QSFP28 Transceiver | PSM4 1310nm 500m Module MPO-12/APD SMF | HYTOPTODEVICE


Product Overview

HYTOPTODEVICE 100G QSFP28 PSM4 transceiver serves as drop-in replacement for Dell Q28-100G-PSM4-IR. Built following QSFP28 MSA and 100GBASE-PSM4 standards, this module delivers 100Gbps (4×25G NRZ) transmission up to 500m over OS2 single-mode fiber at 1310nm wavelength with MPO-12 connector. It is ideal for leaf-spine fabric, rack trunk, server uplink and 100G to 4×25G breakout deployment inside data centers.
Pre-programmed with Dell-specific EEPROM data, it supports plug-and-play deployment and avoids unrecognized transceiver alarms on Dell PowerSwitch platforms. As a trusted optical module manufacturer and supplier, HYTOPTODEVICE provides factory bulk stock, sample trial orders and OEM customization for wholesalers, distributors and system integrators building leaf-spine data center networks.

Key Technical Specifications

Dell Compatible   Q28-100G-PSM4-IR Vendor Name HYTOPTODEVICE
Form Factor QSFP28 Max Data Rate 103.125Gbps (4x 25.78Gbps)
Wavelength 1310nm
Max Distance 500m@OS2
Connector MTP/MPO-12 APC Transmitter Type 4xDFB
Cable Type SMF Receiver Type PIN
FEC Support Yes TX Power -6.0~+2dBm
Power Consumption <3.5W Receiver Sensitivity < -10.2dBm
Protocols QSFP28 MSA, SFF-8636, IEEE 802.3‑2012,CAUI-4 Operation Temperature 0 to 70°C (32 to 158°F)

For detailed technical specifications, please refer to the Datasheet


Usage Guidelines & Best Practices

• Fiber Matching Rule: Only MPO-12 APC 8° angled OS2 single-mode ribbon fiber can be used; OM3/OM4 multimode fiber or UPC polished MPO cables will trigger link failure and hardware damage.
• Lane Polarity Control: Confirm MPO fiber lane sequence and polarity match before powering on ports; misaligned lanes lead to severe receive power imbalance and continuous packet loss.
• Distance Restriction: Stable performance is only guaranteed within the standard 500m MSA rated range; extended fiber routes bring excess lane skew and optical attenuation.
• Hot-Plug Support: Modules support live insertion and removal; regularly clean MPO APC end faces to eliminate dust-induced signal distortion.
• Operating Environment: Limit deployment to indoor 0°C–70°C data center environments; avoid fully sealed cabinets with poor ventilation causing persistent overheating.

For detailed operation instructions, please refer to the User Guide.


Full Compatibility List & Supported Network Hardware

1. Supported Hardware & Firmware

This module adopts Dell-tailored EEPROM programming to eliminate transceiver alarms. Every unit undergoes full temperature burn-in testing before shipment.
• Dell PowerSwitch S4100 Series
• Dell PowerSwitch S5200 Series
• Dell PowerSwitch Z9100 / Z9264 / Z9664 Series
• Universal Compatibility: All network hardware with standard QSFP28 ports supporting 100GBASE-PSM4 protocol

2. Multi-Brand Cross Compatibility

Built on universal QSFP28 MSA open industry standards.
This Dell replacement PSM4 optic interoperates with Cisco, Juniper, Dell, H3C, Huawei and Mellanox switches.
It fits multi-vendor hybrid cloud fabric and cross-pod colocation interconnection projects.

3. Free Value-Added Services

We offer free Dell-specific EEPROM reprogramming for all bulk QSFP28 orders.
Custom private label printing and one-step data center deployment support are available.
Every 100G PSM4 transceiver finishes calibration, thermal cycle and 72-hour aging test.
Volume wholesale buyers enjoy tiered discounts to cut overall data center CAPEX cost.

Primary Application Scenarios

 • 500m intra-fabric rack-to-rack interconnections inside Dell leaf-spine architectures
• High-density aggregation trunk links for enterprise cloud and multi-tenant colocation data centers
• Low-latency 100G uplinks connecting ToR switches to AI, HPC and virtualization server clusters
• Inter-pod parallel optical transmission using MPO single-mode ribbon fiber
• Network upgrade projects from legacy 40G parallel optics to 100G PSM4
• Standard 100G to 4×25G breakout network deployment for segmented server bandwidth expansion
• Multi-brand hybrid fabric short-distance interconnection built on MPO cabling infrastructure

Connectivity Solutions(Applications)

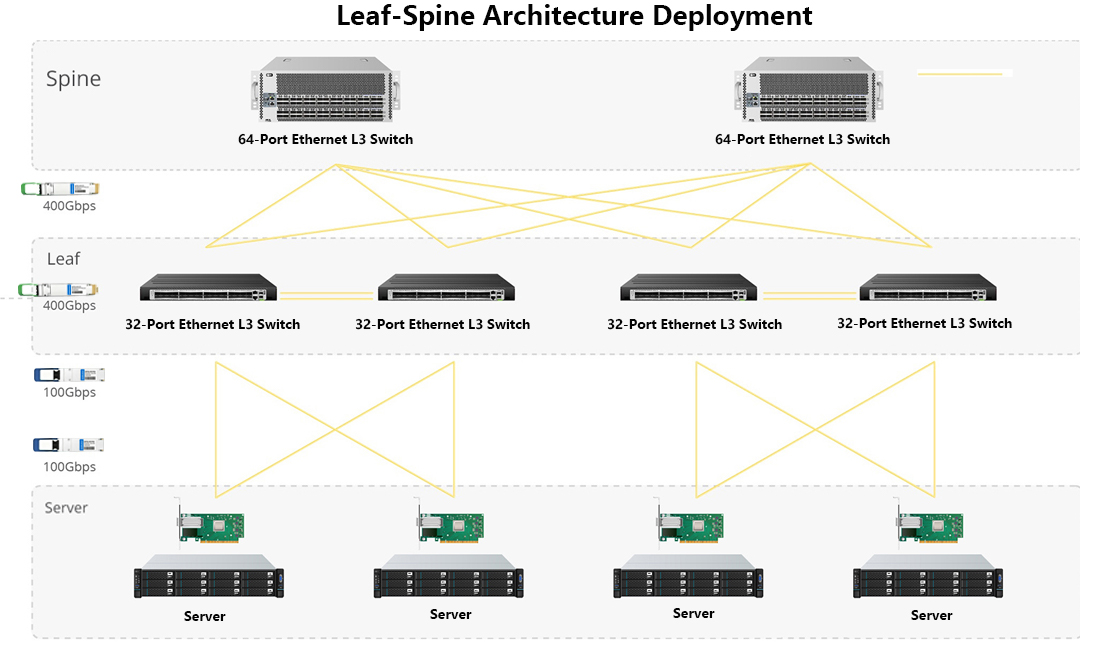

1.Leaf-Spine Architecture


HYTOPTODEVICE 100G PSM4 QSFP28 for Cisco leaf-spine architecture interconnection

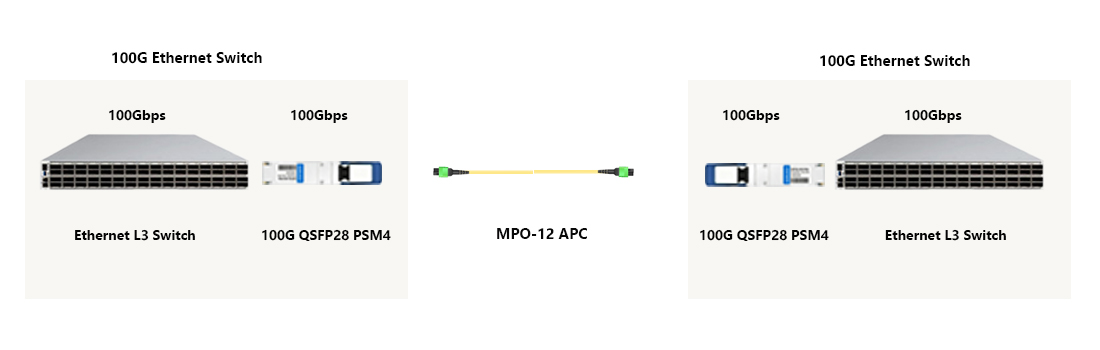

2. 100G to 100G for Switch-Switch Interconnection

HYTOPTODEVICE 100G PSM4 optic for switch-to-switch rack trunk links

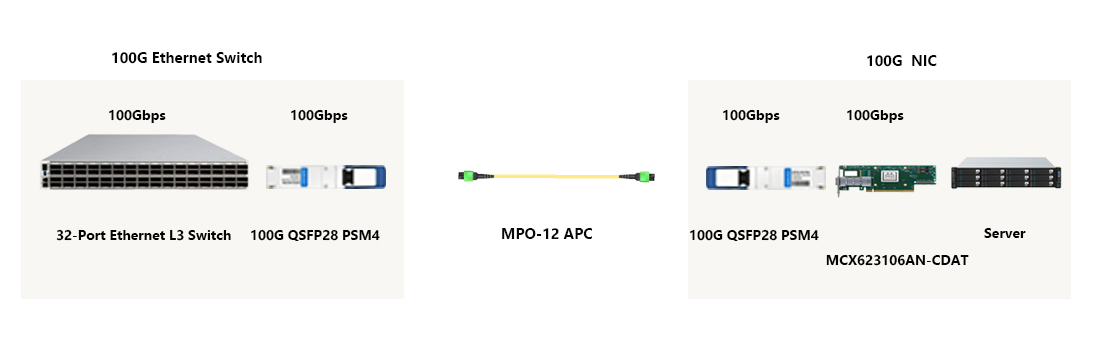

3.100G to 100G for Switch-NIC Connection

HYTOPTODEVICE 100G PSM4 uplink module for switch-to-server NIC connections

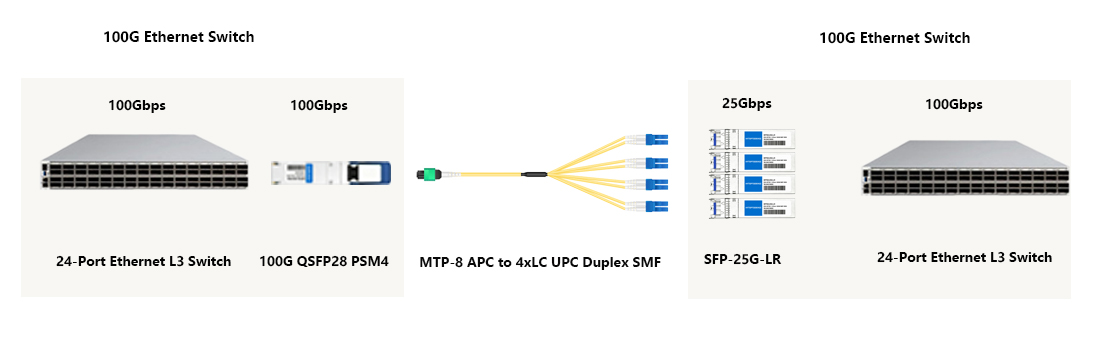

4.100G to 4x25G Breakout Connectivity

HYTOPTODEVICE 100G PSM4 QSFP28 supporting 100G to 4x25G breakout transmission


The Core Feature

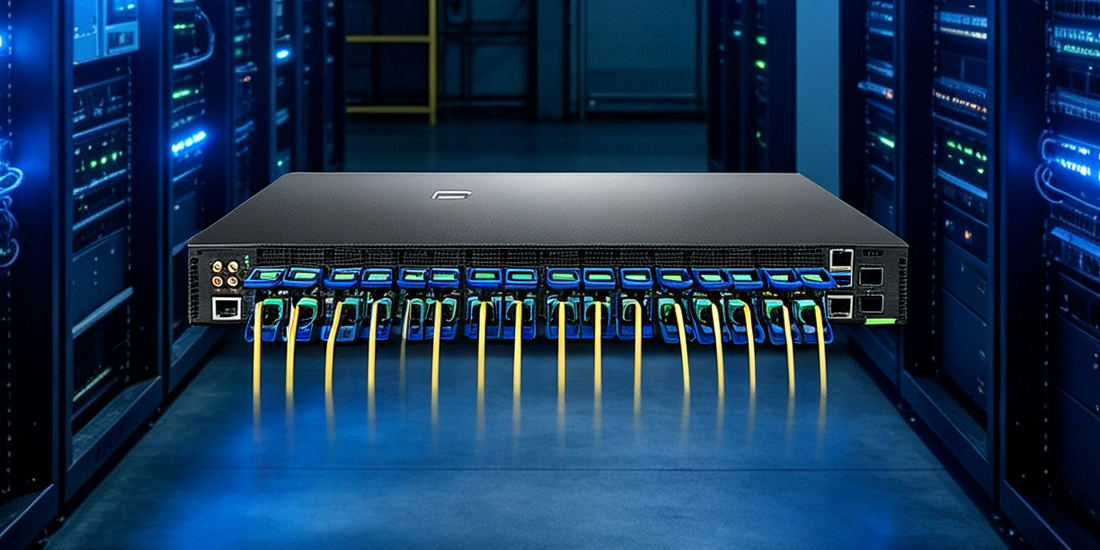

1.Low Power and High-Density 100G Connectivity for Data Center

Max power ≤3.5W cuts thermal load on fully populated line cards. Compact QSFP28 form factor fits high-density racks, lowering data center PUE and supporting long-term 24/7 operation.



2.
Verified Host Interoperability

Custom EEPROM programming enables plug-and-play operation and avoids transceiver alarms across multiple network vendor platforms.Specific Compatibility Video available upon request.

HYTOPTODEVICE Cisco QSFP-100G-PSM4-S compatible PSM4 module multi-generation Nexus switch verified

3.Comprehensive Factory Testing & Reliable Performance

Each unit undergoes optical calibration, wide temperature cycling and burn-in testing. Integrated DDM enables remote real-time monitoring for proactive fault troubleshooting.Curious how? Tour the Test Center.

 HYTOPTODEVICE 100G PSM4 QSFP28 full optical calibration & 72h aging test consistent stability



FAQ

Q1: Can HYTOPTODEVICE Q28-100G-PSM4-IR PSM4 optic run normally on Dell, Cisco, Arista and Juniper enterprise switches?
A: Stable cross-platform performance depends on customized vendor EEPROM coding. We can pre-flash Dell OS10 matched ID data for this 100G QSFP28, so it passes Dell hardware authentication without unsupported transceiver warning alerts. Custom coding for other brands is also available.

Q2: Can I make optical links between Q28-100G-PSM4-IR and CWDM4 / LR4 QSFP28 modules?
A: Direct fiber interconnection cannot work. PSM4 transmits four parallel 1310 lanes via MPO multi-fiber ribbon, while CWDM4/LR4 stack multiple wavelengths on duplex LC cable. Their optical layout and physical connectors are completely incompatible.

Q3: Is this Dell compatible Q28-100G-PSM4-IR pluggable into old 40G QSFP+ switch ports?
A: It cannot operate normally despite identical outer shape. QSFP+ hardware only supports 40G signal processing and lacks DSP for 4×25G PSM4 parallel transmission. Port initialization will fail completely.

Q4: Does Dell Q28-100G-PSM4-IR 100G PSM4 support standard RS-FEC error correction?
A: IEEE 802.3bj Clause 91 RS-FEC hardware decoding is fully integrated. You must enable FEC on corresponding Dell OS10 switch ports to hit the specified ultra-low BER (< 10⁻¹²).

Q5: Can blue UPC MPO patch cords be used on this APC green PSM4 module port?
A: Using UPC cables is strictly forbidden. Flat UPC polish generates heavy light back reflection, distorts parallel signals and scratches internal laser parts permanently.

Q6: Do optical attenuators needed for 1–5m short MPO fiber to prevent receiver overload?
A: Extra attenuators are unnecessary. Factory calibrated transmit power holds full safety margin for short patch cable scenarios, receiver chips will not get saturated damaged.

Q7: Can Q28-100G-PSM4-IR run stable links over 500m with ultra-low-loss OS2 ribbon fiber?
A: Not recommended for production data center deployment. Over 500m exceeds MSA designed optical budget and lane skew compensation range, causing fluctuating BER and intermittent port flapping.

Q8: Does this Dell 100G PSM4 QSFP28 support 100G to four independent 25G SFP28 breakout links?
A: Full breakout function supported. Four physically isolated optical lanes cooperate with MPO breakout cables, splitting one Dell 100G port into four separate 25G server uplinks to improve switch port efficiency.

Q9: Why choose Dell compatible Q28-100G-PSM4-IR PSM4 instead of long-reach 100G LR4 transceivers?
A: For intra-data center links under 500m, PSM4 has simpler internal structure, lower bulk cost and ≤3.5W power consumption. It is the most cost-effective high-density parallel optic for Dell rack-to-rack fabric connections.

Q10: In which network scenarios will CWDM4 duplex LC modules beat mass PSM4 deployment on total cost?
A: CWDM4 saves overall expenditure for long cross-building links or projects with small fiber counts. High-priced MPO ribbon cables will offset the unit cost advantage of Q28-100G-PSM4-IR PSM4 modules.
