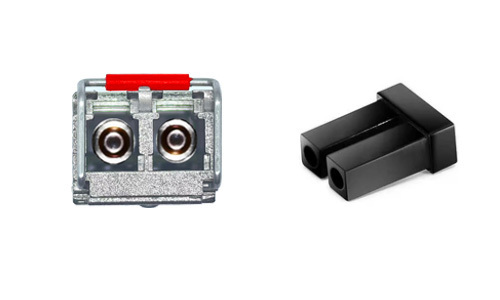

HPE J9153A Compatible 10GBASE-ER SFP+ 1550nm 40km DDM SMF Optical Transceiver Module-HYTOPTODEVICE

     The HYTOPTODEVICE HPE J9153A compatible 10G fiber optic module is a carrier-grade extended-reach solution designed for high-density networking and long-haul data transport within the HPE ecosystem. As a 10GBASE-ER SFP+ 1550nm 40km single mode transceiver, it provides the high-bandwidth backbone required for modern enterprise, data center, and campus environments. Whether you are expanding a core network or seeking a cost-effective 10G 40km SFP+ replacement, this low-power 10G ER SFP+ with Digital Optical Monitoring (DOM) offers seamless "Plug-and-Play" integration with HPE FlexFabric (5900/5930) and FlexNetwork (5500/5130) switches.
      This HPE J9153A SFP+ ER 40km optical transceiver for FlexFabric series is engineered to exceed SFP+ MSA (SFF-8431) and IEEE 802.3ae standards, guaranteeing reliability in mission-critical links.

Compatibility & Supported HPE Hardware

The HYTOPTODEVICE  J9153A (and its modern revision J9153D) is primarily used in HPE ProCurve and Aruba switch families. It is a staple for:

• Aruba Switches: 2930F, 2930M, 3810M, 5400R zl2, 8320, and 8325.

• HPE OfficeConnect: 1950 series.

• Legacy ProCurve: 5400zl, 8200zl, and 2910al series (with 10G modules).

• Inter-Building Connectivity: Ideal for large campuses where the 10 km limit of standard LR optics is insufficient.

• Metro Ethernet: Linking two office locations across a city via leased dark fiber.

• Disaster Recovery: Providing a 10G backbone to a remote off-site backup facility.
  Technical Warning: When testing or deploying this SFP-10G-ER 40km module over short distances (typically less than 20km), an optical attenuator (6dB to 9dB) must be used. Failure to attenuate the signal may cause permanent damage to the receiver due to optical overload.


  Distance	≤ 5km	≤ 10km	≤20km	Remarks
  Attenuator	12dB	9dB	6dB

Key Technical Specifications

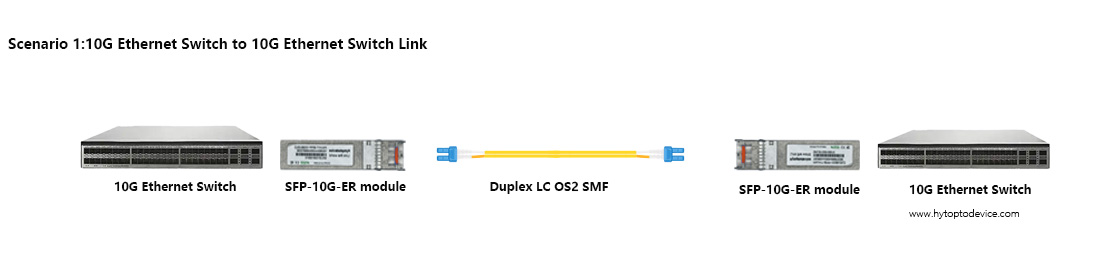

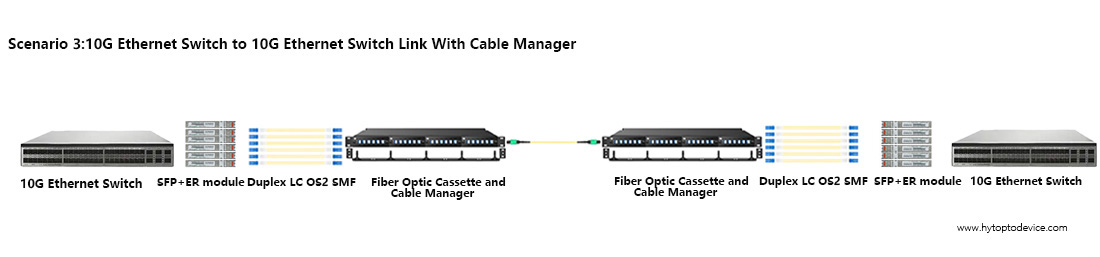

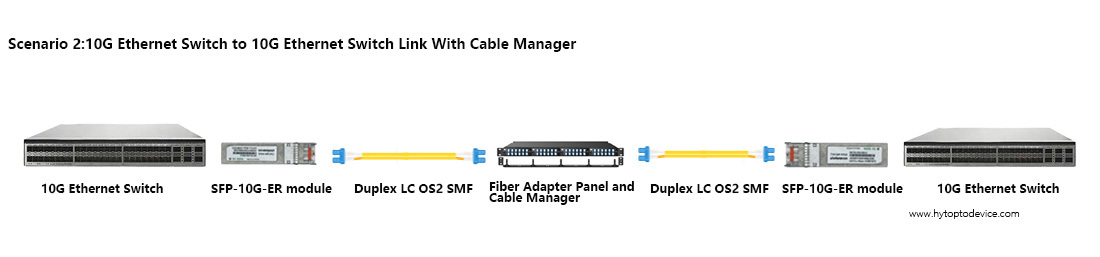

Connectivity Solutions(Applications)：

FAQ FOR HPE J9153A Compatible SFP+Transceiver Modules

Q1: Is there a difference between SFP-10G-ER and SFP-10G-ER-S? A: The standard SFP-10G-ER is a full-featured module that supports Ethernet, OTN  and WAN PHY protocols with comprehensive temperature coverage. In contrast, the SFP-10G-ER-S (Class S) is a cost-effective version optimized for 10G Ethernet applications in enterprise and data center environments, and only supports commercial-grade temperatures.

Q2: Can I use SFP-10G-ER  for a 10km link? A: Yes, but you must use an inline optical attenuator(about 9dB)
to protect the receiver from the high-power 1550nm laser.avoiding to damage the receiver.

Q3: Does it support hot-swapping? A: Absolutely. HYTOPTODEVICE hot pluggable 10G ER SFP+ can be installed or replaced without powering down your Cisco switch or router.

Q4: What is SFP-10G-ER? A: The SFP-10G-ER is a hot pluggable optical transceiver module with a speed of 10Gbps, a wavelength of 1550nm, and a transmission distance of 40 KM (OS2 SMF). It is ideal for data centre, 10G Ethernet and Fibre Channel etc.

Q5: Which companies manufacture high-quality SFP-10G-ER? A:Industry leaders such as Cisco, Finisar manufacture high-quality SFP-10G-ER transceivers. HYTOPTODEVICE offers premium transceivers compliant with MSA standards, rigorously tested to ensure 100% compatibility, and capable of stable 40km transmission on mainstream platforms such as Cisco, Juniper, Arista and Extreme.

Q6: How do I install an SFP-10G-ER module for my network switch? A: You can refer to the following steps:Power off the switch;Insert the module into the SFP+ slot firmly until it clicks into place;Connect the duplex LC single-mode fiber to the module port;Power on and check the link LED – green means the connection is successful.

Q7: What is the difference between SFP-10G-LR and SFP-10G-ER? A: They both use single-mode fiber with duplex LC connector.the main difference lies in wavelength and transmit distance.SFP-10G-LR transmit up to 10km using a 1310nm laser, while SFP-10G-ER transmits up to 40km using a higher-power 1550nm laser.

Q8: What type of fiber optic cable should I use with the SFP-10G-ER? A:For SFP-10G-ER, single-mode fiber (SMF) must be used, especially OS2 (or the older Os1) with a core diameter of 9/125µm.

Q9: Can I use the SFP-10G-ER in a 10G Ethernet switch? A:Yes, SFP-10G-ER is designed specially for the 10.3Gbps Ethernet, you can use it in any 10G Ethernet Switch that supports SFP+ ports.

Q10:What is the maximum transmission distance of the SFP-10G-ER? A:The maximum transmission distance of the SFP-10G-ER is 40 kilometers(approximately 25 miles) with OS2 SMF. If your fiber link is shorter than 20 kilometers, you must install an optical attenuator (typically 5dB to 10dB) to reduce signal strength.

Q11:How do HYTOPTODEVICE ensure SFP-10G-ER module compatibility with network switch? A:Generally, to ensure 100% compatibility, modules must be coded to match the switch's requirements. HYTOPTODEVICE, a source factory with over 10 years of export history to Europe and America, is highly professional in coding equipment for various brands to ensure they are recognized and running in your  device.

Q12:Are there any special conditions or requirements for using SFP-10G-ER over long distances? A:The SFP-10G-ER is a high-performance optical module. To ensure stable 40km links and prevent module damage, the SFP-10G-ER requires the use of OS2 SMF and strict power budget control. Furthermore, due to its use of a high-power 1550nm laser, any fiber link shorter than 20km must use a 10dB optical attenuator to prevent permanent receiver damage. The HYTOPTODEVICE module has built-in DDM support, allowing you to monitor these critical power levels in real time.

Quality Assurance：Your Trusted Optical Transceiver Source

HYTOPTODEVICE is a vertically integrated manufacturer of high-performance optical transceivers. By controlling core materials at the source, we ensure every SFP module meets the highest standards of reliability and customization.

• Vertical Integration: In-house core material production ensures a stable, self-sufficient supply chain for all optical modules.

• Total Traceability: End-to-end oversight from raw components to final transceiver assembly guarantees 100% controllability.

• Bespoke Solutions: Expert-led R&D provides customized SFP transceiver designs tailored to your specific technical needs.

• 24-Hour Response: Our technical team guarantees a primary response to any inquiry or quality concern within 24 hours.

Carrier-Grade Quality. Factory-Direct Control. Rapid Response.

Quality Certification & Compliance：

At HYTOPTODEVICE, our quality commitment is backed by industry-standard validations. From fiber optical transceiver manufacturing to final inspection, our processes ensure global compliance and reliability.

We adhere to rigorous standards for our SFP modules and network solutions:

• ISO 9001: Certified quality management and production consistency.

• Global Certifications: Fully compliant with CE, FCC Class B, REACH, and UL safety standards.

• RoHS: Committed to environmental responsibility and hazardous material control.

• Proven Reliability: Rigorous testing to reduce compliance risk and ensure safety.

Certified Quality. Global Standards. Guaranteed Performance.

Rigorous Industrial Product Testing：



100% 3rd Party Compatible：

Partial Test Demonstration:
