Cisco SFP-10G54-BX80 10G SFP+ BiDi Transceiver | 10GBASE-BX80-D 80km Tx1550Rx1490nm Bulk Wholesale | HYTOPTODEVICE

Buy HYTOPTODEVICE Cisco SFP-10G54-BX80 compatible 10G BiDi SFP+ transceiver. 10GBASE-BX80-D Tx1550/Rx1490, 80km OS2 single-mode simplex LC. Bulk factory wholesale, custom EEPROM, OEM available for Cisco switches & routers, distributors & integrators.

NO.	Brand	Compatible P/N	Transceiver Type
1	Cisco	SFP-10G54-BX80	SFP-10G45-BX80
2	Arista	SFP-10G54-BX80	SFP-10G32-BX10
3	Brocade	10G-SFPP-BXD-80K	SFP-10G32-BX20
4	Dell	GP-SFP-10GBX-D-80	SFP-10G32-BX40
5	Extreme	10GB-BX80-D	SFP-10G32-BX60
6	Juniper	SFP-10G54-BX80	SFP-10G45-BX100
7	D-Link	SFP-10G-BX80-D	SFP-10G54-BX100
8	Fortinet	SFP-10G54-BX80

GET A QUOTE

Description

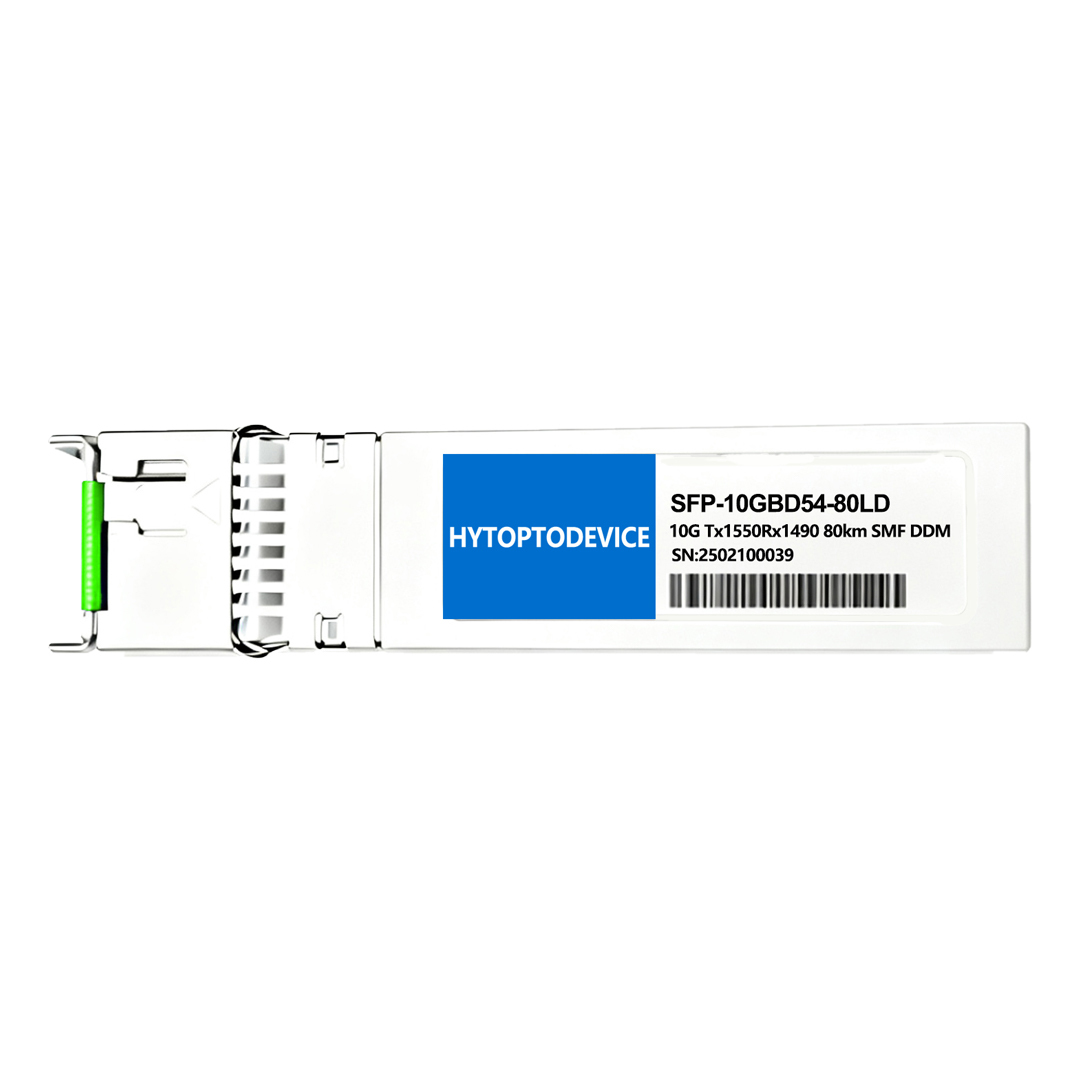

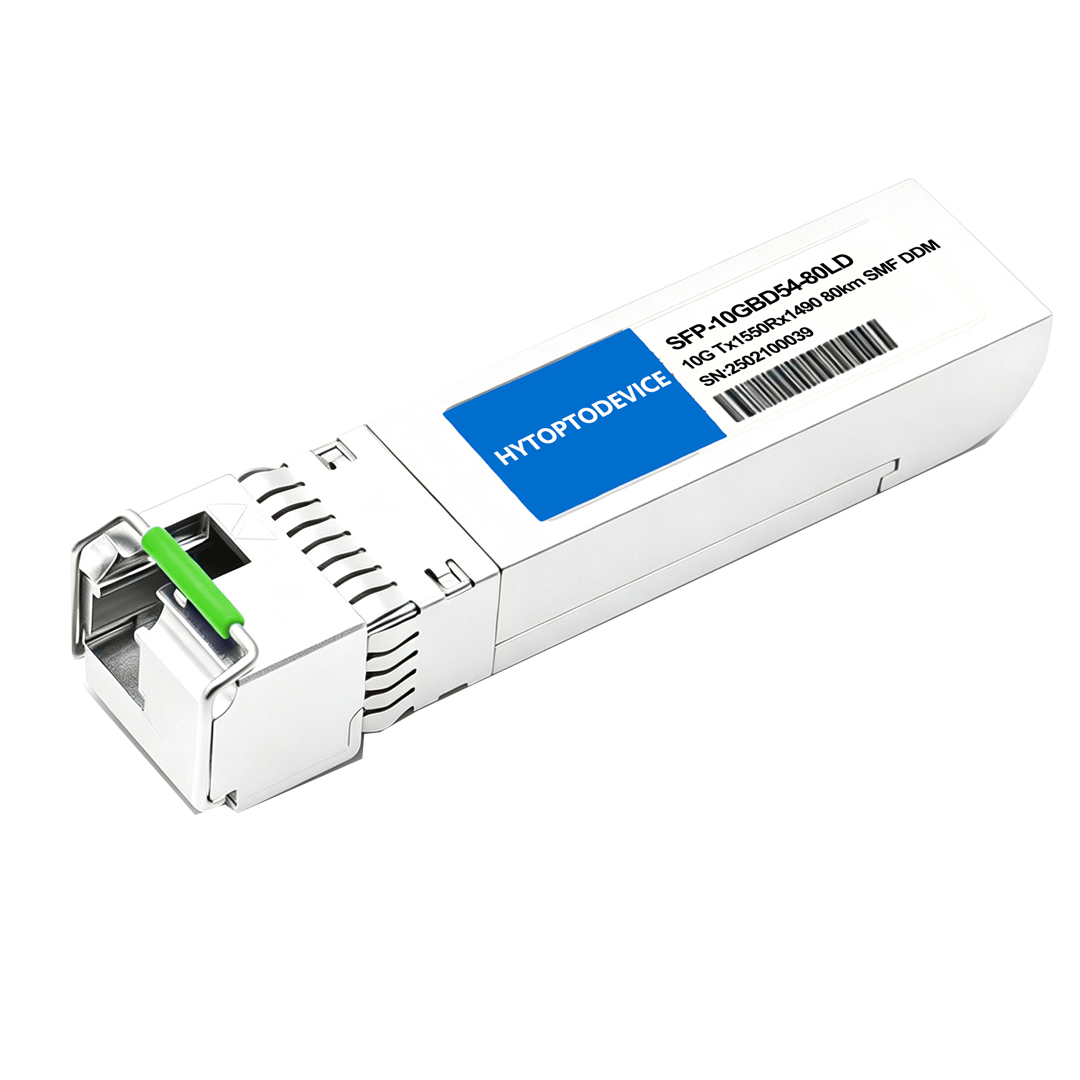

Cisco SFP-10G54-BX80 Compatible 10G SFP+ BiDi Transceiver | 10GBASE‑BX80‑D 80km Tx1550Rx1490nm Bulk Wholesale | HYTOPTODEVICE

Product Overview

HYTOPTODEVICE 10G BiDi SFP+ transceiver serves as a drop-in replacement for Cisco SFP-10G54-BX80. Built to 10GBASE-BX80-D and SFF-8472 MSA standards, this optic delivers stable 10.3125Gbps transmission up to 80km over OS2 single-mode fiber, with Tx1550nm transmit and Rx1490nm receive wavelengths via simplex LC connector.

Pre-programmed with Cisco-specific EEPROM data, it supports plug-and-play deployment without unsupported transceiver alarms on Cisco switches and routers. This single-strand BiDi optic must pair with the complementary opposite wavelength module at the far end. HYTOPTODEVICE provides factory bulk stock, sample trial orders and OEM customization for wholesalers, distributors and system integrators deploying Cisco long-distance metro links.

Key Technical Specifications

Cisco Compatible	SFP-10G54-BX80	Vendor Name	HYTOPTODEVICE
Form Factor	SFP+	Max Data Rate	10.7Gbps
Wavelength	TX1550nm/RX1490nm	Max Distance	80km
Connector	Simplex LC	Transmitter Type	1550nm EML
Cable Type	SMF	Receiver Type	APD
TX Power	-1.0~+4dBm	Receiver Sensitivity	< -23dBm
Max. Power Consumption	≤1.8W	Receiver Overload	-7dBm
Protocols	IEEE 802.3ae, SFF-8472, SFF-8431, SFF-8432, SFP+ MSA Compliant, CPRI, eCPRI	Operation Temperature	0 to 70°C (32 to 158°F)

For detailed technical specifications, please refer to the Datasheet

Usage Guidelines & Operational Best Practices

• BiDi Pairing Rule: SFP‑10G‑BXD (Tx1550/Rx1490) must pair with SFP‑10G‑BXU (Tx1490/Rx1550) at remote end. Two BXD modules will NOT form a valid link.

• Cabling Requirement: Use OS2 single‑mode simplex‑LC UPC cables only. Multimode fiber / APC connectors reduce reach and cause link issues; keep connectors clean.

• Optical Attenuator Required for Short Links: For testing or short‑distance connections (<10km), connect a 12dB–15dB optical attenuator to the RX port to prevent damaging the receiver.(10KM＜Distance＜30km,connect 5‑15dB optical attenuator)

• Environment: Run within 0‑70 °C. Avoid high‑heat, dusty, poorly ventilated rack positions.

• Hot‑swap: Supports hot‑swap; disconnect fiber before plugging / unplugging to protect optical ports.

• DDM Monitoring: Enable DDM/DOM; monitor optical power and temperature for early fault warning.

• Pre‑test Recommendation: Test sample units with real hardware before large‑scale bulk deployment.

• Laser Safety: Avoid direct eye exposure to powered optical ports; infrared laser can harm eyes.

For detailed operation instructions, please refer to the User Guide.

Full Compatibility List & Supported Network Hardware

1. Validated Cisco Hardware & Firmware

This module adopts Cisco-specific EEPROM, supporting zero-alarm plug-and-play with official firmware. All products are strictly tested, fully compatible with the below Cisco hardware models:

Cisco Catalyst Switches: 2350, 2360, 2960-S/X/XR, 350XG, 550XG
Cisco ISR/ASR Routers: ASR 901, 903, 1000 Series, 9000 Series
Cisco Nexus Data Center Switches: Nexus 3172PQ, 3172TQ, 7000 Series
Universal Compatibility: All Cisco devices with standard 10G SFP+ ports supporting 10GBASE-BX80-D protocol

2. Cross‑Brand Interoperability

Built on universal MSA open standards, this SFP+ transceiver is interoperable with mainstream network brands including Arista, Juniper, D-Link, H3C, Huawei and Fortinet, adapting to mixed-vendor network upgrade and expansion scenarios.

3. Free Value-Added Services

Custom EEPROM programming for multi-platform compatibility
Sample testing available before bulk orders for project validation
Private label customization and professional deployment guides
Rigorous batch quality consistency control
Custom EEPROM configuration for special and legacy network setups
Free EEPROM recoding with 24/7 technical support

Primary Application Scenarios

Cisco Enterprise Long-Distance Branch Networking: Suitable for 80km point-to-point single-fiber links connecting remote enterprise branches and campus sites built on Cisco switches and routers.
Carrier-Grade Metro Aggregation Transmission: Deployed for operator metro access long-haul transmission to relieve fiber shortage and reduce network construction costs.
Data Center Remote Interconnection: Used for long-distance interconnection between geographically separated data centers and backup computer rooms to deliver stable 10G high-bandwidth connectivity.
Cost-Effective Cisco Hardware Upgrade: High-quality replacement alternative to expensive original Cisco SFP-10G54-BX80 modules, lowering bulk network hardware procurement and operating expenses.
Global Wholesale & Resale: Stable batch supply for global optical module distributors and network engineering integrators, supporting private label resale business.

Connectivity Solutions(Applications)

1.Switch-to-Switch

HYTOPTODEVICE 80km 10g SFP+ BIDI TRANSCEIVER point‑to‑point single‑fiber links for carrier‑grade metro aggregation and remote site interconnection

2.Core to Access (With Structured Cabling)

The Core Features

1.Halve Your Fiber, Upgrade for Less

This 10G BiDi SFP+ transceiver carries transmit and receive over a single fiber strand, freeing up half your existing fiber resources while keeping a full 10G bidirectional link. Boost network capacity at a fraction of the cost of laying new cables.

hytoptodevice 10G SFP+ BIDI MODULE 80KM SMF TX1550RX1490nm

2.2x Capacity, Half the Cabling
A single fiber strand carries two wavelengths, enabling full-duplex 10G over one link. Double capacity per port, cut fiber cabling costs in half — no extra cables, no extra ports.

3.High-density, Low Power for Data Centers
Full 10G performance at just 1.8W. This SFP+ transceiver keeps high-density racks stable and cool, lowering both energy and cooling costs without compromising transmission quality.

4.Plug-and-Play Across Leading Brands
Drop into any multi-vendor environment with confidence. Every single unit is rigorously compatibility-tested on original switches from major vendors, so you get seamless, worry-free performance across Cisco, Juniper, Huawei and more. Real products, real switches, real results—Specific Compatibility Video available upon request.

hytoptodevice plug-and-play 10g sfp+ bidi transceiver 80km smf

hytoptodevice plug-and-play 10g sfp+ bidi transceiver 80km smf

5.Every Module Tested, Every Link Reliable
Reliability isn't a claim — it's engineered. Each 10G BiDi 80km SFP+ module clears signal integrity checks, full-distance runs, and extreme temperature cycling before leaving our Test Center, guaranteeing stable, packet-loss-free performance under any network load.

hytoptodevice comprehensive test for 80km 10g sfp+bidi optical transceiver module

hytoptodevice comprehensive test for 80km 10g sfp+bidi optical transceiver module

FAQ

Q1: Can this 10G BiDi transceiver work normally when inserted into a 1G SFP port on Cisco devices?

A: No, this Cisco-compatible 10GBASE-BX80-D transceiver features a fixed 10.3125Gbps operating rate and does not support downward auto-negotiation to 1G. Installing it on a 1G SFP port will cause link failure. Normal operation requires a native 10G SFP+ port on Cisco switches or routers.

Q2: Is wavelength pairing flexible for this Tx1550/Rx1490nm 80km BiDi module?

A: No, BiDi single-fiber links require strict wavelength pairing. This BX80-D module (Tx1550/Rx1490) must be matched with a complementary Tx1490/Rx1550nm 80km BiDi module at the remote end. Same-type D-module stacking or mismatched wavelength combinations cannot establish valid network connections.

Q3: Does this long-reach Cisco optic support single-strand single-mode fiber transmission?

A: Yes. Adopting WDM wavelength multiplexing technology, this transceiver realizes bidirectional 10G data transmission over only one OS2 single-mode fiber strand. It effectively saves fiber resources, reduces cabling costs, and is highly suitable for Cisco long-distance point-to-point enterprise and metro network links.

Q4: Can I use multimode fiber for this 80km 10G BiDi long-haul transmission?

A: No. This 80km long-reach module is exclusively designed for OS2 single-mode fiber. Multimode fiber has large dispersion and high signal loss, which cannot support stable 10G ultra-long-distance transmission over 80km, easily causing packet loss and link dropout.

Q5: Why choose 1550/1490nm wavelength combination for 80km Cisco network links?

A: The 1550/1490nm wavelength window features ultra-low fiber attenuation. The 1550nm band has only ~0.20dB/km loss, while 1490nm has ~0.25dB/km loss, delivering far better long-distance transmission performance than conventional 1270/1330nm wavelengths. It ensures stable and low-loss signal transmission for 80km ultra-long links.

Q6: Is additional processing required when using this 80km module for short-distance links under 10km?

A: Yes. This 80km high-power BiDi module has strong transmit optical power. Direct use on links shorter than 10km will overload the device’s APD receiver and damage the module. It is necessary to equip a 12–15dB simplex LC optical attenuator for power matching to ensure stable short-distance operation.

Q7: How does chromatic dispersion affect the signal quality of 80km single-fiber links?

A: Long-distance fiber transmission inevitably produces chromatic dispersion, which broadens optical pulses and increases bit error rates. This BX80-D module is pre-tested and optimized for 1550/1490nm wavelength dispersion budgets, perfectly adapting to 80km OS2 fiber transmission and maintaining ultra-low bit error rate and stable link status.

Q8: What risks does excessive optical power bring to this Cisco BiDi transceiver?

A: The built-in APD high-sensitivity receiver is vulnerable to damage from excessive input optical power (above -7dBm). Unattenuated short-link testing is the main cause of module burnout. Standard power matching construction can effectively avoid hardware damage and extend module service life.

Q9: What working temperature environment is suitable for this Cisco compatible optical module?

A: The standard commercial-grade module supports stable operation at 0°C to 70°C, adapting to conventional indoor Cisco equipment cabinet environments. For outdoor base stations, industrial sites and other harsh scenarios, customized industrial-grade (-40°C ~ +85°C) modules are available.

Q10: Does this transceiver comply with universal industry standards for Cisco network adaptation?

A: Yes. This 10GBASE-BX80-D BiDi transceiver fully complies with IEEE 802.3ae, SFF-8472, SFF-8431 and SFF-8432 industry standards. It supports complete DDM real-time monitoring and standard SFP+ mechanical specifications, ensuring universal compatibility and stable operation on mainstream Cisco network devices.

Q11: Does this bulk wholesale optical module have complete qualification certifications?

A: Yes. All HYTOPTODEVICE 10G 80km BiDi modules pass CE, FCC and RoHS environmental compliance certifications. Complete test reports and certification documents can be provided to support customer customs clearance, project audit and batch procurement verification.

Q12: What after-sales support is available for faulty modules in bulk deployment?

A: We support long-term warranty and fast replacement services for bulk orders. Sufficient spot inventory ensures rapid global shipment and after-sales replacement. Global integrators and distributors can enjoy exclusive stock reservation and priority after-sales support for key projects.

Q13: What is the standard maintenance cycle for this 80km long-haul optical module?

A: It is recommended to clean the simplex LC optical port before installation to remove dust and impurities. For long-term running 80km long-haul links, perform port cleaning and link loss inspection every 6–12 months to avoid increased insertion loss and signal attenuation caused by port contamination.

Q14: Can this 80km BiDi module be used for 60km data center interconnection?

A: Absolutely. With a maximum reach of 80km, this module has sufficient optical power margin to fully cover 60km data center cross-room interconnection scenarios. It can resist signal loss caused by fiber splicing and connector docking, realizing stable 10G high-bandwidth long-distance interconnection.

Q15: Is this transceiver applicable to leased dark fiber links of telecom operators?

A: Yes. This standard MSA-compliant BiDi module is perfectly compatible with operator leased OS2 dark fiber. It supports metro aggregation and long-distance branch interconnection services. Our technical team can assist in link budget calculation to match different fiber loss environments.

Packaging & Custom OEM Solutions

Each module ships individually sealed in ESD-safe packaging, protected from static from our warehouse to your shelf—and ready to ship on receipt of order. Volume buyers and system integrators also unlock our full OEM program: custom logos, private labeling, and branded packaging, all designed to help you build and protect your own brand.

Why Network Engineers Choose HYTOPTODEVICE

HYTOPTODEVICE has supplied over 5000,000 optical transceiver modules to data centers, ISPs, and enterprise networks across 100+ countries since 2011. Every module undergoes a 72-hour burn-in test and full DDM/DOM validation before shipment.

Up to 70% cost savings vs OEM, transparent pricing & flexible bulk rates, supported quality returns
100% real-device compatible with Cisco, Huawei,Dell,Juniper, and Arista
ISO 9001:2015 Shenzhen factory, full lineup: 1.25G/10G/25G/40G/100G/200G/400G/800G/1.6T transceivers
Ample stock, fast global DHL/FedEx shipping in 3–5 working days
Free pre-sales engineering support for custom EEPROM & private label firmware
Real switch test videos available for pre-purchase review; inspection & shipping videos provided per order

“Phenomenal performance. We deployed 200 HYTOPTODEVICE SFP modules to replace Cisco OEMs in our backbone network. Result? Zero compatibility issues and a 60% reduction in costs. Highly recommended for mission-critical networks."— Senior Network Engineer, Regional Telecom, Australia

Quality Certification & Compliance

At HYTOPTODEVICE, our quality commitment is backed by industry-standard validations. From fiber optical transceiver manufacturing to final visual inspection, from IQC、IPQC、FQC to OQC, our processes ensure global compliance and reliability.

We adhere to rigorous standards for our SFP modules and network solutions:

ISO 9001: Certified quality management and production consistency.
CE & FCC: Fully compliant for seamless Global Market Access.
RoHS: Committed to environmental responsibility and hazardous material control.
Proven Reliability: Rigorous testing to reduce compliance risk and ensure safety.
