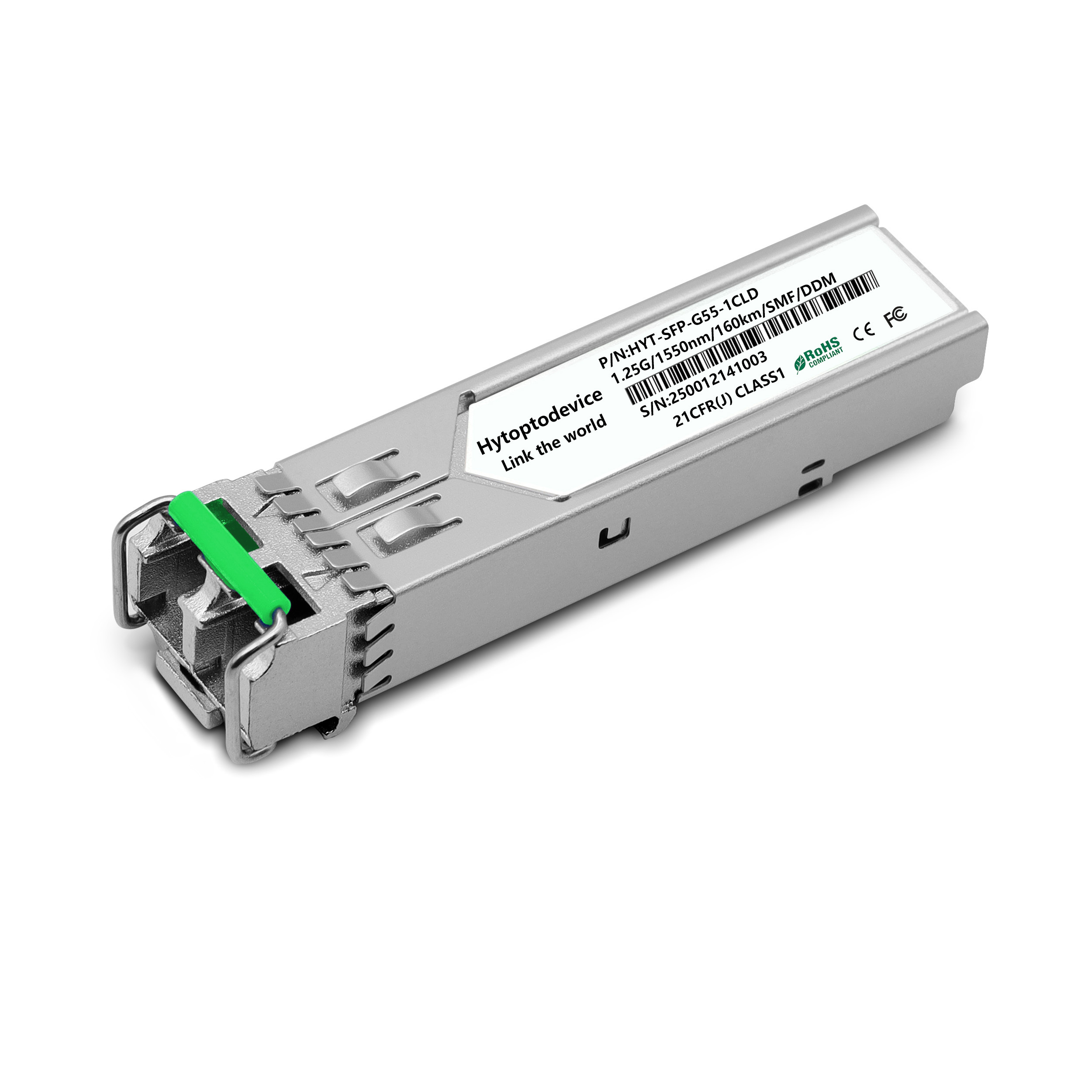

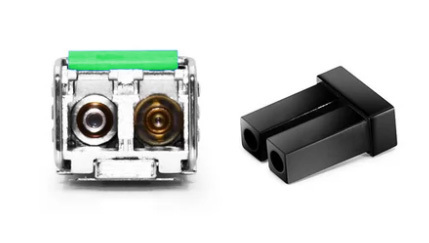

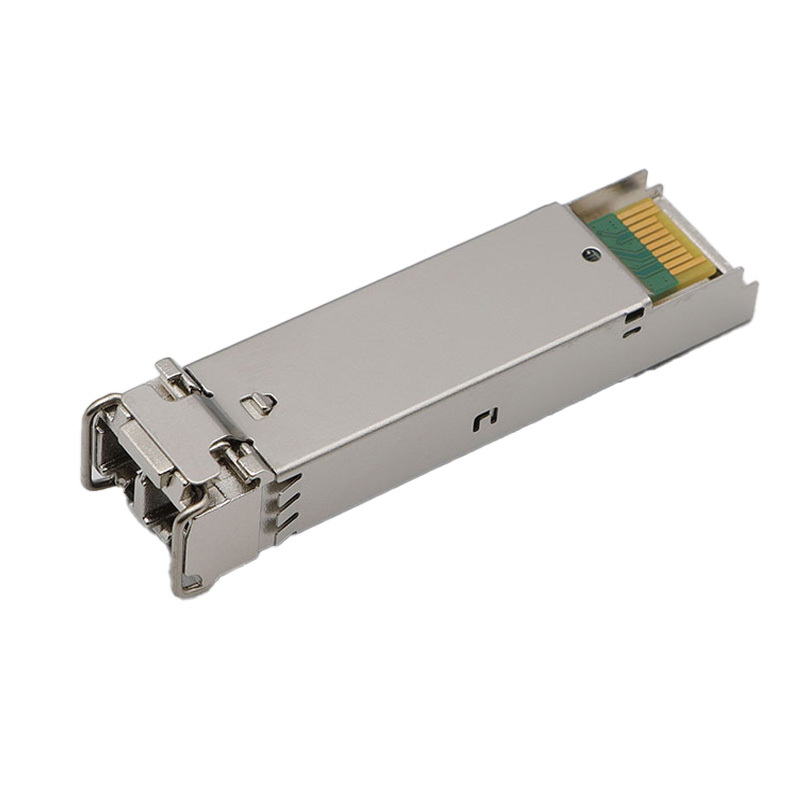

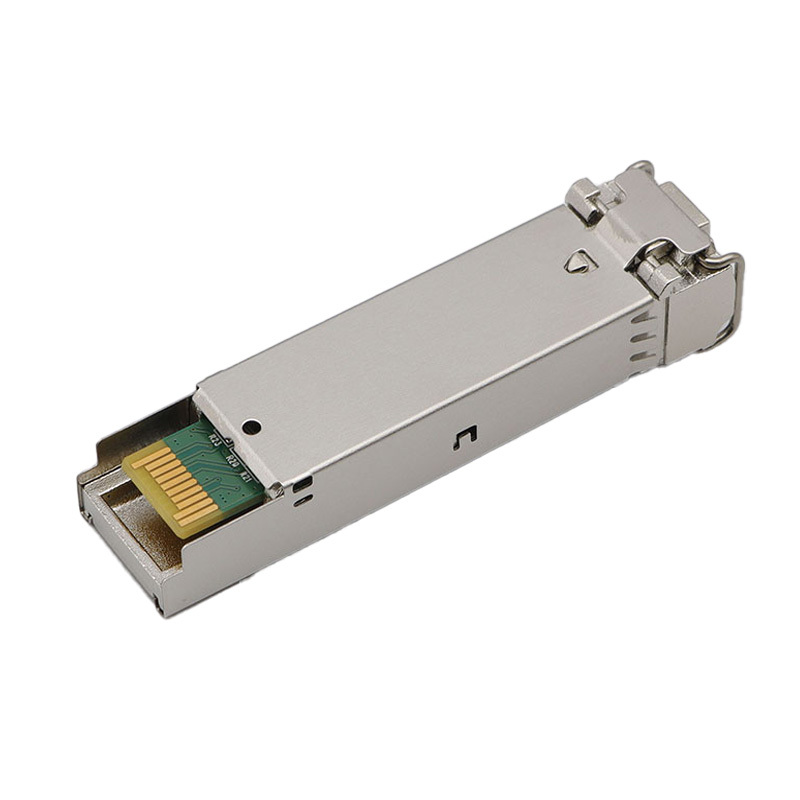

Extreme 10057-160 Compatible 1000BASE-EZX SFP 1550nm 160km DDM Duplex LC/UPC SMF Optical Transceiver Module

HYTOPTODEVICE ensures 100% "Plug-and-Play" compatibility with ExtremeXOS (EXOS) and VSP systems:

• ExtremeSwitching X-Series: X440, X460, X460-G2, X620, X670-G2.

• ExtremeSwitching VSP Series: VSP 4000, VSP 7200, VSP 8000.

• ExtremeSwitching ERS Series: ERS 4800, ERS 5900.

• Summit Series: Summit X450, X480, X650.

The HYTOPTODEVICE 10057-160 compatible module is optimized for:

• Inter-City Service Provider Links: Expanding metro networks across city boundaries for broadband backhaul.

• Carrier-Grade Data Center Interconnect (DCI): Linking geographically isolated data centers for real-time disaster recovery.

• Government & Utility Private Networks: Establishing secure, high-speed fiber links for power grids and highway management systems.

• Remote Campus Aggregation: Connecting satellite campus locations to a central core switch over extreme spans.

Q1: What is the optical power budget for an Extreme 10057-160 link? A: Achieving a stable 160km fiber optic link requires a budget of approximately 32dB to 34dB. HYTOPTODEVICE recommends using low-loss G.652D fiber and high-quality splices to ensure the signal remains within the APD receiver's threshold.

Q2: Can I use the 10057-160 SFP for short-range testing? A: CRITICAL WARNING: You must use a 20dB - 25dB optical attenuator. Due to the extreme sensitivity of the APD receiver, direct connection will permanently burn the optical sensor.

Q3: Does this module support Digital Diagnostic Monitoring (DDM)? A: Yes. HYTOPTODEVICE modules support full DDM/DOM, allowing you to monitor real-time laser temperature, voltage, and TX/RX optical power through the Extreme CLI.

Q4: Is this module compatible with ExtremeXOS "Third-Party" lockout? A: Our modules are pre-coded with the specific Extreme Networks EEPROM signature to bypass "unsupported" errors, ensuring they are recognized as Extreme compatible 160km optics by the system firmware.

Q5: What is the benefit of the 0°C to 70°C operating range? A: This commercial temperature range is the industry standard for controlled environments (Data Centers/Telco Rooms), ensuring long-term laser stability and MTBF (Mean Time Between Failures).

Quality Assurance：Your Trusted Optical Transceiver Source

HYTOPTODEVICE is a vertically integrated manufacturer of high-performance optical transceivers. By controlling core materials at the source, we ensure every SFP module meets the highest standards of reliability and customization.

• Vertical Integration: In-house core material production ensures a stable, self-sufficient supply chain for all optical modules.

• Total Traceability: End-to-end oversight from raw components to final transceiver assembly guarantees 100% controllability.

• Bespoke Solutions: Expert-led R&D provides customized SFP transceiver designs tailored to your specific technical needs.

• 24-Hour Response: Our technical team guarantees a primary response to any inquiry or quality concern within 24 hours.

Carrier-Grade Quality. Factory-Direct Control. Rapid Response.

Quality Certification & Compliance：

At HYTOPTODEVICE, our quality commitment is backed by industry-standard validations. From fiber optical transceiver manufacturing to final inspection, our processes ensure global compliance and reliability.

We adhere to rigorous standards for our SFP modules and network solutions:

• ISO 9001: Certified quality management and production consistency.

• CE,UL & FCC: Fully compliant for seamless Global Market Access.

• RoHS: Committed to environmental responsibility and hazardous material control.

• Proven Reliability: Rigorous testing to reduce compliance risk and ensure safety.

Certified Quality. Global Standards. Guaranteed Performance.

Rigorous Industrial Product Testing：



100% 3rd Party Compatible：

Partial Test Demonstration:
