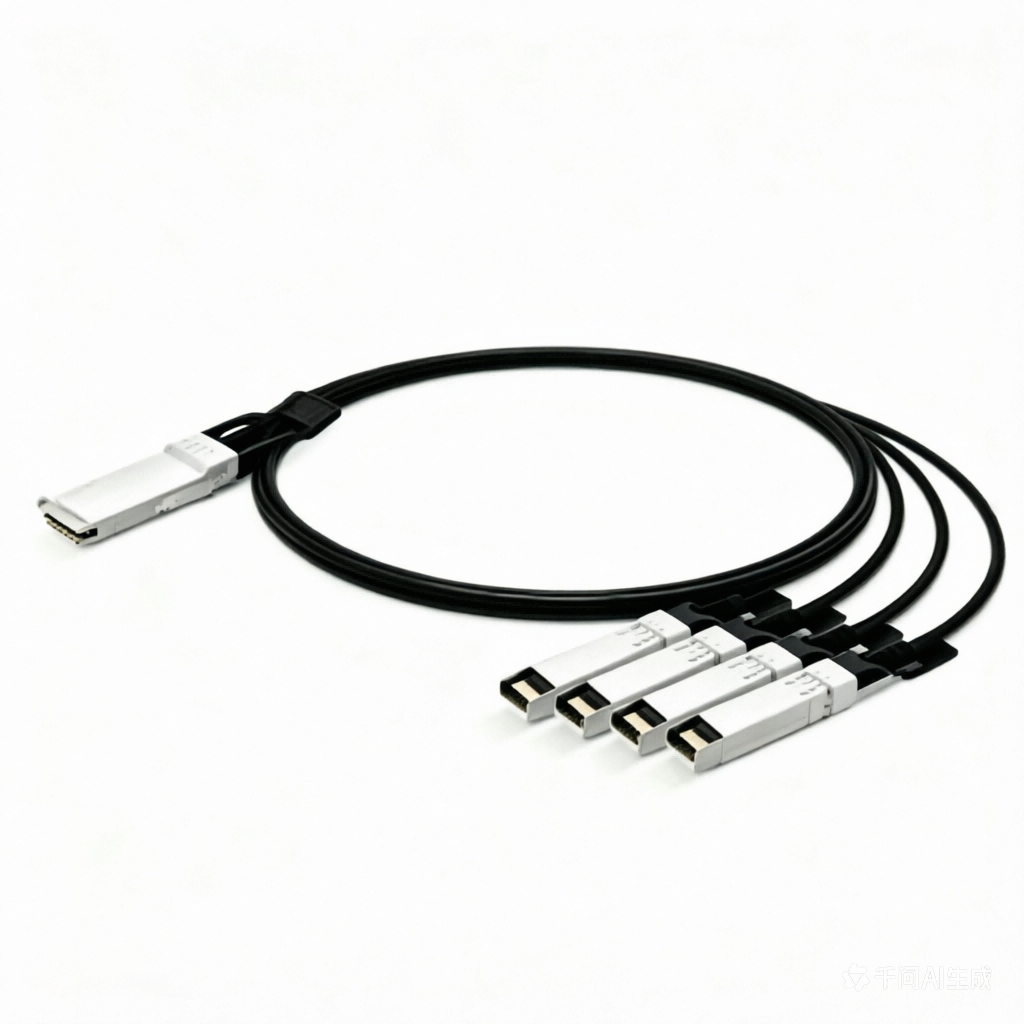

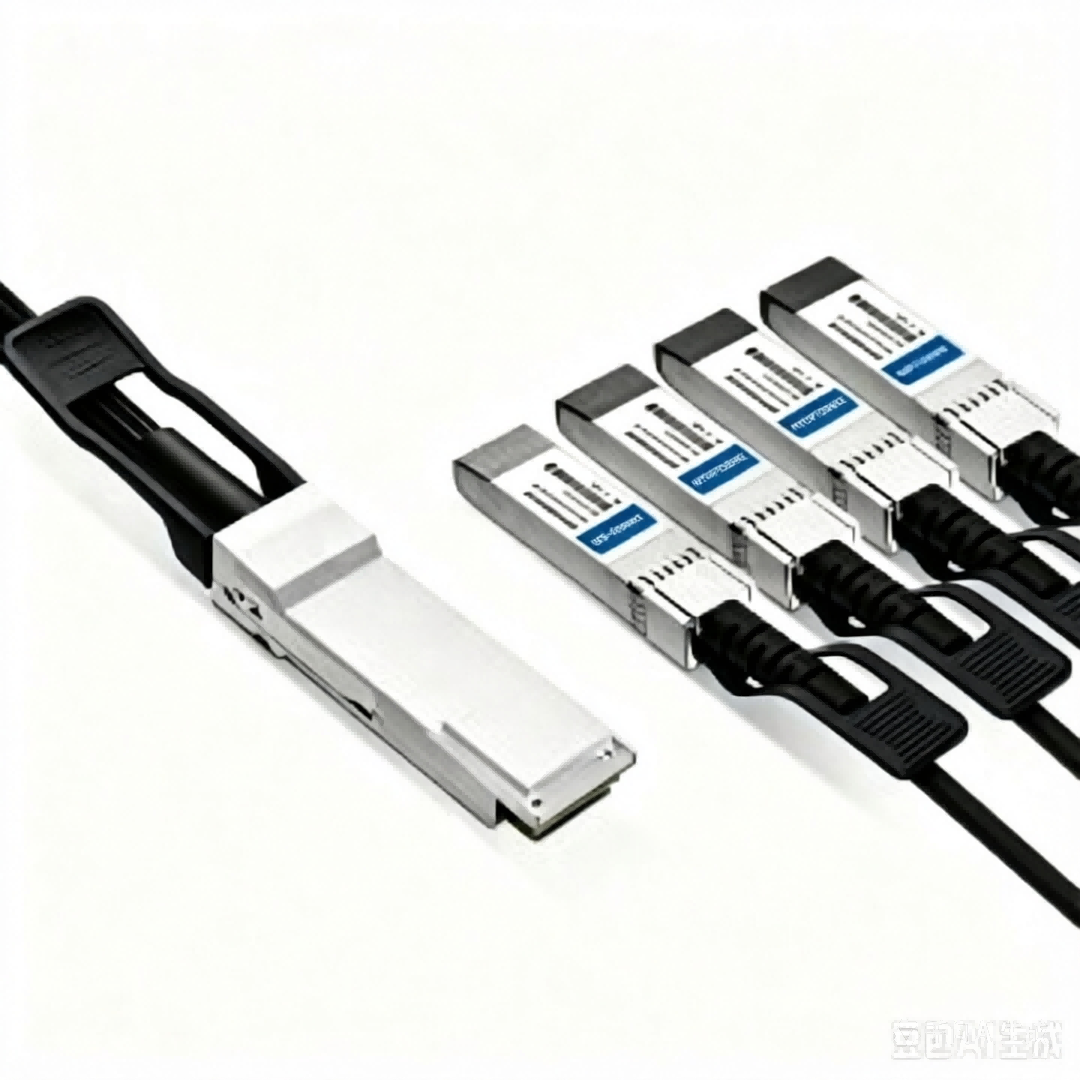

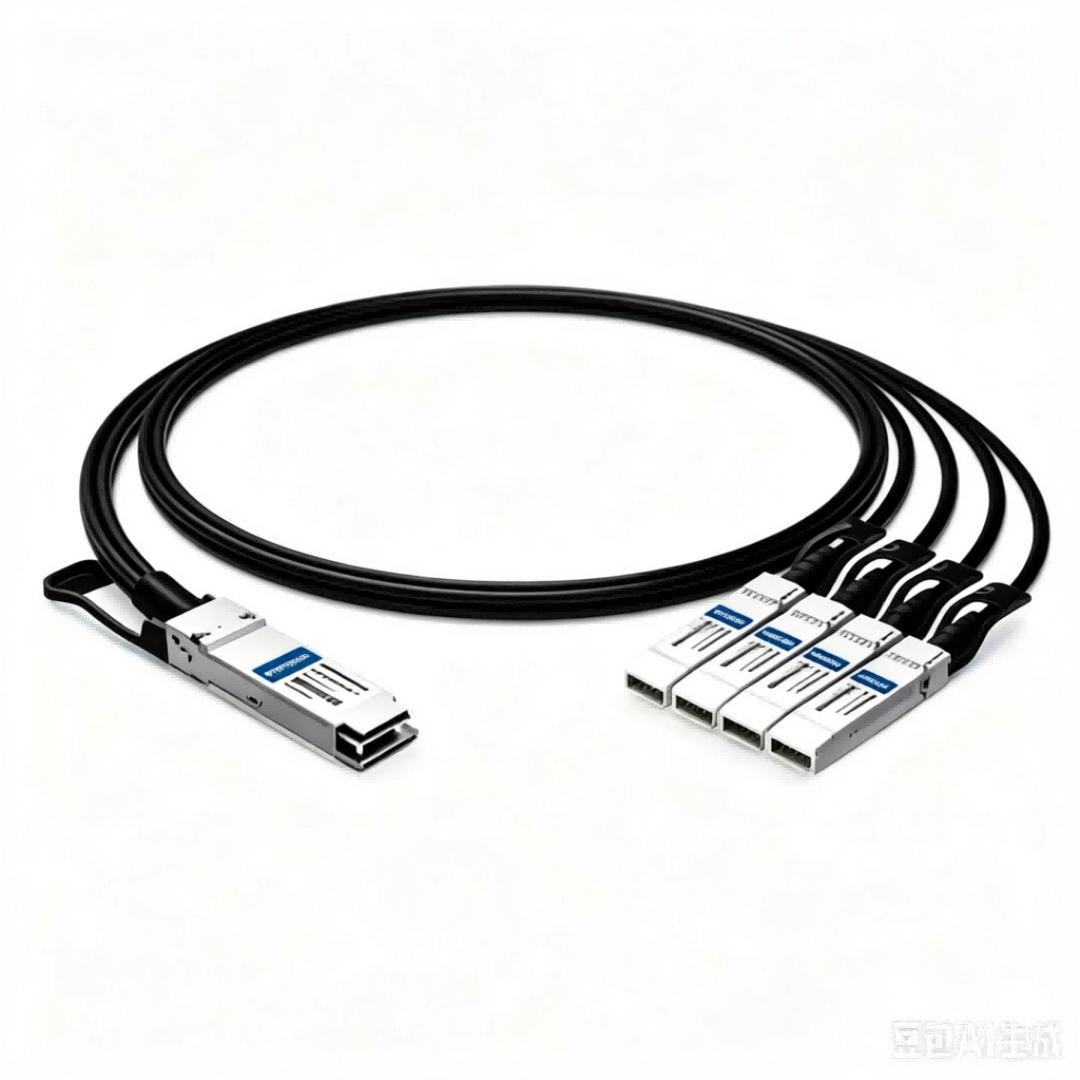

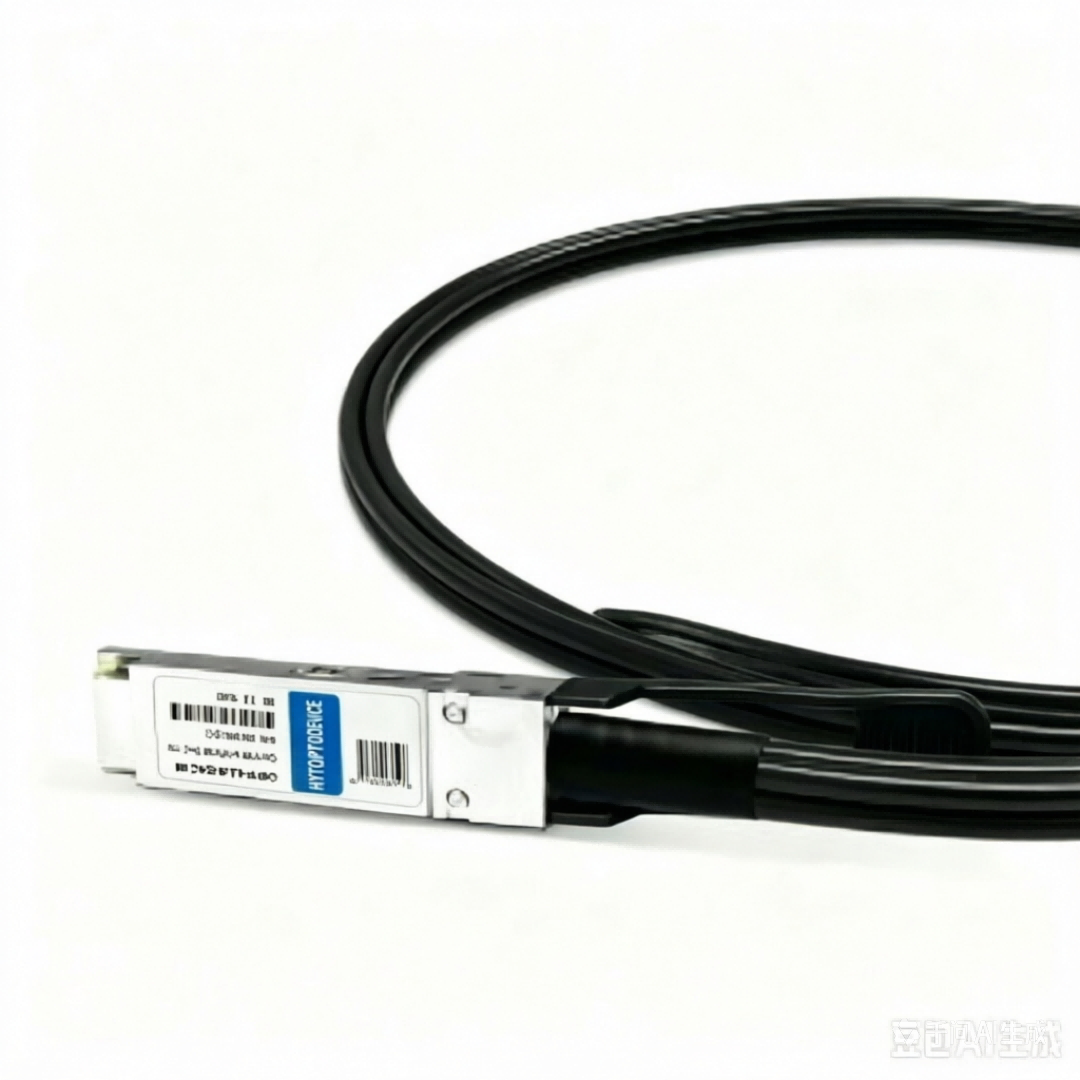

Cisco QSFP-4SFP25-CU5M Compatible 5m (16ft) 100G QSFP28 to 4 x 25G SFP28 Passive Copper Twinax Breakout Cable | HYTOPTODEVICE

Buy HYTOPTODEVICE passive copper twinax breakout cable, 5m 100G QSFP28 to 4×25G SFP28 twinax, pre-coded EEPROM for Cisco IOS-XE and NX-OS. Stable signal transmission, factory bulk supply for distributors, resellers and system integrators.
NO. Brand  Compatible P/N Transceiver Type
1 Cisco QSFP-4SFP25-CU5M
2 Arista Networks  CAB-Q28-S28-5M
3 Brocade 100G-Q28-S28-C-0501
4 Huawei QSFP-4SFP25G-CU5M
5 Juniper QFX-Q-S-DAC-5M
Description

Cisco QSFP-4SFP25-CU5M Compatible 5m (16ft) 100G QSFP28 to 4 x  25G SFP28 Passive Copper Twinax Breakout Cable | HYTOPTODEVICE

Product Overview

HYTOPTODEVICE 5m 100G QSFP28 to 4x25G SFP28 passive copper twinax breakout cable is a direct replacement for Cisco QSFP-4SFP25-CU5M. Manufactured to SFF-8662 MSA standard, this passive copper twinax breakout cable splits one 100G QSFP28 port into four independent 25G SFP28 links without extra power consumption.
Hot-swappable and pre-programmed with Cisco verified EEPROM data for smooth recognition under IOS-XE and NX-OS. HYTOPTODEVICE produces this passive copper twinax breakout cable for Cisco leaf-spine fabric deployment, supporting bulk purchasing, OEM private labeling, custom EEPROM programming and customized length service.

Key Technical Specifications

Cisco Compatible
QSFP-4SFP25-CU5M
Vendor Name HYTOPTODEVICE
Connector QSFP28+ to 4 x SFP28 Max Data Rate 100Gbps
Cable Length 5m (16ft) Wire AWG AWG 26
Cable Type Passive Twinax Power Consumption ≤0.25W
Media Copper Operation Temperature 0~ 70 °C (32 to 158°F)
Jacket Material PVC(OFNR) Protocols IEEE 802.3, QSFP28 MSA, SFF-8665
Minimum Bend Radius 60mm Application 100G to 2x 25G Ethernet, Data Centers

For detailed technical specifications, please refer to the Datasheet


Usage Guidelines & Best Practices

  • Mandatory Port Breakout Configuration: Ensure the host QSFP28 port supports channelization. Enable breakout mode (4x25G) via the switch CLI before connecting the cable.

  • Cabling Requirements: Do not exceed the minimum 50mm bend radius, avoid sharp folding, heavy extrusion or long-term tension on the cable assembly.

  • Port Installation Standard: Do not mix this breakout DAC with straight QSFP28 to QSFP28 DAC configuration.

  • Hot‑swap rule:Never pull or tug directly on the individual breakout legs. Always use the integrated pull-tab or bale latch when inserting or removing connectors.

  • Testing & Storage: Run sample validation on target hardware before large bulk deployment; store spare cables in dry, dust‑free and anti‑static packaging.
  • Operating Environment: 0‑70℃, indoor cabinet deployment only.

For detailed operation instructions, please refer to the User Guide.


Full Compatibility List & Supported Devices

1. Validated Cisco Hardware & Firmware

  • Cisco Nexus 93180YC-FX, 93240YC-FX2, 93360YC-FX2, 9364C, 9504, 9508 spine & leaf switches
  • Cisco Nexus 3408-S, 34180YC, 3432D, 3524X, 3548X low-latency data center switches
  • Cisco UCS C220, C240, C4200, C8900 series servers with 25G SFP28 NIC adapters
  • Cisco MDS 9132T, MDS 9250i storage switches
  • Firmware: NX-OS 9.3(5)+, IOS-XE 17.3+

2. Multi-Brand Cross Interoperability

Built on universal MSA open standards, this 100G QSFP28 to 4 x 25G SFP28 passive DAC breakout cable can interoperate with mainstream network brands including Arista, Intel, Juniper, Dell, NVIDIA Mellanox and IBM, for mixed-vendor rack stacking and server fabric expansion.

3. Free Value-Added Services

  • Custom firmware for multi-device compatibility
  • Support sample testing before bulk orders for project pre-verification
  • Private-label customization and professional deployment guidanc
  • Strict batch consistency quality control
  • Free custom EEPROM programming for special and legacy network environments
  • Free EEPROM rewriting (Tools Included) with 24/7 Tech Support

Primary Application Scenarios

• Long-reach intra-row 100G uplink breakout to 4×25G server NIC connections
• Leaf-spine fabric port expansion for Cisco Nexus data center networks
• AI server rack interconnection requiring 5-meter copper cabling
• HPC and storage cluster medium-distance twinax cabling
• Data center hardware upgrade and network migration
• Stock supply for distributors, system builders and value-added resellers


Connectivity Solutions(Applications)

1. 100G to 4x25G Breakout Link for Switch-Switch
HYTOPTODEVICE 100G QSFP28 to 4x25G SFP28 breakout DAC cable FOR SWITCH TO SWITCH


2. 100G to 4x25G Breakout Link for Switch-NIC
HYTOPTODEVICE 100G breakout twinax cable for data center


The Core Feature


1.
Near-Zero Power, Full-Speed 100G

This 100G QSFP28 passive DAC breakout cable sips no extra energy, cutting heat and cost in crowded racks while keeping low-latency 100G for in-rack or adjacent-rack runs.

hytoptodevice 100G QSFP28 to 4 x 25G SFP28 passive dac breakout cable for data center

2.Host-Device Tested for Proven Interoperability

Every unit is link-up tested on real target switch models; ports come online on first install across major vendor gear, no field tuning or replacement loops. Not sure it fits? Compatibility Video available upon request.

hytoptodevice wholesale 100G QSFP28+ to 4 sfp28 breakout twinax cable for data center

3. 100% Individually Tested for Peak Performance

Every single unit is tested individually — no sampling, no shortcuts — to ensure optical compliance and continuous operational stability. Curious how we do it? Take a virtual tour of our Test Center.

HYTOPTODEVICE  100g QSFP28 to 4 x sfp28 passive breaktout  dac cable for switches

FAQ

Q1: What does the part number "QSFP-4SFP25-CU5M" mean? A1: It decodes as: QSFP indicates the 100G QSFP28 master connector; 4SFP25 means it splits into four 25G SFP28 connectors; CU stands for copper (passive twinax); and 5M defines its 5-meter length.

Q2: Can I use this DAC cable to connect a Cisco switch to a switch from another brand? A2: Yes, but you need a "dual-compatible" version where one end is coded for Cisco and the other end is coded for the other brand (e.g., Arista, Dell, or HPE).

Q3:Will Cisco NX-OS flag this as an unsupported transceiver? A3: No. Our compatible cable features a precisely mirrored Cisco signature embedded in its firmware. The switch interprets it as an original Cisco QSFP-4SFP25-CU5M, allowing regular initialization without needing the service unsupported-transceiver command.

Q4: What is the maximum distance supported by the QSFP-4SFP25-CU5M? A4: The maximum physical length of this model is 5 meter (16 feet). It is specifically designed for intra-rack connections where devices are located directly above or below each other.

Q5:Can I use this Cisco-coded DAC cable to connect a Cisco switch to a Arista or HPE switch?A5:If you use a standard Cisco-coded cable, the Arista/HPE end might reject it due to vendor locking. For cross-vendor environments, it is highly recommended to order a Dual-Vendor Coded Cable (Cisco-coded on End A, and Arista/HPE-coded on End B) to ensure seamless plug-and-play compatibility on both sides.

Q6: Can I use this cable for a 40G port breaking down to 4x10G? A6: No. The internal electrical layout, wire tuning, and physical EEPROM configurations are optimized strictly for 100G-to-4x25G signaling. For 40G-to-10G applications, you must use a dedicated QSFP-4SFP10G-CU5M cable.

Q7:  Why should I choose a 5-meter cable over a 1-meter cable? A7: A 1-meter cable is typically restricted to connections within the same server rack (Top-of-Rack). A 5-meter length provides the necessary physical span to route cables neatly through cable trays to reach devices located in adjacent or nearby racks (Middle-of-Row or inter-rack patching).

Q8: Does this passive DAC breakout cable consume a lot of power? A8: Not. our Direct Attach Copper (DAC) cables are passive and consume near-zero power (<0.1W per end), that is far more energy-efficient than fiber optical transceivers or AOCs.

Q9: What should I do if my Cisco switch shows an "unsupported transceiver" error? A9: Ensure your switch is running updated firmware. If the message persists, you can bypass it on Cisco IOS by entering the global configuration commands: service unsupported-transceiver and no errdisable detect cause gbic-invalid.

Q10:Does this cable support hot-swapping? A10: Yes. it is hot-pluggable.The cable is fully compliant with SFF-8665 and SFF-8402 standards. you can plug it in or remove it while switches and servers are live and running without risking electrical damage.

Packaging & Custom OEM Solutions

  • ESD Protection & Fast Shipping: Every transceiver is sealed in an ESD-safe bag and ready for same-day dispatch from stock.

  • Custom OEM & Branding: We provide logo printing, private labeling, and custom packaging to help distributors and integrators build their brand—no factory investment required.


Why Network Engineers Choose HYTOPTODEVICE

HYTOPTODEVICE has supplied over 5000,000 optical transceiver modules to data centers, ISPs, and enterprise networks across 100+ countries since 2011. Every module undergoes a 72-hour burn-in test and full DDM/DOM validation before shipment.

  • Up to 70% cost savings vs OEM, transparent pricing & flexible bulk rates, supported quality returns
  • 100% real-device compatible with Cisco, Huawei,Dell,Juniper, and Arista
  • ISO 9001:2015 Shenzhen factory, full lineup: 1.25G/10G/25G/40G/100G/200G/400G/800G/1.6T transceivers
  • Ample stock, fast global DHL/FedEx shipping in 3–5 working days
  • Free pre-sales engineering support for custom EEPROM  & private label firmware
  • Real switch test videos available for pre-purchase review; inspection & shipping videos provided per order


“Phenomenal performance. We deployed 200 HYTOPTODEVICE SFP modules to replace Cisco OEMs in our backbone network. Result? Zero compatibility issues and a 60% reduction in costs. Highly recommended for mission-critical networks."— Senior Network Engineer, Regional Telecom, Australia


Quality Certification & Compliance

 At HYTOPTODEVICE, our quality commitment is backed by industry-standard validations. From fiber optical transceiver manufacturing to final visual inspection, from IQC、IPQC、FQC to OQC, our processes ensure global compliance and reliability.

We adhere to rigorous standards for our SFP modules and network solutions:

  • ISO 9001: Certified quality management and production consistency.

  • CE & FCC: Fully compliant for seamless Global Market Access.

  • RoHS: Committed to environmental responsibility and hazardous material control.

  • Proven Reliability: Rigorous testing to reduce compliance risk and ensure safety.

Certified Quality. Global Standards. Guaranteed Performance.




Rigorous Industrial Product Testing

   hytoptodevice check device and equiptment for optical transceiver module

100% 3rd Party Compatible
testing device for hytoptodevice 10g sfp+ bidi optical module
Partial Test Demonstration
hytoptodevice compatible optical transceiver module for ethernet,data center
