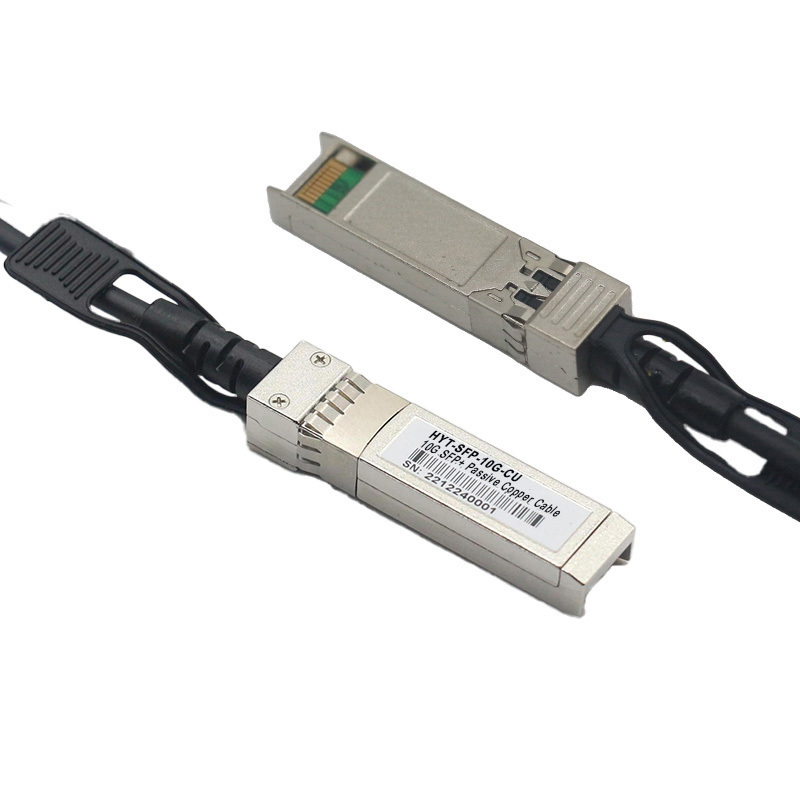

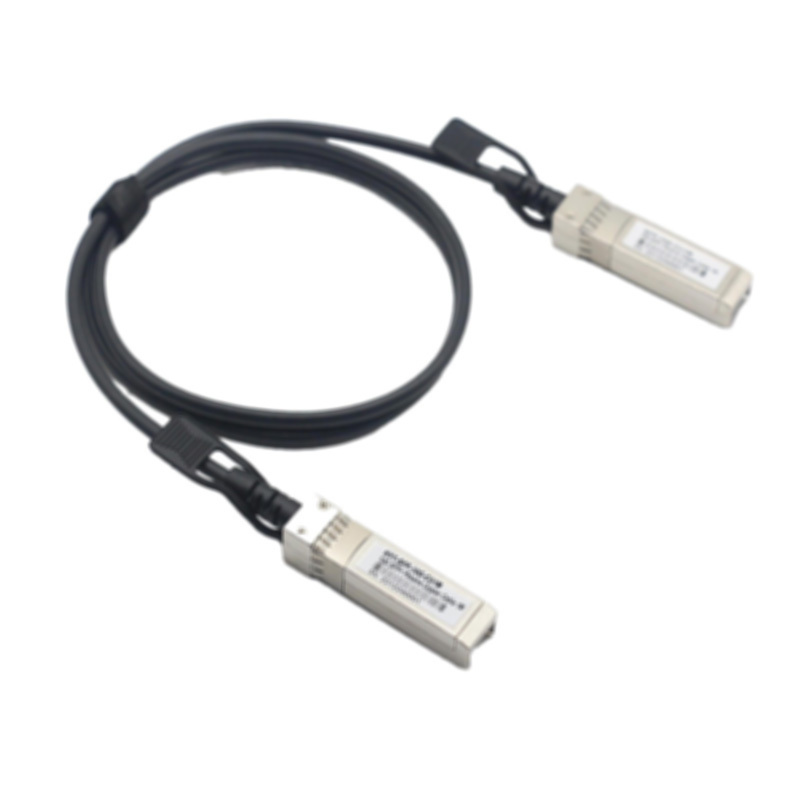

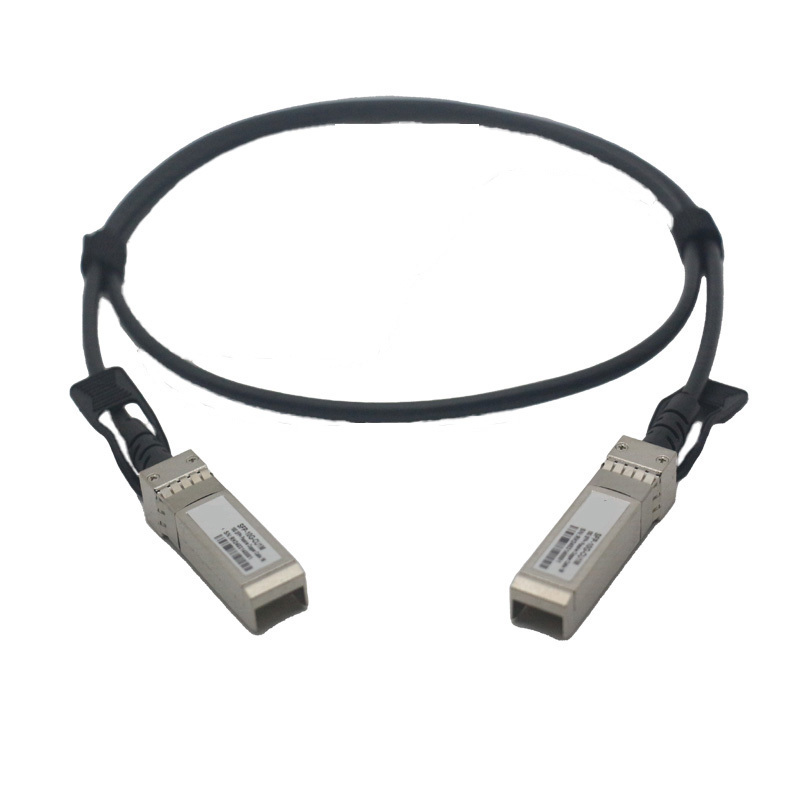

Brocade 10G-SFPP-TWX-0501 Compatible 10G SFP+ DAC Cable 5m (16ft) Passive Direct Attach Copper Twinax Cable-HYTOPTODEVICE

The HYTOPTODEVICE Brocade 10G-SFPP-TWX-0501 (24AWG) 10g sfp dac cable is pre-programmed to be 100% recognized as a native Brocade part:

• Brocade ICX Series: ICX 6450, ICX 6610, ICX 7150, ICX 7250, ICX 7450, ICX 7750, and ICX 7850.

• Brocade VDX Series: VDX 6710, VDX 6720, VDX 6730, VDX 6740, and VDX 8770.

• Brocade FCX & FastIron Series: Traditional enterprise-grade stacking switches.

• Brocade VSP & MLX Series: High-end core and aggregation routing platforms.

• Operating Systems: Fully supported in Brocade FastIron (FI) and Network OS (NOS).

• Long-Distance Switch Stacking: Perfect for stacking Brocade ICX switches across multiple racks (up to 5 meters apart) to create a unified logical chassis with high-speed backplane performance.

• Inter-Rack Data Center Connectivity: Linking Top-of-Rack (ToR) VDX switches to a central aggregation point within the same row.

• End-of-Row (EoR) Patching: Providing a reliable 10Gbps link from server racks to an EoR Brocade switch, with 24AWG thickness providing excellent EMI protection in cable trays.

• HCI & Storage Fabrics: Connecting Brocade-based storage networks to high-density compute nodes, ensuring low latency for iSCSI and FCoE traffic.

Connectivity Solutions(Applications)：

Scenarios 1:10G-to-10G Link for Switch-to-Switch

Scenarios 2:10G-to-10G Link for Switch-to-Server

FAQ for Brocade 10G-SFPP-TWX-0501 Compatible 10G SFP+DAC Cable

Q1:Do I need a Passive or Active DAC cable? A:Passive DAC has no signal amplification, it is cheaper and its power consumption almost zero.it is ideal for short distance(up to 7 meters). Active DAC contains electronics to boost the signal.its power consumption is larger, it can transmit longer distance(up to 10 meters）

Q2:How far can I run a 10G SFP+DAC cable?A:Because DACs are made of twinaxial coppers, that are relatively heavy, and signal attenuation occurs more rapidly than in fiber optics. As a result, the practical transmission distance for 10G SFP+ DAC cable is limited to 7 to 10 meters.

Q3:What is the benefit of Passive DAC over Active Optical Cables (AOC)? A: Passive DAC and Active AOC can transmit data in short distance. With zero power consumption, higher reliability and lower cost, passive DAC has more advantages over AOC in short distance like 1 meter.

Q4:How much power does it draw compared to 10GBASE-T (RJ45)?A:10G SFP+ DACs use copper cables, consuming only about 0.1W of power, whereas 10GBASE-T (RJ45) modules consume between 2.0W and 5.0W. Choosing DAC over RJ45 for short-distance transmission can reduce power consumption by more than 90%, significantly lowering heat generation and resulting in much lower procurement costs.

Q5:Does 10G DAC use Multi-mode or Single-mode fiber?A:Neither. The DAC(Direct-Attach Copper) is a copper cable. using a twinaxial copper architecture (Twinax) to transmit electrical signals directly, no light signals.There are not lasers or optical glass in DAC cable,  it is much cheaper than fiber optics.

Q6:Where to buy 10G SFP+DAC cable?A:There are many factories that produce and sell  passive DAC, but DAC manufacturer china HYTOPTODEVICE is the excellent provider: a source factory, fully controllable process, reliable performance, 100% compatible, sufficient inventory, fast delivery, and quick response.

Q7:Is 10G SFP+ to SFP+DAC hot-swappable?A:HYTOPTODEVICE SFP+10G DAC is hot-pluggable, hot Pluggable SFP+ Compliant.you can plug or unplug the passive DAC, while the device is powered on without damaging the hardware.

Q8:who makes the best SFP+DAC cable?A: Transceiver Manufacturer China HYTOPTODEVICE is the excellent provider.Sorce factory,reliable quality, 100% compatibiltiy.fast delivery and quick response.HYTOPTODEVICE send a tool that allows you to re-program the compatibility of your cables yourself.

Q9:What is the difference between 24AWG and 26AWG for a 5-meter DAC？A: The main difference lies in signal integrity. 24 AWG cables have a larger cross-sectional area, which significantly reduces resistance. For a 5-meter SFP+ copper cable, the eye diagram of a 24 AWG cable is “clearer” than that of a 26 AWG cable, thereby providing better electromagnetic interference shielding and more stable performance in high-density, high-interference data center environments.

Q10:What is the difference between "Passive" and "Active" DAC?There are distinct differences between Passive and Active DAC.The Passive DAC has no signal amplification. its lengths is under 7m. With zero power consumptions,it cost is cheaper. The Active DAC contains a chip to boost the signal. Used for slightly longer copper runs (up to 10m-15m) and is generally thinner/more flexible.

Q12:Can I plug a 10G DAC into a 1G SFP port?A:No. SFP+ (10G) ports can often accept 1G transceivers, but a 1G SFP port cannot scale up to recognize a 10G DAC cable. You should Make sure the cable speed matches the port with the lowest rated speed.

Quality Assurance：Your Trusted Optical Transceiver Source

 HYTOPTODEVICE is a vertically integrated manufacturer of high-performance optical transceivers. By controlling core materials at the source, we ensure every SFP module meets the highest standards of reliability and customization.

• Vertical Integration: In-house core material production ensures a stable, self-sufficient supply chain for all optical modules.

• Total Traceability: End-to-end oversight from raw components to final transceiver assembly guarantees 100% controllability.

• Bespoke Solutions: Expert-led R&D provides customized SFP transceiver designs tailored to your specific technical needs.

• 24-Hour Response: Our technical team guarantees a primary response to any inquiry or quality concern within 24 hours.

Carrier-Grade Quality. Factory-Direct Control. Rapid Response.

Quality Certification & Compliance：

 At HYTOPTODEVICE, our quality commitment is backed by industry-standard validations. From fiber optical transceiver manufacturing to final inspection, our processes ensure global compliance and reliability.

We adhere to rigorous standards for our SFP modules and network solutions:

• ISO 9001: Certified quality management and production consistency.

• CE & FCC: Fully compliant for seamless Global Market Access.

• RoHS: Committed to environmental responsibility and hazardous material control.

• Proven Reliability: Rigorous testing to reduce compliance risk and ensure safety.

Certified Quality. Global Standards. Guaranteed Performance.

Rigorous Industrial Product Testing：



100% 3rd Party Compatible：

Partial Test Demonstration：
