Product Detail：

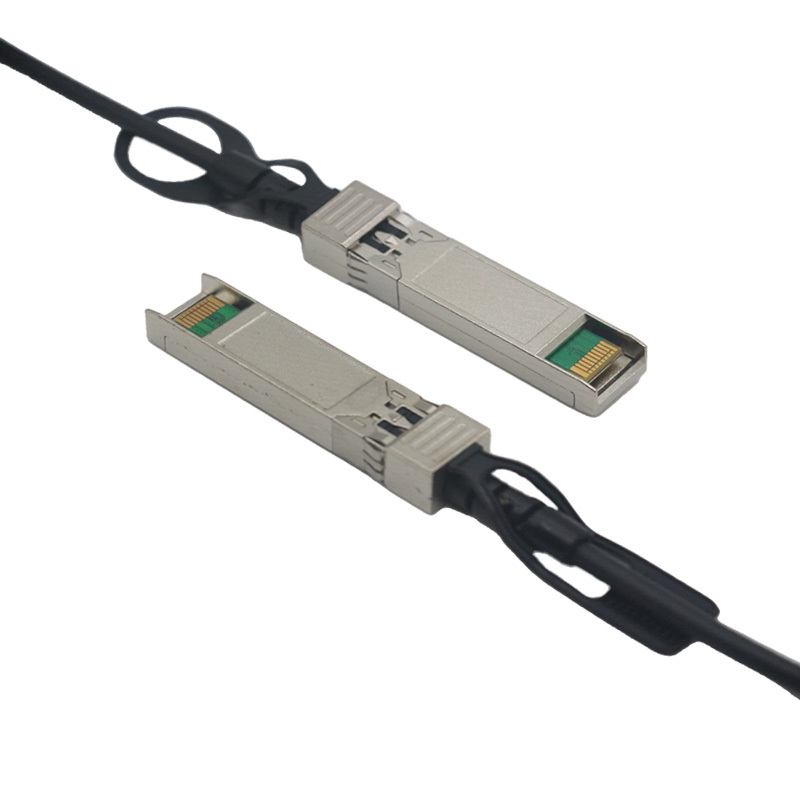

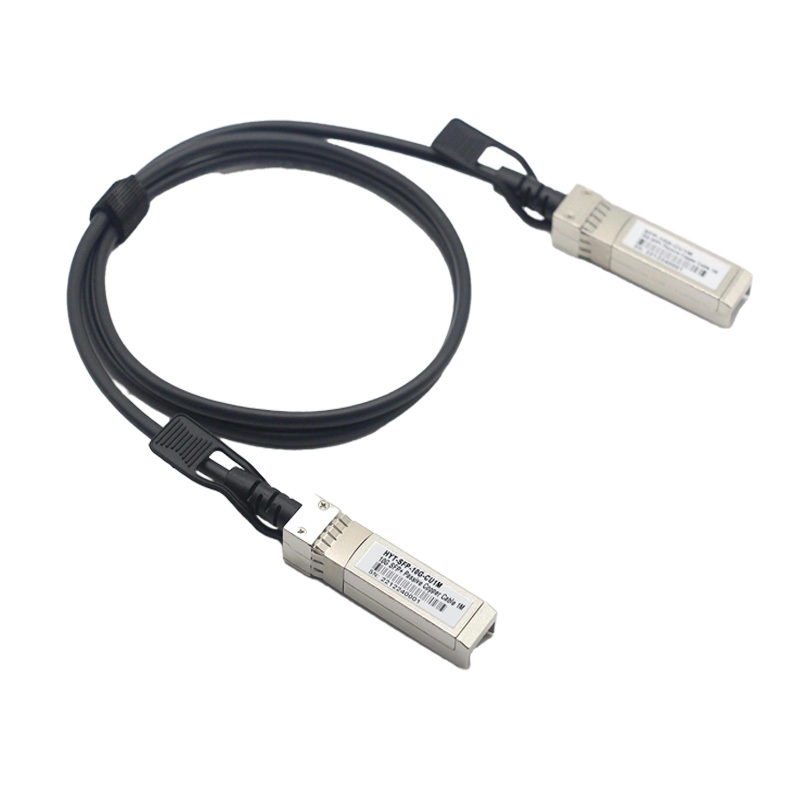

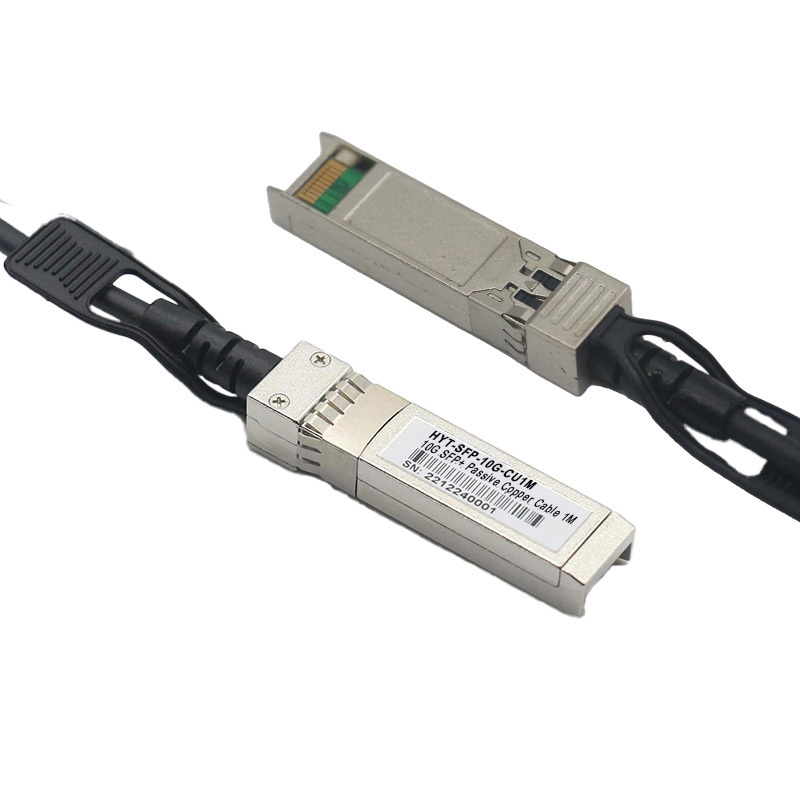

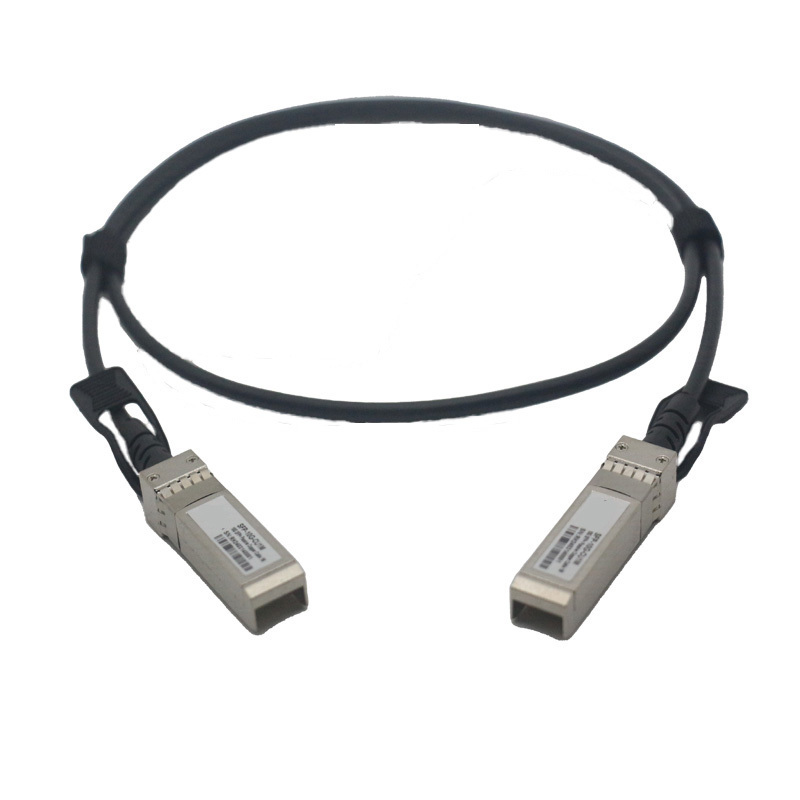

HYTOPTODEVICE 10G SFP+ DAC Cable Brocade 10G-SFPP-TWX-0101 Compatible Copper Twinax Cable 1m (3ft）
The HYTOPTODEVICE 10G-SFPP-TWX-0101 is a professional-grade Brocade compatible 10G SFP+ Passive Direct Attach Copper (DAC) cable. This 1-meter Twinax 10g sfp+dac cable is the essential solution for intra-rack connectivity, linking Brocade switches to servers and storage devices with near-zero latency. Designed as a cost-effective alternative to optical transceivers, it provides high-speed 10Gbps throughput without the need for additional power or fiber maintenance.Fabricated with premium shielded copper wire, the HYTOPTODEVICE 10G-SFPP-TWX-0101 sfp+10g dac cable is engineered to meet the stringent signal integrity standards of high-performance Brocade fabrics. As a passive copper component, it consumes zero power, making it a sustainable and reliable choice for high-density Top-of-Rack (ToR) applications. Fully compliant with SFF-8431 and SFP+ MSA standards, HYTOPTODEVICE ensures a stable long-term supply for both legacy Brocade and modern Extreme Networks infrastructures.
Compatibility and Supported Devices
The HYTOPTODEVICE 10G-SFPP-TWX-0101 10g sfp+dac cable is specifically coded to pass the "vendor-check" on:
• Brocade VDX Series: VDX 6710, 6720, 6730, 6740, and 6940 switches.
• Brocade/Extreme ICX Series: ICX 6610, 7150, 7250, 7450, 7650, and 7750 series.
• Brocade FC (Fiber Channel) Switches: Used in specific 10G/FCoE management and data ports.
• Extreme Networks VDX/MLX Families: Maintaining full backward compatibility with Brocade-heritage hardware.
Primary Application Scenarios
-
Brocade ICX Stacking Connectivity: Delivering high-speed 10Gbps stacking links for Brocade ICX switches in the same rack.
-
Intra-Rack Server-to-Switch Interconnect: Low-latency 10G links for connecting SAN storage and enterprise servers.
-
Top-of-Rack (ToR) Networking Fabric: Cost-effective patching for 10Gbps uplinks in virtualized data center environments.
-
Low-Power Data Center Upgrades: Replacing optical modules with passive DACs to reduce the energy and thermal load of the rack.
Key Product Parameters
| Brocade Compatible |
10G-SFPP-TWX-0101 |
Vendor Name |
HYTOPTODEVICE |
| Connector |
SFP+ to SFP+ |
Max Data Rate |
10Gbps |
| Cable Length |
1m (3.3ft) |
Wire AWG |
AWG 30 |
| Cable Type |
Passive Twinax |
Power Consumption |
≤0.1W |
| Media |
Copper |
Operation Temperature |
0~ 70 °C (32 to 158°F) |
| Jacket Material |
PVC(OFNR) |
Protocols |
1x InfiniBand QDR, DDR, SDR, 10G Ethernet, Fibre Channel |
| Minimum Bend Radius |
20mm |
Application |
10G Ethernet |
Scenarios 1:10G-to-10G Link for Switch-to-Switch
Scenarios 2:10G-to-10G Link for Switch-to-Server
FAQ for Brocade 10G-SFPP-TWX-0101 Compatible 10G SFP+DAC Cable
Q1:Is the HYTOPTODEVICE DAC-SFP-10G-1M plug-and-play on brand switches? A:Yes. brand-specific EEPROM code was pre-programmed to HYTOPTODEVICE 10g sfp+dac cable. Your switch will recognize it as "SFP-10G-C1M" and operate normally without any warns.
Q2:Can I use this 10G DAC in an SFP28 (25G) or QSFP+ (40G) port?A:Most SFP28 ports and QSFP+are backward compatible with 10G SFP+ DACs. However, it cannot be used directly in a 400G or 40G QSFP port without a proper adapter (like a QSA adapter).
Q3:What is the benefit of Passive DAC over Active Optical Cables (AOC)? A: Passive DAC and Active AOC can transmit data in short distance. With zero power consumption, higher reliability and lower cost, passive DAC has more advantages over AOC in short distance like 1 meter.
Q4:Is the HYTOPTODEVICE compatible with Brocade 10g sfp+dac?A:Yes. HYTOPTODEVICE is professional in optical communication.Equipped with various switches,such as Cisco,NVIDIA,Arista,Juniper. we specialize in coding equipment for various brands to ensure they are recognized and running in all kinds of devices.
Q5:Does 10G DAC use Multi-mode or Single-mode fiber?A:Neither. The DAC(Direct-Attach Copper) is a copper cable. using a twinaxial copper architecture (Twinax) to transmit electrical signals directly, no light signals.There are not lasers or optical glass in DAC cable, it is much cheaper than fiber optics.
Q6:Where to buy 10G SFP+DAC cable?A:There are many factories that produce and sell passive DAC, but DAC manufacturer china HYTOPTODEVICE is the excellent provider: a source factory, fully controllable process, reliable performance, 100% compatible, sufficient inventory, fast delivery, and quick response.
Q7:Is 10G SFP+ to SFP+DAC hot-swappable?A:HYTOPTODEVICE SFP+10G DAC is hot-pluggable, hot Pluggable SFP+ Compliant.you can plug or unplug the passive DAC, while the device is powered on without damaging the hardware.
Q8:who makes the best SFP+DAC cable?A: Transceiver Manufacturer China HYTOPTODEVICE is the excellent provider.Sorce factory,reliable quality, 100% compatibiltiy.fast delivery and quick response.HYTOPTODEVICE send a tool that allows you to re-program the compatibility of your cables yourself.
Q9:What is the maximum distance for a 10G DAC？A: Passive DAC cables directly transmit electrical signals with copper cable. it is suitable for short distances are limited to 7 meters (approx. 23 feet). Beyond the 7m distance, the electrical signal degrades too much.
Q10:What is the difference between "Passive" and "Active" DAC?There are distinct differences between Passive and Active DAC.The Passive DAC has no signal amplification. its lengths is under 5m. With zero power consumptions,it cost is cheaper. The Active DAC contains a chip to boost the signal. Used for slightly longer copper runs (up to 10m-15m) and is generally thinner/more flexible.
Q11:Can I use a DAC if the two devices are from different brands?A:Yes, but you need a dual-compatibility cable. For example, if you are connecting a Cisco switch to a HP server, you would request a cable where "Side A is Cisco-coded" and "Side B is HP-coded."
Q12:Can I plug a 10G DAC into a 1G SFP port?A:No. SFP+ (10G) ports can often accept 1G transceivers, but a 1G SFP port cannot scale up to recognize a 10G DAC cable. You should Make sure the cable speed matches the port with the lowest rated speed.
