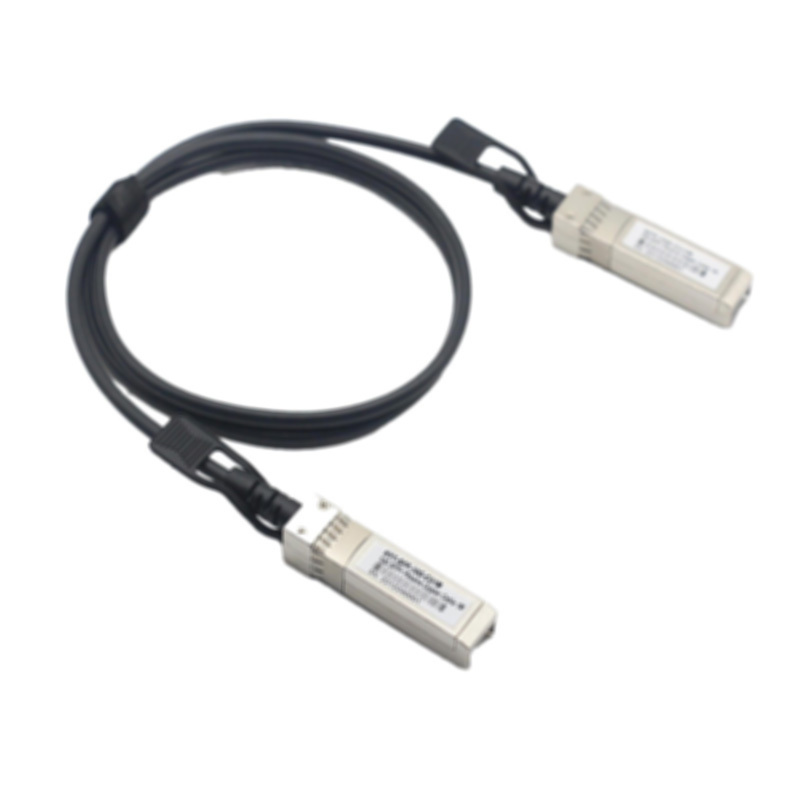

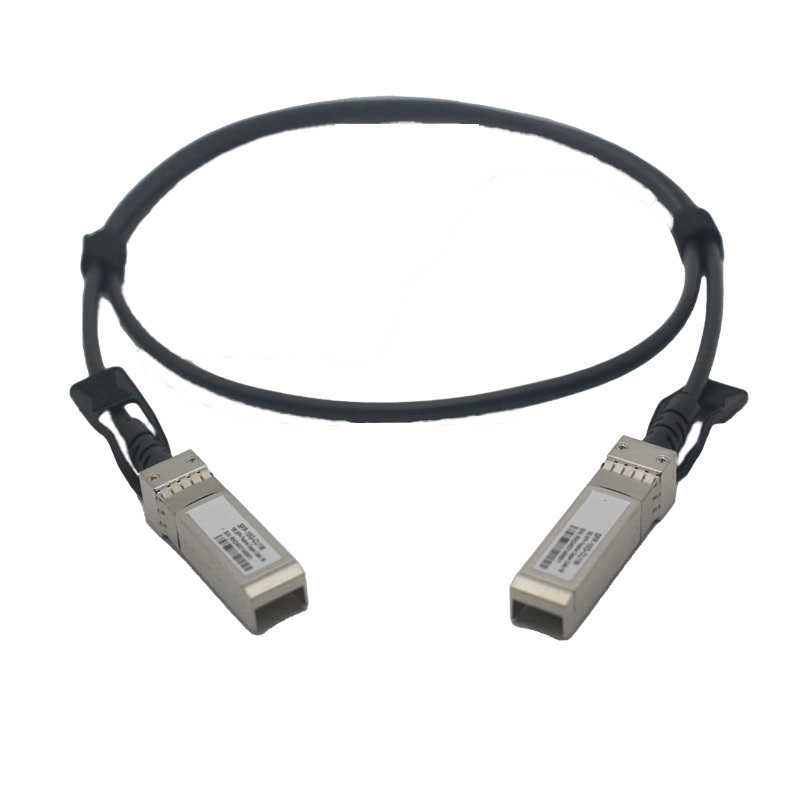

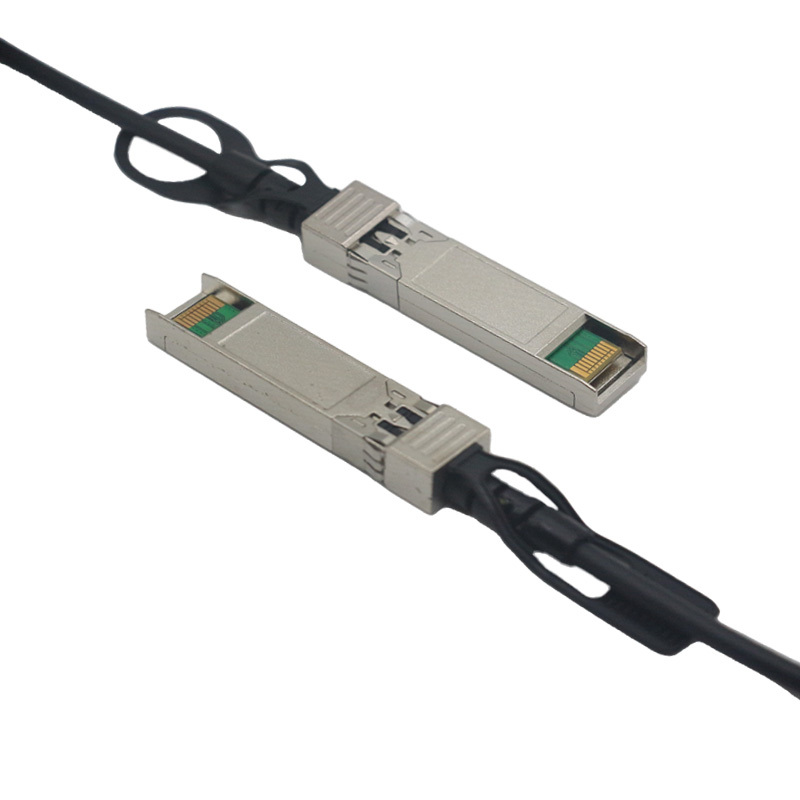

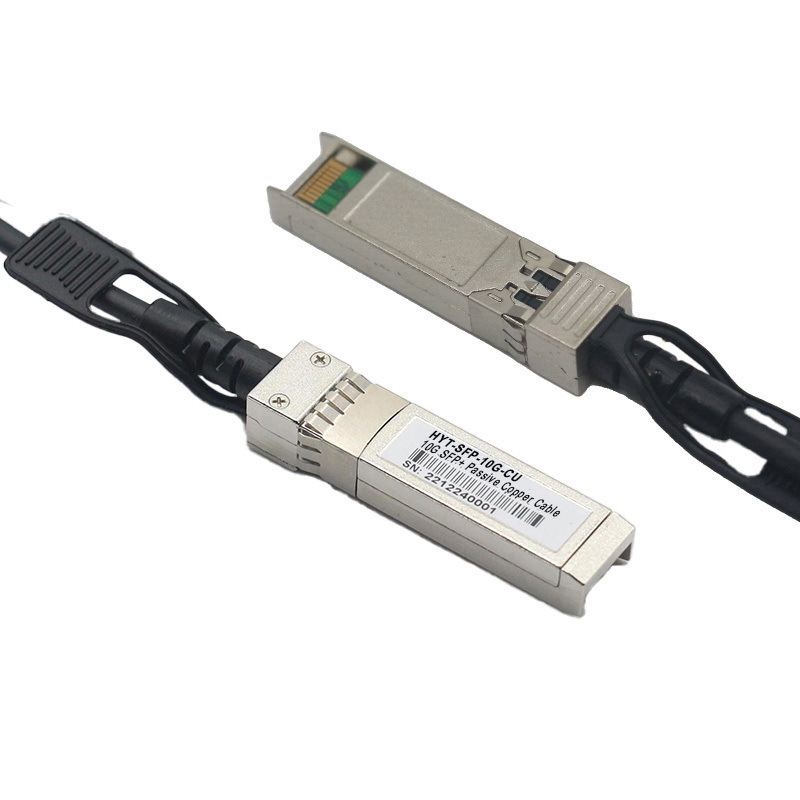

Avaya Nortel AA1403020-E6 Compatible 10G SFP+ DAC Cable 5m (16ft) Passive Direct Attach Copper Twinax Cable-HYTOPTODEVICE

The HYTOPTODEVICE AA1403020-E6 (24AWG) 10g sfp+ to sfp+ dac cable is pre-programmed with specific VPD (Vital Product Data) to ensure 100% "Plug-and-Play" operation with:

• Avaya/Nortel Ethernet Routing Switch (ERS) Series:

  • ERS 4000: 4826GTS, 4826GTS-PWR+, 4850GTS, 4850GTS-PWR+

  • ERS 4900: 4926GTS, 4950GTS

  • ERS 5000: 5500, 5600, 5900 Series

• Avaya Virtual Services Platform (VSP) Series:

  • VSP 4000: 4450GSX-PWR+, 4450GTS

  • VSP 7000: 7024XLS, 7024XT

  • VSP 8000: 8284XSQ, 8404

  • VSP 9000: Core Switch Chassis Modules

• Extreme Networks (Legacy Avaya Portfolios):

  • Fully compatible with original Avaya ERS and VSP hardware now under the Extreme Networks brand.

• Converged Network Adapters (NICs):

  • Verified for use with Intel, Emulex, and QLogic 10G SFP+ adapters when paired with Avaya switches.

The 24AWG advantage of the HYTOPTODEVICE AA1403020-E6 makes it the ideal choice for:

• Extended ERS Switch Stacking: Utilizing the 5-meter reach to stack Avaya ERS 4800 or 5600 switches located in non-adjacent racks, creating a resilient, unified logical chassis over a long span.

• Inter-Rack Data Aggregation: Linking access-layer ERS switches to VSP 7000/8000 core platforms across a distance of 4 to 5 server cabinets.

• End-of-Row (EoR) Connectivity: Connecting remote server nodes to an aggregation switch positioned at the row's end, with enough length for structured cabling in overhead trays.

• Legacy Infrastructure Expansion: Providing a stable long-term supply alternative for institutions maintaining Nortel-heritage hardware that requires specific VPD (Vital Product Data) coding for recognition.

Connectivity Solutions(Applications)：

Scenarios 1:10G-to-10G Link for Switch-to-Switch

Scenarios 2:10G-to-10G Link for Switch-to-Server

FAQ for Avaya Nortel AA1403020-E6 Compatible 10G SFP+DAC Cable

Q1:Do I need a Passive or Active DAC cable? A:Passive DAC has no signal amplification, it is cheaper and its power consumption almost zero.it is ideal for short distance(up to 7 meters). Active DAC contains electronics to boost the signal.its power consumption is larger, it can transmit longer distance(up to 10 meters）

Q2:How far can I run a 10G SFP+DAC cable?A:Because DACs are made of twinaxial coppers, that are relatively heavy, and signal attenuation occurs more rapidly than in fiber optics. As a result, the practical transmission distance for 10G SFP+ DAC cable is limited to 7 to 10 meters.

Q3:What is the benefit of Passive DAC over Active Optical Cables (AOC)? A: Passive DAC and Active AOC can transmit data in short distance. With zero power consumption, higher reliability and lower cost, passive DAC has more advantages over AOC in short distance like 1 meter.

Q4:How much power does it draw compared to 10GBASE-T (RJ45)?A:10G SFP+ DACs use copper cables, consuming only about 0.1W of power, whereas 10GBASE-T (RJ45) modules consume between 2.0W and 5.0W. Choosing DAC over RJ45 for short-distance transmission can reduce power consumption by more than 90%, significantly lowering heat generation and resulting in much lower procurement costs.

Q5:Does 10G DAC use Multi-mode or Single-mode fiber?A:Neither. The DAC(Direct-Attach Copper) is a copper cable. using a twinaxial copper architecture (Twinax) to transmit electrical signals directly, no light signals.There are not lasers or optical glass in DAC cable,  it is much cheaper than fiber optics.

Q6:Where to buy 10G SFP+DAC cable?A:There are many factories that produce and sell  passive DAC, but DAC manufacturer china HYTOPTODEVICE is the excellent provider: a source factory, fully controllable process, reliable performance, 100% compatible, sufficient inventory, fast delivery, and quick response.

Q7:Is 10G SFP+ to SFP+DAC hot-swappable?A:HYTOPTODEVICE SFP+10G DAC is hot-pluggable, hot Pluggable SFP+ Compliant.you can plug or unplug the passive DAC, while the device is powered on without damaging the hardware.

Q8:who makes the best SFP+DAC cable?A: Transceiver Manufacturer China HYTOPTODEVICE is the excellent provider.Sorce factory,reliable quality, 100% compatibiltiy.fast delivery and quick response.HYTOPTODEVICE send a tool that allows you to re-program the compatibility of your cables yourself.

Q9:What is the difference between 24AWG and 26AWG for a 5-meter Avaya DAC？A: The main difference lies in signal integrity. 24 AWG cables have a larger cross-sectional area, which significantly reduces resistance. For a 5-meter SFP+ copper cable, the eye diagram of a 24 AWG cable is “clearer” than that of a 26 AWG cable, thereby providing better electromagnetic interference shielding and more stable performance in high-density, high-interference data center environments.

Q10:What is the difference between "Passive" and "Active" DAC?There are distinct differences between Passive and Active DAC.The Passive DAC has no signal amplification. its lengths is under 7m. With zero power consumptions,it cost is cheaper. The Active DAC contains a chip to boost the signal. Used for slightly longer copper runs (up to 10m-15m) and is generally thinner/more flexible.

Q12:Can I plug a 10G DAC into a 1G SFP port?A:No. SFP+ (10G) ports can often accept 1G transceivers, but a 1G SFP port cannot scale up to recognize a 10G DAC cable. You should Make sure the cable speed matches the port with the lowest rated speed.
