Arista QSFP-100G-ER4L-S Compatible 100G QSFP28 ER4 Transceiver – 100GBASE-ER4L 1310nm 40km Single-Mode LC Optic Bulk Wholesale & Custom Coding Available Product Overview
The Arista QSFP-100G-ER4L-S compatible transceiver is an enterprise-grade 100G QSFP28 ER4 Transceiver, optimized for high-capacity Data Center Interconnects (DCI) and metro networking. Utilizing advanced 1310nm LAN-WDM technology, it delivers a robust 40km reach over Single-Mode Fiber (SMF) with Duplex LC connector. Compliant with QSFP28 MSA, SFF-8636, IEEE 802.3bm, CAUI-4 and full DDM/DOM. this hot-swappable EML laser 100G QSFP28 ER4 Optical Transceiver is engineered for seamless "Plug-and-Play" integration into Arista EOS platforms, providing a high-reliability, low-cost alternative to OEM optics without compromising signal integrity.It is ideal for 100G telecom links, data centers, high-performance computing networks, and enterprise core applications.
Key Technical Specifications
| Arista Compatible |
QSFP-100G-ER4L-S |
Vendor Name |
HYTOPTODEVICE |
| Form Factor |
QSFP28 |
Max Data Rate |
103.125Gbps |
| Wavelength |
4 x LAN WDM (1295、1300、1305、1310nm) |
Max Distance |
30km without FEC 40km with FEC |
| Connector |
Duplex LC |
Transmitter Type |
4 x LAN WDM EML |
| Cable Type |
SMF |
Receiver Type |
APD |
| TX Power |
-2.5~+4.5dBm |
Receiver Sensitivity |
<-16.9dBm without FEC <-20.9dBm with FEC |
| Protocols |
100G Ethernet, MSA Compliant |
Power Consumption |
< 4.0W |
For detailed technical specifications, please refer to the
Datasheet
Usage Guidelines & Best Practices
-
Fiber Choice: Works only with OS2 single-mode fiber. Multimode fiber is not compatible with this 1310nm CWDM4 module.
-
Optical Attenuator Required for Short Links: For testing or short‑distance connections (<15km), connect a 10dB–15dB optical attenuator to the RX port to prevent damaging the receiver.(15KM<Distance<35km,connect 5‑10dB optical attenuator),ensuring the received power <-3dBm.
-
Cleanliness & Dust: Keep dust caps on whenever unattached. Clean fiber end-faces with a optical cleaning pen before insertion; dust causes over 80% of optical link failures.
-
Installation Specification: Hot-swap supported. Follow ESD anti-static procedures and keep LC connectors clean for stable links.
- Mode Setting: Configure 100G port speed via switch CLI. This ER4 module does not support breakout to 4×25G.
For detailed operation instructions, please refer to the
User Guide.
Full Compatibility List & Supported Network Hardware
1.Native Arista Compatibility
Every HYTOPTODEVICE 100G QSFP28 ER4 Transceiver undergoes 72-hour continuous high-traffic aging testing and real-machine verification on official Arista EOS platforms. It achieves zero device recognition failure, no system alarm prompts, and complete DDM data display on Arista management interfaces. It can directly replace original Arista QSFP-100G-ER4L-S modules without extra configuration, providing complete test reports for cloud data center and enterprise network projects.
Compatible Arista Device Series:
-
Arista 7000 Series Fixed & Modular Data Center Switches
-
Arista 7200 Series High-Density 100G/400G Fabric Switches
-
Arista 7500 Series Ultra-Large Cloud Data Center Core Switches
-
Arista EOS-based Cross-Room DCI Interconnection & Long-Haul 100G Trunk Ports
2.Multi-Brand Cross Compatibility
Built strictly to industry MSA standards, HYTOPTODEVICE’s 100G QSFP28 ER4L fiber transceivers breaks vendor lock-ins, delivering seamless interoperability across mainstream brand switch.
3. Free Value-Added Services
-
Custom firmware for multi-device compatibility
-
Support sample testing before bulk orders for project pre-verification
-
Private-label customization and professional deployment guidanc
-
Strict batch consistency quality control
- Free custom EEPROM programming for special and legacy network environments
- Free EEPROM rewriting (Tools Included) with 24/7 Tech Support
Primary Application Scenarios
-
Bulk replacement and upgrade of aging Arista QSFP-100G-ER4L-S modules for cloud data center long-distance DCI interconnection
-
High-density leaf-spine fabric network iteration adopting 100G QSFP28 ER4 Transceiver to build 40km low-loss 100G backbone links
-
Enterprise cross-building long-haul interconnection deploying stable 100G QSFP28 ER4 Transceiver for 100G high-speed trunk transmission
-
Cloud operator data center bandwidth expansion using low-jitter 100G QSFP28 ER4 Transceiver for medium and long-distance optical transmission
-
System integrator custom-coded 100G QSFP28 ER4 Transceiver for multi-vendor hybrid Arista network integration projects
-
High-reliability data center infrastructure transformation adopting wide-temperature 100G QSFP28 ER4 Transceiver for long-haul trunk deployment
Connectivity Solutions(Applications)

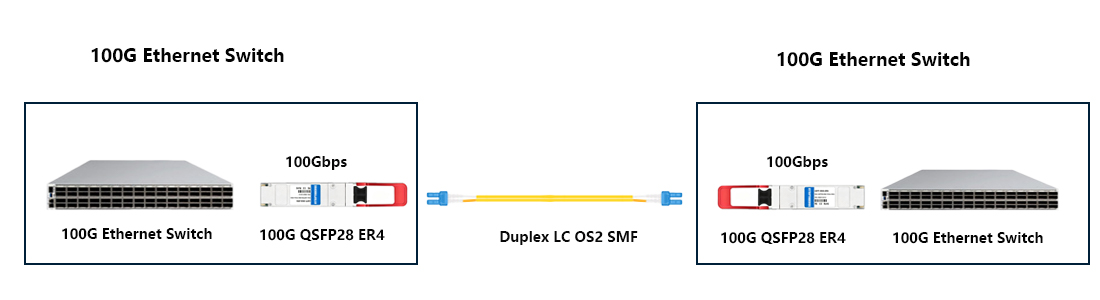

1. 100G Switch-to-Switch Interconnection

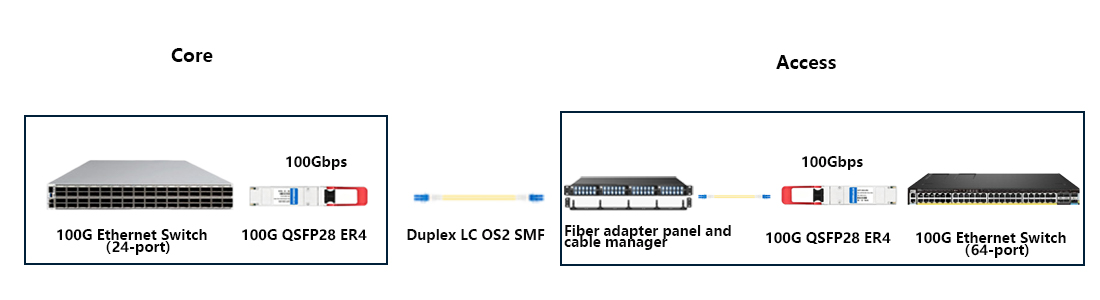

2.100G Long-haul Switch Link with Structured Cabling

The Core Features
1.Broad 100G Data Center Applicationg
Supports reliable, high-efficiency long-haul data transmission between core and spine network layers, fully satisfying deployment requirements for large-scale data centers.

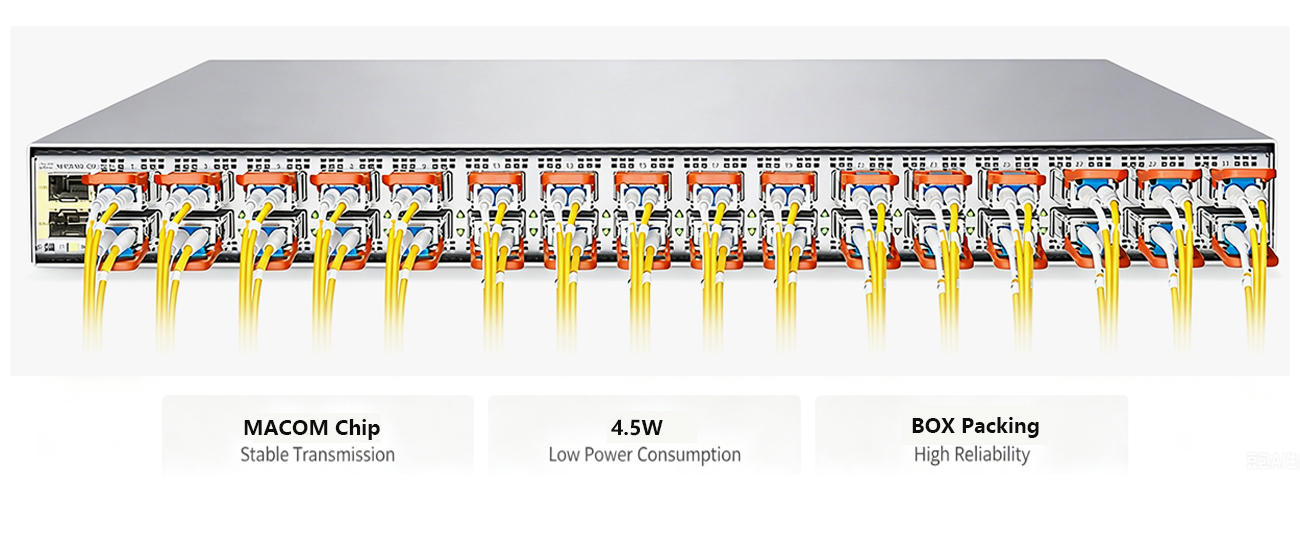

2. 100G High-Speed Data Center Connectivity
Featuring 4.0W low power draw, high port density and exceptional speed, this QSFP28 ER4L transceiver unlocks fast, seamless upgrades to 100G transmission for your data center infrastructure.

3. Host-Tested for Proven Interoperability
Every module undergoes rigorous compatibility validation on target host switches, ensuring stable, error-free operation in your live network environment.Specific Compatibility Video available upon request.

4.Comprehensive Reliability Testing
Validated via stringent procedures using advanced test equipment, guaranteeing premium-grade, dependable optical performance for your network deployments. Curious how? Tour the
Test Center.

FAQ
Q1: What is the maximum optical link budget of Arista switch matching 100G QSFP28 ER4 Transceiver?
A: The standard power budget hits 18dB to 21dB, which reserves enough loss margin to handle high connector insertion loss on 40km metro single-mode fiber links. All modules from HYTOPTODEVICE pass strict optical margin testing to stabilize long-distance DCI interconnection.
Q2: Do I absolutely need an optical attenuator for short-distance lab testing with 40km reach 100G QSFP28 ER4 Transceiver?
A: Yes. This series equips high-sensitivity APD receivers. Direct short fiber connection without a 10dB–15dB fixed attenuator leads to optical overload and permanent receiver burnout. Our technical team provides matching attenuation suggestions for all Arista-compatible optical modules.
Q3: Does Arista leaf-spine fabric deployed 100G QSFP28 ER4 Transceiver require host RS-FEC for full rated transmission distance?
A: Yes. Standard long-reach transceivers rely on switch-side RS-FEC (Clause 91) to achieve full 40km stable transmission. Disabling FEC cuts the reliable working distance down to roughly 30km. HYTOPTODEVICE completes full EOS compatibility verification before shipment.
Q4: Can I turn off RS-FEC to reduce transmission latency on 100G QSFP28 ER4 Transceiver with ultra-clean low-loss fiber runs?
A: FEC shutdown is not recommended. Even flawless fiber will trigger high Pre-FEC BER and random packet drops once the span exceeds 25km–30km. We suggest retaining FEC for consistent low-error-rate trunk performance.
Q5: Can third-party coded 100G QSFP28 ER4 Transceiver realize interconnection with original OEM Arista and Cisco ER4 optics?
A: Smooth cross-brand communication is supported. As long as both sides comply with IEEE 802.3ba 100GBASE-ER4 optical layer standards, mutual data transmission works normally. HYTOPTODEVICE offers free custom EEPROM coding for mixed-vendor network projects.
Q6: Should network integrators choose 4-channel NRZ 100G QSFP28 ER4 Transceiver or single-lambda PAM4 ER1 optics for legacy Arista hardware?
A: Old-generation Arista switches only support 4×25G NRZ signal architecture, so the 4-lane ER4 transceiver is mandatory. ER1 single-channel PAM4 modules only fit latest cloud switching hardware. We supply both series for different generation equipment upgrades.
Q7: How much will contaminated LC patch cords degrade signal performance of long-haul 100G QSFP28 ER4 Transceiver compared to short-range SR4 modules?
A: Dirty connectors bring fatal signal attenuation for ER4 products. Its narrow 18–21dB power budget for 40km transmission means tiny dust loss can break the entire trunk, unlike SR4 modules with loose loss tolerance. Our finished products adopt premium LC receptacles to lower daily maintenance risks.
Q8: What are the factory calibrated transmit and receive power reference ranges for Arista DCI dedicated 100G QSFP28 ER4 Transceiver?
A: Typical Tx power ranges from -2.9dBm to +4.5dBm, while APD receiving sensitivity stays between -20.5dBm and -4.5dBm. Every batch undergoes full optical parameter inspection at HYTOPTODEVICE’s test workshop before delivery.
Q9: What laser solution is integrated inside drop-in replacement 100G QSFP28 ER4 Transceiver matching Arista QSFP-100G-ER4L-S?
A: All 40km long-reach variants adopt EML electro-absorption modulated lasers only. Low-cost DML chips generate severe chirp and dispersion, failing to maintain error-free transmission over full-span single-mode cables. We eliminate DML options for all long-distance optical transceivers.
Q10: Can standard single-rate 100G QSFP28 ER4 Transceiver support simultaneous 100GE and OTU4 transport signal transmission?
A: Standard models only run at 103.1Gbps for Ethernet service. Dual-rate versions that reach 111.8Gbps for OTU4 need customized firmware development. HYTOPTODEVICE accepts tailored dual-rate programming for large bulk orders.
Q11: Does the built-in high-power laser of single-mode 100G QSFP28 ER4 Transceiver pose eye hazards for on-site network engineers?
A: The product is classified Class 1 eye-safe under normal hot-plug operation. However, direct observation via fiber inspection microscopes or optical magnifiers will cause irreversible eye damage. Safety operation guides are attached with each shipment.
Q12: Does repeated frequent hot plugging damage the gold-plated contact pins of rack-mounted 100G QSFP28 ER4 Transceiver?
A: Excessive plug cycles wear surface plating gradually. Standard QSFP28 mechanical design only tolerates 100 to 200 insertions before contact performance declines. Our transceivers adopt thickened gold plating to extend service life inside high-density Arista cabinets.
