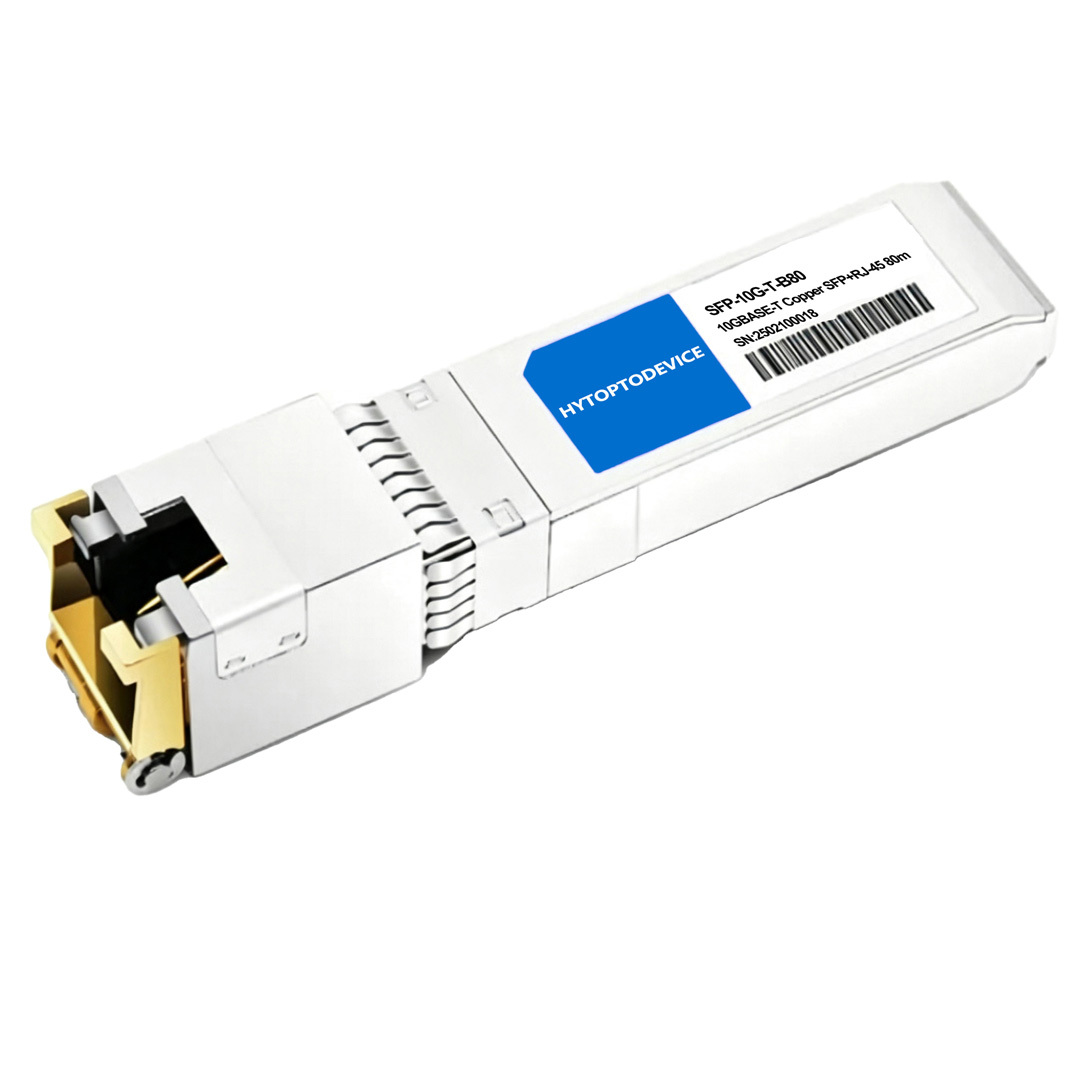

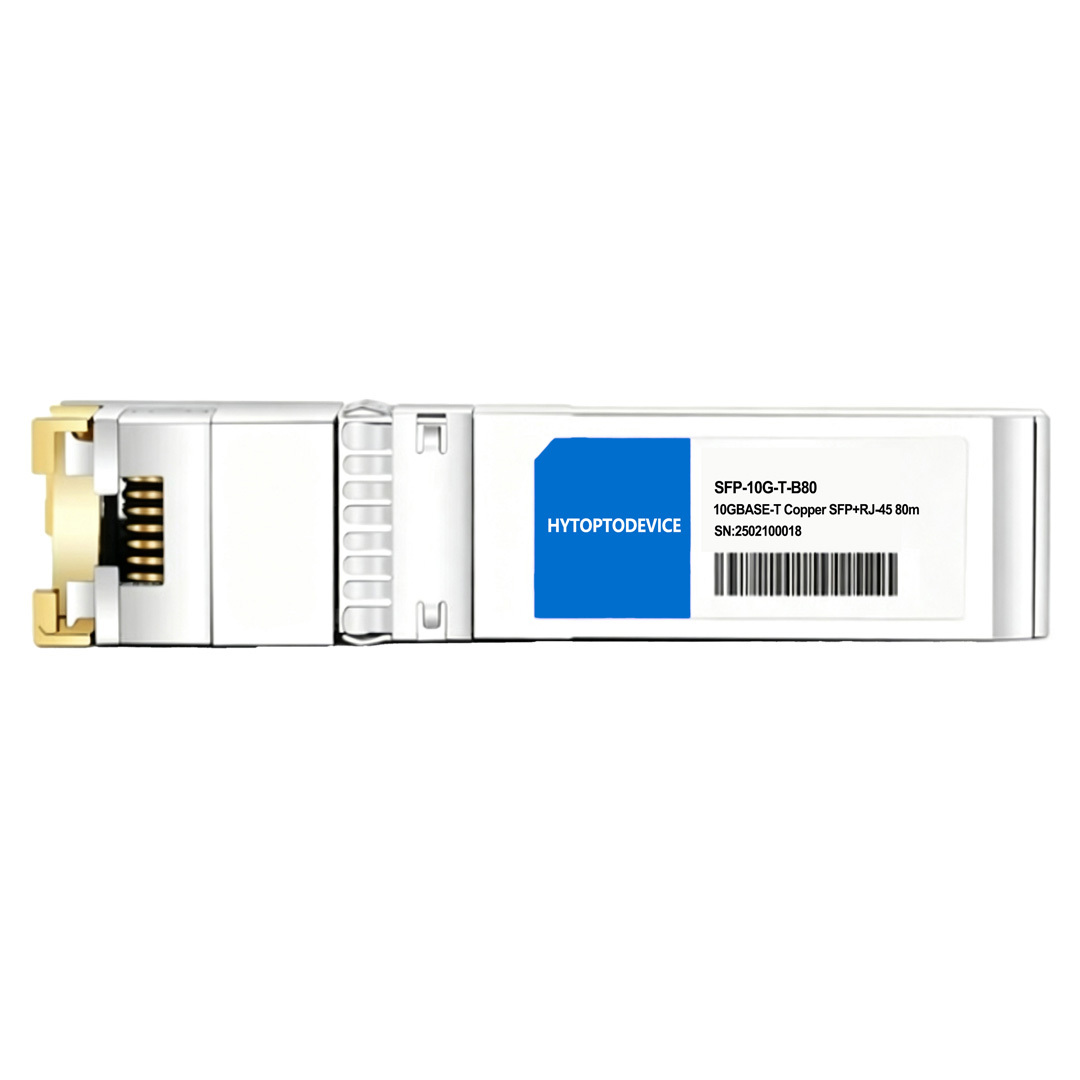

MikroTik S+RJ8010  Compatible 10G RJ45 Transceiver 80m | 10GBASE-T Copper Module, Bulk Wholesale | HYTOPTODEVICE

  For detailed technical specifications, please refer to the Datasheet

Usage Guidelines & Best Practices

To ensure optimal performance, device compatibility, and extended hardware lifespan, please follow these deployment best practices for your 10GBASE-T SFP+ RJ45 copper transceiver:

• Use Recommended Cabling: For maximum transmission distance up to 80 meters at 10Gbps, always use high-quality Cat6a or Cat7 shielded twisted pair (STP) cables. Standard Cat6 cables are limited to shorter distances (typically up to 30–55m) for 10G speeds.

• Implement EMI Protection & Wiring: High-speed 10Gbps copper signals are highly sensitive to Electromagnetic Interference (EMI) and Alien Crosstalk. Always use shielded cables with fully grounded RJ45 connectors, and avoid running Ethernet cabling in parallel with high-voltage power lines or heavy electrical equipment.

• Manage Thermal & Power Load: 10GBASE-T copper transceivers consume more power and generate higher heat than optical modules. Avoid installing multiple copper transceivers in adjacent ports; leave an empty slot between modules when possible to maintain optimal airflow and cooling.

• Observe Proper Handling: Always handle the module by its sides or bail latch. Avoid touching the gold-finger contacts or applying excessive force when plugging the RJ45 cable to prevent physical or electrical damage.

• Verify System Compatibility: Ensure your switch firmware is updated to support third-party or compatible transceivers. Allow 5–10 seconds after insertion for the switch OS (such as Juniper Junos) to auto-negotiate and recognize the module.

• Follow Hot-Pluggable Protocols: While the module supports hot-swapping, it is recommended to insert the transceiver into the SFP+ port first, lock the bail latch, and then connect the network cable to avoid port signaling errors.

For detailed operation instructions, please refer to the User Guide.

Full Compatibility List & Firmware Adaptation

3.10G Structured Cabling System Deployment

4.Spine-Leaf 10G Copper Interconnection

The Core Features

1.Ultra-Low Power Consumption for Maximum Energy Efficiency

Low power draw reduces thermal buildup in dense SFP+ port arrays. Compact SFP+ form factor converts available SFP+ slots to RJ45 ports, perfect for data center rack cabling and enterprise LAN upgrade projects.

2.Tool-Free Hot-Swappable Design & Seamless Plug-and-Play

Compliant with SFP+ MSA standards, this module supports tool-free hot swap. It can be inserted or removed without powering down network hardware. Preloaded exclusive EEPROM delivers plug-and-play compatibility. No persistent warning logs or port errors occur on matched target switching hardware.

3.Tested in Host Devices for Proven Interoperability

Each transceiver passes full validation testing on MikroTik RouterOS, guaranteeing plug-and-play recognition without transceiver alert messages. Delivers consistent multi-speed copper connectivity under enterprise operating environments.Specific Compatibility Video available upon request.

4. 100% Full Testing & Long-Term Reliability

Every finished unit completes burn-in cycling and full testing before shipment, ensuring dependable performance against thermal fluctuation, EMI and mechanical vibration.Curious how? Tour the Test Center.

FAQ

Q1: Can network wholesaler use this 10G RJ45 Transceiver as drop-in compatible replacement for MikroTik S+RJ8010? A: Yes, this 10G RJ45 Transceiver serves as fully compatible replacement. HYTOPTODEVICE, the manufacturer, programs dedicated EEPROM to match MikroTik RouterOS to guarantee plug-and-play compatibility. Wholesaler can request samples and bulk stock directly from our factory.

Q2: What multi-gigabit throughput can system integrator expect from this compatible 10G RJ45 Transceiver under heavy concurrent data traffic? A: It supports auto-negotiation of 2.5G/5G/10G and meets 10GBASE-T standard. Practical usable throughput reaches ~9.4Gbps under 10G mode after protocol overhead. This compatible 10G RJ45 Transceiver sustains stable packet forwarding inside congested data center LAN environments; enabling QoS on host switches helps reduce packet loss for integrator’s on-site deployments.

Q3: How reliable is the interoperability of this 10G RJ45 Transceiver when distributor handles projects with industrial EMI interference and occasional packet loss? A: The transceiver automatically retransmits lost packets, though latency rises under severe electrical interference. As a professional manufacturer, HYTOPTODEVICE integrates robust signal equalization inside this compatible 10G RJ45 Transceiver to suppress rack-side electrical noise. Distributor should remind end clients to separate power and data cabling to minimize EMI impact.

Q4: Is this 10G RJ45 Transceiver a stable sourcing option for system integrator undertaking long-term multi-gigabit enterprise LAN upgrade projects? A: Yes, this compatible 10G RJ45 Transceiver supports flexible 2.5G/5G/10G auto-negotiation, perfect for mixed-speed network deployments. As your long-term manufacturer partner, HYTOPTODEVICE provides consistent stock and technical support for system integrator’s ongoing enterprise network rollouts.

Q5: What maximum copper cable run length can wholesaler recommend to end customers using this compatible 10G RJ45 Transceiver before signal degradation occurs? A: The rated maximum transmission distance is 80 meters using Cat6a copper cable. This 10G RJ45 Transceiver fully complies with IEEE 802.3an, maintaining error-free transmission up to 80m. Wholesaler must advise end users to use Cat6a cable; lower-grade copper cable will cause signal attenuation and unstable links.

Q6: Why should distributor purchase this multi-rate 10G RJ45 Transceiver instead of fiber transceivers for short intra-rack links? A: 10GBASE-T copper delivers better total cost of ownership for rack connections and supports 2.5G/5G fallback speeds. Existing Cat6a cabling can be reused without fiber termination work. This compatible 10G RJ45 Transceiver reduces total material cost for distributor’s end customers.

Q7: What reliability and MTBF data should wholesaler evaluate when sourcing this 10G RJ45 Transceiver directly from manufacturer? A: Enterprise-grade SFP+ copper modules have low failure rates with sufficient cooling. Copper 10G modules produce more heat and require good cabinet airflow. This compatible 10G RJ45 Transceiver from HYTOPTODEVICE passes burn-in testing, delivering longer MTBF than generic copper modules for wholesaler inventory.

Q8: What hidden project expenses should system integrator budget for when deploying bulk 10G RJ45 Transceiver for enterprise customers? A: Major extra costs include Cat6a cable certification testing, surge protection and thermal inspection for server racks. When system integrator purchases bulk compatible 10G RJ45 Transceiver from our manufacturer, module pricing stays competitive; dense rack deployments require airflow management to avoid overheating downtime.

Q9: Are standalone 10G switches cheaper than modular chassis when distributor expands port capacity with compatible 10G RJ45 Transceiver? A: Modular chassis solutions deliver better cost efficiency for large data center expansion. Multiple standalone switches add extra power supplies and management overhead. This compatible 10G RJ45 Transceiver converts free SFP+ slots to RJ45 ports and cuts total hardware investment for distributor’s projects.

Q10: What network management protocols work with MikroTik routers/switches fitted with this compatible 10G RJ45 Transceiver for integrator’s monitoring setup? A: MikroTik RouterOS supports SNMP, LLDP, SSH and RMON. This 10G RJ45 Transceiver operates seamlessly with these standard management protocols and supports DDM port monitoring, simplifying remote diagnostics for system integrator.

Q11: How vulnerable is copper cabling paired with this compatible 10G RJ45 Transceiver to physical tapping for wholesaler serving high-security enterprise clients? A: Unshielded 10GBASE-T copper cable can be physically tapped if accessible, unlike fiber links. For high-security sites, wholesaler sourcing this 10G RJ45 Transceiver should recommend shielded Cat6a cable and cable containment to reduce eavesdropping risks.

Q12: Can distributor match consumer-grade network hardware with this compatible 10G RJ45 Transceiver for small business multi-gigabit LAN? A: Consumer switches are not recommended. 10G copper modules require proper cooling and enterprise SFP+ ports. This 10G RJ45 Transceiver works best with MikroTik and other enterprise hardware, helping distributor avoid on-site link instability complaints.

Q13: What surge protection requirements should system integrator assess for building rack networks using this compatible 10G RJ45 Transceiver? A: Lightning surges can damage copper RJ45 ports without surge protection; copper cables act as antennas feeding transient voltage into switch hardware. For cabinet projects, system integrator should install Ethernet surge protectors at both cable ends to absorb voltage spikes.

Q14: Will rack power supplies and server hardware create EMI interference for copper links built using this compatible 10G RJ45 Transceiver for wholesaler customers? A: Yes, 10GBASE-T UTP links are susceptible to EMI near power supplies and servers, raising bit error rates and packet loss. This 10G RJ45 Transceiver includes enhanced signal processing to tolerate moderate EMI. Wholesaler can share cabling separation best practices with end buyers.

Q15: How can port mirroring simplify troubleshooting for system integrator deploying compatible 10G RJ45 Transceiver on MikroTik RouterOS? A: Port mirroring copies traffic from selected 10GBASE-T ports to a dedicated monitoring port for analysis. This MikroTik compatible 10G RJ45 Transceiver fully supports this function on RouterOS, enabling continuous diagnostics and lowering on-site maintenance workload for system integrator.
