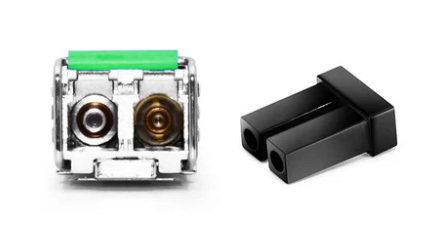

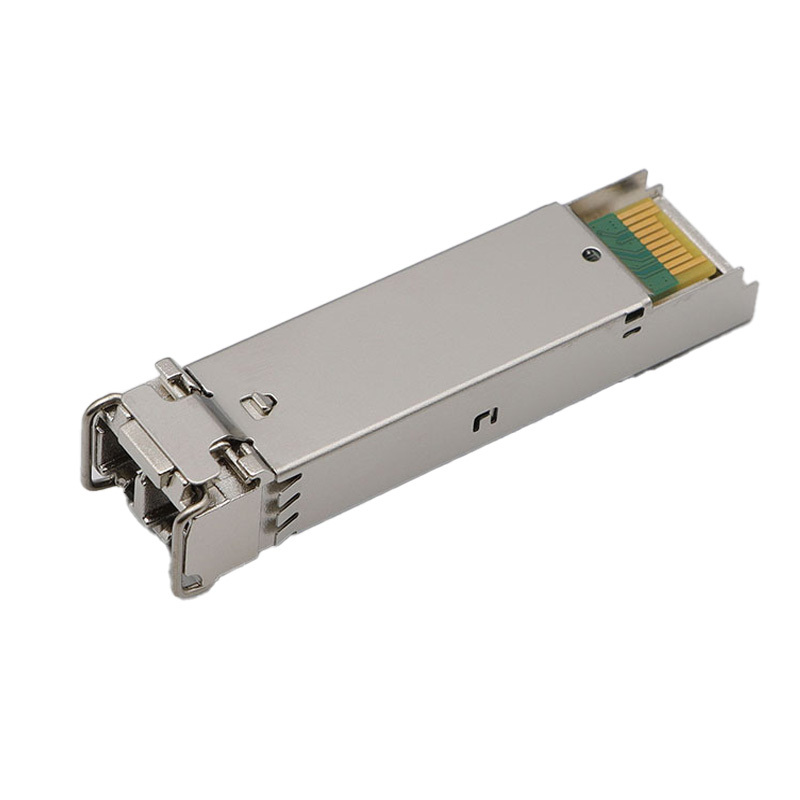

Intel E1G-ZXC-160 Compatible 1000BASE-EZX SFP 1550nm 160km DDM Duplex LC/UPC SMF Optical Transceiver Module

HYTOPTODEVICE ensures 100% "Plug-and-Play" compatibility with Intel Ethernet adapters and switches:

• Intel Ethernet Server Adapters: I350-F2, I350-F4, E1G42EF, E1G44HF.

• Intel Ethernet Converged Network Adapters: X520 Series (via GE mode), X710 Series (via GE mode).

• Compatible Switch Brands: Fully functional with Dell, Cisco, and generic switches using Intel-programmed NICs.

The HYTOPTODEVICE Intel-compatible 160km SFP is optimized for these high-performance use cases:

• Long-Haul Data Center Interconnect (DCI): Establishing direct, high-speed links between geographically distant data centers for real-time disaster recovery.

• Metro Ethernet Backhaul: Expanding service provider reach across city lines without the need for active mid-span equipment.

• Critical Infrastructure & Utility Private Networks: Reliable fiber links for power grids, highways, and railway monitoring systems.

• Remote Campus Aggregation: Connecting isolated branch offices or research facilities to a central core network over vast distances.

Q1: What is the optical power budget for an Intel E1G-ZXC-160 link? A: Achieving a stable 160km fiber optic link requires a budget of approximately 32dB to 34dB. HYTOPTODEVICE recommends using low-loss G.652D fiber and high-quality splices to ensure the signal remains within the APD receiver's threshold.

Q2: Can I use the Intel E1G-ZXC-160 for short-range testing? A: CRITICAL WARNING: You must use a 20dB - 25dB optical attenuator. Due to the extreme sensitivity of the APD receiver, a direct "back-to-back" connection will permanently burn the optical sensor.

Q3: Does this module support Digital Diagnostic Monitoring (DDM)? A: Yes. HYTOPTODEVICE modules support full DDM/DOM, allowing you to monitor real-time laser temperature, voltage, and TX/RX optical power levels through your network management software.

Q4: Is the 0-70°C temperature range safe for my server room? A: Yes. This commercial temperature range is the industry standard for controlled environments (Data Centers/Telco Rooms), ensuring long-term laser stability and MTBF (Mean Time Between Failures).

Q5: How does HYTOPTODEVICE ensure compatibility with Intel drivers? A: Our modules are pre-coded with the specific Intel EEPROM signature, ensuring they are recognized as "Intel Genuine" equivalent hardware, bypassing driver-level lockouts in Windows and Linux environments.

Quality Assurance：Your Trusted Optical Transceiver Source

HYTOPTODEVICE is a vertically integrated manufacturer of high-performance optical transceivers. By controlling core materials at the source, we ensure every SFP module meets the highest standards of reliability and customization.

• Vertical Integration: In-house core material production ensures a stable, self-sufficient supply chain for all optical modules.

• Total Traceability: End-to-end oversight from raw components to final transceiver assembly guarantees 100% controllability.

• Bespoke Solutions: Expert-led R&D provides customized SFP transceiver designs tailored to your specific technical needs.

• 24-Hour Response: Our technical team guarantees a primary response to any inquiry or quality concern within 24 hours.

Carrier-Grade Quality. Factory-Direct Control. Rapid Response.

Quality Certification & Compliance：

At HYTOPTODEVICE, our quality commitment is backed by industry-standard validations. From fiber optical transceiver manufacturing to final inspection, our processes ensure global compliance and reliability.

We adhere to rigorous standards for our SFP modules and network solutions:

• ISO 9001: Certified quality management and production consistency.

• CE,UL & FCC: Fully compliant for seamless Global Market Access.

• RoHS: Committed to environmental responsibility and hazardous material control.

• Proven Reliability: Rigorous testing to reduce compliance risk and ensure safety.

Certified Quality. Global Standards. Guaranteed Performance.

Rigorous Industrial Product Testing：



100% 3rd Party Compatible：

Partial Test Demonstration:
