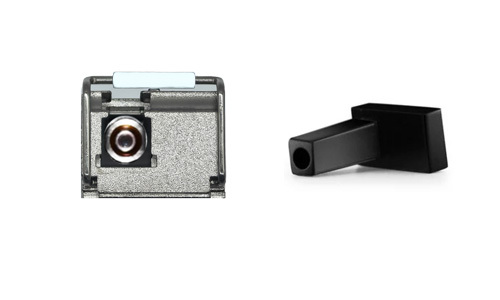

• Front simplex LC port view of D-Link DEM-436XT-BXU compatible SFP BiDi 10G 40km Transceiver for original optic hardware replacement

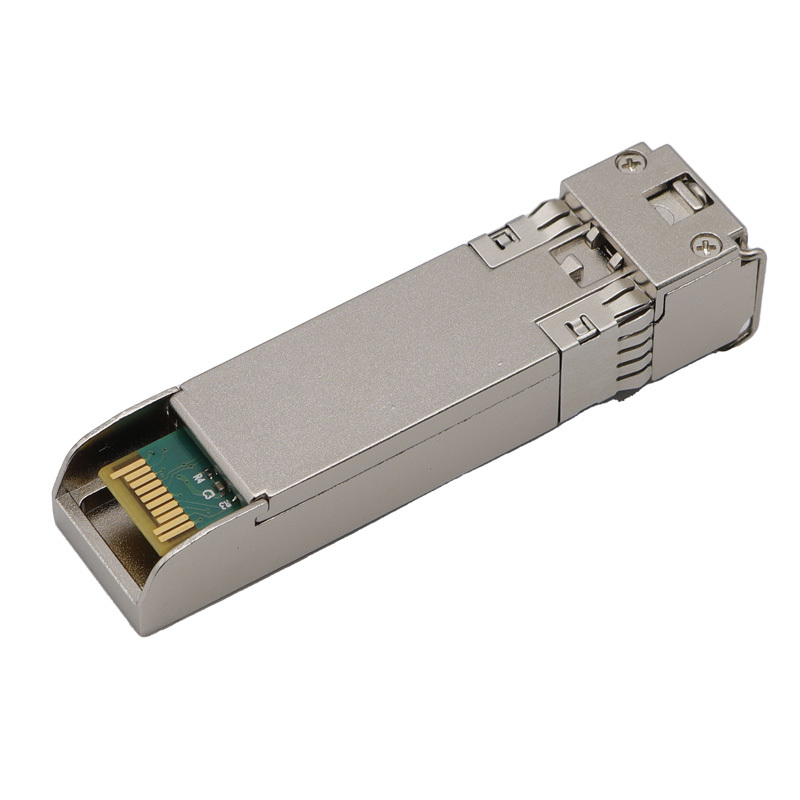

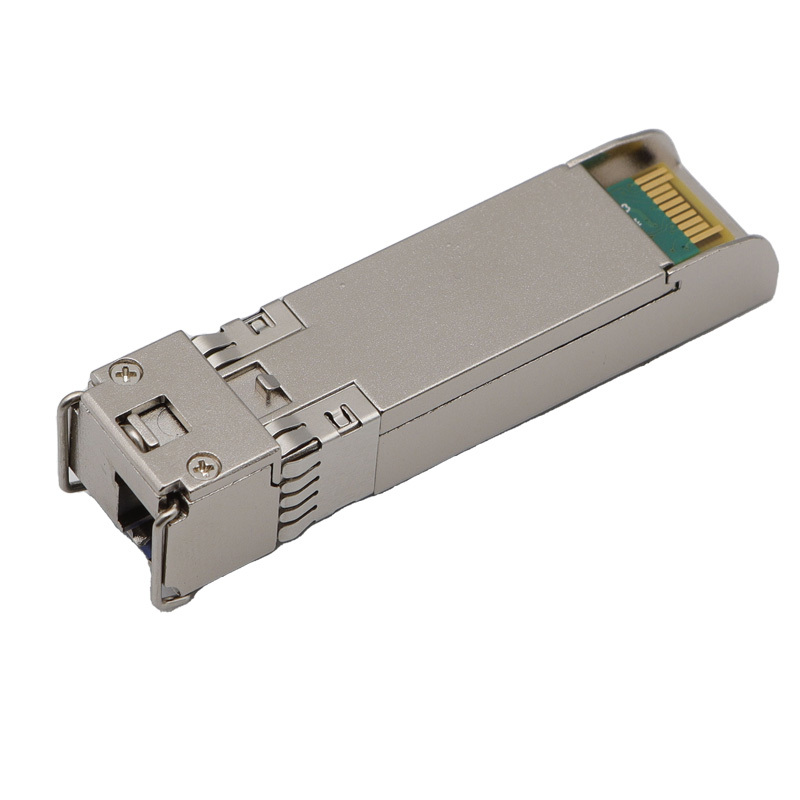

  • Side profile MSA-certified SFP BiDi 10G 40km Transceiver for system integrator bulk procurement campus network upgrade projects
  • DDM-monitoring supported SFP BiDi 10G 40km Transceiver internal chip close-up for D-Link OS real-time diagnostic data display
  • High-sensitivity PIN receiver simplex SFP BiDi 10G 40km Transceiver for university campus 40km single-fiber backbone transmission

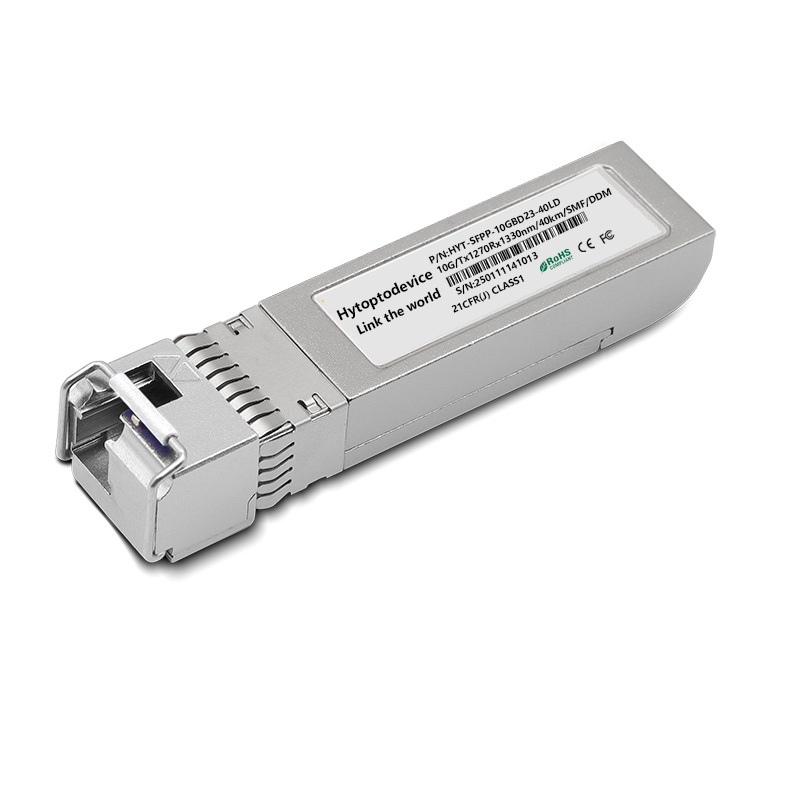

  • Standard EEPROM D-Link OS matching SFP BiDi 10G 40km Transceiver for customized multi-vendor enterprise network procurement
  • Front simplex LC port view of D-Link DEM-436XT-BXU compatible SFP BiDi 10G 40km Transceiver for original optic hardware replacement
  • Side profile MSA-certified SFP BiDi 10G 40km Transceiver for system integrator bulk procurement campus network upgrade projects
  • DDM-monitoring supported SFP BiDi 10G 40km Transceiver internal chip close-up for D-Link OS real-time diagnostic data display
  • High-sensitivity PIN receiver simplex SFP BiDi 10G 40km Transceiver for university campus 40km single-fiber backbone transmission
  • Standard EEPROM D-Link OS matching SFP BiDi 10G 40km Transceiver for customized multi-vendor enterprise network procurement

D-Link DEM-436XT-BXU Compatible SFP BiDi 10G 40km Transceiver | 10GBASE-BX-U Tx1270Rx1330nm Bulk Wholesale | HYTOPTODEVICE

Shop D-Link DEM-436XT-BXU compatible SFP BiDi 10G 40km Transceiver, 40km 1270nm-TX/1330nm-RX single-strand simplex LC SMF, Compliant with SFP+ MSA, SFF-8472, IEEE 802.3ae and RoHS, plug-and-play on all D-Link devices with full DDM monitoring.ideal for campus cross-building links, available for enterprise bulk procurement. private labeling and OEM customization supported, long-term supply for global importers and integrators.
NO. Brand  Compatible P/N Transceiver Type
1 Cisco SFP-10G-BX40U-I SFP-10G32-BX40
2 Arista 10GBASE-ERBD-U SFP-10G23-BX10
3 Huawei SFP-10G-ER-SM1270-BIDI SFP-10G32-BX10
4 Dell GP-SFP-10GBX-U-40 SFP-10G23-BX20
5 Brocade 10G-SFPP-BXU-40K  SFP-10G32-BX20
6 Extreme 10GB-BX40-U SFP-10G23-BX60
7 Ciena XCVR-S40U27 SFP-10G45-BX80
8 D-Link  DEM-436XT-BXU  SFP-10G45-BX100
9 Fortinet  FN-TRAN-SFP+ERBD27
Description

HYTOPTODEVICE D-Link DEM-436XT-BXU Compatible SFP BiDi 10G 40km Transceiver – Simplex LC Single-Mode Optic, Bulk Wholesale  Available


Product Overview

Our HYTOPTODEVICE D-Link DEM-436XT-BXU Compatible transceiver is  single strand SFP BiDi 10G 40km transceiver, built for 40km point-to-point transmission over single strand OS2 single mode fiber.
• Wavelength: Tx1270nm/Rx1330nm (Match D-Link DEM-436XT-BXD standard BiDi pairing)
• Interface: Standard LC simplex connector
• Transmission Distance: Stable 40km @10Gbps SMF OS2
Compliant with Hot-Pluggable SFP+ MSA, SFF-8472,SFP-8431, IEEE 802.3ae and RoHS standards and fully DDM/DOM real-time monitoring support, Delivering high-speed performance with optimized power efficiency, this single-strand SFP BiDi 10G 40km transceiver is the ideal solution for cross-campus backbones, metropolitan area network (MAN) rings, and long-range data center interconnects (DCI). We support samples, bulk wholesale and OEM private labeling, submit bulk inquiry or RFQ for competitive pricing and long-term supply contracts.

Key Technical Specifications

D-Link Compatible DEM-436XT-BXU Vendor Name HYTOPTODEVICE
Form Factor SFP+ Max Data Rate 10.7Gbps
Wavelength TX1270nm/RX1330nm Max  Distance 40km
Connector Simplex LC Transmitter Type 1270nm DFB
Cable Type SMF Receiver Type PIN
TX Power -1.0~+5dBm Receiver Sensitivity < -15dBm
Max. Power Consumption ≤1W DOM/DDM   Fully Supported
Protocols SFP+ MSA, SFF-8472, IEEE 802.3ae, RoHS Compliant Operation Temperature 0 to 70°C (32 to 158°F)

For detailed technical specifications, please refer to the Datasheet



Usage Guidelines & Operational Best Practices

• BiDi Pairing Rule: SFP‑10G‑BXU (Tx1270/Rx1330) must pair with SFP‑10G‑BXD (Tx1330/Rx1270) at remote end. Two BXU modules will NOT form a valid link.
• Cabling Requirement: Use OS2 single‑mode simplex‑LC UPC cables only. Multimode fiber / APC connectors reduce reach and cause link issues; keep connectors clean.
• Port Notice: Install only into standard SFP+ ports. Do not force into 1G‑SFP slots. Disable transceiver‑block policy if needed on host devices.
• Environment: Run within 0‑70 °C. Avoid high‑heat, dusty, poorly ventilated rack positions.
• Hot‑swap: Supports hot‑swap; disconnect fiber before plugging / unplugging to protect optical ports.
• DDM Monitoring: Enable DDM/DOM; monitor optical power and temperature for early fault warning.
• Pre‑test Recommendation: Test sample units with real hardware before large‑scale bulk deployment.
• Laser Safety: Avoid direct eye exposure to powered optical ports; infrared laser can harm eyes.

For detailed operation instructions, please refer to the User Guide.

Full Compatibility List & Supported Network Hardware

1.Native D-Link OS Compatibility

Every factory-calibrated SFP BiDi 10G 40km Transceiver passes real-machine interoperability testing on official D-Link operating systems. Preloaded with exclusive D-Link matching data, the module achieves zero recognition failure, no unsupported transceiver alert logs, and complete real-time DDM data display on D-Link network devices. It supports direct replacement of original D-Link DEM-436XT-BXU modules without extra configuration debugging, ensuring stable and compliant operation for commercial campus and enterprise transport network bulk procurement projects.
Compatible D-Link Device Series:
  • D-Link DGS Series Layer 3 Core Campus Switches
  • D-Link DES Series Enterprise Access Aggregation Switches
  • D-Link Cross-Campus Core-to-Access 40km Single-Fiber Interconnection Equipment
  • D-Link Office Building Long-Reach Trunk Hardware

2.Multi-Brand Cross Compatibility

Built on MSA open standards, this 10G BiDi SFP+ works with Cisco, Arista, Juniper, H3C, Huawei, Brocade, Dell hardware. Well‑suited for mixed‑vendor metro and DCI expansion projects for enterprise, carrier clients, wholesalers and integrators.


Primary Application Scenarios

  • Bulk replacement and upgrade of aging D-Link DEM-436XT-BXU modules for campus 40km single-fiber aggregation interconnection
  • University campus backbone network bandwidth iteration adopting SFP BiDi 10G 40km Transceiver to build cost-saving single-fiber 10G core links
  • Enterprise cross-building point-to-point interconnection deploying simplex SFP BiDi 10G 40km Transceiver for fiber-saving 40km 10G trunk transmission
  • Industrial park and office park edge bandwidth expansion using low-jitter single-fiber BiDi SFP BiDi 10G 40km Transceiver for medium-haul optical transmission
  • System integrator large batch procurement standard SFP BiDi 10G 40km Transceiver for multi-vendor hybrid D-Link campus network integration projects
  • Commercial enterprise data room infrastructure transformation adopting SFP BiDi 10G 40km Transceiver for single-fiber core-to-access trunk deployment

Connectivity Solutions(Applications)

1.Switch-to-Switch

Switch-to-switch single-fiber 40km trunk transmission using bulk procurement SFP BiDi 10G 40km Transceiver for D-Link campus core networking

2.Switch-to-NIC

 Switch-to-NIC single-fiber 10G uplink solution with campus application SFP BiDi 10G 40km Transceiver for enterprise remote server access

3.
Core to Access (With Structured Cabling)
Core-to-access structured cabling deployment with fully D-Link compatible SFP BiDi 10G 40km Transceiver for 40km enterprise campus transmission

The Core Features

1.Slash Cabling Costs with Single-Fiber BiDi
Stop paying for extra optical fibers. Our 10G BiDi SFP+ transceivers send and receive data over one single strand of fiber, helping you slash cabling infrastructure costs while fully utilizing your current deployment.

10G-BiDi-SFP-10km-single-fiber-utilization

2.Instantly Double Your Bandwidth
Run out of fiber lines? No problem. By separating transmit and receive wavelengths on a single strand, this module instantly doubles your network capacity without requiring you to pull any new cables.

double-network-capacity-with-BiDi-SFP-plus

3.1W Low-Power 10G Link
Power consumption matters in high-density data centers. Featuring a highly efficient design, this 10G SFP+ module operates at under 1W, minimizing heat generation and lowering your overall operational and cooling costs.

low-power-consumption-10G-SFP-data-center

4.Seamless Cross-Brand Interoperability
Eliminate compatibility headaches. We test every single module in actual, real-world mainstream switches to guarantee flawless cross-brand interoperability. Want proof? We are happy to provide real compatibility testing videos upon request. Specific Compatibility Video available upon request.

SFP-plus-cross-brand-interoperability-switch-test

5.Rigorously Tested for Zero-Downtime Reliability
We don’t compromise on network uptime. Through comprehensive testing—including temperature, signal integrity, and optical power analysis—before leaving our Test Center. we ensure your 10G BiDi 40km links remain rock-solid and packet-loss-free.

comprehensive-quality-testing-10G-BiDi-transceiver



FAQ
Q1: I plugged in the modules on both sides, but the link is completely dead. What did I miss?
A: BiDi transceivers need matching opposite transmit/receive wavelengths at two ends; mismatched pairs result in zero optical reception. HYTOPTODEVICE marks clear wavelength labels on every SFP BiDi 10G 40km Transceiver to avoid pairing errors for cross-building campus network deployment.

Q2: The module fits perfectly, but my signal loss is massive at the patch panel. Why?
A: Dirty or scratched simplex LC connectors and misaligned patch panel adapters cause heavy insertion loss. HYTOPTODEVICE factory polished SFP BiDi 10G 40km Transceiver LC ports reduce extra loss in multi-vendor structured cabling setups.

Q3: Why do the color pull-tabs look different depending on the brand I buy?
A: Pull-tab colors serve as wavelength identification with no unified industry standard. HYTOPTODEVICE uses consistent color coding on SFP BiDi 10G 40km Transceiver pull-tabs for easy sorting during large-batch enterprise procurement.

Q4: Can I test these 40km modules on a short 2-meter patch cord in my lab?
A: Direct short fiber testing will overload and damage the receiver permanently. Use inline attenuators for testing; HYTOPTODEVICE SFP BiDi 10G 40km Transceiver comes with operation guidelines for enterprise network laboratory verification scenarios.

Q5: My actual link distance is only 15km. Do I need to buy attenuators?
A: Yes, attenuators are required for spans under 20km to prevent receiver saturation. HYTOPTODEVICE SFP BiDi 10G 40km Transceiver features fixed high transmit power designed for 30–40km enterprise long-distance trunk links.

Q6: Why does my link flap or drop packets during extreme cold or hot weather?
A: Temperature changes shift laser wavelengths out of filter passbands. Precisely calibrated optical components inside HYTOPTODEVICE SFP BiDi 10G 40km Transceiver stabilize signals for outdoor park backbone networking projects.

Q7: Why does one side of my link show a slightly stronger signal than the other?
A: BiDi uses two different wavelengths with distinct fiber attenuation rates. HYTOPTODEVICE balanced dual-wavelength design SFP BiDi 10G 40km Transceiver narrows signal gaps on D-Link compatible single-fiber interconnection links.

Q8: Is it safe to upgrade my switch OS if I'm running third-party BiDi optics?
A: Most generic third-party optics lose DDM access after firmware upgrades. HYTOPTODEVICE well-adjusted register configuration SFP BiDi 10G 40km Transceiver maintains full compatibility with all official D-Link switch OS versions.

Q9: My switch says the link is up, but I can't read the light levels. Why?
A: Low-grade BiDi optics adopt non-standard registers unrecognizable by switch diagnostic tools. HYTOPTODEVICE MSA standard compliant SFP BiDi 10G 40km Transceiver outputs complete real-time DDM light data for daily network troubleshooting.

Q10: Will using a third-party module void my switch hardware warranty?
A: Authorized compatible pluggable optics will not void most mainstream switch warranties. HYTOPTODEVICE fully spec-matched SFP BiDi 10G 40km Transceiver complies with D-Link hardware interoperability standards without invalidating equipment warranty.

Q11: Why does the module feel loose inside my white-box switch slot?
A: Cheap modules use low-tolerance plastic shells with poor locking performance. Precision molded tight tolerance shell SFP BiDi 10G 40km Transceiver from HYTOPTODEVICE stays firmly seated inside generic white-box switch ports.

Q12: The link dropped. How do I know if the module died or if the physical fiber broke?
A: Swap the paired BiDi modules to opposite ends; if the fault moves with the optic, the transceiver is defective. The reliable DDM telemetry of HYTOPTODEVICE SFP BiDi 10G 40km Transceiver quickly distinguishes fiber faults from module failures during campus network maintenance work。

Packaging & Custom OEM Solutions

Each module is individually sealed in ESD-safe anti-static packaging and ready for immediate shipment. For high-volume distributors, wholesalers, and system integrators, we offer flexible OEM programs—including custom logos, private labeling, and branded packaging—to help you build and protect your own brand.
HYTOPTODEVICE 10Gbase-bx bidi transceiver  custom packaging


Why Network Engineers Choose HYTOPTODEVICE

HYTOPTODEVICE has supplied over 5000,000 optical transceiver modules to data centers, ISPs, and enterprise networks across 100+ countries since 2011. Every module undergoes a 72-hour burn-in test and full DDM/DOM validation before shipment.

  • Up to 70% cost savings vs OEM, transparent pricing & flexible bulk rates, supported quality returns
  • 100% real-device compatible with Cisco, Huawei,Dell,Juniper, and Arista
  • ISO 9001:2015 Shenzhen factory, full lineup: 1.25G/10G/25G/40G/100G/200G/400G/800G/1.6T transceivers
  • Ample stock, fast global DHL/FedEx shipping in 3–5 working days
  • Free pre-sales engineering support for custom EEPROM  & private label firmware
  • Real switch test videos available for pre-purchase review; inspection & shipping videos provided per order


“Phenomenal performance. We deployed 200 HYTOPTODEVICE SFP modules to replace Cisco OEMs in our backbone network. Result? Zero compatibility issues and a 60% reduction in costs. Highly recommended for mission-critical networks."— Senior Network Engineer, Regional Telecom, Australia


Quality Certification & Compliance

 At HYTOPTODEVICE, our quality commitment is backed by industry-standard validations. From fiber optical transceiver manufacturing to final visual inspection, from IQC、IPQC、FQC to OQC, our processes ensure global compliance and reliability.

We adhere to rigorous standards for our SFP modules and network solutions:

  • ISO 9001: Certified quality management and production consistency.

  • CE & FCC: Fully compliant for seamless Global Market Access.

  • RoHS: Committed to environmental responsibility and hazardous material control.

  • Proven Reliability: Rigorous testing to reduce compliance risk and ensure safety.

Certified Quality. Global Standards. Guaranteed Performance.




Rigorous Industrial Product Testing

   hytoptodevice check device and equiptment for optical transceiver module

100% 3rd Party Compatible
testing device for hytoptodevice 10g sfp+ bidi optical module
Partial Test Demonstration
hytoptodevice compatible optical transceiver module for ethernet,data center
