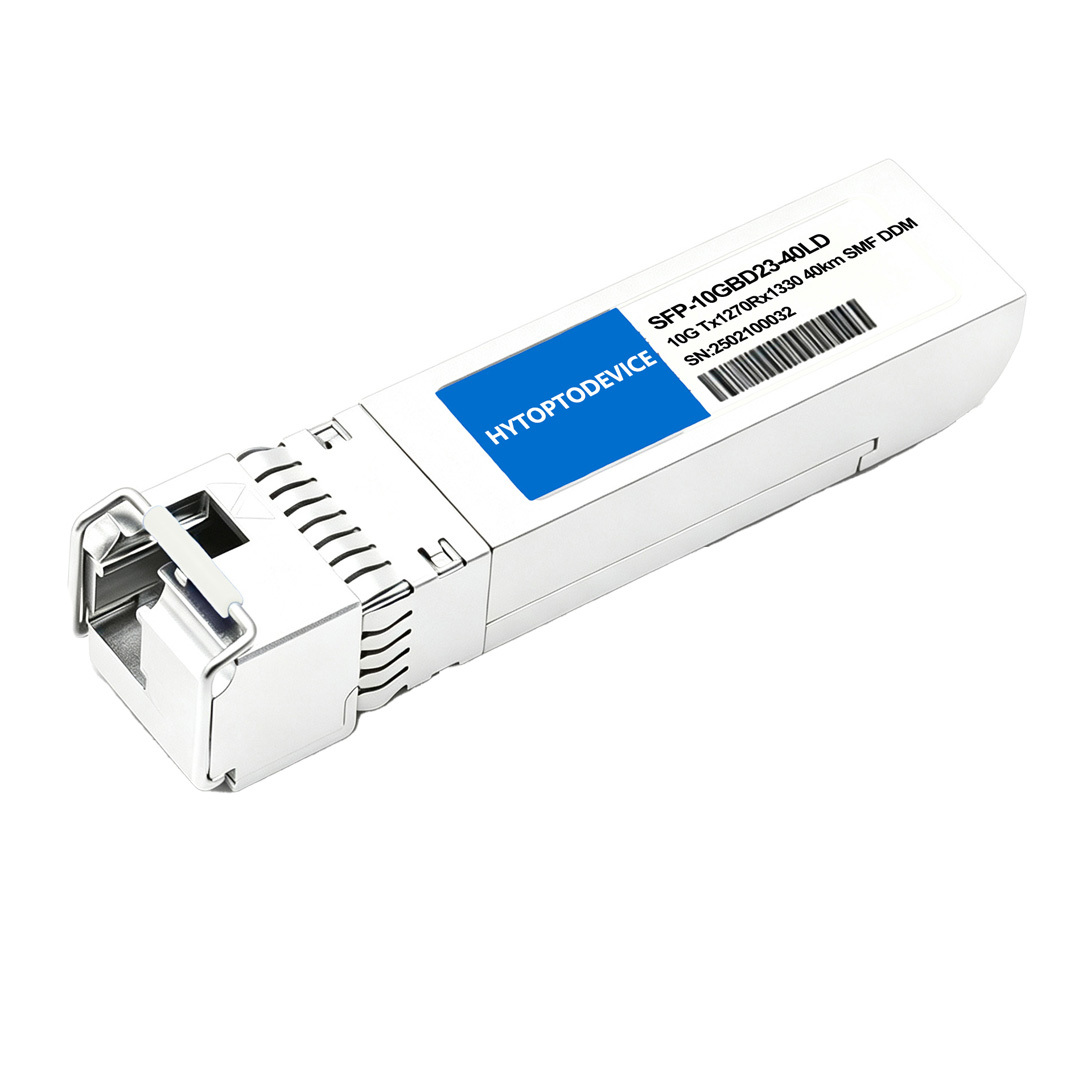

• HYTOPTODEVICE Dell GP-SFP-10GBX-U-40 compatible 10G SFP+ BiDi transceiver white background full product shot

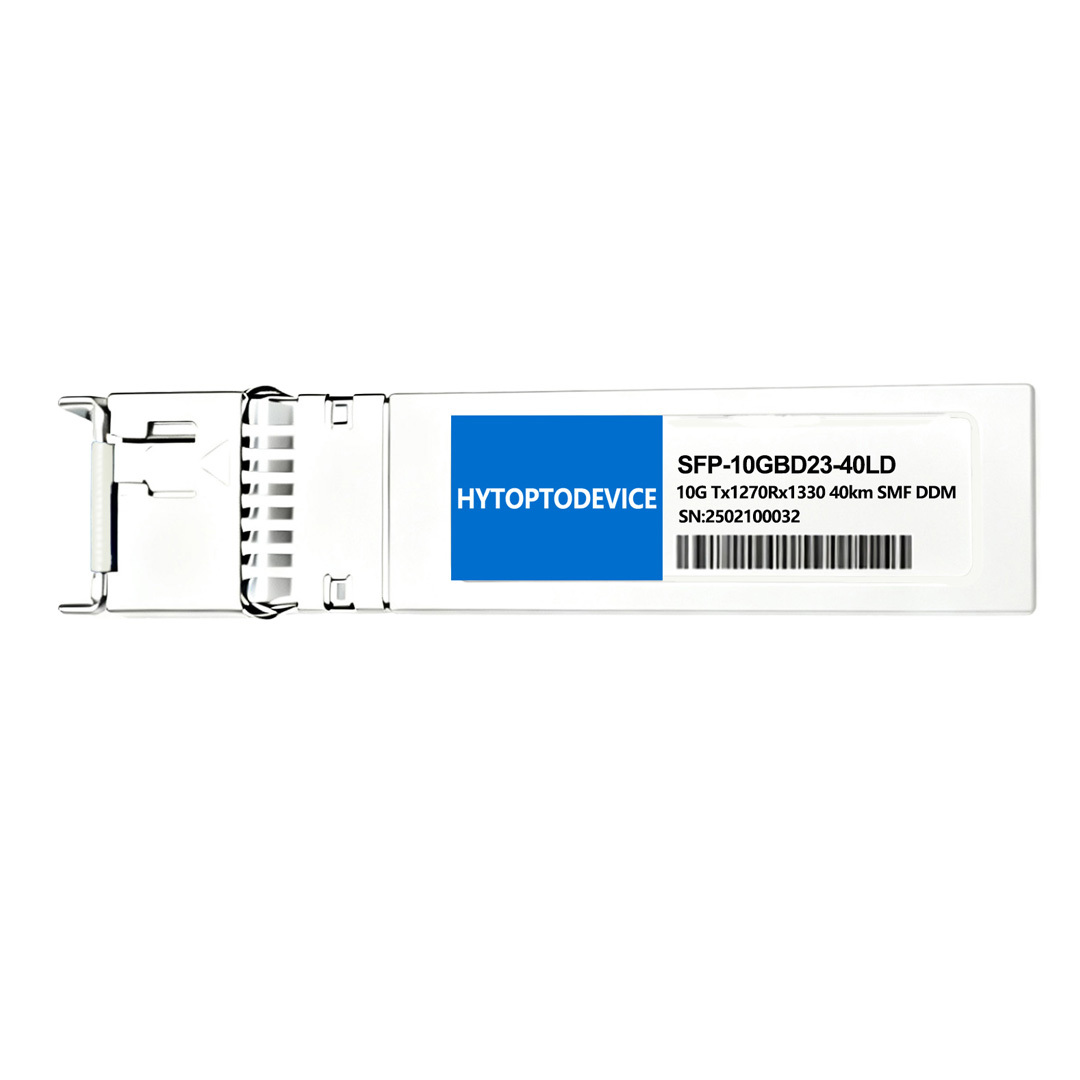

  • Parameter label and specification close-up of 40km Dell compatible 10G SFP+ BiDi transceiver
  • Simplex LC port detail of 10G SFP+ BiDi Transceiver for Dell GP-SFP-10GBX-U-40 deployment
  • Metal housing and anti-break pull tab design of commercial 10G SFP+ BiDi Transceiver

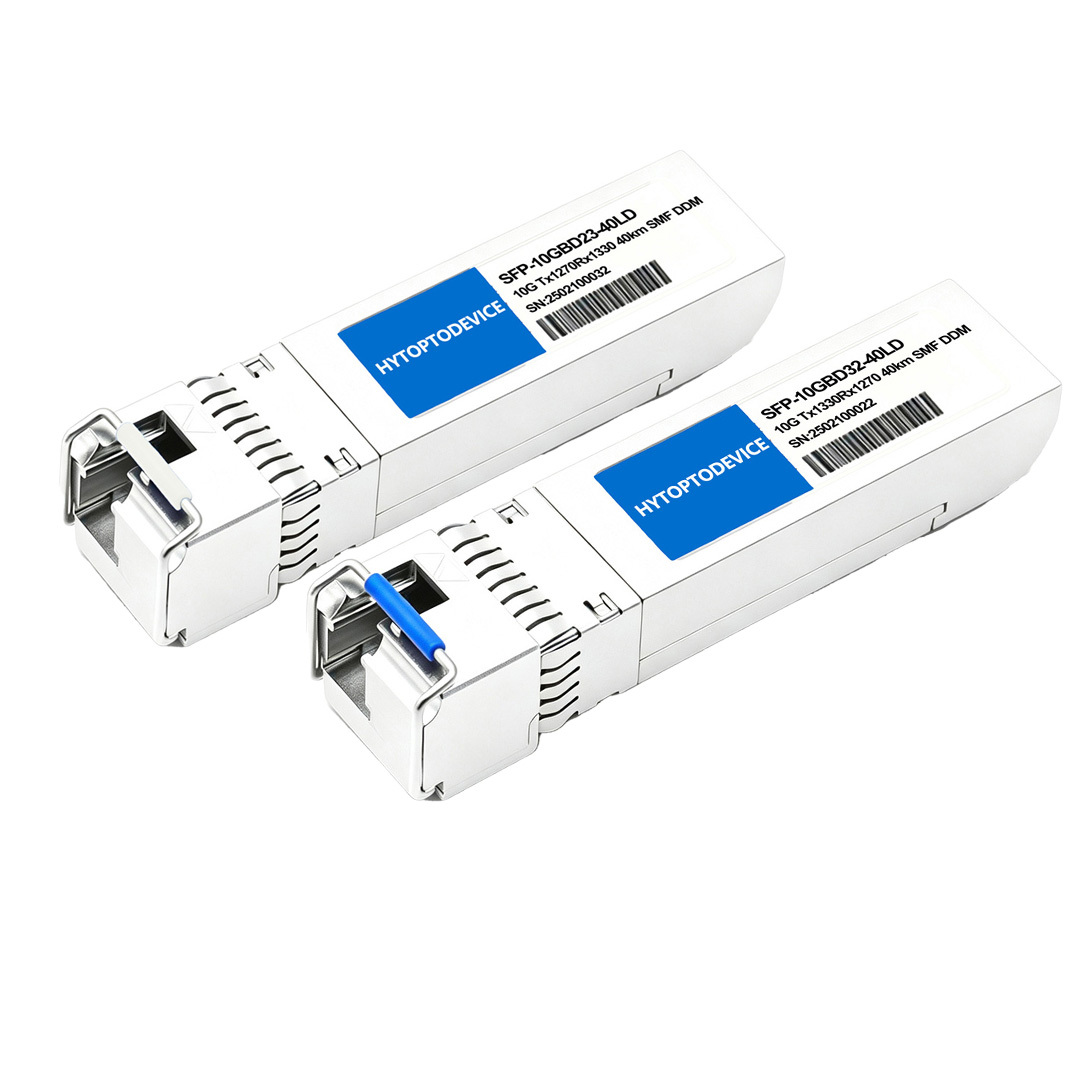

  • Matched 10GBX-U-40 & 10GBX-D-40 pair 10G SFP+ BiDi Transceiver for Dell network systems
  • HYTOPTODEVICE Dell GP-SFP-10GBX-U-40 compatible 10G SFP+ BiDi transceiver white background full product shot
  • Parameter label and specification close-up of 40km Dell compatible 10G SFP+ BiDi transceiver
  • Simplex LC port detail of 10G SFP+ BiDi Transceiver for Dell GP-SFP-10GBX-U-40 deployment
  • Metal housing and anti-break pull tab design of commercial 10G SFP+ BiDi Transceiver
  • Matched 10GBX-U-40 & 10GBX-D-40 pair 10G SFP+ BiDi Transceiver for Dell network systems

Dell GP-SFP-10GBX-U-40 Compatible 10G SFP+ BiDi Transceiver | 10GBASE-BX40-U 40km Tx1270Rx1330nm Bulk Wholesale | HYTOPTODEVICE

Shop & wholesale HYTOPTODEVICE Dell GP-SFP-10GBX-U-40 compatible 10G SFP+ BiDi transceiver, Tx1270nm/Rx1330nm, simplex LC connector, 40km OS2 single-mode fiber. Fully compatible with Dell network devices, performance matches original OEM modules, perfect replacement for official transceivers to cut enterprise bulk procurement costs.
NO. Brand  Compatible P/N Transceiver Type
1 Cisco SFP-10G-BX40U-I SFP-10G32-BX40
2 Arista 10GBASE-ERBD-U SFP-10G23-BX10
3 Huawei SFP-10G-ER-SM1270-BIDI SFP-10G32-BX10
4 Dell GP-SFP-10GBX-U-40 SFP-10G23-BX20
5 Brocade 10G-SFPP-BXU-40K  SFP-10G32-BX20
6 Extreme 10GB-BX40-U SFP-10G23-BX60
7 Ciena XCVR-S40U27 SFP-10G45-BX80
8 D-Link  DEM-436XT-BXU  SFP-10G45-BX100
9 Fortinet  FN-TRAN-SFP+ERBD27
Description


Dell GP-SFP-10GBX-U-40 Compatible 10G SFP+ BiDi Transceiver 10GBASE-BX40-U (SMF, 1270nm-TX/1330nm-RX, 40km, Simplex LC, DDM)

Product Overview

HYTOPTODEVICE Dell GP-SFP-10GBX-U-40 Compatible 10G SFP+ BiDi Transceiver is a commercial grade 10G SFP+ BiDi single-mode optic, built for 40km point-to-point transmission over single strand OS2 single mode fiber.
• Wavelength: Tx1270nm/Rx1330nm (Match Dell GP-SFP-10GBX-D-40 standard BiDi pairing)
• Interface: Standard LC simplex connector
• Transmission Distance: Stable 40km @10Gbps SMF OS2
Compliant with Hot-Pluggable SFP+ MSA, SFF-8472,SFP-8431, IEEE 802.3ae and RoHS standards and fully DDM/DOM support, Delivering high-speed performance with optimized power efficiency, this single-strand 10G SFP+ BiDi Transceiver is the ideal solution for cross-campus backbones, metropolitan area network (MAN) rings, and long-range data center interconnects (DCI). We support samples, bulk wholesale and OEM private labeling, submit bulk inquiry or RFQ for competitive pricing and long-term supply contracts.

Key Technical Specifications

Dell Compatible GP-SFP-10GBX-U-40 Vendor Name HYTOPTODEVICE
Form Factor SFP+ Max Data Rate 10.7Gbps
Wavelength TX1270nm/RX1330nm Max  Distance 40km
Connector Simplex LC Transmitter Type 1270nm DFB
Cable Type SMF Receiver Type PIN
TX Power -1.0~+5dBm Receiver Sensitivity < -15dBm
Max. Power Consumption ≤1W DOM/DDM   Fully Supported
Protocols SFP+ MSA, SFF-8472, IEEE 802.3ae, RoHS Compliant Operation Temperature 0 to 70°C (32 to 158°F)

For detailed technical specifications, please refer to the Datasheet



Usage Guidelines & Operational Best Practices

• BiDi Pairing Rule: SFP‑10G‑BXU (Tx1270/Rx1330) must pair with SFP‑10G‑BXD (Tx1330/Rx1270) at remote end. Two BXU modules will NOT form a valid link.
• Cabling Requirement: Use OS2 single‑mode simplex‑LC UPC cables only. Multimode fiber / APC connectors reduce reach and cause link issues; keep connectors clean.
• Port Notice: Install only into standard SFP+ ports. Do not force into 1G‑SFP slots. Disable transceiver‑block policy if needed on host devices.
• Environment: Run within 0‑70 °C. Avoid high‑heat, dusty, poorly ventilated rack positions.
• Hot‑swap: Supports hot‑swap; disconnect fiber before plugging / unplugging to protect optical ports.
• DDM Monitoring: Enable DDM/DOM; monitor optical power and temperature for early fault warning.
• Pre‑test Recommendation: Test sample units with real hardware before large‑scale bulk deployment.
• Laser Safety: Avoid direct eye exposure to powered optical ports; infrared laser can harm eyes.

For detailed operation instructions, please refer to the User Guide.

Full Compatibility List & Supported Network Hardware

1. Validated Dell Hardware & Firmware
HYTOPTODEVICE 10G BiDi SFP+ modules use Dell‑tuned EEPROM profiles for seamless plug‑and‑play on Dell OS10 platforms. Each unit passes real‑machine validation, temperature cycling and 72‑hour burn‑in. Free EEPROM re‑flash and OEM branding are offered for bulk distributors and integrators.

Validated Dell‑oriented Platforms:

• Dell S‑Series S5248F‑ON / S5048F‑ON data‑center switches

• Dell N‑Series N3048EP‑ON / N4064F enterprise switch series

• All Dell network devices with standard SFP+ ports supporting 10GBASE‑BX40‑U BiDi specification

2. Cross‑Brand Interoperability

Built on MSA open standards, this 10G BiDi SFP+ works with Cisco, Arista, Huawei, H3C, Juniper, Brocade hardware. Well‑suited for mixed‑vendor metro and DCI expansion projects for enterprise, carrier clients, wholesalers and integrators.


Primary Application Scenarios

Cost-efficient 10G SFP+ BiDi Transceiver tailored for commercial long-distance single-fiber 10G networking, covering enterprise, campus and ISP scenarios.

1. Dell switch long-range 10G uplink deployment, saving fiber core resources with single-strand 10G SFP+ BiDi Transceiver
2. Cross-building enterprise campus 40km 10G interconnection using high-stability 10G SFP+ BiDi transceiver
3. Commercial outdoor cabinet long-distance 10G signal transmission with reliable 10G SFP+ BiDi Transceiver
4. ISP last-mile broadband access and remote base station 10G networking with cost-effective 10G SFP+ BiDi optic
5. Enterprise 10G structured cabling optimization, lowering project costs via single-fiber 10G SFP+ BiDi Transceiver deployment


Connectivity Solutions(Applications)

1.Switch-to-Switch 10G BiDi Single Fiber Uplink
 Cost-efficient 10G SFP+ BiDi Transceiver tailored for commercial long-distance single-fiber 10G networking, covering enterprise, campus and ISP scenarios. 1. Dell switch long-range 10G uplink deployment, saving fiber core resources with single-strand 10G SFP+ BiDi Transceiver 2. Cross-building enterprise campus 40km 10G interconnection using high-stability 10G SFP+ BiDi transceiver 3. Commercial outdoor cabinet long-distance 10G signal transmission with reliable 10G SFP+ BiDi Transceiver 4. ISP last-mile broadband access and remote base station 10G networking with cost-effective 10G SFP+ BiDi optic 5. Enterprise 10G structured cabling optimization, lowering project costs via single-fiber 10G SFP+ BiDi Transceiver deployment

2.Switch-to-10G SFP+ NIC Server Long Distance Link

Dell GP-SFP-10GBX-U-40 compatible 10G SFP+ BiDi Transceiver switch to server NIC fiber connection

3.Enterprise 10G Single Fiber Structured Cabling System Layout

Core-to-access structured cabling deployment with SFP+ 10G BiDi 40KM Transceiver for 40km enterprise metro transmission

The Core Features

1.Slash Cabling Costs with Single-Fiber BiDi
Stop paying for extra optical fibers. Our 10G BiDi SFP+ transceivers send and receive data over one single strand of fiber, helping you slash cabling infrastructure costs while fully utilizing your current deployment.

10G-BiDi-SFP-10km-single-fiber-utilization

2.Instantly Double Your Bandwidth
Run out of fiber lines? No problem. By separating transmit and receive wavelengths on a single strand, this module instantly doubles your network capacity without requiring you to pull any new cables.

double-network-capacity-with-BiDi-SFP-plus

3.1W Low-Power 10G Link
Power consumption matters in high-density data centers. Featuring a highly efficient design, this 10G SFP+ module operates at under 1W, minimizing heat generation and lowering your overall operational and cooling costs.

low-power-consumption-10G-SFP-data-center

4.Seamless Cross-Brand Interoperability
Eliminate compatibility headaches. We test every single module in actual, real-world mainstream switches to guarantee flawless cross-brand interoperability. Want proof?  Specific Compatibility Video available upon request.

SFP-plus-cross-brand-interoperability-switch-test

5.Rigorously Tested for Zero-Downtime Reliability
We don’t compromise on network uptime. Through comprehensive testing—including temperature, signal integrity, and optical power analysis—before leaving our Test Center. we ensure your 10G sfp+ BiDi 40km links remain rock-solid and packet-loss-free.

comprehensive-quality-testing-10G-BiDi-transceiver


FAQ

Q1: Why do field technicians frequently encounter installation errors with HYTOPTODEVICE 10G SFP+ BiDi Transceiver for Dell 40km networking?
A: The compact pull-tabs and tiny printed labels on ordinary optical modules lead to frequent on-site wavelength mixing errors. HYTOPTODEVICE 10G SFP+ BiDi Transceiver adopts clear wavelength marking and standardized labeling design, effectively avoiding TX and RX wavelength confusion during field installation for Dell network deployment.

Q2: Why does single-fiber networking with HYTOPTODEVICE 10G SFP+ BiDi Transceiver require double inventory stock for Dell projects?
A: Single-strand BiDi transmission requires two matched wavelength modules for normal operation. Users need to purchase and stock both TX1270nm and TX1330nm SKUs of HYTOPTODEVICE 10G SFP+ BiDi Transceiver simultaneously, which increases the complexity of enterprise inventory management for Dell network maintenance.

Q3: Why do HYTOPTODEVICE 10G SFP+ BiDi Transceiver 40km links drop suddenly after adding intermediate standard patch panels?
A: The 40km optical power budget of HYTOPTODEVICE 10G SFP+ BiDi Transceiver is extremely precise and sensitive. Additional insertion loss caused by newly added patch panels or unqualified fiber splicing will exceed the module’s loss tolerance threshold, directly triggering sudden link disconnection on Dell long-distance fiber links.

Q4: Why do stable Dell 40km links using HYTOPTODEVICE 10G SFP+ BiDi Transceiver develop sudden packet loss after long-term operation?
A: Long-term fiber aging, cable displacement and environmental changes will gradually increase line attenuation. HYTOPTODEVICE 10G SFP+ BiDi Transceiver features a strict 40km power budget with almost no redundant margin, making aged fiber degradation the main cause of late-stage packet loss for Dell long-range network links.

Q5: Why does slight fiber bending only damage upstream traffic of HYTOPTODEVICE 10G SFP+ BiDi Transceiver Dell links?
A: Different working wavelengths have distinct anti-bending performance. The 1330nm receiving wavelength of HYTOPTODEVICE 10G SFP+ BiDi Transceiver is far more sensitive to macro-bend loss than the 1270nm wavelength, resulting in asymmetric upstream signal attenuation and unbalanced network traffic on Dell fiber tray wiring.

Q6: Why cannot HYTOPTODEVICE 10G SFP+ BiDi Transceiver run stably on legacy G.652 fiber for Dell 40km long-distance transmission?
A: Traditional G.652 old fiber has obvious water peak attenuation characteristics within the 1270nm/1330nm wavelength range of HYTOPTODEVICE 10G SFP+ BiDi Transceiver. Excessive per-kilometer signal loss leads to unstable transmission, even if the fiber supports ordinary 10G LR module operation for Dell networks.

Q7: Why is co-deployment of HYTOPTODEVICE 10G SFP+ BiDi Transceiver and existing CWDM channels unfeasible on the same fiber bundle?
A: The 1270nm and 1330nm working wavelengths of HYTOPTODEVICE 10G SFP+ BiDi Transceiver directly overlap with standard CWDM wavelength grids. Without high-precision filtering equipment, severe channel crosstalk will occur, disrupting both BiDi 40km links and CWDM transmission for Dell multi-service networking.

Q8: Why do data center cooling costs rise after upgrading long-haul links with HYTOPTODEVICE 10G SFP+ BiDi Transceiver?
A: The high-power laser design of 40km long-distance HYTOPTODEVICE 10G SFP+ BiDi Transceiver generates higher thermal output than short-range modules. Mass deployment increases local heat load in data center cabinets, forcing Dell switch room HVAC cooling systems to operate at higher load and raising daily utility expenses.

Q9: Do outdoor field node deployments require industrial-grade ratings for HYTOPTODEVICE 10G SFP+ BiDi Transceiver on Dell networks?
A: Yes. Standard commercial-temperature HYTOPTODEVICE 10G SFP+ BiDi Transceiver is only suitable for indoor constant-temperature environments. Long-term operation in unconditioned roadside outdoor enclosures will cause rapid chip aging and module failure, requiring upgraded temperature-resistant modules for field Dell network nodes.

Q10: How to distinguish faulty local TX or remote RX ports of HYTOPTODEVICE 10G SFP+ BiDi Transceiver without dual-site on-site inspection for Dell links?
A: The single-fiber transmission structure of HYTOPTODEVICE 10G SFP+ BiDi Transceiver cannot support conventional single-end loopback testing, making it difficult to quickly isolate local transmitter or remote receiver faults. HYTOPTODEVICE provides professional remote fault diagnosis solutions to help engineers troubleshoot Dell single-fiber link failures efficiently.

Packaging & Custom OEM Solutions

Each module is individually sealed in ESD-safe anti-static packaging and ready for immediate shipment. For high-volume distributors, wholesalers, and system integrators, we offer flexible OEM programs—including custom logos, private labeling, and branded packaging—to help you build and protect your own brand.
HYTOPTODEVICE 10Gbase-bx bidi transceiver  custom packaging


Why Network Engineers Choose HYTOPTODEVICE

HYTOPTODEVICE has supplied over 5000,000 optical transceiver modules to data centers, ISPs, and enterprise networks across 100+ countries since 2011. Every module undergoes a 72-hour burn-in test and full DDM/DOM validation before shipment.

  • Up to 70% cost savings vs OEM, transparent pricing & flexible bulk rates, supported quality returns
  • 100% real-device compatible with Cisco, Huawei,Dell,Juniper, and Arista
  • ISO 9001:2015 Shenzhen factory, full lineup: 1.25G/10G/25G/40G/100G/200G/400G/800G/1.6T transceivers
  • Ample stock, fast global DHL/FedEx shipping in 3–5 working days
  • Free pre-sales engineering support for custom EEPROM  & private label firmware
  • Real switch test videos available for pre-purchase review; inspection & shipping videos provided per order

“Phenomenal performance. We deployed 200 HYTOPTODEVICE SFP modules to replace Cisco OEMs in our backbone network. Result? Zero compatibility issues and a 60% reduction in costs. Highly recommended for mission-critical networks."— Senior Network Engineer, Regional Telecom, Australia


Quality Certification & Compliance

 At HYTOPTODEVICE, our quality commitment is backed by industry-standard validations. From fiber optical transceiver manufacturing to final visual inspection, from IQC、IPQC、FQC to OQC, our processes ensure global compliance and reliability.

We adhere to rigorous standards for our SFP modules and network solutions:

  • ISO 9001: Certified quality management and production consistency.

  • CE & FCC: Fully compliant for seamless Global Market Access.

  • RoHS: Committed to environmental responsibility and hazardous material control.

  • Proven Reliability: Rigorous testing to reduce compliance risk and ensure safety.

Certified Quality. Global Standards. Guaranteed Performance.




Rigorous Industrial Product Testing

   hytoptodevice check device and equiptment for optical transceiver module

100% 3rd Party Compatible
testing device for hytoptodevice 10g sfp+ bidi optical module
Partial Test Demonstration
hytoptodevice compatible optical transceiver module for ethernet,data center

Others
hytoptodevice network application of optical moduleshytoptodevice optical transceiver product line 1.25g 10g 100g 800g
