| NO. | Brand | Compatible P/N | Transceiver Type |
| 1 | DELL | 430-4593 | QSFP-40G-SR4(Cisco) |
| 2 | EdgeCore | ET6401-SR4 | QSFP-40G-SR4(Huawei) |
| 3 | Extreme | 10319 | QSFP-40G-IR4 |
| 4 | HPE Aruba | JH231A | QSFP-40G-LG4 |
| 5 | H3C | QSFP-40G-SR4-MM850 | QSFP-40G-ER4 |
| 6 | HPE BladeSystem | 720187-B21 | QSFP-40G-ZR4 |
| 7 | HPE H3C | JG325A | QSFP-40G-CSR4 |
| 8 | F5 Networks | F5-UPG-QSFP+ |

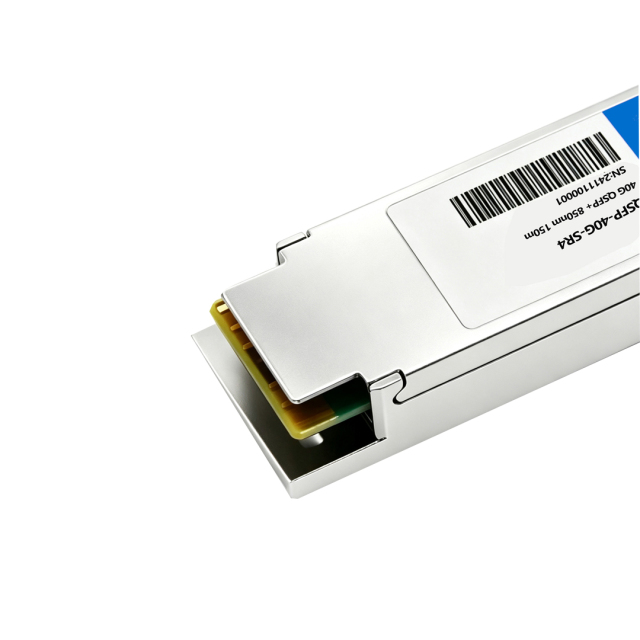

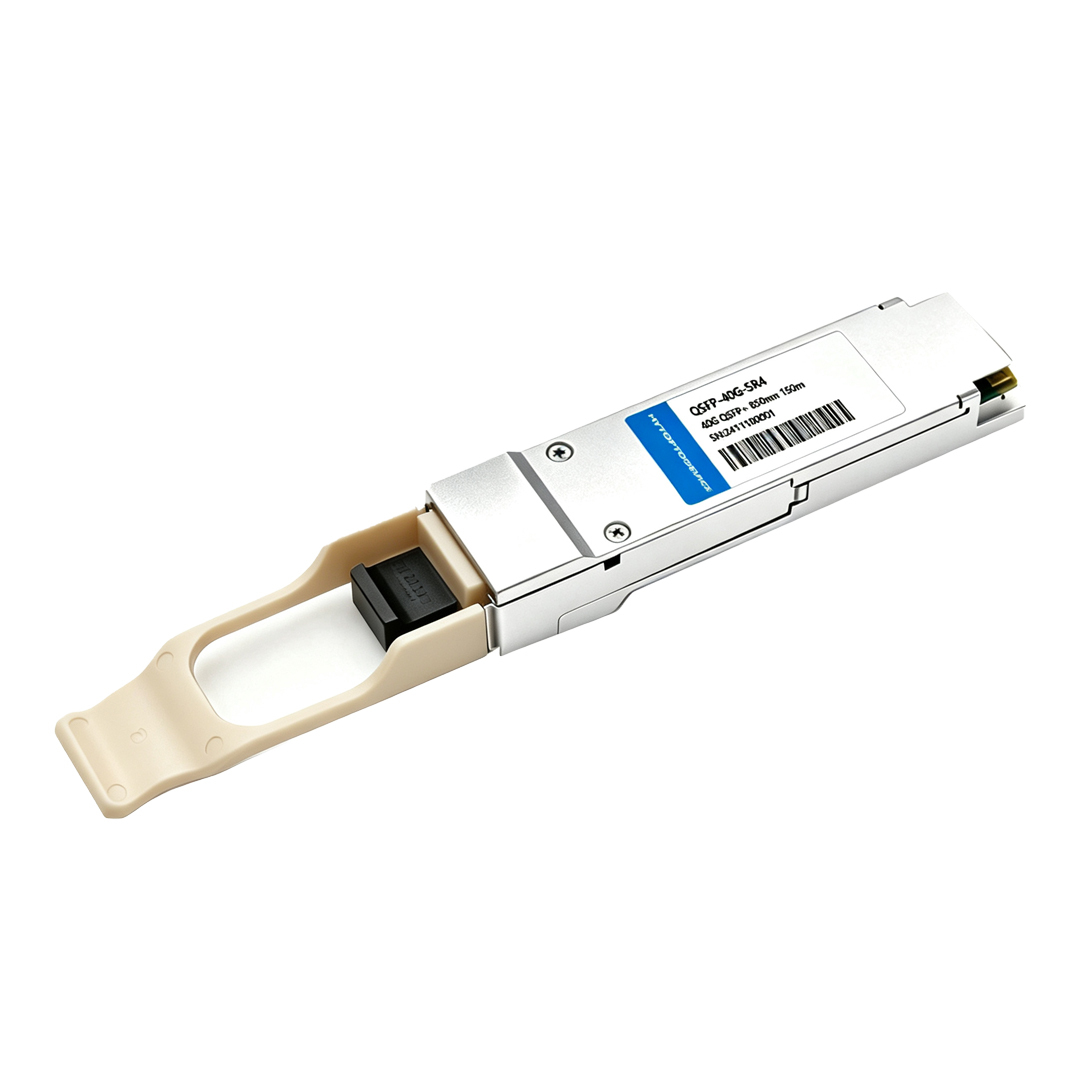

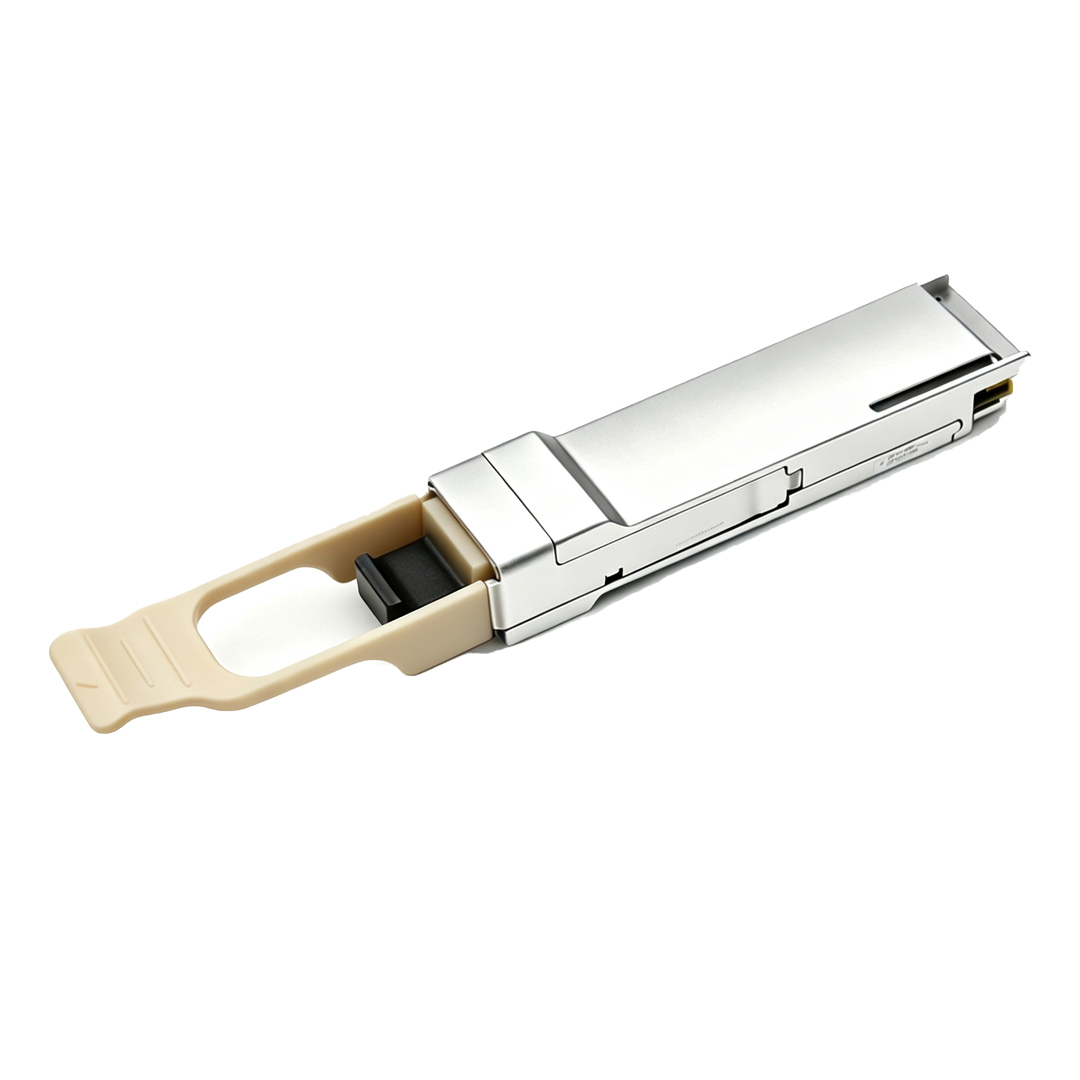

| HPE H3C Compatible | JG325A | Vendor Name | HYTOPTODEVICE |
| Form Factor | QSFP+ | Max Data Rate | 41.25Gbps |
| Wavelength | 850nm | Max Distance | 150m@OM4/100m@OM3 |
| Connector | MTP/MPO | Transmitter Type | VCSEL 850nm |
| Cable Type | MMF | Receiver Type | PIN |
| TX Power | -8.0~1.0dBm | Receiver Sensitivity | < -13dBm |
| Power Consumption | ≤1.5W | Modulation | NRZ |
| Protocols | IEEE 802.3 40GBASE-SR4, SFF-8436 | Operation Temperature | 0 to 70°C (32 to 158°F) |
Usage Guidelines & Best Practices
Fiber Choice: Only compatible with OM3 / OM4 multi‑mode MPO‑12 trunk cabling; single‑mode fiber cannot facilitate 850 nm SR4 operation and will produce link failure.
Distance Limit: 100‑metre maximum operating reach on OM3, 150‑metre maximum on OM4; excessive splice joints, dirty connector end‑faces or sharp fiber bends degrade practical transmission distances.
Cleanliness & Dust: Keep dust caps on whenever unattached. Clean fiber end-faces with a optical cleaning pen before insertion; dust causes over 80% of optical link failures.
Installation Specification: Hot‑plug supported; keep MPO connector end‑faces clean, observe minimum fiber‑bend radius requirements.
Operating Environment: Designed for commercial‑grade 0°C‑70°C ambient conditions; maintain adequate cabinet‑level airflow to prevent excessive module temperature build‑up.
Full Compatibility List and Supported Devices
1. Supported Hardware & Firmware
Primary Application Scenarios
• Intra-data center short-distance leaf-spine fabric links built on HPE FlexFabric switching hardware
• 40G high-speed aggregation trunk expansion for large HPE FlexNetwork enterprise campus networks
• Top-of-Rack 40G uplinks connecting HPE Comware switches to virtualization and compute server clusters
• Rack-to-rack short multi-mode fiber interconnections inside server rooms
• Enterprise and MSP infrastructure upgrade and HPE FlexFabric network modernization projects
• Multi-vendor hybrid fabric deployments for cloud and virtualized workloads
1. 40G Connectivity for Data Center
High speed, low overhead. The QSFP+ 40G module brings gigabit-class throughput to dense data center racks while drawing less power and taking up less space.
FAQ
Q1: How to troubleshoot unsupported transceiver warnings after installing HYTOPTODEVICE 40G QSFP+ SR4 on HPE FlexFabric Comware switches? A: This alert usually comes from vendor lock-in coding mismatch. Genuine HYTOPTODEVICE JG325A compatible modules include proper EEPROM coding; if warning persists, verify port settings, upgrade switch firmware or contact HYTOPTODEVICE for module recoding.
Q2: Can HYTOPTODEVICE 40G QSFP+ SR4 transceiver work with existing 10G SFP+ cables for phased HPE FlexFabric data center migration? A: Yes, with breakout cabling solution. The 40G SR4 port can be split to 4×10G links by MPO-to-4×LC breakout cable connected to SFP+ ports, enabling gradual network migration.
Q3: Which fiber types should be selected when deploying HYTOPTODEVICE JG325A compatible 40G QSFP+ SR4 for HPE enterprise data center? A: Multimode fiber only, OM3 or OM4 (OM5 also compatible on some platforms). It cannot run over single-mode fiber; single-mode links require 40G LR4 transceivers.
Q4: What power consumption should network planners expect for HYTOPTODEVICE 40G QSFP+ SR4 populated inside dense HPE FlexFabric switch racks? A: Typically 1.0–1.5W per module depending on temperature, well below MSA maximum limits, so it is safe for densely populated switch line cards.
Q5: What insertion loss and link budget values need to be calculated for HPE FlexFabric fiber plant design using HYTOPTODEVICE 40G QSFP+ SR4? A: 40GBASE-SR4 channel supports maximum insertion loss of roughly 1.9 dB including connectors and patch panels. Test and confirm your cable plant loss before field deployment.
Q6: Will deploying HYTOPTODEVICE 40G QSFP+ SR4 limit future 100G upgrade roadmap for HPE Comware network infrastructure? A: It is a 40G transceiver; existing OM3/OM4 fiber can often be reused for 100G SR4/SR10, but ports and transceivers need upgrading. Plan cabling with future bandwidth growth in mind.
Q7: Can existing on-site MPO trunk fiber be reused with HYTOPTODEVICE 40G QSFP+ SR4 during HPE FlexFabric network upgrade projects? A: Check fiber count, UPC polish and fiber polarity. Existing 12-fiber MPO trunks are often reusable, but verify insertion loss and polarity match SR4 requirements.
Q8: What risks will appear if mixing OM3 and OM4 multi-mode fiber segments within one physical link using HYTOPTODEVICE 40G QSFP+ SR4? A: It works, but maximum distance is limited by the shorter-grade OM3 segment, so the mixed link is rated at 100 meters maximum.
Q9: What compliance certificates can enterprise buyers obtain for HYTOPTODEVICE bulk ordered 40G QSFP+ SR4 optical transceivers? A: Available documents include CE, FCC, RoHS and REACH certification. HYTOPTODEVICE holds ISO9001 quality system; request certificates before placing large wholesale orders.
Q10: Does HYTOPTODEVICE 40G QSFP+ SR4 module have sufficient ESD protection during shipping and field handling for HPE FlexFabric installations? A: Yes, modules ship in anti-static packaging and support hot-swap with built-in ESD protection. Always ground yourself before touching optical components.
Q11: What stock availability and lead time for HYTOPTODEVICE JG325A compatible 40G QSFP+ SR4 bulk wholesale purchase orders? A: Standard SR4 models are normally in stock with 24–72 hour dispatch; custom coded or industrial temperature variants may require 1–3 weeks production lead time.
Q12: What payment terms and international Incoterm options does HYTOPTODEVICE accept for cross-border bulk procurement of 40G QSFP+ SR4? A: Accepted payment methods: T/T, PayPal, trade assurance for small orders; FOB, CIF and DDP shipping terms available. Confirm total landed cost including duties and taxes before order confirmation.
Q13: Are there unexpected customs charges when importing HYTOPTODEVICE 40G QSFP+ SR4 for HPE FlexFabric enterprise network projects? A: Import duties and taxes vary by destination country and Incoterm. Request DDP quotation if you want fixed all-in delivered price without surprise customs fees.
Q14: How can network administrators read real-time optical diagnostic data from HYTOPTODEVICE 40G QSFP+ SR4 installed on HPE Comware switches? A: Use Comware switch CLI commands such as show interface transceiver or show optics to view per-lane temperature, supply voltage, TX/RX optical power and alarm thresholds via DOM.
Q15: Is purchasing 40G QSFP+ SR4 still cost-effective while industry migrates toward 100G / 400G speeds for HPE FlexFabric networks? A: It remains fully supported and cost saving for existing 40G network environments. Your multimode fiber can be reused for future upgrades. Choose a reliable manufacturer like HYTOPTODEVICE for long-term spare stock supply.
Packaging & Custom OEM Solutions
Every 40G QSFP+ SR4 module ships in sealed ESD-safe packaging, ready for same-day dispatch. Bulk orders offer OEM customization—logo printing and private labeling—tailored for network distributors, integrators, and enterprise deployments.
Why Network Engineers Choose HYTOPTODEVICE
HYTOPTODEVICE has supplied over 5000,000 optical transceiver modules to data centers, ISPs, and enterprise networks across 100+ countries since 2011. Every module undergoes a 72-hour burn-in test and full DDM/DOM validation before shipment.
