Q1: Why Dell-compatible 10G BiDi SFP Transceiver 60km must be deployed in matched wavelength pairs only?

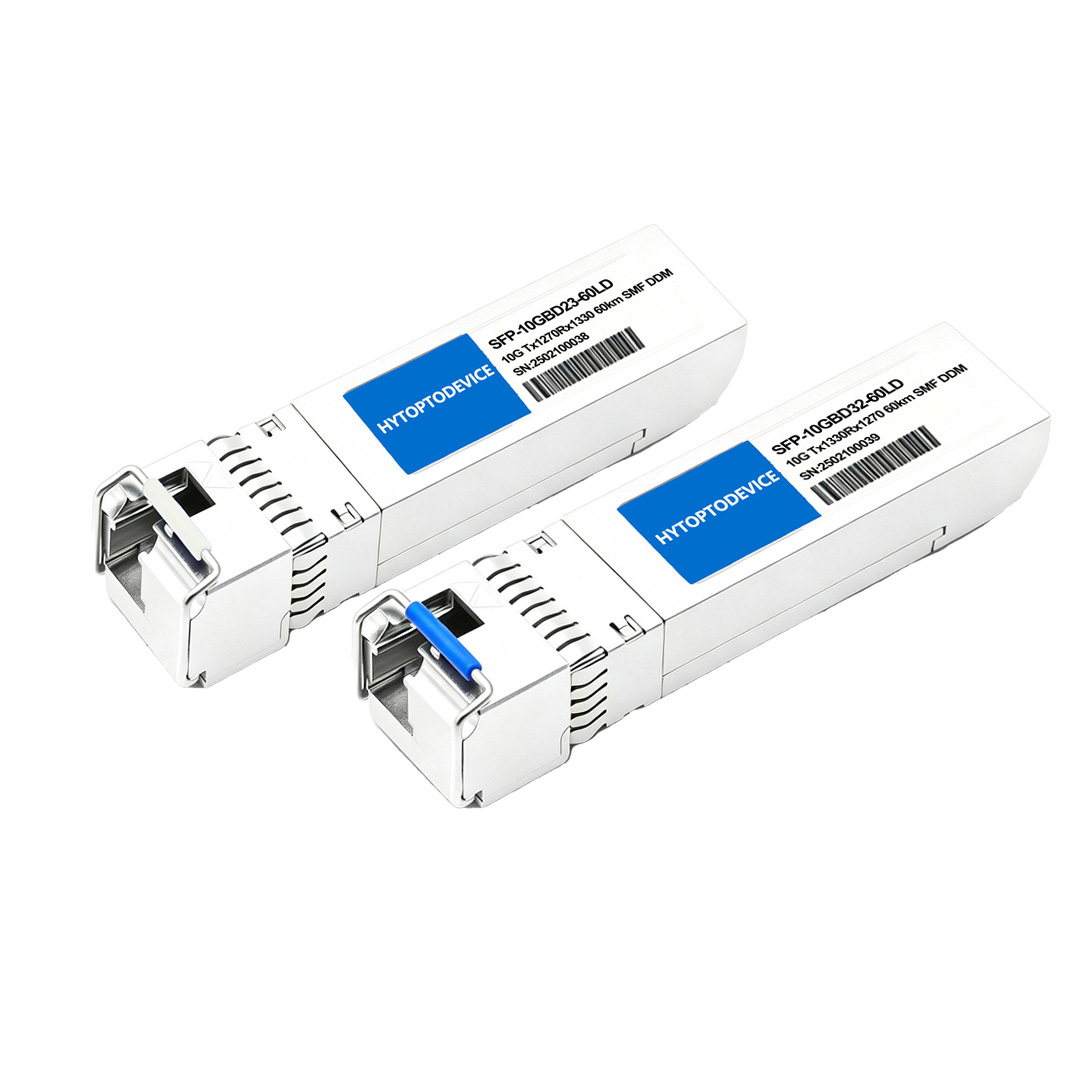

A1: This Dell-certified 10G BiDi SFP Transceiver 60km adopts exclusive single-fiber bidirectional transmission architecture, which relies on two complementary wavelength bands to complete uplink and downlink data transmission. One end uses 1270nm transmit/1330nm receive parameters, while the opposite end needs 1330nm transmit/1270nm receive matching. Purchasing and installing two identical wavelength modules will cause complete signal mismatch, making the entire 60km single-fiber link unable to activate normally. Standard paired procurement is the basic premise for stable deployment of Dell long-haul BiDi links.
Q2: What network migration failures will be caused by mixing 10G BiDi SFP Transceiver 60km with traditional dual-fiber Dell link infrastructure?
A2: Legacy Dell enterprise network links adopt dual-fiber separate transceiving design, with independent fiber cores for signal sending and receiving. Differently, 10G BiDi SFP Transceiver 60km integrates two-way data transmission on a single fiber strand. Improperly deploying BiDi modules on traditional dual-fiber links during network upgrades will directly fail link negotiation. It will also cause chaotic on-site patching logic, disrupt original migration scheduling plans, and bring additional debugging and rectification costs for Dell network renovation projects.
Q3: How does long-distance wavelength attenuation asymmetry interfere with Dell 10G BiDi SFP Transceiver 60km link power balance?
A3: Single-mode fiber produces inconsistent attenuation loss coefficients for 1270nm and 1330nm optical signals. For ultra-long 60km transmission scenarios of 10G BiDi SFP Transceiver 60km, this wavelength asymmetry will cause obvious power deviation between uplink and downlink paths. Field engineers need to spend a lot of time calibrating bidirectional power budgets repeatedly, greatly improving the debugging difficulty of Dell metro long-haul links and reducing project deployment efficiency.
Q4: Why subtle optical signal jitters easily trigger full disconnection of Dell 60km BiDi long-haul transmission links?
A4: The power budget design of 10G BiDi SFP Transceiver 60km is extremely precise, with only about 20dB attenuation margin, operating at the critical threshold of long-distance transmission tolerance. Slight on-site faults such as bent fiber jumpers, dirty bulkhead ports and loose connectors will cause 2–3dB optical power attenuation. This tiny power drop will directly make the received optical power lower than the -23dBm sensitivity threshold, resulting in sudden and irreversible downtime of Dell enterprise long-span links.
Q5: What hidden pseudo-link fault risk does APD receiver saturation bring to Dell 10G BiDi SFP Transceiver 60km?
A5: The high-sensitivity APD receiver of 10G BiDi SFP Transceiver 60km has a fixed signal receiving saturation threshold. When the input optical power exceeds the saturation standard but does not reach the damage limit, the receiver will fall into a "blind state". The module hardware is intact, and the Dell switch port displays normal Link Up status, but the optical signal cannot be decoded effectively, resulting in zero business data throughput. This invisible soft fault is difficult to troubleshoot in daily Dell network operation and maintenance.
Q6: Why excessive patch panel cascading leads to margin exhaustion for Dell 10G BiDi SFP Transceiver 60km links?
A6: Each fiber docking sleeve and jumper connection point will generate inherent insertion loss and optical reflection loss. The optical tolerance of 10G BiDi SFP Transceiver 60km is fully calibrated for standard 60km fiber transmission, with almost no redundant loss margin. In actual Dell structured cabling deployment, adding only two extra patch panel cross-connection nodes will completely consume the reserved power budget, causing continuous link jitter or permanent disconnection of long-haul single-fiber links.
Q7: Why high-power 10G BiDi SFP Transceiver 60km is prone to overheating failure on Dell security firewall ports?
A7: Dell core switches are equipped with high-power heat dissipation systems and spacious chassis ventilation structures, while security firewalls adopt dense port layout with limited internal air circulation. The high-power 10G BiDi SFP Transceiver 60km works with 1.5W–2W high power consumption for a long time, which will accumulate a lot of heat in the narrow firewall port cage. Continuous high temperature will cause port hardware freeze, NIC suspension and intermittent link offline faults, affecting the stable operation of enterprise security transmission links.
Q8: Why conventional optical power meters are prone to misjudgment in Dell 10G BiDi SFP Transceiver 60km field maintenance?
A8: The two-way transmission of 10G BiDi SFP Transceiver 60km relies on two different wavelength bands of 1270nm and 1330nm, which requires field maintenance personnel to manually switch the corresponding detection wavelength mode of the power meter. In daily rapid troubleshooting, technicians often ignore wavelength switching operation, resulting in detection data deviation of several dB. Inaccurate test data will mislead fault judgment and delay the repair progress of Dell long-haul link abnormalities.
Q9: What is the cliff-type failure hidden danger of long-term used Dell 10G BiDi SFP Transceiver 60km?
A9: After 3–5 years of long-term carrier-grade continuous operation, the internal laser pump current and APD bias voltage of 10G BiDi SFP Transceiver 60km will produce slow drift changes. Different from the gradual performance attenuation of ordinary optical modules, 60km long-reach BiDi modules have cliff-type failure characteristics. The link can operate normally in the early stage, but suddenly fails completely without any early warning, causing sudden business interruption of Dell enterprise backbone network.
Q10: What hidden loss risks exist in dark fiber leasing scenarios for Dell 10G BiDi SFP Transceiver 60km deployment?
A10: BiDi single-fiber transmission can effectively reduce dark fiber leasing costs for Dell enterprises, but most leased long-distance dark fiber will pass through multiple intermediate splicing and cross-connection nodes. The cumulative attenuation loss generated by multiple docking points in actual deployment far exceeds the factory calibrated loss budget of 10G BiDi SFP Transceiver 60km. The excessive real-world line loss will make the originally leased dark fiber link unable to meet 60km long-haul transmission requirements, resulting in wasted leasing costs and unqualified network deployment.
