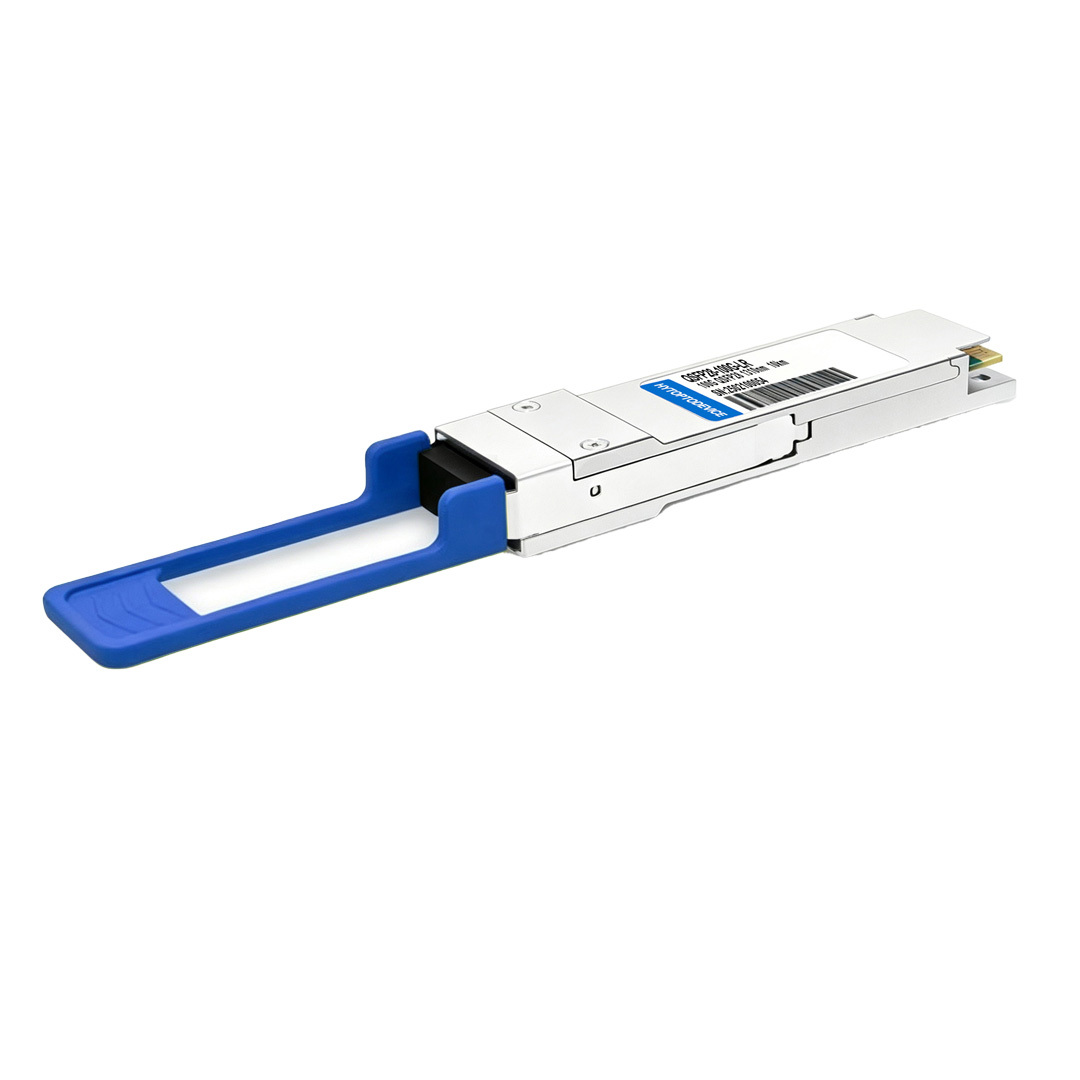

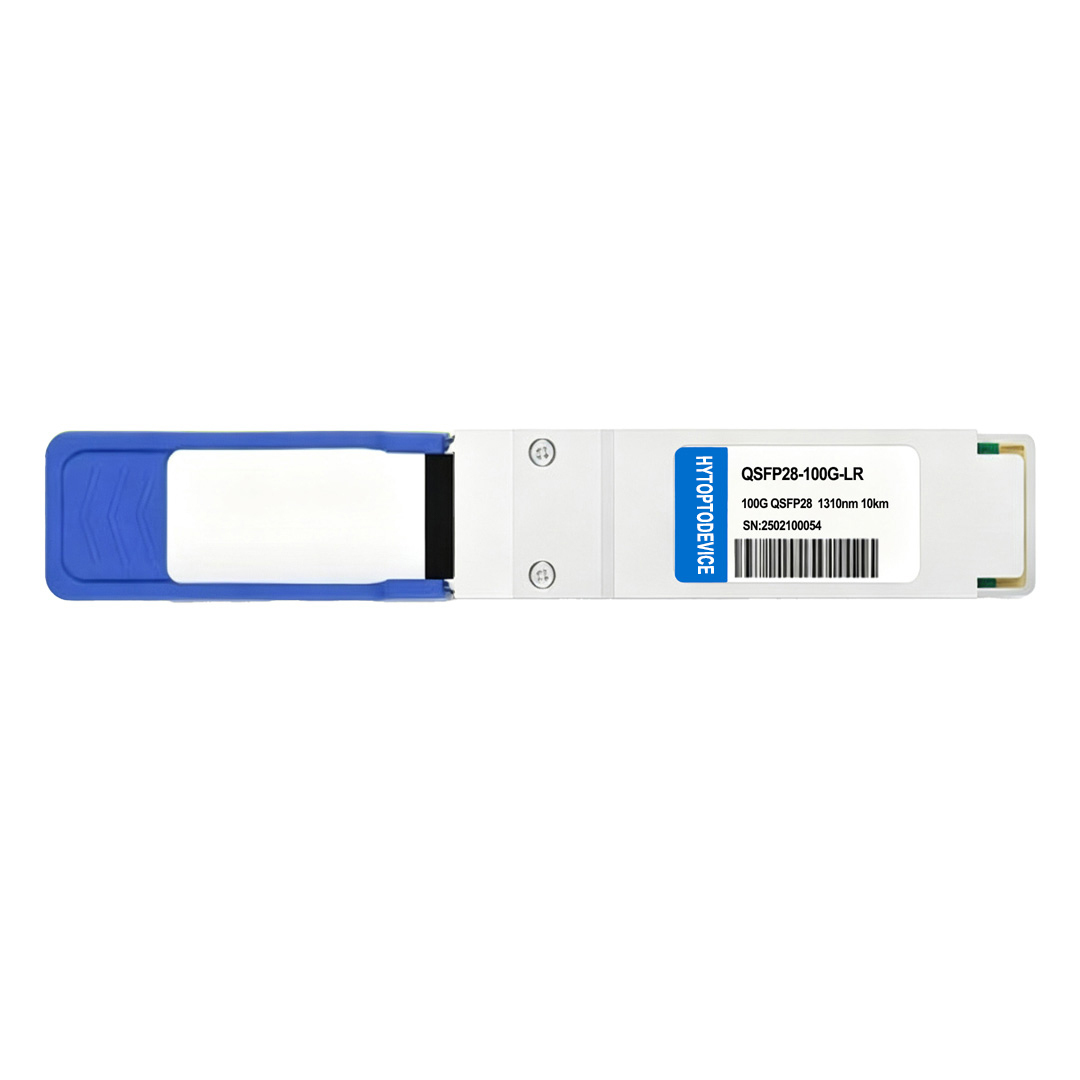

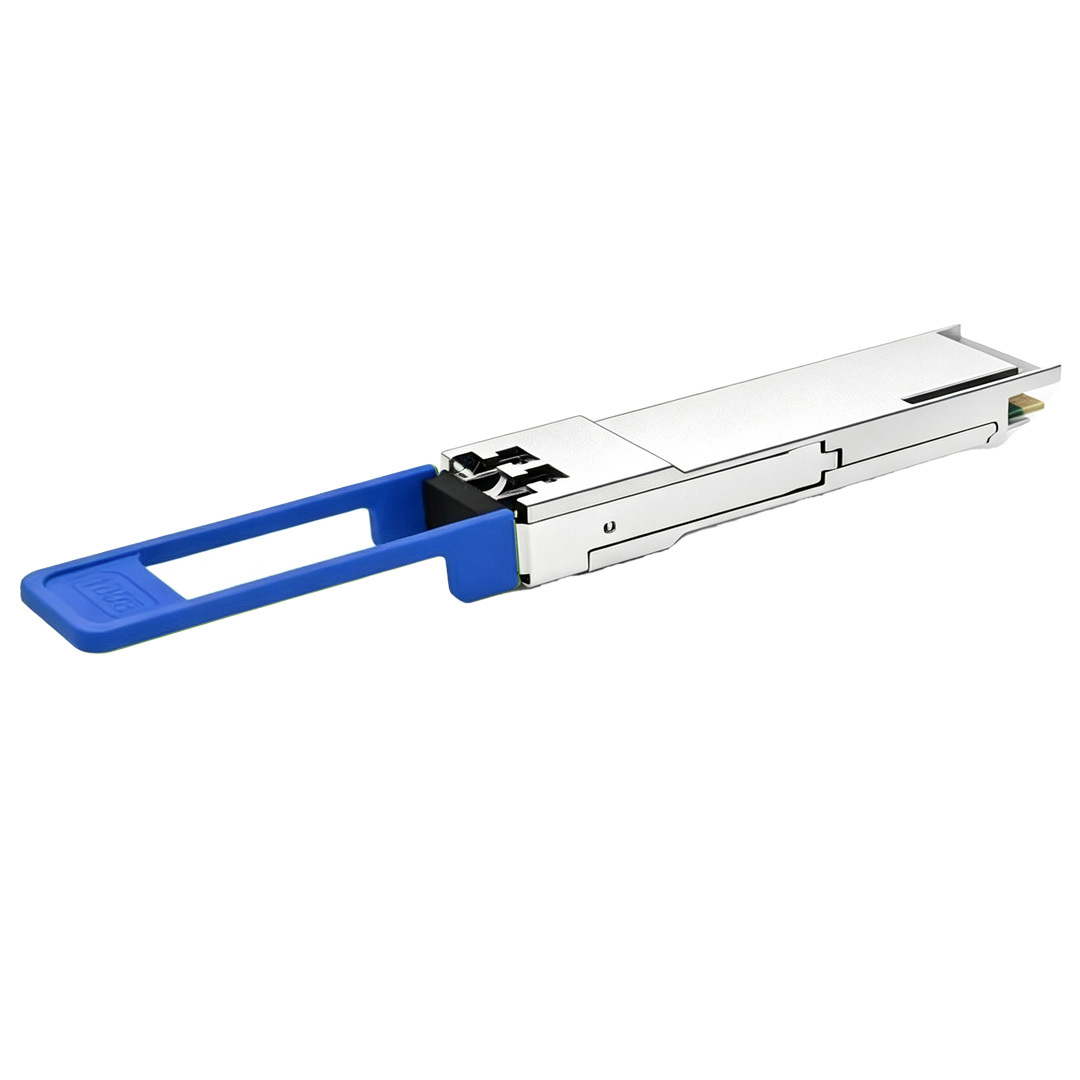

Dell 100G-QSFP28-LR Compatible 100G QSFP28 Transceiver Module LR Single Lambda | 100GBASE-LR 1310nm 10km SMF Duplex LC | HYTOPTODEVICE
Product Overview
This 100G QSFP28 transceiver serves as a cost-effective drop-in replacement for Dell 100G-QSFP28-LR, engineered to minimize unrecognized module alerts and unstable links across Dell PowerSwitch data center and enterprise switching hardware.
Built around single-lambda 1310nm PAM4 modulation and integrated KP4 forward error correction, this QSFP28 transceiver sustains reliable 100G Ethernet traffic up to 10km over OS2 single-mode fiber. Its onboard DSP converts four independent 25G electrical lanes into a single 100G optical channel, preserving signal integrity across multi-floor campus trunks and inter-building long-distance connections.
The module complies with IEEE 802.3cd, QSFP28 MSA and 100G Lambda MSA standards, with native DDM/DOM real-time optical monitoring capability. Tailored EEPROM profiles support hot insertion on Dell equipment and reduce persistent system warning logs. It fits leaf-spine fabric interconnections, long-range aggregation uplinks and incremental bandwidth expansion using standard 400G PLR4 optical breakout.
Key Technical Specifications
| Dell Compatible |
100G-QSFP28-LR |
Vendor Name |
HYTOPTODEVICE |
| Form Factor |
QSFP28 |
Max Data Rate |
100Gbps Single Lambda |
| Wavelength |
1310nm
|
Max Distance |
10km |
| Connector |
Duplex LC/UPC |
Transmitter Type |
EML |
| Cable Type |
SMF |
Receiver Type |
PIN |
| FEC Support |
Yes |
TX Power |
-1.4~+4.5dBm |
| Power Consumption |
<4.5W |
Receiver Sensitivity |
< -6.1dBm |
| Protocols |
QSFP28 MSA, SFF-8636,IEEE 802.3cu,CAUI-4 |
Operation Temperature |
0 to 70°C (32 to 158°F) |
For detailed technical specifications, please refer to the Datasheet
Usage Guidelines & Best Practices
- Fiber Requirement: Only OS2 single-mode fiber; OM3/OM4 multimode fiber cannot support 1310nm PAM4 transmission and will cause link failure.
- FEC Configuration: Enable KP4 FEC on Target switch ports to maximize 10km link margin and sustain low BER stability.
- Installation Specification: Hot-plug supported; keep LC end faces clean and maintain proper bend radius to avoid extra attenuation.
- Distance Limit: Rated for 10km OS2 SMF; excessive splices, contaminated connectors or tight bends reduce effective transmission distance.
- Optical Attenuator Required for Short Links: For testing or short‑distance connections (<5km), connect a 2dB optical attenuator to the RX port to prevent damaging the receiver,ensuring the received power between -6.1~+4.5dBm.
- Operating Environment: Commercial temperature 0°C–70°C; keep ports dry and dust-free to extend QSFP28 transceiver service life.
For detailed operation instructions, please refer to the User Guide.
Full Compatibility List & Supported Network Hardware
1. Supported Hardware & Firmware
HYTOPTODEVICE Dell 100G-QSFP28-LR compatible QSFP28 transceiver matches original mechanical dimensions and optical parameters. Customized EEPROM programming enables plug-and-play deployment on Dell PowerSwitch series. Every unit undergoes full interoperability testing to suppress unknown transceiver alarms, port flapping and intermittent session drops.
Validated Dell Platforms:
- Dell PowerSwitch leaf and spine data center switches
- Dell enterprise core and aggregation switches
- Rack servers fitted with QSFP28 100G NIC adapters
- All hardware with standard QSFP28 ports supporting 100GBASE-LR1 single lambda
2. Multi-Brand Cross Compatibility
Built on universal MSA specifications, these QSFP-100G-LR-S replacement QSFP28 transceivers support broad multi-vendor interoperability. They work seamlessly with Arista, Cisco, Juniper, H3C, Huawei,Dell, NVIDIA/Mellanox hardware and other more, supporting multi‑vendor hybrid networking and flexible long‑reach 100G data‑center deployment.
3. Free Value-Added Services
-
Custom firmware for multi-device compatibility
-
Support sample testing before bulk orders for project pre-verification
-
Private-label customization and professional deployment guidanc
-
Strict batch consistency quality control
- Free custom EEPROM programming for special and legacy network environments
- Free EEPROM rewriting (Tools Included) with 24/7 Tech Support
Primary Application Scenarios
- Leaf-spine fabric inter-switch links inside Dell enterprise data centers
- Long-distance 100G Ethernet trunking across multi-building corporate campuses
- 400G PLR4 to 4×100G optical breakout for gradual bandwidth modernization
- 100G uplinks between ToR switches and HPC, virtualization and GPU server clusters
- Enterprise core network extension over 10km single-mode fiber
- Multi-vendor hybrid infrastructure long-range interconnection
Connectivity Solutions(Applications)
1. 100G to 100G for Switch-Switch Interconnection

2.100G to 100G for Switch-NIC Connection

3.100G to 400G Smooth Network Migration

The Core Feature
1.Phased upgrade without full infrastructure replacement
Single-lambda PAM4 design and standard KP4 FEC enable seamless 400G FR4 breakout migration. Customers scale bandwidth batch by batch while reusing target switching and fiber assets, maximizing hardware utilization and cutting total TCO.

2.Verified Host Interoperability
EEPROM firmware pre-coded to your target host. Every QSFP28 is real-machine verified across host generations. Plug in, power up — zero alarms, zero re-work. No link flapping. No port lockdowns. No compatibility errors. Legacy or current hardware, same clean result.

3.Comprehensive Factory Testing & Reliable Performance
100% factory tested, not sampled. Optical eye, TX/RX power, wavelength, sensitivity, EEPROM/DDM. Full burn-in plus wide-temp testing. Traceable test data. Reliable now, reliable years on.
Curious how? Tour the Test Center.

FAQ
Q1: Does 100G LR1 QSFP28 transceiver support automatic speed fallback to 40G links?
A: HYTOPTODEVICE 100G LR1 QSFP28 transceiver runs on native 100GBASE-LR1 protocol and cannot automatically drop to 40G. Its 4×25G PAM4 electrical interface cannot align with standard 40G optical signaling. If your network requires 40G interconnection, select dedicated 40G optical modules instead of this QSFP28 transceiver.
Q2: What performance gaps exist between 100G LR1, FR1 and DR QSFP28 single lambda transceivers?
A: These QSFP28 transceiver variants target different distance scenarios. DR QSFP28 transceiver serves short rack interconnections up to 500m; FR1 covers building-level distribution at 2km; LR1 QSFP28 transceiver supports campus and inter-building links up to 10km. Though built on 1310nm single lambda design, they differ in optical budget and dispersion resistance, stable cross-model interconnection is not guaranteed.
Q3: Will compatible 100G LR1 QSFP28 transceiver trigger unsupported module alerts on mainstream data center switches?
A: Alarm probability depends on switch firmware and access control policies. HYTOPTODEVICE writes customized EEPROM data matching Dell OEM identifiers to minimize warning logs. Even so, strict authentication modes may still restrict third-party QSFP28 transceiver. We supply full testing reports and adjustable coding to lower on-site deployment risks.
Q4: Can older QSFP28-based switches correctly identify 100G LR1 QSFP28 transceiver?
A: Legacy QSFP28 switches can physically accept the module, yet protocol compatibility relies heavily on firmware releases. Outdated OS may fail to recognize 100GBASE-LR1 or read DDM data abnormally. Confirm exact switch model and firmware before bulk deployment; upgrading firmware often solves QSFP28 transceiver identification and FEC setup issues.
Q5: Is it feasible to run 100G LR1 QSFP28 transceiver over fiber routes longer than 10km?
A: The 10km rating defines the standardized guaranteed operating boundary for this QSFP28 transceiver. Operating at 12km or further exceeds designed optical budget and dispersion tolerance. You may face rising bit errors, unstable optical monitoring data and random link outages. Longer transmission needs amplified optical links or longer-reach transceivers.
Q6: How much chromatic dispersion can 100G LR1 QSFP28 transceiver withstand in practical deployment?
A: 100GBASE-LR1 operates inside a limited dispersion window centered at 1310nm. Actual tolerance varies by DSP and laser design, generally near ±220 ps/nm for 10km-grade QSFP28 transceiver. Excessive dispersion distorts signal waveform and weakens transmission stability. Always calculate dispersion during fiber path planning.
Q7: How does power consumption of 100G LR1 QSFP28 transceiver compare to traditional 100G LR4 modules?
A: 100G LR1 QSFP28 transceiver generally consumes less power than 100G LR4. LR4 requires four independent laser channels plus complex multiplexing components, while LR1 adopts single-laser simplified optical layout. HYTOPTODEVICE LR1 QSFP28 transceiver stays under 4.5W, easing thermal pressure inside dense leaf-spine racks.
Q8: Can standard commercial 100G LR1 QSFP28 transceiver work in extreme outdoor industrial temperature ranges?
A: Standard commercial QSFP28 transceiver supports 0°C to 70°C. Industrial temperature versions are available upon request with reinforced components and strict thermal screening. Do not deploy commercial-grade QSFP28 transceiver in unconditioned outdoor cabinets without confirming industrial specifications.
Q9: Why is 100G LR1 QSFP28 transceiver more cost-efficient than legacy 100G LR4 optics?
A: LR1 QSFP28 transceiver removes three laser assemblies and extra multiplexing hardware, simplifying internal structure. Lower component cost reduces unit price and spare inventory pressure. For campus links within 10km, LR1 QSFP28 transceiver delivers equivalent reach over duplex LC fiber with lower total operation cost.
Q10: Can users plug 100G LR1 QSFP28 transceiver directly into conventional WDM multiplexing systems?
A: Direct insertion into WDM channels is not recommended. This QSFP28 transceiver outputs broadband 1310nm light instead of precise DWDM grid wavelengths. Direct installation leads to crosstalk and poor filtering performance. For WDM transport, select dedicated DWDM transceivers or pair LR1 QSFP28 transceiver with matching 1310-band passive multiplexers.
