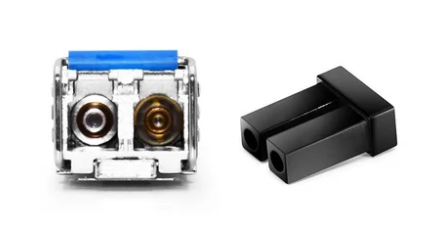

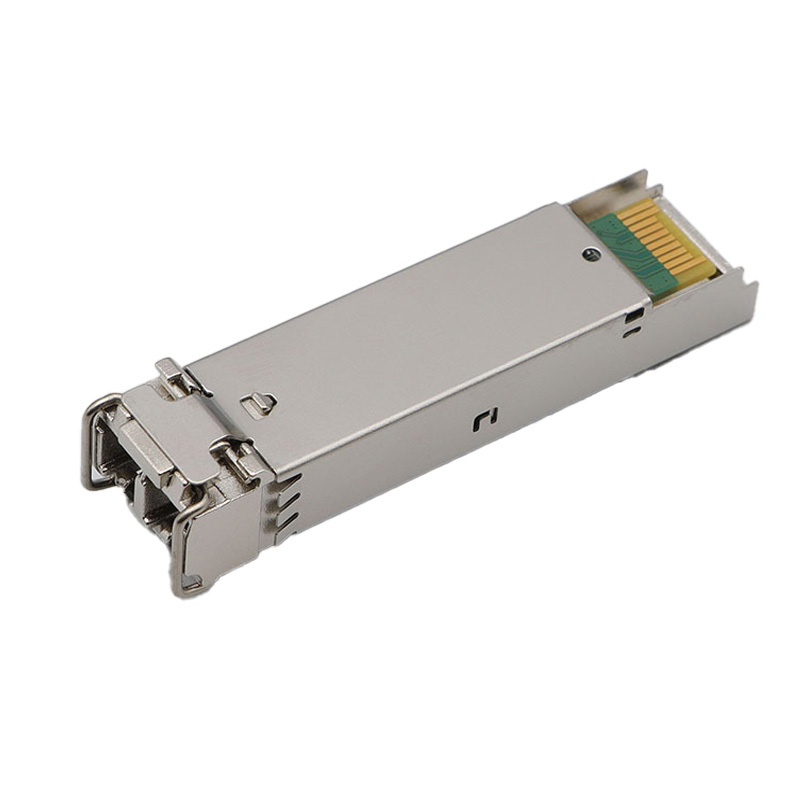

Ciena XCVR-040M31 Compatible 1000BASE-EX SFP 1310nm 40km DDM Duplex LC/UPC SMF Optical Transceiver Module

The HYTOPTODEVICE Ciena compatible 40km SFP is rigorously verified for seamless operation with:

• Ciena 3900 Series Service Delivery Switches: 3902, 3903, 3911, 3916, 3930, 3931.

• Ciena 5100 Series Service Aggregation Switches: 5142, 5150, 5160.

• Ciena 6500 Packet-Optical Platform: Standard SFP client ports.

• Ciena 8700 Packetwave Platform: High-density SFP ports.

• Ciena Waveserver Series: For management or low-speed client interfaces.

• Service Provider Edge Backhaul: Reliable 1.25G fiber handoffs for regional ISPs and telecommunications infrastructure up to 40km.

• Metropolitan Area Networking (MAN): Linking geographically dispersed data centers or corporate hubs where standard 10km LX modules are insufficient.

• Utility & Transport Networks: Providing stable fiber connectivity for long-distance monitoring and control systems in transit or power infrastructure.

FAQ for Ciena XCVR-040M31 Compatible SFP Transceiver:

Q1: Is the HYTOPTODEVICE module recognized by Ciena SAOS? A: Yes. Our modules are flashed with the specific Ciena EEPROM signatures, ensuring they are identified correctly by the SAOS (Service Aware Operating System) without "unsupported transceiver" warnings or port-lock issues.

Q2: Does this 40km module support DDM/DOM? A: Absolutely. It features full Digital Diagnostic Monitoring (DDM), allowing network engineers to monitor real-time laser temperature, supply voltage, and optical tx/rx power levels via the Ciena CLI (e.g., port xcvr show).

Q3: Can I use this 1G module in a Ciena 10G SFP+ port? A: Yes, most Ciena 10G SFP+ ports are backward compatible. After inserting the XCVR-040M31 compatible module, the port will typically auto-negotiate to 1000Mbps, provided the specific card supports dual-rate.

Q4: Do I need an optical attenuator for short-range testing? A: For fiber links shorter than 5km, we strongly recommend using a 10dB LC optical attenuator. The high-power 1310nm laser designed for 40km can over-load the receiver at close distances.

Q5: Ciena XCVR-040M31  not working？ A:Follow these quick steps:

1. Check DDM: Run show transceiver detail on the switch. Look for Low Rx Power or faults.

2. Clean & Reseat: Clean the LC fiber connectors and firmly re-seat the SFP module.

3. Verify Fiber: Ensure you are using a single-mode (SMF) patch cable. Check for bends or breaks.

4. Swap Test: If possible, test the SFP in a different port or swap it with a known-working module to isolate the fault.

If DDM shows "Low Tx Power" or "Fault", the module is likely defective and needs replacement

Quality Assurance：Your Trusted Optical Transceiver Source

HYTOPTODEVICE is a vertically integrated manufacturer of high-performance optical transceivers. By controlling core materials at the source, we ensure every SFP module meets the highest standards of reliability and customization.

• Vertical Integration: In-house core material production ensures a stable, self-sufficient supply chain for all optical modules.

• Total Traceability: End-to-end oversight from raw components to final transceiver assembly guarantees 100% controllability.

• Bespoke Solutions: Expert-led R&D provides customized SFP transceiver designs tailored to your specific technical needs.

• 24-Hour Response: Our technical team guarantees a primary response to any inquiry or quality concern within 24 hours.

Carrier-Grade Quality. Factory-Direct Control. Rapid Response.

Quality Certification & Compliance：

At HYTOPTODEVICE, our quality commitment is backed by industry-standard validations. From fiber optical transceiver manufacturing to final inspection, our processes ensure global compliance and reliability.

We adhere to rigorous standards for our SFP modules and network solutions:

• ISO 9001: Certified quality management and production consistency.

• CE,UL & FCC: Fully compliant for seamless Global Market Access.

• RoHS: Committed to environmental responsibility and hazardous material control.

• Proven Reliability: Rigorous testing to reduce compliance risk and ensure safety.

Certified Quality. Global Standards. Guaranteed Performance.

Rigorous Industrial Product Testing：



100% 3rd Party Compatible：

Partial Test Demonstration:
