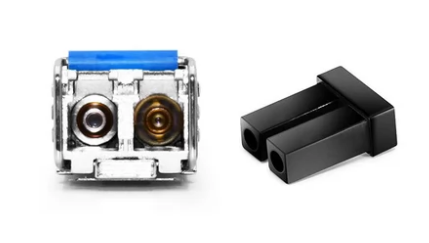

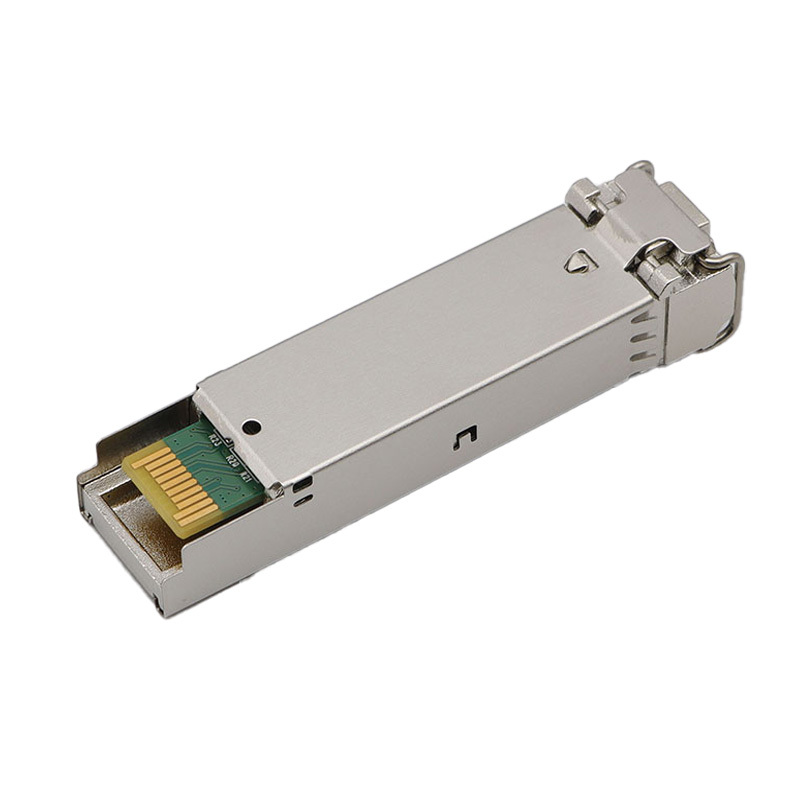

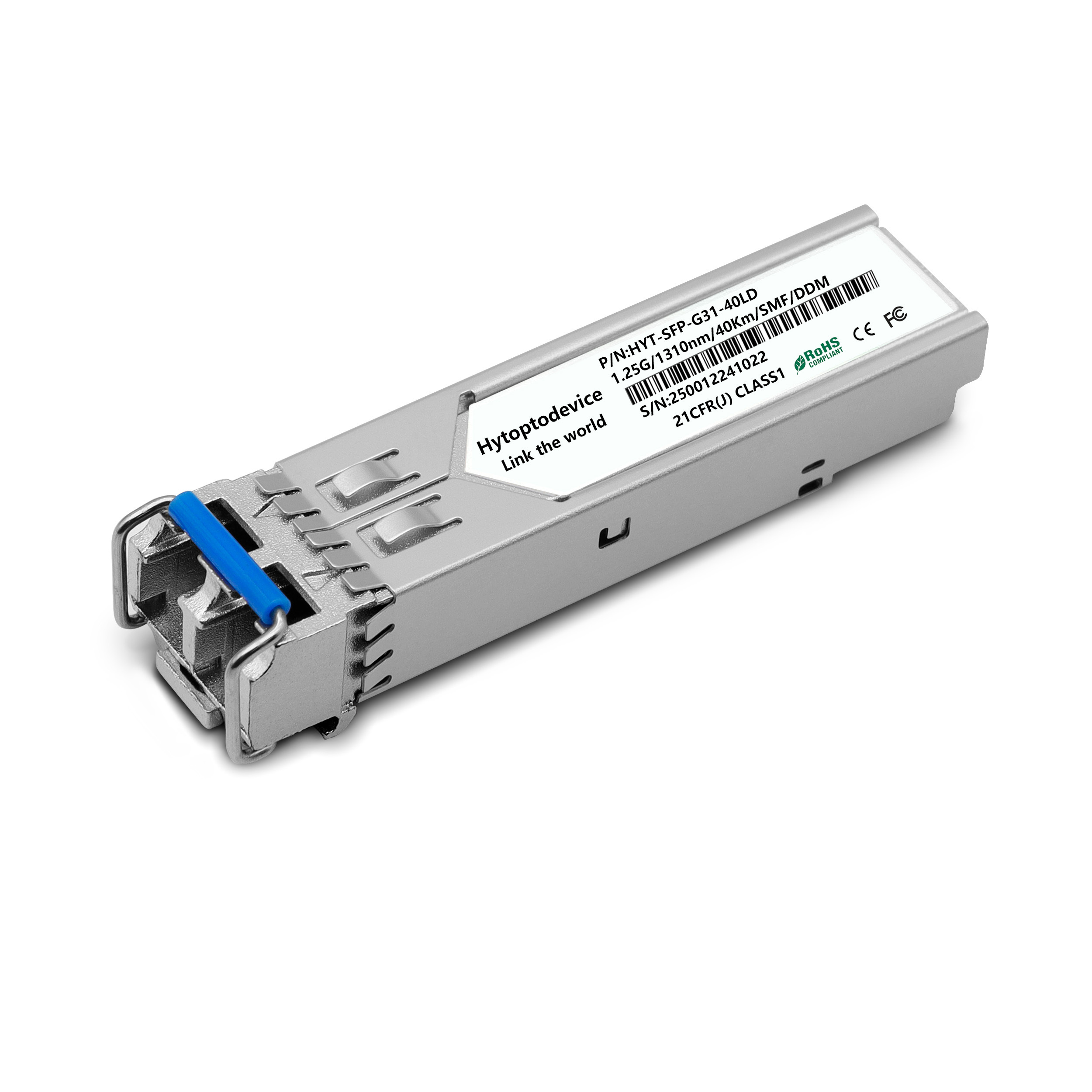

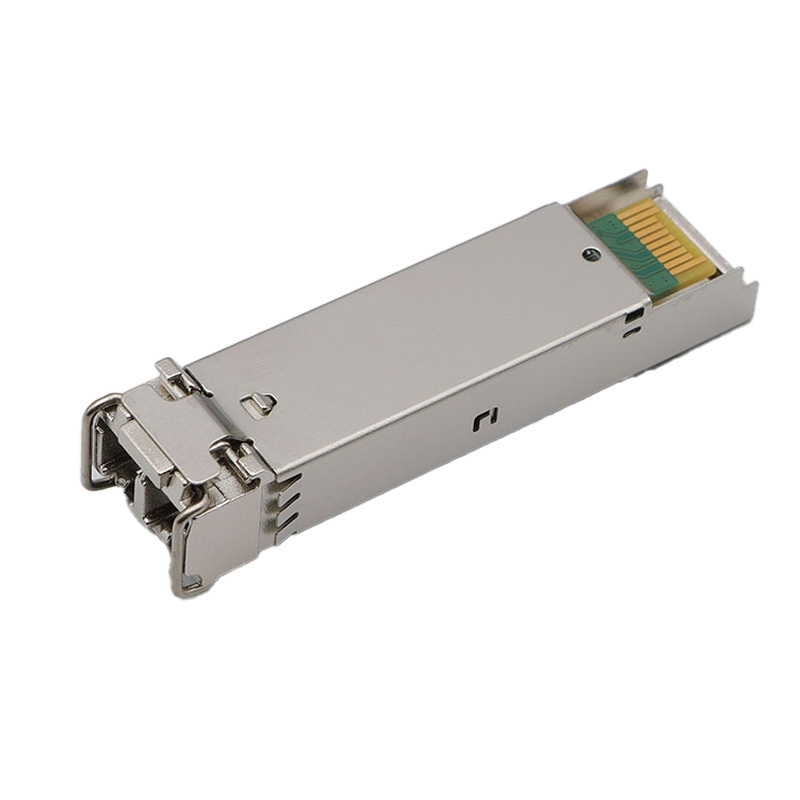

Calix 100-01663 Compatible 1000BASE-EX SFP 1310nm 40km DDM Duplex LC/UPC SMF Optical Transceiver Module

The HYTOPTODEVICE Calix compatible 40km SFP is rigorously verified for seamless operation with:

• Calix E7-2 Intelligent Access Edge: GE, G-series, and uplink cards.

• Calix E9-2 Multi-Terabit Access Edge: 1G client/uplink ports.

• Calix B6 Ethernet Access Nodes: All models supporting 1G SFP slots.

• Calix C7 Multiservice Access Platform: GE interface modules.

• Calix T-Series: Industrial-grade ONT/Gateway uplinks where applicable.

• Fiber-to-the-Home (FTTH) Backhaul: Linking remote OLT cabinets in rural areas to the Central Office (CO) over spans up to 40km.

• ISP Aggregation Links: Providing high-stability 1.25G fiber handoffs for regional service provider networks.

• Enterprise Fiber Extension: Connecting distributed municipal buildings or school district facilities using single-mode fiber infrastructure.

FAQ for Calix 100-01663 Compatible SFP Transceiver:

Q1: Is the HYTOPTODEVICE 100-01663 fully recognized by Calix AXOS/EXOS? A: Yes. Our modules are flashed with the correct Calix-specific EEPROM signatures, ensuring they are identified as genuine by AXOS and EXOS operating systems without "unsupported hardware" warnings.

Q2: Does this 40km module support DDM/DOM? A: Absolutely. It features full Digital Diagnostic Monitoring (DDM), allowing technicians to monitor real-time metrics such as laser power (TX/RX), temperature, and voltage via the Calix management interface (CMS or CLI).

Q3: Can I use this 1G SFP in a Calix 10G SFP+ port? A: Yes, most Calix OLT uplink ports are backward compatible. After inserting the 100-01663 compatible module, the port will typically auto-negotiate to 1000Mbps speed.

Q4: Do I need to use an optical attenuator? A: For fiber links shorter than 5km, we recommend using a 10dB LC optical attenuator. This protects the sensitive receiver from the high-power 1310nm laser designed for 40km transmission.

Q5: Calix 100-01663 not working？ A:Follow these quick steps:

1. Check DDM: Run show transceiver detail on the switch. Look for Low Rx Power or faults.

2. Clean & Reseat: Clean the LC fiber connectors and firmly re-seat the SFP module.

3. Verify Fiber: Ensure you are using a single-mode (SMF) patch cable. Check for bends or breaks.

4. Swap Test: If possible, test the SFP in a different port or swap it with a known-working module to isolate the fault.

If DDM shows "Low Tx Power" or "Fault", the module is likely defective and needs replacement

Quality Assurance：Your Trusted Optical Transceiver Source

HYTOPTODEVICE is a vertically integrated manufacturer of high-performance optical transceivers. By controlling core materials at the source, we ensure every SFP module meets the highest standards of reliability and customization.

• Vertical Integration: In-house core material production ensures a stable, self-sufficient supply chain for all optical modules.

• Total Traceability: End-to-end oversight from raw components to final transceiver assembly guarantees 100% controllability.

• Bespoke Solutions: Expert-led R&D provides customized SFP transceiver designs tailored to your specific technical needs.

• 24-Hour Response: Our technical team guarantees a primary response to any inquiry or quality concern within 24 hours.

Carrier-Grade Quality. Factory-Direct Control. Rapid Response.

Quality Certification & Compliance：

At HYTOPTODEVICE, our quality commitment is backed by industry-standard validations. From fiber optical transceiver manufacturing to final inspection, our processes ensure global compliance and reliability.

We adhere to rigorous standards for our SFP modules and network solutions:

• ISO 9001: Certified quality management and production consistency.

• CE,UL & FCC: Fully compliant for seamless Global Market Access.

• RoHS: Committed to environmental responsibility and hazardous material control.

• Proven Reliability: Rigorous testing to reduce compliance risk and ensure safety.

Certified Quality. Global Standards. Guaranteed Performance.

Rigorous Industrial Product Testing：



100% 3rd Party Compatible：

Partial Test Demonstration:
