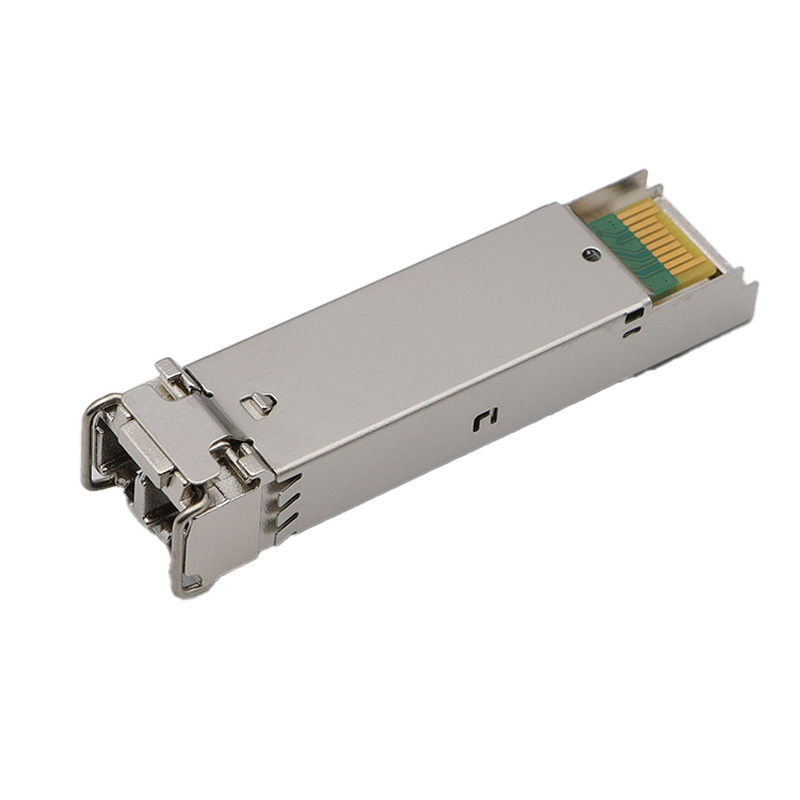

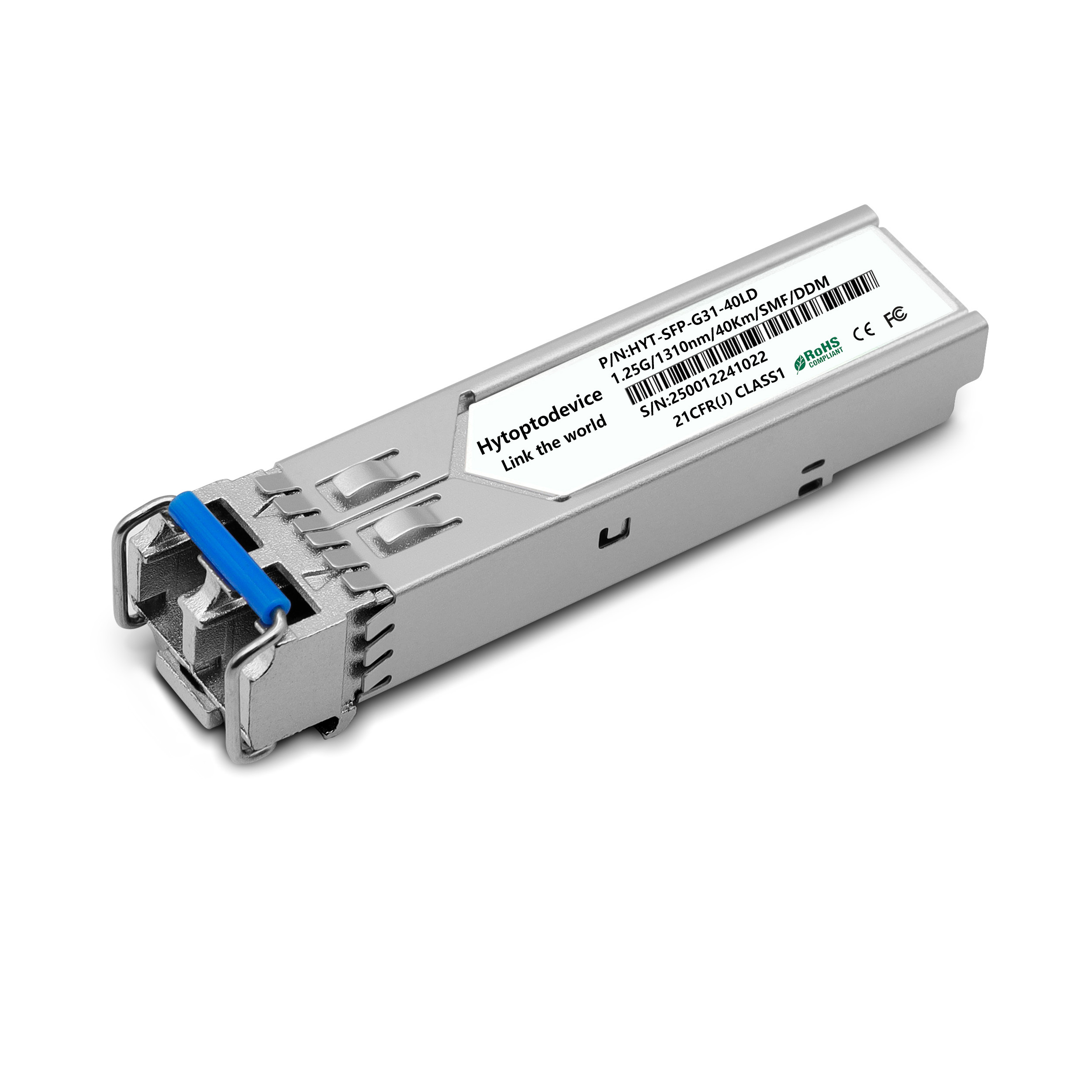

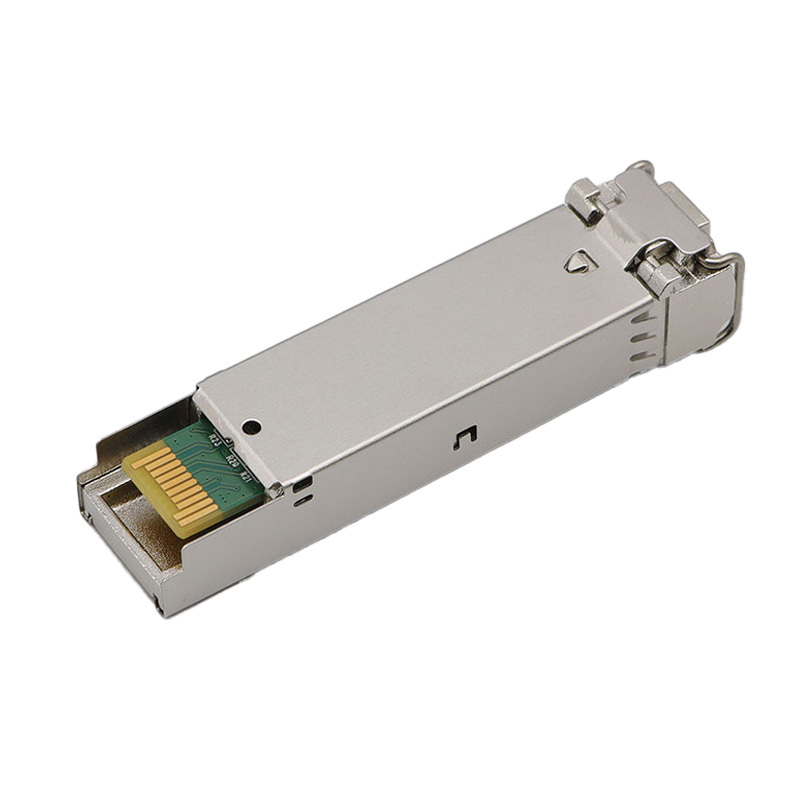

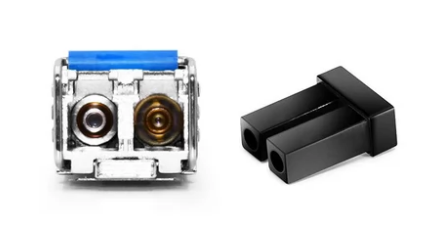

Brocade E1MG-EX-40 Compatible 1000BASE-EX SFP 1310nm 40km DDM Duplex LC/UPC SMF Optical Transceiver Module

   The HYTOPTODEVICE E1MG-EX-40 compatible SFP is 100% hardware-tested for compatibility with:

• Brocade/Ruckus ICX Series: ICX 6430, ICX 6450, ICX 6610, ICX 7150, ICX 7250, ICX 7450, ICX 7750.

• Brocade VDX Series: VDX 6710, VDX 6720, VDX 6730, VDX 6740.

• Brocade FCX & FastIron Series: FCX624, FCX648, SX-FI424.

• Brocade CES/CER Series: NetIron CES 2000, CER 2000.

• Campus Core Extensions: Connecting distributed networking closets in large universities or corporate campuses over fiber spans up to 40km.

• Metropolitan Networking: Linking remote branch offices to the central data center where standard 10km (LX) reach is insufficient.

• Service Provider Aggregation: Providing reliable 1.25G fiber handoffs for regional ISPs and telecommunications infrastructure.

FAQ for Brocade E1MG-EX-40 Compatible SFP Transceiver:

Q1: Is the HYTOPTODEVICE E1MG-EX-40 recognized by Brocade FastIron OS? A: Yes. Our modules are flashed with the correct Brocade/Ruckus EEPROM signatures, ensuring they are identified as genuine by FastIron OS (FI) and Network OS (NOS) without "unsupported transceiver" errors.

Q2: Does this 40km module support Digital Optical Monitoring (DOM)? A: Absolutely. It includes full DOM/DDM support, allowing you to monitor real-time diagnostics like laser temperature, supply voltage, and optical tx/rx power via the switch CLI (e.g., show optic 1/1/1).

Q3: Can I use this in a Brocade 10G SFP+ port? A: Yes. Most Brocade/Ruckus 10G SFP+ ports are backward compatible with 1G SFP modules. You may need to manually configure the port speed to 1000Mbps depending on the specific switch model.

Q4: Do I need to use an optical attenuator for short-range links? A: For fiber links shorter than 5km, we recommend using a 10dB LC optical attenuator. The high-power EX laser may over-saturate the receiver at close distances.

Q5:Brocade E1MG-EX-40 not working？ A:Follow these quick steps:

1. Check DDM: Run show transceiver detail on the switch. Look for Low Rx Power or faults.

2. Clean & Reseat: Clean the LC fiber connectors and firmly re-seat the SFP module.

3. Verify Fiber: Ensure you are using a single-mode (SMF) patch cable. Check for bends or breaks.

4. Swap Test: If possible, test the SFP in a different port or swap it with a known-working module to isolate the fault.

If DDM shows "Low Tx Power" or "Fault", the module is likely defective and needs replacement

Quality Assurance：Your Trusted Optical Transceiver Source

HYTOPTODEVICE is a vertically integrated manufacturer of high-performance optical transceivers. By controlling core materials at the source, we ensure every SFP module meets the highest standards of reliability and customization.

• Vertical Integration: In-house core material production ensures a stable, self-sufficient supply chain for all optical modules.

• Total Traceability: End-to-end oversight from raw components to final transceiver assembly guarantees 100% controllability.

• Bespoke Solutions: Expert-led R&D provides customized SFP transceiver designs tailored to your specific technical needs.

• 24-Hour Response: Our technical team guarantees a primary response to any inquiry or quality concern within 24 hours.

Carrier-Grade Quality. Factory-Direct Control. Rapid Response.

Quality Certification & Compliance：

At HYTOPTODEVICE, our quality commitment is backed by industry-standard validations. From fiber optical transceiver manufacturing to final inspection, our processes ensure global compliance and reliability.

We adhere to rigorous standards for our SFP modules and network solutions:

• ISO 9001: Certified quality management and production consistency.

• CE,UL & FCC: Fully compliant for seamless Global Market Access.

• RoHS: Committed to environmental responsibility and hazardous material control.

• Proven Reliability: Rigorous testing to reduce compliance risk and ensure safety.

Certified Quality. Global Standards. Guaranteed Performance.

Rigorous Industrial Product Testing：



100% 3rd Party Compatible：

Partial Test Demonstration:
