Ruijie 200G-Q56-SR4-MM850 Compatible 200G QSFP56 SR4 Optical Transceiver Module | HYTOPTODEVICE

Product Detail：

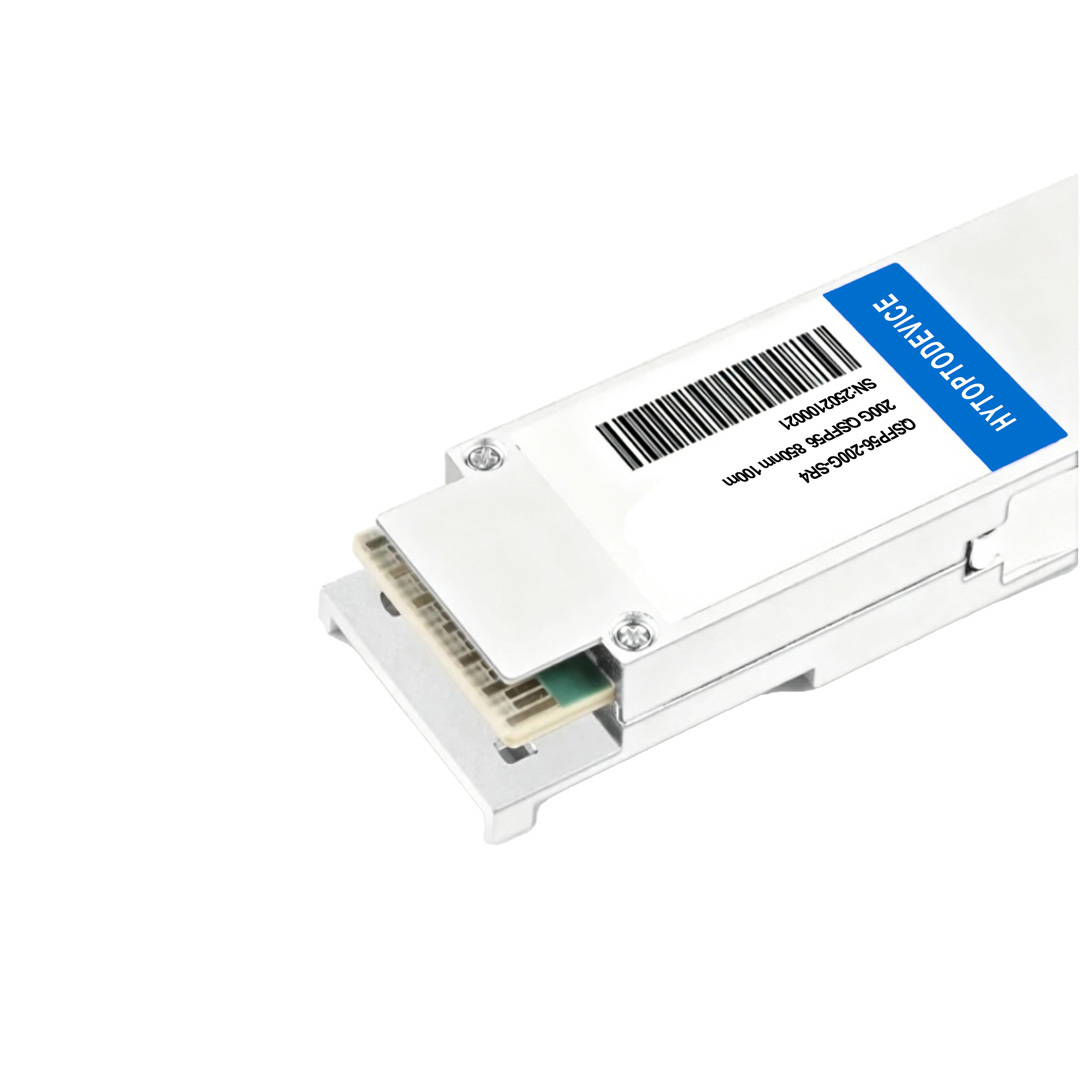

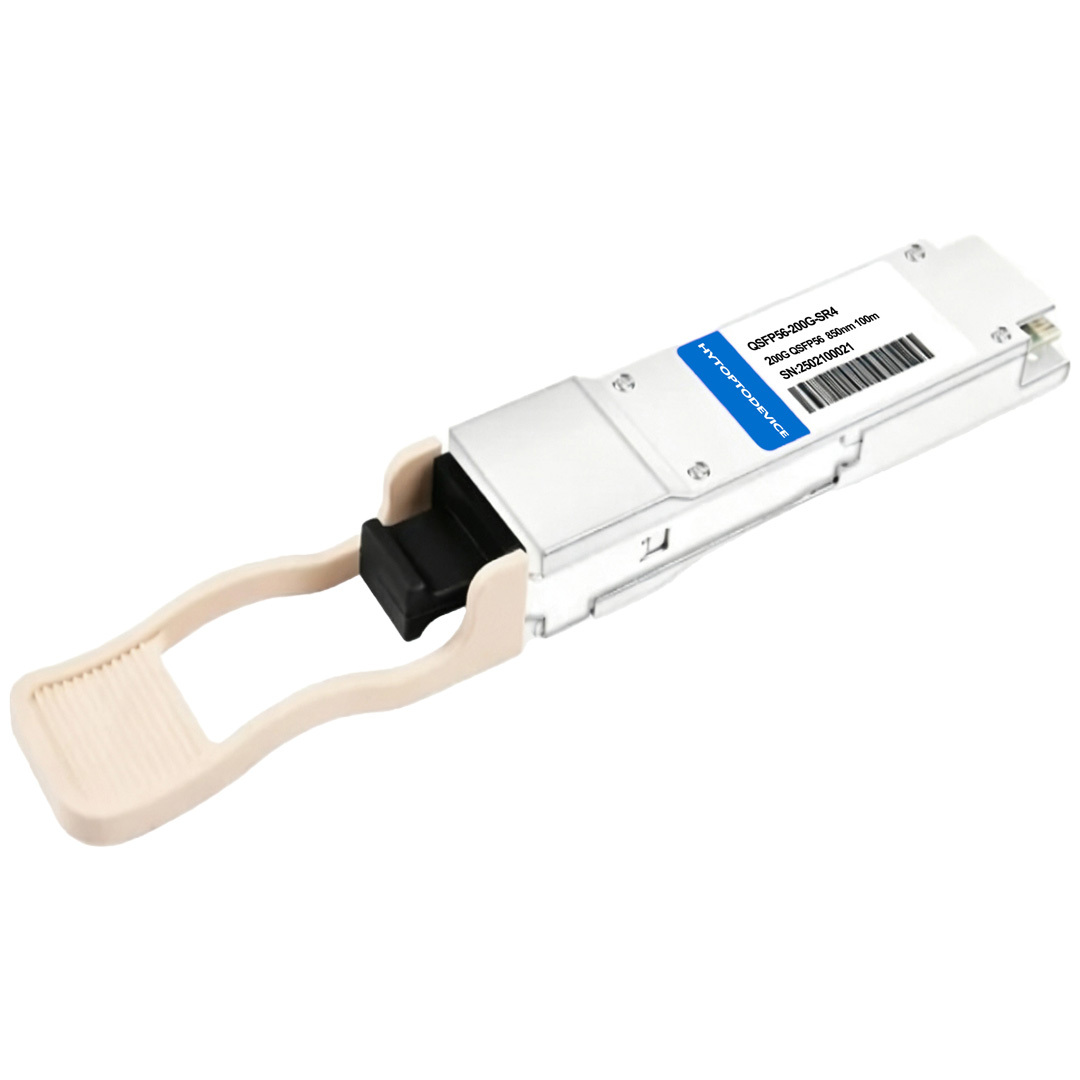

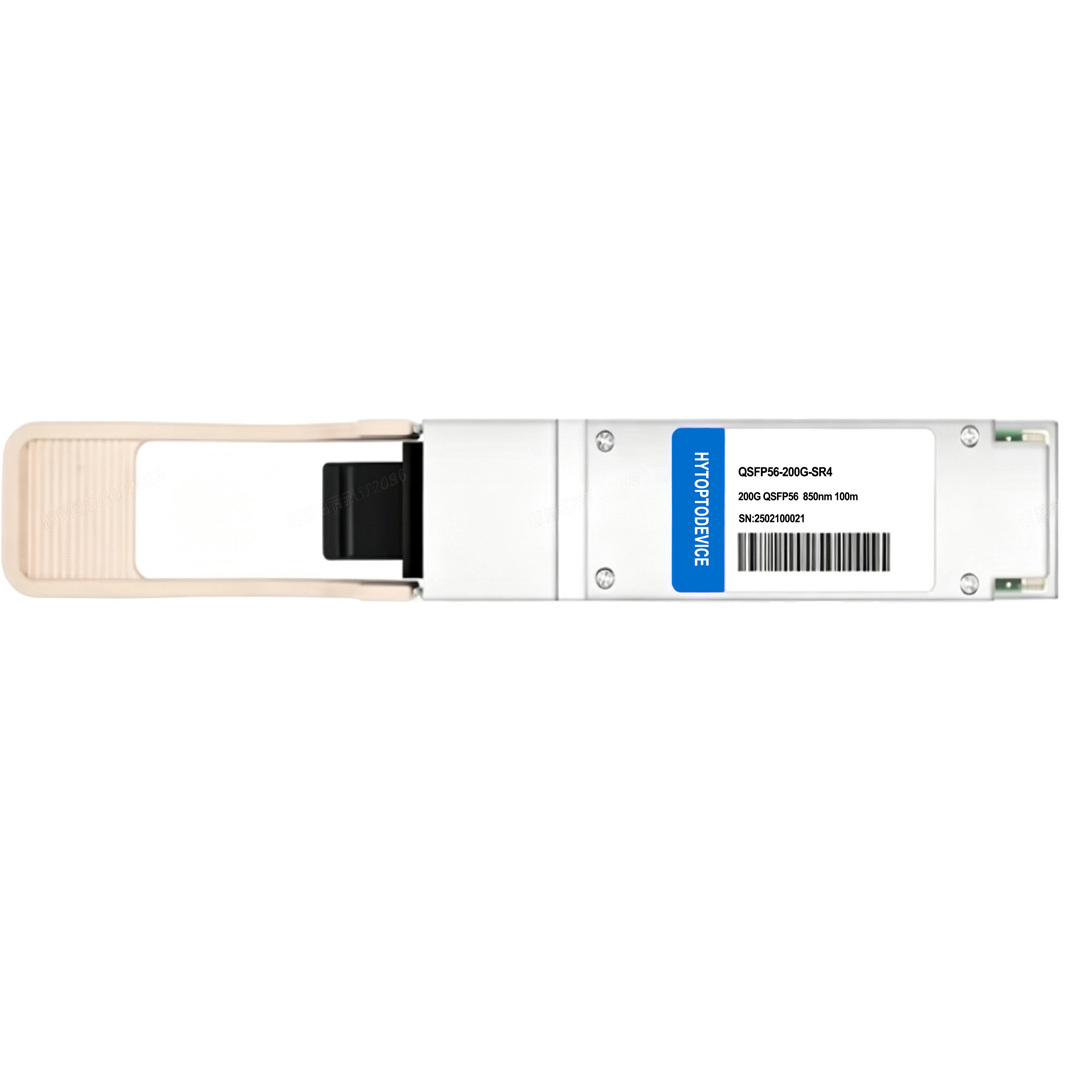

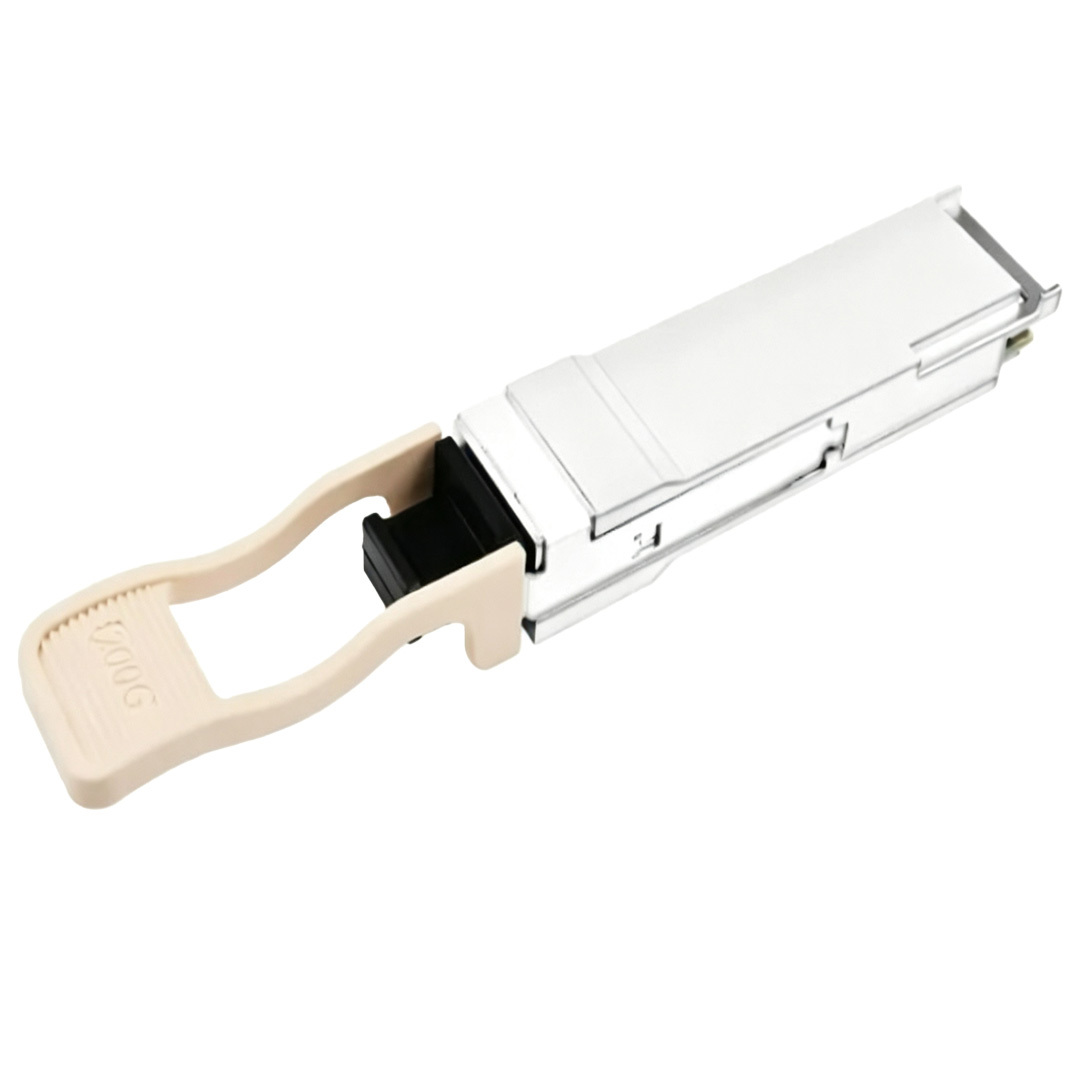

HYTOPTODEVICE 200G QSFP56 Module | Ruijie Compatible 200GBASE-SR4 Optical Transceiver Module(MMF, 850nm,100m, MPO-12, DOM)

      The 200G-Q56-SR4-MM850 is a high-performance Ruijie compatible 200G QSFP56 optical module,designed for 200GBASE Ethernet throughput over MTP/MPO-12 connectors using OM4 multimode fibre (MMF),reach up to 100m.  Operating over a wavelength of 850nm, this QSFP56 module integrates 4 parallel independent electrical lanes utilizing advanced 4x 50Gbps PAM4 (Pulse Amplitude Modulation 4-Level) technology to achieve an aggregate throughput of 200Gbps. this transceiver delivers high-bandwidth, energy-efficient performance with short reach. making it the ideal choice for next-generation AI data centers and High-Performance Computing (HPC) clusters.Fully compliant with IEEE 802.3bs, QSFP56 MSA, SFF-8665, SFF-8636 and SFF-8679 standards,real-time Digital Optical Monitoring (DOM) supported.

Full Compatibility List and Supported Devices of Ruijie 200G QSFP56 Transceiver
HYTOPTODEVICE 200G QSFP56 transceiver module is rigorously coded to Ruijie network equipments:

• Ruijie RG-S6520 Series (Data Center leaf / Aggregation Switches):

  • RG-S6520-64QC (Features high-density ports that support 200G breakout/multi-rate configurations depending on slot layouts)

• Ruijie RG-S6900 Series (Data Center Spine / Core Switches):

  • RG-S6920-4C / RG-S6980 Series (High-density 400G switches that accept 200G QSFP56 transceivers directly into backward-compatible QSFP-DD slots)

• Ruijie RG-N18000-X Series (Flagship Modular Core Switches):

  • High-throughput line cards supporting multi-rate 200G/400G interfaces.

Primary Application Scenarios of 200G QSFP56 Transceiver

Ruijie's 200G-Q56-SR4-MM850 has a wide range of applications, primarily deployed in high-throughput enterprise networks and high-performance computing environments.

• Ruijie RG-Newton Spine-and-Leaf Networks: Serving as high-bandwidth uplinks connecting dense leaf switches to high-capacity spine layers within corporate data centers.

• AI & Machine Learning Cluster Fabrics: Connecting high-density GPU computing nodes to modern high-speed NVMe storage networks over RoCEv2 (RDMA over Converged Ethernet).

• Enterprise High-Speed Intranet Trunks: Upgrading localized multi-mode structured backbone fiber networks within corporate server rooms to handle intensive virtualization and massive data synchronization.

Key Product Parameters of 200GBASE-SR4 Transceivers

Connectivity Solutions for 200G Optical Module

Q1:  200G  QSFP56 SR4 vs 200G QSFP56 FR4,What is the primary difference?A1:The difference is below:

Q2: Can 200G SR4 module be inserted  into a Ruijie 400G QSFP-DD port?A2: Yes. Ruijie's 400G QSFP-DD ports are backward-compatible. A QSFP56 transceiver can physically and electrically map into the lower-speed lane configurations of a QSFP-DD slot and will run natively at 200G.

Q3: What type of fiber cable is required for this 200G QSFP56 SR4 module?A3: It uses a Multi-Mode Fiber (MMF)  cable with an MPO-12 (UPC) connector. the fibers with Duplex LC connector can not be used. they mismatch.

Q4: Can the Ruijie 200G-Q56-SR4-MM850 be used in a standard 100G QSFP28 port?A4: No.their data rate and pulse modulation ways are different. 100G SR4 module uses 25G NRZ electrical lanes,  200G QSFP56 for 50G PAM4 signals.

Q5: What does the "MM850" indicate in the Ruijie part number?A5: "MM850" specifies that the module is designed for Multi-Mode fiber,operating at a  wavelength of 850nm using VCSEL arrays.

Q6: Can this 200G QSFP56 module be split into breakout connections?A6: Yes. Because it features a parallel 4-lane VCSEL optics structure, you can use an MPO-12 to 2x QSFP56 breakout cable or an MPO-12 to 4x SFP56 breakout cable to divide the link into 2x 100G or 4x 50G connections, provided your Ruijie switch port supports splitting.

Q7: What is the reach specification for a 200G QSFP56 SR4 module over multi-mode fiber?A7: The module reach up to 100 meters (328 feet) when using high-quality OM4 multi-mode fiber, and up to 70 meters (229 feet) when utilizing OM3 fiber.

Q8: Does the 200G-Q56-SR4-MM850 feature Digital Diagnostics Monitoring (DDM)?A8: Yes. HYTOPTODEVICE Ruijie compatible 200G-Q56-SR4-MM850 supports  real-time Digital Diagnostic Monitoring, you can watch internal temperature, operating voltage, laser bias currents, and transmit/receive power values via the switch OS..

Q9: What happens if I insert a third-party clone of this module into my Ruijie switch?A9: Ruijie switches utilize advanced firmware validation checks. If a non-genuine or poorly coded module is detected, the switch OS will trigger a flag (e.g., Unsupported Cable) and disable the port to protect signal integrity.

Why Network Engineers Choose HYTOPTODEVICE

HYTOPTODEVICE has supplied over 5000,000 optical transceiver modules to data centers, ISPs, and enterprise networks across 100+ countries since 2011. Every module undergoes a 72-hour burn-in test and full DDM/DOM validation before shipment.

• 100% MSA-compliant modules with Cisco, Huawei,Dell,Juniper, and Arista compatibility
• ISO 9001:2015 certified manufacturing facility in Shenzhen
• Average lead time of 3–5 business days with DHL/FedEx express options
• Dedicated pre-sales engineering support for custom configurations
• Actual hardware,actual switches,actual results.we publish compatibility test video,eliminate compatibility anxiety. you can watch before you buy.
• We can provide inspection and shipping videos to make you feel as if you are right here with the product.

"We replaced 200 Cisco-branded SFPs with HYTOPTODEVICE equivalents across our spine layer — zero compatibility issues, 40% cost reduction."— Network Architect, Tier-2 ISP, Germany
