Juniper EX-SFP-1FE-LX Compatible 100M SFP Module | 100BASE-LX 1310nm 10km Bulk Factory Wholesale | HYTOPTODEVICE

Q: What happens if my singlemode fiber link is shorter than 2km (e.g., 100 meters)? Will it burn the receiver?

For standard 100BASE‑LX (10km) SFP Module: No, it will not burn the receiver. Standard 10km LX modules feature a maximum Tx launch power of ‑8 dBm to ‑15 dBm and a maximum Rx overload threshold of ‑3 dBm to 0 dBm. Since the maximum transmitter power is lower than the maximum receiver tolerance, the receiver remains safe even on 0‑meter ultra‑short fiber links. This Juniper EX‑SFP‑1FE‑LX compatible SFP Module follows strict industry‑standard optical design for reliable short‑range operation.

Q: Can I use UPC vs. APC fiber patch cables with 100BASE‑LX transceivers?

This 100BASE‑LX SFP Module is engineered for standard UPC‑polished LC fiber connectors, matching conventional G.652 single‑mode patch cables perfectly. APC cables cause excessive insertion loss and reflectance mismatch, triggering unstable links and random packet loss. Always deploy UPC‑terminated fiber cables for consistent SFP Module operating stability.

Q: Does 100BASE‑LX work over OS1 and OS2 singlemode fibers?

This Juniper compatible 100BASE‑LX SFP Module fully supports both OS1 and OS2 single‑mode fiber grades. Both fiber types comply with 1310nm wavelength transmission standards, allowing this SFP Module to deliver consistent 10km 100Mbps performance for indoor and outdoor enterprise fiber deployments.

Q: Why am I getting high Bit Error Rate (BER) or packet loss on my 10km link?

High BER and packet loss on 10km long‑distance links are mainly caused by dirty fiber connectors, excessive fiber bending, poor splicing joints, or mismatched fiber specifications. This high‑quality SFP Module reserves sufficient power margin; regular port cleaning and standardized fiber layout can eliminate most link instability issues.

Q: How do I know if the optical laser has degraded or failed?

Users can monitor laser operating status in real time via the SFP Module’s DDM diagnostic function. Gradually decreased transmit optical power, fluctuating working temperature, and persistent link flapping are typical laser degradation signs. Complete optical signal loss and link outage indicate total laser failure of the 100BASE‑LX transceiver.

Q: How can I test if the 100BASE‑LX transceiver itself is faulty?

Verify SFP Module integrity through multiple professional testing methods: swap with a known‑good working module for contrast testing, check DDM optical parameter data via switch CLI, inspect physical port contamination, and test link status with standard single‑mode fiber. Consistent transmission failure confirms a faulty 100BASE‑LX SFP Module.

Q: What is the difference between 100BASE‑LX and 100BASE‑EX or ZX?

100BASE‑LX SFP Module supports 1310nm wavelength and 10km transmission for regular campus networking. 100BASE‑EX extends transmission distance to 40km, while 100BASE‑ZX reaches 80km with upgraded optical power budgets. Our EX‑SFP‑1FE‑LX module strictly follows 10km LX specifications for standard short‑to‑medium enterprise links.

Q: Is 100BASE‑LX available in SFP, SFP+, or fixed RJ45 formats?

The 100BASE‑LX industry standard only supports traditional SFP package formats, consistent with our Juniper EX‑SFP‑1FE‑LX SFP Module design. It is incompatible with 10G SFP+ high‑speed ports and electrical RJ45 copper ports with no cross‑format adaptive capability.

Q: Does the 1310nm Fabry‑Perot (FP) laser degrade faster in high heat?

Long‑term ultra‑high temperature operation accelerates FP laser chip aging and shortens the service life of 100BASE‑LX SFP Module. This commercial‑grade transceiver supports stable operation within 0°C~70°C; working within the rated temperature range effectively avoids rapid laser degradation and ensures long‑term batch deployment stability.

Q: Why are original OEM 100BASE‑LX transceivers so expensive compared to third‑party optics?

Official OEM transceivers carry brand premium, patent authorization and overpriced after‑sales services, leading to high enterprise procurement costs. Our third‑party Juniper compatible SFP Module retains full 100BASE‑LX performance and zero‑alarm compatibility, providing cost‑effective bulk procurement solutions without sacrificing network stability.

Shop high-quality Juniper EX-SFP-1FE-LX compatible SFP Module. Standard 100BASE-LX 1310nm 10km single-mode SFP Module with DDM monitoring. Factory direct bulk SFP Module for Juniper enterprise network upgrades with fast delivery. Support bulk wholesale, private label and custom EEPROM programming for global importers, distributors and system integrators.

NO.	Brand	Compatible P/N	Transceiver Type
1	Cisco	GLC-FE-100LX-RGD	SFP-M31-2LD
2	Cisco	GLC-FE-100LX	SFP-M31-40LD
3	Extreme	MGBIC-LC05	SFP-M55-80LD
4	H3C	SFP-FE-LX-SM1310-D	SFP-M55-1BLD
5	HPE（H3C）	JF832A	SFP-M55-1CLD
6	Brocade	E1MG-100FX-10
7	Juniper	EX-SFP-1FE-LX
8	HPE（H3C）	JD120B
9	Dell	GP-SFP2-1L-C

GET A QUOTE

Description

Juniper EX-SFP-1FE-LX Compatible 100M SFP Module | 100BASE‑LX 1310nm 10km Bulk Wholesale | HYTOPTODEVICE

Product Overview

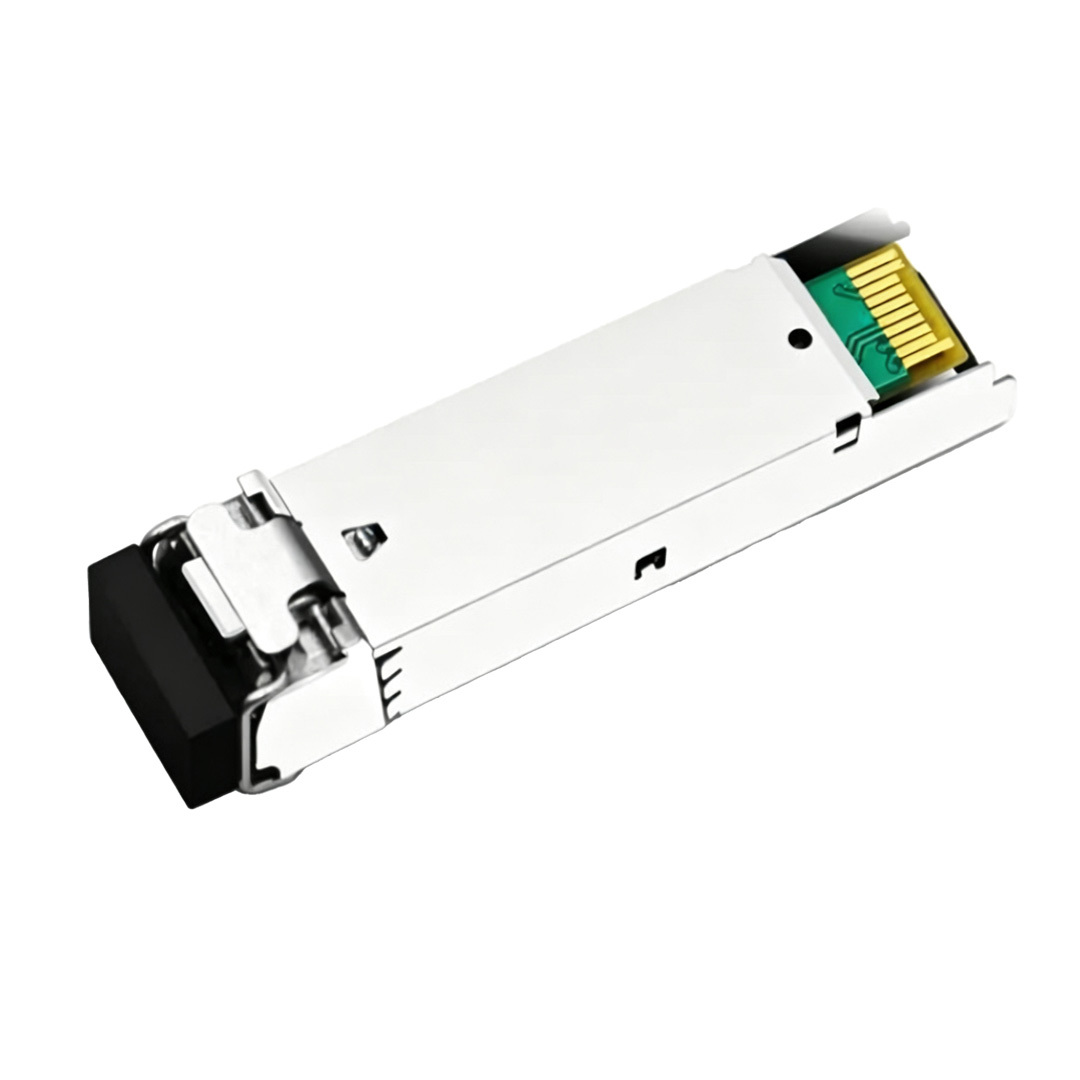

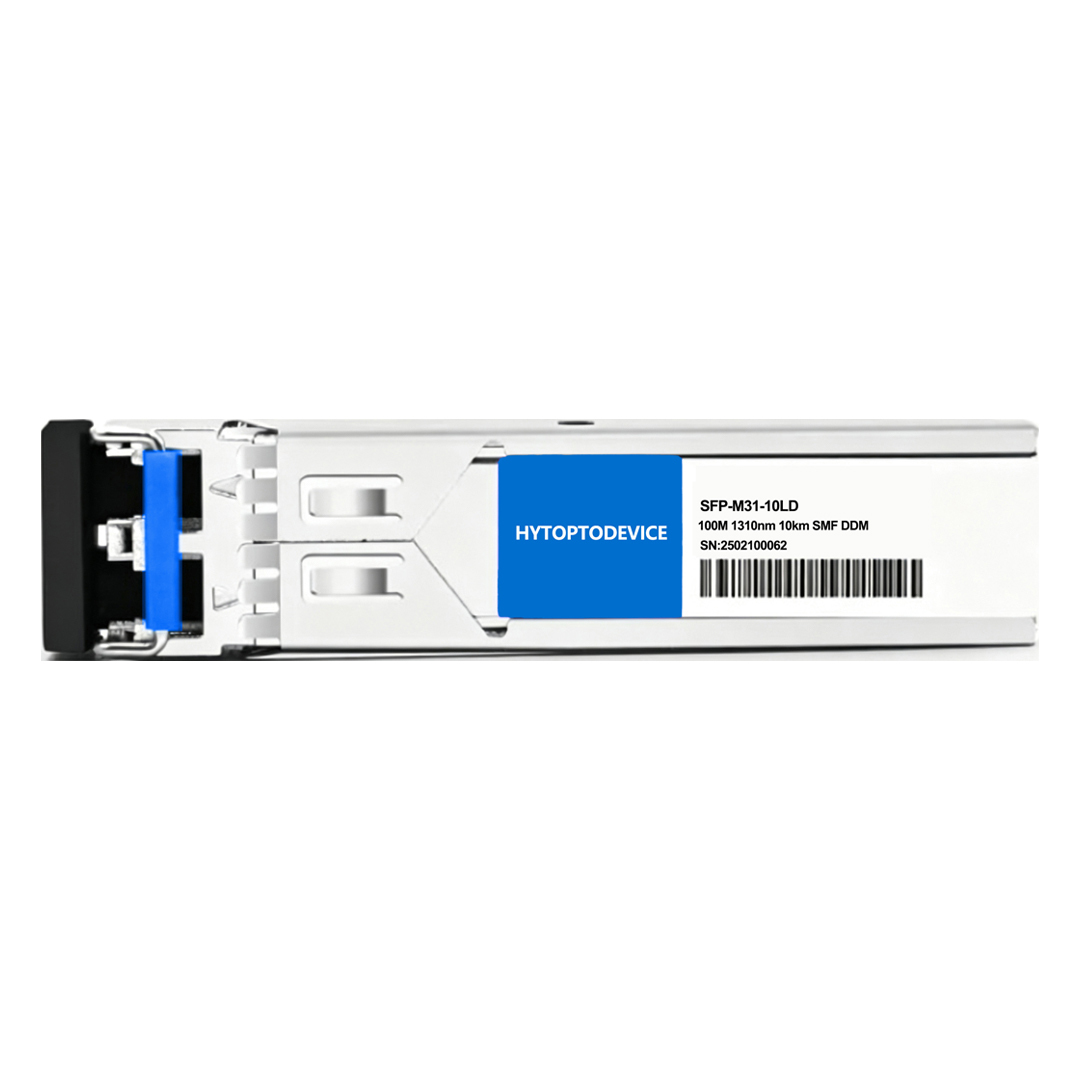

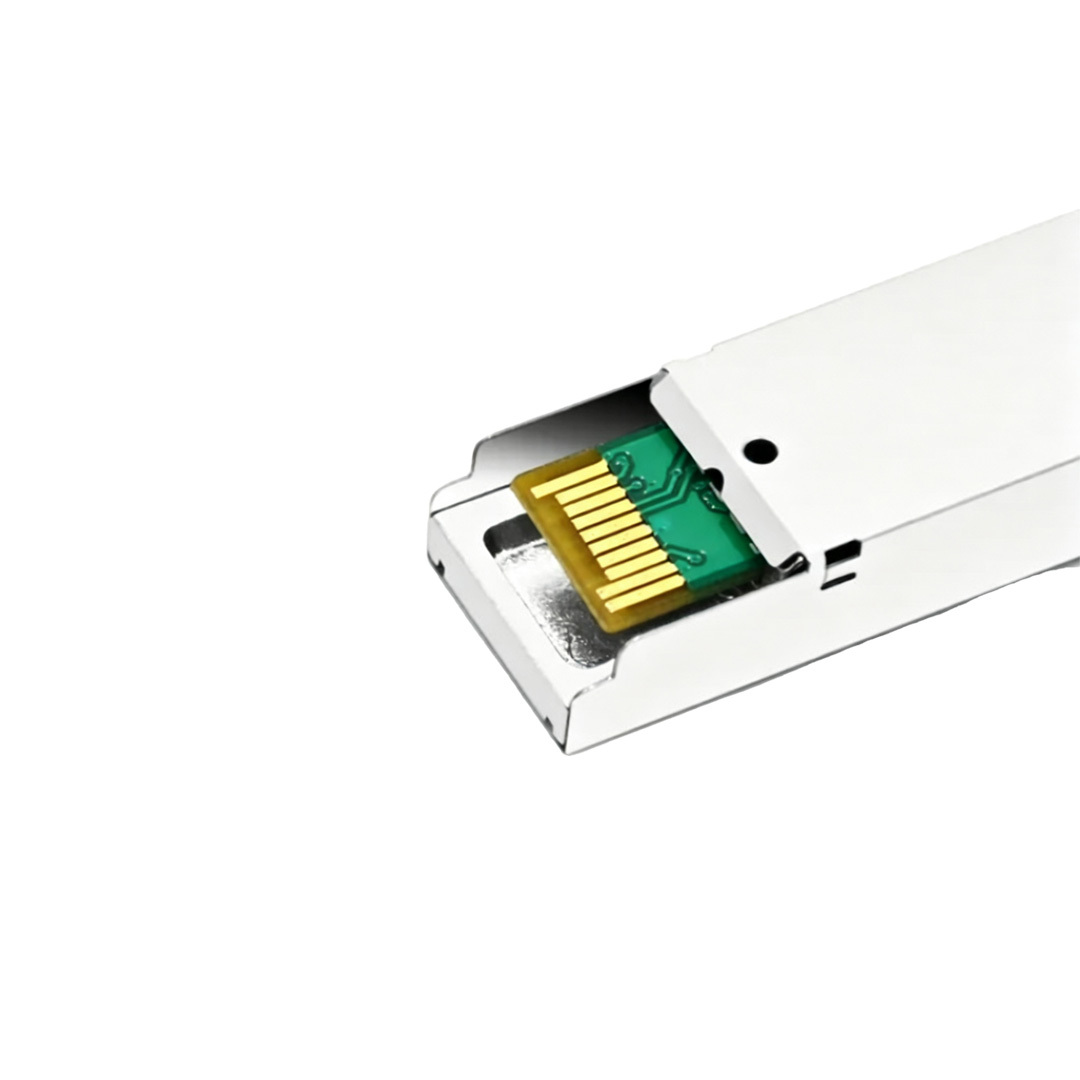

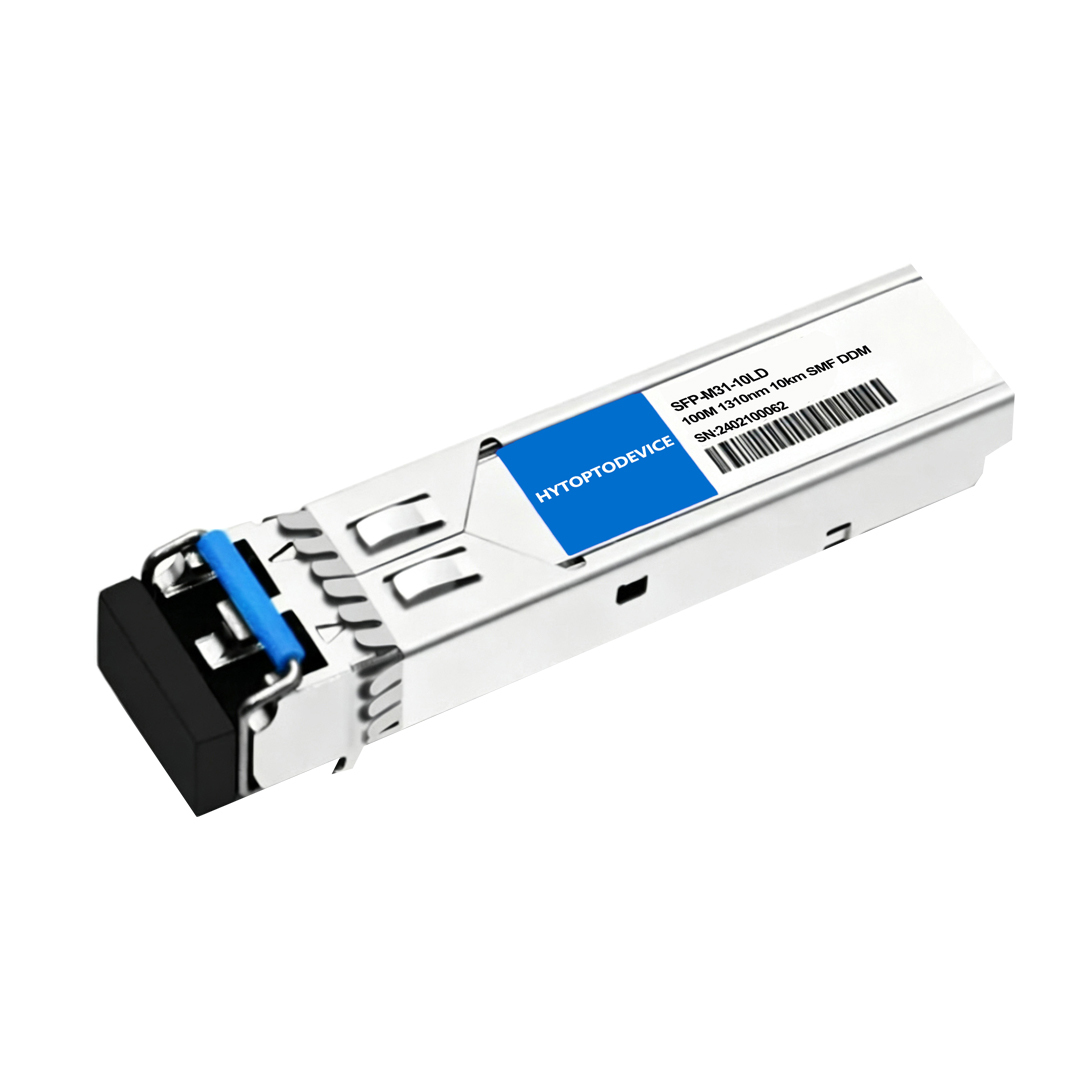

HYTOPTODEVICE Juniper EX-SFP-1FE-LX compatible SFP Module is a premium drop-in replacement for original Juniper Fast Ethernet optical modules. Adopting mature 100BASE-LX technology, 1310nm fixed wavelength and duplex LC interface, this SFP Module delivers stable 10km long-distance transmission over standard single-mode fiber, fully matching Juniper enterprise switch port performance.

Pre-flashed dedicated EEPROM enables zero-alarm plug-and-play recognition on all compatible Juniper EX series devices without manual configuration. With strict batch aging testing and consistent quality, this SFP Module is perfectly suited for factory wholesale, bulk enterprise procurement and large-scale network renovation projects.

Key Technical Specifications

Juniper Compatible	EX-SFP-1FE-LX	Vendor Name	HYTOPTODEVICE
Form Factor	SFP	Max Data Rate	100Mbps
Wavelength	1310nm	Max Distance	10KM
Connector	Duplex LC	Transmitter Type	FP 1310nm
Cable Type	SMF	Receiver Type	PIN
TX Power	-14~-8dBm	Receiver Sensitivity	< -32.0dBm
Power Consumption	≤1W	Receiver Overload	-8.0dBm
Protocols	IEEE802.3ab, GR-468, MSA Compliant	Operation Temperature	0 to 70°C (32 to 158°F)

For detailed technical specifications, please refer to the Datasheet

Usage Guidelines & Best Practices

Fiber & Port Matching

Use standard G.652.D duplex single-mode fiber (SMF) with LC-PC/UPC connectors. Multimode fiber is not supported and will fail to reach 10km. Ensure the SFP port supports 100Mbps mode before insertion.
Installation & Hot-Swap Rules

Supports MSA-compliant hot-swapping. Insert/remove gently without powering down the device. Keep dust caps on unused LC ports and avoid frequent re-plugging.
Link Loss Budget

Offers a 20dB link budget for 10km reach (including connectors/splices). If link flapping occurs, inspect and clean optical interfaces.
Operating Environment

Commercial grade: 0°C to 70°C in indoor environments. Keep away from extreme heat, moisture, and dust for long-term stability.
Real-Time Monitoring (DDM)

Use integrated SFF-8472 DDM to monitor Tx/Rx power, temperature, and voltage in real time to prevent sudden outages.
Bulk Deployment

Standardize fiber types and port settings across enterprise LAN or ISP deployments for consistent performance.

Full Compatibility List & Supported Network Hardware

1. Supported Hardware & Firmware

Custom-tuned EEPROM ensures zero-alarm plug-and-play for Juniper Fast Ethernet SFP ports, fully matching original EX-SFP-1FE-LX SFP Module performance without complex configuration.

Juniper EX3200 Series Switches (24P/24T/48P/48T)
Juniper EX4200 Series Switches (24F/24P/24T/48P/48T)
Juniper EX4400 Series Enterprise Access Switches
Juniper Dual-rate 100M/1000BASE-X SFP Ports

2. Multi-Brand Cross Compatibility

This SFP Module complies with universal MSA standards for stable multi-brand interoperation. Custom firmware is available for mixed-vendor network SFP Module bulk deployment and procurement

3. Free Value-Added Services

We offer exclusive free value-added services for all sfp modules to reduce your project deployment and maintenance costs.

Custom firmware for multi-device compatibility
Free sample testing before bulk orders
Complete test reports for project acceptance
Strict batch consistency quality control
Cost-effective wholesale for large-scale deployment

Free custom EEPROM programming for special and legacy network environments

Primary Application Scenarios

Enterprise campus long-distance fiber interconnection
Cross-building office 100Mbps fiber links
Legacy Fast Ethernet network module replacement
ISP access and enterprise backbone transmission
Bulk procurement for HPE/H3C network expansion

Connectivity Solutions(Applications)

Deploy paired Juniper compatible SFP Module with G.652.D single-mode fiber to establish stable 10km 100Mbps point-to-point links for campus and enterprise network construction.

The Core Feature

1. Low-Power Data Center Efficient Connectivity

With ultra-low power consumption below 1W, this 100BASE SFP provides stable, cost-effective Fast Ethernet connectivity. It is an economical solution for data center, campus and enterprise low-speed access networking.

Low Power 100BASE-LX SFP Transceiver for Data Center and ISP Network

2.Verified Host Interoperability for Devices

Pre-flashed EEPROM supports hot-swap plug-and-play. The module is fully recognized by mainstream Juniper devices without alarms or configuration adjustments, enabling seamless network replacement and upgrade.Specific Compatibility Video available upon request.

3.Rigorous Testing, Uncompromising Reliability

Each SFP undergoes wavelength calibration, power testing, 72-hour aging and 10km link testing. Full quality inspection ensures stable batch performance and long-term reliable operation for engineering projects.

HYTOPTODEVICE MSA Compliant Replacement Optical Transceiver Full Tested

FAQ

Q1: What happens if my singlemode fiber link is shorter than 2km (e.g., 100 meters)? Will it burn the receiver?

A: For standard 100BASE‑LX (10km) SFP Module: No, it will not burn the receiver. Standard 10km LX modules feature a maximum Tx launch power of ‑8 dBm to ‑15 dBm and a maximum Rx overload threshold of ‑3 dBm to 0 dBm. Since the maximum transmitter power is lower than the maximum receiver tolerance, the receiver remains safe even on 0‑meter ultra‑short fiber links. This Juniper EX‑SFP‑1FE‑LX compatible SFP Module follows strict industry‑standard optical design for reliable short‑range operation.

Q2: Can I use UPC vs. APC fiber patch cables with 100BASE‑LX transceivers?

A: This 100BASE‑LX SFP Module is engineered for standard UPC‑polished LC fiber connectors, matching conventional G.652 single‑mode patch cables perfectly. APC cables cause excessive insertion loss and reflectance mismatch, triggering unstable links and random packet loss. Always deploy UPC‑terminated fiber cables for consistent SFP Module operating stability.

Q3: Does 100BASE‑LX work over OS1 and OS2 singlemode fibers?

A: This Juniper compatible 100BASE‑LX SFP Module fully supports both OS1 and OS2 single‑mode fiber grades. Both fiber types comply with 1310nm wavelength transmission standards, allowing this SFP Module to deliver consistent 10km 100Mbps performance for indoor and outdoor enterprise fiber deployments.

Q4: Why am I getting high Bit Error Rate (BER) or packet loss on my 10km link?

A: High BER and packet loss on 10km long‑distance links are mainly caused by dirty fiber connectors, excessive fiber bending, poor splicing joints, or mismatched fiber specifications. This high‑quality SFP Module reserves sufficient power margin; regular port cleaning and standardized fiber layout can eliminate most link instability issues.

Q5: How do I know if the optical laser has degraded or failed?

A: Users can monitor laser operating status in real time via the SFP Module’s DDM diagnostic function. Gradually decreased transmit optical power, fluctuating working temperature, and persistent link flapping are typical laser degradation signs. Complete optical signal loss and link outage indicate total laser failure of the 100BASE‑LX transceiver.

Q6: How can I test if the 100BASE‑LX transceiver itself is faulty?

A: Verify SFP Module integrity through multiple professional testing methods: swap with a known‑good working module for contrast testing, check DDM optical parameter data via switch CLI, inspect physical port contamination, and test link status with standard single‑mode fiber. Consistent transmission failure confirms a faulty 100BASE‑LX SFP Module.

Q7: What is the difference between 100BASE‑LX and 100BASE‑EX or ZX?

A: 100BASE‑LX SFP Module supports 1310nm wavelength and 10km transmission for regular campus networking. 100BASE‑EX extends transmission distance to 40km, while 100BASE‑ZX reaches 80km with upgraded optical power budgets. Our EX‑SFP‑1FE‑LX module strictly follows 10km LX specifications for standard short‑to‑medium enterprise links.

Q8: Is 100BASE‑LX available in SFP, SFP+, or fixed RJ45 formats?

A: The 100BASE‑LX industry standard only supports traditional SFP package formats, consistent with our Juniper EX‑SFP‑1FE‑LX SFP Module design. It is incompatible with 10G SFP+ high‑speed ports and electrical RJ45 copper ports with no cross‑format adaptive capability.

Q9: Does the 1310nm Fabry‑Perot (FP) laser degrade faster in high heat?

A: Long‑term ultra‑high temperature operation accelerates FP laser chip aging and shortens the service life of 100BASE‑LX SFP Module. This commercial‑grade transceiver supports stable operation within 0°C~70°C; working within the rated temperature range effectively avoids rapid laser degradation and ensures long‑term batch deployment stability.

Q10: Why are original OEM 100BASE‑LX transceivers so expensive compared to third‑party optics?

A: Official OEM transceivers carry brand premium, patent authorization and overpriced after‑sales services, leading to high enterprise procurement costs. Our third‑party Juniper compatible SFP Module retains full 100BASE‑LX performance and zero‑alarm compatibility, providing cost‑effective bulk procurement solutions without sacrificing network stability.

Q11: Will using a third‑party 100BASE‑LX module void my switch OEM warranty?

A: Standard compliant third‑party SFP Module will not void Juniper switch OEM warranties. Our EX‑SFP‑1FE‑LX transceiver strictly complies with MSA and IEEE industry standards, features stable protocol compatibility, and causes no hardware conflicts with original Juniper switching devices.

Q12: Is the laser in a 100BASE‑LX transceiver safe to look into directly?

A: Direct eye exposure to the internal laser of a working 100BASE‑LX SFP Module is unsafe and strictly prohibited. Though classified as Class 1 laser, long‑term or close‑range viewing may cause irreversible retinal damage. Always power off the module and cap optical ports before manual inspection.

Q13: Can I downgrade a 1000BASE‑LX port to run at 100BASE‑LX speed?

A: Most Juniper dual‑rate SFP ports support automatic speed downgrade and negotiation. This 100BASE‑LX SFP Module can be normally identified on 1000BASE‑LX gigabit ports, automatically locking at 100Mbps speed to realize seamless adaptation of gigabit ports for Fast Ethernet networking.

Packaging & Custom OEM Solutions

Each sfp module is individually sealed in ESD-safe anti-static packaging and ready for immediate shipment. For high-volume distributors, wholesalers, and system integrators, we offer flexible OEM programs—including custom logos, private labeling, and branded packaging—to help you build and protect your own brand.

Why Network Engineers Choose HYTOPTODEVICE

HYTOPTODEVICE has supplied over 5000,000 optical transceiver modules to data centers, ISPs, and enterprise networks across 100+ countries since 2011. Every module undergoes a 72-hour burn-in test and full DDM/DOM validation before shipment.

Up to 70% cost savings vs OEM, transparent pricing & flexible bulk rates, supported quality returns
100% real-device compatible with Cisco, Huawei,Dell,Juniper, and Arista
ISO 9001:2015 Shenzhen factory, full lineup: 1.25G/10G/25G/40G/100G/200G/400G/800G/1.6T transceivers
Ample stock, fast global DHL/FedEx shipping in 3–5 working days
Free pre-sales engineering support for custom EEPROM & private label firmware
Real switch test videos available for pre-purchase review; inspection & shipping videos provided per order

“Phenomenal performance. We deployed 200 HYTOPTODEVICE SFP modules to replace Cisco OEMs in our backbone network. Result? Zero compatibility issues and a 60% reduction in costs. Highly recommended for mission-critical networks."— Senior Network Engineer, Regional Telecom, Australia

Quality Certification & Compliance

At HYTOPTODEVICE, our quality commitment is backed by industry-standard validations. From fiber optical transceiver manufacturing to final visual inspection, from IQC、IPQC、FQC to OQC, our processes ensure global compliance and reliability.

We adhere to rigorous standards for our SFP modules and network solutions:

ISO 9001: Certified quality management and production consistency.
CE & FCC: Fully compliant for seamless Global Market Access.
RoHS: Committed to environmental responsibility and hazardous material control.
Proven Reliability: Rigorous testing to reduce compliance risk and ensure safety.
