Dell GP-SFP-10GBX-D-100 Compatible 10G SFP+ BiDi Optical Transceiver | 10GBASE-BX100-D 100km Tx1550Rx1490nm Simplex LC Bulk Wholesale | HYTOPTODEVICE
Product Overview

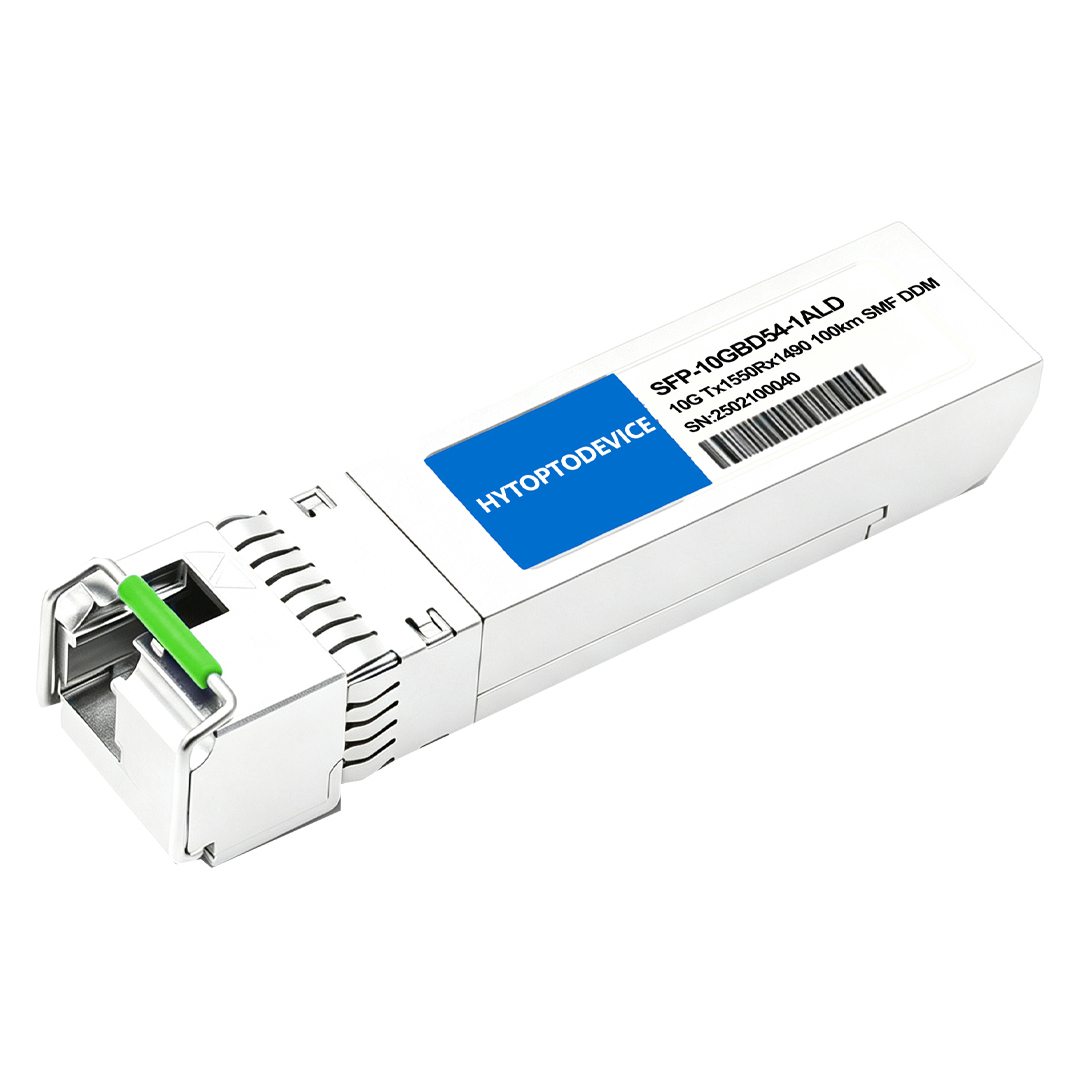

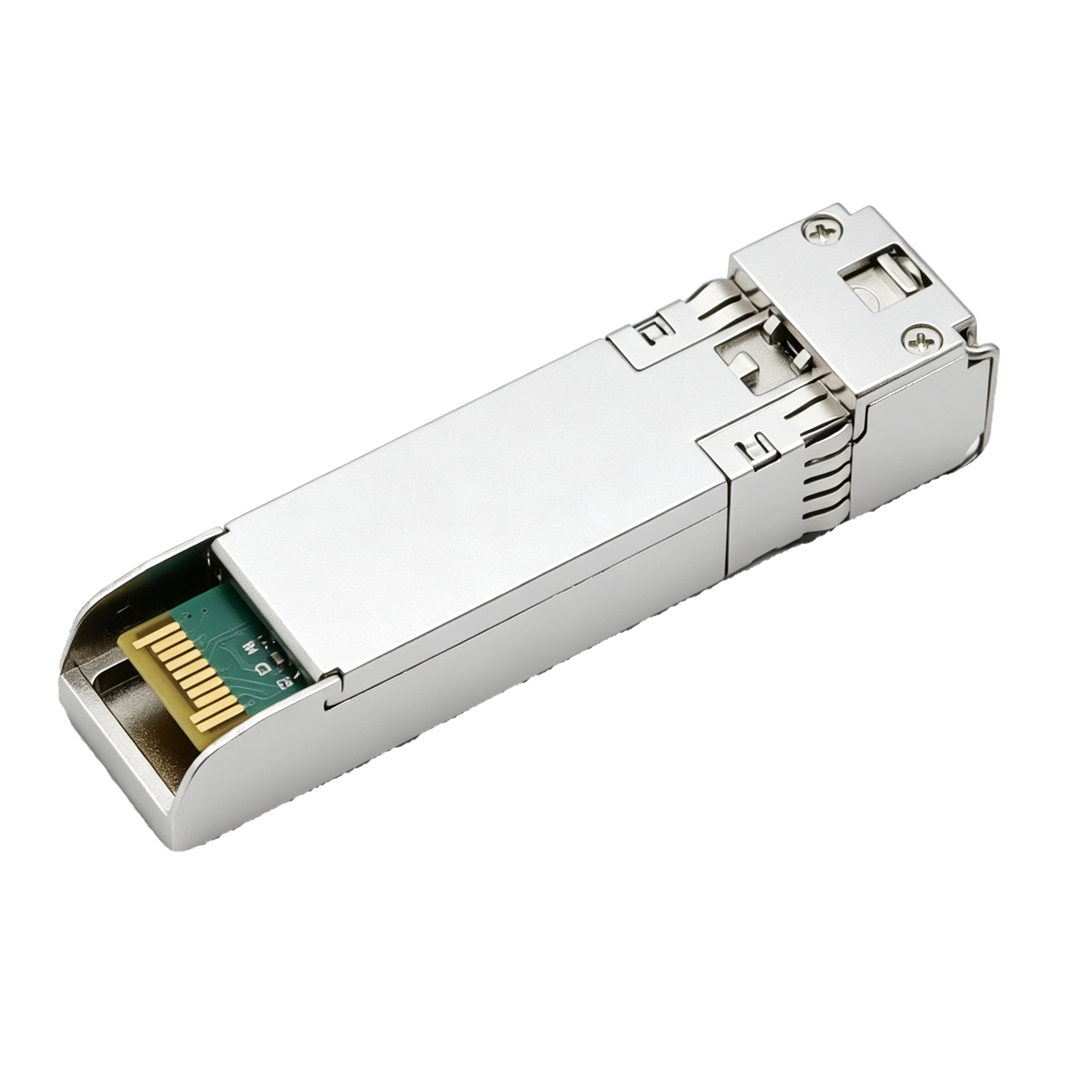

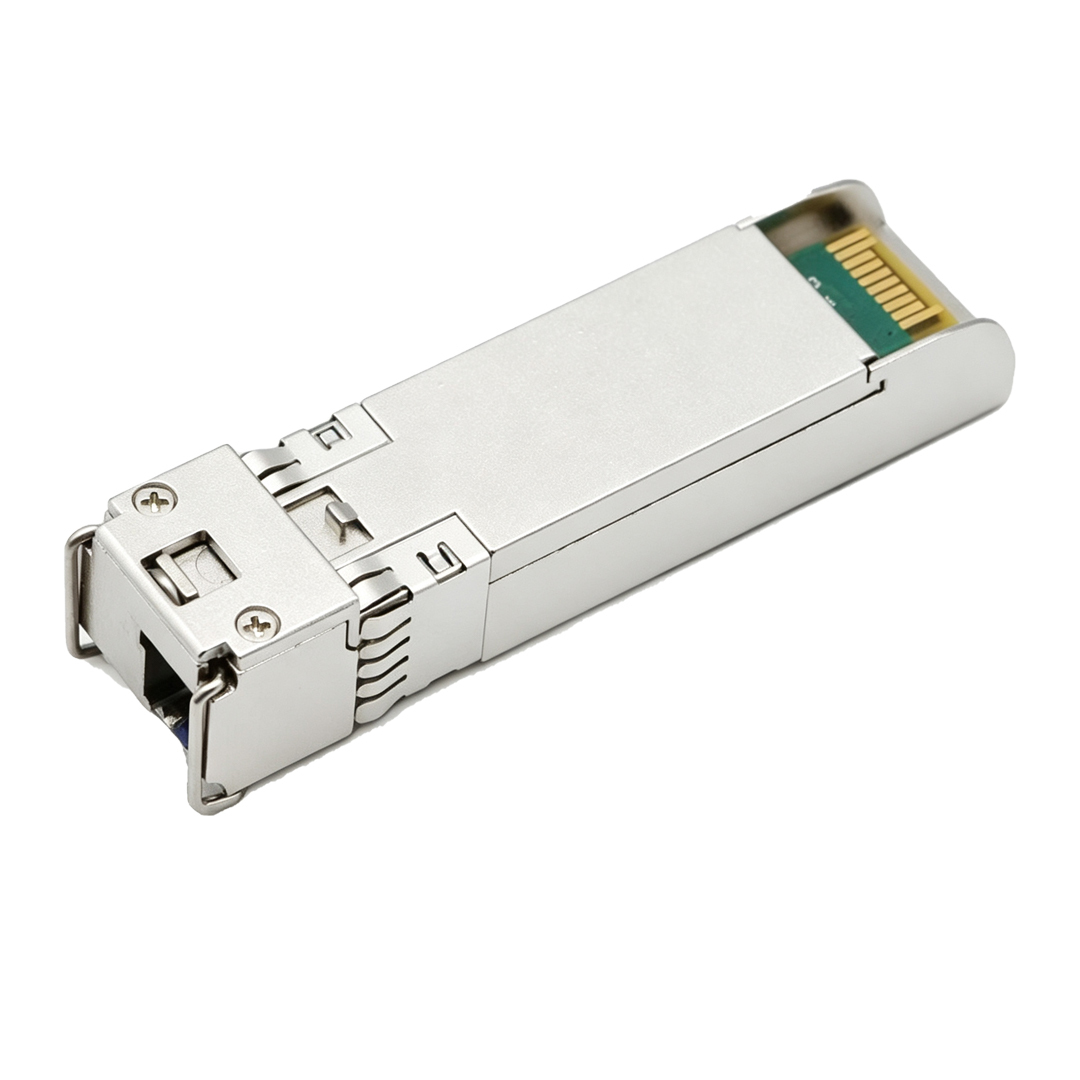

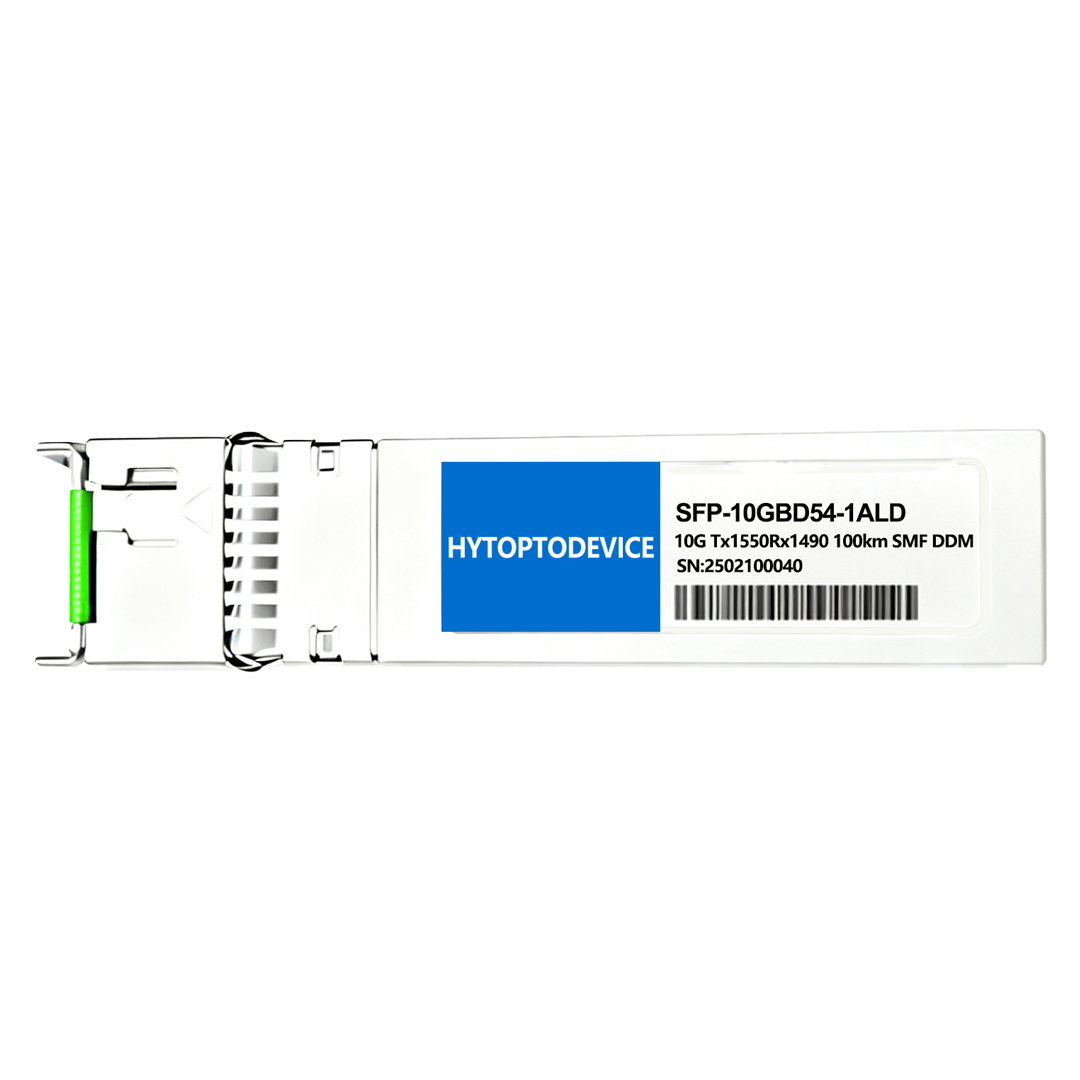

HYTOPTODEVICE manufactures this compatible 10G SFP+ BiDi optical transceiver as a seamless drop-in replacement for Dell GP-SFP-10GBX-D-100. Built to comply with 10GBASE-BX100-D and SFF-8472 MSA specifications, this transceiver delivers stable 10.3125Gbps Ethernet traffic across distances up to 100km over OS2 single-mode fiber, featuring Tx1550nm transmit wavelength and Rx1490nm receive wavelength with simplex LC UPC interface.
We provide EEPROM pre-flashed optics to eliminate third-party transceiver detection warnings on Dell SmartFabric OS10 platforms. This single-fiber BiDi design requires pairing with a matching
BX100-U transceiver on the opposite end of the fiber run. HYTOPTODEVICE offers flexible bulk ordering, private label customization and complete optical networking solutions for distributors, wholesalers, buyers and system integrators worldwide.
Key Technical Specifications
| Dell Compatible |
GP-SFP-10GBX-D-100 |
Vendor Name |
HYTOPTODEVICE |
| Form Factor |
SFP+ |
Max Data Rate |
10.315Gbps |
| Wavelength |
TX1550nm/RX1490nm |
Max Distance |
100km |
| Connector |
Simplex LC |
Transmitter Type |
1550nm EML |
| Cable Type |
SMF |
Receiver Type |
APD |
| TX Power |
1.0~5.0dBm |
Receiver Sensitivity |
< -24dBm |
| Max. Power Consumption |
≤1.8W |
Receiver Overload |
-7dBm |
| Protocols |
IEEE 802.3ae, SFF-8472, SFF-8431, SFF-8432, SFP+ MSA Compliant, CPRI, eCPRI |
Operation Temperature |
0 to 70°C (32 to 158°F) |
For detailed technical specifications, please refer to the Datasheet
Usage Guidelines & Operational Best Practices
• BiDi Pairing Rule: SFP‑10G‑BXD (Tx1550/Rx1490) must pair with
SFP‑10G‑BXU (Tx1490/Rx1550) at remote end. Two BXD modules will NOT form a valid link.
• Cabling Requirement: Use OS2 single‑mode simplex‑LC UPC cables only. Multimode fiber / APC connectors reduce reach and cause link issues; keep connectors clean.
• Optical Attenuator Required for Short Links: For testing or short‑distance connections (<10km), connect a 12dB–15dB optical attenuator to the RX port to prevent damaging the receiver.(10KM＜Distance＜30km,connect 5‑15dB optical attenuator)
• Environment: Run within 0‑70 °C. Avoid high‑heat, dusty, poorly ventilated rack positions.
• Hot‑swap: Supports hot‑swap; disconnect fiber before plugging / unplugging to protect optical ports.
• DDM Monitoring: Enable DDM/DOM; monitor optical power and temperature for early fault warning.
• Pre‑test Recommendation: Test sample units with real hardware before large‑scale bulk deployment.
• Laser Safety: Avoid direct eye exposure to powered optical ports; infrared laser can harm eyes.
For detailed operation instructions, please refer to the User Guide.
Full Compatibility List & Supported Network Hardware
1. Validated Dell Hardware & Firmware
This 10G SFP+ BiDi optical transceiver uses Dell customized EEPROM to suppress unapproved transceiver warning logs under Dell SmartFabric OS10. Every unit passes hardware validation and burn-in testing before factory shipment:
- Dell PowerSwitch Series: S4112F-ON, S4148F-ON, S5232F, Z9100, Z9264F
- Dell Networking Switches: N3200-ON, N3132PX, S6010-ON
- Dell PowerEdge Server embedded switches & VRTX chassis network modules
- Any Dell hardware fitted with standard 10G SFP+ ports supporting 10GBASE-BX100-D
2. Multi‑Brand Cross Interoperability
Built on MSA open standards, this 10G SFP+ BiDi optical transceiver works with Cisco, Arista, Huawei, H3C, Juniper, Dell, Palo Alto, Brocade hardware. Well‑suited for mixed‑vendor long‑haul metro and wide‑area network expansion projects for enterprise, carrier clients, wholesalers, distributors and system integrators.
3. Free Value-Added Services
- Custom EEPROM programming for multi-platform compatibility
- Sample testing available before bulk orders for project validation
- Private label customization and professional deployment guides
- Rigorous batch quality consistency control
- Custom EEPROM configuration for special and legacy network setups
- Free EEPROM recoding with 24/7 technical support
Primary Application Scenarios
- 100km single-fiber metro uplink deployments, HYTOPTODEVICE supplies 10G SFP+ BiDi optical transceiver solution for system integrators
- Long-distance inter-site fiber links connecting remote enterprise campuses and off-site disaster recovery data centers
- Network upgrade projects to preserve existing fiber assets by reusing individual OS2 fiber strands
- Cost-effective replacement solution to substitute original Dell long-reach BiDi transceivers for wholesalers
- Bulk sourcing of 10G SFP+ BiDi optical transceiver for global distributors, network buyers and telecom system integrators
Connectivity Solutions(Applications)
1.Switch-to-Switch Connectivity
2.Core to Access Connectivity(With Structured Cabling)
The Core Features
1.Single‑Fiber Transmission, Maximize Fiber Utilization
Unlike conventional dual‑fiber SFP+ transceivers, HYTOPTODEVICE Brocade‑compatible 10G SFP+ BiDi transceiver adopt WDM wavelength‑division multiplexing to realize bidirectional 10G transmission over only one OS2 single‑mode fiber core.
2.2x Capacity, Half the Cabling
A single fiber strand carries two wavelengths, enabling full-duplex 10G over one link. Double capacity per port, cut fiber cabling costs in half — no extra cables, no extra ports.
3.10G at 1.8W — Lower Energy, Lower Heat
Delivering stable 10G links at a low 1.8W power draw, this SFP+ 10G bidi transceiver minimizes heat dissipation per port, easing cooling load in dense deployments and cutting total cost of ownership.
4. Verified, Not Just Claimed
Compatibility isn't a promise — it's proven. Every unit passes rigorous testing on original-brand switches, guaranteeing drop-in interoperability across Cisco, Juniper, Huawei and other major platforms without reconfiguration headaches. Real products, real switches, real results—Specific Compatibility Video available upon request.
5.100% Tested for Rock-Solid Reliability
Signal integrity, distance runs, temperature cycling — every 10G BiDi 100km SFP+ transceiver is fully validated in our Test Center before shipping, ensuring stable, packet-loss-free links under any load.
FAQ
Q1: If I insert this 10G BiDi optic into a gigabit SFP port, will it automatically drop down to 1G speed?
A: NO, this 10G SFP+ BiDi transceiver cannot auto-negotiate down to 1G speed. It is designed to lock at 10G only and will not establish link on 1G ports. HYTOPTODEVICE supplies this fixed-rate 10G optic as part of our 10G SFP+ BiDi transceiver solution for buyers and system integrators.
Q2: Will installing aftermarket SFP+ optical modules void my switch or router’s original hardware warranty?
A: NO, using HYTOPTODEVICE compatible 10G SFP+ BiDi transceiver generally will not void your network hardware warranty. Most vendors restrict warranty only if the optic directly damages the equipment. We manufacture fully tested optics for distributors and wholesalers, with private label available.
Q3: Must I upgrade firmware on Dell switches to get proper recognition of this BiDi transceiver?
A: It depends. Most modern Dell SmartFabric OS10 switches recognize our module without firmware changes, but older firmware with locked transceiver whitelists may require an update. HYTOPTODEVICE provides pre-programmed EEPROM to resolve detection issues for system integrators.
Q4: Can I retrieve real-time DOM/DDM optical diagnostic metrics from this module on my host hardware?
A: YES, DDM/DOM fully functions on compatible Dell hosts. You can remotely monitor temperature, voltage, transmit and receive optical power. HYTOPTODEVICE 10G SFP+ BiDi transceiver supports real-time optical diagnostics for network operators and buyers.
Q5: Can this BiDi transceiver transmit and receive network signals using only one simplex fiber strand?
A: YES, single strand simplex fiber is exactly how this BiDi module operates. It transmits and receives over one OS2 fiber strand when paired with its matching opposite-direction BiDi partner. HYTOPTODEVICE manufactures these single-fiber 10G SFP+ BiDi transceivers for wholesale buyers.
Q6: Is this BiDi optical transceiver suitable to be deployed within passive CWDM or DWDM multiplexer systems?
A: NO, this BiDi transceiver is not designed for CWDM/DWDM passive mux systems. Its fixed 1490/1550nm wavelengths fall outside standard ITU-T wavelength grids; it is only for direct point-to-point single-fiber BiDi links.
Q7: Why is the 1490/1550nm wavelength pair selected instead of 1270/1330nm for 100km long-distance fiber transmission?
A: Lower fiber attenuation at 1490nm (~0.25 dB/km) and 1550nm (~0.20 dB/km) enables longer 100km transmission versus 1270/1330nm (~0.35 dB/km). HYTOPTODEVICE selects these wavelengths to deliver reliable long-reach 10G SFP+ BiDi transceiver solutions for distributors.
Q8: What rating of optical attenuator should I choose for short-distance laboratory bench testing?
A: A 12–15dB simplex LC optical attenuator is recommended for short bench tests under 10km. It reduces excess transmit power to protect the APD receiver from overload. HYTOPTODEVICE can supply matching attenuators alongside bulk 10G SFP+ BiDi transceiver orders for wholesalers.
Q9: How does chromatic dispersion impact 10G signal integrity across a 100km fiber span?
A: Chromatic dispersion broadens optical pulses and increases bit errors over 100km. Our module’s EML laser is selected to keep dispersion effects within acceptable limits for 10G operation on standard OS2 fiber, part of HYTOPTODEVICE’s long-reach 10G SFP+ BiDi transceiver solution.
Q10: Which photodetector chip is built inside this transceiver module, PIN or APD?
A: This module uses an APD receiver. APD provides higher sensitivity to meet the 100km link budget requirement, critical for long single-fiber BiDi links. HYTOPTODEVICE manufactures our 10G SFP+ BiDi transceiver with high-performance APD receivers for system integrators.
Q11: What inspection and testing processes are applied to these transceivers before factory shipment?
A: Every unit undergoes full optical power, sensitivity, DDM and burn-in testing before leaving our factory. HYTOPTODEVICE provides full test records for bulk orders, private label 10G SFP+ BiDi transceivers for global buyers and distributors.
Q12: What temperature grades are available for this transceiver, commercial versus industrial options?
A: The standard commercial version operates from 0°C to 70°C. Industrial grade (-40°C ~ +85°C) is available as a custom option. HYTOPTODEVICE supplies both variants of our 10G SFP+ BiDi transceiver for specialized network deployments.
Q13: What typical bit error rate (BER) performance can end users expect from this optical transceiver?
A: Typical BER is <1×10⁻¹² within rated optical budget. This low error rate ensures stable 10G Ethernet traffic across the full 100km link. HYTOPTODEVICE verifies BER performance during factory testing for all wholesale 10G SFP+ BiDi transceiver shipments.
Q14: Does this 10G BiDi transceiver come with built-in FEC forward error correction capability?
A: NO, this 10GBASE-BX BiDi transceiver does not include built-in FEC. Error correction must be handled by the host Dell switch or router if required. HYTOPTODEVICE provides clear specs so system integrators can design their network solution correctly.
Q15: Does this optical transceiver meet the specifications defined under IEEE 802.3ae 10GBASE-ZR standard?
A: NO, this BiDi module does not comply with 10GBASE-ZR standards. It is compliant with IEEE 802.3ae, SFF-8472, SFF-8431, SFF-8432 and SFP+ MSA specifications. HYTOPTODEVICE manufactures this 10G SFP+ BiDi transceiver following these industry standards for network buyers and system integrators.
Packaging & Custom OEM Solutions
Each module ships individually sealed in ESD-safe packaging, protected from static from our warehouse to your shelf—and ready to ship on receipt of order. Volume buyers and system integrators also unlock our full OEM program: custom logos, private labeling, and branded packaging, all designed to help you build and protect your own brand.
Why Network Engineers Choose HYTOPTODEVICE
HYTOPTODEVICE has supplied over 5000,000 optical transceiver modules to data centers, ISPs, and enterprise networks across 100+ countries since 2011. Every module undergoes a 72-hour burn-in test and full DDM/DOM validation before shipment.
- Up to 70% cost savings vs OEM, transparent pricing & flexible bulk rates, supported quality returns
- 100% real-device compatible with Cisco, Huawei,Dell,Juniper, and Arista
- ISO 9001:2015 Shenzhen factory, full lineup: 1.25G/10G/25G/40G/100G/200G/400G/800G/1.6T transceivers
- Ample stock, fast global DHL/FedEx shipping in 3–5 working days
- Free pre-sales engineering support for custom EEPROM & private label firmware
- Real switch test videos available for pre-purchase review; inspection & shipping videos provided per order
