| NO. | Brand | Compatible P/N | Transceiver Type |
| 1 | Cisco | QSFP-200G-FR4-S | QSFP56-200G-SR4 |
| 2 | Arista | QSFP-200G-FR4 | QSFP56-200G-LR4 |
| 3 | Huawei | QSFP56-200G-FR4 | QSFP56-200G-ER4 |
| 4 | H3C | QSFP56-200G-FR4-WDM1300 | |
| 5 | Broadcom | QSFP56-200G-FR4 | |
| 6 | Generic | QSFP56-200G-FR4 |
| Cisco Compatible |

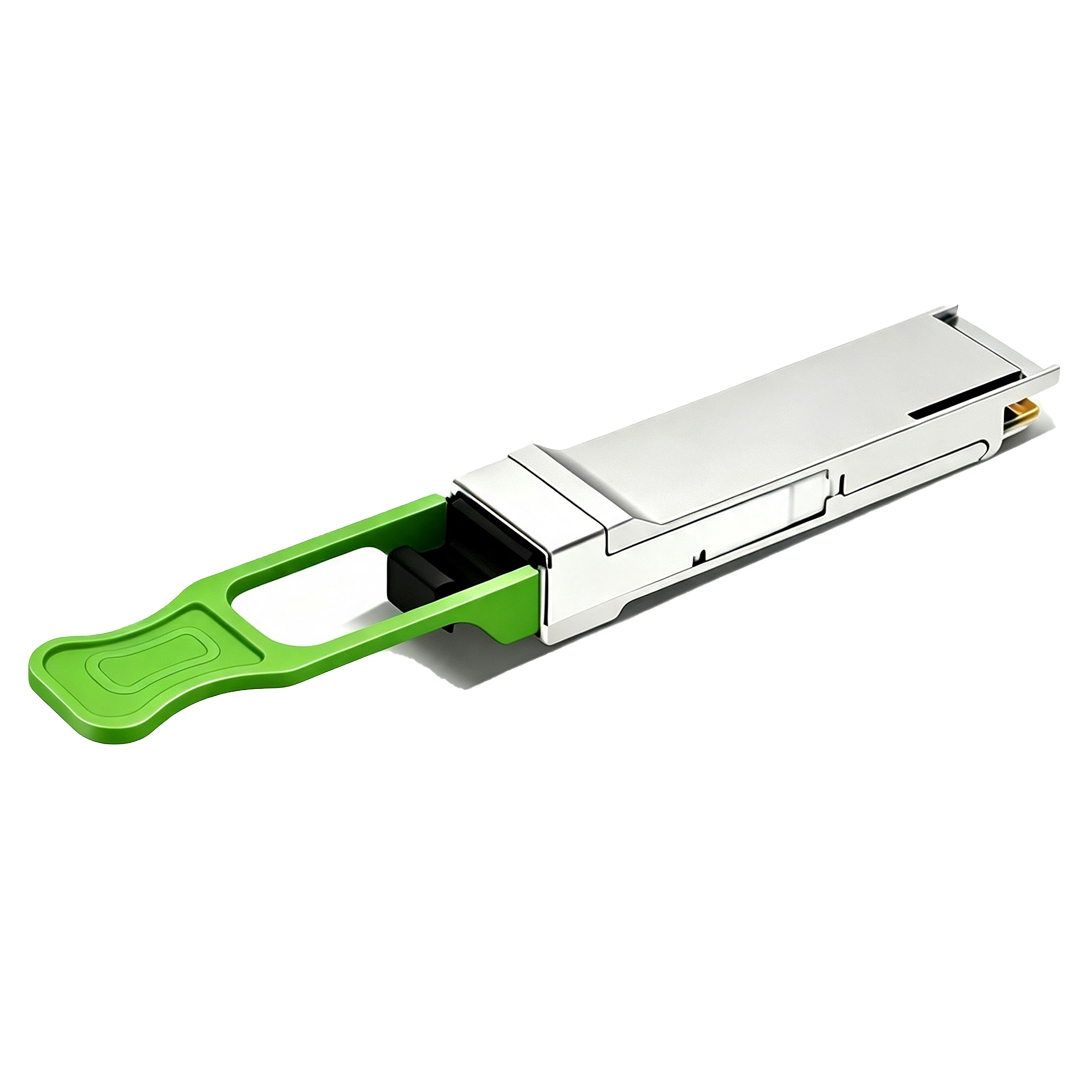

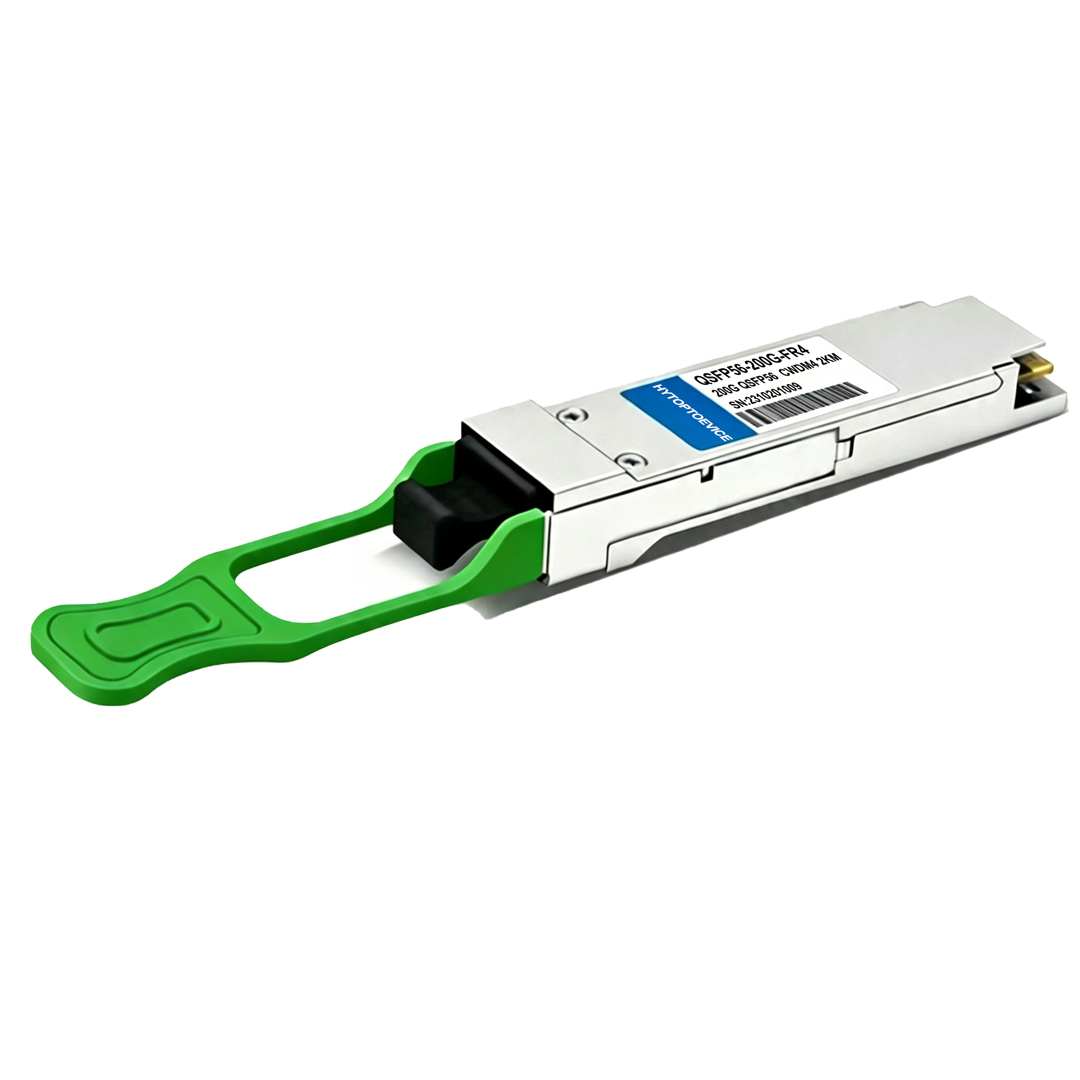

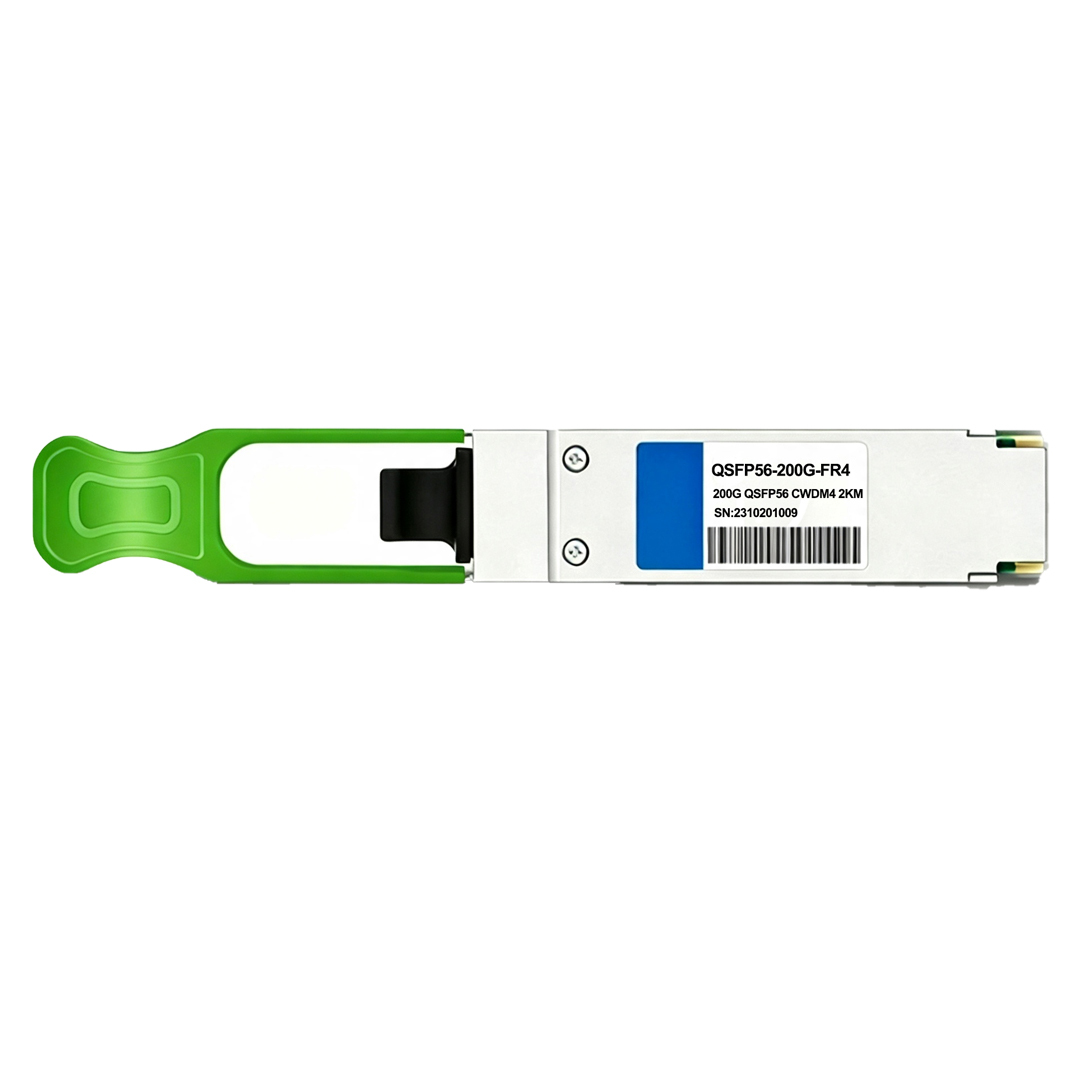

QSFP-200G-FR4-S |
Vendor Name | HYTOPTODEVICE |
| Form Factor | QSFP56 | Max Data Rate | 200Gbps (4x50Gbps) |
| Wavelength | 1271nm, 1291nm, 1311nm and 1331nm
|
Max Distance | 2km |
| Modulation Format | PAM4 | Host Required | FEC |
| Connector | Duplex LC | Voltage Supply | 3.3V |
| Cable Type | SMF | DDM Support | Yes |
| Transmitter Type | Cooled EA-DFB | Receiver Type | PIN |
| TX Power | -5.1~+4.0dBm | Receiver Sensitivity | < -8.2dBm |
| Operation Temperature | 0 to 70°C (32 to 158°F) | Maximum Power | < 6.5W |
| Protocols | QSFP56 MSA, IEEE 802.3bs 200GBASE-FR4 |
Application | 200G Ethernet, 200G InfiniBand HDR, Data Center,Fiber Channel |
Full Compatibility List & Supported Network Hardware
Built on universal MSA open standards, this QSFP56 FR4 transceiver is interoperable with mainstream network brands including Arista, Cisco, H3C, Huawei and more, adapting to mixed‑vendor leaf‑spine network upgrade and expansion scenarios.
Q1: Do we need to invest in brand-new single-mode fiber and LC cleaning supplies for 200G FR4 migration?
A: No, standard G.652 duplex LC SMF cables and regular single-mode fiber cleaning tools are fully compatible. As a professional manufacturer, HYTOPTODEVICE designs this QSFP56 200G FR4 transceiver with standard LC interface to help wholesale buyers reuse existing single-mode cabling assets.
Q2: Will third-party QSFP56 200G FR4 optics trigger system alerts or port lockdown in Cisco and multi-vendor switch fabrics?
A: Warning behavior depends on the vendor’s transceiver validation rules. Our factory HYTOPTODEVICE supports custom EEPROM coding to match required vendor signatures and reduce alert logs on Cisco and other mainstream platforms; bulk purchasers should confirm switch OS limitations before ordering.
Q3: Can inconsistent FEC configurations across different switch brands and optics trigger random link failures on our DCI links?
A: Yes, mismatched FEC settings can cause intermittent link flapping. HYTOPTODEVICE, as an experienced supplier, provides standardized FEC configuration guides for multi-vendor deployments; our pre-tested QSFP56 200G FR4 optics run reliably once uniform host-side PAM4 FEC is enabled.
Q4: What is the certified transmission distance of QSFP56 200G FR4, and can it run steadily over standard G.652 single-mode fiber?
A: The maximum supported reach is 2km over G.652 single-mode fiber. This HYTOPTODEVICE QSFP56 200G FR4 transceiver is built for standard SMF infrastructure, helping buyers leverage existing single-mode cabling for short-distance data center interconnection.
Q5: Will densely populated 200G FR4 transceivers create thermal overload risks for our leaf switches under full traffic load?
A: Thermal risks are manageable with proper airflow planning. This HYTOPTODEVICE QSFP56 200G FR4 module has a max power consumption below 7W; high-density deployments only require standard rack airflow control to avoid thermal throttling.
Q6: Does PAM4 modulation and FEC processing on 200G FR4 introduce measurable latency for low-latency computing workloads?
A: No, latency overhead from PAM4 encoding and RS-FEC remains at sub-microsecond levels. Pre-validated optics from manufacturer HYTOPTODEVICE fit HPC and latency-sensitive AI workloads that demand stable forwarding performance.
Q7: How susceptible are the internal CWDM4 optical channels of FR4 transceivers to dust and end-face contamination?

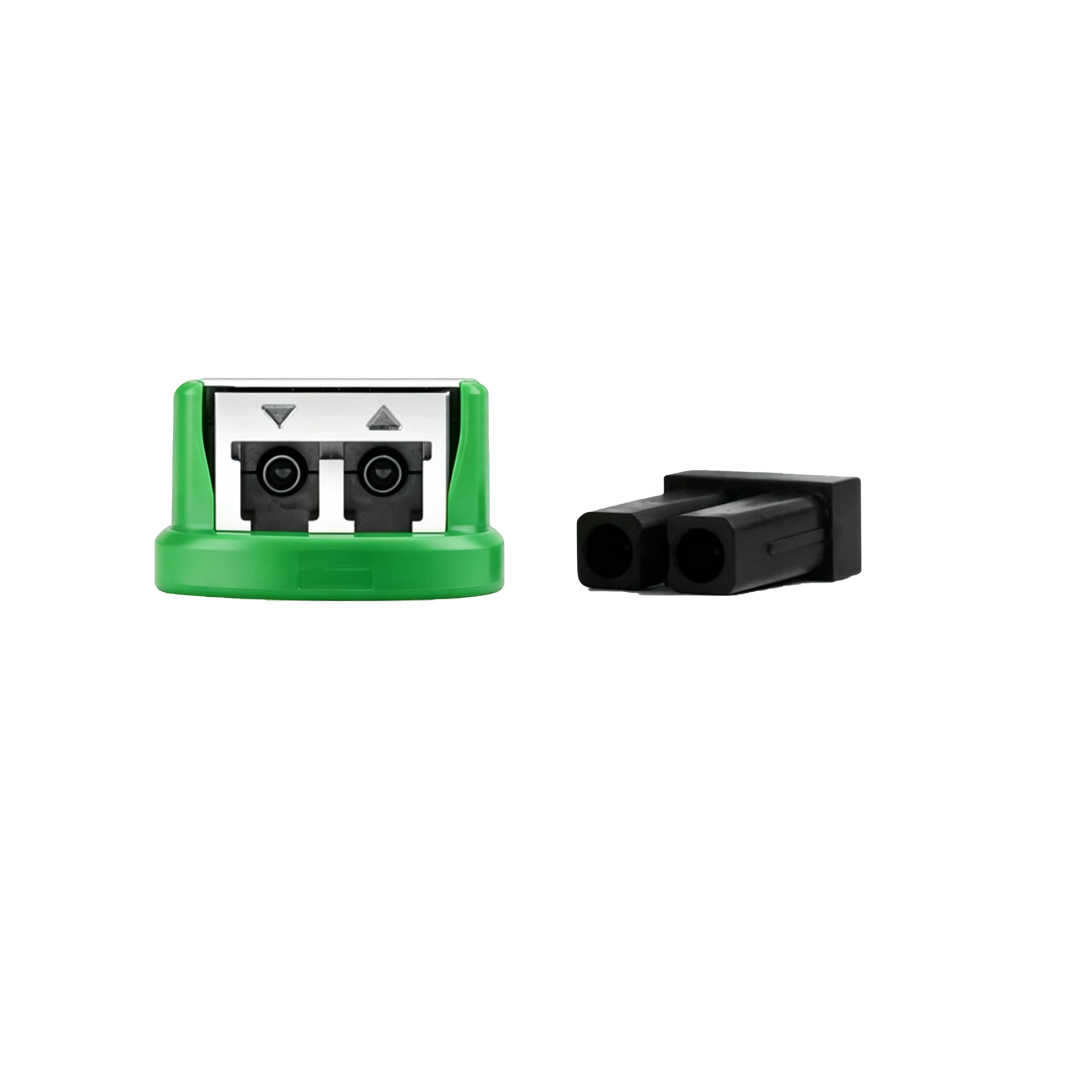

A: The built-in EA-DFB laser arrays and receiver components are sensitive to dirt. Contaminated LC end-faces raise insertion loss and create unstable links. HYTOPTODEVICE fits dust caps on all modules and recommends routine LC connector cleaning.
Q8: What after-sales support can bulk buyers obtain from the supplier if DOA defective units appear in a shipment?
A: HYTOPTODEVICE provides direct DOA replacement service for confirmed faulty units. Every batch passes full optical and electrical aging testing before leaving our factory, and wholesale customers receive dedicated engineering support to resolve DOA issues quickly.
Q9: Are there noticeable performance gaps between transceiver batches purchased from the same optical module factory?
A: No, batch consistency is strictly controlled. HYTOPTODEVICE, as a professional manufacturer, applies unified optical specifications and standardized test workflows across all QSFP56 200G FR4 production runs for uniform fabric performance.
Q10: When troubleshooting a downed DCI 200G link, will our optics supplier provide joint diagnosis or simply attribute the fault to switch hardware?
A: HYTOPTODEVICE offers collaborative end-to-end troubleshooting instead of one-sided blame-shifting. Our engineering team reviews DOM logs, optical parameters and interoperability conditions alongside procurement customers to isolate root causes.
Q11: Can we run this 200G FR4 optic at lower port speeds during phased data center migration projects?
A: No, 200GBASE-FR4 does not support auto-negotiation down to lower speeds. This HYTOPTODEVICE QSFP56 200G FR4 transceiver only works at native 200G speed, so phased rollouts need careful port speed planning.
Q12: Are the optical power and temperature DOM readings reported by these QSFP56 FR4 transceivers trustworthy for continuous DCI monitoring?
A: Yes, DOM telemetry data is reliable for daily link health monitoring. Each HYTOPTODEVICE QSFP56 200G FR4 module is factory calibrated, and CMIS DDM outputs deliver stable, accurate real-time metrics for data center O&M teams.
Q13: Do our field technicians need advanced specialized certification to install and maintain LC-based single-mode FR4 optics?
A: Basic single-mode fiber operation training is sufficient; advanced certification is not mandatory. As your trusted supplier, HYTOPTODEVICE ships LC operation notes and configuration guides with orders to help technicians deploy these QSFP56 200G FR4 modules correctly.
Q14: How high is the risk of permanent module damage caused by ESD during regular cabinet maintenance?
A: QSFP56 transceivers are ESD-sensitive electronic devices; static discharge can permanently damage laser chips. HYTOPTODEVICE packs all modules inside anti-static packaging and reminds maintenance teams to wear ESD wrist straps.
Q15: How can bulk procurement of these 200G FR4 single-mode optics support our company’s ESG and green data center targets?
A: These QSFP56 200G FR4 modules meet RoHS restricted substance compliance. HYTOPTODEVICE, as a responsible manufacturer, uses optimized low-power optical design and eco-friendly production workflows to help wholesale buyers achieve green IT and ESG data center requirements.
ESD Protection & Fast Shipping: Every module is sealed in an ESD-safe bag and ready for same-day dispatch from stock.
Custom OEM & Branding: We provide logo printing, private labeling, and custom packaging to help distributors and integrators build their brand—no factory investment required.
Why Network Engineers Choose HYTOPTODEVICE
HYTOPTODEVICE has supplied over 5000,000 optical transceiver modules to data centers, ISPs, and enterprise networks across 100+ countries since 2011. Every module undergoes a 72-hour burn-in test and full DDM/DOM validation before shipment.
