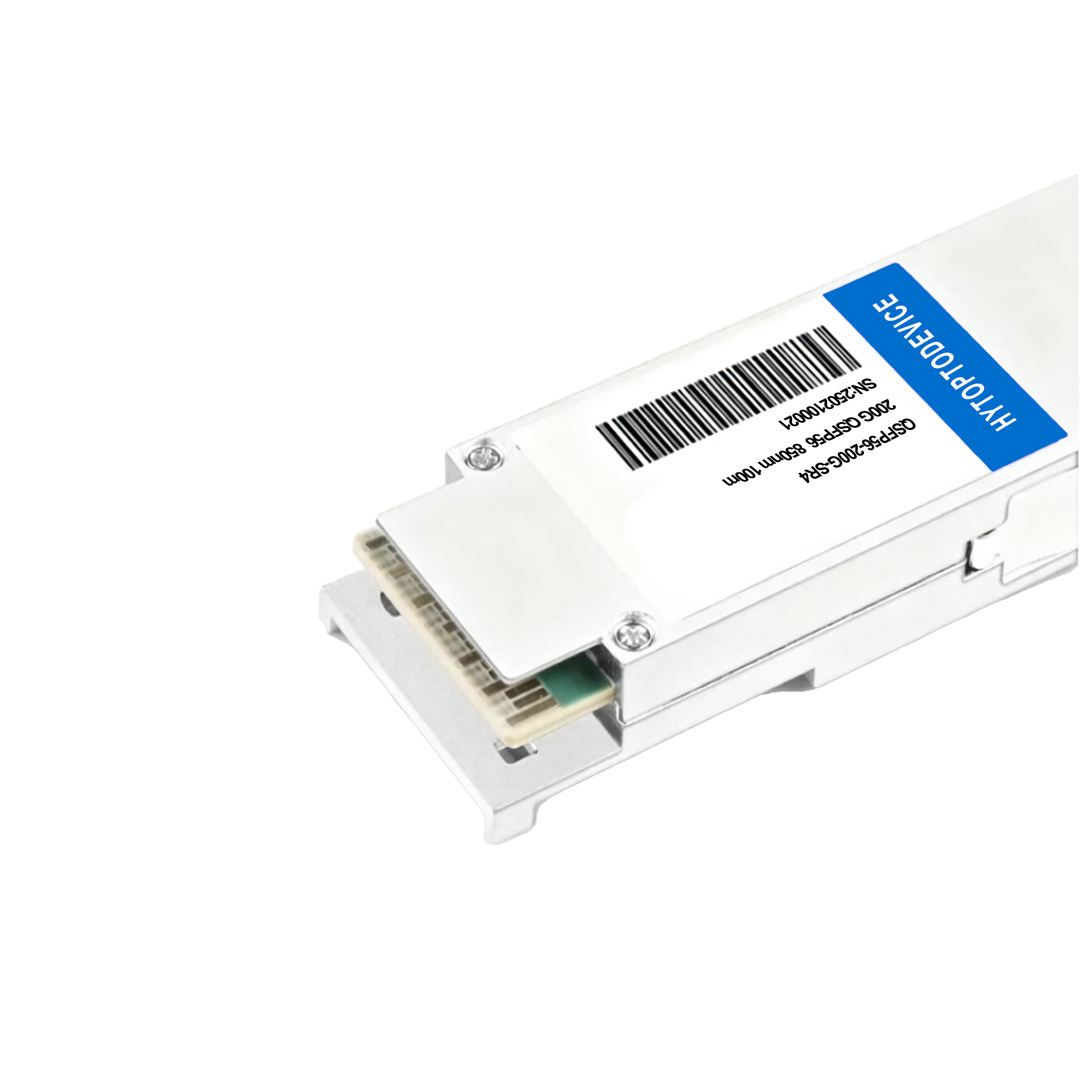

• HYTOPTODEVICE  QSFP‑200G‑SR4‑S compatible 200G QSFP56 SR4 module, bulk factory wholesale for data center leaf‑spine fabric

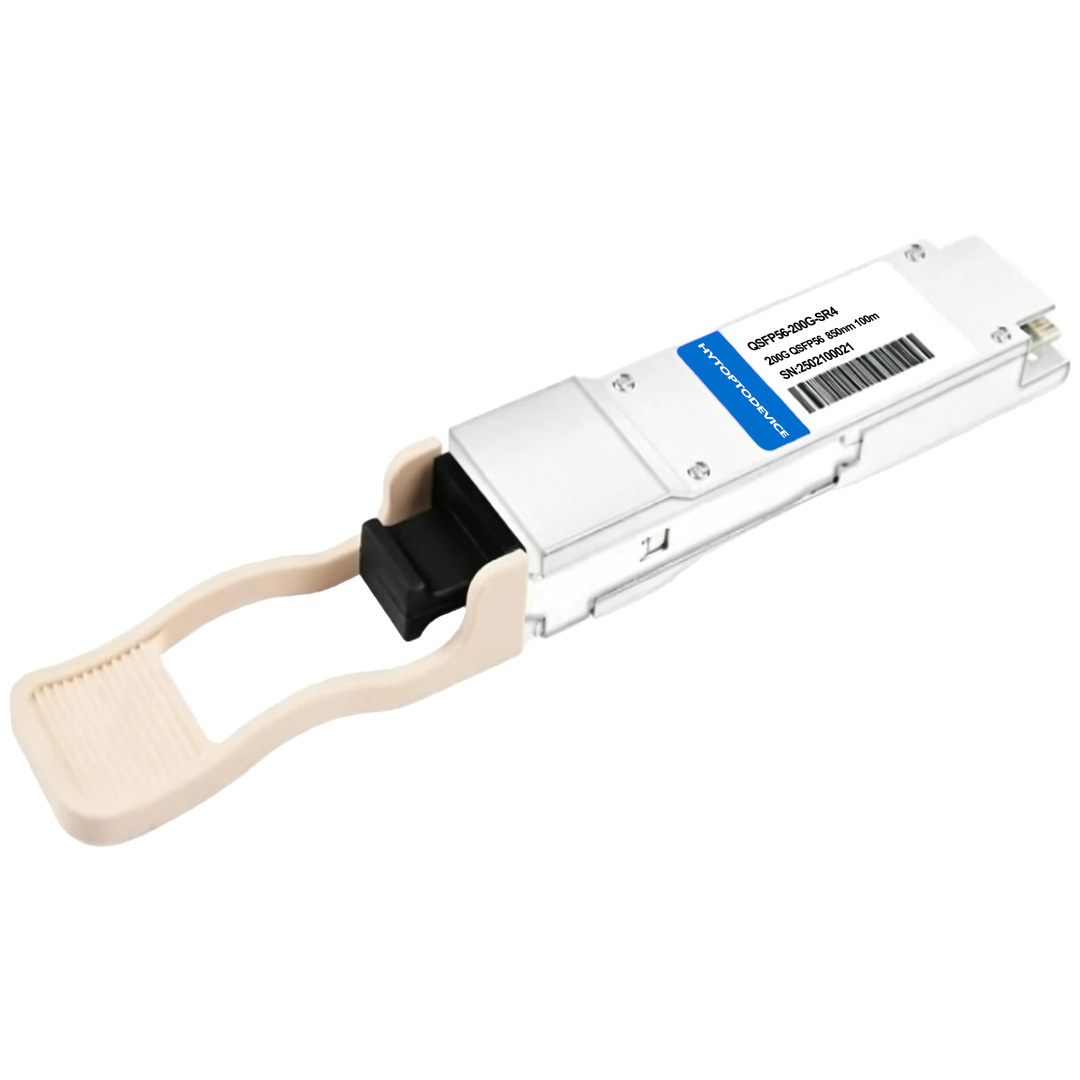

  • 200GBASE‑SR4 850nm 100m MPO‑12/UPC QSFP56 transceiver, OEM private‑label compatible optic by HYTOPTODEVICE

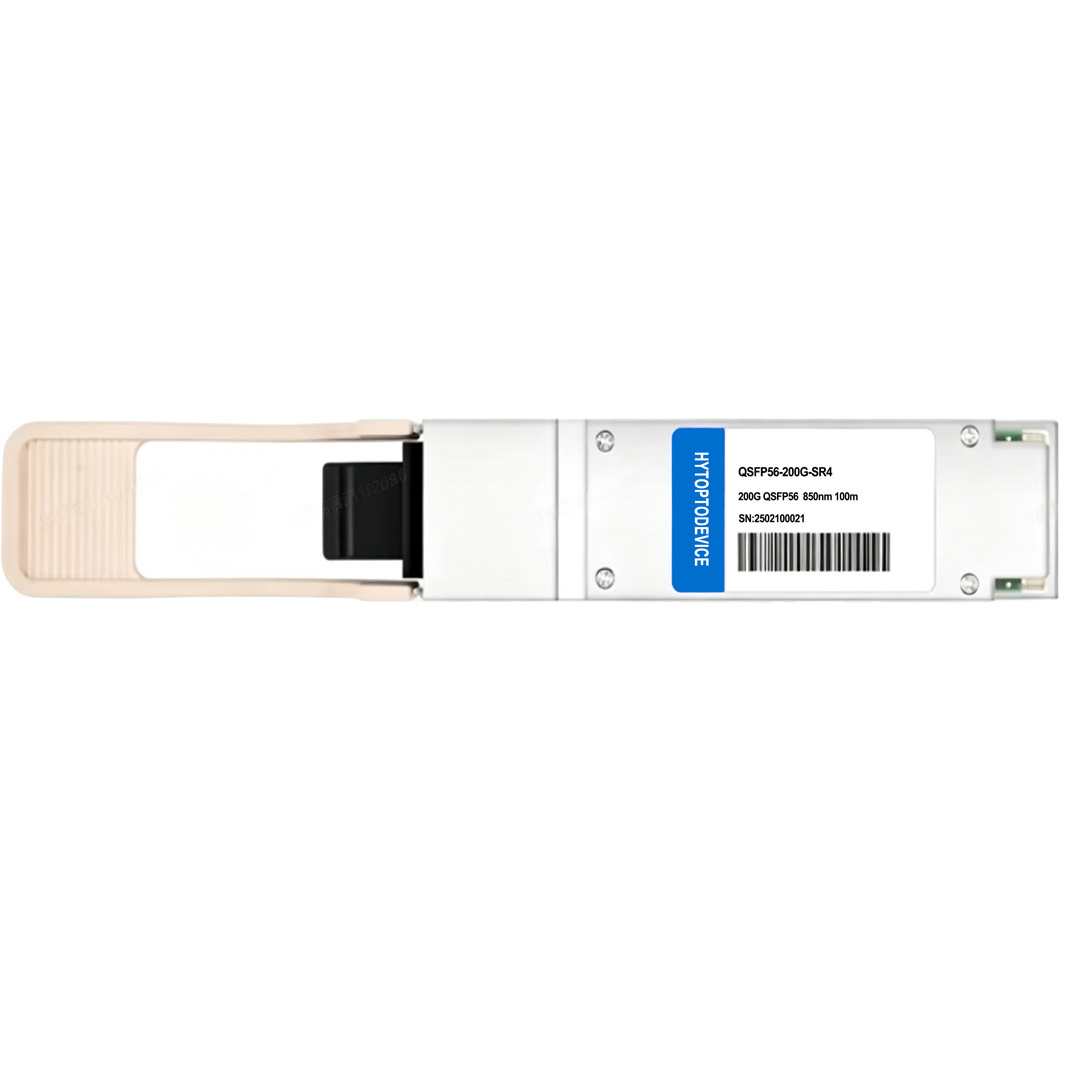

  • Bulk factory wholesale low MOQ compatible 200G QSFP56 SR4 module for high‑speed data center interconnections

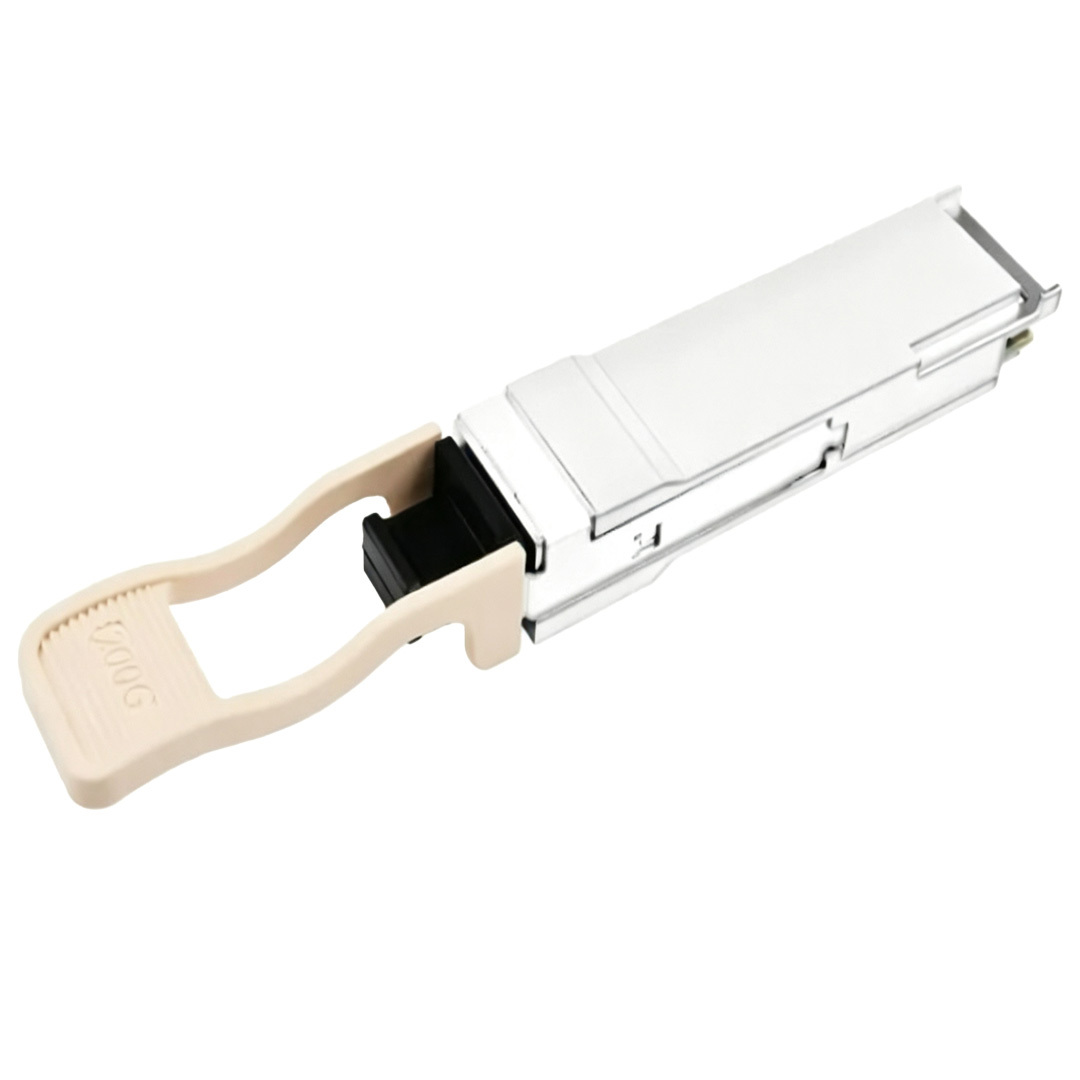

  • HYTOPTODEVICE factory 200G QSFP56 SR4 short‑reach optical transceiver with custom EEPROM for leaf‑spine deployments
  • HYTOPTODEVICE  QSFP‑200G‑SR4‑S compatible 200G QSFP56 SR4 module, bulk factory wholesale for data center leaf‑spine fabric
  • 200GBASE‑SR4 850nm 100m MPO‑12/UPC QSFP56 transceiver, OEM private‑label compatible optic by HYTOPTODEVICE
  • Bulk factory wholesale low MOQ compatible 200G QSFP56 SR4 module for high‑speed data center interconnections
  • HYTOPTODEVICE factory 200G QSFP56 SR4 short‑reach optical transceiver with custom EEPROM for leaf‑spine deployments

Cisco QSFP-200G-SR4-S Compatible 200G QSFP56 SR4 Module | 200GBASE-SR4 850nm 100m Transceiver MPO-12/UPC MMF Bulk Wholesale | HYTOPTODEVICE

Buy HYTOPTODEVICE Cisco QSFP‑200G‑SR4‑S compatible 200G QSFP56 SR4 transceiver. 200GBASE‑SR4, 850nm, up to 100m over OM4 MMF, MPO‑12/UPC. Bulk factory wholesale, custom EEPROM, OEM available for Cisco switches & routers, distributors & integrators.
NO. Brand  Compatible P/N Transceiver Type
1 Cisco QSFP-200G-SR4-S QSFP56-200G-FR4
2 Arista  QSFP-200G-SR4  QSFP56-200G-LR4
3 Dell  Q56-200G-SR4 QSFP56-200G-ER4
4 Huawei  QSFP56-200G-SR4
5 Ruijie Networks  200G-Q56-SR4-MM850
6 NVIDIA/Mellanox MMA1T00-VS
7 H3C  QSFP56-200G-SR4-MM850
Description


HYTOPTODEVICE 200G QSFP56 Module | Cisco
 Compatible 200GBASE-SR4 Optical Transceiver Module(MMF, 850nm,100m, MPO-12, DOM)

Product Overview

The QSFP-200G-SR4-S is a high-performance Cisco compatible 200G QSFP56 optical module,designed for 200GBASE Ethernet throughput over MTP/MPO-12 connectors using OM4 multimode fibre (MMF),reach up to 100m.  Operating over a wavelength of 850nm, this module integrates 4 parallel independent electrical lanes utilizing advanced 4x 50Gbps PAM4 (Pulse Amplitude Modulation 4-Level) technology to achieve an aggregate throughput of 200Gbps. this transceiver delivers high-bandwidth, energy-efficient performance with short reach. making it the ideal choice for next-generation AI data centers and High-Performance Computing (HPC) clusters.Fully compliant with IEEE 802.3bs, QSFP56 MSA, SFF-8665, SFF-8636 and SFF-8679 standards,real-time Digital Optical Monitoring (DOM) supported.

Key Product Parameters

Cisco Compatible

QSFP-200G-SR4-S Vendor Name HYTOPTODEVICE
Form Factor QSFP56 Max Data Rate 200Gbps (4x50Gbps)
Wavelength  850nm
Max Distance 70m on OM3/100m on OM4
Modulation Format PAM4 Host Required FEC
Connector MPO-12(UPC) Voltage Supply 3.3V
Cable Type MMF Receiver Overload 4dBm
Transmitter Type VCSEL 850nm Receiver Type PIN
TX Power -6.5~+4.0dBm Receiver Sensitivity < -8.4dBm
Operation Temperature  0 to 70°C (32 to 158°F) Maximum Power < 4.5W
Protocols QSFP56 MSA, IEEE 802.3bs Application 200G Ethernet, High performance computing, Data Center Interconnect

For detailed technical specifications, please refer to the Datasheet


Usage Guidelines & Best Practices

  • Fiber Choice: Only works with OM3 / OM4 multi‑mode MPO‑12 trunk cable; single‑mode fiber cannot support 850nm SR4 transmission and will lead to link failure.

  • Distance Limit: Max 70m on OM3 MMF, max 100m on OM4 MMF; excessive splices, dirty end‑faces or sharp bends reduce actual working distance.

  • Cleanliness & Dust: Keep dust caps on whenever unattached. Clean fiber end-faces with a optical cleaning pen before insertion; dust causes over 80% of optical link failures.

  • Installation Specification: Hot‑plug supported; keep MPO connector end‑faces clean, observe minimum fiber‑bend radius requirements.

  • Port Configuration: Confirm host ports are set to 200G SR4 mode; do not mix SR4 with other 200G optical standards on the same link.
  • Operating Environment: Commercial temperature range 0°C‑70°C; maintain cabinet airflow to avoid module overheating.

For detailed operation instructions, please refer to the User Guide.


Full Compatibility List and Supported Devices

1. Validated Cisco Hardware & Firmware

This module adopts Cisco‑specific EEPROM, supporting zero‑alarm plug‑and‑play with official firmware. All products are strictly temperature burn‑in tested before shipment, fully compatible with the below Cisco hardware models:

Cisco Nexus Data Center Switches: Nexus 9300‑FX3 Series, Nexus 9364E Series, Nexus 9200 Series

Cisco UCS Series: UCS 5108 blade chassis with QSFP56 capable I/O modules

Universal Compatibility: All Cisco devices with standard QSFP56 ports supporting 200GBASE‑SR4 protocol. Breakout functions rely on switch firmware support.

2. Multi‑Brand Cross Interoperability

Built on universal MSA open standards, this QSFP56 transceiver is interoperable with mainstream network brands including Arista, Juniper, H3C, Huawei and Fortinet, adapting to mixed‑vendor leaf‑spine network upgrade and expansion scenarios.

3. Free Value-Added Services

  • Custom firmware for multi-device compatibility
  • Support sample testing before bulk orders for project pre-verification
  • Private-label customization and professional deployment guidanc
  • Strict batch consistency quality control
  • Free custom EEPROM programming for special and legacy network environments
  • Free EEPROM rewriting (Tools Included) with 24/7 Tech Support


Primary Application Scenarios

• Leaf‑spine fabric deployments for modern AI‑ready data‑center architectures
• High‑density rack‑to‑rack trunk interconnections
• 200G high‑speed server and storage uplink connections
• 200G to 2×100G / 4×50G breakout architecture (host‑firmware dependent)
• Cost‑effective Cisco data‑center network hardware upgrade projects
• Inventory supply for global distributors and system integrators for data‑center tender projects


Connectivity Solutions(Applications)

1. 200G Switch-to-Switch Interconnection



2.200G Switch-to-NIC Direct Connection



3.200G to 4×56G Breakout Link with Switch


4.400G to 2x 200G for Switch-Adapter Card


The Core Feature

1. Low-Risk 400G Upgrade with 200G SR4

Leverage low-power, low-BER 200G SR4 modules to expand your data center network seamlessly, simplify product selection, and cut TCO and energy consumption—delivering a smooth, low-risk path to 400G.

HYTOPTODEVICE factory 200G QSFP56 SR4 short‑reach optical transceiver with custom EEPROM for leaf‑spine deployments

2.Host-Device Tested for Proven Interoperability

Every transceiver is rigorously tested for compatibility in the target switch environment, so you can deploy with confidence — no surprises, no downtime. Not sure it fits? Compatibility Video available upon request.

HYTOPTODEVICE 200g qsfp26 sr4 compatible transceiver with verified multi‑generation switch interoperability

3. 100% Individually Tested for Peak Performance

Every single unit is tested individually — no sampling, no shortcuts — to ensure optical compliance and continuous operational stability. Curious how we do it? Take a virtual tour of our Test Center.

HYTOPTODEVICE 200G SR4 qsfp56 module comprehensive factory testing stable performance for  platforms bulk wholesale orders


FAQ

Q1: What does the "-S" suffix indicate in Cisco QSFP-200G-SR4-S?

A: The "-S" denotes Cisco's "S-Class" (Smart Class) line of optics. These modules are specifically tailored for enterprise and data center features (such as 100m OM4 reach) and exclude uncommon legacy protocols to offer a more cost-effective solution compared to non-S-class optics.


Q2: Can I insert this 200G SR4 module into a Cisco 400G QSFP-DD port?
A: Yes. Cisco's 400G QSFP-DD ports are backward-compatible. A QSFP56 module can physically and electrically map into the lower-speed lane configurations of a QSFP-DD slot and will run natively at 200G.

Q3: What type of fiber optic patch cord is used for this 200G SR4 transceiver?
A: It uses a Multi-Mode Fiber (MMF) patch cable with an MPO-12 (UPC) connector. the dual-LC fibers can not be used.

Q4: Can I use this 200G SR4 transceiver on a standard 100G QSFP28 switch port?
A: No. The 100G QSFP28  port does not support the 200G QSFP56 module.their pulse modulation ways are different. 100G SR4 module uses 25G NRZ electrical lanes and cannot process the 50G PAM4 signals used by this 200G QSFP56 transceiver.

Q5: Is Forward Error Correction (FEC) required to use this module?
A: Yes. In accordance with the IEEE 802.3bs 200GBASE-SR4 standard, the host equipment must have RS-FEC turned on to manage the native signal margins of PAM4 technology.

Q6: Can this 200G QSFP56 module be split into breakout connections?
A: Yes. Because it features a parallel 4-lane VCSEL optics structure, you can use an MPO-12 to 2x QSFP56 breakout cable or an MPO-12 to 4x SFP56 breakout cable to divide the link into 2x 100G or 4x 50G connections, provided your Cisco switch port supports splitting.

Q7: What is the maximum transmission distance for 200G QSFP56 SR4 module?
A: The module transmit data up to 100 meters (328 feet) when using high-quality OM4 multi-mode fiber, and up to 70 meters (229 feet) when utilizing OM3 fiber.

Q8: Does the QSFP-200G-SR4-S feature Digital Diagnostics Monitoring (DDM)?
A: Yes. It supports  Digital Diagnostic Monitoring allowing real-time tracking of internal temperature, operating voltage, laser bias currents, and transmit/receive power values via the switch OS.

Q9: What happens if I insert a third-party clone of this module into my Cisco switch?
A: Cisco switches utilize advanced firmware validation checks. If a non-genuine or poorly coded module is detected, the switch OS will trigger a flag (e.g., Unsupported Cable) and disable the port to protect signal integrity.

Q10: Can this 200G QSFP56 SR4 optic physically fit into legacy QSFP28 network device slots?

A: No. QSFP56 is a distinct form‑factor and cannot plug into QSFP28 ports. This Cisco‑compatible 200GBASE‑SR4 transceiver requires native QSFP56 ports to achieve full 200G PAM4 throughput.

Q11: What pre‑condition is needed for this module to run on non‑Cisco multi‑vendor network equipment?

A: Matching vendor‑specific EEPROM signature must be pre‑loaded. When placing bulk orders, integrators should notify HYTOPTODEVICE sales of target hardware brands to get correct pre‑coded units.

Q12: Which fiber grade determines whether I can achieve the maximum 100‑meter transmission distance?

A: OM4 multi‑mode fiber is required for full 100‑meter reach; OM3 MMF limits valid links to maximum 70 meters. Our engineering team can review your existing cabling plant during pre‑sales planning.

Q13: Are all Cisco QSFP56 switches capable of enabling 2×100G SR2 breakout with this 200G SR4 module?

A: Breakout modes of 2×100G SR2 or 4×50G SR are hardware‑supported on the module side, but the feature depends entirely on host switch firmware capability. Please validate firmware compatibility during PoC testing before large‑scale deployment.

Q14: What resources and after‑sales assistance are offered for bulk buyers needing on‑site EEPROM reprogramming?

A: You will need an optical transceiver programming coding box and matching software to rewrite the module's compatibility profile. HYTOPTODEVICE supplies both coding box and software for bulk buyers to re‑program modules on‑site, paired with lifetime free technical support for this 200G QSFP56 SR4 transceiver.

Q15: Why is host‑activated FEC mandatory for reliable 200GBASE‑SR4 PAM4 links?

A: PAM4 modulation has inherently lower signal‑to‑noise tolerance compared to NRZ signaling. Host‑side FEC corrects lane‑level bit‑errors caused by multi‑mode modal noise, and must be turned on to avoid intermittent packet loss.

Q16: Can operators read real‑time optical performance metrics from this 200G QSFP56 SR4 module remotely?

A: Yes, CMIS‑based DDM/DOM monitoring is fully supported. Network administrators can remotely observe module temperature, supply voltage, laser bias, transmit and receive power for routine link health auditing.

Q17: What differentiates SR4 optics from other 200G QSFP56 transceiver variants such as DR4 or FR4?

A: SR4 is a parallel multi‑mode short‑reach solution optimized for intra‑data‑center rack‑to‑rack connections. DR4 / FR4 utilize single‑mode fiber and target much longer campus‑scale inter‑building distances.

Q18: Are these bulk‑order 200G QSFP56 SR4 optical modules compliant for international data‑center deployments?

A: Yes, all HYTOPTODEVICE 200G QSFP56 SR4 transceivers comply with RoHS requirements. Complete compliance documentation can be provided for customs clearance and international project audits.

Packaging & Custom OEM Solutions

  • ESD Protection & Fast Shipping: Every module is sealed in an ESD-safe bag and ready for same-day dispatch from stock.

  • Custom OEM & Branding: We provide logo printing, private labeling, and custom packaging to help distributors and integrators build their brand—no factory investment required.

HYTOPTODEVICE 10Gbase-bx bidi transceiver  custom packaging


Why Network Engineers Choose HYTOPTODEVICE

HYTOPTODEVICE has supplied over 5000,000 optical transceiver modules to data centers, ISPs, and enterprise networks across 100+ countries since 2011. Every module undergoes a 72-hour burn-in test and full DDM/DOM validation before shipment.

  • Up to 70% cost savings vs OEM, transparent pricing & flexible bulk rates, supported quality returns
  • 100% real-device compatible with Cisco, Huawei,Dell,Juniper, and Arista
  • ISO 9001:2015 Shenzhen factory, full lineup: 1.25G/10G/25G/40G/100G/200G/400G/800G/1.6T transceivers
  • Ample stock, fast global DHL/FedEx shipping in 3–5 working days
  • Free pre-sales engineering support for custom EEPROM  & private label firmware
  • Real switch test videos available for pre-purchase review; inspection & shipping videos provided per order


“Phenomenal performance. We deployed 200 HYTOPTODEVICE SFP modules to replace Cisco OEMs in our backbone network. Result? Zero compatibility issues and a 60% reduction in costs. Highly recommended for mission-critical networks."— Senior Network Engineer, Regional Telecom, Australia


Quality Certification & Compliance

 At HYTOPTODEVICE, our quality commitment is backed by industry-standard validations. From fiber optical transceiver manufacturing to final visual inspection, from IQC、IPQC、FQC to OQC, our processes ensure global compliance and reliability.

We adhere to rigorous standards for our SFP modules and network solutions:

  • ISO 9001: Certified quality management and production consistency.

  • CE & FCC: Fully compliant for seamless Global Market Access.

  • RoHS: Committed to environmental responsibility and hazardous material control.

  • Proven Reliability: Rigorous testing to reduce compliance risk and ensure safety.

Certified Quality. Global Standards. Guaranteed Performance.




Rigorous Industrial Product Testing

   hytoptodevice check device and equiptment for optical transceiver module

100% 3rd Party Compatible
testing device for hytoptodevice 10g sfp+ bidi optical module
Partial Test Demonstration
hytoptodevice compatible optical transceiver module for ethernet,data center
