| NO. | Brand | Compatible P/N | Remarks |
| 1 | Cisco | QSFP-4SFP25-CU1M | |
| 2 | Arista Networks | CAB-Q28-S28-1M | |
| 3 | Brocade | 100G-Q28-S28-C-0101 | |
| 4 | Huawei | QSFP-4SFP25G-CU1M | |
| 5 | Juniper | QFX-Q-S-DAC-1M | |
| 6 | Dell | DAC-Q28-4SFP28-25G-1M |

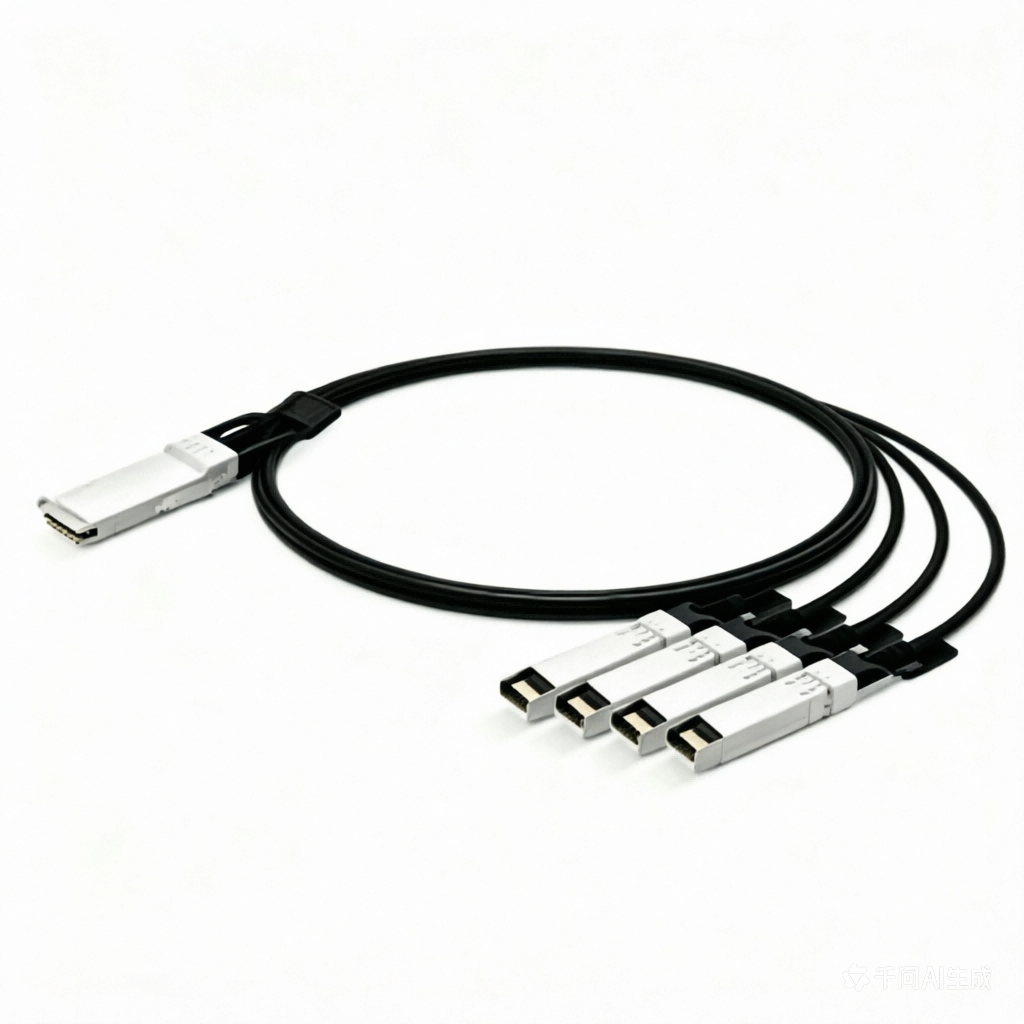

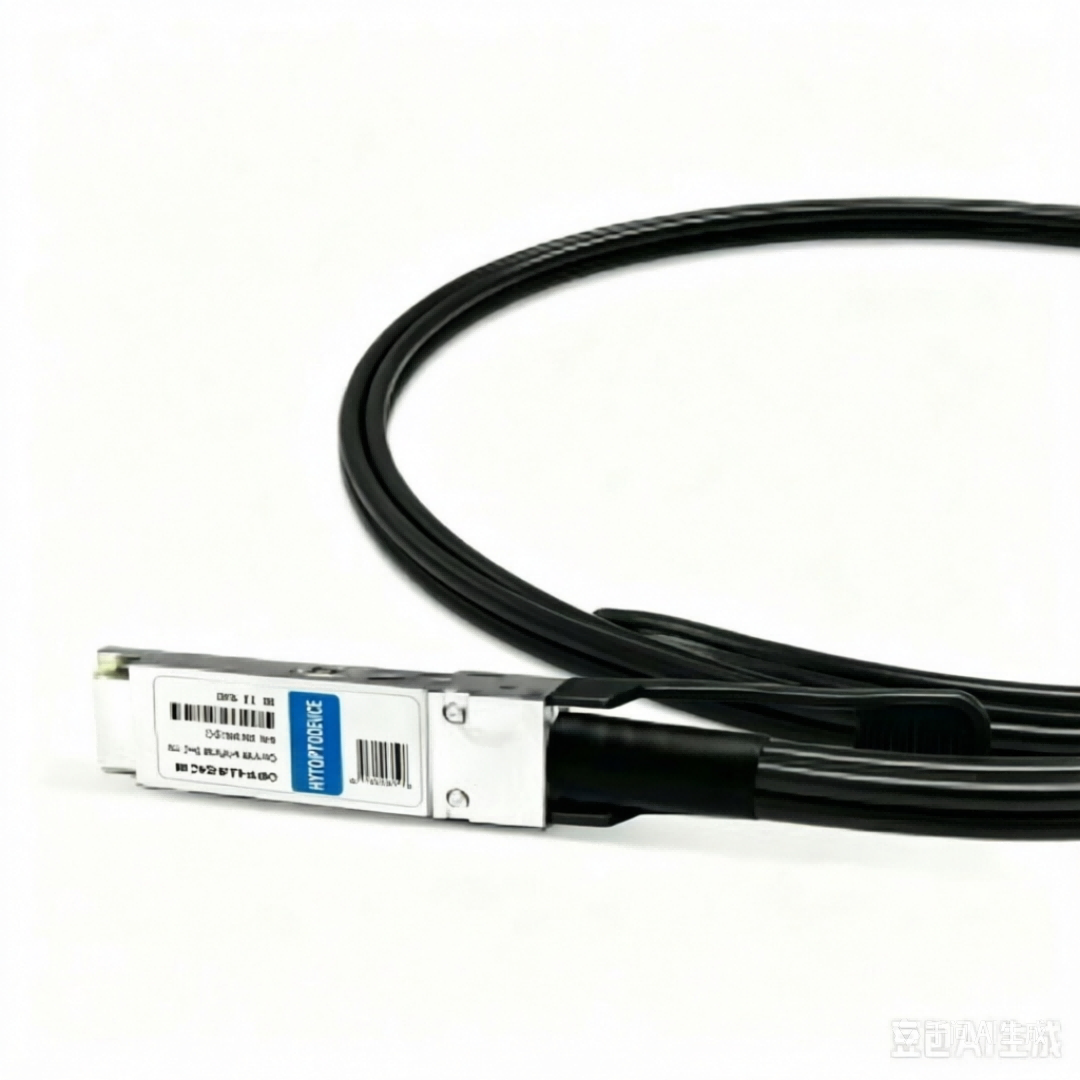

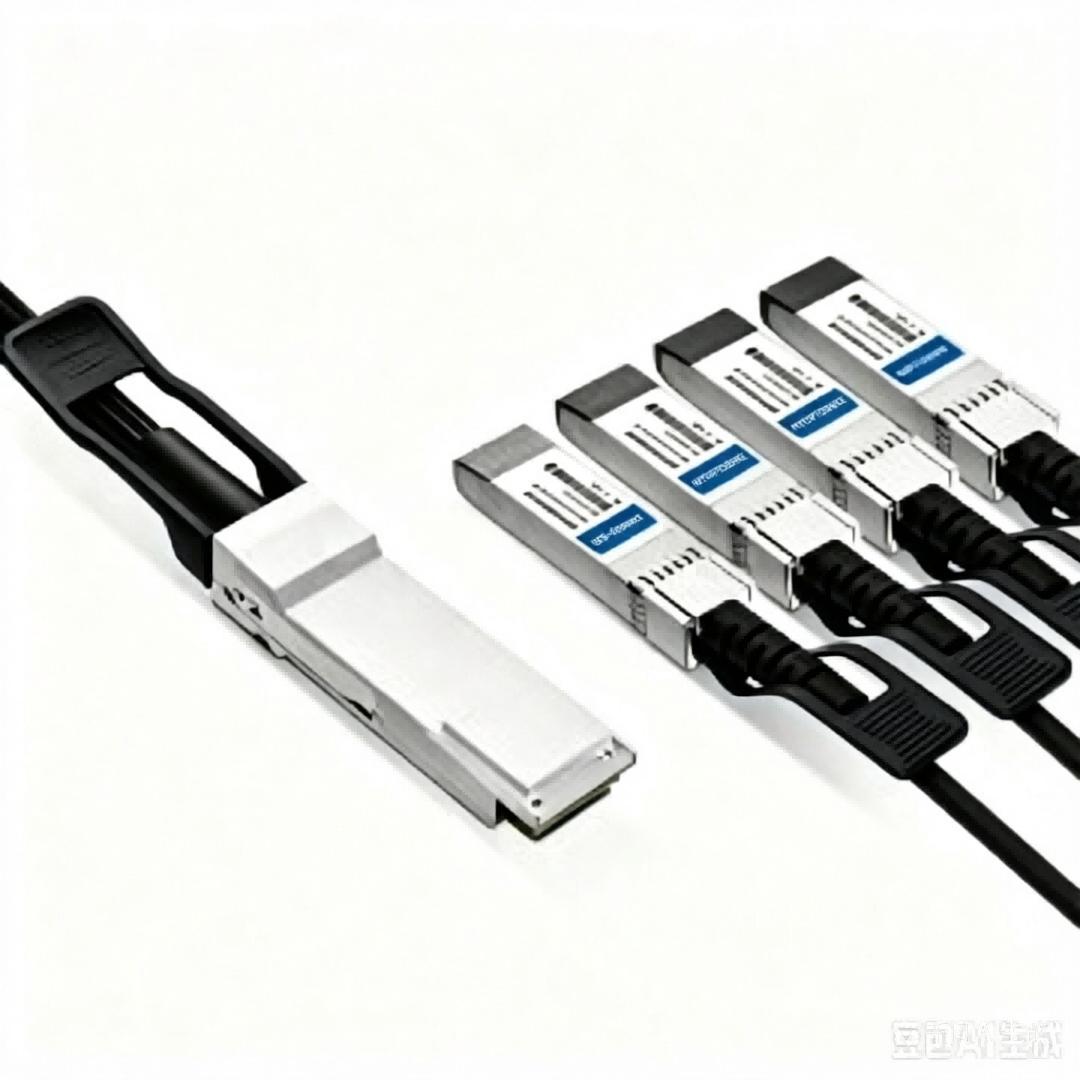

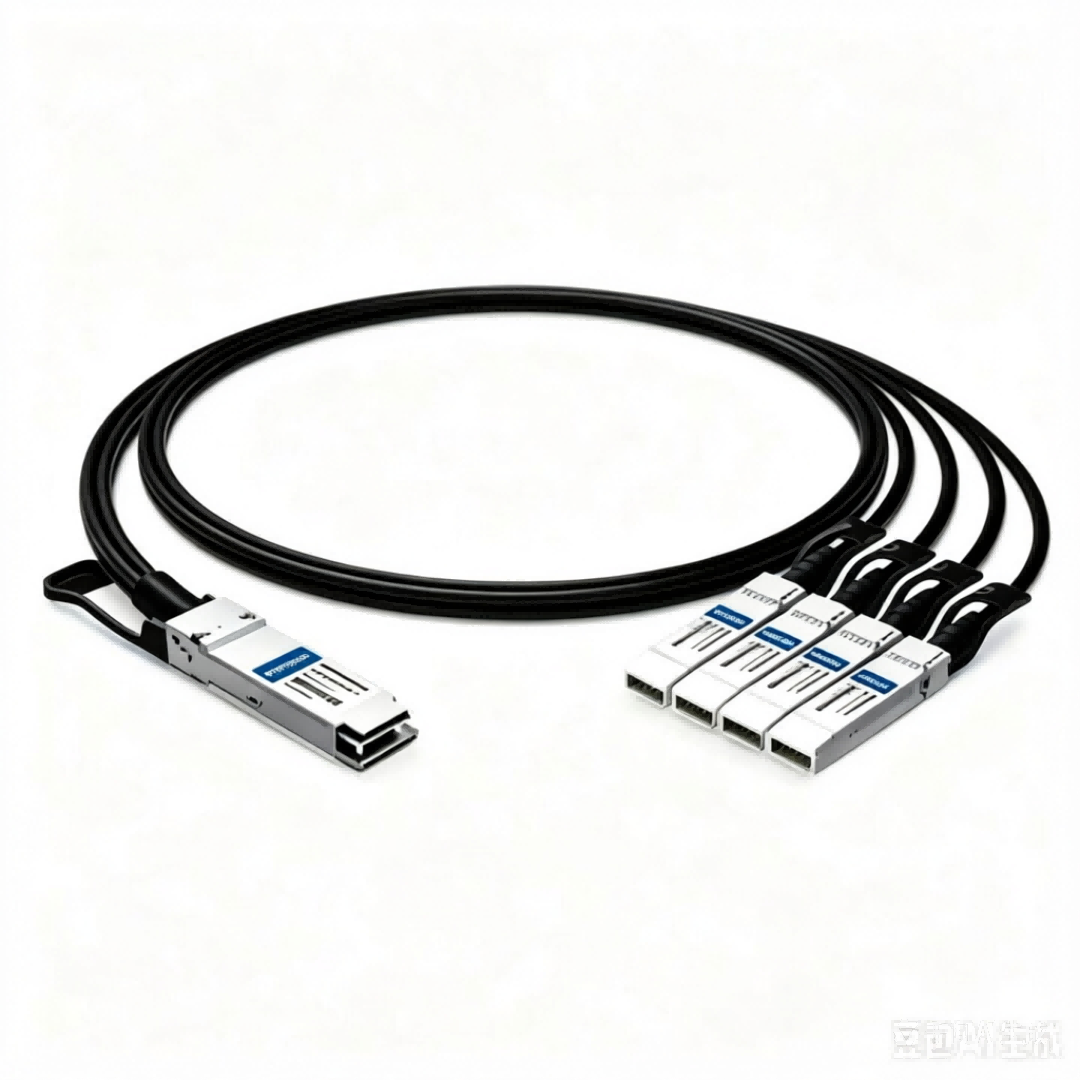

This 1-meter breakout cable connects one 100G QSFP28 port to four 25G SFP28 ports.It is fully compatible with Brocade equipment and replaces the Brocade 100G-Q28-S28-C-0101 line.
Designed for short distances, the passive copper breakout cable offers a highly cost-effective interconnect solution for data centers. With nearly 0 power consumption and ultra-low latency, it offers a highly cost-effective alternative to expensive optical transceivers and fiber patch cords.seamlessly merges 100G switches with 25G host adapters, switches, and high-speed enterprise servers.
Compatibility and Supported DevicesBrocade ICX Series: ICX 7850-32C, ICX 7850-48F (using 100GbE uplink/stacking ports configured for breakout mode)
Brocade SLX Series: SLX 9150, SLX 9250, SLX 9540
Brocade VDX Series: VDX 8770 (with compatible 100G line cards)
Brocade Gen 6 / Gen 7 Platforms: Select SAN directors and switches running 100GbE clustering or ISL (Inter-Switch Link) sub-cards.
Enterprise Server NICs: Fully compatible with 25G PCIe network adapters from Mellanox/NVIDIA (ConnectX-5/6 Lx), Intel (XXV710), and Broadcom installed in standard enterprise rack servers.
The 1-meter passive breakout DAC cable is designed for tight, intra-rack architectures. Its primary use cases include:

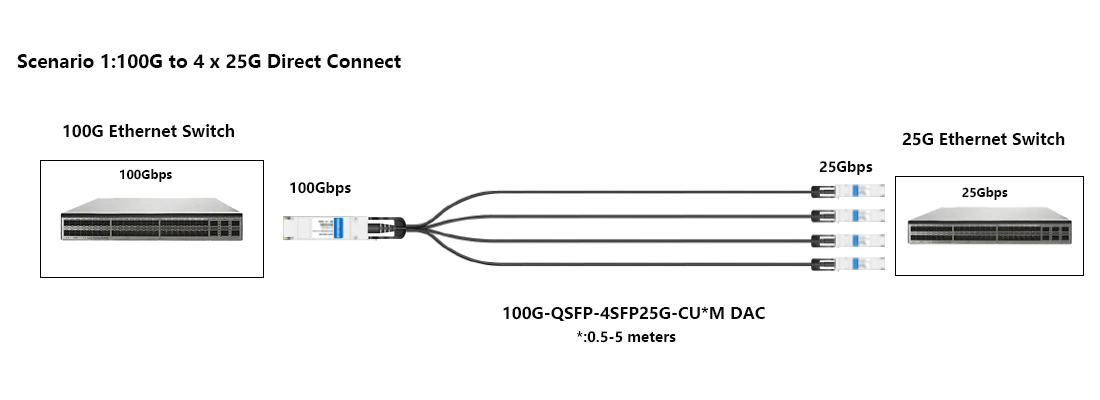

100G-to-25G Bandwidth Distribution: Aggregating four 25G downstream ports into a single 100G upstream port to optimize port efficiency on core switches.

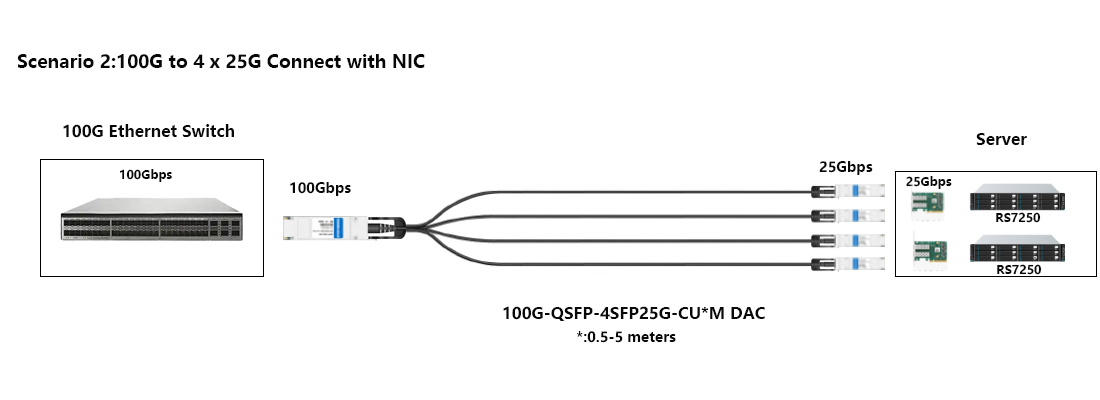

ToR Switch-to-Blade Node Links: Connecting high-density Brocade IP or storage switches to up to four individual server blades or network cards within the same rack.
Fibre Channel & NVMe Storage Cluster Expansion: Linking high-performance 25G flash-storage arrays directly to a 100G core cluster network.
Zero-Power Short Runs: Bridging hardware within a 1-meter range to eliminate the power consumption, heat, and transceiver costs associated with active optics.
| Brocade Compatible | 100G-Q28-S28-C-0101 | Vendor Name | HYTOPTODEVICE |
| Connector | QSFP28 to 4xSFP28 | Max Data Rate | 100Gbps |
| Cable Length | 1m (3.3ft) | AWG | AWG 30 |
| Jacket Material | PVC(OFNR) | Minimum Bend Radius | 25mm |
| Operation Temperature | 0~ 70 °C (32 to 158°F) | Protocols | 100 Gigabit Ethernet |
Q1: What makes the "100G-Q28-S28-C-0101" different from a standard 100G DAC cable? A1: The 100G-Q28-S28-C-0101 is a breakout cable. it features a 100G QSFP28 connector on one end. the other end is four 25G SFP28 connector.
Q2: Can I use this DAC cable to connect a Brocade switch to a switch from another brand? A2: Yes, but you need a "dual-compatible" version where one end is coded for Brocade and the other end is coded for the other brand (e.g., Cisco, Dell, or HPE).
Q3:Is the 100G-Q28-S28-C-0101 an active or passive cable? A: No, it's a passive breakout cable. It contains no active signal amplification circuitry, boasts extremely high reliability, excellent power consumption (almost 0W), and outstanding latency.
Q4: What is the maximum distance for the 100G-Q28-S28-C-0101? A4: Its maximum physical length is 1 meter (3.3 feet).it transports with a passive copper twinax cable.
Q5:Can I use this Brocade-coded DAC cable to connect a Brocade switch to a Cisco or HPE switch?A5:If you use a standard Brocade-coded cable, the Cisco/HPE end might reject it due to vendor locking. For cross-vendor environments, it is highly recommended to order a Dual-Vendor Coded Cable (Brocade-coded on End A, and Cisco/HPE-coded on End B) to ensure seamless plug-and-play compatibility on both sides.
Q6: Can this breakout cable be used for 10G or 40G applications? A6: No. Their Signal Architecture mismatch, the EEPROM Coding also differ.This DAC breakout cable is specifically optimized for 100G-to-4x25G configurations.
Q7:Will Brocade EOS recognize this cable as genuine? A7: Yes. Our compatible breakout cables are flashed with the authentic Brocade vendor profile. The switch will recognize it as a 100G-Q28-S28-C-0101.
Q8:What is the power consumption for DAC breakout cable? A8: Our Direct Attach Copper (DAC) breakout cables are passive, it consume near-zero power (<0.1W per end), that is far more energy-efficient than fiber optical transceivers or AOCs.
Q9: Can the four SFP28 ends be plugged into different switches? A9: Yes, provided the four destination switches or servers are within the physical reach of the 1-meter breakout legs. They operate as four completely independent 25G channels.
Q10:Does this breakout cable support hot-swapping? A10: Yes. it support hot-pluggable.The breakout cable is fully compliant with SFF-8665 and SFF-8402 standards. you can plug it in or remove it while switches and servers are running, without any damage.
