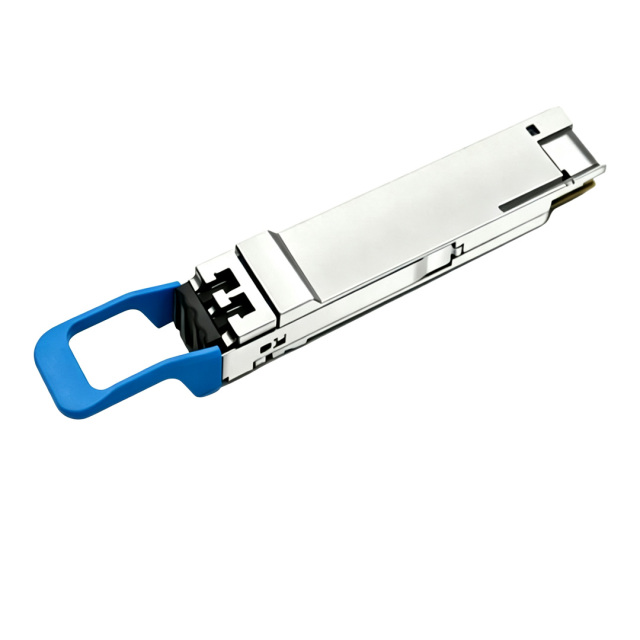

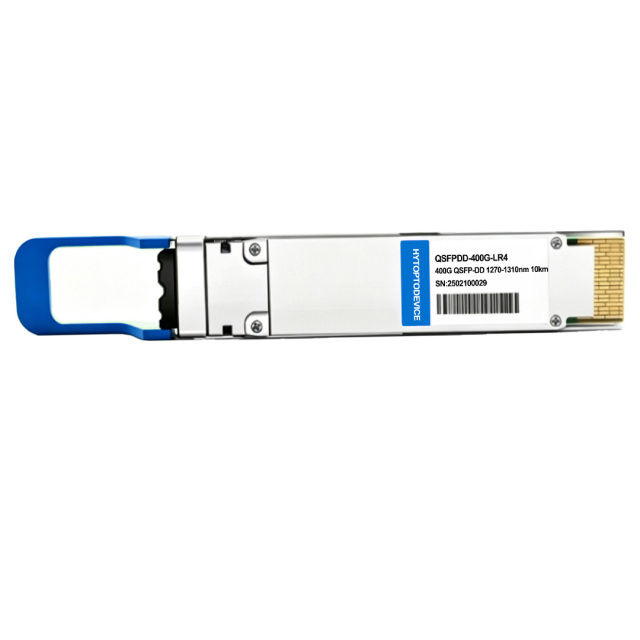

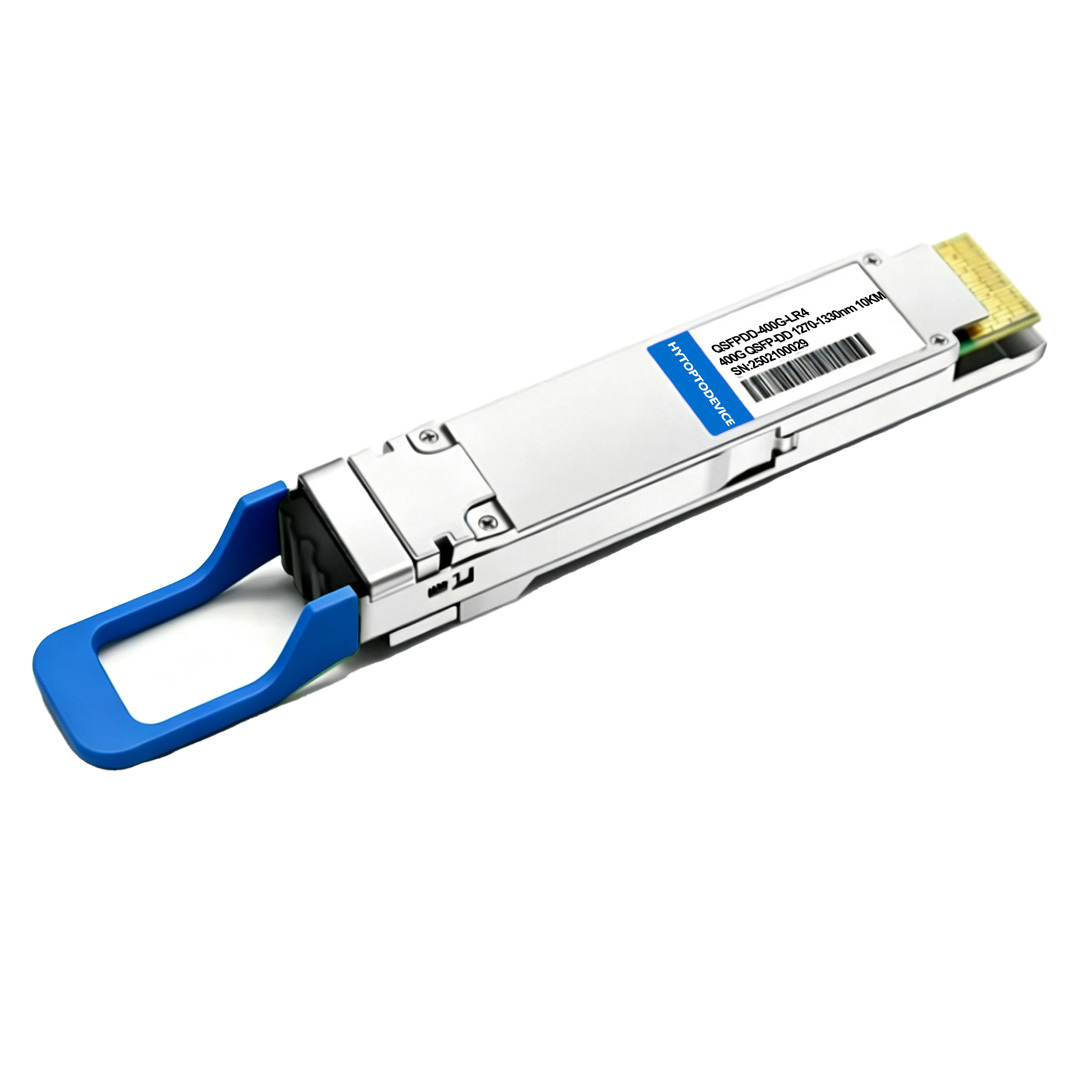

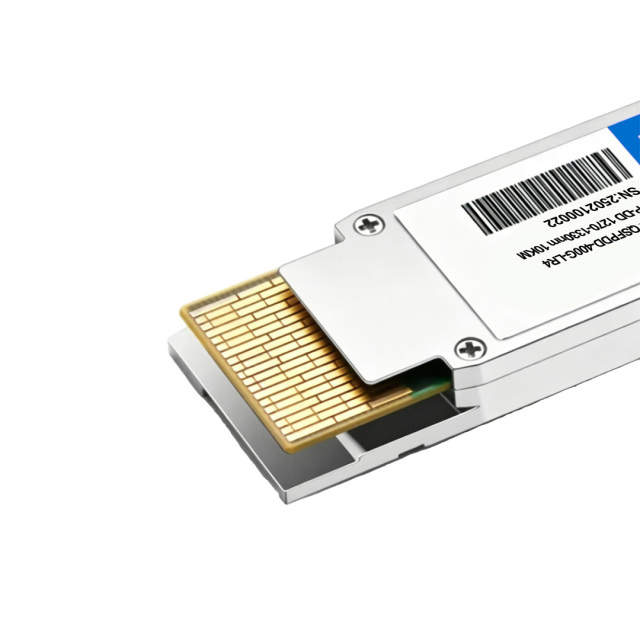

Dell 400G-Q56-DD-LR4 Compatible 400G QSFP-DD LR4 Optical Transceiver Module | HYTOPTODEVICE

HYTOPTODEVICE 400G transceiver is 100% compatible with Dell’s high-performance open networking platforms and equipments.verified compatible hardware includes:

• Dell PowerSwitch S-Series (High-Performance Leaf Switches):

  • PowerSwitch S5448F-ON (48x 400GbE QSFP56-DD ports)

• Dell PowerSwitch Z-Series (Core/Spine Aggregation Switches):

  • PowerSwitch Z9332F-ON (32x 400GbE QSFP56-DD ports)

  • PowerSwitch Z9432F-ON (32x 400GbE QSFP56-DD ports)

• Dell PowerEdge Servers:

  • Supported across high-end PowerEdge server architectures when equipped with qualified 400GbE QSFP-DD network interface cards (NICs).

• Enterprise & Cloud Data Centers: Acts as a high-capacity backbone link connecting leaf-spine or tier-1 core switch architectures running intensive AI, big data, and cloud applications.

• Long-Reach Data Center Interconnect (DCI): Bridges distinct campus networks or localized data centers across distances up to 10km without requiring costly optical amplification.

• High-Performance Computing (HPC): Provides unthrottled 400Gbps network pipes to prevent latency bottlenecks between high-density blade servers and storage arrays (SAN/NAS).

• Service Provider Aggregation: Optimizes edge routing networks to scale high-bandwidth workloads for metro-Ethernet and 5G carrier core infrastructure.

Connectivity Solutions(Applications) of 400G QSFP-DD Optical Module：








FAQ for 400G QSFP-DD Optical Transceiver Module

Q1: What is the maximum link distance for Dell 400G-Q56-DD-LR4? A1: This transceiver is engineered for long-reach transmission, capable of sending and receiving data up to 10 km over SMF.

Q2: What wavelengths does the 400G-Q56-DD-LR4 use? A2: It operates over a CWDM4 wavelength grid, splitting the 400G signal across four optical channels: 1271nm, 1291nm, 1311nm, and 1331nm.

Q3: What type of fiber connector and patch cable does this module require? A3: It features a standard duplex LC. You will need a single-mode duplex LC-to-LC fiber optic patch cable to establish the connection.

Q4: Which modulation technology does this transceiver utilize? A4: It uses advanced OIF 56G PAM4 (Pulse Amplitude Modulation 4-level) technology, converting 8 channels of 50Gbps electrical signals into 4 channels of 100Gbps optical signals.

Q5: Does the module support Digital Diagnostics Monitoring (DDM/DOM)? A5: Yes. Real-time DDM/DOM is fully supported, allowing network administrators to monitor critical metrics such as optical launch/receive power, temperature, voltage, and laser bias current.

Q6:  Is Digital Optical Monitoring (DOM) supported on this Dell compatible module? A6: Yes. Full DOM/DDM is supported, allowing real-time monitoring of diagnostics like optical Tx/Rx power, operating temperature, laser bias current, and supply voltage directly via Arista EOS.

Q7: Can I plug a 400G-Q56-DD-LR4 module into a standard 100G QSFP28 port? A7: No. While QSFP-DD ports are backward-compatible with 100G QSFP28 optics, a 400G QSFP-DD module cannot physically fit or operate in a legacy QSFP28 port due to mechanical and electrical limitations.

Q8: Is Forward Error Correction (FEC) required for this module? A8: Yes. Per the IEEE 802.3bs standard, host platforms must enable KP4 FEC (Forward Error Correction) on the port to ensure low Bit Error Rates (BER) and link stability over the 10km distance.

Q9: Will using a third-party compatible module void my Dell hardware warranty? A9: No. Under consumer protection laws like the Magnuson-Moss Warranty Act, OEMs cannot void your system warranty simply for using third-party peripherals. Our modules are programmed with correct EEPROM signatures to avoid "Non-Dell transceiver" system warnings.

Q10: How do you guarantee the compatibility of this transceiver before shipping? A10: Each compatible 400G-Q56-DD-LR4 undergoes strict 100% hardware testing on original Arista equipments. Live video verification of compatibility and link tests can be provided before dispatch.

Q11:Is QDD-400G-LR4 hot-swappable?A11:Yes,HYTOPTODEVICE fiber transceiver modules are hot-pluggable, hot Pluggable QSFP-DD MSA Compliant.you can plug or unplug the optical module, while the device is powered on, without any damage

Q12:Why Choose HYTOPTODEVICE for 400G-Q56-DD-LR4?A12: High-Speed Optical Transceiver Manufacturer China HYTOPTODEVICE ensures that the 400G-Q56-DD-LR4 is coded and tested for full compatibility with major switch vendors (such as Cisco, Juniper, Arista, and huawei). They verify the EEPROM settings to ensure "plug-and-play" functionality without port-recognition errors.

Why Network Engineers Choose HYTOPTODEVICE

HYTOPTODEVICE has supplied over 5000,000 optical transceiver modules to data centers, ISPs, and enterprise networks across 100+ countries since 2011. Every module undergoes a 72-hour burn-in test and full DDM/DOM validation before shipment.

• 100% MSA-compliant modules with Cisco, Huawei,Dell,Juniper, and Arista compatibility
• ISO 9001:2015 certified manufacturing facility in Shenzhen
• Average lead time of 3–5 business days with DHL/FedEx express options
• Dedicated pre-sales engineering support for custom configurations
• Actual hardware,actual switches,actual results.we publish compatibility test video,eliminate compatibility anxiety. you can watch before you buy.
• We can provide inspection and shipping videos to make you feel as if you are right here with the product.

"We replaced 100 Cisco-branded SFP+ with HYTOPTODEVICE equivalents across our spine layer — zero compatibility issues, 40% cost reduction."— Network Engineer of ISP, England
