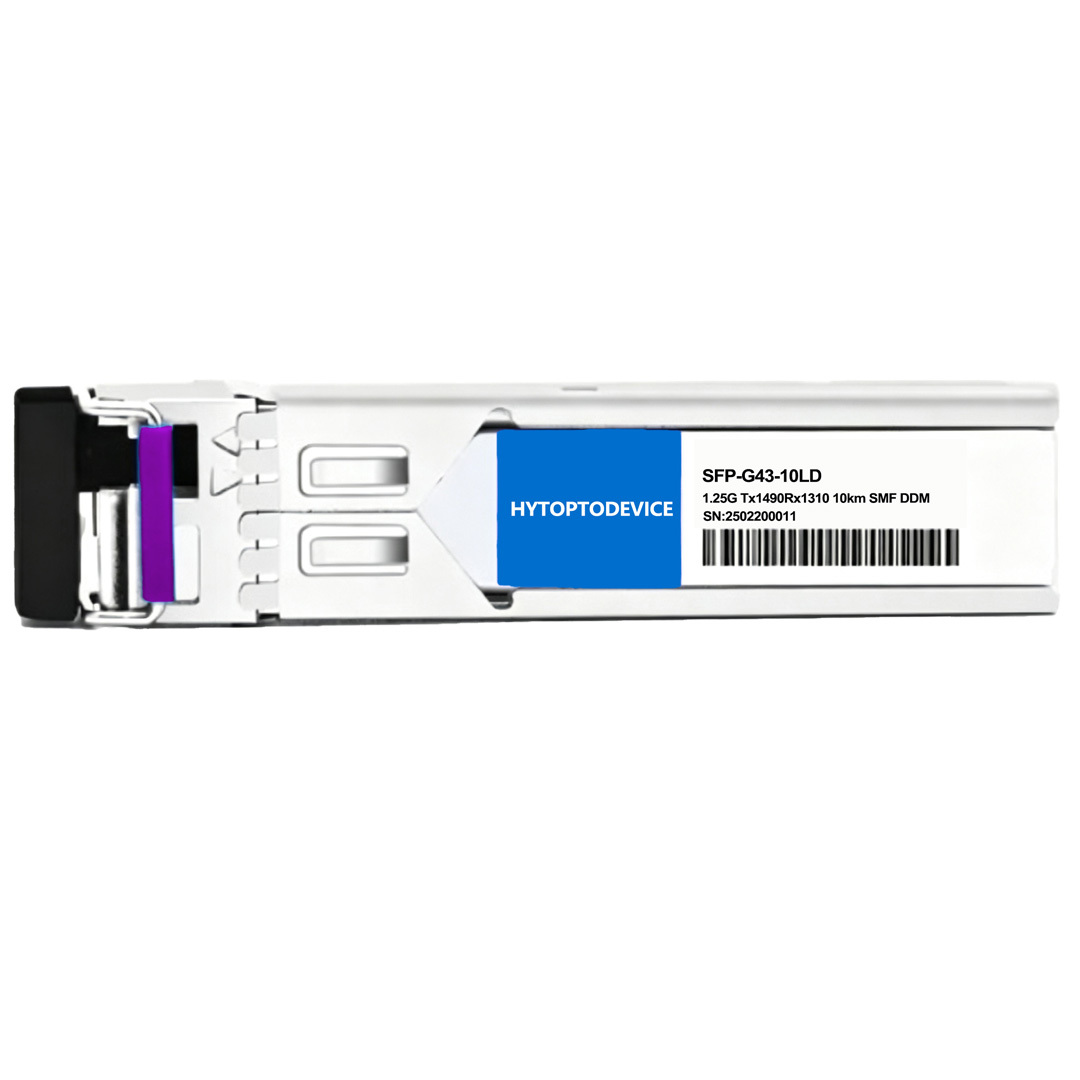

  • Alcatel-Lucent Compatible 3HE00868AB BIDI SFP Module | 1.25G 10km TX1490/RX1310 SMF Bulk Factory Wholesale | HYTOPTODEVICE
  • 3HE00868AB 1.25G TX1310/RX1490 10km BIDI SFP module Connector

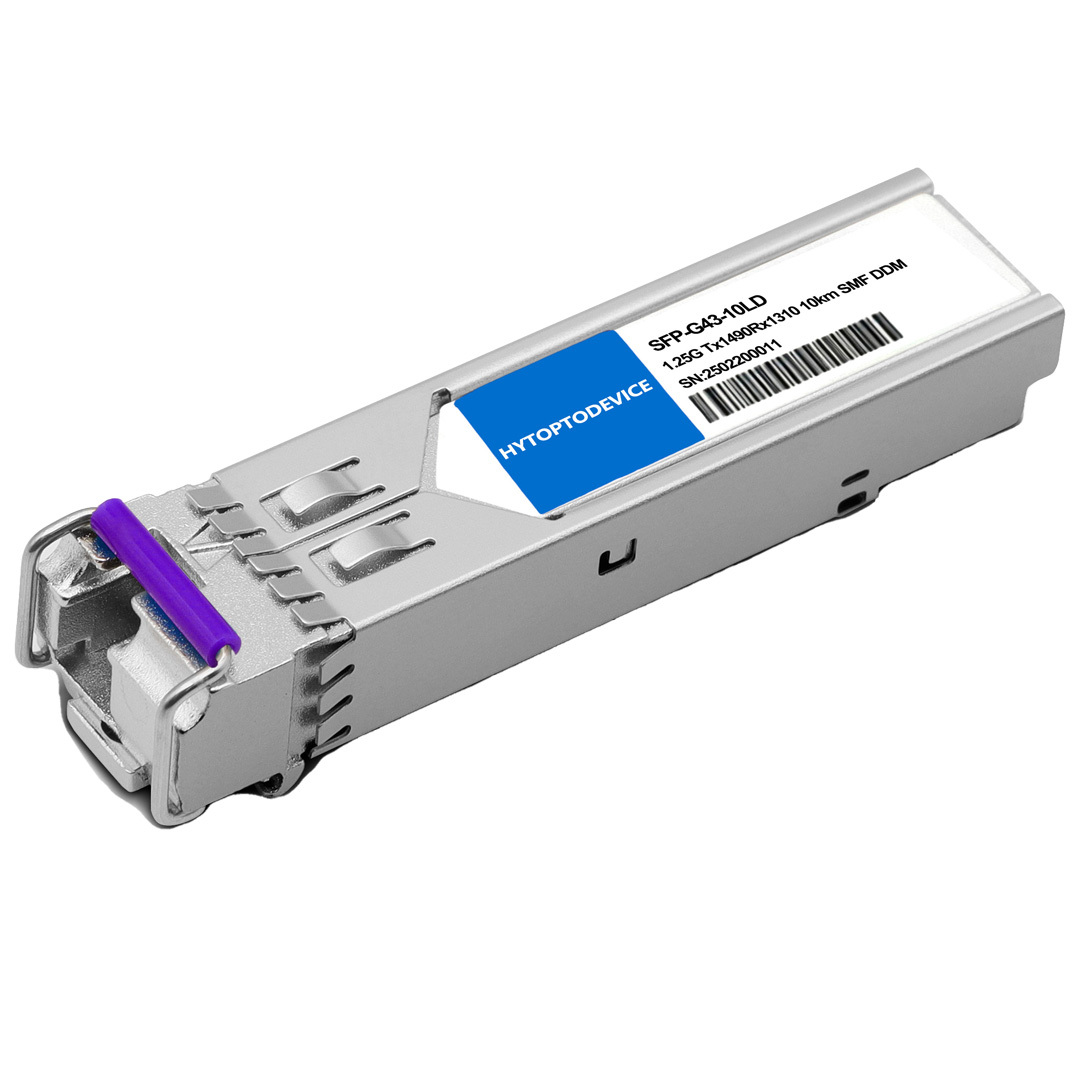

  • Commercial Grade Alcatel-Lucent compatible  BIDI SFP Module Full Appearance
  • alcatle-lucent(nokia) compatible bidi sfp module
  • Alcatel-Lucent Compatible 3HE00868AB BIDI SFP Module | 1.25G 10km TX1490/RX1310 SMF Bulk Factory Wholesale | HYTOPTODEVICE
  • 3HE00868AB 1.25G TX1310/RX1490 10km BIDI SFP module Connector
  • Commercial Grade Alcatel-Lucent compatible  BIDI SFP Module Full Appearance

Alcatel-Lucent Compatible 3HE00868AB BIDI SFP Module | 1.25G 10km TX1490/RX1310 SMF Bulk Factory Wholesale | HYTOPTODEVICE

HYTOPTODEVICE provides 100% real-device tested 3HE00868AB BIDI SFP modules, 1.25G speed, 10km single fiber transmission with TX1490nm/RX1310nm wavelength. Fully compatible with Alcatel-Lucent and multi-brand network devices. Bulk wholesale supply, test videos available for global integrators, wholesaler and contractors.
NO. Brand  Compatible P/N Transceiver Type
1 Cisco GLC-BX-D SFP-G34-10LD
2 Cisco GLC-BX-10D SFP-G43-20LD
3 HPE H3C  JD099A  SFP-G53-20LD
4 Brocade  E1MG-BXD SFP-G43-40LD
5 H3C SFP-GE-LX-SM1490-BIDI SFP-G53-40LD
6 Juniper Networks  SFP-GE10KT14R13 SFP-G54-80LD
7 Huawei SFP-GE-LX-SM1490-BIDI SFP-G54-1BLD
8 Alcatel-Lucent 3HE00868AB


Description

Alcatel-Lucent Compatible 3HE00868AB 1.25G 10km BIDI SFP Transceiver Module | HYTOPTODEVICE (SMF, 1490nm-TX/1310nm-RX, LC, DOM)

Product Overview

The HYTOPTODEVICE Alcatel-Lucent compatible 3HE00868AB is a high-performance commercial-grade single fiber BIDI SFP transceiver designed for Alcatel-Lucent (Nokia) enterprise fiber networks. Adopting standard TX1490nm transmit / RX1310nm receive wavelength, this 1000BASE-BX-D module delivers stable 1.25Gbps gigabit transmission and supports up to 10km long-distance transmission over standard single-mode fiber (SMF). Equipped with a simplex LC connector and built-in DOM/DDM real-time optical monitoring, the 3HE00868AB transceiver fully complies with Alcatel-Lucent original protocols and SFP MSA international standards. Featuring hot-plug and true plug-and-play performance with zero system alarms, it works reliably in 0℃ to 70℃ commercial environments. Ideal for Alcatel-Lucent switch interconnection, remote branch networking, security monitoring transmission and enterprise network upgrade projects, it serves global system integrators, engineering contractors and wholesale traders.

Key Technical Specifications
Alcatel-Lucent  Compatible

3HE00868AB

Vendor Name HYTOPTODEVICE
Form Factor SFP Max Data Rate 1.25Gbps
Wavelength TX1490nm/RX1310nm Max Distance 10km
Connector Simplex LC Transmitter Type 1490nm DFB
Cable Type SMF Receiver Type PIN
TX Power -9.0~-3dBm Receiver Sensitivity < -23.0dBm
Protocols SFF-8472 MSA Compliant, IEEE 802.3ah-2004 Operation Temperature 0 to 70°C (32 to 158°F)

For detailed technical specifications, please refer to the Datasheet

Usage Guidelines & Operational Best Practices

Follow standardized operation rules to extend service life and maintain steady link performance of your BiDi SFP Transceiver:

  1. Complementary Pairing Requirement Bidirectional transceivers must be deployed in matched wavelength pairs. This TX1490/RX1310 BiDi SFP Module requires a counterparty TX1310/RX1490 transceiver at the opposite fiber end; mismatched wavelength pairs cannot establish valid fiber links.
  2. Fiber Type Restriction Only use standard 9/125μm single mode fiber (SMF) with LC/UPC patch cords. This transceiver cannot operate normally on multi-mode fiber (MMF), which triggers severe attenuation and persistent random bit errors.
  3. Distance & Attenuation Control Optimized for stable 10km single-fiber links. For lab testing or field deployment under 5km, an external optical attenuator is mandatory to prevent receiver overpowering, signal saturation and permanent internal optical chip damage.
  4. Optical Port Dust Protection LC optical ports and fiber end faces are highly sensitive to dust and fingerprint contamination. Always reinstall protective dust caps on idle module ports and unused fiber connectors after disconnection.
  5. Hot-Plugging Operation Guidance This MSA-compliant BiDi SFP Transceiver supports safe hot swap. Leave several seconds between removal and reinsertion to let Cisco IOS complete full hardware recognition and avoid unexpected link flapping.

For detailed operation instructions, please refer to the User Guide.

Full Compatibility List & Supported Devices

1. Full Native Compatibility with Alcatel-Lucent(Nokia) Devices

All HYTOPTODEVICE 3HE00868AB BIDI SFP modules achieve 100% native compatibility with mainstream Alcatel-Lucent and Nokia enterprise switches, routers and access network equipment. Different from ordinary laboratory-tested products on the market, every module completes strict real Alcatel-Lucent device on-machine testing before delivery. It supports hot plug and play without triggering port alarms, system error logs or link flapping, fully adapting to official Alcatel-Lucent firmware and meeting formal engineering deployment standards:
  • Service Routers (SR Series): Nokia / Alcatel-Lucent 7750 SR, 7450 ESS, and 7210 SAS platforms equipped with 1G SFP MDA/IMM line cards.

  • OmniSwitch Series Enterprise Switches: OmniSwitch 6860, 6900, and 9900 series core/aggregation layers (via port speed configuration).

2.Universal Multi-Brand Cross Compatibility Performance

Manufactured in accordance with global SFP MSA and SFF-8472 universal industrial standards, this 10km single fiber BIDI SFP module delivers excellent cross-brand compatibility. In addition to full compatibility with Alcatel-Lucent/Nokia equipment, it can operate stably on Cisco, H3C, Huawei, Juniper, HPE and other mainstream network hardware, perfectly solving compatibility issues for multi-brand mixed network architectures. Complete real-device test videos and test reports are available for global bulk customers.

Primary Application Scenarios

As a high-cost-performance Alcatel-Lucent compatible 1.25G BIDI SFP module, 3HE00868AB is widely used in medium and long-distance single-mode fiber network scenarios, fully matching the procurement and project demands of global system integrators, engineering contractors, wholesale traders and retail distributors:

  • Enterprise campus cross-area Alcatel-Lucent switch interconnection
  • Enterprise headquarters and remote branch 10km fiber backbone linkage
  • Long-distance security monitoring and surveillance fiber transmission system construction
  • Small and medium-sized data center edge access and aggregation link deployment
  • Old Alcatel-Lucent network equipment renovation, expansion and upgrade projects
  • Industrial parks, commercial buildings and community integrated network construction

Connectivity Solutions (Applications)

1.1GbE Switch-to-Switch Connectivity
hytoptodevice 1000base-bx bidi transceiver tx1310rx1490 10km simplex LC smf
2.1GbE Switch to Media Converter Connectivity
hytoptodevice 1.25g bidi sfp module tx1310rx1490 simplex LC

3.1G Structured Cabling
HYTOPTODEVICE 1G 1000BASE-BX-U BIDI MODULE 10KM SMF


Core Product Features

1. Cut Expansion Costs by Up to 50%

Fully compatible with campus switches, this BiDi transceiver runs full-duplex over one fiber strand. No additional cabling, no extra switch ports—just plug in and scale your network at half the infrastructure cost
hytoptodevice 10km single fiber BiDi optic, reliable manufacturer for bidi transceiver module

2.Double Your Capacity, Zero Extra Cabling

Transmit and receive on a single strand. By leveraging integrated WDM technology, this BiDi transceiver eliminates redundant wiring and slashes expansion costs for Cisco campus networks.

Tx1310 Rx1490 simplex LC bidi transceiver module from hytoptodevice

3.1G BiDi SFP: High-Density, Low-Power Connectivity

Full-duplex Gigabit Ethernet in a compact SFP form factor. Lower power consumption means less cooling overhead and higher port density—perfect for scaling data center fabrics without expanding your power or fiber footprint.

hytoptodevice supply bulk wholesale BIDI transceiver MODULE with low power consumption and high-efficiency

4. Plug-and-Play Compatibility, Zero Friction

Preprogrammed EEPROM eliminates unsupported-module alerts and CLI configuration. Just insert, hot-swap, and go—compatible out of the box with leading switch platforms. Specific Compatibility Video available upon request.

HYTOPTODEVICE compatible  bidi transceiver module 10km SMF simplex lc

5. Tested to Failure. Shipped with Confidence.
Each module undergoes rigorous in-house testing—including signal integrity, bit error rate (BER), and temperature cycling—before leaving our Test Center . Built for maximum uptime, delivered with zero surprises.

HYTOPTODEVICE manufacturer offer BiDi transceiver module full aging test for stable 10km single‑fiber operation


FAQ

Q1: Are HYTOPTODEVICE 3HE00868AB modules fully compatible with original Alcatel-Lucent devices?

A1: Yes, all HYTOPTODEVICE 3HE00868AB BIDI SFP modules maintain 100% full native compatibility with official Alcatel-Lucent and Nokia network equipment. Every module has passed strict real-device on-machine testing, ensuring true plug-and-play operation without port alarms, system log errors or link drops. It runs stably under original Alcatel-Lucent firmware, with test videos available for bulk verification.

Q2: What wavelength and transmission distance does Alcatel-Lucent 3HE00868AB support?

A2: The HYTOPTODEVICE 3HE00868AB is a dedicated 1.25G 1000BASE-BX-D BIDI transceiver for Alcatel-Lucent networks, featuring fixed TX1490nm transmit and RX1310nm receive wavelength. It supports stable 10km long-distance transmission over standard single-mode fiber with zero signal attenuation and packet loss for enterprise networking.

Q3: Was The DDM DOM real-time optical monitoring supported by HYTOPTODEVICE 3HE00868AB

BIDI SFP MODULE?

A3: Absolutely yes. All HYTOPTODEVICE 3HE00868AB modules comply with SFF-8472 international standards and support full DOM/DDM digital optical monitoring. Administrators can real-time monitor module temperature, transmit power, receive power and working voltage for intelligent O&M and fast fault location.

Q4: What connector type does 3HE00868AB BIDI SFP use?

A4: Our Alcatel-Lucent compatible 3HE00868AB module adopts a standard simplex LC fiber connector, the mainstream interface for enterprise networks and data centers. It perfectly matches universal single-mode fiber and various fiber jumpers for easy on-site engineering deployment.

Q5: Is professional configuration required for installing 3HE00868ABon Alcatel-Lucent switches?

A5: No complex CLI configuration or professional debugging is required. The HYTOPTODEVICE 3HE00868AA supports hot plug and play. After inserting into the SFP port, the module works normally immediately, improving project deployment efficiency and reducing operation errors.

Q6: What are the advantages of 3HE00868AB single-fiber BIDI design?

A6: Different from traditional dual-fiber modules, the 3HE00868AB single fiber BIDI module sends and receives signals via only one fiber core, saving 50% fiber cable resources. It effectively reduces material costs and solves insufficient fiber core problems in network renovation projects.

Q7: Is 3HE00868AB commercial grade for formal engineering projects?

A7: Yes. This is a standard commercial-grade transceiver with a 0℃ to 70℃ wide working temperature range. Every unit undergoes 72-hour aging testing and real-device compatibility testing before delivery, ensuring stable and reliable performance for formal enterprise network engineering.

Q8: Can 3HE00868AA work stably with fiber media converters?

A8: Definitely stable. The HYTOPTODEVICE 3HE00868AB shows excellent adaptability for switch and media converter linkage. It supports stable photoelectric conversion and 10km network extension without link jitter or disconnection during long-term operation.

Q9: Can 3HE00868AB be used for multi-brand mixed network architecture?

A9: Yes. Manufactured according to universal SFP MSA standards, 3HE00868AB features strong cross-brand compatibility. Besides Alcatel-Lucent/Nokia devices, it runs stably on Cisco, H3C, Huawei, Juniper and HPE equipment, suitable for all kinds of multi-brand mixed networking environments.

Q10: Why choose HYTOPTODEVICE for bulk 3HE00868AB procurement?

A10: HYTOPTODEVICE is a professional global supplier of Alcatel-Lucent compatible BIDI SFP modules. All 3HE00868AB products are strictly real-device tested to eliminate compatibility risks. We support stable bulk supply, sample testing, customized packaging and global fast delivery, providing one-stop optical module solutions for global integrators, contractors and wholesale traders.

Packaging & Custom OEM Solutions

Each bidi module is individually sealed in ESD-safe anti-static packaging and ready for immediate shipment. For high-volume distributors, wholesalers, and system integrators, we offer flexible OEM programs—including custom logos, private labeling, and branded packaging—to help you build and protect your own brand.
HYTOPTODEVICE 1000base-bx bidi transceiver  custom packaging

Why Network Engineers Choose HYTOPTODEVICE

HYTOPTODEVICE has supplied over 5000,000 optical transceiver modules to data centers, ISPs, and enterprise networks across 100+ countries since 2011. Every module undergoes a 72-hour burn-in test and full DDM/DOM validation before shipment.

  • 100% hardware-tested compatibility with Cisco, Huawei,Dell,Juniper, and Arista
  • ISO 9001:2015 certified manufacturing facility in Shenzhen
  • Full product range coverage:1.25G/10G/25G/40G/100G/200G/400G/800G/1.6T
  • In-stock supply & fast global shipping, average lead time of 3–5 business days with DHL/FedEx express options
  • Dedicated pre-sales engineering support for custom configurations
  • Actual hardware,actual switches,actual results.we publish compatibility test video,eliminate compatibility anxiety. you can watch before you buy.
  • We can provide inspection and shipping videos to make you feel as if you are right here with the product.
  • Private Label support - EEPROM / firmware customization support


“Phenomenal performance. We deployed 200 HYTOPTODEVICE SFP modules to replace Cisco OEMs in our backbone network. Result? Zero compatibility issues and a 60% reduction in costs. Highly recommended for mission-critical networks."— Senior Network Engineer, Regional Telecom, Australia


Quality Certification & Compliance

 At HYTOPTODEVICE, our quality commitment is backed by industry-standard validations. From fiber optical transceiver manufacturing to final visual inspection, from IQC、IPQC、FQC to OQC, our processes ensure global compliance and reliability.

We adhere to rigorous standards for our SFP modules and network solutions:

  • ISO 9001: Certified quality management and production consistency.

  • CE & FCC: Fully compliant for seamless Global Market Access.

  • RoHS: Committed to environmental responsibility and hazardous material control.

  • Proven Reliability: Rigorous testing to reduce compliance risk and ensure safety.

Certified Quality. Global Standards. Guaranteed Performance.




Rigorous Industrial Product Testing



100% 3rd Party Compatible

Partial Test Demonstration
