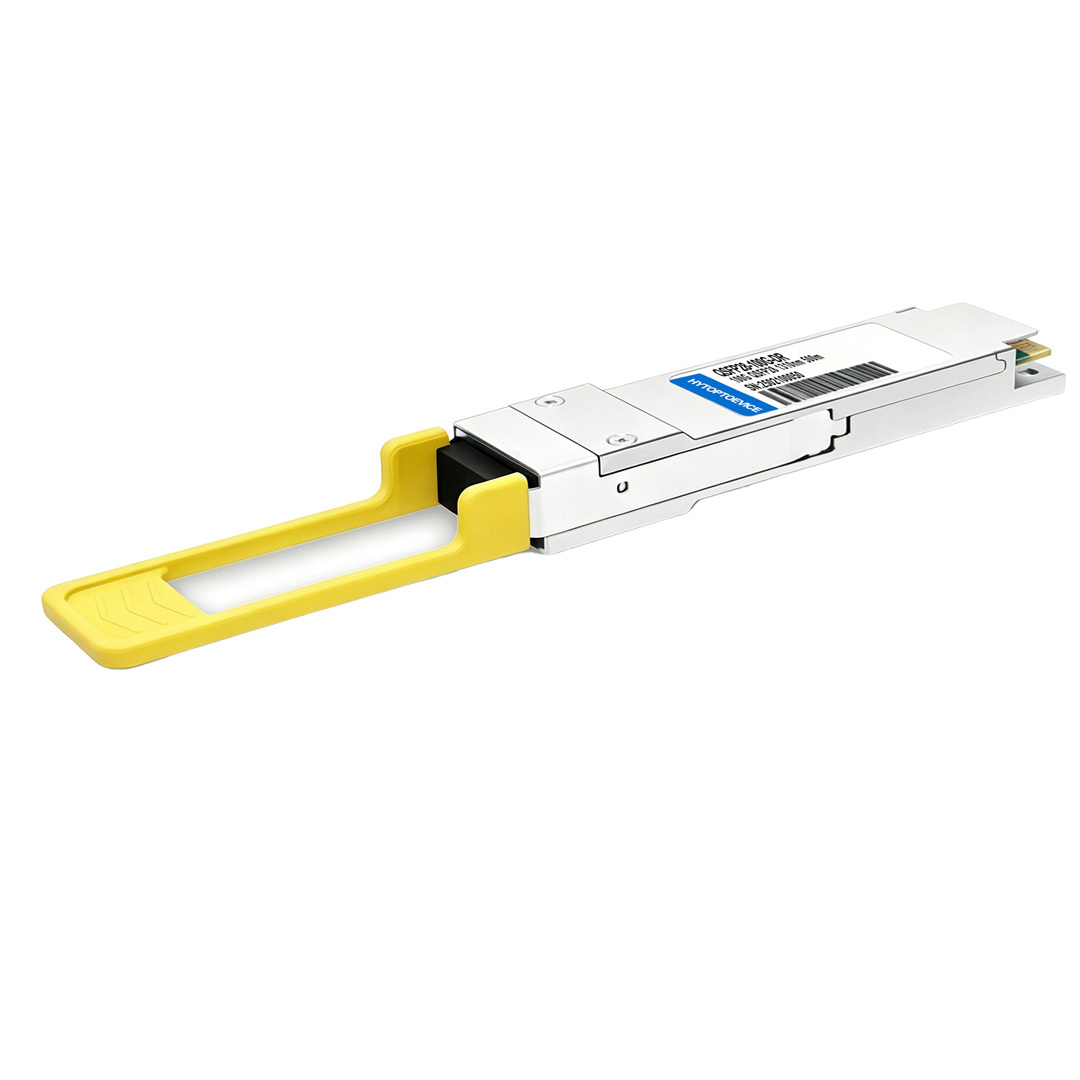

  • Juniper QSFP-100G-DR compatible 100G QSFP28 single lambda transceiver module

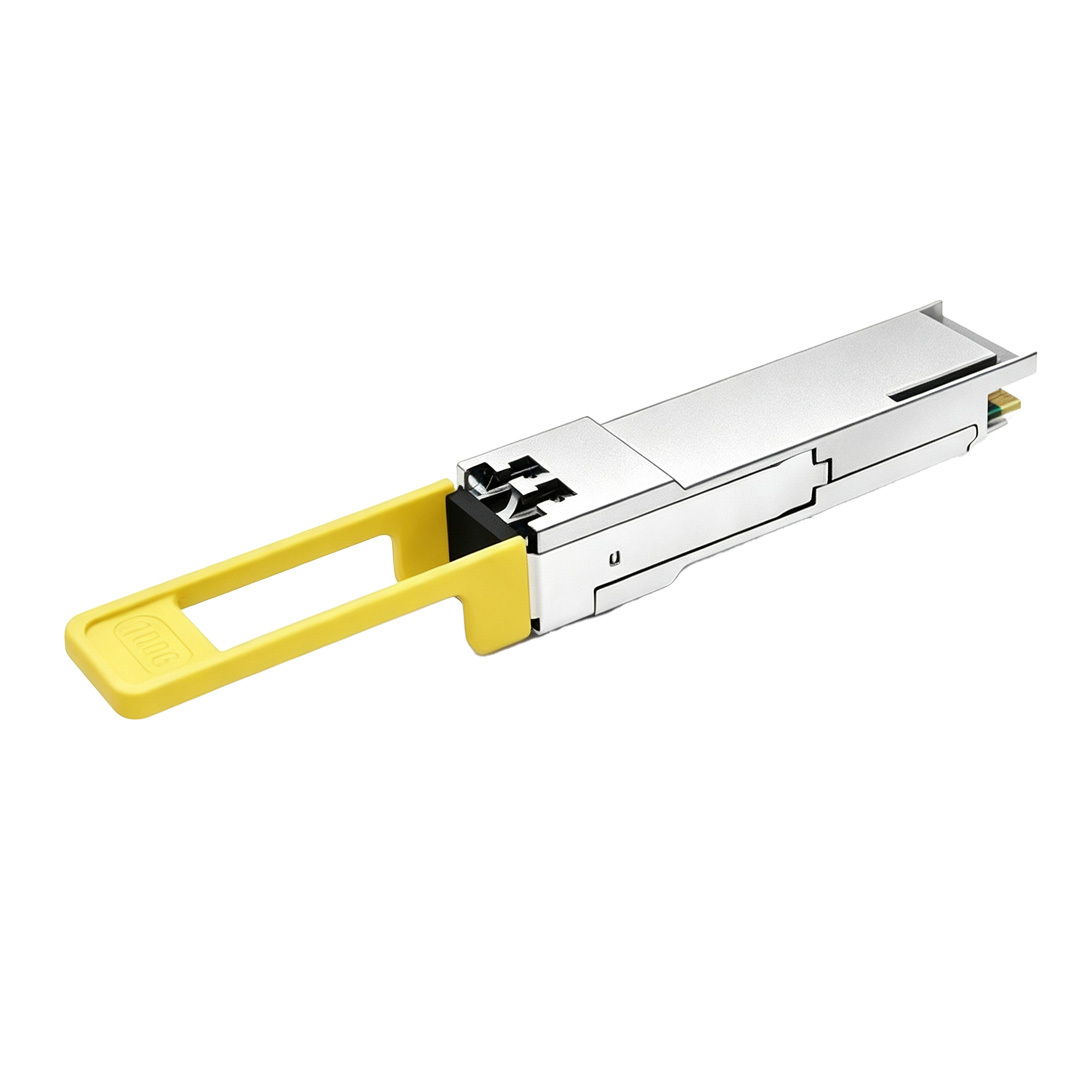

  • Bulk Juniper QSFP-100G-DR compatible  100G short reach optical module

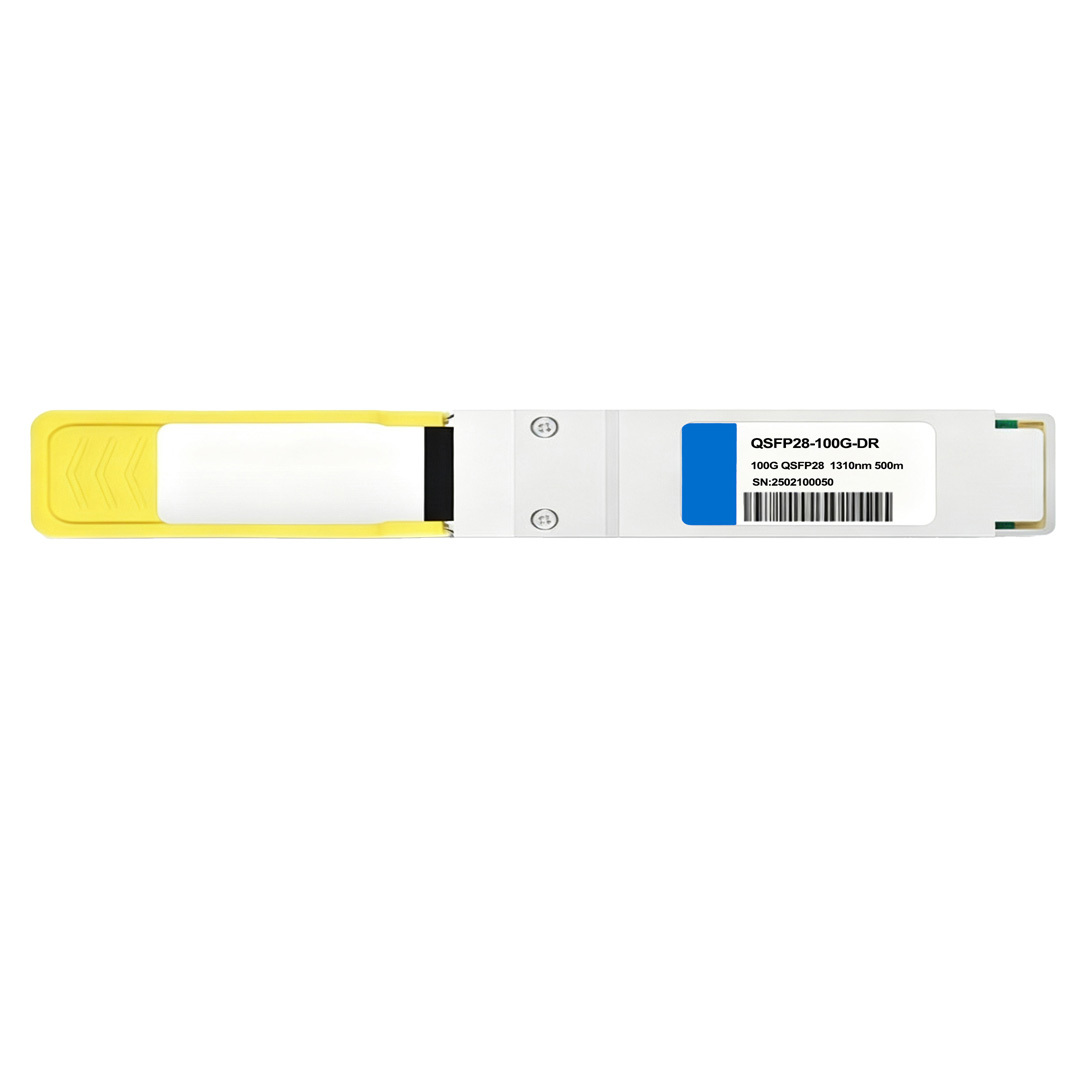

  • Zero alarm 100G qsfp28 DR transceiver for Juniper Networks switches from hytoptodevice
  • Juniper QSFP-100G-DR Compatible 100G QSFP28 Transceiver Single Lambda | DR 1310nm  500m Bulk Factory Factory Wholesale | HYTOPTODEVICE

Juniper QSFP-100G-DR Compatible 100G QSFP28 Transceiver Single Lambda | DR 1310nm 500m Bulk Factory Factory Wholesale | HYTOPTODEVICE

Juniper Networks QSFP-100G-DR compatible 100G QSFP28 transceiver, single lambda 1310nm PAM4, reaches 500m over OS2 single-mode fiber. Supports 400G DR4 breakout for phased 100G to 400G migration. Built-in DDM monitoring, plug-and-play on Juniper switches for stable short-reach data center links. Bulk wholesale, private label and custom EEPROM coding available for global importers, distributors and integrators.
NO. Brand  Compatible P/N Transceiver Type
1 Cisco   QSFP-100G-DR-S QSFP28-100G-SR4
2 Arista Networks  QSFP-100G-DR QSFP28-100G-PSM4
3 EdgeCore  ET7402-DR1 QSFP28-100G-IR4
4 NVIDIA(Mellanox)  MMS1V70-CM  QSFP28-100G-LR4
5 Huawei  QSFP28-100G-DR  QSFP28-100G-ER4L
6 Ruijie Networks  100G-QSFP-DR1-SM1310 QSFP28-100G-FR
7 Juniper  QSFP-100G-DR QSFP28-100G-LR
Description

Juniper Networks QSFP-100G-DR  Compatible 100G QSFP28 Transceiver | 100GBASE-DR Single Lambda 1310nm, DR, 500m Module SMF | HYTOPTODEVICE


Product Overview

This 100G QSFP28 DR module delivers full plug-and-play compatibility with Juniper Networks QSFP-100G-DR.
It adopts single-lambda 1310nm PAM4 architecture. Fewer optical components lower failure risks compared with 4×25G CWDM4 modules.
It supports 100G links up to 500m over OS2 single-mode fiber. It works with 400G DR4 breakout, enabling phased 100G to 400G upgrades without full hardware replacement.
DDM/DOM enables real-time parameter monitoring. Low-power design reduces rack thermal load and data center PUE.
Pre-programmed Juniper-adapted EEPROM ensures zero-alarm operation. It complies with IEEE and QSFP28 MSA standards, suitable for leaf-spine fabric, core trunks and ToR uplinks.

Key Technical Specifications

Juniper Compatible QSFP-100G-DR Vendor Name HYTOPTODEVICE
Form Factor QSFP28 Max Data Rate 100Gbps Single Lambda
Wavelength 1310nm
Max Distance 500m
Connector Duplex LC/UPC Transmitter Type EML
Cable Type SMF Receiver Type PIN
FEC Support Yes TX Power -2.9~+4.0dBm
Power Consumption <3W Receiver Sensitivity < -5.3dBm
Protocols QSFP28 MSA, SFF-8636, IEEE 802.3cu, CAUI-4 Operation Temperature 0 to 70°C (32 to 158°F)

For detailed technical specifications, please refer to the Datasheet


Usage Guidelines & Best Practices

1. Fiber Type Requirement: This 100G DR module only works with OS2 single-mode fiber. OM3/OM4 multimode fiber cannot support 1310nm PAM4 signals and causes link failure.
2. FEC Configuration: Enable standard FEC on Cisco ports. It compensates for connector and splicing loss. It ensures stable transmission at the 500m maximum distance limit.
3. Installation Tips: Hot-plug capable. Keep LC end faces clean and scratch-free. Maintain standard fiber bend radius to avoid extra optical attenuation.
4. Distance Limit: Designed for 500m indoor short-reach scenarios only. Choose 100G FR/LR modules for longer-distance transmission.
5. Operating Environment: Working temperature: 0°C–70°C. Keep ports dry and dust-free to extend module service life.

For detailed operation instructions, please refer to the User Guide.


Full Compatibility List & Supported Network Hardware

1. Supported Hardware & Firmware

This single-lambda 100G DR optic is pre-flashed with Juniper-specific firmware. It serves as a direct drop-in replacement for QSFP-100G-DR.
It avoids port negotiation failures, intermittent link flapping and unrecognized-module warnings. It runs stably on mainstream Juniper switch firmware without port errors.
Validated Juniper Device Models:
  • Juniper QFX5120, QFX5110, QFX5200 Data Center Switches
  • Juniper QFX10000 Series Core Switches
  • Juniper EX4650, EX4400 Enterprise High-End Switches
  • All Juniper platforms equipped with standard QSFP28 100G ports

2. Multi-Brand Cross Compatibility

Built to universal QSFP28 MSA standards, this module works with Arista, Cisco, NVIDIA/Mellanox, EdgeCore, H3C and other mainstream brands.It fits multi-vendor hybrid networks and phased 100G to 400G data center upgrade projects.

3. Free Value-Added Services

We offer free EEPROM rewriting and private label customization. Pre-shipment real-machine testing and professional technical support are provided. Bulk orders enjoy tiered pricing to lower your data center hardware investment cost.

Primary Application Scenarios
  • Leaf-spine data center architecture, short-reach interconnection between core and leaf switches
  • 100G switch-to-switch trunk links within 500m for enterprise and cloud data centers
  • ToR switch uplink to 100G server NICs in HPC, AI computing and virtualization clusters
  • Phased 100G to 400G network migration via 400G DR4 breakout
  • Multi-vendor hybrid network deployment for Ruijie, Arista, Cisco, Huawei and NVIDIA/Mellanox equipment


Connectivity Solutions(Applications)

1.Leaf-Spine Architecture

100G DR transceiver for data center leaf spine interconnection from hytoptodevice


2. 100G to 100G for Switch-Switch Interconnection

100G QSFP28 DR module for core switch trunk uplink

3.100G to 100G for Switch-NIC Connection

100G DR QSFP28 for ToR switch server uplink from hytoptodevice

4.100G to 400G Smooth Network Migration

100GBASE-DR single lambda PAM4 QSFP28 for 100G to 400G migration

The Core Feature

1.Upgrade your Network One Site at a Time

Featuring exclusive single-lambda architecture and 400G DR4 interoperability, this module supports seamless 100G to 400G network breakout migration. It offers higher stability and lower cost, allowing step-by-step data center network upgrades without overall reconstruction.

QSFP-100G-DR-S replacement transceiver for Cisco data cente


2.
Verified Host Interoperability

Real-machine tested on target switches and routers. Custom EEPROM coding for 100% host compatibility. Plug-and-play, hot-swappable, zero module alerts. Full DDM/DOM monitoring.Specific Compatibility Video available upon request.
100G single lambda QSFP28 DR module low power PAM4


3.
Strict Full-Round Quality Testing

Every unit undergoes comprehensive test. Strict quality control (IQC/PQC/OQC/FQC) guarantees stable 24/7 commercial operation.Curious how? Tour the Test Center.

Compatible Cisco 100G QSFP28 transceiver sample testing



FAQ

Q1: Why do premium single-lambda 100G DR data center transceivers integrate built-in DSP chips?

A1: HYTOPTODEVICE industrial-grade 100G DR single-lambda modules adopt professional DSP digital signal processing chips as core configuration. Unlike traditional multi-channel 100G optics relying on simple NRZ modulation, modern 100GBASE-DR applies high-density PAM4 encoding. Our independent DSP chip actively compensates fiber dispersion, signal attenuation and crosstalk interference during 500m short-reach transmission. It precisely executes real-time FEC error correction and signal equalization, ensuring ultra-low BER stable links for Juniper and multi-brand data center switching environments.

Q2: What standard fiber connector interface do commercial 100GBASE-DR QSFP28 modules adopt?

A2: All HYTOPTODEVICE Juniper-compatible 100G DR transceivers are uniformly equipped with duplex LC/UPC high-precision optical connectors. This mainstream dual-fiber transmit-receive separation design perfectly matches OS2 single-mode fiber cabling systems. It supports dense rack deployment in leaf-spine architectures, delivers neat wiring, and guarantees long-term stable physical connection for 100G short-reach inter-switch links.

Q3: Is direct interconnection achievable between 100G DR transceivers and 400G DR4 switch ports?

A3: HYTOPTODEVICE technical team clarifies that direct out-of-the-box interworking between 100G DR and 400G DR4 is unavailable. Our 100G DR utilizes single-lambda single-channel PAM4 transmission, while 400G DR4 operates via four parallel 100G optical lanes with different lane mapping mechanisms. To implement 100G-to-400G mixed networking, users need standard DR4 breakout configuration, and our team provides free port tuning guidance for phased data center upgrades.

Q4: Can 100G DR optical modules run on existing OM3/OM4 multimode fiber cabling?

A4: HYTOPTODEVICE explicitly does not support multimode fiber deployment for 100G DR modules. Designed exclusively for OS2 single-mode fiber, our 1310nm PAM4 optical solution is extremely sensitive to modal dispersion. OM3 and OM4 multimode cables generate severe signal distortion at DR working wavelengths, causing link negotiation failure and continuous packet loss. We strictly recommend matching standard OS2 single-mode fiber for valid 100G DR transmission.

Q5: Do low-power 100G DR transceivers cause overheating in high-density switch cabinets?

A5: HYTOPTODEVICE optimizes the power consumption of Juniper-compatible 100G DR modules to below 4.0W, achieving industry-leading low power heat generation. Different from high-power multi-channel 100G modules, our single-lambda design greatly reduces single-port heat load. Even in high-density 100G port stacking scenarios, the overall cabinet temperature rise is effectively controlled, avoiding switch overheating and ensuring 24/7 non-stop operation of data center high-density equipment.

Q6: Do HYTOPTODEVICE 100G DR replacement modules support real-time optical digital monitoring?

A6: Yes, all HYTOPTODEVICE 100GBASE-DR transceivers fully support standard DDM/DOM digital diagnostic monitoring functions. After deployment on Juniper switches, users can remotely view real-time data including module operating temperature, working voltage, transmit/receive optical power and laser bias current. This built-in monitoring capability helps enterprises quickly locate link faults, simplify daily operation and maintenance, and improve data center network manageability.

Q7: Does the 100G DR optical link budget fully cover the standard 500m transmission distance?

A7: HYTOPTODEVICE’s optimized 100G DR optical budget is strictly calibrated based on IEEE 802.3cd standards, fully meeting the loss margin requirements for 500m OS2 single-mode fiber transmission. Every module undergoes factory optical power calibration and full-load aging testing. Under standard wiring and clean end-face conditions, our products maintain sufficient link margin to resist splicing loss and connector loss, ensuring zero-error transmission at the rated 500m distance.

Q8: Why do PAM4-based 100G DR links require stricter fiber cleaning standards than legacy 100G optics?

A8: HYTOPTODEVICE explains that PAM4 modulation adopted by 100G DR has far higher signal resolution than traditional NRZ 100G modules. PAM4 carries double data volume per symbol, resulting in stricter signal-to-noise ratio thresholds. Tiny dust, scratches or stains on fiber end faces that are negligible for ordinary 100G links will trigger obvious signal interference, increased bit error rate and intermittent link flapping on DR links. Therefore, our official deployment guidelines mandate ultra-clean fiber end-face processing for PAM4 100G DR networking.

Q9: What professional testing methods verify genuine 100G DR transceiver quality during project acceptance?

A9: HYTOPTODEVICE provides standardized acceptance testing solutions for bulk 100G DR modules. Enterprise users can complete quality verification through three core steps: first, confirm normal switch identification and complete DDM data display; second, conduct 72-hour full-rate traffic pressure test with FEC enabled to check for zero packet loss and zero link flapping; third, test optical power indexes at both ends to verify compliance with standard link budget. All our products pass full pre-shipment testing to meet project delivery standards.

Q10: Can Juniper-compatible 100G DR transceivers achieve automatic rate downgrade to 40G networking?

A10: HYTOPTODEVICE 100GBASE-DR modules adopt fixed single-rate 100G working mode, which does not support native automatic down-stepping to 40G rate. The 100G DR PAM4 modulation mechanism and hardware chip scheme are uniquely designed for 100G high-speed transmission, incompatible with 40G NRZ signal parsing. For scenarios requiring 40G low-rate networking, we recommend customers select our dedicated 40G QSFP+ transceiver series to ensure stable link compatibility.
