EdgeCore ET7402-DR1 Compatible 100G QSFP28 Transceiver Single Lambda | DR 1310nm 500m Bulk Factory Wholesale | HYTOPTODEVICE

EdgeCore ET7402-DR1 compatible 100G QSFP28 transceiver adopts single-lambda 1310nm PAM4 design. It supports 500m transmission over OS2 single-mode fiber and enables phased 100G to 400G migration via 400G DR4 breakout. Built-in DDM delivers real-time diagnostics. Plug-and-play on EdgeCore switches for stable, cost-effective short-reach data center links. Support bulk wholesale, private label, custom EEPROM coding and OEM for global importers,distributors.
NO. Brand  Compatible P/N Transceiver Type
1 Cisco   QSFP-100G-DR-S QSFP28-100G-SR4
2 Arista Networks  QSFP-100G-DR QSFP28-100G-PSM4
3 EdgeCore  ET7402-DR1 QSFP28-100G-IR4
4 NVIDIA(Mellanox)  MMS1V70-CM  QSFP28-100G-LR4
5 Huawei  QSFP28-100G-DR  QSFP28-100G-ER4L
6 Ruijie Networks  100G-QSFP-DR1-SM1310 QSFP28-100G-FR
7 Juniper  QSFP-100G-DR QSFP28-100G-LR
Description

EdgeCore  ET7402-DR1 Compatible 100G QSFP28 Transceiver  | 100GBASE-DR Single Lambda 1310nm 500m Duplex LC/UPC SMF | HYTOPTODEVICE


Product Overview

This 100G QSFP28 DR module offers full plug-and-play compatibility with EdgeCore ET7402-DR1.
It uses single-lambda PAM4 architecture. Fewer optical components lower failure risks compared with 4×25G CWDM4 modules.
It delivers 100G links up to 500m over OS2 single-mode fiber. It supports 400G DR4 breakout, allowing gradual 100G to 400G upgrades without full hardware refresh.
DDM/DOM enables real-time parameter monitoring. Low-power design reduces rack thermal load and data center PUE.
Pre-programmed EdgeCore-adapted EEPROM guarantees zero-alarm operation. It meets IEEE and QSFP28 MSA standards, suitable for leaf-spine fabric, core trunks and ToR uplinks.

Key Technical Specifications

EdgeCore Compatible  ET7402-DR1 Vendor Name HYTOPTODEVICE
Form Factor QSFP28 Max Data Rate 100Gbps Single Lambda
Wavelength 1310nm
Max Distance 500m
Connector Duplex LC/UPC Transmitter Type EML
Cable Type SMF Receiver Type PIN
FEC Support Yes TX Power
-2.9~+4.0dBm
Power Consumption <3W Receiver Sensitivity < -5.3dBm
Protocols QSFP28 MSA, SFF-8636, IEEE 802.3cu, CAUI-4 Operation Temperature 0 to 70°C (32 to 158°F)

For detailed technical specifications, please refer to the Datasheet


Usage Guidelines & Best Practices

1. Fiber Type Requirement: This 100G DR module only works with OS2 single-mode fiber. OM3/OM4 multimode fiber cannot support 1310nm PAM4 signals and causes link failure.
2. FEC Configuration: Enable standard FEC on Cisco ports. It compensates for connector and splicing loss. It ensures stable transmission at the 500m maximum distance limit.
3. Installation Tips: Hot-plug capable. Keep LC end faces clean and scratch-free. Maintain standard fiber bend radius to avoid extra optical attenuation.
4. Distance Limit: Designed for 500m indoor short-reach scenarios only. Choose 100G FR/LR modules for longer-distance transmission.
5. Operating Environment: Working temperature: 0°C–70°C. Keep ports dry and dust-free to extend module service life.

For detailed operation instructions, please refer to the User Guide.

Full Compatibility List & Supported Network Hardware

1. Supported Hardware & Firmware

This single-lambda 100G DR optic is pre-flashed with EdgeCore-specific firmware. It serves as a direct drop-in replacement for ET7402-DR1.
It avoids port negotiation failures, intermittent link flapping and unrecognized-module warnings. It operates stably on mainstream EdgeCore switch firmware without port errors.
Validated EdgeCore Device Models:
  • EdgeCore AS5835, AS5832, AS5712 Series Data Center Switches
  • EdgeCore AS7326, AS7726 High-Density 100G Switch Platforms
  • EdgeCore AS4610, AS4620 Enterprise Aggregation Switches
  • All EdgeCore platforms equipped with standard QSFP28 100G ports

2. Multi-Brand Cross Compatibility

Built to universal QSFP28 MSA standards, this module supports interconnection with Arista, Cisco, Juniper, H3C and Huawei equipment.
It works well in multi-vendor hybrid networks and phased 100G to 400G data center upgrade projects.

3. Free Value-Added Services

We offer free EEPROM rewriting and private label customization. Pre-shipment real-machine testing and professional technical support are provided. Bulk orders enjoy tiered pricing to lower your data center hardware investment cost.

Primary Application Scenarios
  • Data center leaf-spine fabric: Short-range 100G inter-switch links for EdgeCore cloud environments
  • Enterprise core trunk upgrade: High-bandwidth expansion for campus and core aggregation layers
  • ToR server uplink: 100G high-speed access for server farms and storage clusters
  • Colocation indoor short links: 500m single-mode connections for carrier and enterprise computer rooms
  • 100G to 400G migration: Phased upgrade solution for data center architecture iteration


Connectivity Solutions(Applications)

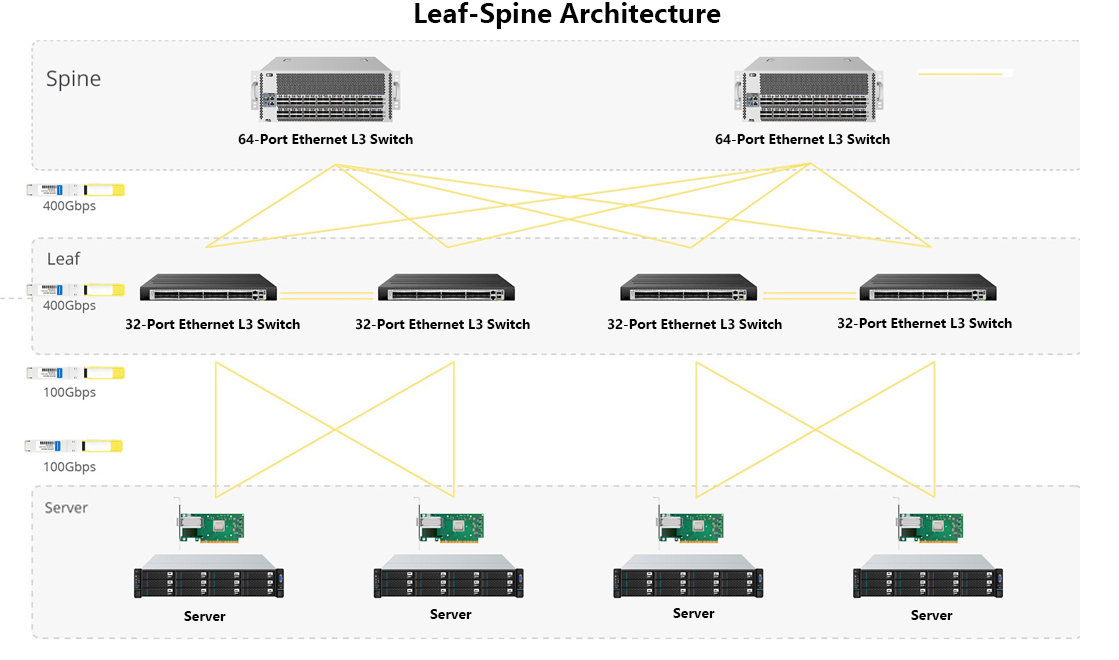

1.Leaf-Spine Architecture

100G DR transceiver for data center leaf spine interconnection from hytoptodevice


2. 100G to 100G for Switch-Switch Interconnection

100G QSFP28 DR module for core switch trunk uplink

3.100G to 100G for Switch-NIC Connection

100G DR QSFP28 for ToR switch server uplink from hytoptodevice

4.100G to 400G Smooth Network Migration

100GBASE-DR single lambda PAM4 QSFP28 for 100G to 400G migration

The Core Feature

1.Upgrade your Network One Site at a Time

Featuring exclusive single-lambda architecture and 400G DR4 interoperability, this module supports seamless 100G to 400G network breakout migration. It offers higher stability and lower cost, allowing step-by-step data center network upgrades without overall reconstruction.

QSFP-100G-DR-S replacement transceiver for Cisco data cente


2.
Verified Host Interoperability

Real-machine tested on target switches and routers. Custom EEPROM coding for 100% host compatibility. Plug-and-play, hot-swappable, zero module alerts. Full DDM/DOM monitoring.Specific Compatibility Video available upon request.
100G single lambda QSFP28 DR module low power PAM4


3.
Strict Full-Round Quality Testing

Every unit undergoes comprehensive test. Strict quality control (IQC/PQC/OQC/FQC) guarantees stable 24/7 commercial operation.Curious how? Tour the Test Center.

Compatible Cisco 100G QSFP28 transceiver sample testing



FAQ

Q1: Which standard specification does 100GBASE-DR transceiver follow?
A1: As a reliable optical transceiver vendor, HYTOPTODEVICE manufactures EdgeCore ET7402-DR1 compatible 100G DR modules that comply with IEEE 802.3cd and 100G Single Lambda DR MSA. We adhere strictly to global industry standards to deliver stable single-wavelength PAM4 transmission over duplex single-mode fiber.

Q2: What is the practical difference between 100G DR, 100G FR1 and 100G LR1 modules?
A2: HYTOPTODEVICE develops targeted 100G optical transceivers for different transmission distances. Our 100G DR is optimized for 500m indoor leaf-spine inter-switch links. FR1 covers 2km and LR1 reaches 10km. DR adopts low-power simplified optics, while FR1 and LR1 use higher-power transmitters to support longer fiber spans.

Q3: What optical chip solution does your 100G DR transceiver adopt?
A3: HYTOPTODEVICE selects mature DML direct modulated laser chips for EdgeCore ET7402-DR1 compatible 100G DR transceivers. Our engineering team balances power consumption, cost and PAM4 signal integrity for short-reach data center scenarios. EML and silicon photonics are not applied in this standard model.

Q4: Can 100GBASE-DR transceiver directly link with existing 100G CWDM4 or PSM4 optical modules?
A4: Direct interoperation cannot be achieved. HYTOPTODEVICE’s 100G DR transmits single-lambda PAM4 over one duplex fiber pair. CWDM4 and PSM4 adopt multi-wavelength parallel structures. Our technical team can provide matched module suggestions to avoid incompatible link failures.

Q5: What temperature range does your 100G DR module support? Can it run at industrial -40°C to 85°C?
A5: HYTOPTODEVICE’s standard EdgeCore compatible 100G DR is commercial grade, rated 0°C to 70°C. We accept customized industrial-temperature optical modules on demand. Standard stock cannot support -40°C to 85°C industrial deployment.

Q6: Why must switch-side FEC be enabled for stable 100G DR links?
A6: HYTOPTODEVICE’s R&D team designs 100G DR with tight optical power budget for 500m maximum reach. Host-side FEC offsets connector loss, splice loss and minor signal distortion to maintain qualified BER. Every unit passes pre-shipment testing with correct FEC configuration.

Q7: What risks appear if I disable FEC on the switch port for 100G DR?
A7: Disabling FEC greatly reduces available link margin. Users may face unstable negotiation, rising bit errors, frequent link flapping and random packet loss, especially near the 500m limit. HYTOPTODEVICE engineers offer free port configuration guidance during deployment.

Q8: Can I deploy 100G DR transceiver on fiber runs longer than 500m such as 1km or 2km?
A8: HYTOPTODEVICE technical team does not recommend overlength deployment. 500m is the engineered rated distance. Longer fiber triggers severe attenuation and dispersion. We supply 100G FR1 modules for 1km–2km interconnection demands.

Q9: What chromatic dispersion tolerance does your 100GBASE-DR transceiver have?
A9: HYTOPTODEVICE’s 100G DR is optimized for short-reach data center links with around 4 ps/nm dispersion tolerance. It cannot meet dispersion requirements for FR1 and LR1 long-distance transmission. Our sales team can recommend suitable models based on your actual fiber length.

Q10: Is 100G DR transceiver more expensive than 100G CWDM4 when purchasing in bulk?
A10: Bulk pricing varies by order quantity. HYTOPTODEVICE’s 100G DR uses fewer optical components and simple duplex cabling. For leaf-spine and 400G migration architectures, most of our customers gain lower total TCO compared with CWDM4 alternatives.

Q11: What core value does 100G DR bring during data center upgrades to 400G and 800G networks?
A11: HYTOPTODEVICE’s 100G DR supports 400G DR4 breakout. It enables customers to connect new 400G switch ports with legacy 100G equipment, reuse existing fiber infrastructure and carry out phased upgrades. We provide full pre-sales technical consultation for data center migration projects.


Packaging & Custom OEM Solutions



  • ESD Protection & Fast Shipping: Every module is sealed in an ESD-safe bag and ready for same-day dispatch from stock.

  • Custom OEM & Branding: We provide logo printing, private labeling, and custom packaging to help distributors and integrators build their brand—no factory investment required.

HYTOPTODEVICE 10Gbase-bx bidi transceiver  custom packaging


Why Network Engineers Choose HYTOPTODEVICE


HYTOPTODEVICE has supplied over 5000,000 optical transceiver modules to data centers, ISPs, and enterprise networks across 100+ countries since 2011. Every module undergoes a 72-hour burn-in test and full DDM/DOM validation before shipment.

  • Up to 70% cost savings vs OEM, transparent pricing & flexible bulk rates, supported quality returns
  • 100% real-device compatible with Cisco, Huawei,Dell,Juniper, and Arista
  • ISO 9001:2015 Shenzhen factory, full lineup: 1.25G/10G/25G/40G/100G/200G/400G/800G/1.6T transceivers
  • Ample stock, fast global DHL/FedEx shipping in 3–5 working days
  • Free pre-sales engineering support for custom EEPROM  & private label firmware
  • Real switch test videos available for pre-purchase review; inspection & shipping videos provided per order


“Phenomenal performance. We deployed 200 HYTOPTODEVICE SFP modules to replace Cisco OEMs in our backbone network. Result? Zero compatibility issues and a 60% reduction in costs. Highly recommended for mission-critical networks."— Senior Network Engineer, Regional Telecom, Australia


Quality Certification & Compliance

 At HYTOPTODEVICE, our quality commitment is backed by industry-standard validations. From fiber optical transceiver manufacturing to final visual inspection, from IQC、IPQC、FQC to OQC, our processes ensure global compliance and reliability.

We adhere to rigorous standards for our SFP modules and network solutions:

  • ISO 9001: Certified quality management and production consistency.

  • CE & FCC: Fully compliant for seamless Global Market Access.

  • RoHS: Committed to environmental responsibility and hazardous material control.

  • Proven Reliability: Rigorous testing to reduce compliance risk and ensure safety.

Certified Quality. Global Standards. Guaranteed Performance.




Rigorous Industrial Product Testing

   hytoptodevice check device and equiptment for optical transceiver module

100% 3rd Party Compatible
hytoptodevice 100g qsfp28 sr4 replacement
Partial Test Demonstration
hytoptodevice compatible optical transceiver module for ethernet,data center
