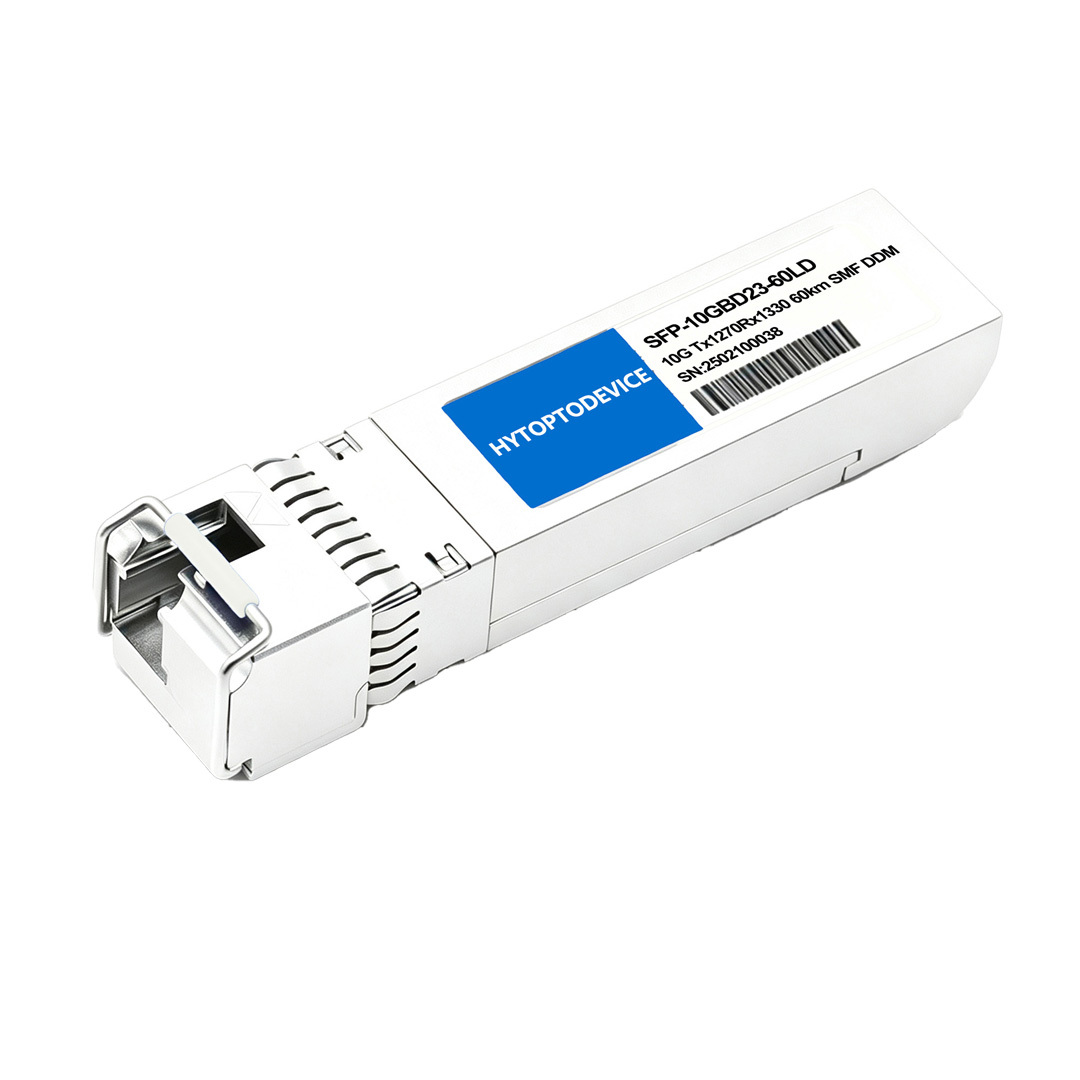

• HYTOPTODEVICE 10G SFP+ BiDi Transceiver 60km simplex LC front view white background

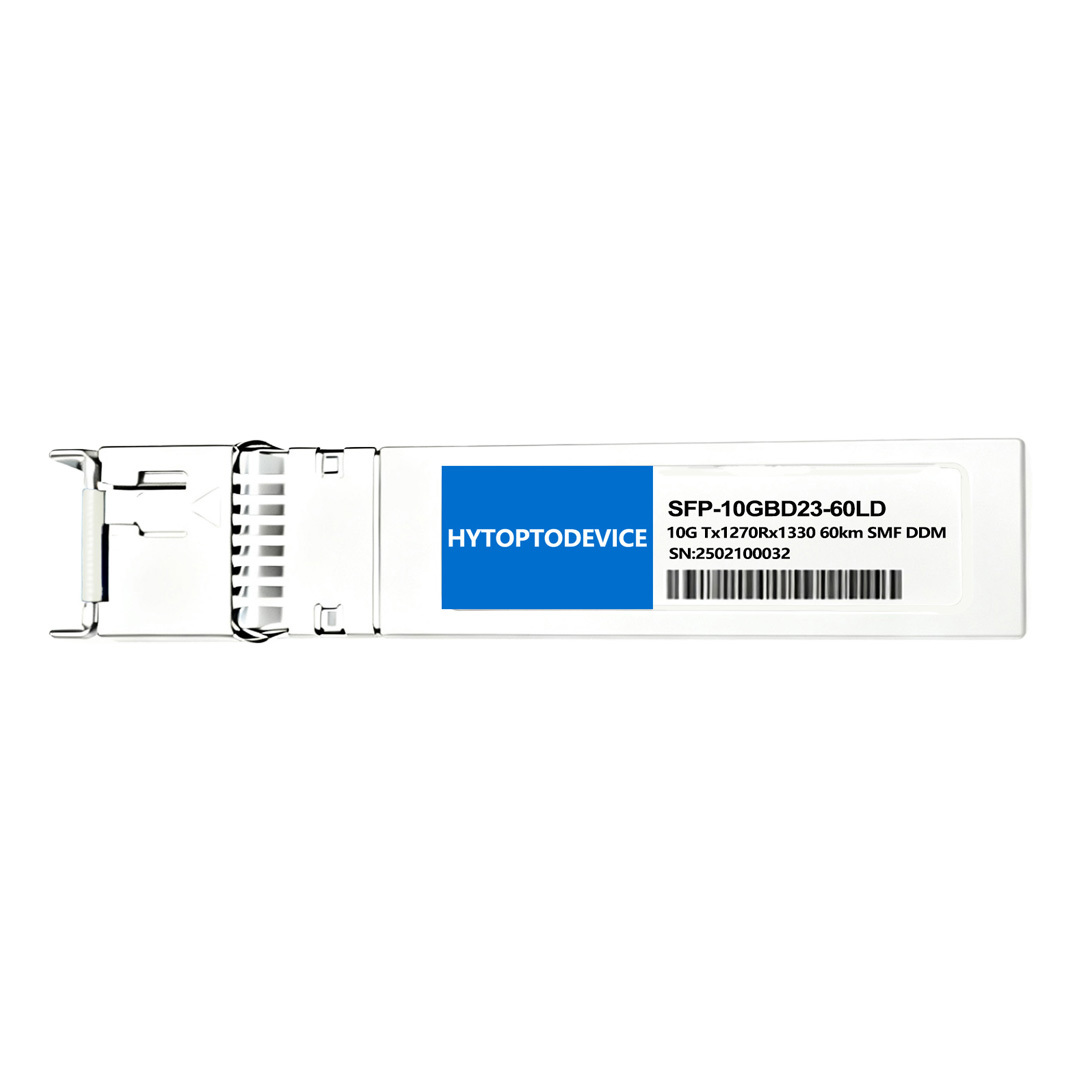

  • Brocade 10G-SFPP-BXU-60K replacement 10G single fiber BiDi module label close-up white background
  • 1270nm TX 1330nm RX 60km 10G SFP+ BiDi transceiver pin structure white background
  • DDM supported 10G SFP+ BiDi 60km optical module full detail shot white background

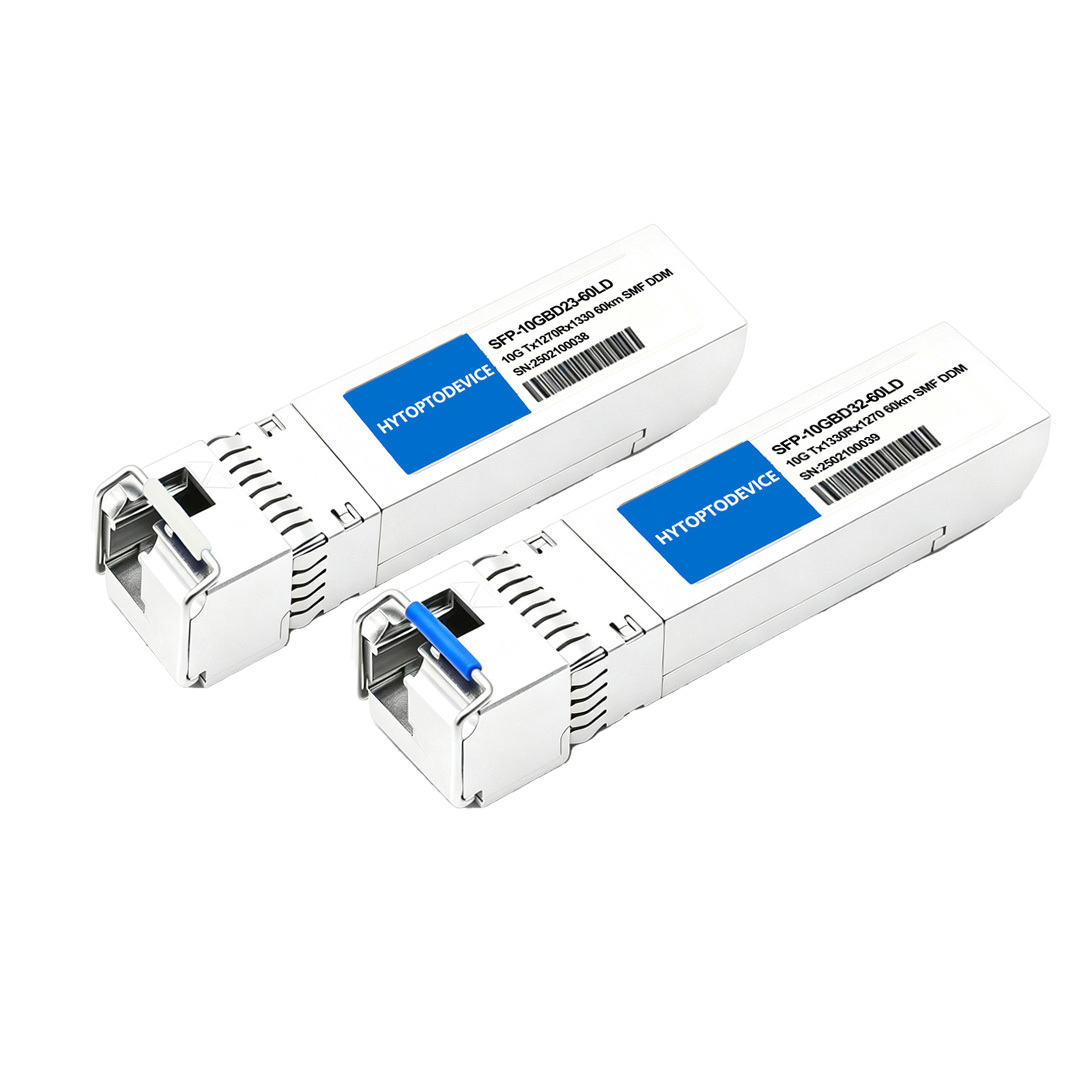

  • hytoptodevice Bulk pack 10G SFP+ BiDi Transceiver 60km for Brocade fiber switches white background
  • HYTOPTODEVICE 10G SFP+ BiDi Transceiver 60km simplex LC front view white background
  • Brocade 10G-SFPP-BXU-60K replacement 10G single fiber BiDi module label close-up white background
  • 1270nm TX 1330nm RX 60km 10G SFP+ BiDi transceiver pin structure white background
  • DDM supported 10G SFP+ BiDi 60km optical module full detail shot white background
  • hytoptodevice Bulk pack 10G SFP+ BiDi Transceiver 60km for Brocade fiber switches white background

Brocade 10G-SFPP-BXU-60K Compatible 10G SFP+ BiDi Transceiver | 10GBASE-BX60-U 60km Tx1270Rx1330nm Bulk Wholesale | HYTOPTODEVICE

Shop Brocade 10G-SFPP-BXU-60K compatible 10G SFP+ BiDi Transceiver, 60km 1270nm-TX/1330nm-RX single-strand simplex LC SMF, Compliant with SFP+ MSA, SFF-8472, IEEE 802.3ae. 100% real-hardware tested, plug-and-play on all Brocade devices with full DDM monitoring. ideal for campus cross-building links, available for enterprise bulk procurement. private labeling and OEM customization supported, long-term supply for global importers and integrators.
NO. Brand  Compatible P/N Transceiver Type
1 Juniper EX-SFP-10GE-BX23-60 SFP-10G32-BX60
2 Brocade 10G-SFPP-BXU-60K  SFP-10G23-BX20
3 Dell GP-SFP-10GBX-U-60 SFP-10G23-BX40
4 Ciena XCVR-S60U27 SFP-10G45-BX80
5 Extreme 10GB-BX60-U SFP-10G45-BX100
Description

HYTOPTODEVICE Brocade 10G-SFPP-BXU-60K Compatible 10G SFP+  BiDi Transceiver – Simplex LC  Single-Mode Optic, Native Brocade OS Recognition, Bulk Wholesale Procurement Available


Product Overview

HYTOPTODEVICE 10G SFP+ BiDi Transceiver 60km acts as a drop-in direct replacement to replace Brocade 10G-SFPP-BXU-60K for long-distance single fiber metro interconnection. Built with standard 1270nm TX / 1330nm RX wavelength pairing and simplex LC connector, this custom-programmed BiDi optic delivers stable 10.3125Gbps full-duplex transmission over 60km standard single-mode fiber. Fully validated for native Brocade switch compatibility and complete DDM real-time diagnostic support, this 10G SFP+ BiDi Transceiver fits dark fiber expansion, cross-campus WAN backhaul and rural backbone network upgrade projects. We support bulk order wholesale and complimentary custom EEPROM coding, helping global system integrators cut long-haul fiber deployment costs with zero compatibility risks.

Key Technical Specifications

Brocade  Compatible 10G-SFPP-BXU-60K Vendor Name HYTOPTODEVICE
Form Factor SFP+ Max Data Rate 10.7Gbps
Wavelength TX1270nm/RX1330nm Max  Distance 60km
Connector Simplex LC Transmitter Type 1270nm DFB
Cable Type SMF Receiver Type APD
TX Power 1.0~+6dBm Receiver Sensitivity < -20dBm
Max. Power Consumption ≤1.4W DOM/DDM   Fully Supported
Protocols SFP+ MSA, SFF-8472, IEEE 802.3ae, RoHS Compliant Operation Temperature 0 to 70°C (32 to 158°F)

For detailed technical specifications, please refer to the Datasheet


Usage Guidelines & Operational Best Practices

• BiDi Pairing Rule: SFP‑10G‑BXU (Tx1270/Rx1330) must pair with SFP‑10G‑BXD (Tx1330/Rx1270) at remote end. Two BXD modules will NOT form a valid link.
• Cabling Requirement: Use OS2 single‑mode simplex‑LC UPC cables only. Multimode fiber / APC connectors reduce reach and cause link issues; keep connectors clean.
• Optical Attenuator Required for Short Links: For testing or short‑distance connections (<10km), connect a 12dB–15dB optical attenuator to the RX port to prevent damaging the receiver.(10KM<Distance<30km,connect 5‑15dB optical attenuator)
• Environment: Run within 0‑70 °C. Avoid high‑heat, dusty, poorly ventilated rack positions.
• Hot‑swap: Supports hot‑swap; disconnect fiber before plugging / unplugging to protect optical ports.
• DDM Monitoring: Enable DDM/DOM; monitor optical power and temperature for early fault warning.
• Pre‑test Recommendation: Test sample units with real hardware before large‑scale bulk deployment.
• Laser Safety: Avoid direct eye exposure to powered optical ports; infrared laser can harm eyes.

For detailed operation instructions, please refer to the User Guide.


Full Compatibility List & Supported Network Hardware

1.Native Brocade Networks Compatibility

HYTOPTODEVICE custom coded 10G SFP+ BiDi Transceiver 60km achieves 100% native compatibility with Brocade 10G-SFPP-BXU-60K and all Brocade Fabric OS versions. Every production batch completes real physical Brocade switch online testing, supporting plug-and-play port recognition, full DDM data display and zero port startup failure. We can provide original real-machine test videos and inspection reports for buyer verification, fully resolving hidden compatibility failures of generic third-party BiDi optics for Brocade long haul networking.
  • Brocade ICX Series Switches: ICX 6610, ICX 7250, ICX 7450, ICX 7650, and ICX 7750 fiber aggregation switches.

  • Brocade VDX Data Center Switches: VDX 6740 and VDX 6940 top-of-rack and leaf/spine architectures.

  • Brocade FCX Series: FCX624 and FCX648 enterprise platforms.

2.Multi-Brand Cross Compatibility

Built to universal SFP+ MSA standards, HYTOPTODEVICE’s Brocade-compatible 10G SFP+ BiDi Transceiver 60km unlocks OEM vendor lock-in for hybrid multi-vendor metro networks.
  • Open-Brand (Plug-and-Play): Fortinet, Ubiquiti, MikroTik, D-Link, Zyxel and other open switches
  • Locked-Brand (Custom Coding): Cisco, H3C, Huawei, Dell, Juniper and more

3.Free Custom EEPROM Re-Flash Service
Complimentary permanent EEPROM rewrite for all bulk orders of 10G SFP+ BiDi Transceiver. Upgrade Brocade OS or migrate modules to other brand racks; our team re-codes firmware free of charge to maintain stable 40km single-fiber bidirectional links for evolving multi-vendor metro architectures.


Primary Application Scenarios

  • 60km Metro Backbone Long-Haul Interconnection Application: Ideal for urban and suburban backbone single-fiber 10G long-span transmission projects, solving bandwidth bottlenecks under limited fiber core resources.
  • Cross-Campus Cross-Building WAN Link Extension Application: Realize low-cost long-distance interconnection between enterprise industrial parks, university campuses and remote branch office buildings, reducing long-term network operation overhead.
  • Dark Fiber Resource Activation and Network Upgrade Application: Make full use of idle single fiber core assets to expand 10G high-speed network without new cabling construction, maximizing fiber resource utilization efficiency.
  • Outdoor Aerial and Pipeline Long-Distance Transmission Application: Equipped with calibrated optical power budget and wide temperature resistance, adapting to complex outdoor working environments and maintaining stable operation of 60km long-haul fiber links.
  • Remote Monitoring and Security Network Backhaul Application: Deliver consistent 10G long-distance data backhaul for industrial monitoring equipment, security surveillance systems and remote office network infrastructure.

Connectivity Solutions(Applications)

1.Switch-to-Switch
hytoptodevice Switch to Switch single fiber 60km 10G SFP+ BiDi Transceiver interconnection topology diagram

2.Switch-to-NIC Connectivity

hytoptodevice Switch to NIC long distance single fiber 10G BiDi networking schematic drawing

3.
Core to Access Connectivity (With Structured Cabling)
hytoptodevice Enterprise 10G simplex single fiber structured cabling layout chart

The Core Features

1.50% Fiber Resource Saving & Low-Cost Network Upgrade
Optimize your current network infrastructure without the high cost of laying new cables. By transmitting and receiving signals over a single strand of fiber, our 10G BiDi SFP+ transceivers help you squeeze maximum value out of your existing fiber cabling.

hytoptodevice Dual fiber 10G network upgrade to single fiber BiDi 10G SFP Transceiver 60km fiber resource optimization comparison chart

2.Double Your Network Capacity Instantly
Upgrade your bandwidth effortlessly. Utilizing advanced Wavelength Division Multiplexing (WDM) technology, this module allows bidirectional traffic over a single fiber strand, effectively doubling your network capacity instantly while cutting cabling costs in half.



3.Energy-Efficient 10G Connectivity for Data Centers
Designed for high-density, high-speed modern data centers, this SFP+ transceiver features an ultra-low power consumption of just 1W. Achieve stable, green, and cost-effective 10G data transmission while significantly reducing operational cooling costs.



4.Seamless Cross-Brand Interoperability
Enjoy worry-free integration into your multi-vendor environment. Every single unit undergoes rigorous compatibility testing on original brand switches to ensure seamless cross-brand interoperability. Real products, real switches, real results—Specific Compatibility Video available upon request.



5.Comprehensive Testing for Rock-Solid Reliability
Reliability is our cornerstone. From signal integrity and distance runs to extreme temperature cycles, our comprehensive testing procedure guarantees that every 10G BiDi 60km SFP+ module delivers stable, packet-loss-free performance under any network load before leaving our Test Center.



FAQ

Q1: How does dual separate SKU setup raise stock management difficulty for bulk 10G SFP+ BiDi Transceiver 60km Brocade network projects?
A: Conventional dual-fiber optical transceivers only adopt one unified SKU for full deployment, while 10G SFP+ BiDi Transceiver 60km needs independent stock records for two opposite wavelength variants. Network operators frequently face uneven inventory status, such as surplus TX1270 modules and insufficient TX1330 stock, delaying Brocade long-distance network rollout. HYTOPTODEVICE provides matched paired module packages for Brocade 10G-SFPP-BXU-60K compatible optics, simplifying warehouse stock allocation and avoiding unbalanced inventory troubles.

Q2: How does asymmetric wavelength attenuation interfere with stable bidirectional transmission of 10G SFP+ BiDi Transceiver 60km over single-mode fiber?
A: Single-mode fiber generates inconsistent attenuation loss for 1270nm and 1330nm light waves. For 60km long-span links deployed with 10G SFP+ BiDi Transceiver 60km, this wavelength attenuation gap makes it hard to balance upstream and downstream optical power budget simultaneously. Our HYTOPTODEVICE Brocade compatible BiDi transceiver undergoes precise wavelength attenuation compensation calibration, balancing bidirectional signal loss to cut link debugging workload for metro backbone engineers.

Q3: Why are APD receivers inside generic 10G SFP+ BiDi Transceiver 60km easily damaged during field installation for Brocade switches?
A: Standard 60km BiDi optics deploy high-sensitivity APD receivers to reach 60km transmission distance, instead of ordinary PIN receivers. APD chips carry extremely low overload thresholds and get burnt easily when exposed to intense stray light on site. HYTOPTODEVICE equips our Brocade 10G-SFPP-BXU-60K compatible 10G SFP+ BiDi Transceiver 60km with built-in anti-overload optical protection circuits, effectively preventing receiver burnout caused by improper field operation.

Q4: How do tiny optical power jitters trigger full link outages on long haul 10G SFP+ BiDi Transceiver 60km Brocade single fiber links?
A: All 60km-rated 10G SFP+ BiDi Transceiver operate close to the limit of optical power budget margin. Minor signal attenuation from bent simplex jumpers or contaminated panel connectors will lower received optical power below the hardware sensitivity threshold, leading to complete backbone link failure. HYTOPTODEVICE reserves extra attenuation margin for our Brocade compatible 60km BiDi modules, resisting subtle power fluctuations to guarantee uninterrupted 7×24h transmission.

Q5: What hidden network failure comes with receiver saturation of 10G SFP+ BiDi Transceiver 60km used on Brocade Fabric OS devices?
A: When incoming optical power exceeds the saturation threshold of APD receivers on 10G SFP+ BiDi Transceiver 60km, the receiver cannot decode data normally even if the module remains intact. The Brocade switch displays Link Up status without any data throughput, forming hard-to-detect invisible soft faults. Our HYTOPTODEVICE Brocade replacement BiDi transceiver optimizes APD receiving range to avoid saturation failures in medium-short mixed fiber deployment.

Q6: What risks arise from mismatched TX power levels when mixing different brands of 10G SFP+ BiDi Transceiver 60km on Brocade networks?
A: Different manufacturers set inconsistent transmit optical power for their 60km BiDi optics. Randomly mixing multi-brand 10G SFP+ BiDi Transceiver 60km requires recalculating the whole link power budget to prevent permanent APD receiver damage. HYTOPTODEVICE unifies standard TX power parameters for all Brocade 10G-SFPP-BXU-60K compatible modules; our technical team offers free power budget calculation for mixed-vendor network reconstruction projects.

Q7: How does connector back reflection degrade OSNR performance of deployed 10G SFP+ BiDi Transceiver 60km Brocade long-distance links?
A: Dual-fiber transceivers separate transmit and receive optical paths to avoid reflected light interference, while 10G SFP+ BiDi Transceiver 60km shares one optical assembly for TX and RX. Dust or tiny scratches on simplex LC connectors create back-reflected light that directly disturbs local receivers and reduces optical signal-to-noise ratio. HYTOPTODEVICE adds high-isolation internal filter components to our Brocade compatible BiDi modules, suppressing back-reflection interference on patch panel dense wiring scenarios.

Q8: How does PMD interference create random intermittent packet loss for 10G SFP+ BiDi Transceiver 60km running on aged legacy fiber with Brocade switches?
A: Polarization Mode Dispersion widely exists in outdated long-distance fiber pipelines, stretching optical pulse signals transmitted by 10G SFP+ BiDi Transceiver 60km and generating irregular packet dropouts without fixed occurrence rules, which is tough to locate during network troubleshooting. HYTOPTODEVICE adopts optimized laser pulse shaping technology for our Brocade 10G-SFPP-BXU-60K compatible optics to weaken PMD disturbance and lower intermittent error rates on old fiber renovation projects.

Q9: What causes pseudo link-up zero-traffic faults when deploying 10G SFP+ BiDi Transceiver 60km on Brocade Ethernet switching equipment?
A: Excessively strong optical carrier signals of long-reach 10G SFP+ BiDi Transceiver 60km mislead Brocade switches to identify the physical layer as connected normally. However, long-distance signal distortion triggers PCS misalignment, resulting in complete MAC layer data decoding failure and zero throughput. HYTOPTODEVICE calibrates transmit waveform for our Brocade compatible 60km BiDi modules to eliminate pseudo link-up faults on 60km single fiber backbone links.

Q10: Why do high-power 10G SFP+ BiDi Transceiver 60km easily trigger overheating faults when inserted into Brocade security firewall ports?
A: Enterprise core switches own sufficient internal heat dissipation airflow, while security firewalls adopt compact chassis layout with poor ventilation. 10G SFP+ BiDi Transceiver 60km consumes high operating power above 1.5W, easily causing port cage overheating and network interface suspension on firewalls. HYTOPTODEVICE optimizes low-power laser drive design for Brocade 10G-SFPP-BXU-60K compatible modules, cutting heat output to adapt to firewall limited heat dissipation environments.

Packaging & Custom OEM Solutions

Each module ships individually sealed in ESD-safe packaging, protected from static from our warehouse to your shelf—and ready to ship on receipt of order. Volume buyers and system integrators also unlock our full OEM program: custom logos, private labeling, and branded packaging, all designed to help you build and protect your own brand.
HYTOPTODEVICE 10Gbase-bx bidi transceiver  custom packaging

Why Network Engineers Choose HYTOPTODEVICE

HYTOPTODEVICE has supplied over 5000,000 optical transceiver modules to data centers, ISPs, and enterprise networks across 100+ countries since 2011. Every module undergoes a 72-hour burn-in test and full DDM/DOM validation before shipment.

  • Up to 70% cost savings vs OEM, transparent pricing & flexible bulk rates, supported quality returns
  • 100% real-device compatible with Cisco, Huawei,Dell,Juniper, and Arista
  • ISO 9001:2015 Shenzhen factory, full lineup: 1.25G/10G/25G/40G/100G/200G/400G/800G/1.6T transceivers
  • Ample stock, fast global DHL/FedEx shipping in 3–5 working days
  • Free pre-sales engineering support for custom EEPROM  & private label firmware
  • Real switch test videos available for pre-purchase review; inspection & shipping videos provided per order


“Phenomenal performance. We deployed 200 HYTOPTODEVICE SFP modules to replace Cisco OEMs in our backbone network. Result? Zero compatibility issues and a 60% reduction in costs. Highly recommended for mission-critical networks."— Senior Network Engineer, Regional Telecom, Australia


Quality Certification & Compliance

 At HYTOPTODEVICE, our quality commitment is backed by industry-standard validations. From fiber optical transceiver manufacturing to final visual inspection, from IQC、IPQC、FQC to OQC, our processes ensure global compliance and reliability.

We adhere to rigorous standards for our SFP modules and network solutions:

  • ISO 9001: Certified quality management and production consistency.

  • CE & FCC: Fully compliant for seamless Global Market Access.

  • RoHS: Committed to environmental responsibility and hazardous material control.

  • Proven Reliability: Rigorous testing to reduce compliance risk and ensure safety.

Certified Quality. Global Standards. Guaranteed Performance.


hytoptodevice 10g sfp+ bidi transceiver testing certification

Rigorous Industrial Product Testing

   hytoptodevice check device and equiptment for optical transceiver module

100% 3rd Party Compatible
testing device for hytoptodevice 10g sfp+ bidi optical module
Partial Test Demonstration
hytoptodevice testing devices for compatibility of sfp+ bidi 10g optical module
