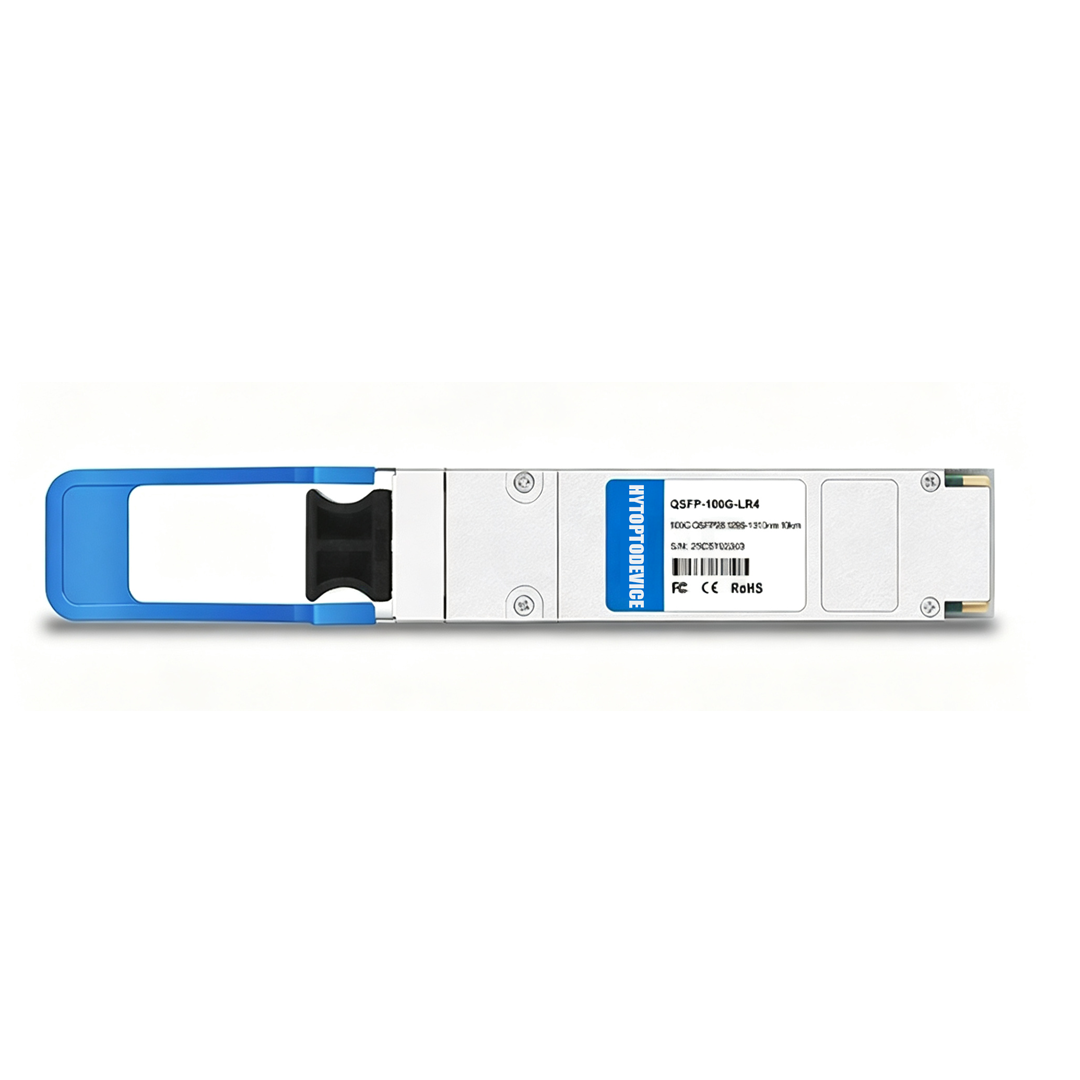

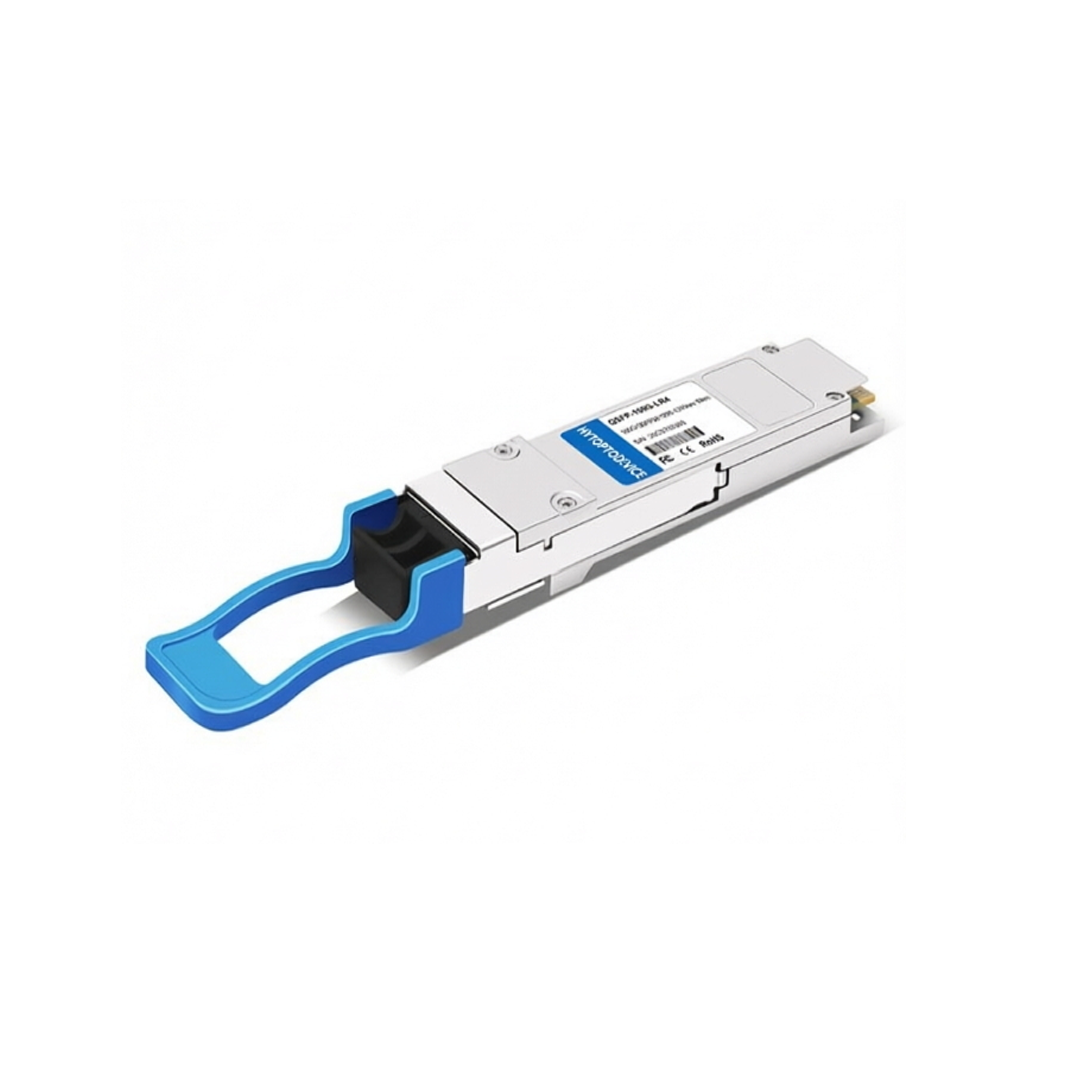

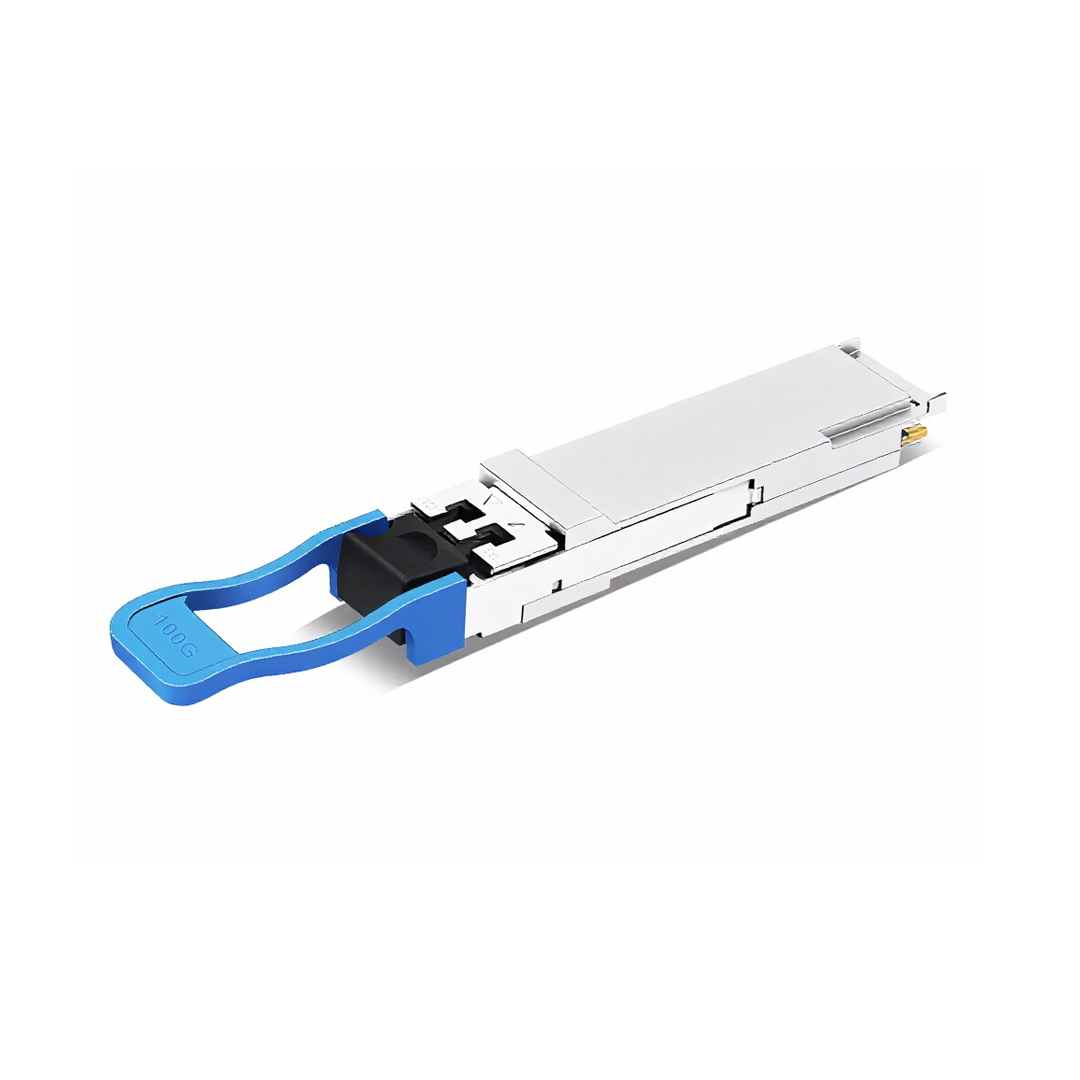

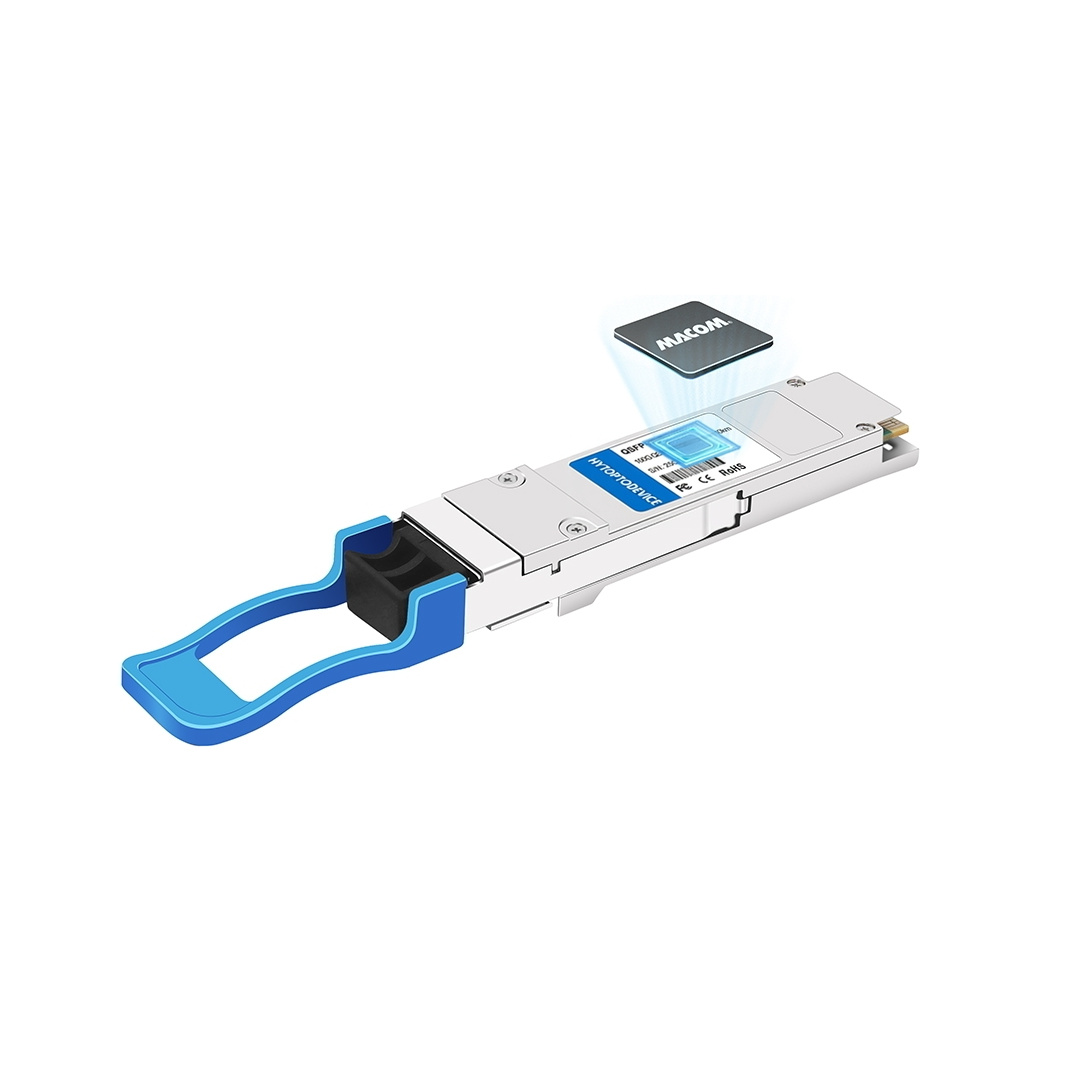

Brocade 100G-QSFP28-LR4-LP-10KM Compatible 100GBASE-LR4 100G QSFP28 Transceiver LR4 | HYTOPTODEVICE(10km, SMF, 1310nm, Duplex LC, DOM)
Product Overview
The Brocade Compatible 100G-QSFP28-LR4-LP-10KM is a premium 100G
QSFP28 transceiver LR4, designed for high-speed 100Gbps connectivity up to 10km. Optimized for high-density data centers, this 10km LAN-WDM single-mode 100G QSFP28 Transceiver LR4 duplex LC
utilizes Single-Mode Fiber (SMF) and LAN-WDM technology(wavelength:
1295~1310nm) to ensure superior signal integrity. It features low power consumption, low latency and operates within a commercial temperature range (0°C to 70°C) for maximum reliability. Fully hot-swappable and DOM/DDM-supported, the Brocade compatible 100G QSFP28 transceiver LR4 provides seamless, cost-effective compatibility with Brocade switches, making it the ideal choice for Brocade SLX leaf-spine fabric interconnection, cross-data-center DCI long-haul links and enterprise low-power high-density core backbone upgrade
Key Technical Specifications
| Brocade Compatible |
100G-QSFP28-LR4-LP-10KM |
Vendor Name |
HYTOPTODEVICE |
| Form Factor |
QSFP28 |
Max Data Rate |
103.125Gbps (4x 25.78Gbps) |
| Wavelength |
1295.56nm,1300.05nm, 1304.58nm,1309.14nm |
Max Distance |
10km |

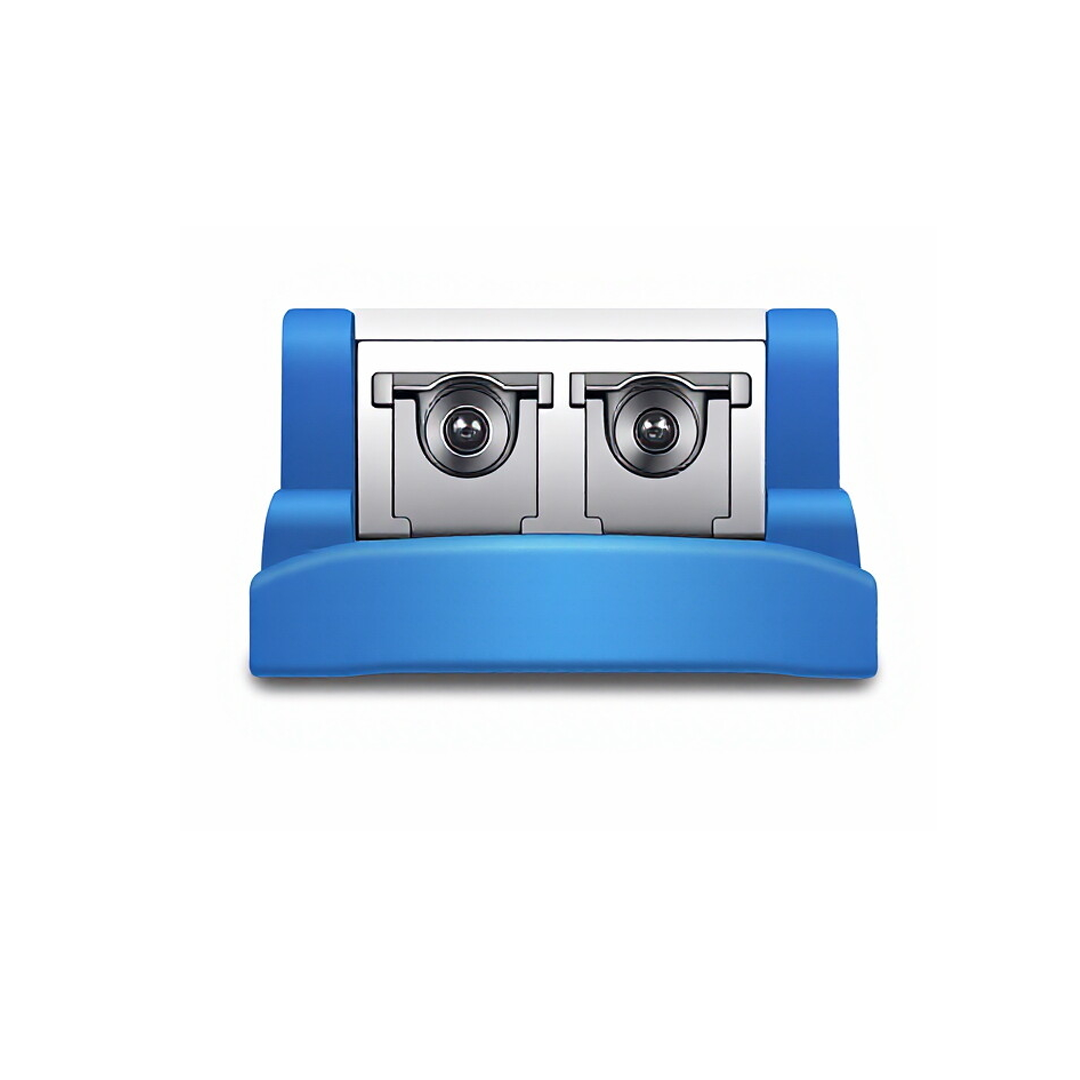

| Connector |
Duplex LC |
Transmitter Type |
4 x LAN WDM EML |
| Cable Type |
SMF |
Receiver Type |
PIN |
| Modulation (Electrical) |
4x 25G-NRZ |
TX Power |
-6.2~+2.5dBm |
| Power Consumption |
< 3.5W |
Receiver Sensitivity |
< -11.5dBm |
| Protocols |
100G Ethernet, MSA Compliant |
Operation Temperature |
0 to 70°C (32 to 158°F) |
For detailed technical specifications, please refer to the Datasheet
Usage Guidelines & Best Practices
-
Fiber Choice: Works only with OS2 single-mode fiber. Multimode fiber is not compatible with this 1310nm CWDM4 module.
-
Distance Specification:Max 10km (OS2 SMF). Dirty end faces, excessive splicing and sharp bending reduce actual transmission distance.
-
Cleanliness & Dust: Keep dust caps on whenever unattached. Clean fiber end-faces with a optical cleaning pen before insertion; dust causes over 80% of optical link failures.
-
Installation Specification: Hot-swap supported. Follow ESD anti-static procedures and keep LC connectors clean for stable links.
- Mode Setting: Configure 100G port speed via switch CLI. This LR4 module does not support breakout to 4×25G.
For detailed operation instructions, please refer to the User Guide.
Full Compatibility List & Supported Network Hardware
1.Native Brocade Compatibility
HYTOPTODEVICE 100G QSFP28 Transceiver LR4 pass long-time traffic aging tests on official Brocade SLX & FC platforms, realizing seamless LP module replacement without port recognition errors, and all DDM monitoring data can be normally read on Brocade OS management page. Complete test logs and hardware verification videos can be provided for project inspection.
Compatible Brocade Hardware:
- Brocade SLX 9240 / SLX 9850 Series Data Center Fabric Switches & Routers
- Brocade FC32-64 Fibre Channel Storage Switches
- Brocade 7850 Extension 100G Uplink Ports
- Brocade Low-Power High-Density QSFP28 Expansion Slots
2.Multi-Brand Cross Compatibility
Built strictly to industry MSA standards, HYTOPTODEVICE’s 100G-QSFP28-LR4-LP-10KM breaks vendor lock-ins, delivering seamless interoperability across diverse network environments.
3. Free Value-Added Services
-
Custom firmware for multi-device compatibility
-
Support sample testing before bulk orders for project pre-verification
-
Private-label customization and professional deployment guidanc
-
Strict batch consistency quality control
- Free custom EEPROM programming for special and legacy network environments
- Free EEPROM rewriting (Tools Included) with 24/7 Tech Support
Primary Application Scenarios
- 100G QSFP28 Transceiver LR4 bulk replacement for outdated Brocade 100G-QSFP28-LR4-LP-10KM low-power modules during fabric bandwidth expansion
- Cross-data-center DCI interconnection using 100G QSFP28 Transceiver LR4 to build low-loss 10km long-reach single-mode links for Brocade storage network
- Enterprise core backbone network construction deploying low-power 100G QSFP28 Transceiver LR4 for stable inter-room trunk transmission
- Large campus network iteration with low-jitter Class3 100G QSFP28 Transceiver LR4 for remote machine room 100G uplink
- System integrator custom coded 100G QSFP28 Transceiver LR4 for multi-brand low-power long-haul data center integration projects
- ISP edge high-density rack networking adopting standard-compliant 100G QSFP28 Transceiver LR4 for 100G wide-area bandwidth expansion
Connectivity Solutions(Applications)
1. 100G Switch-to-Switch Interconnection

2.100G Switch-to-NIC Direct Connection

3.100G Long-haul Switch Link with Structured Cabling
The Core Features
1. Low Power & High Port Density
This HYTOPTODEVICE QSFP28 100G LR4 transceiver features low power consumption and high-speed, supporting high-density port deployment. It helps data centers fit more ports per rack without excessive heat buildup.

2. Host Validated for Reliable Interoperability
Each 100G transceiver plugs into target host switches directly without unsupported transceiver alarms and reduces project debugging time. Specific Compatibility Video available upon request.

3.Rigorous Full Testing & Stable Quality
Each unit passes optical calibration, high-low temperature burn-in and DDM inspection before shipment. HYTOPTODEVICE strict factory QC helps bulk buyers lower on-site failure risks. Curious how? Tour the
Test Center.

FAQ
Q1: Can HYTOPTODEVICE calibrated 100G QSFP28 Transceiver LR4 run without alarms on multi-brand Cisco, Arista and Juniper enterprise switches?
A: Most generic third-party optical modules will trigger unsupported transceiver CLI warnings, while our 100G QSFP28 Transceiver LR4 supports customized vendor EEPROM coding to skip OEM transceiver restriction blocks for smooth cross-brand deployment.
Q2: Is field re-programming available for 100G QSFP28 Transceiver LR4 when users replace existing switch vendors later?
A: Field re-coding is supported, yet professional dedicated programming equipment such as Flexbox optical coding tools is required, which we can supply alongside our bulk 100G QSFP28 Transceiver LR4 orders.
Q3: What minimum fiber span is required to protect built-in receiver chips of industrial compatible 100G QSFP28 Transceiver LR4?
A: Our PIN receiver version 100G QSFP28 Transceiver LR4 has no minimum transmission distance limit. Models fitted with high-sensitivity APD receivers need minimum 2km fiber or matched fixed attenuators to prevent receiver burnout from excessive optical input power.
Q4: How do aging fiber cables and stacked patch panels impact the rated 10km transmission range of 100G QSFP28 Transceiver LR4?
A: Each patch panel brings 0.5dB–0.75dB extra insertion loss, which consumes the module’s optical power budget and reduces the maximum stable transmission distance of our 100G QSFP28 Transceiver LR4.
Q5: Why does long-reach 100G QSFP28 Transceiver LR4 generate more heat than short-range SR4 and CWDM4 optical modules?
A: Our 100G QSFP28 Transceiver LR4 adopts EML lasers and integrated MUX/DEMUX components, which consume higher power to support 10km long-distance transmission, resulting in higher operating temperature versus short-reach transceivers.
Q6: What standard transmit and receive optical power thresholds apply to factory-tested 100G QSFP28 Transceiver LR4?
A: The standard Tx power range of our 100G QSFP28 Transceiver LR4 is -4.3 dBm ~ +4.5 dBm, and the normal Rx power operating window falls between -10.6 dBm and +4.5 dBm for error-free 10km links.
Q7: Is optical interconnection feasible between standard 100G QSFP28 Transceiver LR4 and 100G 4WDM-10 single-mode modules over 10km fiber?
A: Yes. The 100G 4WDM-10 standard is designed for full optical interoperability with our IEEE-compliant 100G QSFP28 Transceiver LR4 on all 10km single-mode link deployments.
Q8: How vulnerable are LC optical end faces of 100G QSFP28 Transceiver LR4 to dust and surface contaminants?
A: The 4-wavelength parallel optical structure makes our 100G QSFP28 Transceiver LR4 extremely sensitive to tiny dust particles. Micro contaminants can block one signal lane, cut 25% traffic capacity or fully disconnect the fiber link.
Q9: What leads to early service failure of ordinary 100G QSFP28 Transceiver LR4 within 1 to 2 years of operation?
A: Premature breakdown within two years mostly stems from fast EML laser aging caused by poor thermal design and low-grade internal IC chips. Our HYTOPTODEVICE 100G QSFP28 Transceiver LR4 uses optimized heat dissipation to extend service life.
Q10: What practical methods can identify counterfeit or second-hand refurbished OEM 100G QSFP28 Transceiver LR4 modules?
A: You can inspect blurry label printing and scratched module housings, or cross-check DOM runtime data and serial numbers against the official OEM database to filter fake or refurbished LR4 transceivers.
Packaging & Custom OEM Solutions
-
ESD Protection & Fast Shipping: Every module is sealed in an ESD-safe bag and ready for same-day dispatch from stock.
-
Custom OEM & Branding: We provide logo printing, private labeling, and custom packaging to help distributors and integrators build their brand—no factory investment required.

Why Network Engineers Choose HYTOPTODEVICE
HYTOPTODEVICE has supplied over 5000,000 optical transceiver modules to data centers, ISPs, and enterprise networks across 100+ countries since 2011. Every module undergoes a 72-hour burn-in test and full DDM/DOM validation before shipment.
- Up to 70% cost savings vs OEM, transparent pricing & flexible bulk rates, supported quality returns
- 100% real-device compatible with Cisco, Huawei,Dell,Juniper, and Arista
- ISO 9001:2015 Shenzhen factory, full lineup: 1.25G/10G/25G/40G/100G/200G/400G/800G/1.6T transceivers
- Ample stock, fast global DHL/FedEx shipping in 3–5 working days
- Free pre-sales engineering support for custom EEPROM & private label firmware
- Real switch test videos available for pre-purchase review; inspection & shipping videos provided per order
“Phenomenal performance. We deployed 200 HYTOPTODEVICE SFP modules to replace Cisco OEMs in our backbone network. Result? Zero compatibility issues and a 60% reduction in costs. Highly recommended for mission-critical networks."— Senior Network Engineer, Regional Telecom, Australia
Quality Certification & Compliance
At HYTOPTODEVICE, our quality commitment is backed by industry-standard validations. From fiber optical transceiver manufacturing to final visual inspection, from IQC、IPQC、FQC to OQC, our processes ensure global compliance and reliability.
We adhere to rigorous standards for our SFP modules and network solutions:
-
ISO 9001: Certified quality management and production consistency.
-
CE & FCC: Fully compliant for seamless Global Market Access.
-
RoHS: Committed to environmental responsibility and hazardous material control.
-
Proven Reliability: Rigorous testing to reduce compliance risk and ensure safety.
Certified Quality. Global Standards. Guaranteed Performance.

Rigorous Industrial Product Testing

100% 3rd Party Compatible

Partial Test Demonstration
