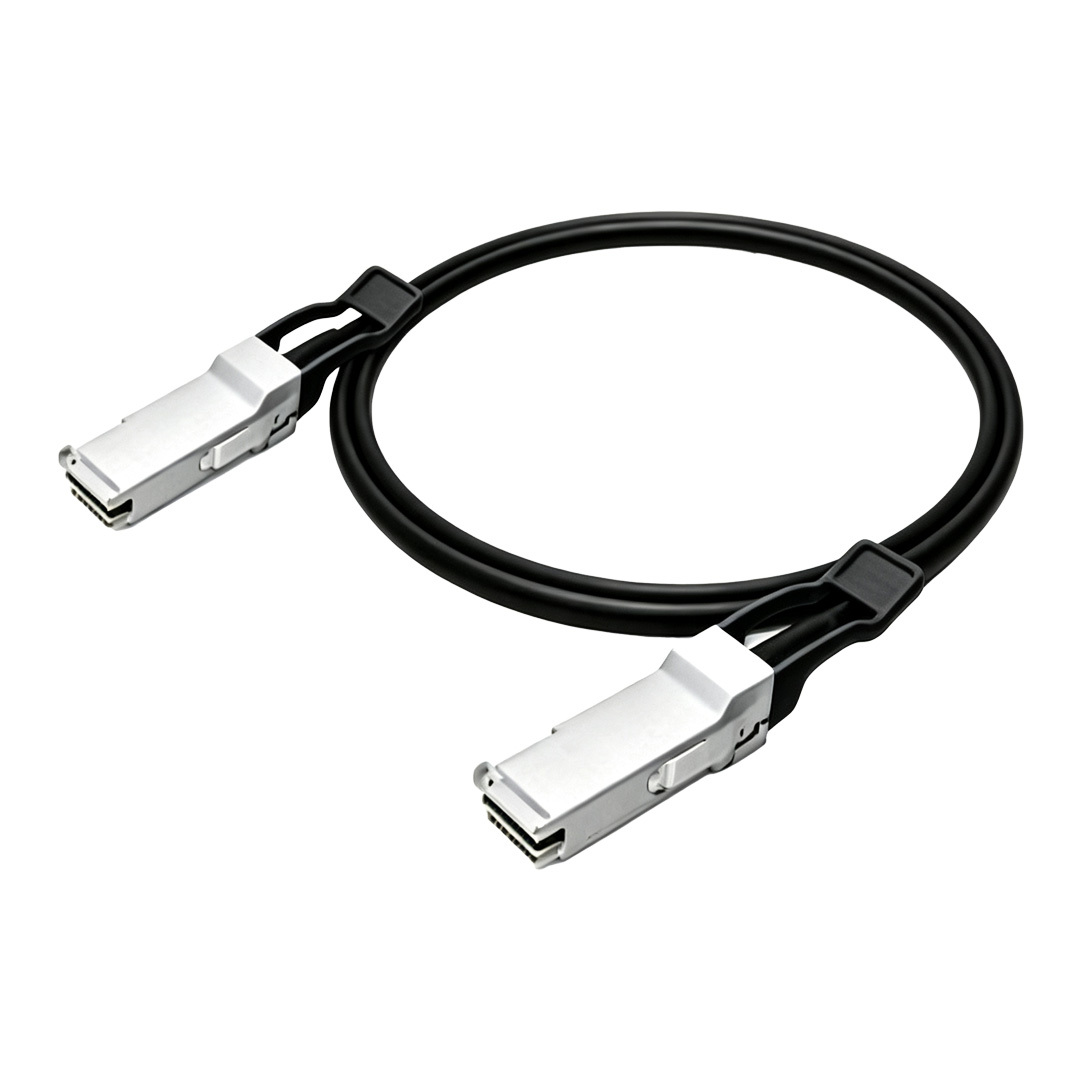

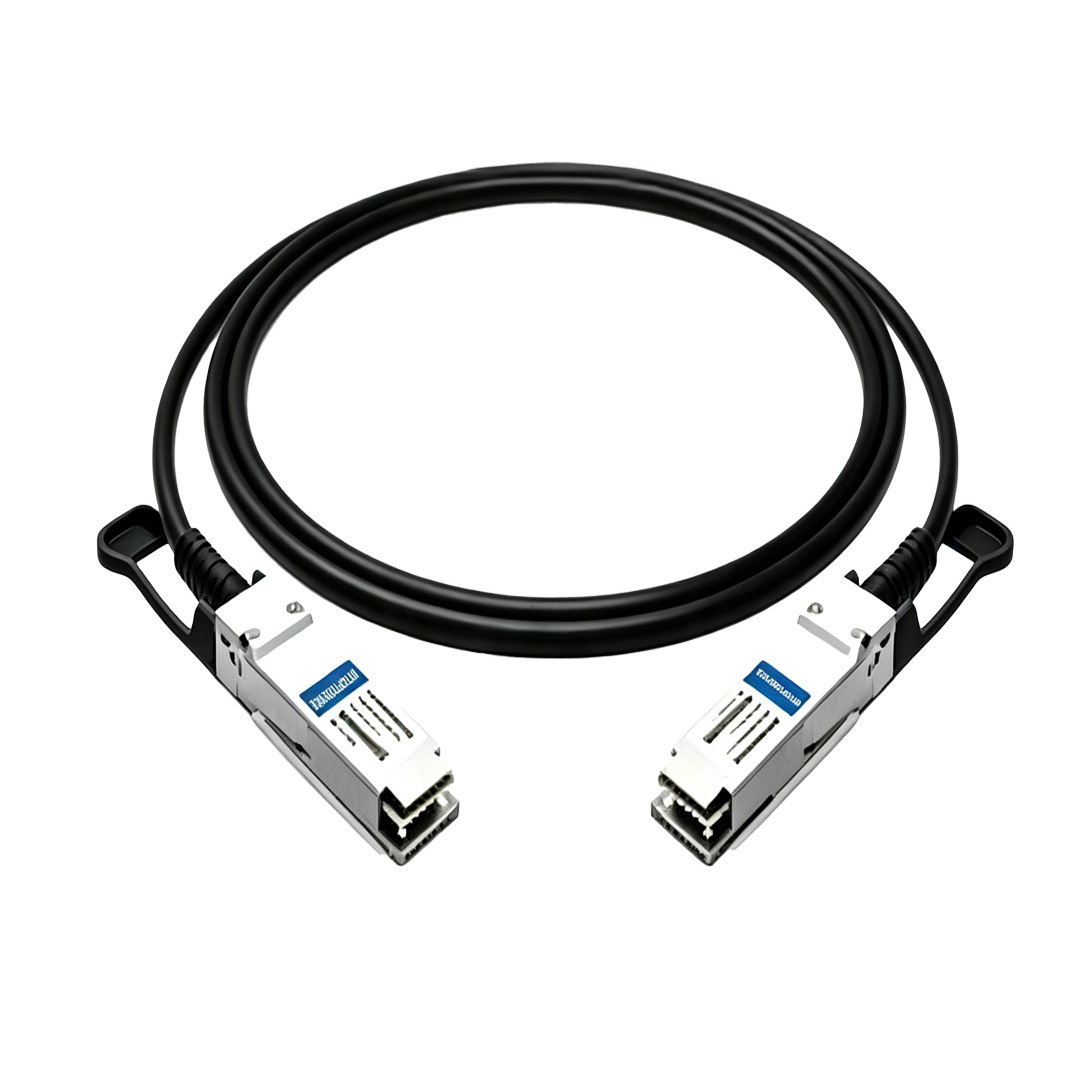

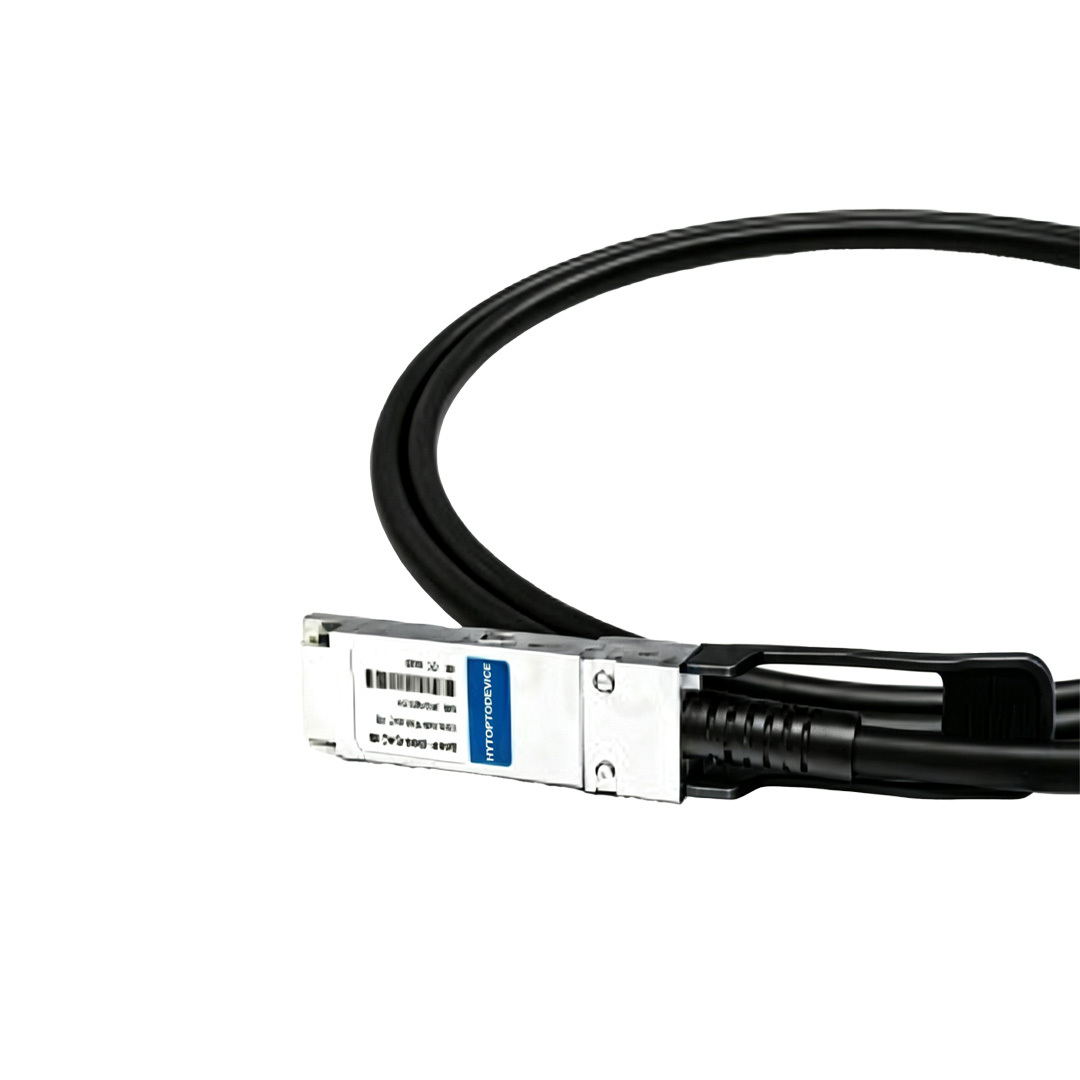

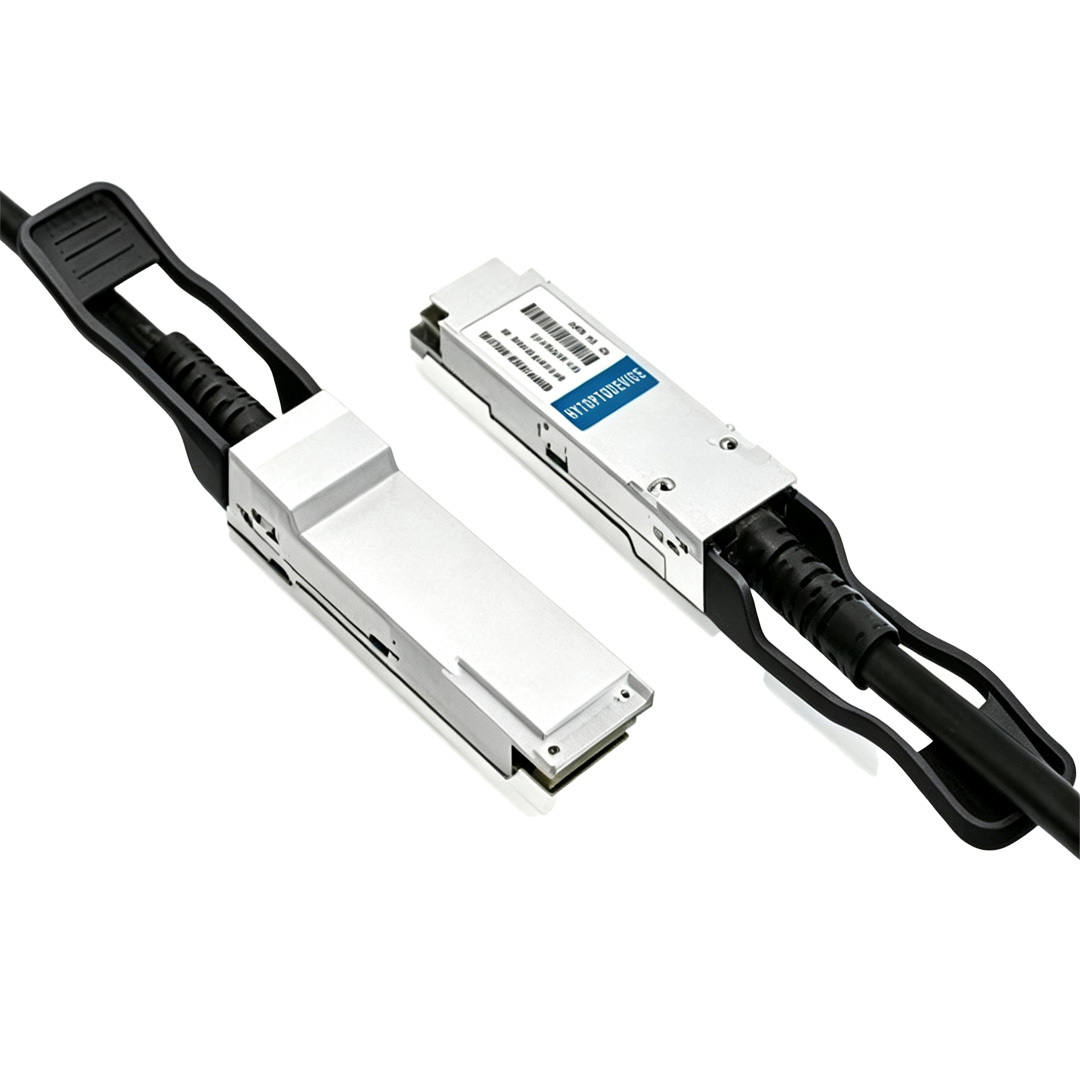

Brocade 100G-Q28-Q28-C-0301 Compatible 3m (10ft) 100G QSFP28 Passive DAC Cable | HYTOPTODEVICE

HYTOPTODEVICE factory supplier delivers reliable 100G QSFP28 passive dac cable, featuring low power consumption, high-speed direct-attach and compact cabling. Built with premium low-loss twinax copper, this 3m Brocade 100G-Q28-Q28-C-0301 compatible QSFP28 cable is pre-coded for Brocade Fabric OS. Bulk order this high-performance DAC for low-latency intra-rack leaf-spine networking, HPC, AI clusters and low-risk 400G data center expansion.
NO. Brand  Compatible P/N Transceiver Type
1 Cisco QSFP-100G-CU3M
2 Arista Networks  CAB-Q-Q-100G-3M
3 Juniper QFX-QSFP28-DAC-3M
4 Brocade 100G-Q28-Q28-C-0301
5 Dell  DAC-Q28-100G-3M
6 Huawei QSFP28-100G-CU3M
Description

Brocade 100G-Q28-Q28-C-0301 Compatible 3m (10ft) 100G QSFP28 Passive DAC Cable | HYTOPTODEVICE

Product Overview

HYTOPTODEVICE 3m 100G QSFP28 passive dac cable is a plug-and-play drop-in replacement for Brocade 100G-Q28-Q28-C-0301. Manufactured to SFF-8662 and IEEE 802.3bj MSA standards, it leverages premium low-loss twinax copper material to sustain stable 100GBASE-CR4 high-speed transmission between paired QSFP28 ports. This high-speed direct-attach cable stands out for low power consumption, high-speed direct-attach and compact cabling. Its passive design draws zero power, eliminates extra transceiver electronics, and the slim 30AWG twinax construction simplifies dense rack routing. It supports hot swap and ultra-low latency, ideal for leaf-spine fabrics, AI compute, HPC and storage networking. We keep sufficient stock of this 100G QSFP28 passive dac cable for wholesalers, distributors and system integrators building Brocade Fabric OS-based data center fabrics. Every cable is pre-programmed with Brocade-matched EEPROM signatures to eliminate unsupported transceiver warning logs. Sample testing, bulk orders and OEM private label services are available for Brocade solution partners.

Key Technical Specifications

Brocade Compatible
 100G-Q28-Q28-C-0301
Vendor Name HYTOPTODEVICE
Connector QSFP28 to QSFP28 Max Data Rate 100Gbps
Cable Length 3m (10ft) Wire AWG AWG 26
Cable Type Passive Twinax Power Consumption ≤0.5W
Media Copper Operation Temperature 0~ 70 °C (32 to 158°F)
Jacket Material PVC(OFNR) Protocols QSFP28 MSA, SFF-8662, IEEE 802.3
Minimum Bend Radius 35mm Application 100 Gigabit Ethernet

For detailed technical specifications, please refer to the Datasheet


Usage Guidelines & Best Practices

  • Mandatory Port Setting: Host QSFP28 port must enable 100GBASE-CR4 mode; link negotiation failure will happen if forced to optical mode.

  • Cabling Requirements: Do not exceed the minimum 35mm bend radius, avoid sharp folding, heavy extrusion or long-term tension on the cable assembly.

  • Port Installation Standard: Works only with standard QSFP28 100G ports; cannot be inserted into SFP+ or XFP slots. Disable the host’s third-party transceiver lock policy in advance if required.

  • Maintenance Specification: Hot‑swap supported, grip the pull tab instead of pulling the cable body during plug/unplug to prevent internal conductor damage.

  • Testing & Storage: Run sample validation on target hardware before large bulk deployment; store spare cables in dry, dust‑free and anti‑static packaging.
  • Operating Environment: This commercial-grade cable operates reliably within 0℃‑70℃; avoid installation beside high-heat power modules.

For detailed operation instructions, please refer to the User Guide.


Full Compatibility List & Supported Devices

1. Validated Brocade Hardware & Firmware

  • Brocade SLX series:SLX 9150, SLX 9250, SLX 9540, SLX 9640, SLX 9850
  • Brocade VDX series:VDX 6740, VDX 6760, VDX 8770 (100G line card supported)
  • Brocade ICX series:ICX 7850-32C, ICX 7850-48F, ICX 7850-48C
  • Brocade SAN Directors & Storage Switches:X6-4, X6-8, G720, G730, G748
  • Firmware:Brocade Fabric OS v8.2.x, v9.0.x, v9.1.x, v9.2.x

2. Multi-Brand Cross Interoperability

Built on universal MSA open standards, this 100G QSFP28 passive copper twinax cable can interoperate with mainstream network brands including Arista, H3C, Juniper, Dell, NVIDIA Mellanox and more, for mixed-vendor rack stacking and server fabric expansion.

3. Free Value-Added Services

  • Custom firmware for multi-device compatibility
  • Support sample testing before bulk orders for project pre-verification
  • Private-label customization and professional deployment guidanc
  • Strict batch consistency quality control
  • Free custom EEPROM programming for special and legacy network environments
  • Free EEPROM rewriting (Tools Included) with 24/7 Tech Support

Primary Application Scenarios
  • Upgrade and expand data center for 400G migration
  • Intra-rack leaf-spine 100G fabric interconnection
  • Short-range links between storage arrays and top-of-rack switches
  • Hyper-converged infrastructure and distributed storage backend cabling
  • Low latency 100G links for virtualization, AI compute and HPC racks
  • Bulk stock purchase for distributors and Brocade data center solution partners

Connectivity Solutions(Applications)

1. 100G to 100G Direct Link for Switch-Switch
HYTOPTODEVICE QSFP-100G-CU1M compatible  100G QSFP28 passive DAC copper twinax cable in stock for wholesale buyers


2. 100G to 100G Direct Link for Switch-NIC
 100G QSFP28 passive DAC copper twinax cable for data center integrators


3.
Upgrade Solution for 400G Data Center Network





The Core Feature

1. Cost-Effective Ultra-Short Connectivity

Using twinax copper, the 100G passive copper cable replaces a fiber pair and two optical transceivers, significantly cutting interconnect cost for short-reach links — plug-and-play, no modules required.

2. Ultra-Low Power, Maximum Energy Efficiency

The 100g qsfp28 passive copper twinax cable draws near-zero power, reducing heat and energy costs in dense racks, while delivering a cost-effective, low-latency 100G link for short-reach connections — within a rack or across adjacent racks.


3.Host-Device Tested for Proven Interoperability

Every 100g passive copper twinax cable is rigorously tested for compatibility in the target switch environment, so you can deploy with confidence — no surprises, no downtime. Not sure it fits? Compatibility Video available upon request.

hytoptodevice wholesale 40G QSFP+ twinax cable for data center

4. 100% Individually Tested for Peak Performance

Every single unit is tested individually — no sampling, no shortcuts — to ensure optical compliance and continuous operational stability. Curious how we do it? Take a virtual tour of our Test Center.

HYTOPTODEVICE  QSFP+ to QSFP+ 40g qsfp+ dac cable for switches

FAQ

Q1: How does the insertion loss of this 3m 100G QSFP28 passive dac cable affect Brocade Fabric OS link training? A: 3m 100GBASE-CR4 passive DAC has moderate insertion loss, still staying inside the MSA 5m loss budget. HYTOPTODEVICE 100G QSFP28 passive dac cable uses tightly controlled low-loss twinax to help Fabric OS complete link training reliably without FEC tuning.

Q2: What is the key difference between passive twinax DAC and active retimer DAC for Brocade SAN and Ethernet leaf-spine? A: Passive twinax has no signal amplifier chips and consumes zero watts. Active retimer DAC uses powered ICs to compensate loss but adds power draw and extra failure points. HYTOPTODEVICE high-speed direct-attach DAC is ideal for fixed short rack links.

Q3: Can this compact 3m 100G QSFP28 passive dac cable run between racks on separate rack rows? A: Compact 100G QSFP28 passive dac cable is not designed for cross-row inter-rack connections. It works only for adjacent racks or ToR to EoR connections within 5 meters total path length. Cross-row runs often exceed reach limits and raise EMI risk. HYTOPTODEVICE recommends AOC or fiber transceivers for cross-row or long-distance inter-rack cabling.

Q4: When is AOC a better option than 3m 100G QSFP28 passive dac cable in Brocade storage fabrics? A: Copper twinax suffers frequency-dependent attenuation and EMI susceptibility. AOC converts electrical signals to light and breaks copper distance limits. HYTOPTODEVICE supplies both low-power 100G QSFP28 passive dac cable and matching AOC for mixed-distance fabric planning.

Q5: Can continuous heat exposure inside Brocade SAN switch cabinets degrade twinax DAC signal performance over months? A: Sustained high cabinet temperature increases copper resistance and gradually reduces signal margin. HYTOPTODEVICE 100G QSFP28 passive dac cable passes long-duration high-temperature aging test from 0°C to 70°C for stable storage fabric operation.

Q6: Why will unprogrammed third-party DAC trigger incompatible transceiver logs on Brocade Fabric OS? A: Fabric OS reads vendor EEPROM signatures on port initialization. Mismatched signature data triggers alert logs and may suppress link negotiation. Every HYTOPTODEVICE 100G QSFP28 passive dac cable is pre-flashed and validated for Brocade Fabric OS to skip these alerts.

Q7: Can we get one 100G QSFP28 passive dac cable coded Brocade on one side and Juniper on the other? A: Our standard 100G QSFP28 passive dac cable does not support asymmetric dual-brand EEPROM programming. Both connectors need matching vendor IDs for stable handshake. Contact HYTOPTODEVICE sales for custom EEPROM development for multi-vendor fabrics.

Q8: What telemetry readings can Fabric OS pull from this passive 100G QSFP28 DAC? A: Only standard MSA DOM parameters are available; Brocade exclusive proprietary telemetry channels do not work on chip-free passive copper. HYTOPTODEVICE preloads MSA DOM data so Fabric OS can read cable identity and basic counters.

Q9: What latency gap exists between 3m passive 100G QSFP28 dac cable and fiber links on Brocade HPC clusters? A: Passive twinax DAC delivers marginally lower latency than fiber. Electrical signals travel faster in solid copper twinax than light inside fiber, with typical latency difference below 1ns. Low-latency HYTOPTODEVICE high-speed direct-attach DAC fits low-latency HPC and AI workloads.

Q10: How does the full shielded twinax design reduce EMI noise beside power distribution cables? A: Complete copper shielding suppresses coupled electrical noise effectively, though copper media remains less immune than fiber near power harnesses. HYTOPTODEVICE 100G QSFP28 passive dac cable meets global EMC and EMI compliance standards.

Q11: What early warning error patterns indicate signal degradation on a 3m low-loss 100G QSFP28 passive dac cable? A: Degradation usually appears as slowly climbing CRC error counters before sudden link drop. A compressed signal eye window creates random bit flips logged as CRC faults. If these errors appear, confirm the HYTOPTODEVICE 100G QSFP28 passive dac cable follows rated length and bend rules.

Q12: Why is over-bending harmful to high-speed twinax conductors inside 100G QSFP28 DAC? A: Bending tighter than 5× outer diameter minimum bend radius permanently distorts differential twinax pairs, causing impedance discontinuity and persistent bit errors. Careful cable routing protects your HYTOPTODEVICE compact cabling DAC from invisible mechanical damage.

Q13: What airflow risk comes from bundling multiple 3m 100G QSFP28 passive dac cables together in a cable tray? A: Thick copper bundles block front-to-back airflow and trap heat around Brocade switch ports, raising component operating temperature. HYTOPTODEVICE uses slim 30AWG twinax to minimize bundle thickness and preserve rack airflow.

Q14: Where does heat originate when running zero-power 100G QSFP28 passive dac cable on Brocade SLX and X6 switches? A: The passive DAC itself produces almost no heat. All thermal load comes from the host switch ASIC and QSFP28 port electronics, not the copper cable. HYTOPTODEVICE connector shells use thermally balanced plastic to support normal port cooling.

Q15: For Brocade 3-meter intra-rack storage and leaf-spine fabrics, what advantages make passive DAC preferable to AOC? A: It delivers low power consumption, compact cabling and lower hardware cost for runs under 5 meters without active electronics. HYTOPTODEVICE high-speed direct-attach DAC is a cost-effective pick for dense Brocade storage, leaf-spine and AI rack deployments.

Q16: How do power budgets compare between passive twinax DAC, active retimer DAC and pairs of 100G optical transceivers? A: 100G QSFP28 passive dac cable consumes 0W. Active retimer DAC draws roughly 1–2W per end, while a matched pair of optical transceivers normally consumes 3–6W total. Zero-power HYTOPTODEVICE 100G QSFP28 passive dac cable cuts rack power draw and reduces overall data center TCO
