Cisco QSFP-100G-CU1M Compatible 1m (3ft) 100G QSFP28 Passive DAC Copper Twinax Cable | HYTOPTODEVICE

HYTOPTODEVICE reliable factory supplier provides 100G QSFP28 passive DAC copper twinax cable with ready stock for buyers, distributors and system integrators. This 1m Cisco QSFP-100G-CU1M compatible QSFP28 to QSFP28 direct attach twinax cable is pre-programmed for Cisco Nexus NX-OS platforms. Purchase bulk 100G QSFP28 passive DAC copper twinax cable for leaf-spine fabric, server and storage rack interconnection.
NO. Brand  Compatible P/N Transceiver Type
1 Cisco QSFP-100G-CU1M
2 Arista Networks  CAB-Q-Q-100G-1M
3 Juniper QFX-QSFP28-DAC-1M
4 Brocade 100G-Q28-Q28-C-0101
5 Dell  DAC-Q28-100G-1M
6 Huawei QSFP28-100G-CU1M
7 H3C  QSFP-100G-D-CAB-1M
8 HPE BladeSystem  845404-B21
Description

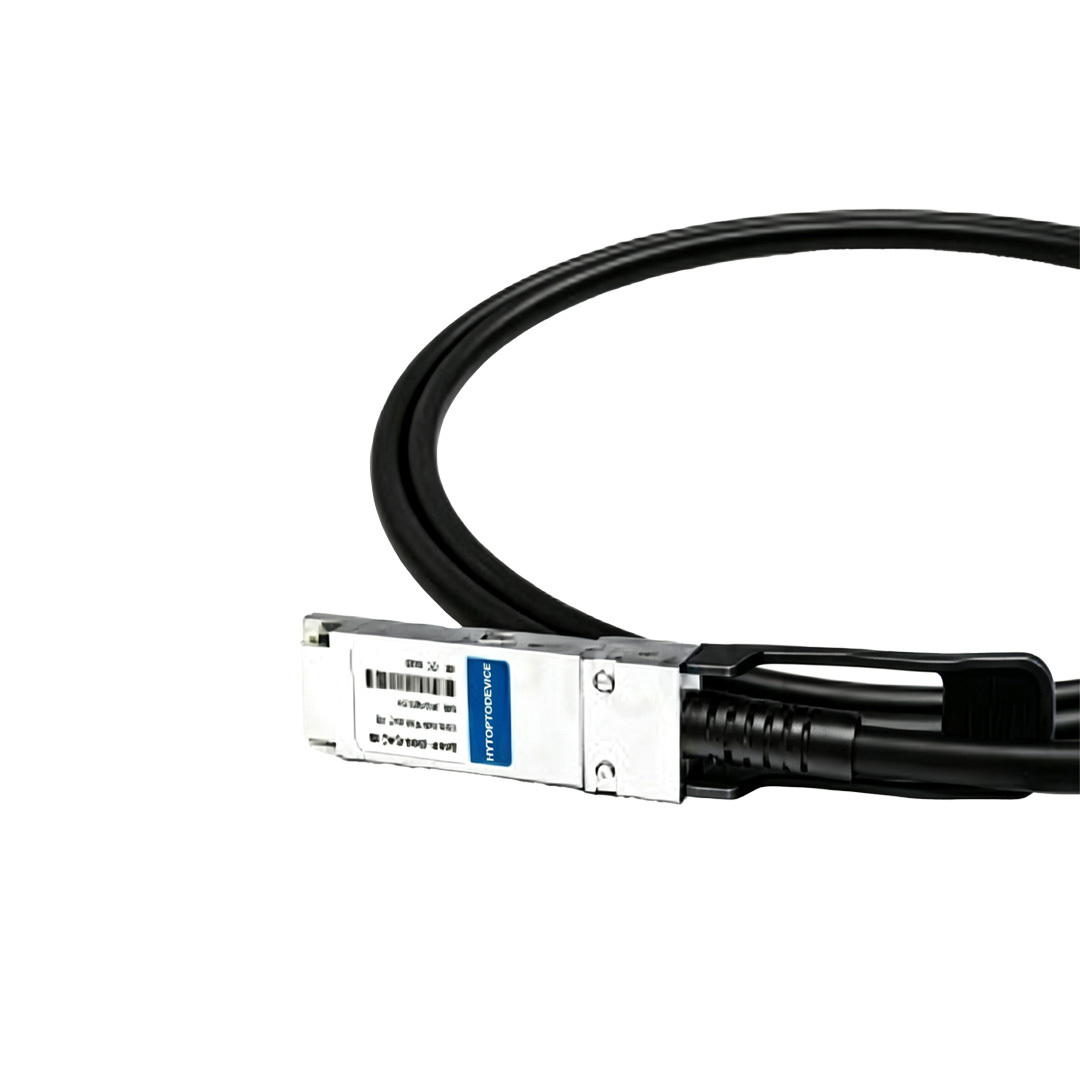

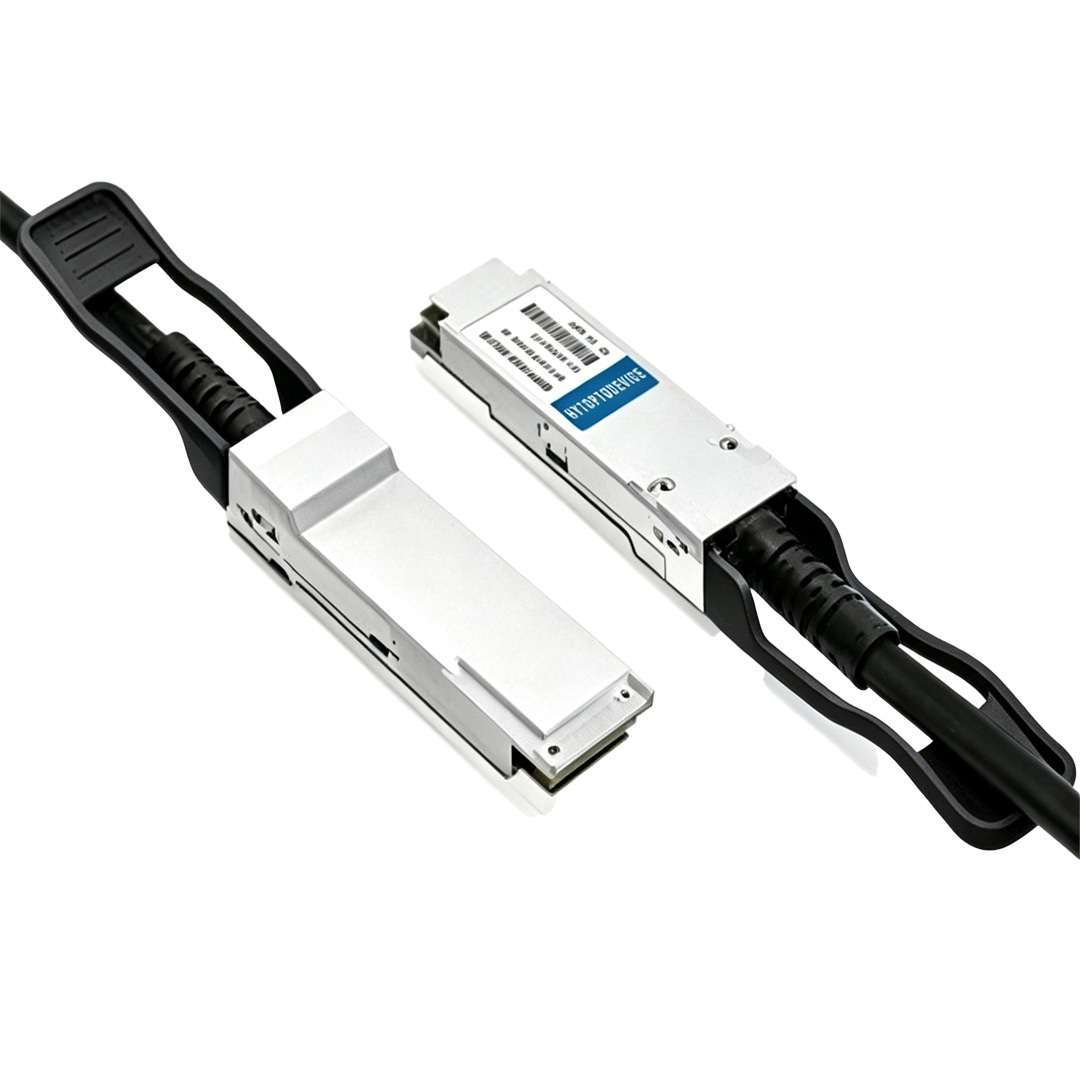

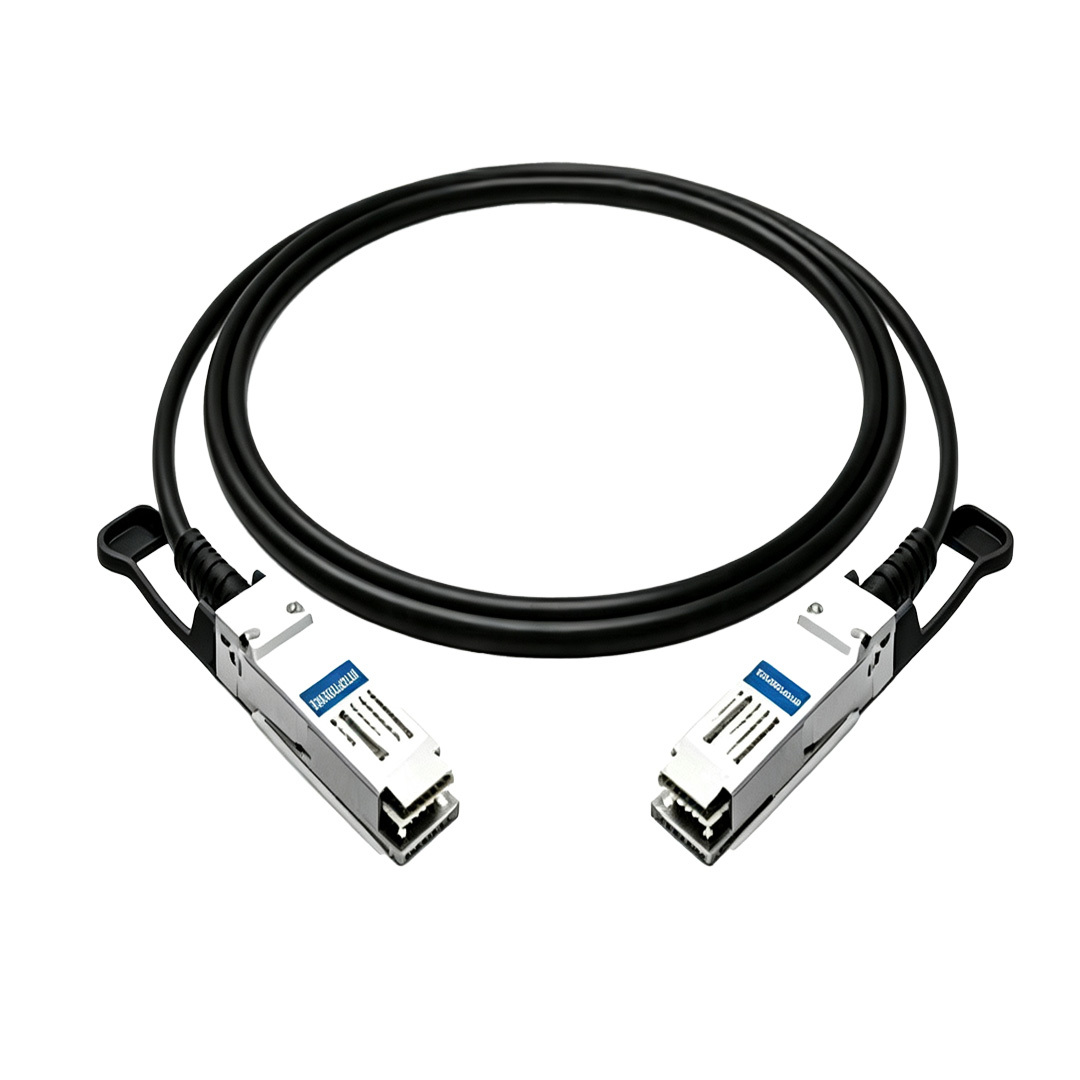

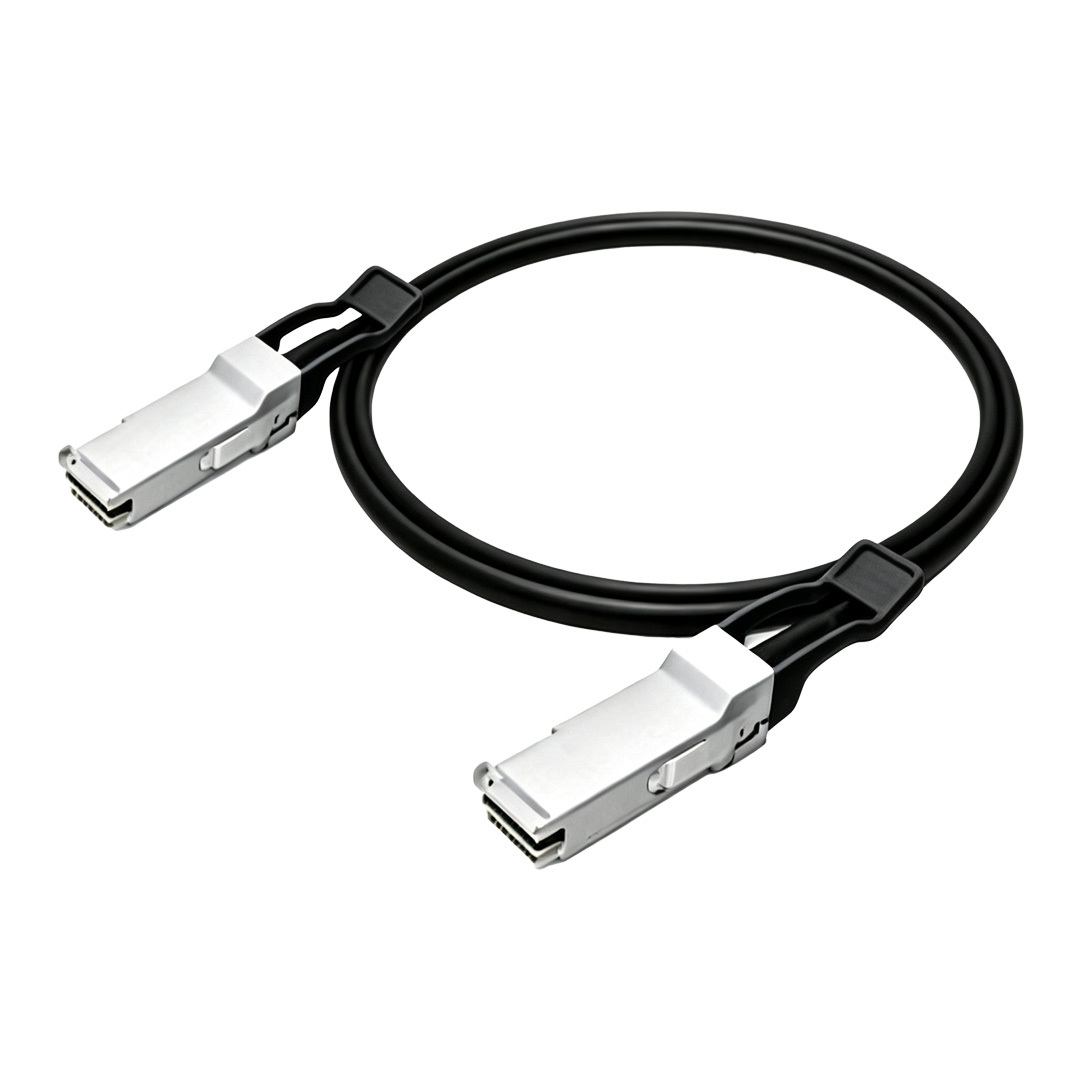

Cisco QSFP-100G-CU1M Compatible 1m (3ft) 100G QSFP28 Passive DAC Copper Twinax Cable | HYTOPTODEVICE

Product Overview

HYTOPTODEVICE 1M 100G QSFP28 passive DAC copper twinax cable is a direct drop-in replacement for Cisco QSFP-100G-CU1M. This twinax cable follows SFF-8662 and IEEE 802.3bj MSA standards, delivering stable 100GBASE-CR4 bandwidth between two QSFP28 ports. It runs at 0W power draw and supports hot swap for live Cisco chassis maintenance.
We hold steady inventory of this 100G QSFP28 passive DAC copper twinax cable for buyers, wholesalers and IT integrators building Cisco data center fabrics. Every cable is preloaded with Cisco-matched EEPROM signatures to reduce unsupported transceiver alerts on Nexus switches. Bulk ordering, sampling and OEM private labeling are available for distributors, hyper-scale builders and Cisco networking contractors.

Key Technical Specifications

Cisco Compatible
 QSFP-100G-CU1M
Vendor Name HYTOPTODEVICE
Connector QSFP28 to QSFP28 Max Data Rate 100Gbps
Cable Length 1m (3ft) Wire AWG AWG 30
Cable Type Passive Twinax Power Consumption ≤0.5W
Media Copper Operation Temperature 0~ 70 °C (32 to 158°F)
Jacket Material PVC(OFNR) Protocols QSFP28 MSA, SFF-8662, IEEE 802.3
Minimum Bend Radius 35mm Application 100 Gigabit Ethernet

For detailed technical specifications, please refer to the Datasheet


Usage Guidelines & Best Practices

  • Mandatory Port Setting: Host QSFP28 port must enable 100GBASE-CR4 mode; link negotiation failure will happen if forced to optical mode.

  • Cabling Requirements: Do not exceed the minimum 35mm bend radius, avoid sharp folding, heavy extrusion or long-term tension on the cable assembly.

  • Port Installation Standard: Works only with standard QSFP28 100G ports; cannot be inserted into SFP+ or XFP slots. Disable the host’s third-party transceiver lock policy in advance if required.

  • Maintenance Specification: Hot‑swap supported, grip the pull tab instead of pulling the cable body during plug/unplug to prevent internal conductor damage.

  • Testing & Storage: Run sample validation on target hardware before large bulk deployment; store spare cables in dry, dust‑free and anti‑static packaging.
  • Operating Environment: This commercial-grade cable operates reliably within 0℃‑70℃; avoid installation beside high-heat power modules.

For detailed operation instructions, please refer to the User Guide.


Full Compatibility List & Supported Devices

1. Validated Cisco Hardware & Firmware

  • Cisco Nexus 9000 fixed TOR:N9K-C93180YC-FX, N9K-C93240YC-FX2, N9K-C9336C, N9K-C9364C, N9K-C9396Y
  • Cisco Nexus 9000 modular:N9K-C9504, N9K-C9508, N9K-C9516
  • Cisco Nexus 3000 series:N3K-C3232C, N3K-C3264Q
  • Cisco UCS Fabric Interconnect:UCS 6632, UCS 6604
  • Cisco UCS C-Series / B-Series Servers:C220 M6, C240 M6, B200 M6, with VIC 1495, VIC1497, VIC15238 QSFP28 adapters
  • Firmware:NX-OS 9.3.x, 10.2.x, 10.4.x, 10.6.x;UCS Manager 4.1.x / 4.2.x

2. Multi-Brand Cross Interoperability

Built on universal MSA open standards, this 100G QSFP28 passive copper twinax cable can interoperate with mainstream network brands including Arista, H3C, Juniper, Dell, NVIDIA Mellanox and more, for mixed-vendor rack stacking and server fabric expansion.

3. Free Value-Added Services

  • Custom firmware for multi-device compatibility
  • Support sample testing before bulk orders for project pre-verification
  • Private-label customization and professional deployment guidanc
  • Strict batch consistency quality control
  • Free custom EEPROM programming for special and legacy network environments
  • Free EEPROM rewriting (Tools Included) with 24/7 Tech Support

Primary Application Scenarios
  • Cisco Nexus leaf-spine 100G fabric intra-rack interconnection
  • Short rack links between Cisco UCS servers and top-of-rack Nexus switches
  • Direct replacement for original Cisco QSFP-100G-CU1M 100G QSFP28 passive DAC copper twinax cable
  • Hyper-converged storage and distributed storage backend cabling
  • 100G low-latency links for virtualization and AI compute pods
  • Stock replenishment purchase for IT distributors and Cisco data center solution partners

Connectivity Solutions(Applications)

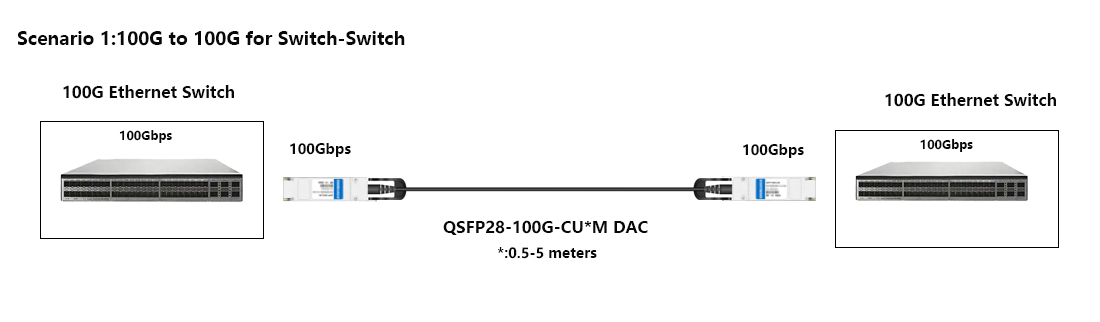

1. 100G to 100G Direct Link for Switch-Switch
HYTOPTODEVICE QSFP-100G-CU1M compatible  100G QSFP28 passive DAC copper twinax cable in stock for wholesale buyers

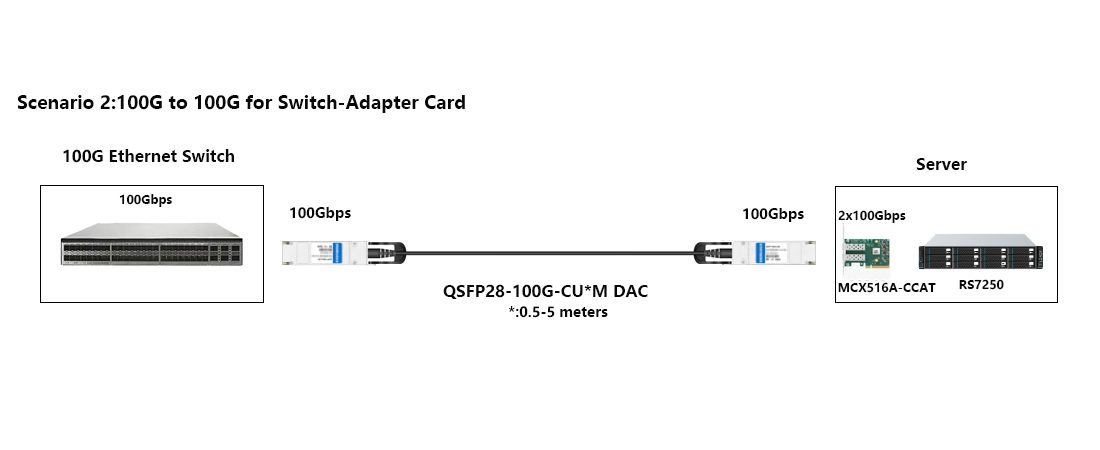

2. 100G to 100G Direct Link for Switch-NIC
 100G QSFP28 passive DAC copper twinax cable for data center integrators


3.

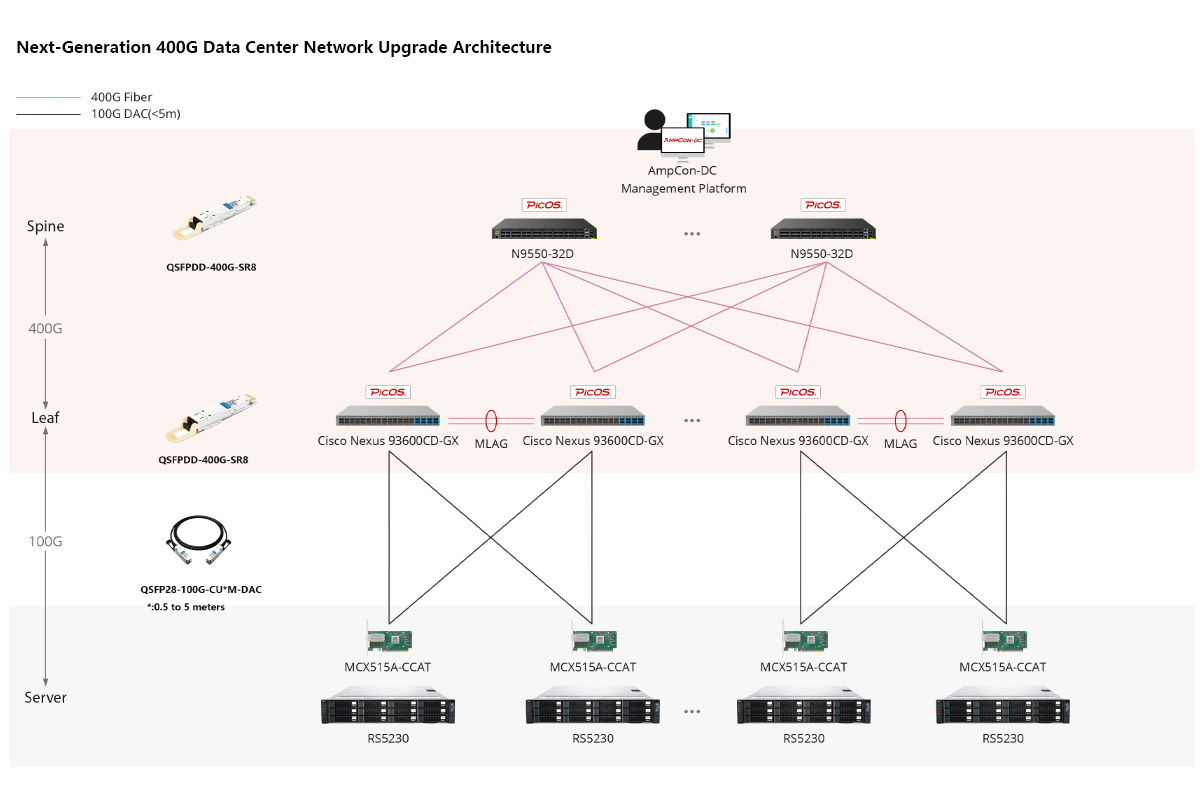

Upgrade Solution for 400G Data Center Network





The Core Feature

1. Cost-Effective Ultra-Short Connectivity

Using twinax copper, the 100G passive copper cable replaces a fiber pair and two optical transceivers, significantly cutting interconnect cost for short-reach links — plug-and-play, no modules required.

2. Ultra-Low Power, Maximum Energy Efficiency

The 100g qsfp28 passive copper twinax cable draws near-zero power, reducing heat and energy costs in dense racks, while delivering a cost-effective, low-latency 100G link for short-reach connections — within a rack or across adjacent racks.

QSFP+ form factor 40g qsfp+ dac cable with low power consumption

3.Host-Device Tested for Proven Interoperability

Every 100g passive copper twinax cable is rigorously tested for compatibility in the target switch environment, so you can deploy with confidence — no surprises, no downtime. Not sure it fits? Compatibility Video available upon request.

hytoptodevice wholesale 40G QSFP+ twinax cable for data center

4. 100% Individually Tested for Peak Performance

Every single unit is tested individually — no sampling, no shortcuts — to ensure optical compliance and continuous operational stability. Curious how we do it? Take a virtual tour of our Test Center.

HYTOPTODEVICE  QSFP+ to QSFP+ 40g qsfp+ dac cable for switches

FAQ

Q1: Which NX-OS firmware versions work reliably with this 100G QSFP28 passive DAC copper twinax cable? A: It performs stable on NX-OS 9.3.x and 10.2.x mainstream releases. HYTOPTODEVICE validates batches on Cisco Nexus hardware to cut deployment risk for Cisco partners placing stock orders.

Q2: Can this 100G QSFP28 passive DAC copper twinax cable run on older Cisco Nexus 9200 fixed switches? A: Most Nexus 9200 models lack native 100G QSFP28 port hardware. Verify the port interface type before purchase.

Q3: Will Cisco NX-OS automatically recognize this pre-flashed 100G QSFP28 passive DAC copper twinax cable on boot? A: Yes, valid Cisco EEPROM signature supports automatic recognition. This simplifies zero-touch fabric rollout for system integrators building Cisco leaf-spine networks.

Q4: Can I customize the EEPROM profile of this 100G QSFP28 passive DAC copper twinax cable for mixed Cisco and SONiC white-box fabrics? A: Yes, HYTOPTODEVICE offers cross-platform EEPROM programming for bulk orders. It helps integrators standardize cabling specs across multi-vendor data center environments.

Q5: Will NX-OS generate continuous fault logs if this 100G QSFP28 passive DAC copper twinax cable is used alongside Cisco QSFP28 optical modules? A: No, DAC and optical modules run on separate logical ports. Correct speed configuration prevents persistent warning messages.

Q6: Is this 100G QSFP28 passive DAC copper twinax cable suitable for lossless RoCE storage workloads on Cisco UCS servers? A: Yes, passive twinax maintains ultra-low latency for RDMA traffic. Many Cisco resellers buy this cable to build affordable 100G storage fabrics.

Q7: Will 100G port configuration stay saved after NX-OS firmware upgrade on Nexus 9500? A: Port settings save to startup-config. Major NX-OS upgrades still require spot checks for stocked 100G QSFP28 passive DAC copper twinax cable inventory.

Q8: What lead time applies for bulk procurement of this 100G QSFP28 passive DAC copper twinax cable for global Cisco distributors? A: Ready stock orders ship in 3–5 working days. HYTOPTODEVICE maintains inventory and supports expedited delivery for urgent data center upgrade projects.

Q9: Can this 100G QSFP28 passive DAC copper twinax cable carry PFC lossless traffic for Cisco hyper-converged storage backends? A: Yes, passive copper does not interfere with priority flow control frames. It works well for buyers building lossless storage fabrics.

Q10: What should I check first if the 100G link fails to come up on a Nexus 93180YC-FX port? A: First confirm NX-OS port speed setting and reseat the QSFP28 connector. Down links usually come from misconfigured port speed or loose insertion.

Q11: What warehouse humidity range should wholesalers maintain for stocking this 100G QSFP28 passive DAC copper twinax cable? A: Store inventory under 10–60% RH dry indoor conditions. High-grade twinax copper from HYTOPTODEVICE resists oxidation and preserves signal integrity over long storage cycles.

Q12: Do I need an extra license to enable 100GBASE-CR4 on Cisco Nexus 93360YC-FX2 QSFP28 ports? A: 100GBASE-CR4 is a base hardware feature and requires no separate license. Confirm the platform capability from Cisco official datasheet before ordering.

Q13: Can this 100G QSFP28 passive DAC copper twinax cable connect between Cisco Nexus and Arista EOS QSFP28 switches directly? A: Yes, it supports multi-brand 100G interconnection with matching port speed. It is a practical cross-vendor cabling option for hybrid data center fabrics.

Q14: What compliance and test documents can HYTOPTODEVICE provide for tender projects needing this 100G QSFP28 passive DAC copper twinax cable? A: We can supply batch TDR test reports, RoHS and REACH certificates. These documents help wholesalers complete audit checks during Cisco data center bidding.

Q15: Can the EEPROM signature of this 100G QSFP28 passive DAC copper twinax cable be rewritten for non-Cisco switch platforms? A: Yes, HYTOPTODEVICE provides EEPROM reprogramming service. This allows resellers to reuse stocked cables on other vendors and improve inventory turnover.

Packaging & Custom OEM Solutions

  • ESD Protection & Fast Shipping: Every transceiver is sealed in an ESD-safe bag and ready for same-day dispatch from stock.

  • Custom OEM & Branding: We provide logo printing, private labeling, and custom packaging to help distributors and integrators build their brand—no factory investment required.


Why Network Engineers Choose HYTOPTODEVICE

HYTOPTODEVICE has supplied over 5000,000 optical transceiver modules to data centers, ISPs, and enterprise networks across 100+ countries since 2011. Every module undergoes a 72-hour burn-in test and full DDM/DOM validation before shipment.

  • Up to 70% cost savings vs OEM, transparent pricing & flexible bulk rates, supported quality returns
  • 100% real-device compatible with Cisco, Huawei,Dell,Juniper, and Arista
  • ISO 9001:2015 Shenzhen factory, full lineup: 1.25G/10G/25G/40G/100G/200G/400G/800G/1.6T transceivers
  • Ample stock, fast global DHL/FedEx shipping in 3–5 working days
  • Free pre-sales engineering support for custom EEPROM  & private label firmware
  • Real switch test videos available for pre-purchase review; inspection & shipping videos provided per order


“Phenomenal performance. We deployed 200 HYTOPTODEVICE SFP modules to replace Cisco OEMs in our backbone network. Result? Zero compatibility issues and a 60% reduction in costs. Highly recommended for mission-critical networks."— Senior Network Engineer, Regional Telecom, Australia


Quality Certification & Compliance

 At HYTOPTODEVICE, our quality commitment is backed by industry-standard validations. From fiber optical transceiver manufacturing to final visual inspection, from IQC、IPQC、FQC to OQC, our processes ensure global compliance and reliability.

We adhere to rigorous standards for our SFP modules and network solutions:

  • ISO 9001: Certified quality management and production consistency.

  • CE & FCC: Fully compliant for seamless Global Market Access.

  • RoHS: Committed to environmental responsibility and hazardous material control.

  • Proven Reliability: Rigorous testing to reduce compliance risk and ensure safety.

Certified Quality. Global Standards. Guaranteed Performance.




Rigorous Industrial Product Testing

   hytoptodevice check device and equiptment for optical transceiver module

100% 3rd Party Compatible
testing device for hytoptodevice 10g sfp+ bidi optical module
Partial Test Demonstration
hytoptodevice compatible optical transceiver module for ethernet,data center
