E1MG-1G-BXD-20 Brocade Compatible 20km BiDi SFP Module | 1000BASE-BX Tx1550/Rx1310 SMF Factory Wholesale | HYTOPTODEVICE

HYTOPTODEVICE offers fully Brocade compatible E1MG-1G-BXD-20 1000BASE-BX BiDi SFP module, 20km SMF reach, 1550nm Tx/1310nm Rx, simplex LC connector with DDM/DOM support. 100% real device tested transceiver, bulk wholesale and OEM customization available for global system integrators and network engineering contractors.
NO. Brand  Compatible P/N Transceiver Type
1 Brocade  E1MG-1G-BXD-20 SFP-G35-20LD
2 H3C SFP-GE-20-SM1550-BIDI  SFP-G43-20LD
3 HPE H3C  SFP-1G-BXU-20 SFP-G53-40LD
4 Juniper  SFP-GE20KT15R13 SFP-G43-40LD
5 Dell SFP-GE-BX20-1550  SFP-G54-80LD
6 Mikrotik S-53LC20D  SFP-G54-1BLD
Description

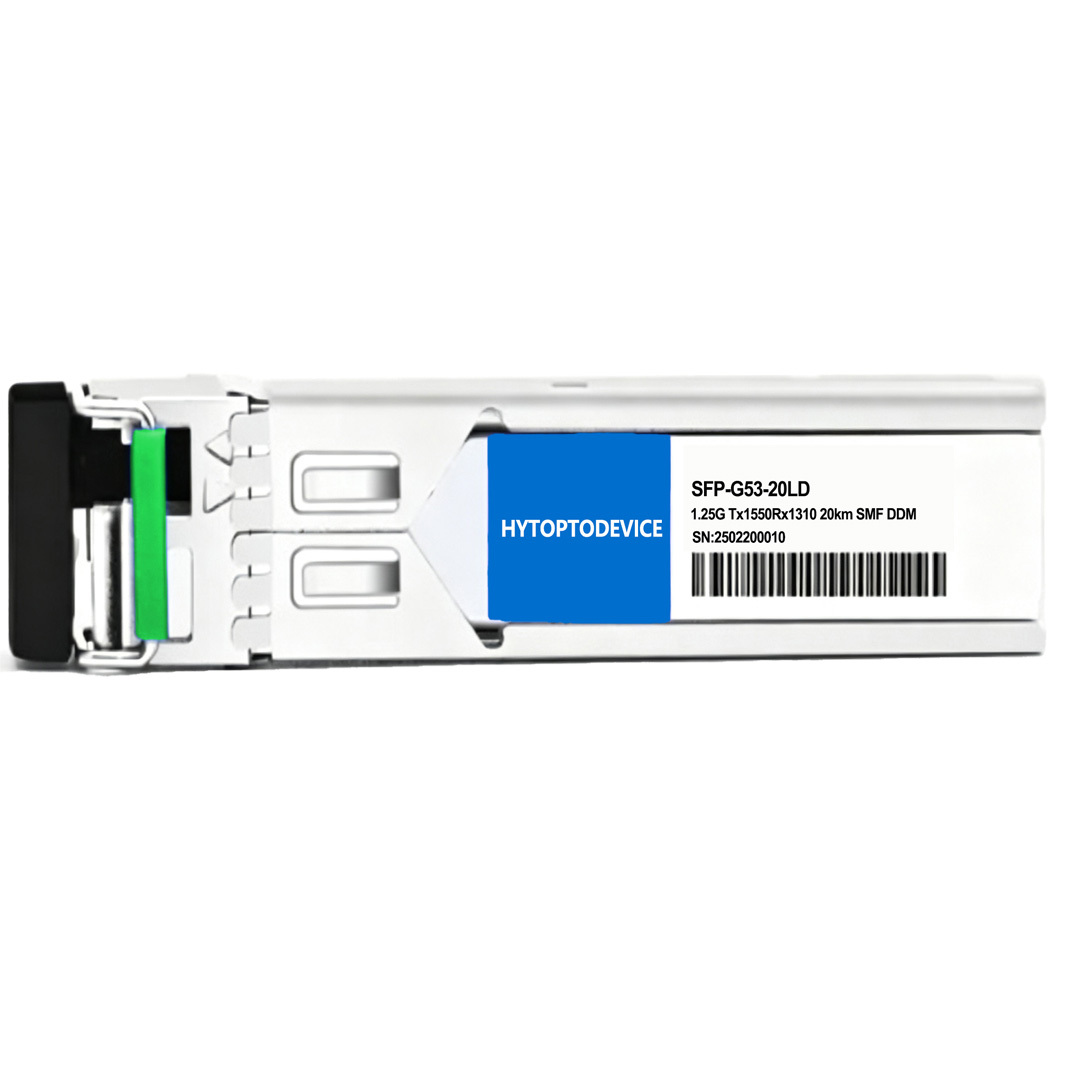

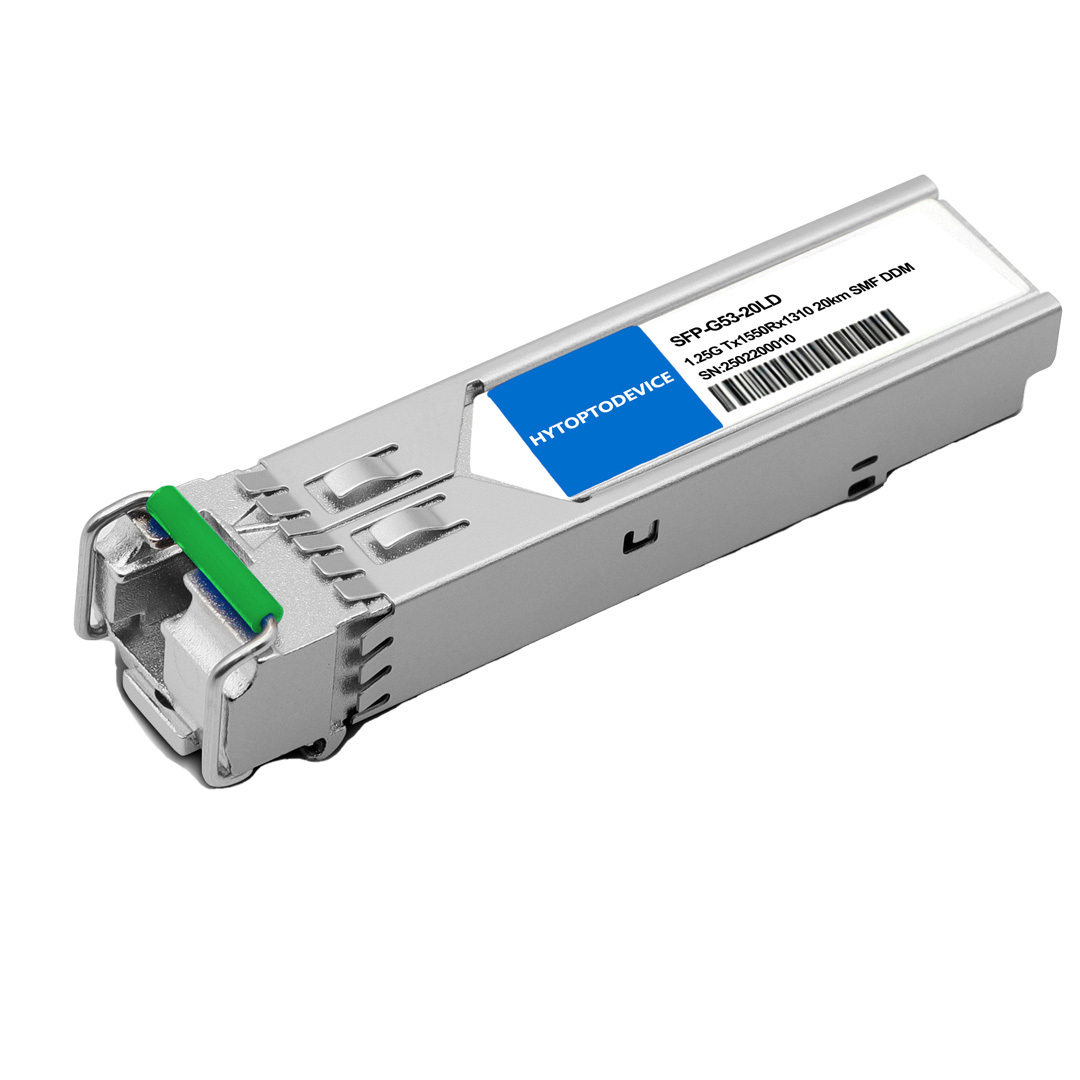

Brocade E1MG-1G-BXD-20 Compatible 1000BASE-BX20-D BiDi SFP Transceiver 20km
(SMF, 1550nm-TX/1310nm-RX, Simplex LC, DOM)

Product Overview

The HYTOPTODEVICE E1MG-1G-BXD-20 Brocade compatible BiDi SFP module is a high-performance 1.25G gigabit single-fiber bidirectional optical transceiver tailored for Brocade enterprise networks. It delivers stable 20km transmission over OS2 single-mode fiber, features a 1550nm transmit / 1310nm receive wavelength pair, and uses a simplex LC connector to cut fiber usage by 50%. Fully MSA-compliant and equipped with DDM/DOM real-time monitoring, this plug-and-play module ensures zero packet loss and reliable long-term operation. Ideal for enterprise campus inter-building links, FTTB access, metro optical transport, and medium-reach data center connectivity. HYTOPTODEVICE provides long-term bulk supply, project-scale orders, and OEM services for global partners.


Key Technical Specifications

Brocade Procurve Compatible

E1MG-1G-BXD-20

Vendor Name HYTOPTODEVICE
Form Factor SFP Max Data Rate 1.25Gbps
Wavelength TX1550nm/RX1310nm Max Distance 20km
Connector Simplex LC Transmitter Type 1550nm DFB
Cable Type SMF Receiver Type PIN
TX Power -9.0~-3dBm Receiver Sensitivity < -23.0dBm
Protocols SFF-8472 MSA Compliant, IEEE 802.3ah-2004 Operation Temperature 0 to 70°C (32 to 158°F)

For detailed technical specifications, please refer to the Datasheet

Usage Guidelines & Operational Best Practices

Follow standardized operation rules to extend service life and maintain steady link performance of your BiDi SFP Transceiver:

  1. Complementary Pairing Requirement Bidirectional transceivers must be deployed in matched wavelength pairs. This TX1550/RX1E0 BiDi SFP Module requires a counterparty TX1550/RX1310 transceiver at the opposite fiber end; mismatched wavelength pairs cannot establish valid fiber links.
  2. Fiber Type Restriction Only use standard 9/125μm single mode fiber (SMF) with LC/UPC patch cords. This transceiver cannot operate normally on multi-mode fiber (MMF), which triggers severe attenuation and persistent random bit errors.
  3. Distance & Attenuation Control Optimized for stable 20km single-fiber links. For lab testing or field deployment under 5km, an external optical attenuator is mandatory to prevent receiver overpowering, signal saturation and permanent internal optical chip damage.
  4. Optical Port Dust Protection LC optical ports and fiber end faces are highly sensitive to dust and fingerprint contamination. Always reinstall protective dust caps on idle module ports and unused fiber connectors after disconnection.
  5. Hot-Plugging Operation Guidance This MSA-compliant BiDi SFP Transceiver supports safe hot swap. Leave several seconds between removal and reinsertion to let Cisco IOS complete full hardware recognition and avoid unexpected link flapping.

For detailed operation instructions, please refer to the User Guide.

Full Compatibility List and Supported Devices

1. Verified Brocade Device Compatible Models

All HYTOPTODEVICE E1MG-1G-BXD-20 BiDi SFP modules achieve 100% full compatibility with genuine Brocade hardware. Every unit undergoes rigorous real-hardware and on-site testing; test videos are available upon request.
Our Brocade-compatible transceivers operate reliably on mainstream Brocade switches, routers, and managed devices, matching original firmware, port protocols, and system identification. We support long-term bulk supply, project wholesale, and OEM customization for system integrators, engineering contractors, and global retailers.
  • Brocade Switch Series: FastIron GS, FastIron LS, ICX 6430, ICX 6450, ICX 6610, ICX 6650, VDX 6720, VDX 6730, VDX 6740 Series
  • Brocade Router & Gateway Series: Gigabit SFP port enterprise routers and managed service gateways
  • Other Brocade Devices: Media converters, optical access nodes, and cabinet-level network terminals

2. Multi-Brand Compatibility

This transceiver complies with MSA standards, supporting stable operation across Brocade, Cisco, HPE, Juniper, H3C, Huawei, MikroTik, Ubiquiti, and other MSA-compliant hardware. Ideal for mixed-vendor network upgrades, renovations, and large-scale deployments by global procurement groups and engineering firms.

Common Industry Application Scenarios
  • Enterprise campus & industrial park single-fiber network reconstruction
  • MSP managed service batch equipment replacement and firmware upgrades
  • Cross-campus 20km fiber link deployment for office buildings
  • OEM white-label optical modules for private-brand resale
  • Low-cost single-fiber mass deployment in data centers
  • Remote industrial monitoring and security transmission projects
  • FTTB community broadband and operator access network construction

Connectivity Solutions (Applications)

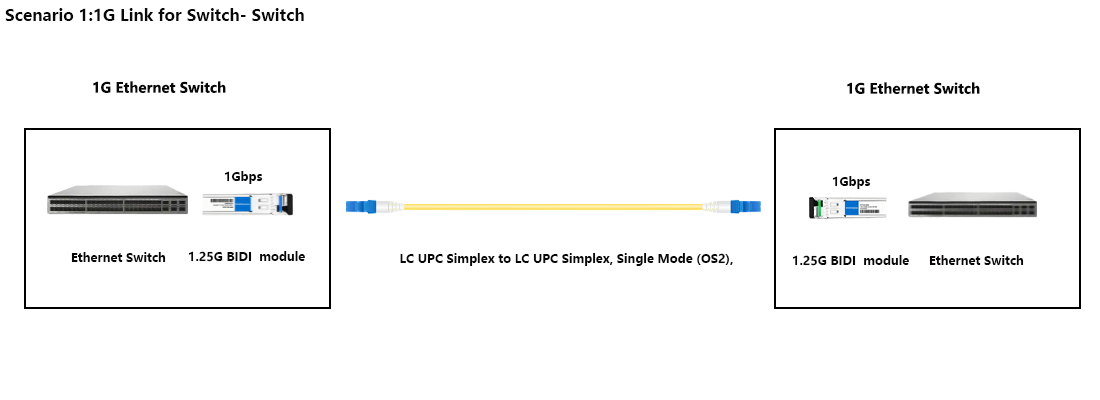

1.1GbE Switch-to-Switch Connectivity

hytoptodevice 1000base-bx bidi transceiver tx1310rx1490 10km simplex LC smf

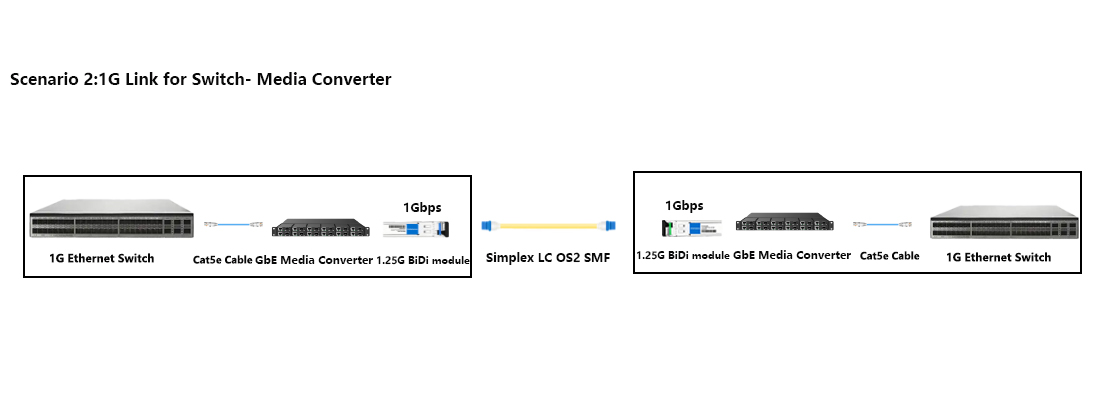

2.1GbE Switch to Media Converter Connectivity
hytoptodevice 1.25g bidi sfp module tx1310rx1490 simplex LC

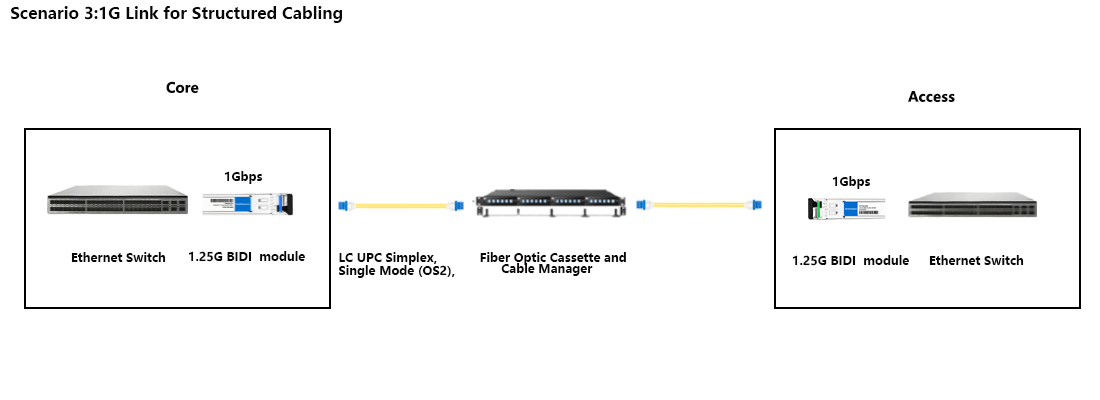

3.1G Structured Cabling
HYTOPTODEVICE 1G 1000BASE-BX-U BIDI MODULE 10KM SMF

Core Product Features

1. Cut Expansion Costs by Up to 50%

Fully compatible with campus switches, this BiDi transceiver runs full-duplex over one fiber strand. No additional cabling, no extra switch ports—just plug in and scale your network at half the infrastructure cost
hytoptodevice 10km single fiber BiDi optic, reliable manufacturer for bidi transceiver module

2.Double Your Capacity, Zero Extra Cabling

Transmit and receive on a single strand. By leveraging integrated WDM technology, this BiDi transceiver eliminates redundant wiring and slashes expansion costs for Cisco campus networks.

Tx1310 Rx1490 simplex LC bidi transceiver module from hytoptodevice

3.1G BiDi SFP: High-Density, Low-Power Connectivity

Full-duplex Gigabit Ethernet in a compact SFP form factor. Lower power consumption means less cooling overhead and higher port density—perfect for scaling data center fabrics without expanding your power or fiber footprint.

hytoptodevice supply bulk wholesale BIDI transceiver MODULE with low power consumption and high-efficiency

4. Plug-and-Play Compatibility, Zero Friction

Preprogrammed EEPROM eliminates unsupported-module alerts and CLI configuration. Just insert, hot-swap, and go—compatible out of the box with leading switch platforms. Specific Compatibility Video available upon request.

HYTOPTODEVICE compatible  bidi transceiver module 10km SMF simplex lc

5. Tested to Failure. Shipped with Confidence.
Each module undergoes rigorous in-house testing—including signal integrity, bit error rate (BER), and temperature cycling—before leaving our Test Center . Built for maximum uptime, delivered with zero surprises.

HYTOPTODEVICE manufacturer offer BiDi transceiver module full aging test for stable 10km single‑fiber operation


FAQ

Q1: Is HYTOPTODEVICE BROCADE E1MG-1G-BXD-20 BIDI SFP module reliable for humid tropical network environments?

A: The HYTOPTODEVICE BROCADE E1MG-1G-BXD-20 BIDI SFP module features professional moisture-proof and heat-resistant design. It maintains stable 20km single-mode transmission without link dropping or packet loss, perfectly adapting to the hot and humid tropical climate of Southeast Asian outdoor and cabinet network deployments.

Q2: Can HYTOPTODEVICE legacy-compatible BIDI SFP module run on old Brocade switches in Central Asia?

A: Yes, the HYTOPTODEVICE legacy-compatible BIDI SFP module supports full protocol adaptation for outdated Brocade firmware. It is plug-and-play on widely used old-generation Brocade devices in Central Asian campus, telecom and government networks with no configuration changes required.

Q3: Does HYTOPTODEVICE affordable BIDI SFP module support small MOQ orders for Asian network projects?

A: HYTOPTODEVICE offers flexible low MOQ policies for its affordable BIDI SFP module. We support small-batch trial orders and project-based procurement, ideal for small and medium engineering teams in Southeast Asia with fast delivery and complete after-sales service.

Q4: What wavelength pairing matches BROCADE E1MG-1G-BXD-20 compatible BIDI SFP module for long-distance links?

A: The HYTOPTODEVICE BROCADE-compatible BIDI SFP module adopts TX1550nm/RX1310nm wavelength and must pair with a TX1310nm/RX1550nm BIDI module. This standard pairing delivers stable 20km transmission for cross-building and suburban network links in Central Asia.

Q5: Does HYTOPTODEVICE error-free BIDI SFP module avoid Brocade switch firmware alarms?

A: HYTOPTODEVICE error-free BIDI SFP module is pre-programmed with complete standard EEPROM data and verified by real Brocade devices. It eliminates common firmware warnings, port recognition failures and error codes for smooth ISP and enterprise network operation.

Q6: Is HYTOPTODEVICE weatherproof BIDI SFP module suitable for dry and windy Central Asian outdoor networks?

A: The HYTOPTODEVICE weatherproof BIDI SFP module adopts dustproof and anti-aging casing design. It resists dry wind and extreme temperature changes in Central Asia, ensuring low bit-error rate performance for long-term outdoor monitoring and rural network reconstruction projects.

Q7: Can HYTOPTODEVICE high-volume BIDI SFP module support Southeast Asian telecom network expansion?

A: HYTOPTODEVICE provides stable high-volume supply of BIDI SFP module with sufficient in-stock inventory. We support large-scale procurement for Southeast Asian telecom expansion, community fiber upgrades and industrial park networking with competitive bulk discount pricing.

Q8: Does HYTOPTODEVICE OEM-custom BIDI SFP module support local resale business in Central Asia?

A: HYTOPTODEVICE provides full OEM customization for BIDI SFP module, including private logo printing, exclusive labeling and neutral packaging. It helps Central Asian local distributors create differentiated products and expand regional network accessory market share.

Q9: Which fiber type works best with HYTOPTODEVICE BROCADE tuned BIDI SFP module?

A: The HYTOPTODEVICE BROCADE tuned BIDI SFP module is exclusively designed for OS2 single-mode fiber. It fully complies with mainstream Asian cabling standards to guarantee accurate 20km stable transmission for local network engineering projects.

Q10: What after-sales support does HYTOPTODEVICE durable BIDI SFP module provide for Asian clients?

A: HYTOPTODEVICE offers long-term official warranty and professional technical support for its durable BIDI SFP module. We provide online troubleshooting and product replacement services to reduce operation and maintenance risks for Southeast and Central Asian network projects.

Packaging & Custom OEM Solutions

Each bidi module is individually sealed in ESD-safe anti-static packaging and ready for immediate shipment. For high-volume distributors, wholesalers, and system integrators, we offer flexible OEM programs—including custom logos, private labeling, and branded packaging—to help you build and protect your own brand.
HYTOPTODEVICE 1000base-bx bidi transceiver  custom packaging

Why Network Engineers Choose HYTOPTODEVICE

HYTOPTODEVICE has supplied over 5000,000 optical transceiver modules to data centers, ISPs, and enterprise networks across 100+ countries since 2011. Every module undergoes a 72-hour burn-in test and full DDM/DOM validation before shipment.

  • 100% hardware-tested compatibility with Cisco, Huawei,Dell,Juniper, and Arista
  • ISO 9001:2015 certified manufacturing facility in Shenzhen
  • Full product range coverage:1.25G/10G/25G/40G/100G/200G/400G/800G/1.6T
  • In-stock supply & fast global shipping, average lead time of 3–5 business days with DHL/FedEx express options
  • Dedicated pre-sales engineering support for custom configurations
  • Actual hardware,actual switches,actual results.we publish compatibility test video,eliminate compatibility anxiety. you can watch before you buy.
  • We can provide inspection and shipping videos to make you feel as if you are right here with the product.
  • Private Label support - EEPROM / firmware customization support

“Phenomenal performance. We deployed 200 HYTOPTODEVICE SFP modules to replace Cisco OEMs in our backbone network. Result? Zero compatibility issues and a 60% reduction in costs. Highly recommended for mission-critical networks."— Senior Network Engineer, Regional Telecom, Australia

Quality Certification & Compliance

 At HYTOPTODEVICE, our quality commitment is backed by industry-standard validations. From fiber optical transceiver manufacturing to final visual inspection, from IQC、IPQC、FQC to OQC, our processes ensure global compliance and reliability.

We adhere to rigorous standards for our SFP modules and network solutions:

  • ISO 9001: Certified quality management and production consistency.

  • CE & FCC: Fully compliant for seamless Global Market Access.

  • RoHS: Committed to environmental responsibility and hazardous material control.

  • Proven Reliability: Rigorous testing to reduce compliance risk and ensure safety.

Certified Quality. Global Standards. Guaranteed Performance.
