| NO. | Brand | Compatible P/N | Remarks |
| 1 | Cisco | SFP-25G-BXD-I | |
| 2 | Arista Networks | SFP-25G-BXD-I | |
| 3 | Brocade | 25G-SFP28-BXD-I | |
| 4 | HPE Aruba | S1C96A | |
| 5 | Juniper | JNP-SFP-25G-BX32I | |
| 6 | Dell | SFP-25GBX-D-10I | |
| 7 | Huawei | SFP-25G-BXD1-I | |
| 8 | H3C | SFP-25G-LX-SM1330-BIDI | |
| 9 | NVIDIA(Mellanox) | MMA2L20-BXD-I |

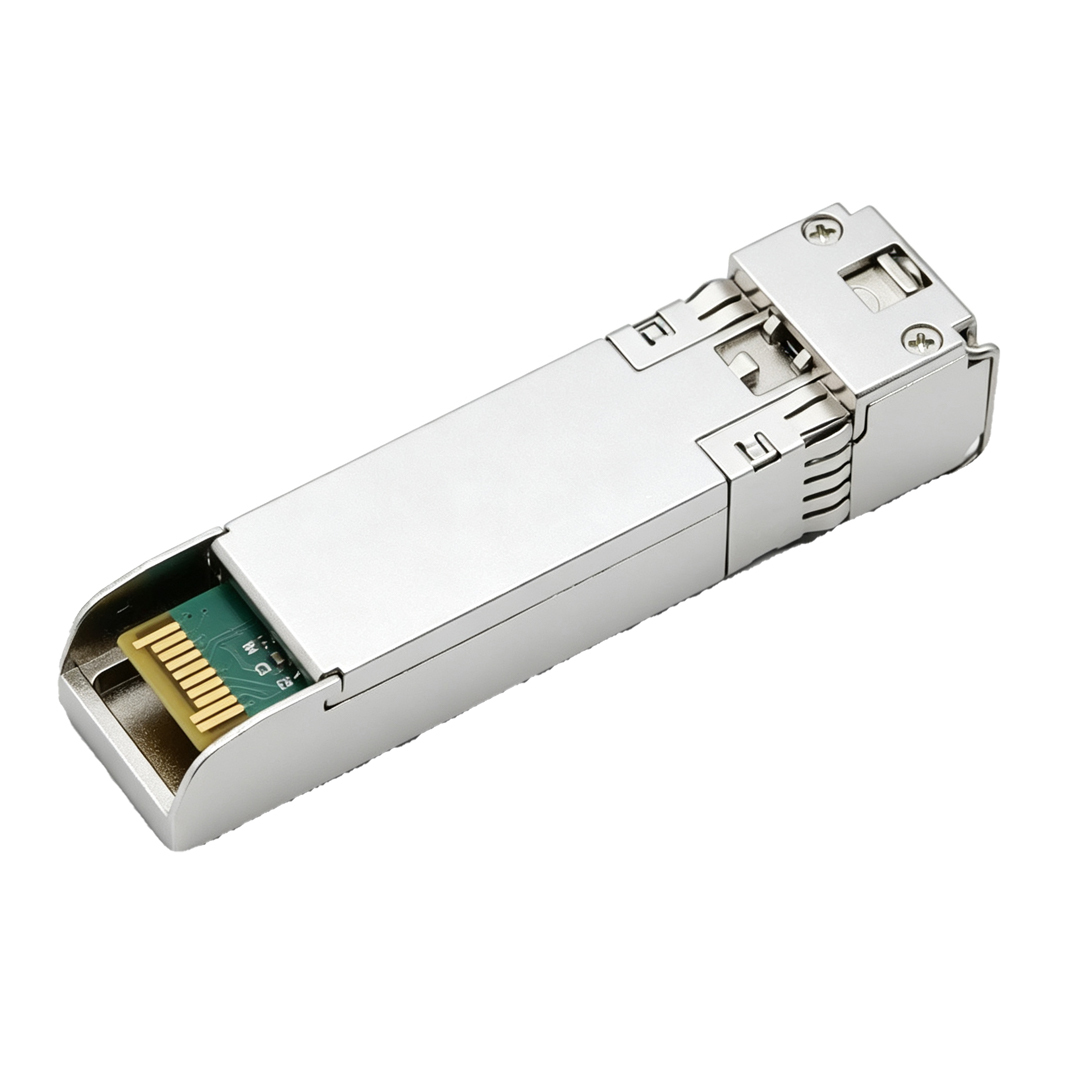

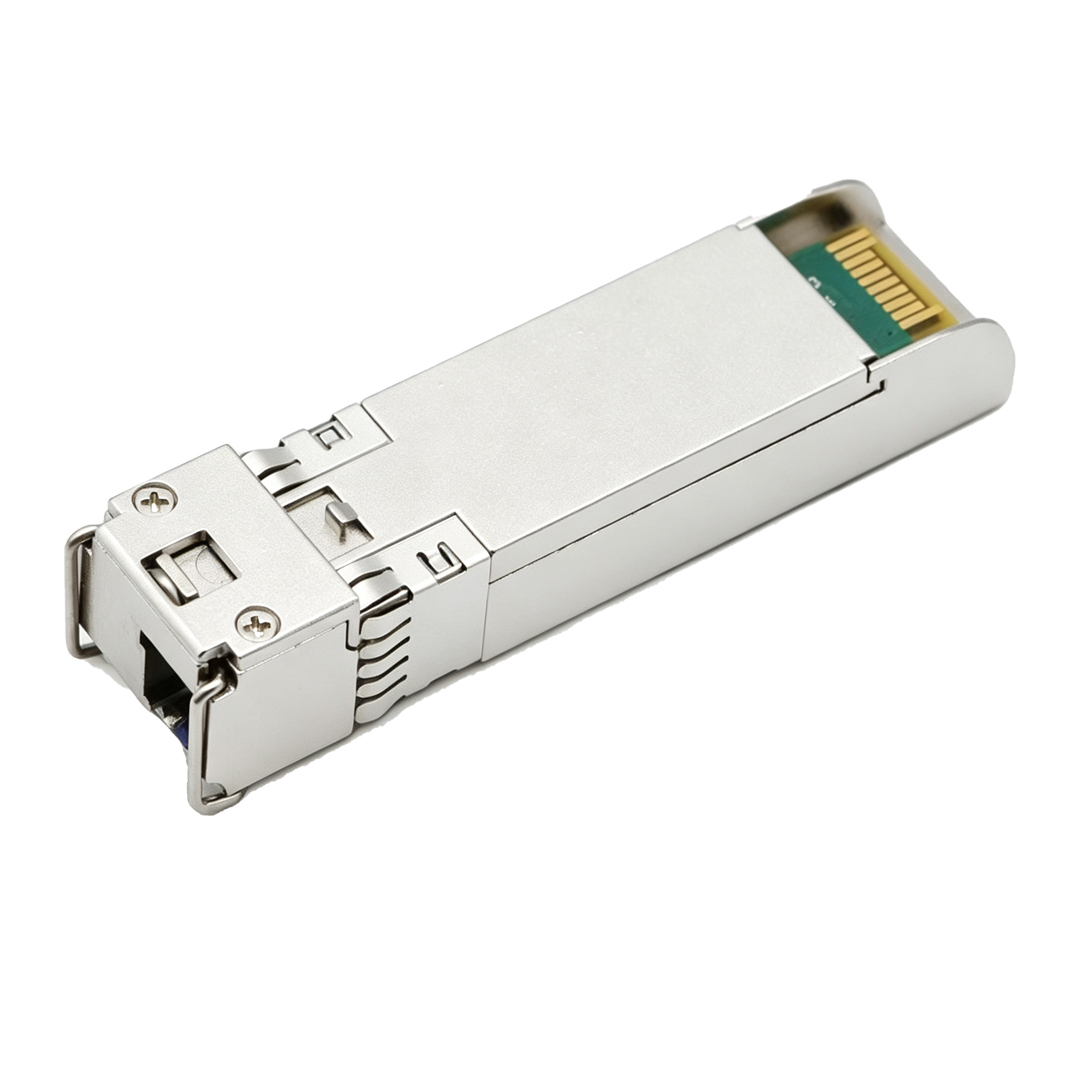

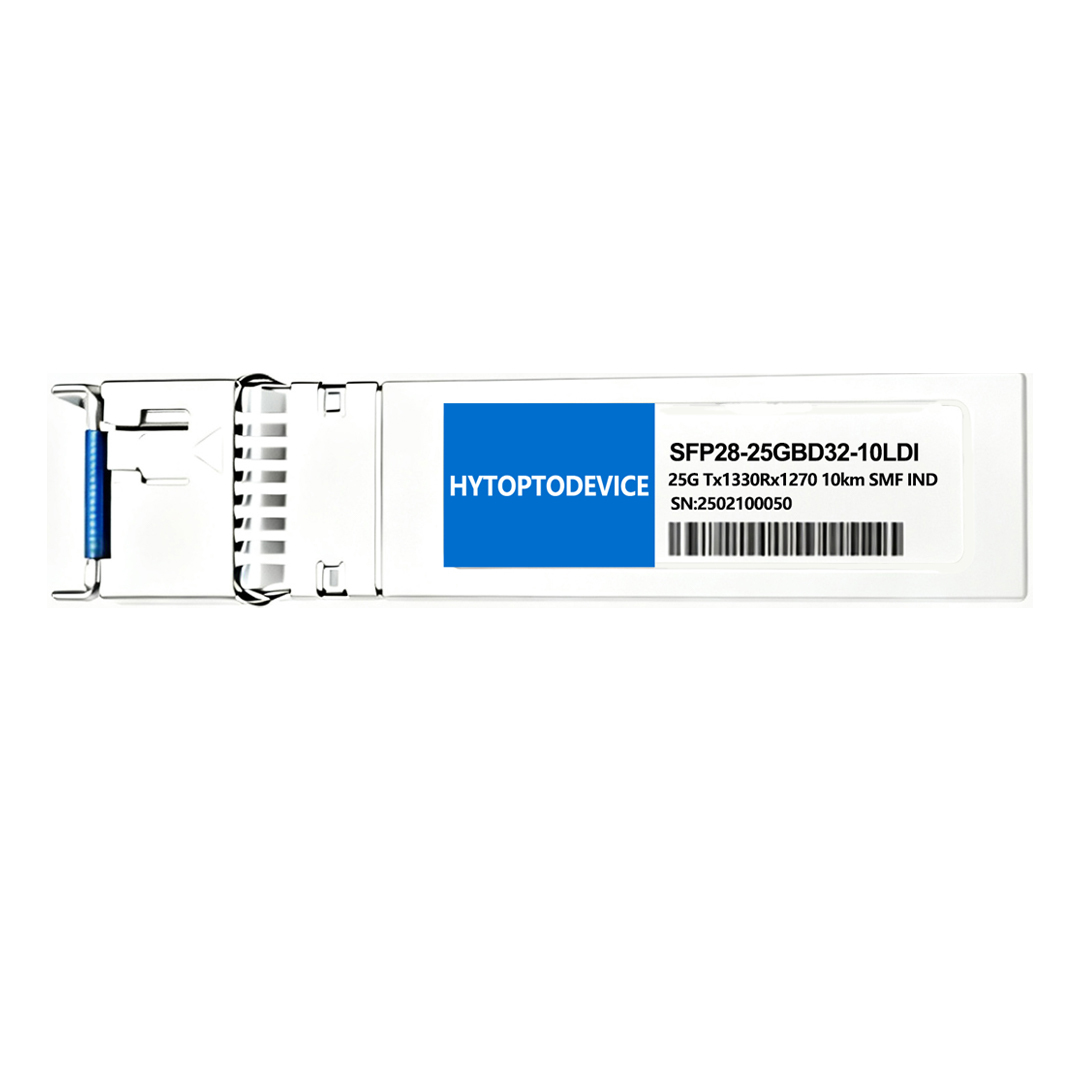

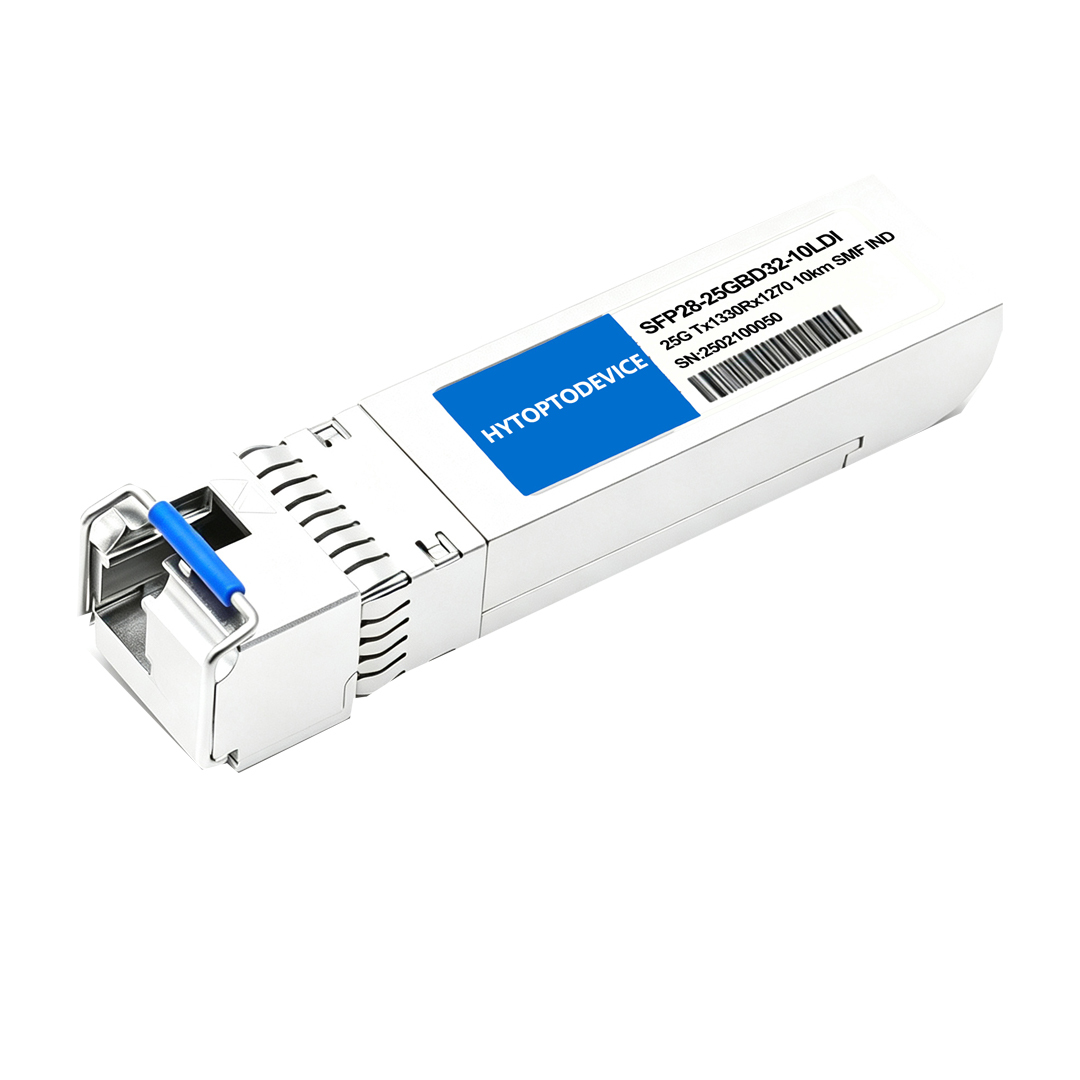

| HPE Aruba Compatible | S1C96A | Vendor Name | HYTOPTODEVICE |
| Form Factor | SFP28 | Max Data Rate | 25Gbps |
| Wavelength | Tx1330Rx1270 | Max Distance | 10km |
| Connector | Simplex LC(UPC) | Transmitter Type | 1330nm DFB |
| Cable Type | SMF | Receiver Type | Pin |
| TX Power | -4~+4dBm | Receiver Sensitivity | < -13.3dBm |
| Max. Power Consumption | ≤1W | DOM/DDM | Fully Supported |
| Protocols | SFP28 MSA, CPRI, eCPRI | Operation Temperature | -40 to 85°C (-40 to 185°F) |
Exclusive SMF Compatibility: Designed strictly for OS2 Single-Mode Fiber (SMF) with Simplex LC(UPC) connectors. Multi-mode fiber (MMF) is not compatible and will cause high insertion loss or complete link failure.
Mandatory Tx/Rx Wavelength Pairing: BiDi technology transmits and receives over a single fiber strand using two distinct wavelengths. Modules must be deployed in complementary pairs:
Side B: Tx 1330nm-nm / Rx 1270nm-nm
Note: Connecting matching wavelengths (e.g., 1270nm to 1270nm) will result in a total link down.
Hot-Pluggable Support: Fully supports hot-swapping—can be safely inserted or removed while host equipment (switches/routers) is powered on without interrupting non-related port traffic.
Latch Mechanism: Always unlock and use the integrated bail latch to remove the transceiver. Never pull directly on the fiber cable or the body of the optical module to prevent internal optical alignment damage.
ESD Precautions: Practice strict Electrostatic Discharge (ESD) measures (e.g., grounding wrist straps) during field installation to protect sensitive high-speed ICs.
Wide Operating Temperature Range: Rated for harsh industrial environments from -40°C to +85°C (-40°F to 185°F).
Enclosure Airflow: Ensure industrial enclosures or outdoor cabinets provide sufficient airflow or heat dissipation to keep the module’s real-time internal temperature within operating limits.
Cleanliness Standard: Inspect and clean all LC fiber end-faces with a 1.25mm fiber cleaning pen or lint-free wipes before insertion. Microscopic dust is the leading cause of high attenuation and port degradation.
Dust Protection: Always re-install dust caps on transceiver optical ports and fiber patch cables whenever they are disconnected.
Short-Distance Safeguard (<2km): For short-reach testing in labs, check Digital Optical Monitoring (DOM) receiver power. Use an inline optical attenuator(3-5dB) if incoming power exceeds the maximum RX overload threshold to prevent photodiode damage.
Port Speed & FEC Matching: Ensure the host port speed is manually set to 25G. Verify that RS-FEC (IEEE 802.3 Reed-Solomon Forward Error Correction) is enabled consistently on both endpoints, as 25G BiDi links typically require FEC for error-free performance.
DOM Diagnostics: Leverage real-time Digital Optical Monitoring (DOM/DDM) via your switch OS to track critical operating parameters:
Tx/Rx Optical Power levels
Module Operating Temperature
Laser Bias Current & Supply Voltage
