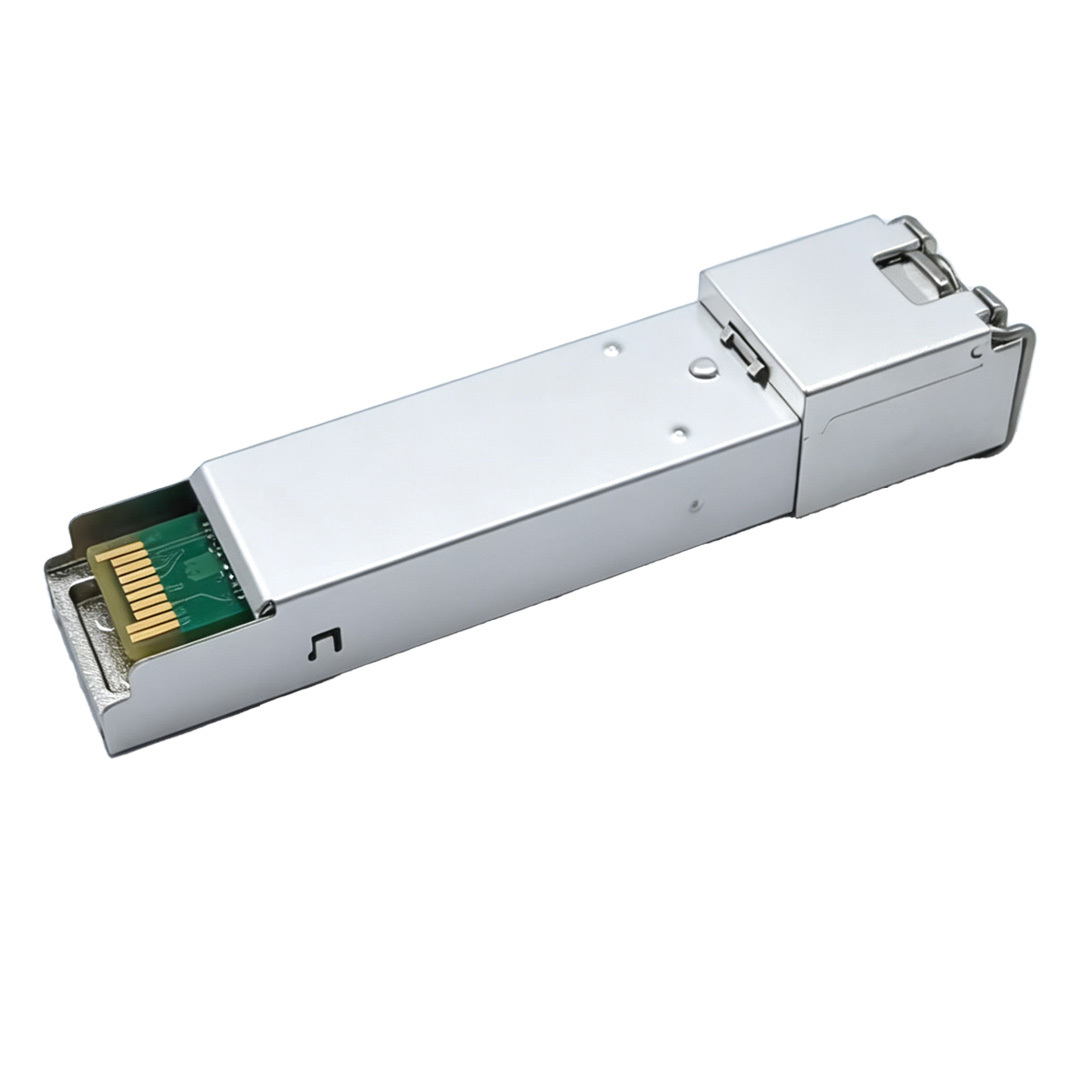

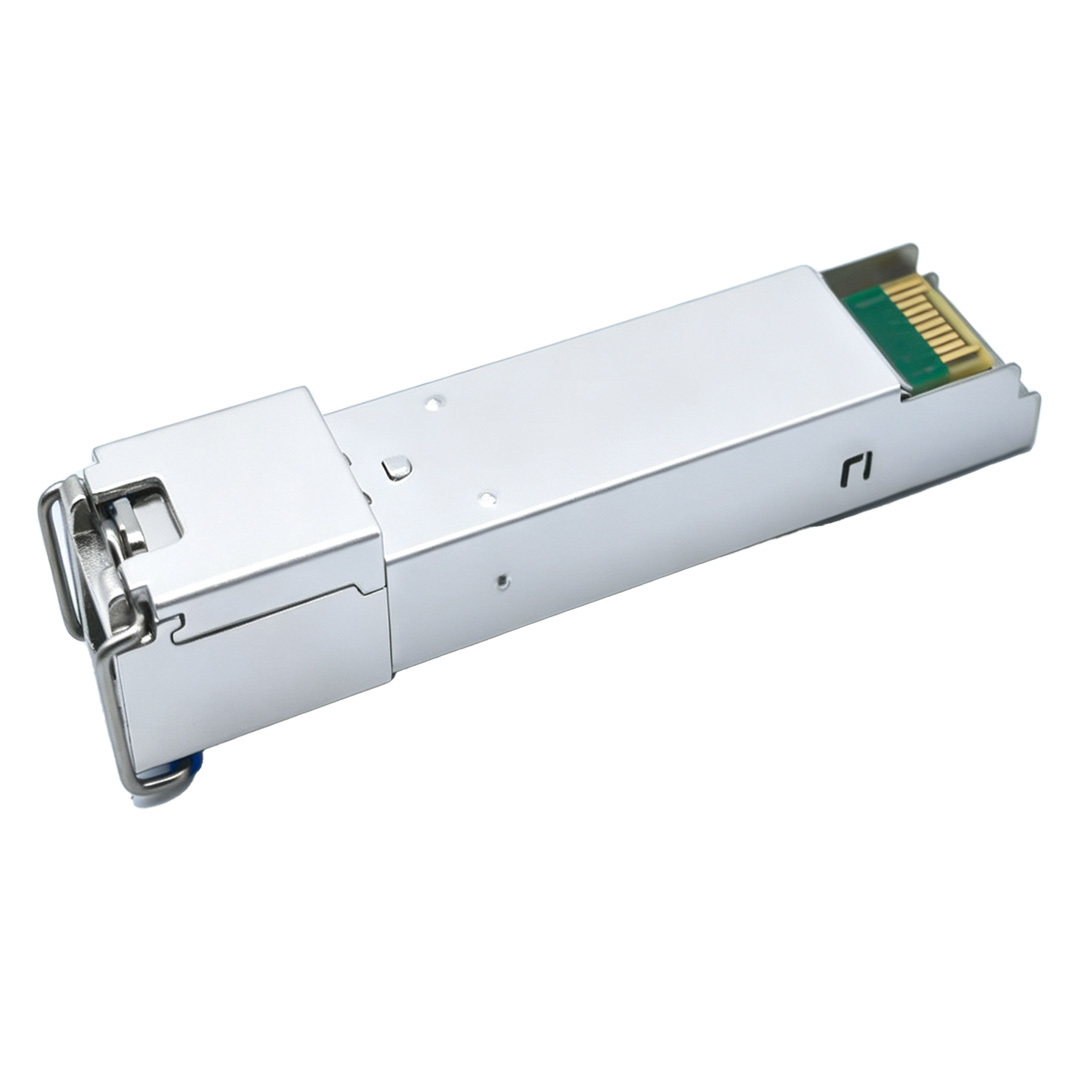

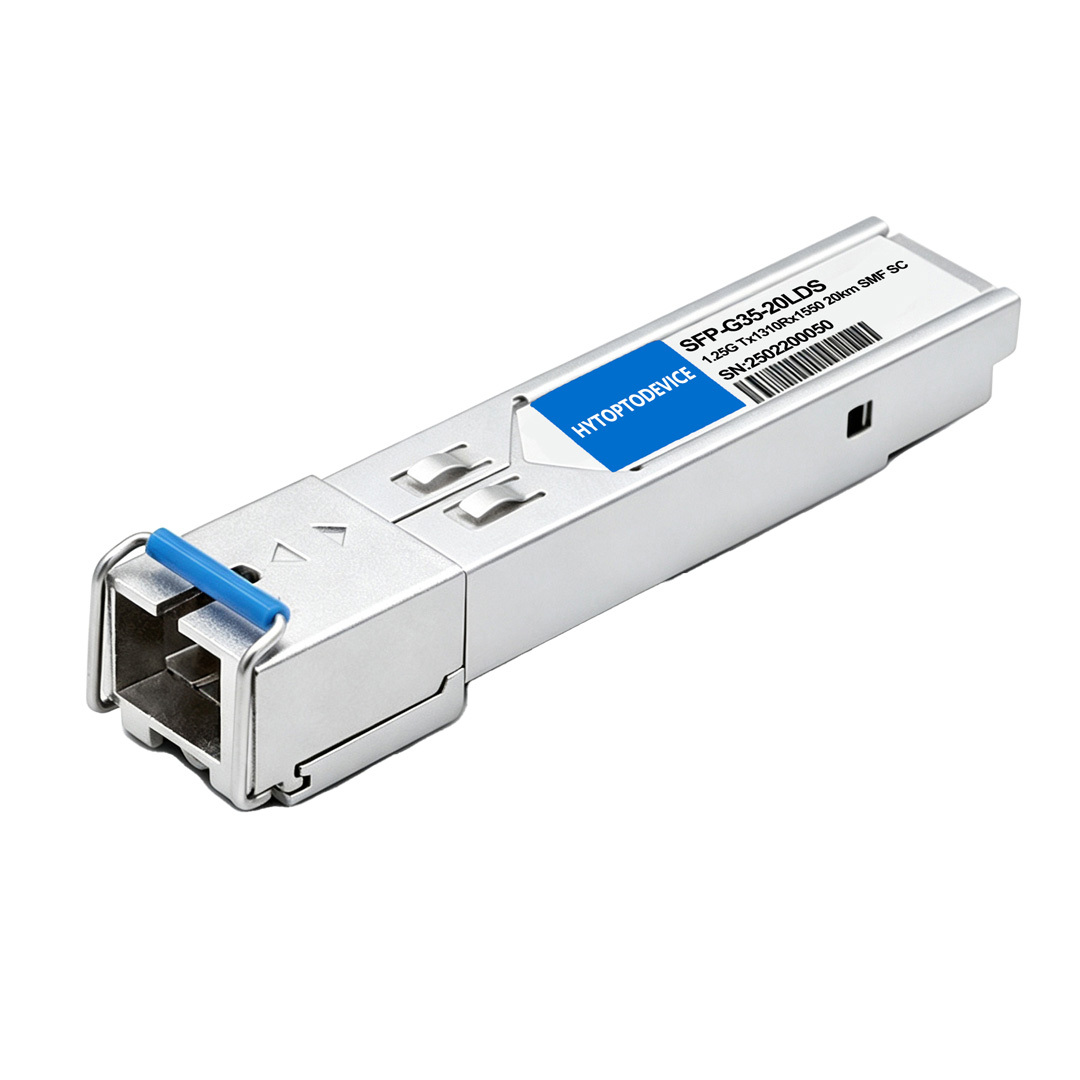

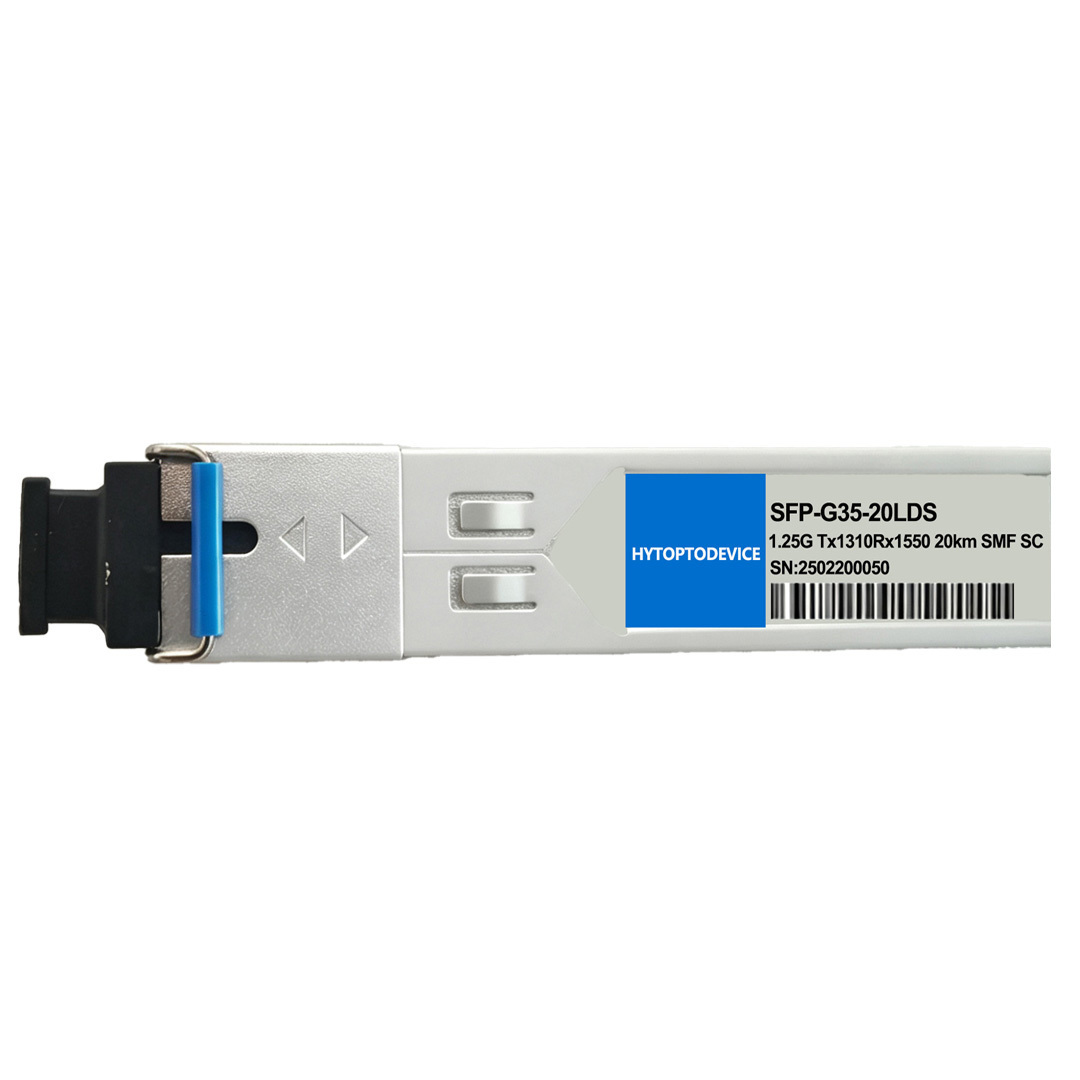

The BiDi SFP Module serves as a fully compatible, plug-and-play replacement for the Dell 407-10588 transceiver. Delivering 1.25Gbps gigabit bandwidth and stable 20km single-mode fiber transmission, this simplex SC port bidirectional optical transceiver features a professional Tx1310nm/Rx1550nm single-fiber wavelength design. It cuts fiber core consumption by 50%, delivering outstanding cost performance for enterprise campus networking, FTTx broadband access and long-distance security monitoring deployments.
Compliant with SFP MSA SFF-8431/SFF-8472 and IEEE 802.3z global standards, this Dell compatible BiDi SFP Module supports real-time DDM/DOM digital diagnostic monitoring and safe hot-swap operation. Every unit undergoes strict 24/7 continuous aging testing to deliver stable, error-free gigabit performance for long-term commercial network deployment.
Key Technical Specifications
The table below displays factory-calibrated technical parameters fully matching the original Dell 407-10588 specifications. All optical and electrical metrics meet commercial and telecom-grade standards for reliable 20km single-fiber bidirectional transmission.
| Dell Compatible |
407-10588 |
Vendor Name |
HYTOPTODEVICE |
| Form Factor |
SFP |
Max Data Rate |
1.25Gbps |
| Wavelength |
TX1310nm/RX1550nm |
Max Distance |
20km |
| Connector |
Simplex SC |
Transmitter Type |
1310nm FP |
| Cable Type |
SMF |
Receiver Type |
PIN |
| TX Power |
-9.0~0dBm |
Receiver Sensitivity |
< -23.0dBm |
| Protocols |
SFF-8472 MSA Compliant, IEEE 802.3ah-2004 |
Operation Temperature |
0 to 70°C (32 to 158°F) |
Usage Guidelines
To ensure optimal performance and longevity of your BiDi SFP transceivers, please follow these operational practices:
1. Complementary Pairing Requirement: Bidirectional transceivers require strict wavelength-matched pairing for valid network links. This Tx1310/Rx1550nm transceiver must be paired with a Tx1550/Rx1310nm module at the opposite end; mismatched wavelength combinations result in complete link failure.
2. Single-Mode Fiber Compatibility: Designed exclusively for standard 9/125μm single-mode fiber (SMF) and SC/UPC connectors, this transceiver is incompatible with multi-mode fiber (MMF). MMF deployment causes severe signal attenuation, random bit errors and unstable network operation.
3. Transmission Distance & Attenuation Control: Optimized for reliable 20km long-range single-fiber transmission. For short-distance testing and deployment under 5km, install a professional optical attenuator to prevent receiver overpowering, signal saturation and permanent optical chip damage.
4. Optical Port Dust Protection: SC optical ports are highly sensitive to dust and fingerprint contamination. Always install protective dust caps on idle module ports and fiber connectors to avoid scratches, contamination and degraded optical transmission performance.
5. Standard Hot-Swap Operation: This MSA-compliant transceiver supports safe hot-swappable installation. To avoid link flapping and system recognition errors, wait several seconds between module removal and reinsertion to complete full hardware reset.
Full Compatibility List and Supported Devices
1. Native Dell Platform Compatibility
This plug-and-play
BiDi SFP Module delivers full native interoperability with all Dell Networking hardware equipped with standard SFP slots, no manual CLI tuning or system adjustments required, no unapproved transceiver error alerts.
Full compatible Dell device series listed below:
- Dell N-Series Switches: N2024, N2024P, N2048, N2048P, N3024, N3024F, N3024P, N3048, N3048P, N4032, N4032F, N4064, N4064F
- Dell X-Series Switches: X1018, X1018P, X1026, X1026P, X1052
- Dell Force10 Series: S4810, S55, S60, Z9000, MXL Blade Switches
- Dell S-Series ON Switches: S3048-ON, S4810-ON, S5000, S6000, S6010-ON
- Dell Standard SFP-port media converters
2. Multi-Brand Cross Compatibility
This universal BiDi SFP Module supports cross-brand deployment, split into two hardware categories for mixed-vendor network environments:
1. Open-Brand Compatibility: Works out of the box with all MSA-compliant open network devices, including MikroTik, TP-Link, Fortinet, D-Link and Zyxel gigabit switches and routers. No custom coding required for standard deployment.
2. Locked-Brand Compatibility: Fully adaptable to brand-locked enterprise hardware such as Cisco, Huawei, H3C, Juniper and Arista. Custom EEPROM programming ensures flawless device recognition and zero enterprise-level compatibility errors.
3. Free Custom EEPROM & Bulk OEM Service
We supply free EEPROM firmware rewrite and basic bulk OEM labeling services for all batch orders of this BiDi SFP Module. Preload matched vendor ID data to remove transceiver error prompts; customized packaging is available for large-scale project deployment with zero hidden service or tool fees.
Primary Application Scenarios
As an economical single-fiber bidirectional networking solution, the 1.25G 20km SC BiDi SFP Module fits all network projects with limited fiber core resources:
-
Dell Enterprise campus network gigabit interconnection and network renovation
-
FTTB/FTTH residential community single-fiber broadband access
-
IP camera long-distance fiber monitoring transmission for parks, factories and communities
-
Industrial park, campus and hospital private communication network construction
-
Data center low-speed gigabit link aggregation and structured cabling
-
Project renovation and expansion with insufficient existing fiber core resources
Connectivity Solutions (Applications)
1. 1G Link for Switch to Switch
2. Double Your Network Capacity
By enabling bidirectional data transmission on a single fiber strand, this professional **BiDi SFP Module** effectively doubles the carrying capacity of original fiber links without laying extra fiber cables. It provides a low-cost, high-efficiency bandwidth expansion solution for Dell enterprise network upgrades and operator FTTx access network optimization.
3. Stable 1G Connectivity: The Groundwork for High-Availability Data Centers
In an era where data centers are scaling to 100G, 400G, and beyond, the stability of your underlying 1G infrastructure remains the true backbone of operational continuity. Our enterprise-grade **BiDi SFP Module** 1G connectivity solutions are engineered to deliver rock-solid, low-latency performance where reliability matters most. From critical Out-of-Band (OOB) management to real-time environment monitoring, we ensure your control plane is always online, always stable, and completely isolated from production traffic spikes.
4. Tested in The Host Device to Prove Interoperability
Every production batch of this **BiDi SFP Module** undergoes full real-machine compatibility testing on Dell, Huawei, H3C and other mainstream network hardware. We verify link handshake stability, DDM monitoring precision and hot-swap performance under actual network load, guaranteeing 100% interoperability and eliminating on-site deployment compatibility risks.
5. Comprehensive Factory Testing for Stable Performance
Each **BiDi SFP Module** passes strict standardized quality control tests, including high/low temperature aging cycles, repeated plug-pull durability testing, optical power consistency inspection and continuous 72-hour non-stop operation testing. Rigorous mass production QC ensures consistent batch performance and extended service life for all commercial network deployments.
FAQ
Q1: Will this transceiver fully work with our brand switches without system errors?
A1: Our HYTOPTODEVICE BiDi SFP Module supports free preloaded vendor ID coding. Every unit passes real-switch compatibility testing, delivering full plug-and-play performance with Dell and multi-brand hardware with zero system error alerts.
Q2: How to stop switch OS from popping unsupported transceiver warnings and port shutdowns?
A2: We pre-flash matched brand firmware for all bulk orders at no extra cost. This Dell compatible BiDi SFP Module is fully recognized by switch operating systems to eliminate warning prompts and forced port deactivation.
Q3: Does the link stay stable without frequent drops or packet loss during peak traffic?
A3: Built with premium FP laser and PIN receiver plus a 12dB power margin, our BiDi SFP Module undergoes 72-hour high-load aging testing. It maintains steady zero-loss transmission even under full network peak loads.
Q4: How much extra loss will dust or poor SC polishing cause on fiber interfaces?
A4: Standard factory UPC polishing minimizes baseline insertion loss, and each BiDi SFP Module comes with dust caps to block contamination. Minor dust or imperfect polishing will not trigger unstable link attenuation under normal deployment.
Q5: Will the module overheat and burn out in dense, poorly ventilated racks?
A5: Full metal heat-dissipation housing and built-in thermal protection circuits prevent overheating. The Dell 407-10588 equivalent BiDi SFP Module automatically adjusts laser power in cramped low-airflow rack environments.
Q6: How to avoid mixing TX1310 and TX1550 paired modules during field installation?
A6: HYTOPTODEVICE prints clear wavelength labels and uses differentiated housing markers on each BiDi SFP Module. Field technicians can quickly identify matching pairs to avoid mismatched wavelength link failures.
Q7: Are high MOQ limits a barrier for small batch network expansion orders?
A7: We offer flexible order quantities for this mainstream BiDi SFP Module with no strict high minimum order limits. Small test batches and incremental upgrade orders are all supported with consistent factory pricing.
Q8: What QC measures lower DOA failure risk when receiving bulk module shipments?
A8: Every BiDi SFP Module undergoes full optical power, DDM, hot-swap and continuous operation testing before shipment. Strict multi-stage factory QC drastically cuts DOA rates, with free replacements provided for defective units.
Q9: Does this transceiver carry official RoHS, CE and FCC certifications for corporate compliance?
A9: All HYTOPTODEVICE BiDi SFP Module pass RoHS, CE and FCC official testing. Complete certification documents can be provided on demand to meet enterprise audit, bidding and customs compliance requirements.
Q10: How can this module cut costly emergency repair fees for remote site failures?
A10: Our BiDi SFP Module features long service life and ultra-low field failure rates thanks to rigorous stability testing. Fewer unexpected breakdowns at remote branches greatly reduce emergency maintenance labor and replacement costs.
Why Network Engineers Choose HYTOPTODEVICE
HYTOPTODEVICE has supplied over 5000,000 optical transceiver modules to data centers, ISPs, and enterprise networks across 100+ countries since 2011. Every module undergoes a 72-hour burn-in test and full DDM/DOM validation before shipment.
- 100% hardware-tested compatibility with Cisco, Huawei,Dell,Juniper, and Arista
- ISO 9001:2015 certified manufacturing facility in Shenzhen
- Full product range coverage:1.25G/10G/25G/40G/100G/200G/400G/800G/1.6T
- In-stock supply & fast global shipping, average lead time of 3–5 business days with DHL/FedEx express options
- Dedicated pre-sales engineering support for custom configurations
- Actual hardware,actual switches,actual results.we publish compatibility test video,eliminate compatibility anxiety. you can watch before you buy.
- We can provide inspection and shipping videos to make you feel as if you are right here with the product.
- Private Label support - EEPROM / firmware customization support
“Phenomenal performance. We deployed 200 HYTOPTODEVICE SFP modules to replace Cisco OEMs in our backbone network. Result? Zero compatibility issues and a 60% reduction in costs. Highly recommended for mission-critical networks."— Senior Network Engineer, Regional Telecom, Australia
