| NO. | Brand | Compatible P/N | Transceiver Type |
| 1 | Cisco | QSFP-200G-FR4-S | |
| 2 | Arista | QSFP-200G-FR4 | |
| 3 | Huawei | QSFP56-200G-FR4 | |
| 4 | H3C | QSFP56-200G-FR4-WDM1300 | |
| 5 | Broadcom | QSFP56-200G-FR4 | |
| 6 | Generic | QSFP56-200G-FR4 |

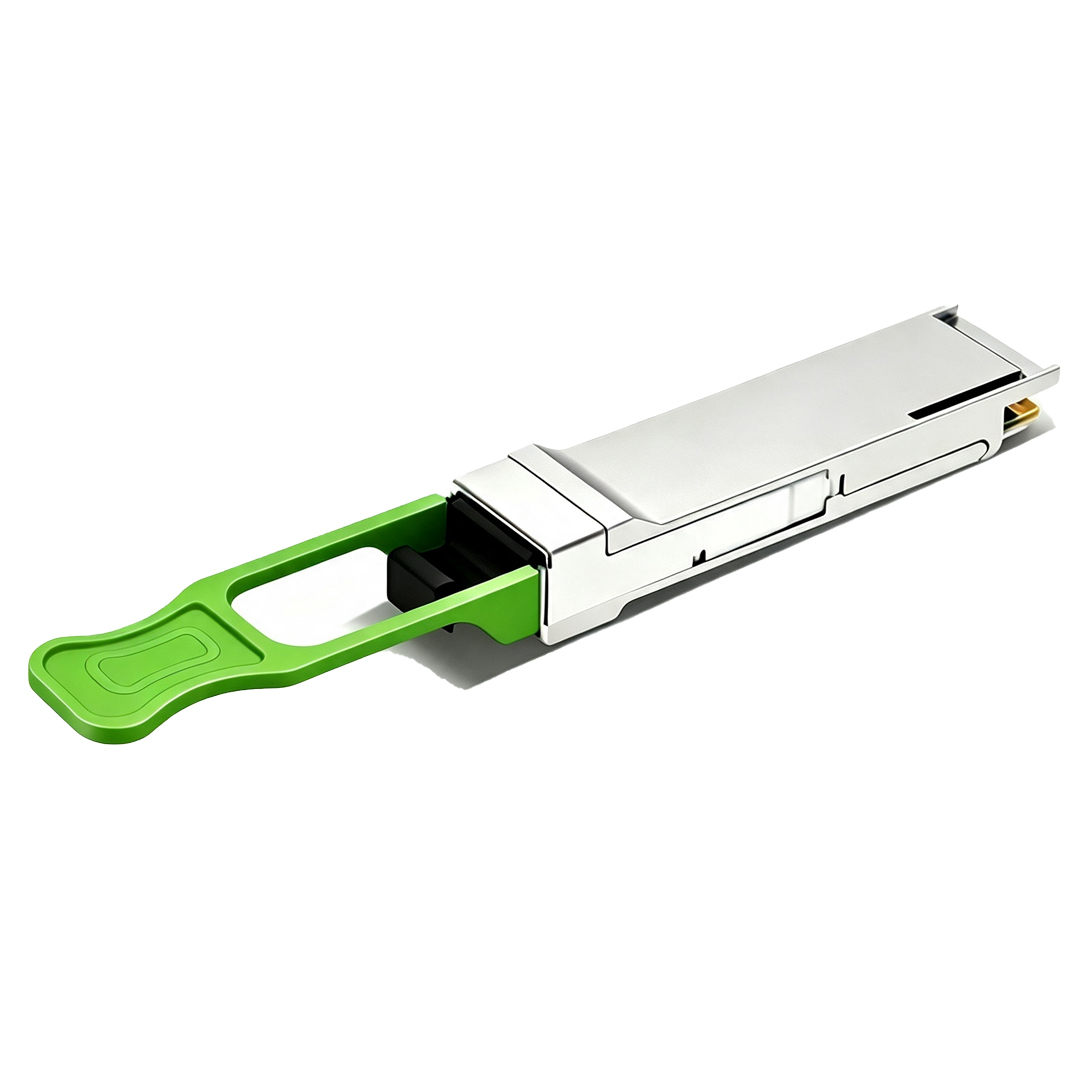

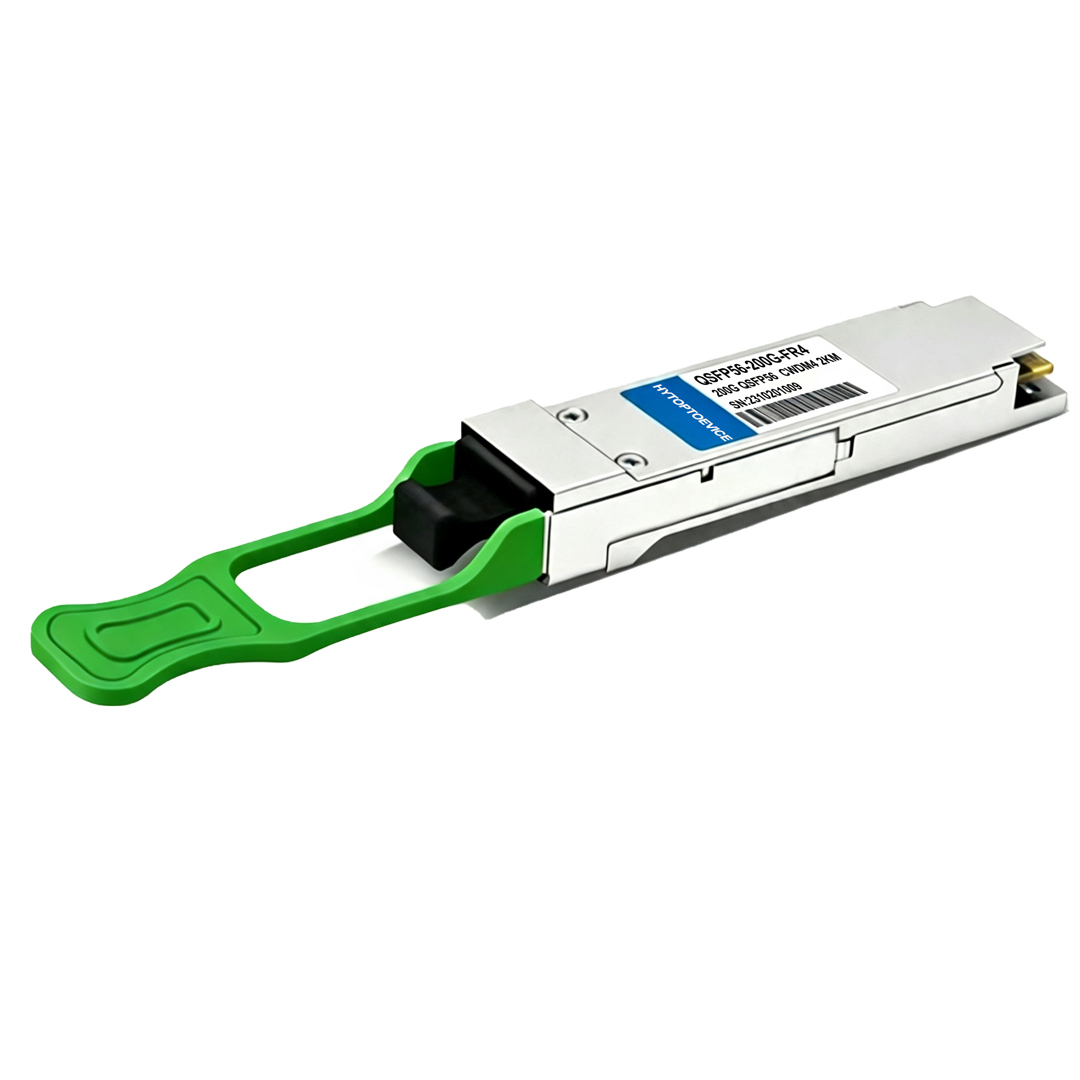

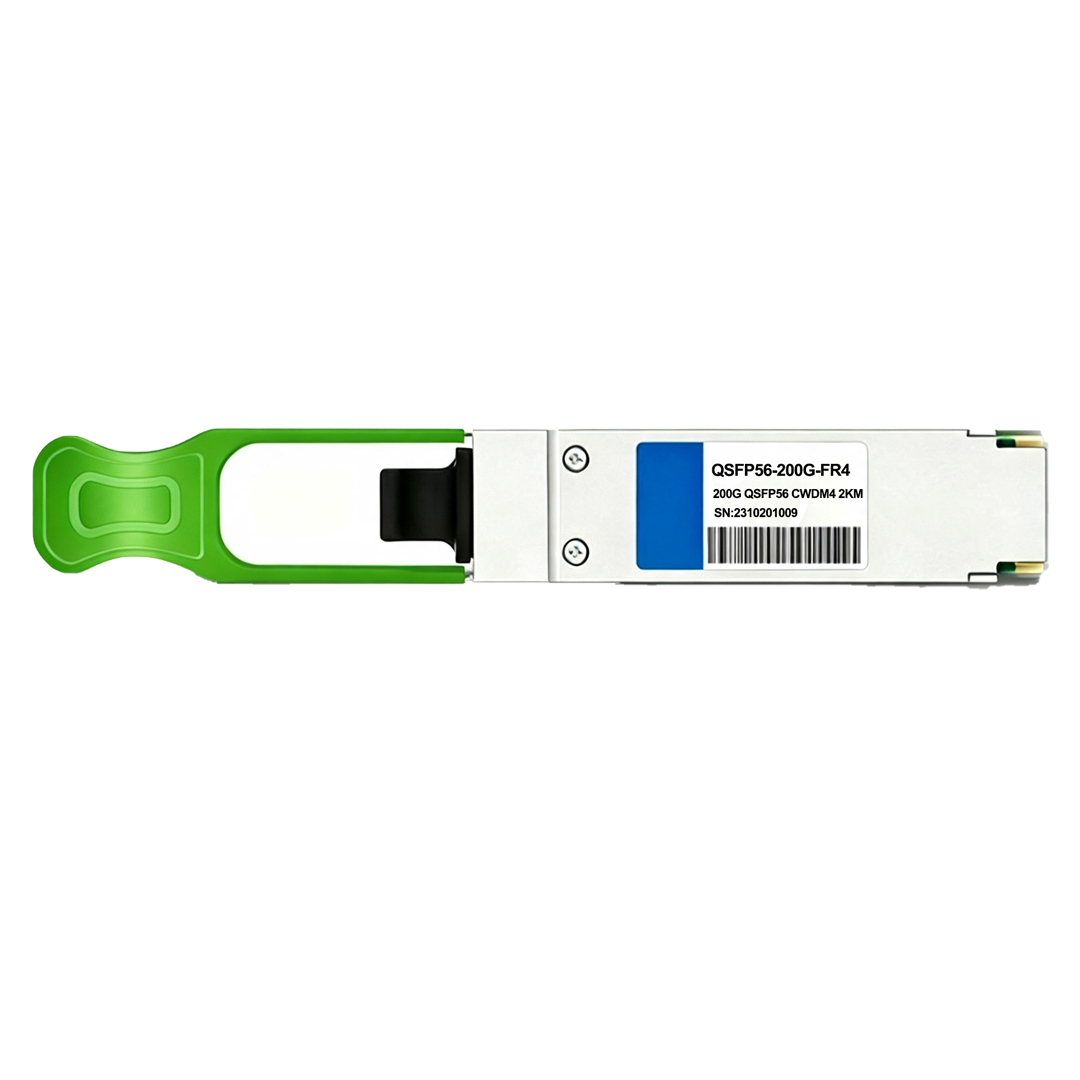

| Broadcom Compatible |
QSFP56-200G-FR4 |
Vendor Name | HYTOPTODEVICE |
| Form Factor | QSFP56 | Max Data Rate | 200Gbps (4x50Gbps) |
| Wavelength | 1271nm, 1291nm, 1311nm and 1331nm
|
Max Distance | 2km |
| Modulation Format | PAM4 | Host Required | FEC |

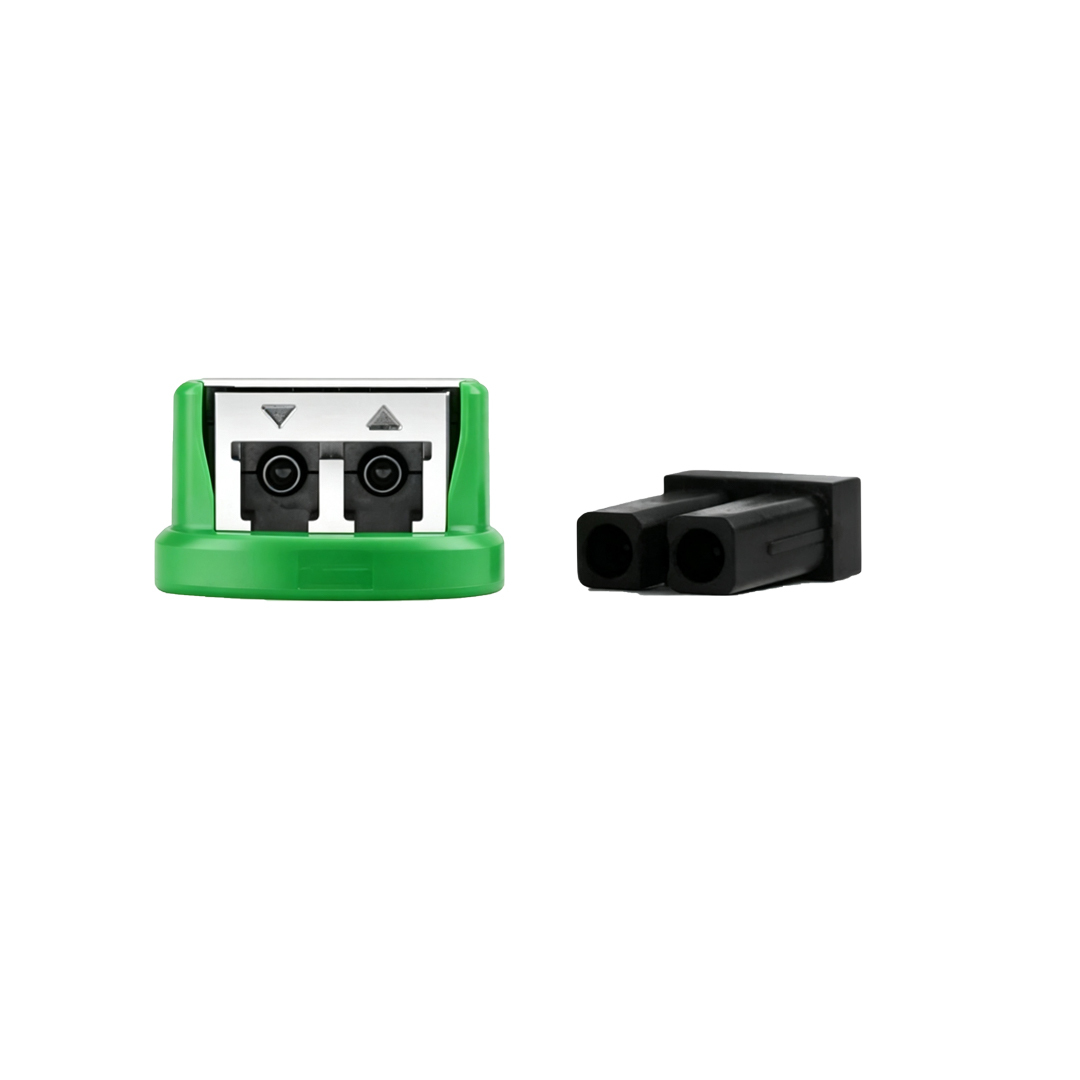

| Connector | Duplex LC | Voltage Supply | 3.3V |
| Cable Type | SMF | DDM Support | Yes |
| Transmitter Type | Cooled EA-DFB | Receiver Type | PIN |
| TX Power | -5.1~+4.0dBm | Receiver Sensitivity | < -8.2dBm |
| Operation Temperature | 0 to 70°C (32 to 158°F) | Maximum Power | < 6.5W |
| Protocols | QSFP56 MSA, IEEE 802.3bs 200GBASE-FR4 |
Application | 200G Ethernet, 200G InfiniBand HDR, Data Center,Fiber Channel |
Full Compatibility List & Supported Network Hardware
1. Supported Hardware & Firmware
Built on universal MSA open standards, this QSFP56 FR4 transceiver is interoperable with mainstream network brands including Arista, Cisco, H3C, Huawei and more, adapting to mixed‑vendor leaf‑spine network upgrade and expansion scenarios.
Q1: Are FR4 transceivers still a cost-effective option if our fiber runs are much shorter than the rated 2km maximum?
A: Yes, FR4 remains a solid economical choice even for short-distance links under 2km. HYTOPTODEVICE QSFP56 200G FR4 modules deliver standardized PAM4 signal performance, consistent DOM telemetry and stable compatibility for Broadcom ASIC switches, removing unknown risks from cheap non-compliant alternatives for wholesale data center builds.
Q2: What kind of performance degradation can I expect when pushing a 200G FR4 link slightly beyond its official 2km distance rating?
A: Link quality will degrade rapidly once exceeding the 2km specification, bringing higher bit error rates and random link flaps. The 200GBASE-FR4 optical budget is designed strictly for 0–2km G.652 SMF; dispersion and attenuation cannot be compensated internally, so HYTOPTODEVICE discourages over-distance deployment.
Q3: Is there any risk of receiver damage when deploying this 200G FR4 optic with ultra-short fiber jumpers below 5 meters?
A: Permanent burnout of the receiver is unlikely, yet excessive received optical power will push the signal outside the optimal receiving window. For patch cords shorter than 5m, HYTOPTODEVICE recommends deploying a matched optical attenuator to keep power levels within the safe working range for reliable PAM4 transmission.
Q4: Can a 200G FR4 QSFP56 port establish direct communication with existing 100G or 400G-DR4 optical interfaces?
A: No, direct interoperability is not supported. 200GBASE-FR4 adopts proprietary 4-lane PAM4 CWDM4 signaling. Our HYTOPTODEVICE QSFP56 200G FR4 transceiver only pairs with matching 200GBASE-FR4 optics and cannot auto-negotiate with 100G or 400G-DR4 ports.
Q5: Compared with older NRZ optical modules, will PAM4-based FR4 optics show higher sensitivity to optical noise and signal jitter?
A: Yes, PAM4 modulation is inherently more sensitive to noise and jitter than NRZ at equivalent baud rates. HYTOPTODEVICE QSFP56 200G FR4 modules integrate built-in equalization and FEC functions to suppress interference, delivering stable performance when paired with properly terminated, clean single-mode fiber runs.
Q6: What power budget increase should I plan for when upgrading aggregation ports to 200G FR4 modules?
A: The incremental power draw stays moderate. Each HYTOPTODEVICE QSFP56 200G FR4 module consumes less than 6.5W at peak load; a fully populated 32-port line card adds roughly 208W maximum, making this low-power design suitable for high-density leaf-spine rack power budgeting.
Q7: Will legacy G.652 single-mode fiber deployed years ago support 200G FR4 without unacceptable signal attenuation?
A: Yes, standard G.652 single-mode fiber is fully compatible for 200G FR4 links up to 2km. Attenuation at the 1310nm CWDM band remains low over G.652 fiber. HYTOPTODEVICE validates all FR4 units against G.652 fiber to guarantee stable operation on existing fiber infrastructure.
Q8: Can tight fiber routing and crowded patch panel layouts introduce unwanted signal loss on 200G FR4 links?
A: Yes, sharp bends and cramped routing create macro-bend loss and distort PAM4 signals. You need to follow standard single-mode fiber minimum bend radius guidelines. HYTOPTODEVICE QSFP56 200G FR4 modules tolerate normal installation loss but cannot recover signals damaged by poorly routed, over-bent fiber.
Q9: What is the typical mean time between failures for these multi-wavelength CWDM 200G FR4 transceivers?
A: Our QSFP56 200G FR4 transceiver features an MTBF rating above 1,000,000 hours under specified commercial operating conditions. HYTOPTODEVICE implements long-duration burn-in aging testing during manufacturing to filter early failures and extend service life for data center uplink applications.
Q10: Are 200G FR4 optical modules vulnerable to supply delays and long production lead times?
A: Lead time varies based on order volume and component availability. As a direct manufacturer, HYTOPTODEVICE maintains stable inventory of QSFP56 200G FR4 compatible modules. Bulk and wholesale customers can lock in predictable delivery schedules by placing planned orders with our sales team.
Q11: How can bulk purchasers confirm third-party 200G FR4 optics are brand-new instead of refurbished recovered parts?
A: You can validate authenticity by cross-checking DOM reading stability, running switch diagnostics and reviewing original factory test reports. Every HYTOPTODEVICE QSFP56 200G FR4 module ships with complete test documentation; we never supply refurbished or recycled optical components to distributors and system integrators.
Q12: Can I reuse the existing single-mode fiber plant for future bandwidth upgrades after installing 200G FR4?
A: Yes, G.652 single-mode cabling deployed for 200G FR4 can frequently be reused for later 1310nm-band upgrades. The fiber itself is protocol-agnostic, protecting your cabling investment while scaling bandwidth, as long as total link loss and distance stay within budget.
Q13: Are the temperature, voltage and optical power DOM readings reported by this module accurate enough for routine network monitoring?
A: Yes, DOM telemetry is factory-calibrated and reliable for daily operation monitoring. HYTOPTODEVICE calibrates each QSFP56 200G FR4 transceiver before shipment; CMIS-compliant DDM data supports regular O&M alerting and link troubleshooting on Broadcom-based fabrics.
Q14: Will sustained high hot-aisle temperatures in the data center trigger premature failures for these FR4 optics?
A: Continuous operation above the 70°C upper commercial temperature limit raises failure risk and shortens service lifespan. This HYTOPTODEVICE QSFP56 200G FR4 module is commercial grade, rated for 0~70°C. Stable thermal management in hot aisles is required to sustain 24/7 reliable operation.
Q15: Do these 200G FR4 modules hold the required safety and environmental certifications such as RoHS and Laser Class 1?
A: Yes, our QSFP56 200G FR4 transceivers meet RoHS requirements and carry Laser Class 1 safety classification. HYTOPTODEVICE provides full compliance certificates for bulk buyers, distributors and integrators for tender reviews and data center compliance audits.
