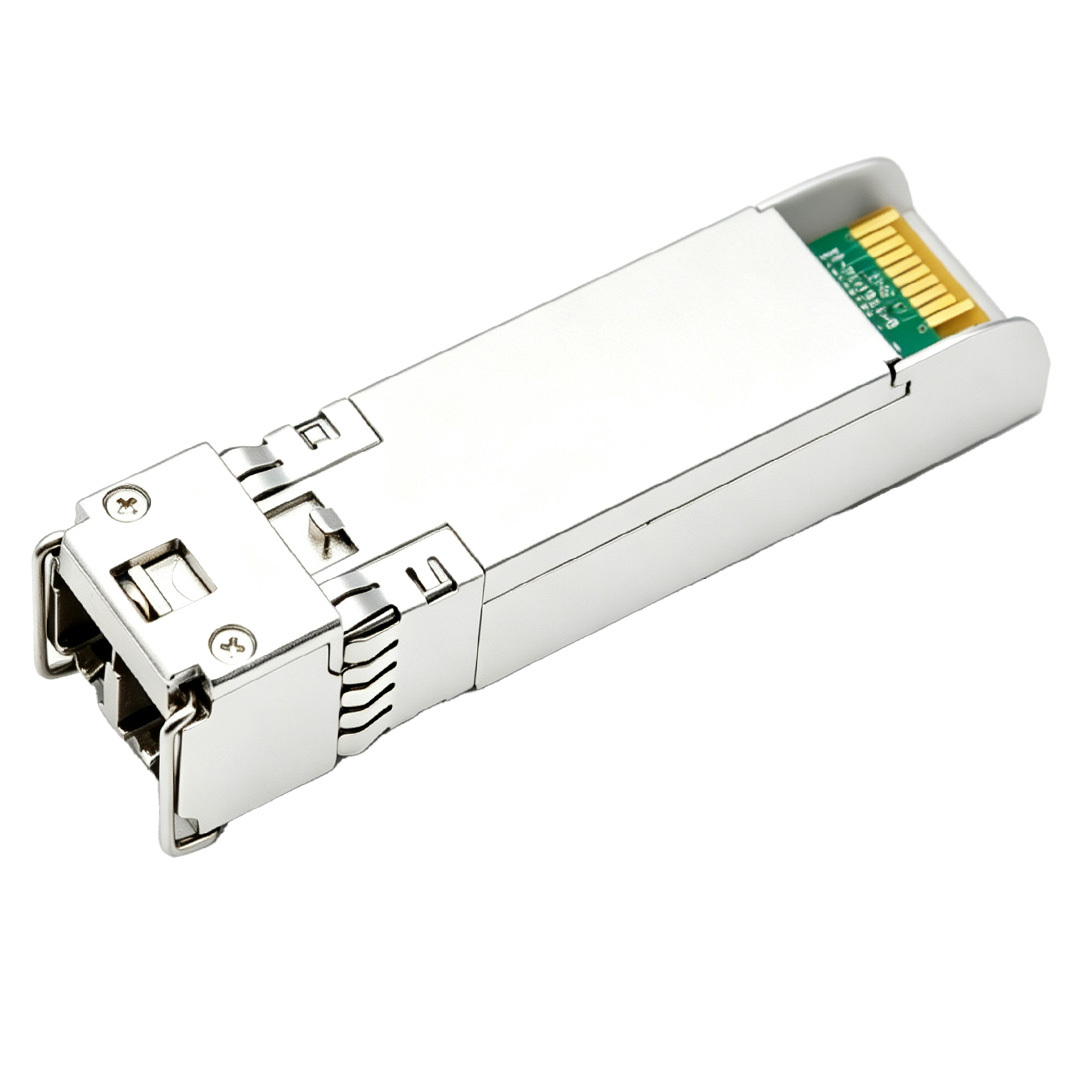

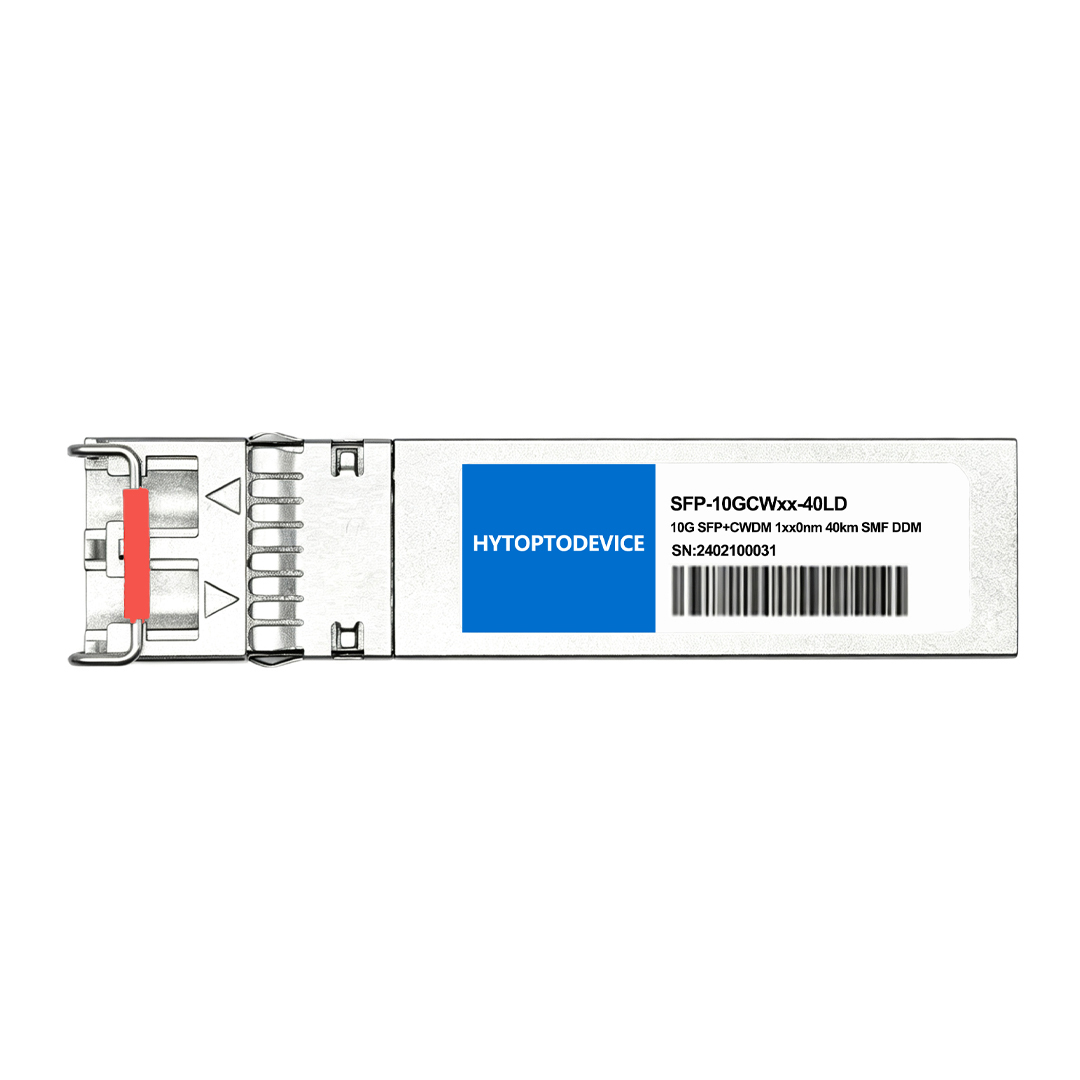

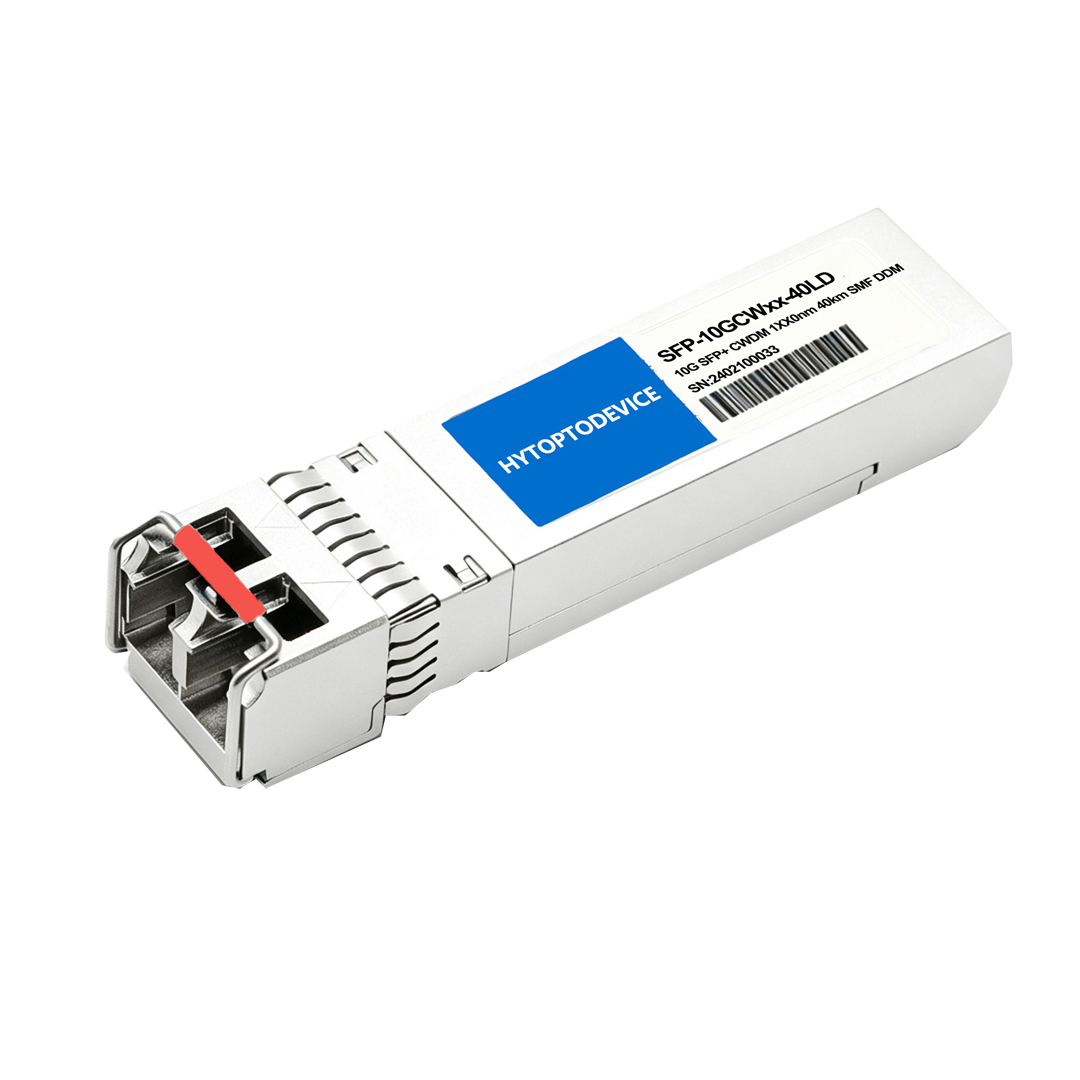

1530nm 40km Cisco Compatible 10G CWDM SFP+ Transceiver | CWDM-SFP10G-1530-40 | HYTOPTODEVICE

High-performance 10G CWDM SFP+ Transceiver 1530nm 40km, fully compatible with Cisco CWDM-SFP10G-1530-40, LC duplex connector, low power consumption, DDM monitoring, optimized for mid-band CWDM multiplexing, metro aggregation and campus backbone fiber networks over G.652/G.655 SMF. Support bulk wholesale,private label and custom EEPROM to global importers and distributors.

NO.	Brand	Compatible P/N	Remarks
1	Cisco	CWDM-SFP10G-1470-40
2	Cisco	CWDM-SFP10G-1490-40
3	Cisco	CWDM-SFP10G-1510-40
4	Cisco	CWDM-SFP10G-1530-40
5	Cisco	CWDM-SFP10G-1550-40
6	Cisco	CWDM-SFP10G-1570-40
7	Cisco	CWDM-SFP10G-1590-40
8	Cisco	CWDM-SFP10G-1610-40

GET A QUOTE

Description

CWDM-SFP10G-1530-40 Compatible Cisco 10G CWDM SFP+ Transceiver 40km | 1530nm Long-Haul CWDM Optical Module， Bulk Wholesale Procurement Available

Product Overview

HYTOPTODEVICE 10G CWDM SFP+ Transceiver 1530nm 40km serves as a fully functional drop-in replacement for the Cisco CWDM-SFP10G-1530-40. Equipped with a standard LC duplex connector, it delivers stable 10G full-duplex transmission up to 40km on G.652 and G.655 single-mode fiber. Operating at the ITU-T standard 1530nm mid-band wavelength within the 1470–1610nm CWDM spectrum range, this 10G CWDM SFP+ Transceiver is purpose-built for mid-band CWDM multiplexing, widely deployed in metropolitan aggregation networks, enterprise core backbone and large-scale campus CWDM networking systems. It supports real-time DDM digital monitoring, features mature high-density optical design and ultra-low power consumption, ensuring reliable long-term operation for medium-distance multi-wavelength fiber transmission projects.

Key Technical Specifications

Cisco Compatible	CWDM-SFP10G-1530-40	Vendor Name	HYTOPTODEVICE
Form Factor	SFP+	Max Data Rate	11.0957Gbps
Wavelength	1530nm	Max Distance	40km
Connector	Simplex LC	Transmitter Type	CWDM DFB
Cable Type	SMF	Receiver Type	PIN
TX Power	0~+5.0dBm	Receiver Sensitivity	< -16dBm
Max. Power Consumption	≤1W	Receiver Overload	0.5dBm
Protocols	SFP+ MSA, SFF-8472, IEEE 802.3ae, RoHS Compliant	Operation Temperature	0 to 70°C (32 to 158°F)

For detailed technical specifications, please refer to the Datasheet

Usage Guidelines & Laser Safety

This 1530nm max band cwdm sfp 10g transceiver is designed for 40km long-haul full-spectrum CWDM stacking and outdoor remote fiber transmission. Never look directly into powered optical ports to avoid irreversible laser eye damage. ESD anti-static gear must be worn during installation and maintenance to protect internal precision laser and receiver chips. Short-distance direct fiber connection without 10–15dB optical attenuators will cause APD receiver saturation and permanent hardware damage. Keep LC port dust caps covered when idle to prevent dust contamination and extra link loss, ensuring stable low-crosstalk operation of the 1610nm final CWDM channel.

For detailed operation instructions, please refer to the User Guide.

Full Compatibility List & Supported Network Hardware

1.Native Cisco Networks Compatibility

This Cisco compatible 10G CWDM SFP+ Transceiver realizes native plug-and-play recognition and full DDM monitoring on mainstream Cisco network hardware with zero alarms and stable port operation, compatible with:

• Cisco Catalyst 9200 / 9300 / 9400 Enterprise Switches

• Cisco Catalyst 3650 / 3850 Access & Aggregation Switches

• Cisco ISR 4000 Multi-Service Routers

• Cisco ASR 1000 Aggregation Routers

• Cisco OTN Optical Transmission Boards

2.Multi-Brand Cross Compatibility

Backed by 15+ years of overseas optical module service experience, our factory owns 150+ global device test platforms. All transceivers complete full compatibility testing before shipment. It supports zero-debug plug-and-play for open-standard devices and targeted EEPROM customization for locked-brand hardware such as Huawei, H3C and Juniper to resolve adaptation failures.

Open-Brand Devices: Zero-debug plug-and-play on MikroTik, Ubiquiti, Fortinet, Ruijie, Zyxel and other open-standard switches, routers and firewalls.
Blocked-Brand Devices: Custom parameter matching available for locked hardware including Huawei, H3C, HPE, Juniper, Extreme, Dell and Brocade to resolve recognition failures.

3.Value-Added Services

Custom EEPROM programming for multi-platform compatibility
Pre-bulk sample testing for project validation
Private label customization and deployment guides
Strict batch quality control
EEPROM configuration for legacy network environments
Free EEPROM recoding plus 24/7 technical support

Primary Application Scenarios

This 1530nm 40km 10G CWDM SFP+ Transceiver is a mid-band core component for CWDM multiplexing systems, serving mainstream medium-distance fiber networking scenarios:

Metro Aggregation CWDM Network Expansion: Supplement core mid-band channels to expand network bandwidth without additional fiber laying
Enterprise Core Backbone Interconnection: Build stable 40km 10G high-speed links for cross-branch enterprise private networks
Large Campus & Industrial Park Backbone Networking: Support high-capacity data transmission for park and campus multi-service integration
Idle Dark Fiber Resource Reuse: Activate redundant single-mode fiber to build low-cost medium-distance transmission links
Medium-Distance Wireless Backhaul: Provide reliable 10G bandwidth bearing for remote base station CPRI backhaul services

Connectivity Solutions(Applications)

1.10G CWDM Point-to-Point Single-Fiber Link

2.10G Structured Cabling Connection

Features

1.Premium 10G Performance & Ultra-Low Power

Adopts mature high-density optical technology, controlling power consumption within ≤1W. It maintains stable premium 10G transmission quality while effectively reducing long-term network operation costs.

2.High-Capacity CWDM Multiplexing

Compatible with standard CWDM MUX/DEMUX devices to maximize fiber resource utilization and boost network transmission capacity. Flexible mid-band wavelength layout simplifies overall CWDM network architecture and supports seamless multi-channel stacking.

High-Density Multiplexing Capacity diagram for 1530nm Cisco CWDM 10G SFP+ Transceiver multi-channel metro CWDM system stacking

3.Cost-Effective Medium-Distance Transmission

Features standard wide CWDM wavelength spacing with excellent cost performance, perfectly suited for medium and long-distance transmission scenarios including metropolitan area networks and remote network access links.

4.Multi-Brand Seamless Network Compatibility

Supports flexible EEPROM reconfiguration to adapt to multiple brands of network devices. It delivers outstanding compatibility flexibility, helping integrators optimize stock allocation and control overall procurement costs.

FAQ

Q1: Is HYTOPTODEVICE CWDM-SFP10G-1530-40 fully plug-and-play compatible with Cisco devices?

A1: Yes. The HYTOPTODEVICE CWDM-SFP10G-1530-40 high-band 10G CWDM SFP+ Transceiver delivers native plug-and-play compatibility with all mainstream Cisco switches and routers. Pre-calibrated EEPROM parameters ensure zero system alarms and complete DDM monitoring for stable Cisco ecosystem operation.

Q2: What fiber types and transmission distance does the 1530nm high-band 10G CWDM SFP+ Transceiver support?

A2: This HYTOPTODEVICE 1530nm 10G CWDM SFP+ Transceiver supports stable 40km long-distance transmission. It adopts a standard LC duplex connector and perfectly matches G.652/G.655 single-mode fiber, fully compliant with ITU-T 1530nm high-band CWDM industry standards.

Q3: What core advantages does HYTOPTODEVICE 1530nm 10G CWDM SFP+ Transceiver have over generic modules?

A3: HYTOPTODEVICE 1530nm high-band 10G CWDM SFP+ Transceiver features industrial-grade quality, high-density optical design and ≤1W ultra-low power consumption. Every unit passes full photoelectric calibration testing and supports flexible EEPROM reconfiguration to lower enterprise network operation and inventory costs.

Q4: Can HYTOPTODEVICE customize EEPROM for locked-brand network devices for this 10G CWDM SFP+ Transceiver?

A4: Yes. HYTOPTODEVICE provides professional EEPROM re-flash services for 1530nm 40km 10G CWDM SFP+ Transceiver. We rewrite internal protocol and vendor data to resolve brand locking issues, enabling full authentication and stable operation on Cisco, Huawei, Juniper and other multi-brand devices.

Q5: What networking scenarios is the 1530nm high-band 10G CWDM SFP+ Transceiver suitable for?

A5: This exclusive high-band 10G CWDM SFP+ Transceiver is mainly used for metro core CWDM expansion, enterprise core backbone interconnection, long-distance campus networking, idle dark fiber reuse and medium-distance wireless base station backhaul links.

Q6: Does the 1530nm 10G CWDM SFP+ Transceiver support hot-plug operation?

A6: Yes. HYTOPTODEVICE 1530nm 40km 10G CWDM SFP+ Transceiver fully complies with SFP+ MSA hot-swap standards, supporting safe online hot plug-and-play without network downtime, simplifying core network deployment and daily maintenance.

Q7: What wavelength features does HYTOPTODEVICE’s 1530nm 10G CWDM SFP+ Transceiver have?

A7: HYTOPTODEVICE 1530nm is a core high-band wavelength in the standard 1470–1610nm CWDM spectrum. This high-band 10G CWDM SFP+ Transceiver features accurate wavelength calibration and zero crosstalk, perfectly matching standard CWDM MUX/DEMUX for full-spectrum high-density channel stacking.

Q8: How to configure power margin when deploying 1530nm 10G CWDM SFP+ Transceiver with CWDM MUX/DEMUX?

A8: With a 13dB high power budget, HYTOPTODEVICE 1530nm 10G CWDM SFP+ Transceiver offsets 1.5–3.0dB MUX/DEMUX insertion loss. Reserving an extra 3–5dB safety margin effectively resists long-term fiber aging attenuation and ensures stable 40km high-band transmission.

Q9: What laser solution is equipped on HYTOPTODEVICE 1530nm 40km 10G CWDM SFP+ Transceiver?

A9: HYTOPTODEVICE 1530nm 10G CWDM SFP+ Transceiver adopts industrial low-chirp EML laser. It greatly suppresses chromatic dispersion and signal distortion, realizing error-free 40km stable transmission on G.652/G.655 fiber without dispersion compensation equipment.

Q10: What bulk order advantages does HYTOPTODEVICE provide for 1530nm 10G CWDM SFP+ Transceiver?

A10: As a professional 10G CWDM SFP+ Transceiver manufacturer, HYTOPTODEVICE owns 15+ years of overseas service experience and 150+ global device test platforms. All 1530nm high-band modules pass full pre-shipment testing, supporting bulk customization, mixed wavelength ordering and stable long-term batch supply.

Packaging & Custom OEM Solutions

ESD Protection & Fast Shipping: Every module is sealed in an ESD-safe bag and ready for same-day dispatch from stock.
Custom OEM & Branding: We provide logo printing, private labeling, and custom packaging to help distributors and integrators build their brand—no factory investment required.

Why Network Engineers Choose HYTOPTODEVICE

HYTOPTODEVICE has supplied over 5000,000 optical transceiver modules to data centers, ISPs, and enterprise networks across 100+ countries since 2011. Every module undergoes a 72-hour burn-in test and full DDM/DOM validation before shipment.

Up to 70% cost savings vs OEM, transparent pricing & flexible bulk rates, supported quality returns
100% real-device compatible with Cisco, Huawei,Dell,Juniper, and Arista
ISO 9001:2015 Shenzhen factory, full lineup: 1.25G/10G/25G/40G/100G/200G/400G/800G/1.6T transceivers
Ample stock, fast global DHL/FedEx shipping in 3–5 working days
Free pre-sales engineering support for custom EEPROM & private label firmware
Real switch test videos available for pre-purchase review; inspection & shipping videos provided per order

“Phenomenal performance. We deployed 200 HYTOPTODEVICE SFP modules to replace Cisco OEMs in our backbone network. Result? Zero compatibility issues and a 60% reduction in costs. Highly recommended for mission-critical networks."— Senior Network Engineer, Regional Telecom, Australia

Quality Certification & Compliance

At HYTOPTODEVICE, our quality commitment is backed by industry-standard validations. From fiber optical transceiver manufacturing to final visual inspection, from IQC、IPQC、FQC to OQC, our processes ensure global compliance and reliability.

We adhere to rigorous standards for our SFP modules and network solutions:

ISO 9001: Certified quality management and production consistency.
CE & FCC: Fully compliant for seamless Global Market Access.
RoHS: Committed to environmental responsibility and hazardous material control.
Proven Reliability: Rigorous testing to reduce compliance risk and ensure safety.

Certified Quality. Global Standards. Guaranteed Performance.
